CJ Series

Micro-ATX Chassis

8L Small Form Factor
Efficiently utilizes its 8L compact size to support Micro-ATX form factor motherboard, providing flexibility for integrators.

  • Easy Integration
  • Superior Performance
  • Optimal Thermal Performance
  • Smart Interior Structure Design
  • Tool-Free Drive Bays and PCI-E Slots
  • Standard Flex ATX 265W Power Supply
CJ712

Specifications

Model
MB Form Factor
Case Size
Color
External Drive Bays
Internal Drive Bays
Front Ports
Product Dimensions
(H x W x D)
with Front Panel
Product Dimensions
(H x W x D)
w/o Front Panel
I/O Expansion Slots
Model
Compatibility
Power Supply
Thermal Solution
Safety
Security
Optional
Packing Dimensions
(H x W x D)
Shipping Information
  • CJ712
    Micro-ATX, Mini-ITX
    8L
    S.F.F. Slim Chassis
    (Ultra Small Form Factor)
    • Black
    Slim ODD x 1 (9.5mm Thickness)
    3.5"/2.5" HDD x 1,
    2.5" HDD x 1
    USB 3.0 x 2 + USB 2.0 x 2 (or USB 3.0 x 2),
    HD Audio
    305 x 95 x 276 mm (8L)
    (12” x 3.7” x 10.9”)

    307 x 95 x 290 mm
    (12.1” x 3.7” x 11.4”)
    (with Foot Stand, Clip)
    305 x 95 x 266 mm (7.7L)
    12"x 3.7" x 10.5"
    Low Profile Card Slot x 4
    CJ712
    .Maximum Graphics Card Length / Width: 251 mm / 60.9 mm
    .Maximum CPU Cooler Height: 47 mm (Intel LGA1700)
    Standard Flex ATX 265W
    Front: 80x80x15mm PWM Fan
    (up to 20mm thickness)
    Meets RoHS, CE and FCC Class B Requirements
    Padlock Loop / Kensington Slot
    ‧Partition Plate Cooling Technology (PPCT) Cage
    ‧ Type-C 3.2 Gen 2 x 2 (20Gbps)
    ‧ Card Reader
    ‧ Internal Speaker
    ‧ Chassis Intrusion Switch
    337 x 361 x 148 mm
    (13.3” x 14.2” x 5.8”)
    Single Packing:
    -20’: 1,588, 40’: 3,231, 40’ H: 3,717
    Single Packing + Pallets:
    -20’: 1,260, 40’: 2,772, 40’ H: 3,234
  • CJ708
    Micro-ATX, Mini-ITX
    8L
    S.F.F. Slim Chassis
    (Ultra Small Form Factor)
    • Black
    Slim ODD x 1 (9.5mm Thickness)
    3.5"/2.5" HDD x 1,
    2.5" HDD x 1
    USB 3.0 x 2 + USB 2.0 x 2 (or USB 3.0 x 2),
    HD Audio
    305 x 95 x 276 mm (8L)
    (12” x 3.7” x 10.9”)

    307 x 95 x 290 mm
    (12.1” x 3.7” x 11.4”)
    (with Foot Stand, Clip)
    305 x 95 x 266 mm (7.7L)
    12"x 3.7" x 10.5"
    Low Profile Card Slot x 4
    CJ708
    .Maximum Graphics Card Length / Width: 251 mm / 60.9 mm
    .Maximum CPU Cooler Height: 47 mm (Intel LGA1700)
    Standard Flex ATX 265W
    Front: 80x80x15mm PWM Fan
    (up to 20mm thickness)
    Meets RoHS, CE and FCC Class B Requirements
    Padlock Loop / Kensington Slot
    ‧Partition Plate Cooling Technology (PPCT) Cage
    ‧ Type-C 3.2 Gen 2 x 2 (20Gbps)
    ‧ Card Reader
    ‧ Internal Speaker
    ‧ Chassis Intrusion Switch
    337 x 361 x 148 mm
    (13.3” x 14.2” x 5.8”)
    Single Packing:
    -20’: 1,588, 40’: 3,231, 40’ H: 3,717
    Single Packing + Pallets:
    -20’: 1,260, 40’: 2,772, 40’ H: 3,234
* The actual product is subject to change without prior notice. In Win Development Inc. reserves the right to make final modifications.

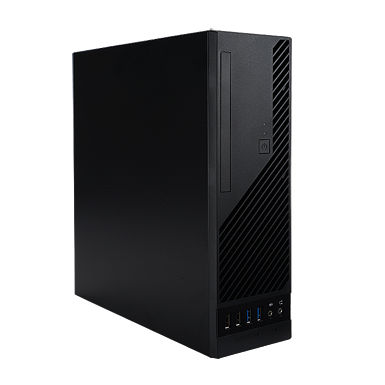

CJ712

8L Small Form Factor Chassis

With its minimalist design and sleek exterior, the CJ Series fuses itself within any environment. Living room, home office, or corporate cubicle, it easily blends into anywhere with its compact size.

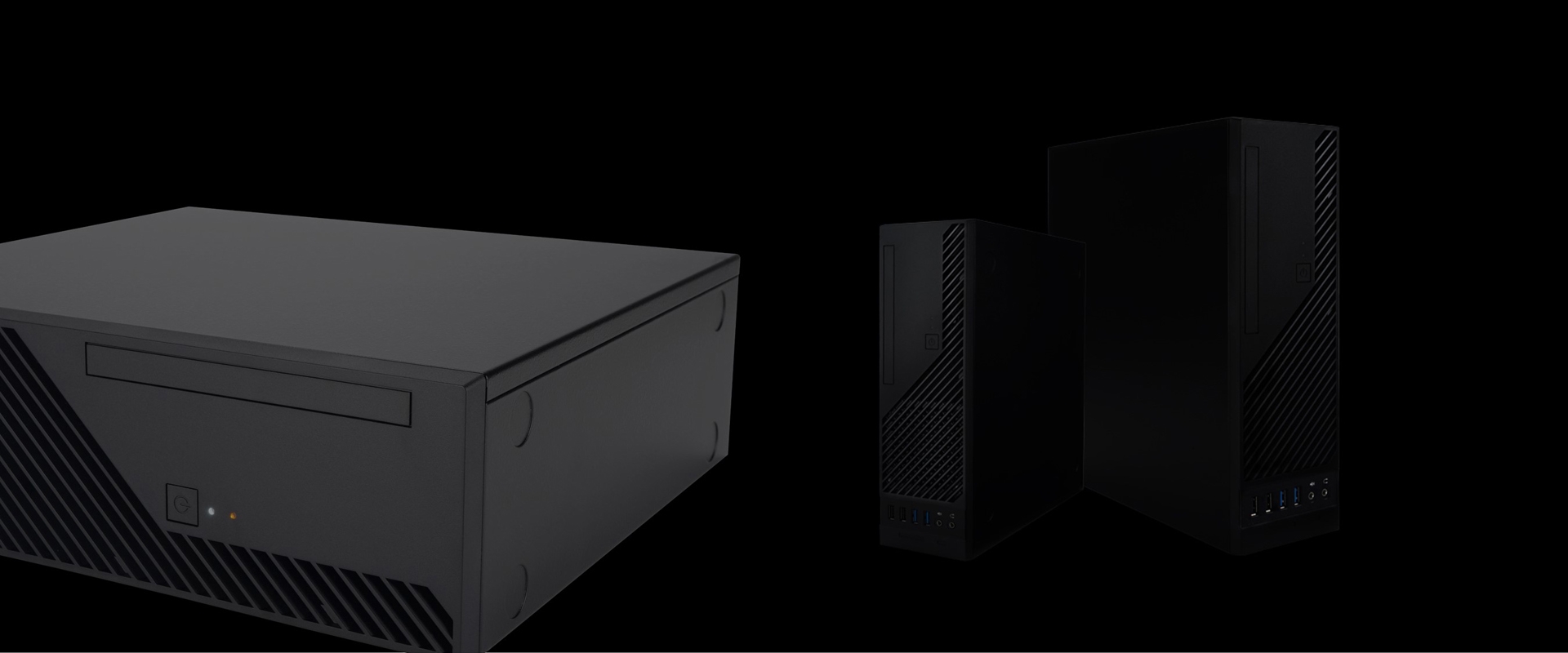

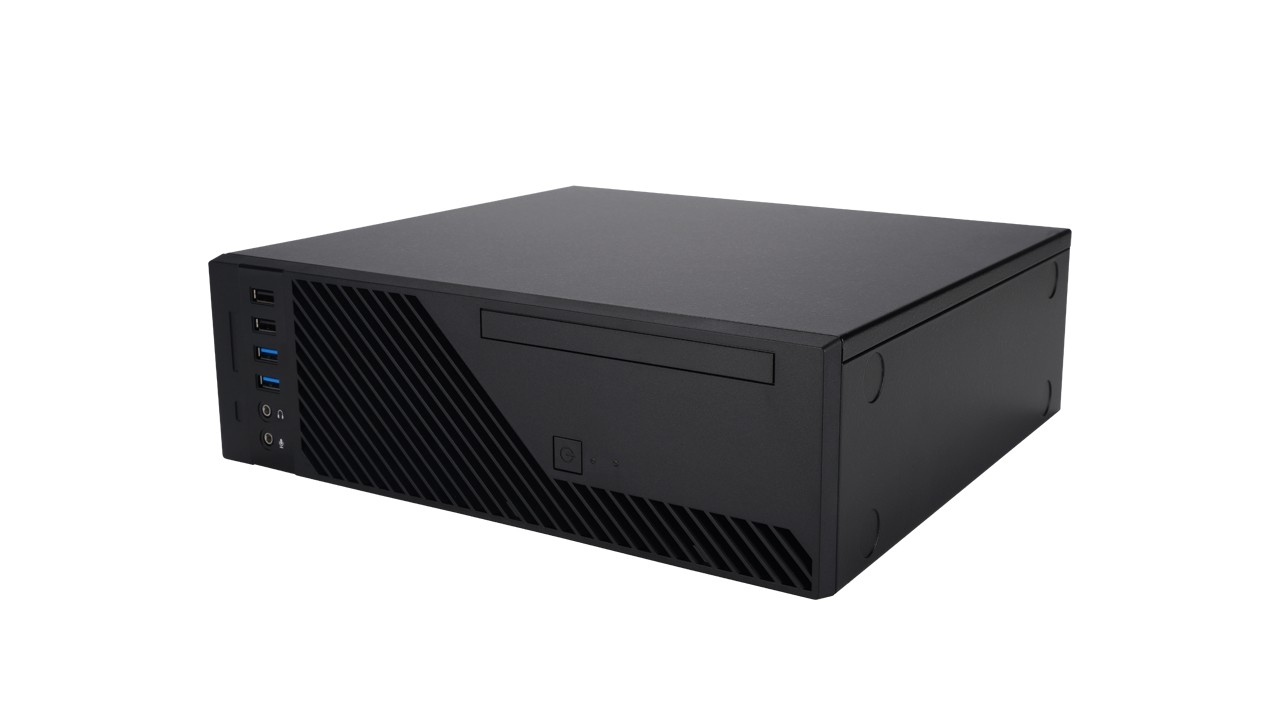

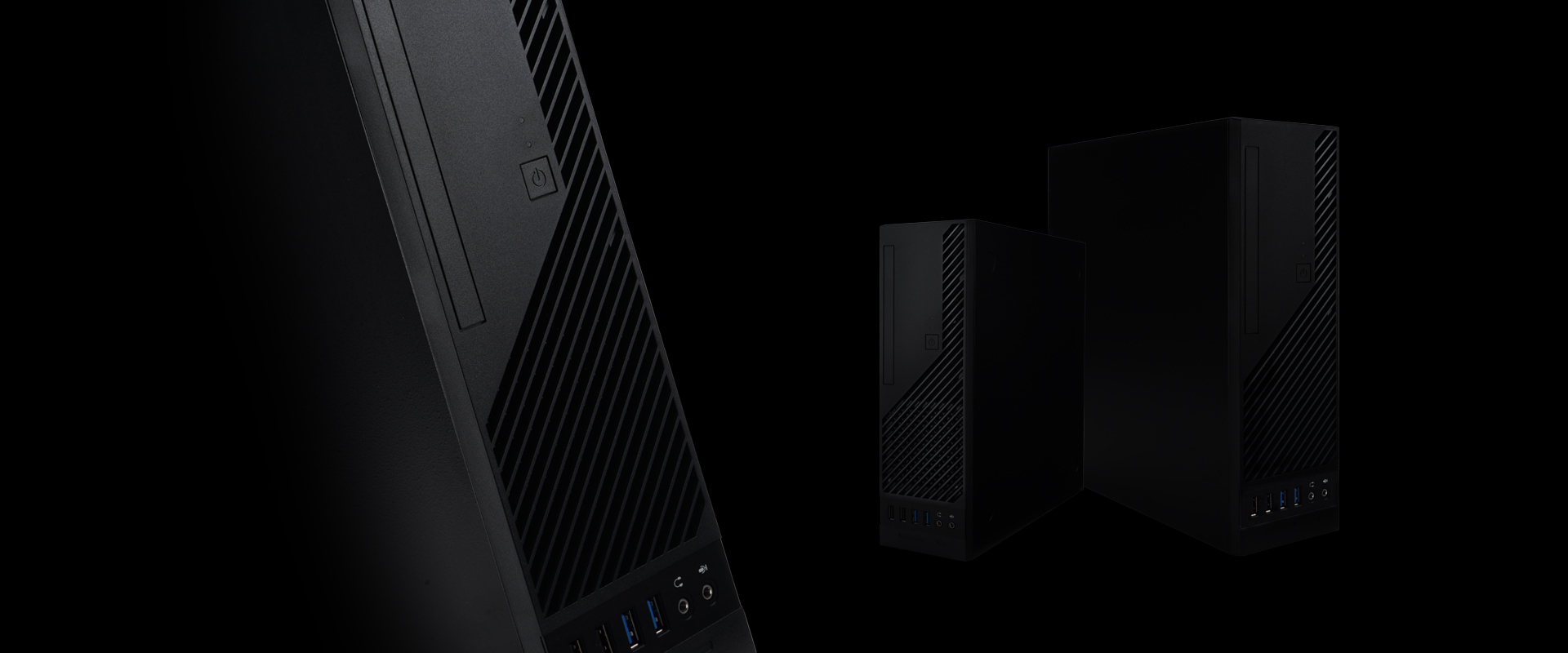

Placement in both Vertical or Horizontal stance.

‧ 80mm PWM Cooling Fan




Gallery

CJ712

Specifications

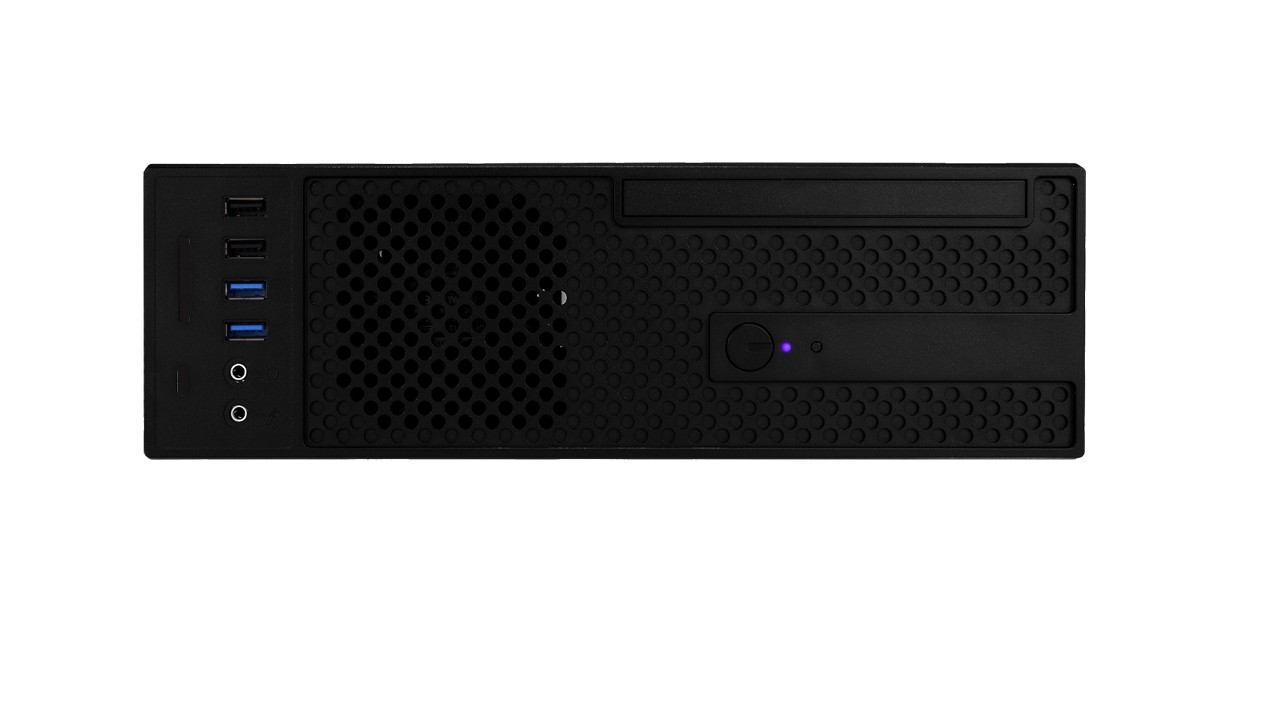

CJ708

8L Small Form Factor Chassis

With its minimalist design and sleek exterior, the CJ Series fuses itself within any environment. Living room, home office, or corporate cubicle, it easily blends into anywhere with its compact size.

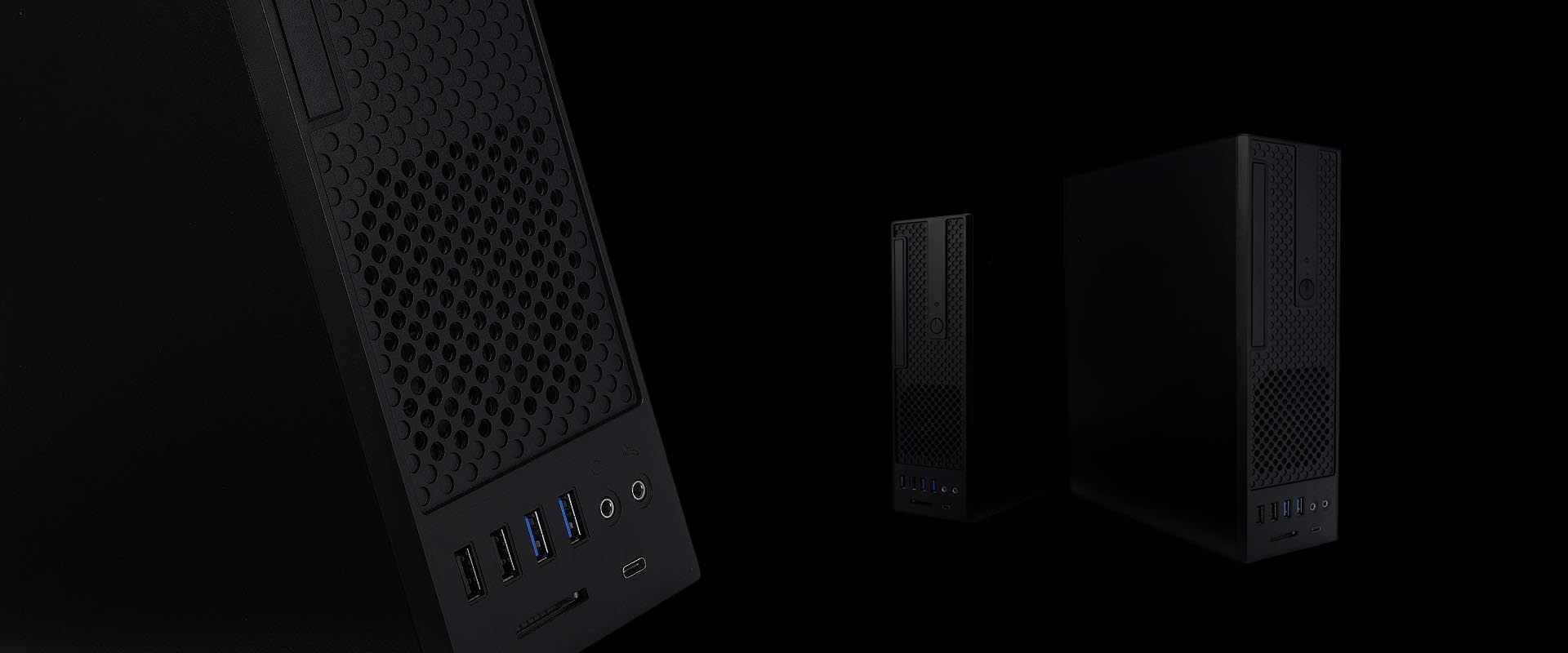

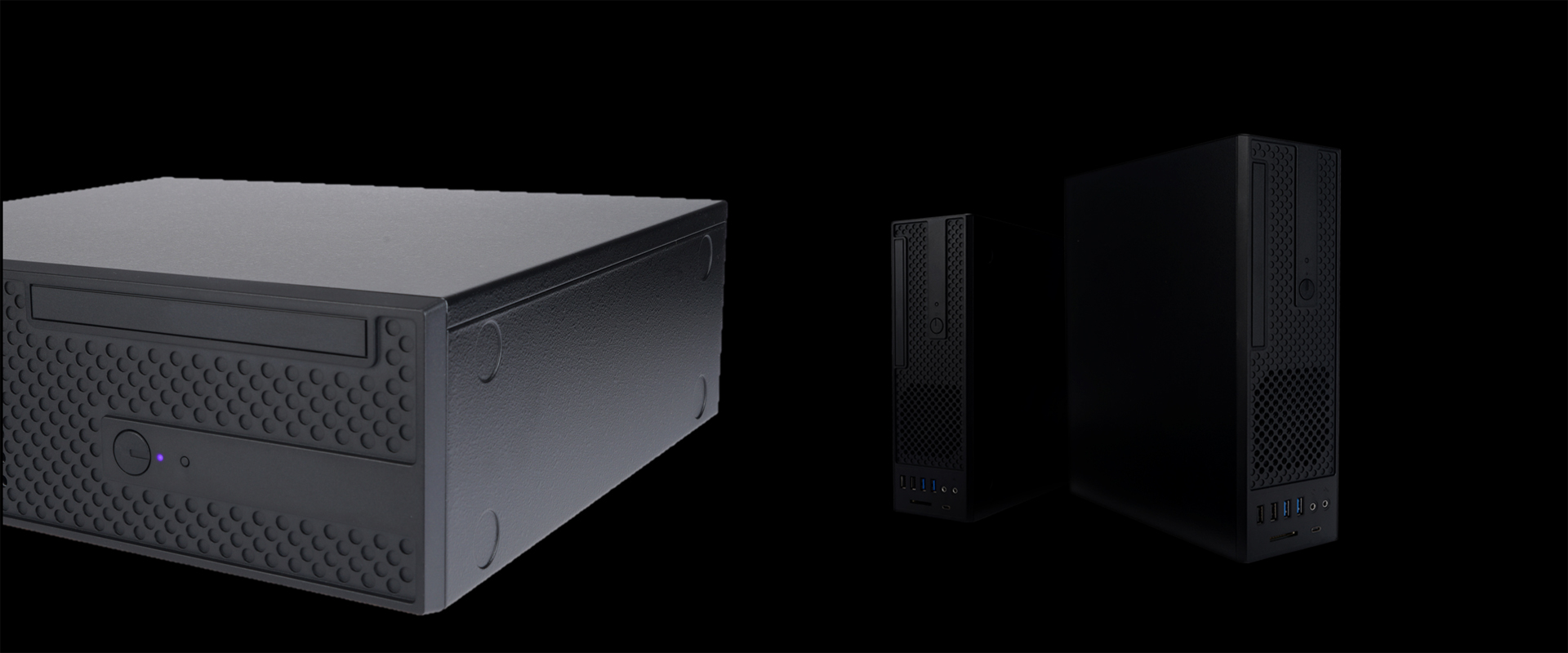

Placement in both Vertical or Horizontal stance.

‧ 80mm PWM Cooling Fan




Gallery

CJ708

Specifications

Superior Performance

The CJ Series is just 8L in volume, but it accommodates a slim ODD, 3.5”/2.5” HDD, 2.5” HDD, four low-profile PCI cards, and even one card reader! It offers exceptional flexibility and scalability for enhanced multi-function applications!

Highly Expandable

Supports USB 3.0, USB 2.0, Type-C and card reader ports at the front for multiple device connections.

Advanced Thermal Solution

Hosts an 80mm case fan with plenty of ventilation providing exceptional cooling performance.

Detachable Drive Cage

The removable drive cage features a slim ODD, 3.5” and 2.5” HDD tool-free bays for easy installation.

Quick Top Cover Eject Clip

A switch releases the top cover for faster system assembly or maintenance.

Supports Micro-ATX Motherboard

Efficiently utilizes its compact size to support Micro-ATX form factor motherboard, providing flexibility for integrators.

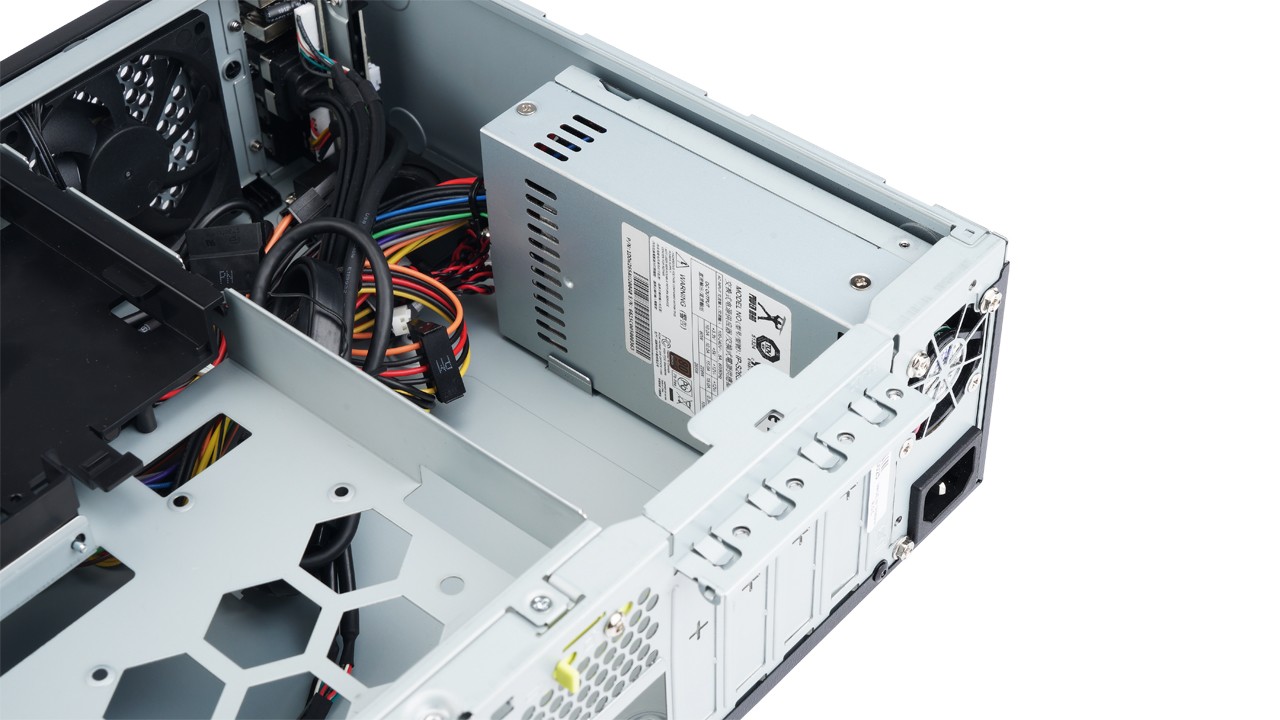

Standard Flex ATX 265W Power Supply

Includes a built-in a Flex ATX 265W power supply. Its slim size with standby low power consumption and fan speed control for a better computing experience.

Tool-Free

‧ Screw-less Slim ODD Bay

‧ Screw-less 3.5” HDD Bay

‧ Screw-less 2.5” HDD Bay

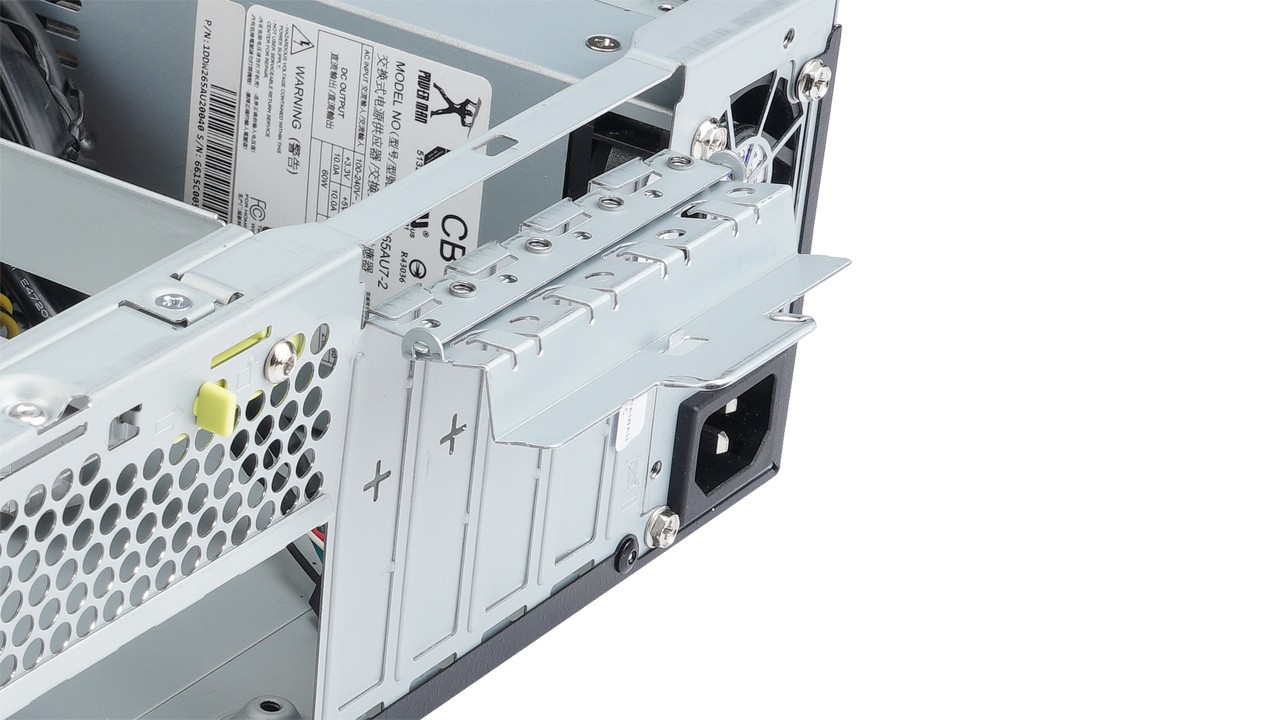

‧ Screw-less PCI-E Slot Clips

‧ Quick Top Cover Eject Clip

Internal Drive Bays

‧ Internal 3.5” or 2.5” x 1

‧ Internal 2.5” x 1

Front Ports

‧ USB 3.0 x 2 + USB 2.0 x 2
‧ HD Audio
‧ Optional Type-C 3.2 Gen 2 x 2 (20Gbps)
‧ Optional Card Reader x 1

‧ USB 3.0 x 2
‧ HD Audio

Excellent Thermal Solution

• 80x80x15 mm System Fan (Up to 20 mm thickness)

Optional Partition Plate Cooling Technology (PPCT) Cage

The PPCT cage includes an air duct, which keeps the chassis from overheating while enhancing the airflow of the entire system. Improve your system's cooling even in a compact SFF enclosure.

• Adjustable PPCT accommodates various motherboard configurations, preventing heat reflux and delivering optimal cooling performance.

• Removable Air Duct

• Enlarged Vent

• Adjustable Position

*The mylar is customized according to the CPU location.

Optional

• Internal Speaker

• Security Screw with Keylock
Features a universal anti-theft design suitable for various computer cases, allowing for easy installation.

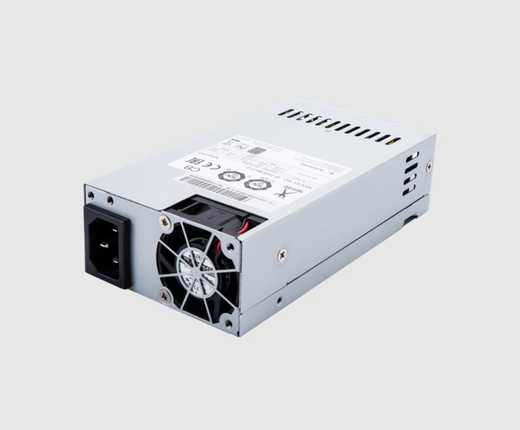

Recommended Power Supply
