CK Series

Micro-ATX Chassis

9L Small Form Factor
Efficiently utilizes its 9L compact size to support Micro-ATX form factor motherboard, providing flexibility for integrators.

• Easy Integration
• Superior Performance
• Optimal Thermal Performance
• Smart Interior Structure Design
• Tool-Free Drive Bays and PCI-E Slots
• Standard TFX 12V 300W Power Supply



CK722

Specifications

Model
MB Form Factor
Case Size
Color
External Drive Bays
Internal Drive Bays
Front Ports
Product Dimensions
(H x W x D)
with Front Panel
Product Dimensions
(H x W x D)
w/o Front Panel
I/O Expansion Slots
Model
Compatibility
Power Supply
Thermal Solution
Safety
Security
Optional
Packing Dimensions
(H x W x D)
Shipping Information
  • CK722
    Micro-ATX, Mini-ITX
    9L
    S.F.F. Slim Chassis
    (Ultra Small Form Factor)
    • Black
    Slim ODD x 1 (9.5mm Thickness)
    3.5"/2.5" HDD x 1,
    2.5" HDD x 1
    USB 3.0 x 2 + USB 2.0 x 2 (or USB 3.0 x 2),
    HD Audio
    327 x 95 x 283 mm (8.8L)
    (12.9” x 3.7” x 11.1”)

    329 x 95 x 297 mm
    (13” x 3.7” x 11.7”)
    (with Foot Stand, Clip)
    327 x 95 x 266 mm (8.3L)
    12.9"x 3.7" x 10.5"
    Low Profile Card Slot x 4
    CK722
    .Maximum Graphics Card Length / Width: 251 mm / 60.9 mm
    .Maximum CPU Cooler Height: 47 mm (Intel LGA1700)
    Standard TFX 12V, 300W
    Front: 80x80x15 mm PWM Fan
    (up to 20 mm thickness)
    Meets RoHS, CE and FCC Class B Requirements
    Padlock Loop / Kensington Slot
    ‧Partition Plate Cooling Technology (PPCT) Cage
    ‧Ventilated Side Panels
    ‧Type-C 3.2 Gen 2 x 2 (20Gbps)
    ‧Card Reader
    ‧Internal Speaker
    ‧Chassis Intrusion Switch
    338 x 383 x 148 mm
    (13.3” x 15.1” x 5.8”)
    Single Packing:
    -20’: 1,638, 40’: 3,297, 40’ H: 3,171
    Single Packing + Pallets:
    -20’: 1,260, 40’: 2,520, 40’ H: 2,940
  • CK709
    Micro-ATX, Mini-ITX
    9L
    S.F.F. Slim Chassis
    (Ultra Small Form Factor)
    • Black
    Slim ODD x 1 (9.5mm Thickness)
    3.5"/2.5" HDD x 1,
    2.5" HDD x 1
    USB 3.0 x 2 + USB 2.0 x 2 (or USB 3.0 x 2),
    HD Audio
    327 x 95 x 283 mm (8.8L)
    (12.9” x 3.7” x 11.1”)

    329 x 95 x 297 mm
    (13” x 3.7” x 11.7”)
    (with Foot Stand, Clip)
    327 x 95 x 266 mm (8.3L)
    12.9"x 3.7" x 10.5"
    Low Profile Card Slot x 4
    CK709
    .Maximum Graphics Card Length / Width: 251 mm / 60.9 mm
    .Maximum CPU Cooler Height: 47 mm (Intel LGA1700)
    Standard TFX 12V, 300W
    Front: 80x80x15 mm PWM Fan
    (up to 20 mm thickness)
    Meets RoHS, CE and FCC Class B Requirements
    Padlock Loop / Kensington Slot
    ‧Partition Plate Cooling Technology (PPCT) Cage
    ‧Ventilated Side Panels
    ‧Type-C 3.2 Gen 2 x 2 (20Gbps)
    ‧Card Reader
    ‧Internal Speaker
    ‧Chassis Intrusion Switch
    338 x 383 x 148 mm
    (13.3” x 15.1” x 5.8”)
    Single Packing:
    -20’: 1,638, 40’: 3,297, 40’ H: 3,171
    Single Packing + Pallets:
    -20’: 1,260, 40’: 2,520, 40’ H: 2,940
* The actual product is subject to change without prior notice. In Win Development Inc. reserves the right to make final modifications.

CK722

9L Small Form Factor Chassis

With its minimalist design and sleek exterior, the CK Series fuses itself within any environment. Living room, home office, or corporate cubicle, it easily blends into anywhere with its compact size.

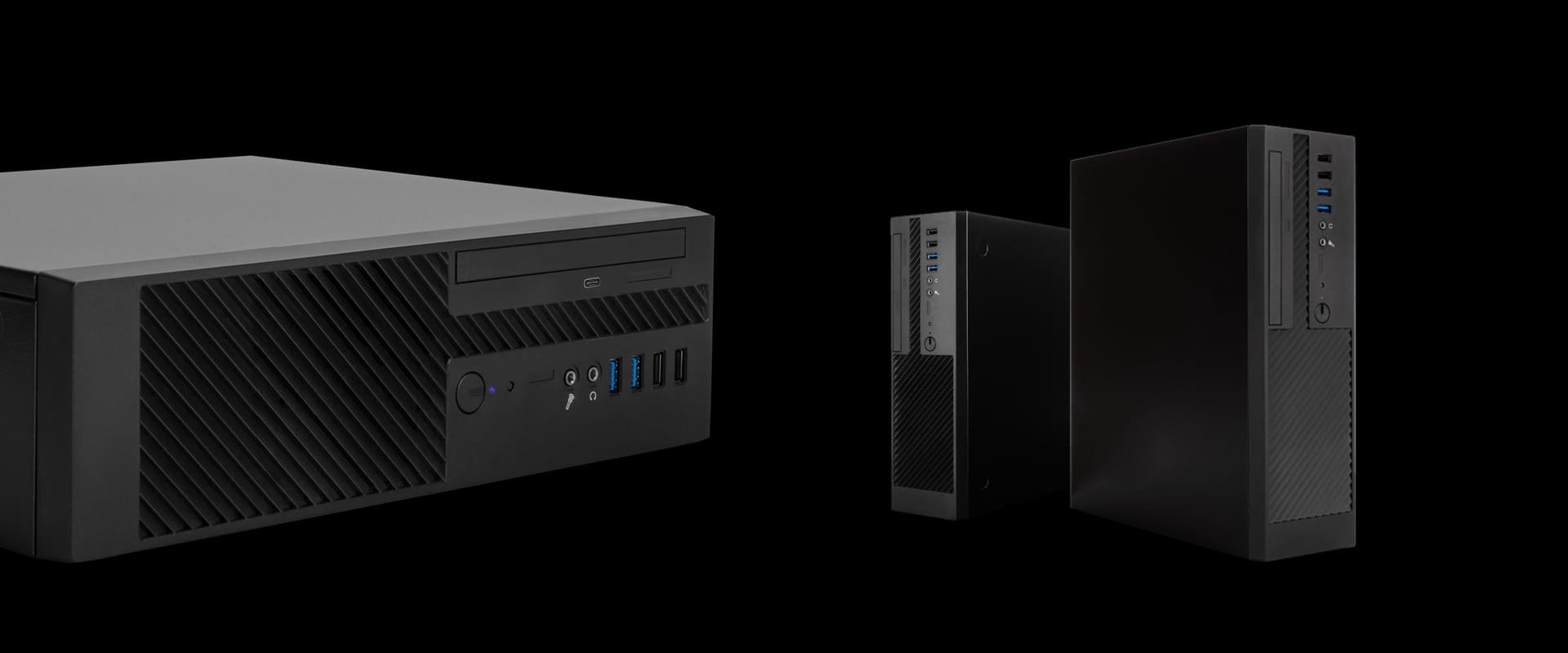

Placement in both Vertical or Horizontal stance.

‧ 80mm PWM Cooling Fan




Gallery

CK722

Specifications

CK709

9L Small Form Factor Chassis

With its minimalist design and sleek exterior, the CK Series fuses itself within any environment. Living room, home office, or corporate cubicle, it easily blends into anywhere with its compact size.

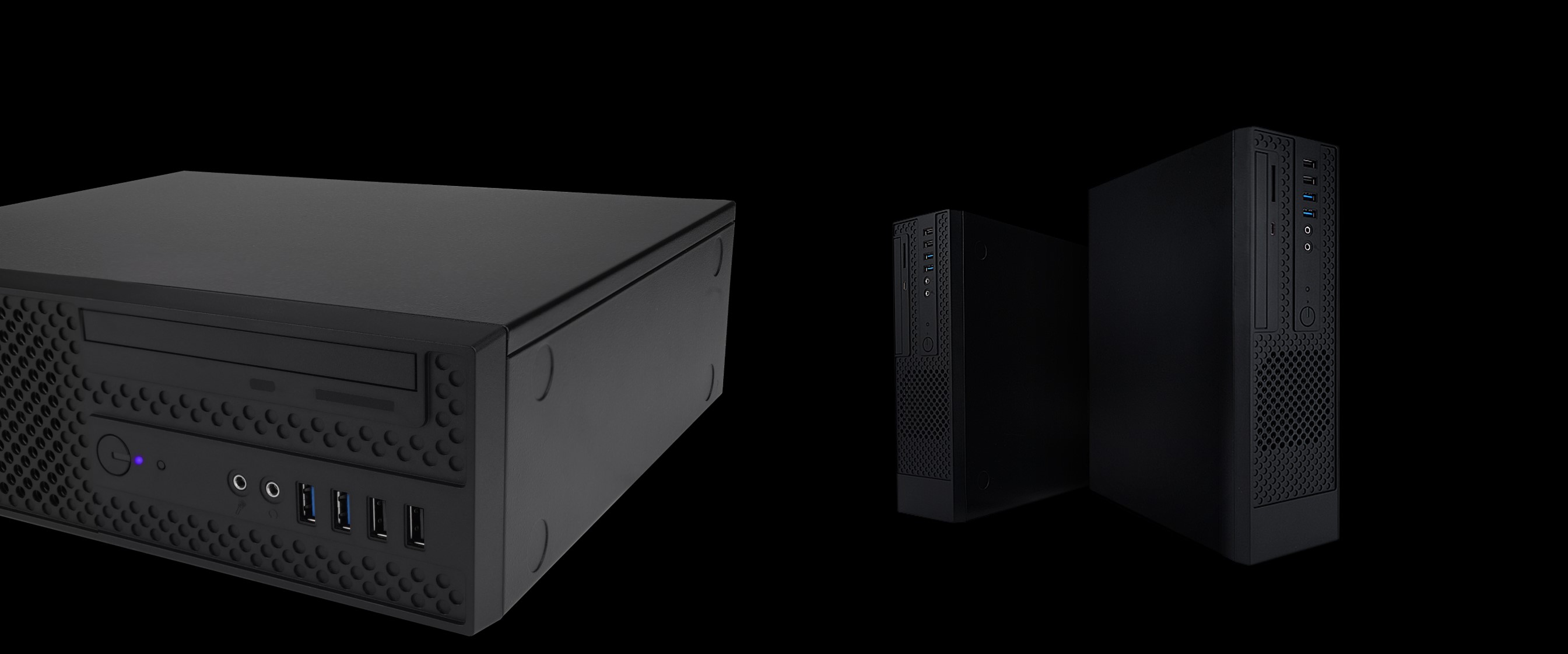

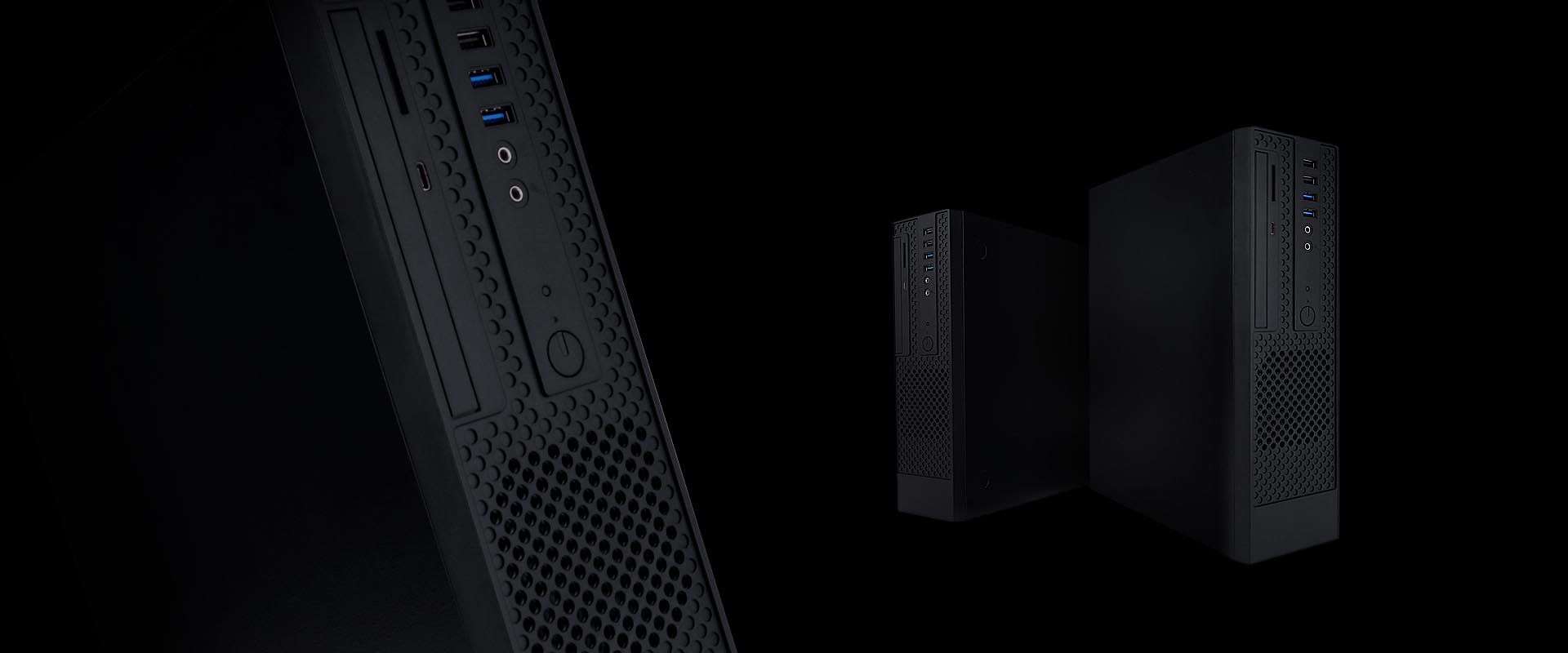

Placement in both Vertical or Horizontal stance.

‧ 80mm PWM Cooling Fan




Gallery

CK709

Specifications

Superior Performance

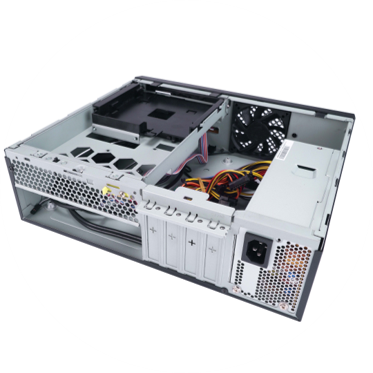

The CK Series is just 9L in volume, but it accommodates a slim ODD, 3.5”/2.5” HDD, 2.5” HDD, four low-profile PCI cards, and even one card reader! It offers exceptional flexibility and scalability for enhanced multi-function applications!

Highly Expandable

Supports USB 3.0, USB 2.0, Type-C and card reader ports at the front for multiple device connections.

Advanced Thermal Solution

Hosts an 80mm PWM fan with plenty of ventilation providing exceptional cooling performance.

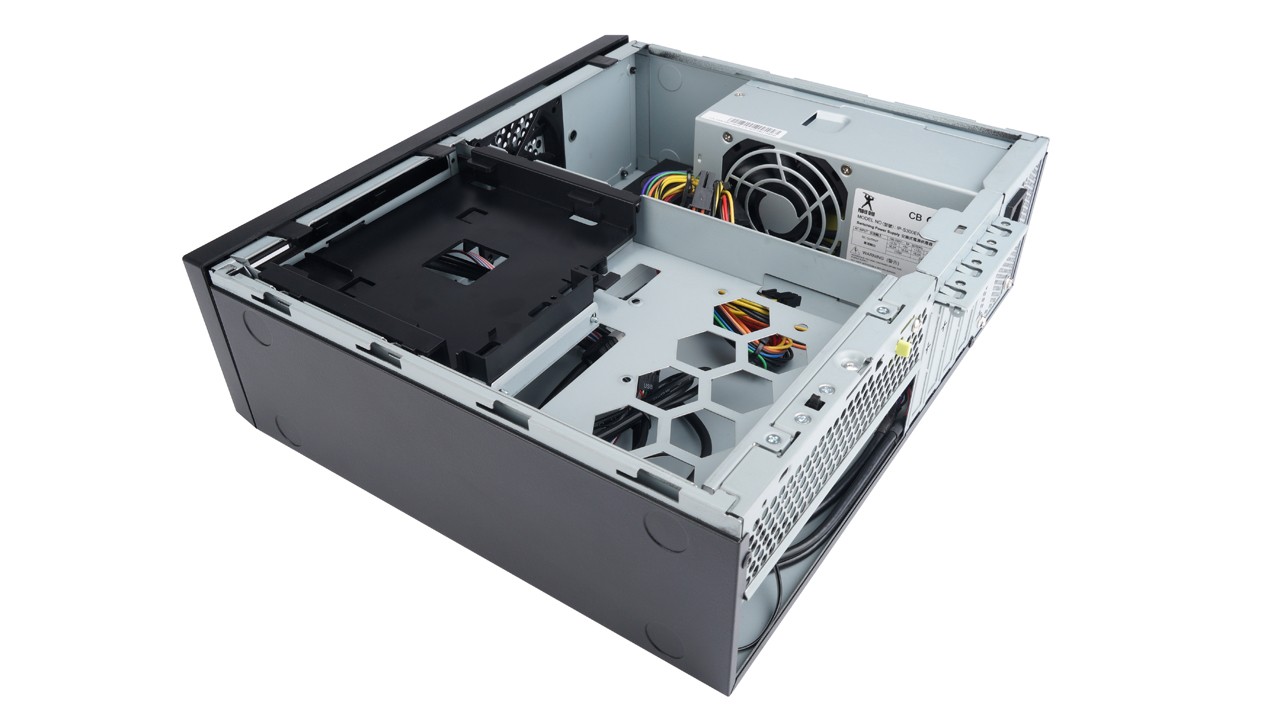

Detachable Drive Cage

The removable drive cage features a slim ODD, 3.5” and 2.5” HDD tool-free bays for easy installation.

Quick Top Cover Eject Clip

A switch releases the top cover for faster system assembly or maintenance.

Supports Micro-ATX Motherboard

Efficiently utilizes its compact size to support Micro-ATX form factor motherboard, providing flexibility for integrators.

Standard TFX 12V 300W Power Supply

Internal TFX 300W power supply equipped with standby low power consumption and fan speed control for a quieter and more efficient operation.

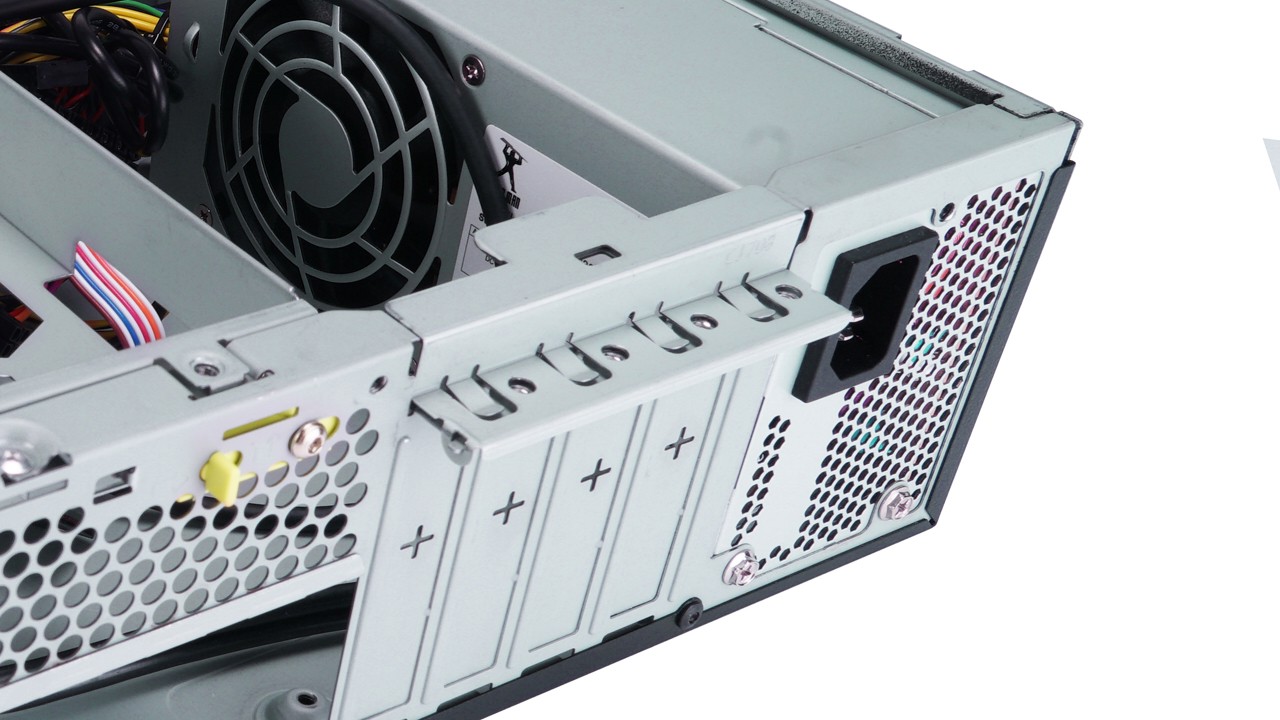

Tool-Free

‧ Screw-less Slim ODD Bay

‧ Screw-less 3.5” HDD Bay

‧ Screw-less 2.5” HDD Bay

‧ Screw-less PCI-E Slot Clips

‧ Quick Top Cover Eject Clip

Drive Bays

. External Slim ODD Bay x 1

. Internal 3.5" x 1 or 2.5" x 1

. Internal 2.5" x 1

Front Ports

‧ USB 3.0 x 2 + USB 2.0 x 2
‧ HD Audio
‧ Optional Type-C 3.2 Gen 2 x 2 (20Gbps)
‧ Optional Card Reader x 1

‧ USB 3.0 x 2
‧ HD Audio

Excellent Thermal Solution

• 80x80x15 mm System Fan (Up to 20 mm thickness)

• Optional Ventilated Side Panels

Optional Partition Plate Cooling Technology (PPCT) Cage

The PPCT cage includes an air duct, which keeps the chassis from overheating while enhancing the airflow of the entire system. Improve your system's cooling even in a compact SFF enclosure.

• Adjustable PPCT accommodates various motherboard configurations, preventing heat reflux and delivering optimal cooling performance.

• Removable Air Duct

• Enlarged Vent

• Adjustable Position

*The mylar is customized according to the CPU location.

Optional

• Internal Speaker

• Security Screw with Keylock
Features a universal anti-theft design suitable for various computer cases, allowing for easy installation.
