C Series

ATX Mid Tower Chassis

  • Tool-Free Installation and Easy Maintenance
  • Best Performed SECC Japanese Steel Metal
  • Swiveled HDD Cage
  • Excellent Thermal Solution

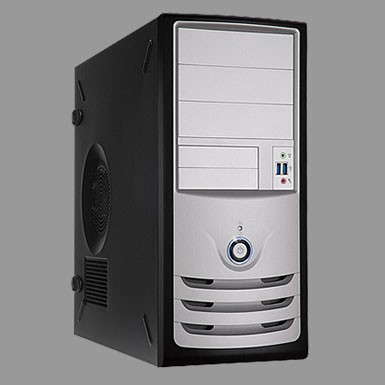

C589

Specifications

Model
MB Form Factor
Case Size
Color
External Drive Bays
Internal Drive Bays
Front Ports
Product Dimensions
(H x W x D)
with Front Panel
Product Dimensions
(H x W x D)
w/o Front Panel
I/O Expansion Slots
Model
Compatibility
Power Supply
Thermal Solution
Safety
Security
Optional
Packing Dimensions
(H x W x D)
Shipping Information
  • C589
    ATX, MicroATX
    35L
    Mid Tower Chassis
    • Black / Silver
    • Black
    • White
    5.25" x 3, 3.5" x 2
    3.5" x 3, 2.5” x 1
    USB 2.0 x 2 (or USB 3.0 x 2),
    HD Audio
    421 x 202 x 481 mm
    16.6” x 8” x 18.9”
    423 x 190 x 435 mm (35L)
    16.7" x 7.5" x 17.1"
    PCI-E Expansion Slot x 7
    C589
    ．Maximum Graphics Card Length / Width: 242 mm / 162 mm
    ．Maximum CPU Cooler Height: 155 mm
    ATX 12V Form Factor,
    PSⅡ Size
    ．Intel Certified TAC 2.0
    ．Supports 90 or 120mm Rear Fan
    Meets RoHS, CE and FCC Class B Requirements
    Padlock Loop / Kensington Slot
    ．3.5" to 2.5" HDD/SSD Bracket
    ．90mm or 120mm Rear Fan
    ．Vortex Air Duct
    ．USB 3.0 x 2
    ．eSATA
    ．IEEE 1394
    ．Chassis Intrusion Switch
    520 x 487 x 225 mm
    (20.5” x 19.2” x 8.9”)
    Single Packing:
    -20’: 528, 40’: 1,070, 40’ H: 1,220
    Single Packing + Pallets:
    -20’: 400, 40’: 880, 40’ H: 1,056
  • C583
    ATX, Micro-ATX
    35L
    Mini Tower Chassis
    • Black / Silver
    • White / Sliver
    5.25" x 3, 3.5" x 2
    3.5" x 3, 2.5” x 1
    USB 2.0 x 2 (or USB 3.0 x 2),
    HD Audio
    421 x 202 x 476 mm
    16.6” x 8” x 18.7”
    423 x 190 x 435 mm (35L)
    16.7" x 7.5" x 17.1"
    PCI-E Expansion Slot x 7
    C583
    ．Maximum Graphics Card Length / Width: 242 mm / 162 mm
    ．Maximum CPU Cooler Height: 155 mm
    ATX 12V Form Factor,
    PSⅡ Size
    ．Intel Certified TAC 2.0
    ．Supports 90 or 120mm Rear Fan
    Meets RoHS, CE and FCC Class B Requirements
    Padlock Loop / Kensington Slot
    ．3.5" to 2.5" HDD/SSD Bracket
    ．90mm or 120mm Rear Fan
    ．Vortex Air Duct
    ．USB 3.0 x 2
    ．eSATA
    ．IEEE 1394
    ．Chassis Intrusion Switch
    520 x 487 x 225 mm
    (20.5” x 19.2” x 8.9”)
    Single Packing:
    -20’: 528, 40’: 1,070, 40’ H: 1,220
    Single Packing + Pallets:
    -20’: 400, 40’: 880, 40’ H: 1,056
* The actual product is subject to change without prior notice. In Win Development Inc. reserves the right to make final modifications.

  • C589

  • C583

C589

Best Performed SECC Japanese Steel Metal

0.8 mm sheet metal construction for better stability & durability.




Gallery

C589

Specifications

C583

Best Performed SECC Japanese Steel Metal

0.8 mm sheet metal construction for better stability & durability.





Gallery

C583

Specifications

Tool-Free Installation and Easy Maintenance

Tool-free front panel, drive bays and I/O slots.

Configured 9 Drive Bays

5.25” x 3, 3.5” x 4, 2.5” x 1 drive bays for expandability of future upgrade.

Swiveled HDD Cage

Side Panel Clips

The patented tool free installation side panel clips.

Folded Edge

No sharp edges, debris for safety installation.

Stamped Motherboard Support

Easy MB installation. No MB standoff required.

Tool-Free

．Screwless Front Panel

．Screwless Side Panels

．Screwless 5.25" Drive Bay

．Screwless 3.5" Drive Bay

．Swiveled HDD Drive Cage

．Screwless PCI-E Expansion Slots

Drive Bays

External 5.25” Drive Bay x 3, 3.5” x 2

Internal 3.5” Drive Bay x 3, 2.5” x 1

Excellent Thermal Solution

Intel Certificated TAC 2.0
Qualified for TAC 2.0, a mass ventilation hole side panel design strengthens thermal efficiency and cools down the entire system.

Optional 90mm / 120mm Rear Fan

Optional Vortex Air Duct

Front Ports

．USB 2.0 x 2
．HD Audio
．Optional USB 3.0 x 2

Optional

．eSATA ．1394 (FireWire) x 1 - type A or B

3.5” to 2.5” HDD/SSD Bracket
Supports 2.5”x 2

Optional 60 mm Fan x 1
(60 x 60 x 10 mm, 2500rpm, 20dB Fan, 4 Pin Power Connector)

Recommended Power Supply
