Lynx LN120

Taiwan Patent: M656022

Taiwan Patent: M656022

Go cable free with Lynx! Say goodbye to cable clutter. InWin presents the Lynx Series modular cooling fan. Crafted for an effortless experience, just one cable connecting to the motherboard. Simplify your PC setup!

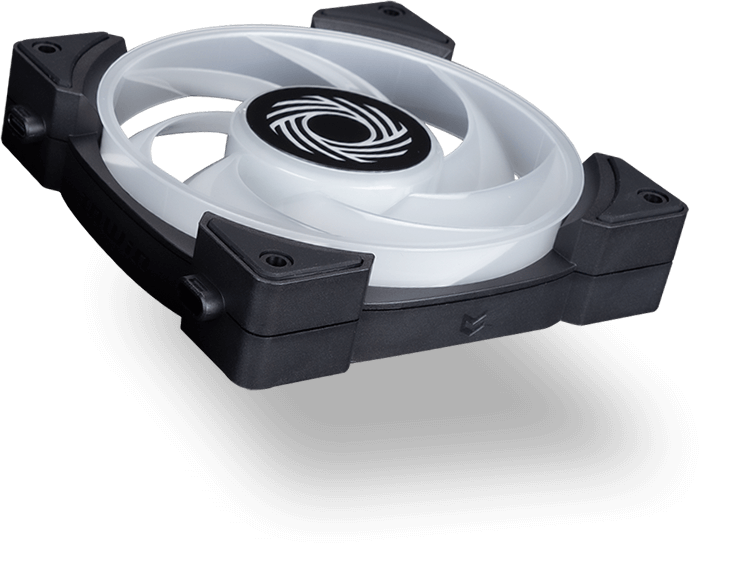

Modular Fan Connection Design

Linkable Type-C Fans

The simplified Lynx modular, linkable case fans connect via Type-C side-by-side linking. It's that easy.

Passed Strict Testing

Lynx's acoustic ingenuity is achieved through optimizing blade angles for ideal noise reduction, demonstrating as InWin's quietest case fan.

* LN120/LN120P: 28 mm thick; LN140/LN140P: 25 mm thick

Absolute Tranquility

Lynx brings serenity to the PC, boasting a whisper-quiet performance of just 25.5 dB(A) at maximum speed.(LN120/LN120P)

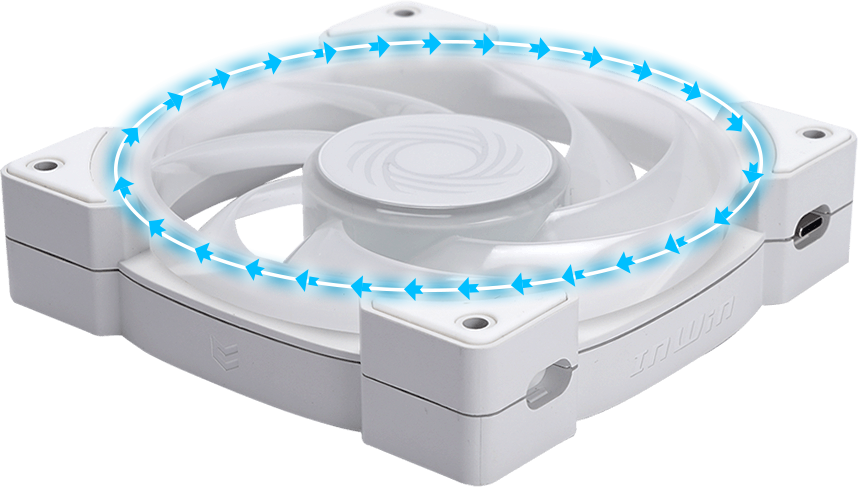

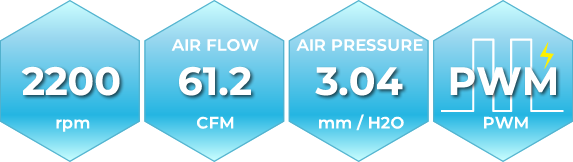

Turbine Blade Design

Experience quiet cooling and efficient airflow with InWin’s signature Turbine Blade Design. Molding the fan blades into the frame creates a more concentrated airflow, preventing air leakage and irritating noise pollution.

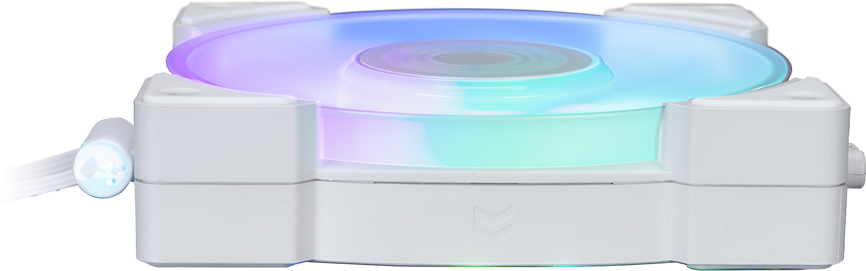

See the RGB

Lynx’s fan blades emerge from the frame, creating a unique ARGB lighting effect that offers stunning views of the lights from multiple angles.

The cable allows for flexible installation with a reversible plug, and features an LED InWin logo for easy identification within the case.

* The Type-C cable is only for use with Lynx. Please do not connect it to other devices.

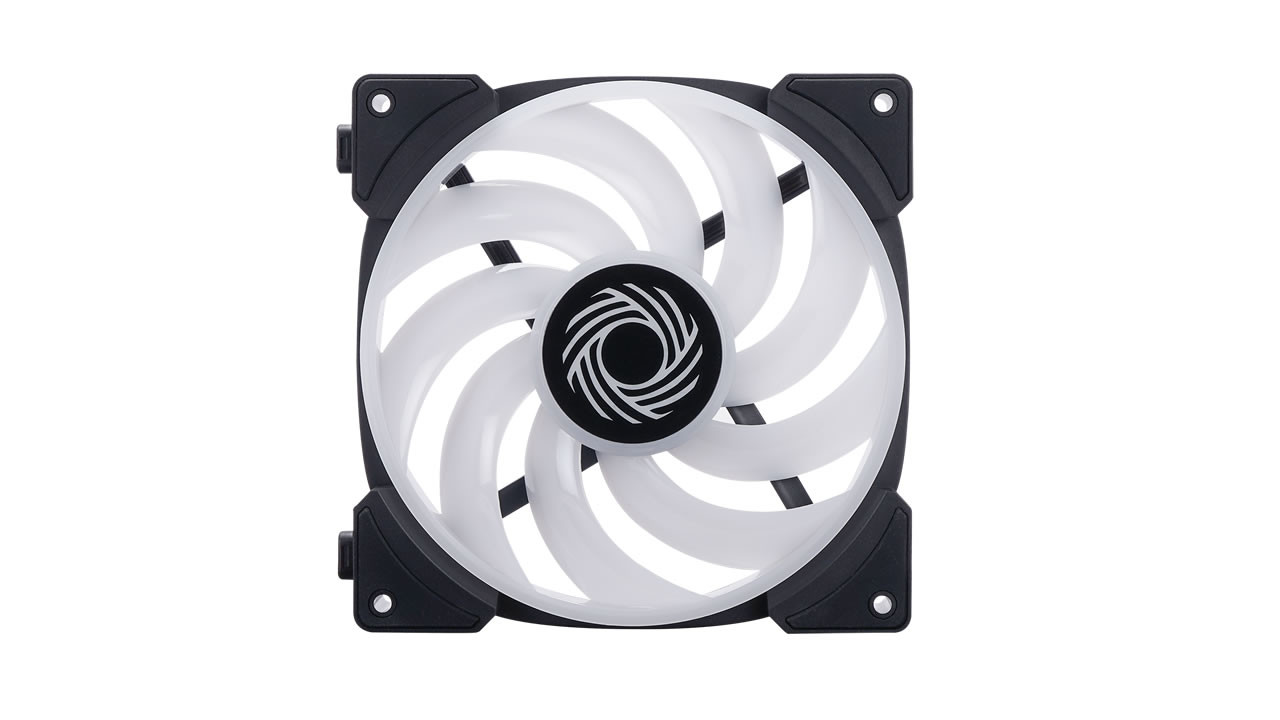

Optical Illusion

The central hub possesses a captivating optical illusion. Dare to stare in Lynx’s eyes?!

Lynx Series Cable Information

PWM Fan Cable LN120 / LN140
LN120P / LN140P

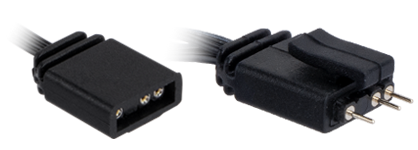

ARGB Cable LN120 / LN140
LN120P / LN140P

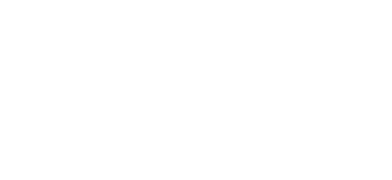

PWM Fan & ARGB Extension Cable LN120 / LN140
LN120P / LN140P

Specifications

Model Lynx LN120 Lynx LN120P Lynx LN140 Lynx LN140P
Quantity Included Triple Pack
Model Number IW-FN-LN120-3PK IW-FN-LN120P-3PK IW-FN-LN140-3PK IW-FN-LN140P-3PK
Colors Black White Black White

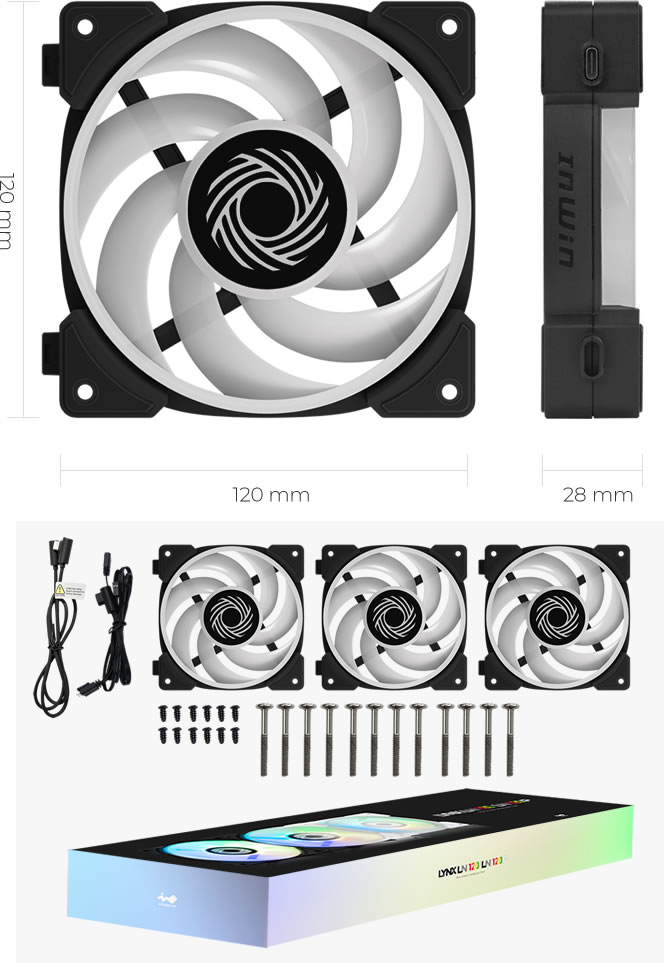

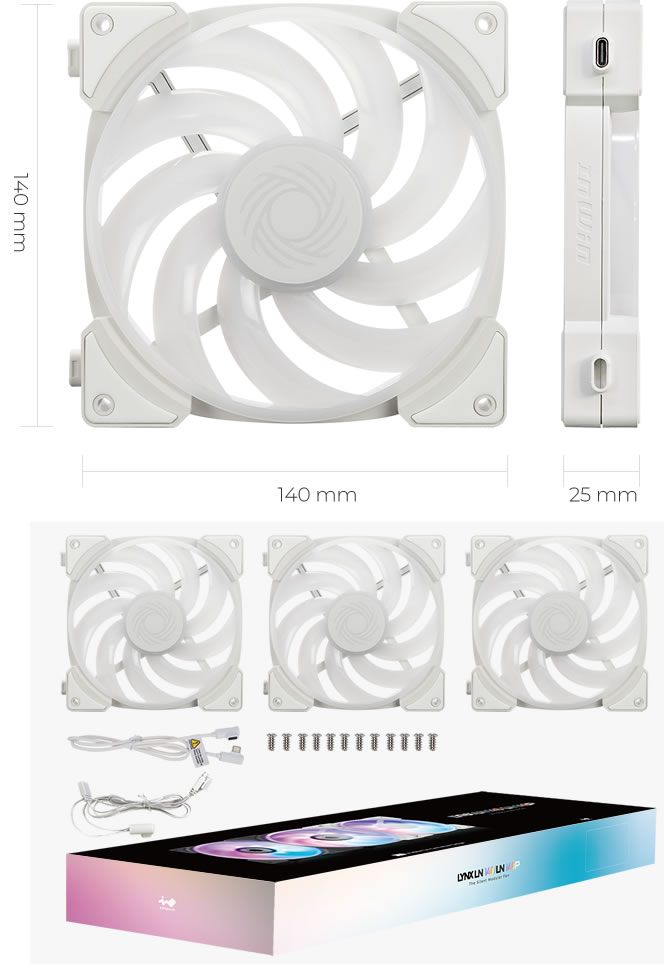

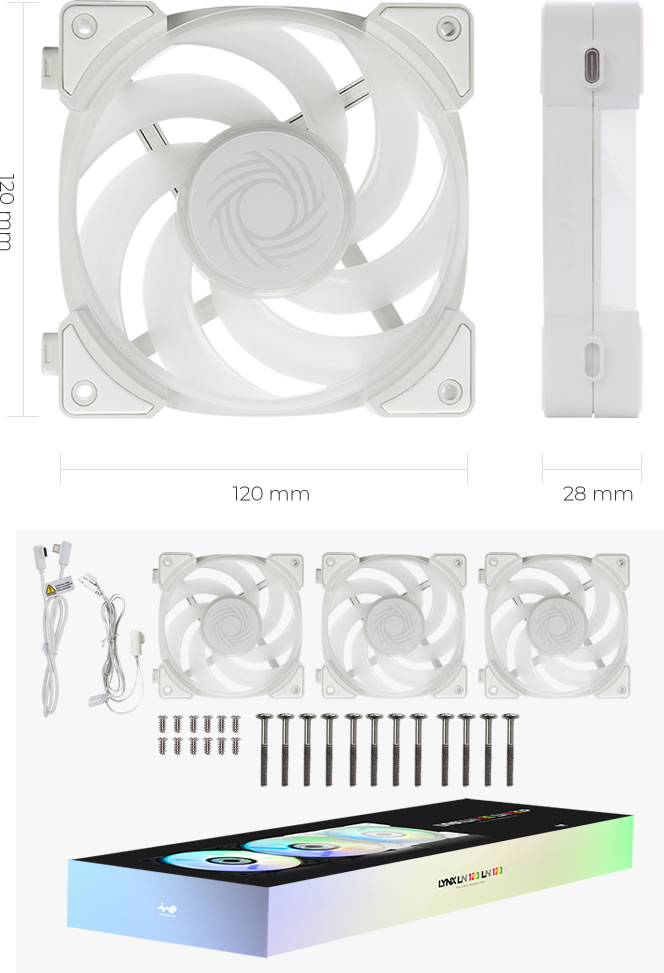

Fan Size 120 x 120 x 28 mm 140 x 140 x 25 mm
Materials PBT, PC
Rated Voltage DC 12V
Rated Power 2.04W 2.88W
Rated Current 0.17A 0.24A
ARGB Rated Voltage DC 5V
ARGB Rated Power 1.75W
ARGB Rated Current 0.35A
Speed Mode PWM 900 - 2200 +/- 10% RPM PWM 900 - 1800 +/- 10% RPM
Air Flow 24.95 – 61.2 CFM 44.57 – 89.14 CFM
Air Pressure 0.51 – 3.04 mm / H2O 0.77 – 3.07 mm / H2O
LED Addressable RGB
Connector (Fan to Fan) Type-C
Connector to M/B 4-Pin (12V, PWM), 3-Pin (5V, ARGB)
Noise Level 17.2 - 25.5 dB(A) 14.6 - 29.7dB(A)
Bearing Type Long Lifespan Sleeve Bearing
MTBF >36,000 hrs.
Net Weight 600 g / 1.32 lbs 700 g / 1.54 lbs
Gross Weight 980 g / 2.16 lbs 1030 g / 2.27 lbs
Package Dimensions
(L x W x H)
374 x 130 x 47 mm
14.7 x 5.1 x 1.8"
434 x 150 x 47 mm
17 x 5.9 x 1.8"
Warranty 3 Years
* InWin's products comply with RoHS regulations.
* Specifications may vary based on different regions.
