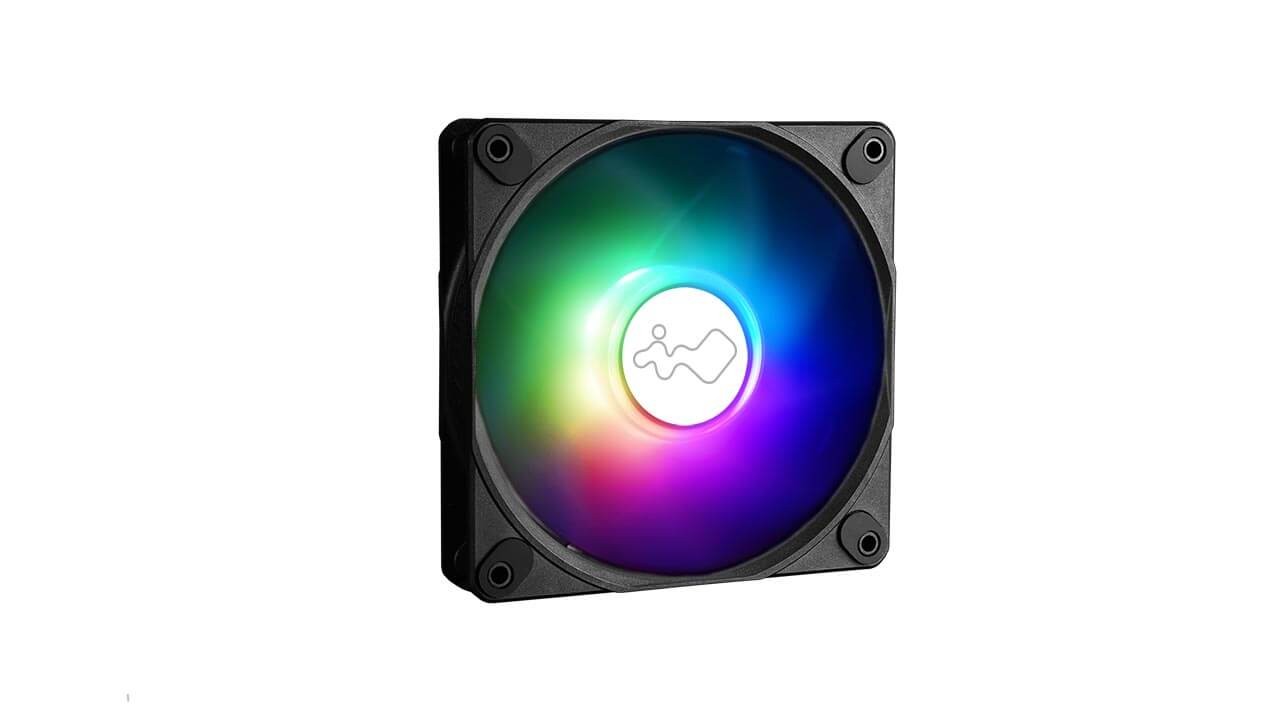

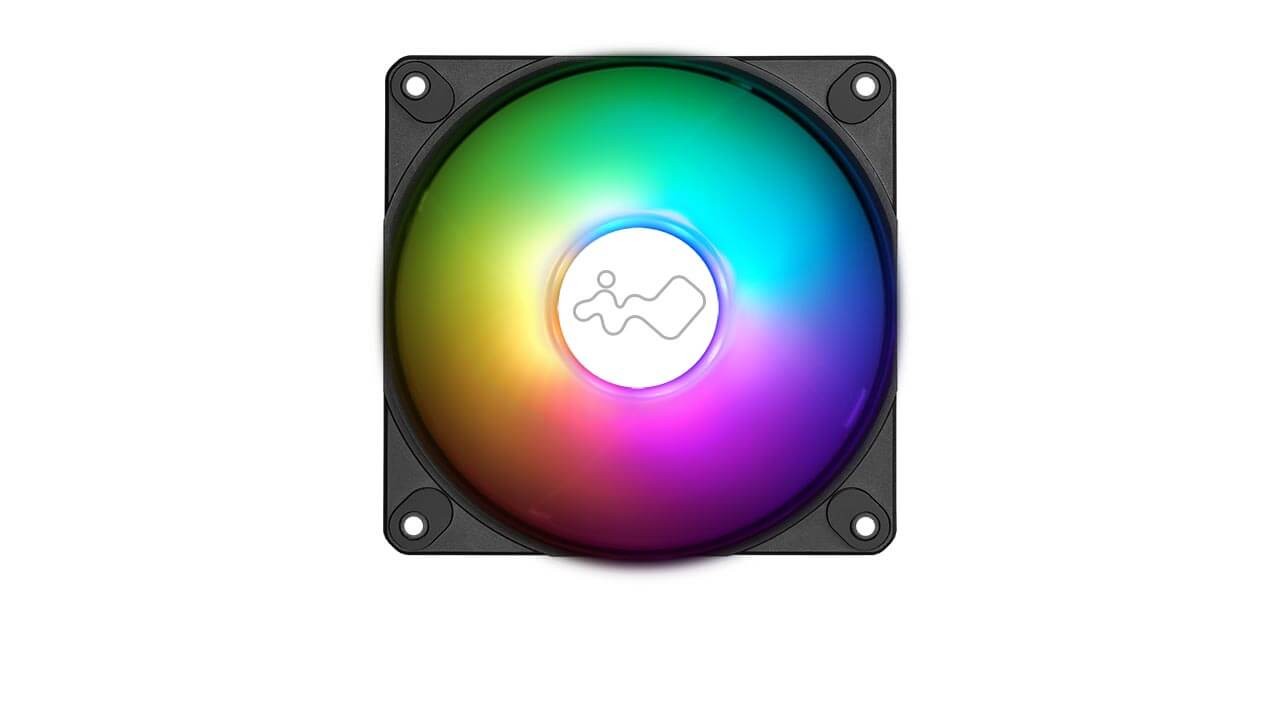

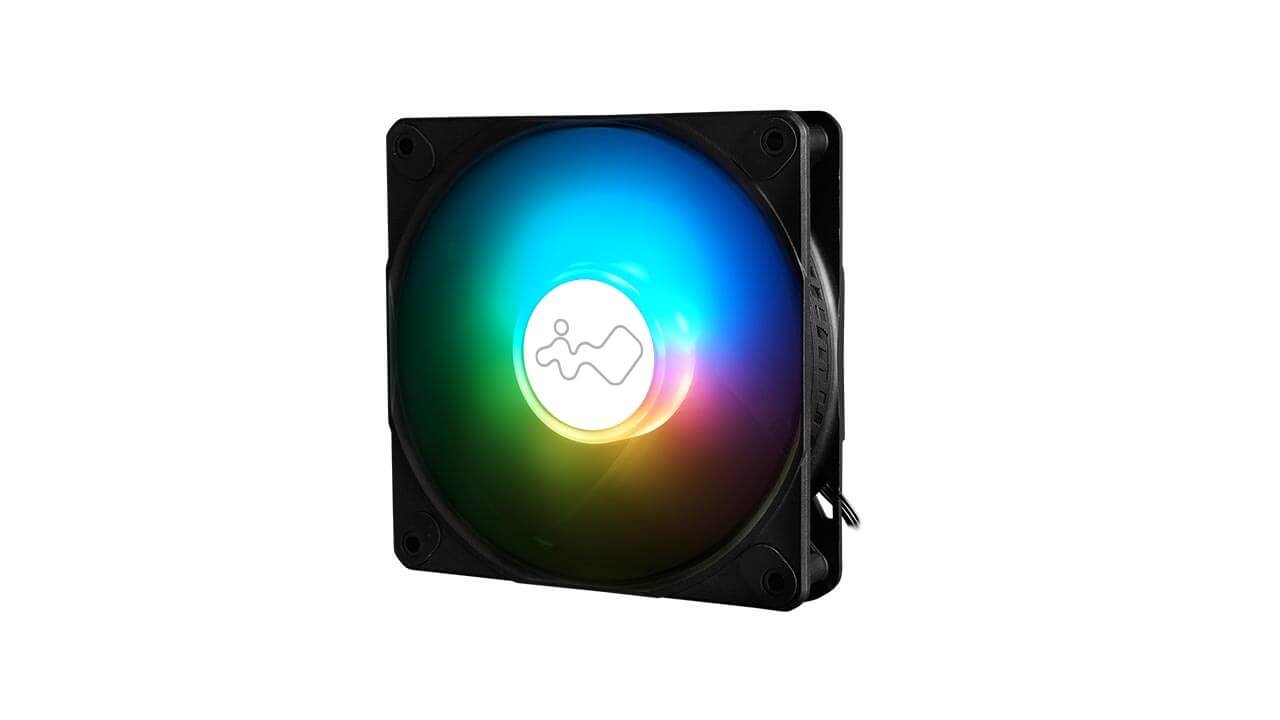

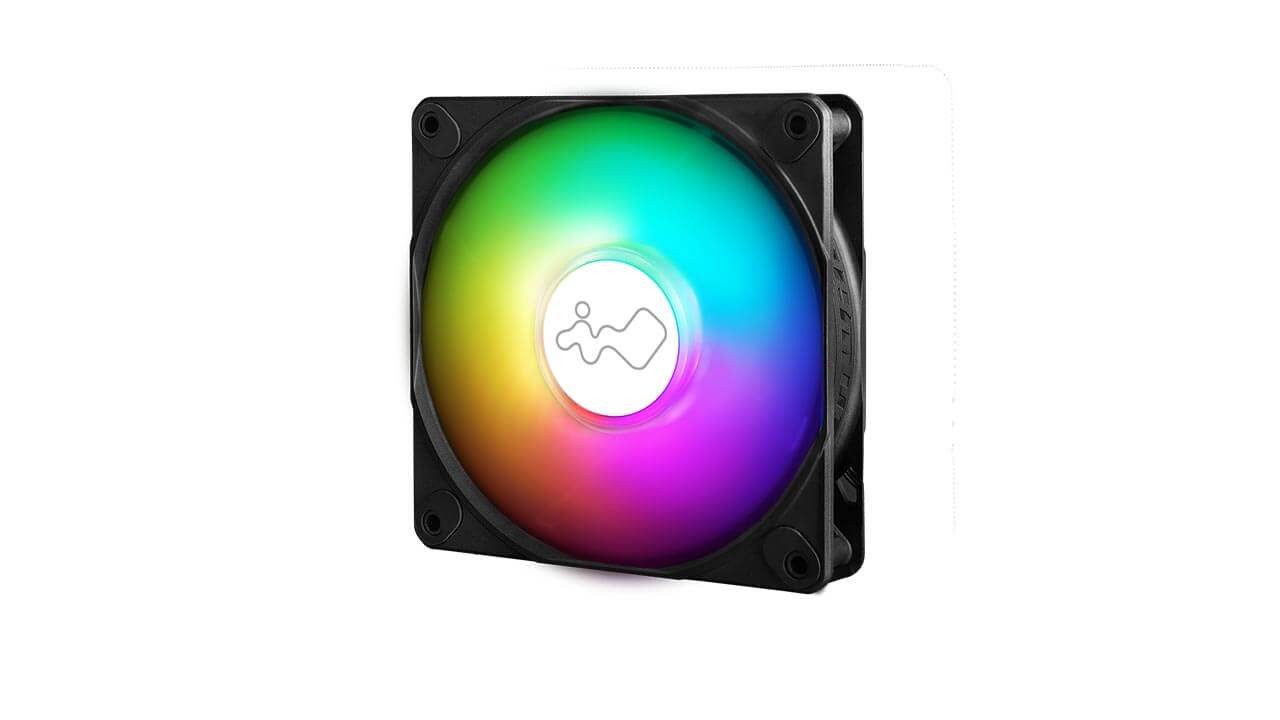

Luna AL120

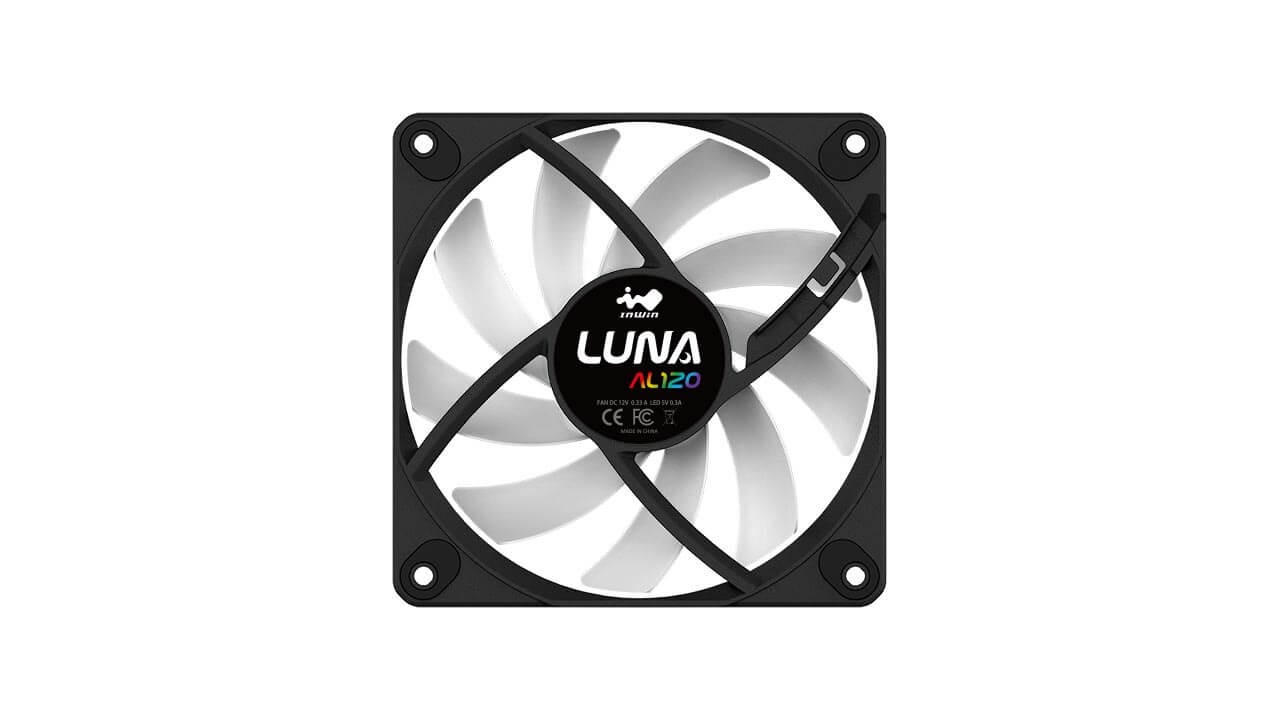

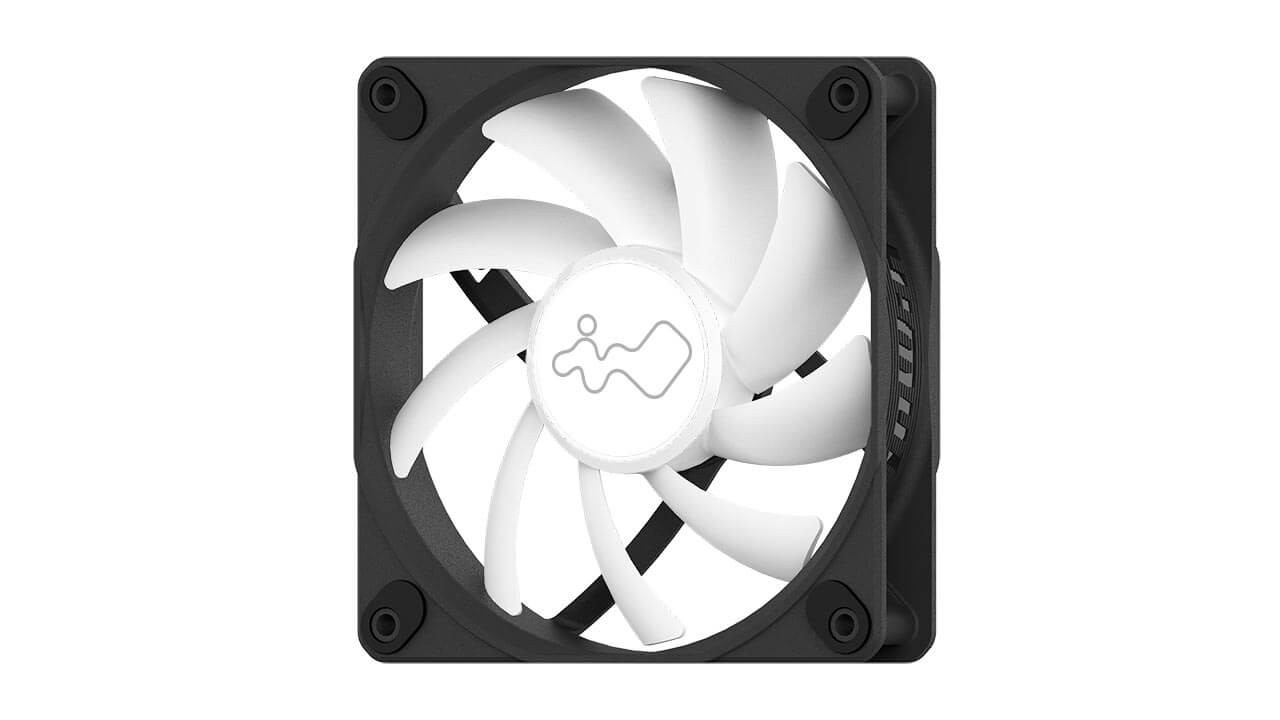

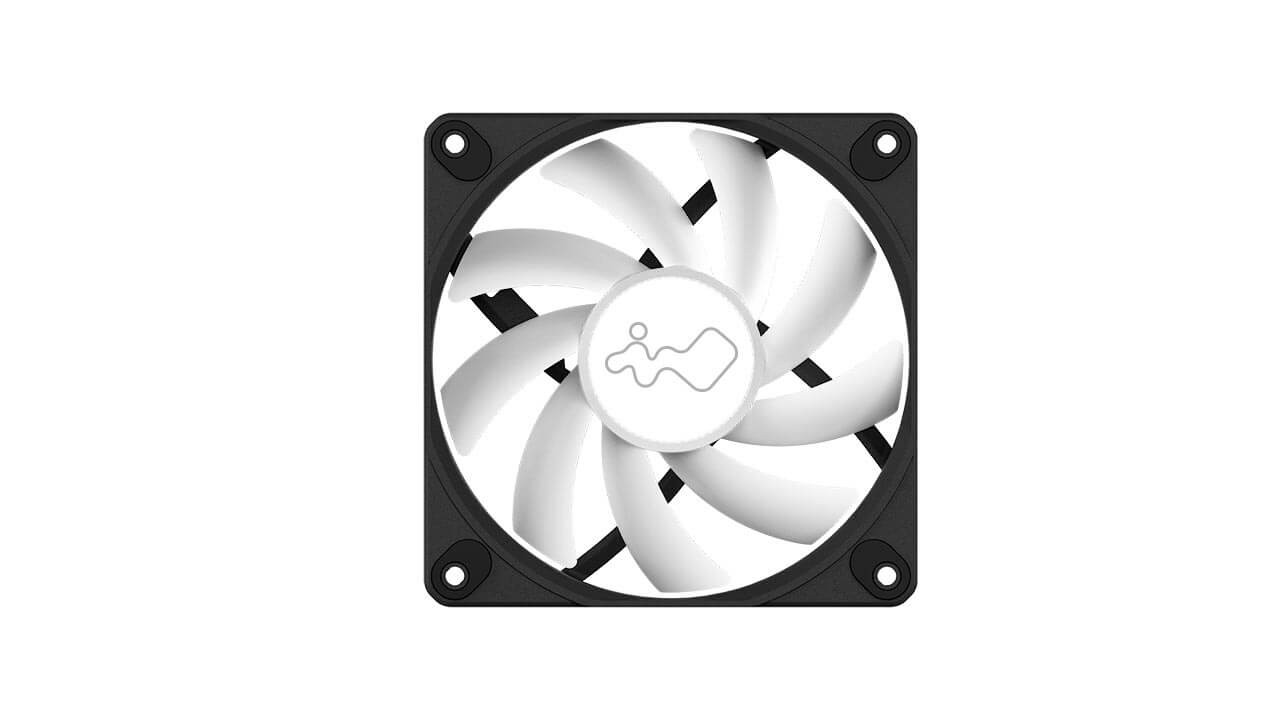

Innovative Crescent Blade Design

Luna is equipped with 9 crescent fan blades and intelligent cooling function to generate an impressive amount of airflow and air pressure, which prevents your PC from overheating and keeps your system as cool as the dark night.

Innovative Crescent Blade Design


Luna is equipped with 9 crescent fan blades and intelligent cooling function to generate an impressive amount of airflow and air pressure, which prevents your PC from overheating and keeps your system as cool as the dark night.

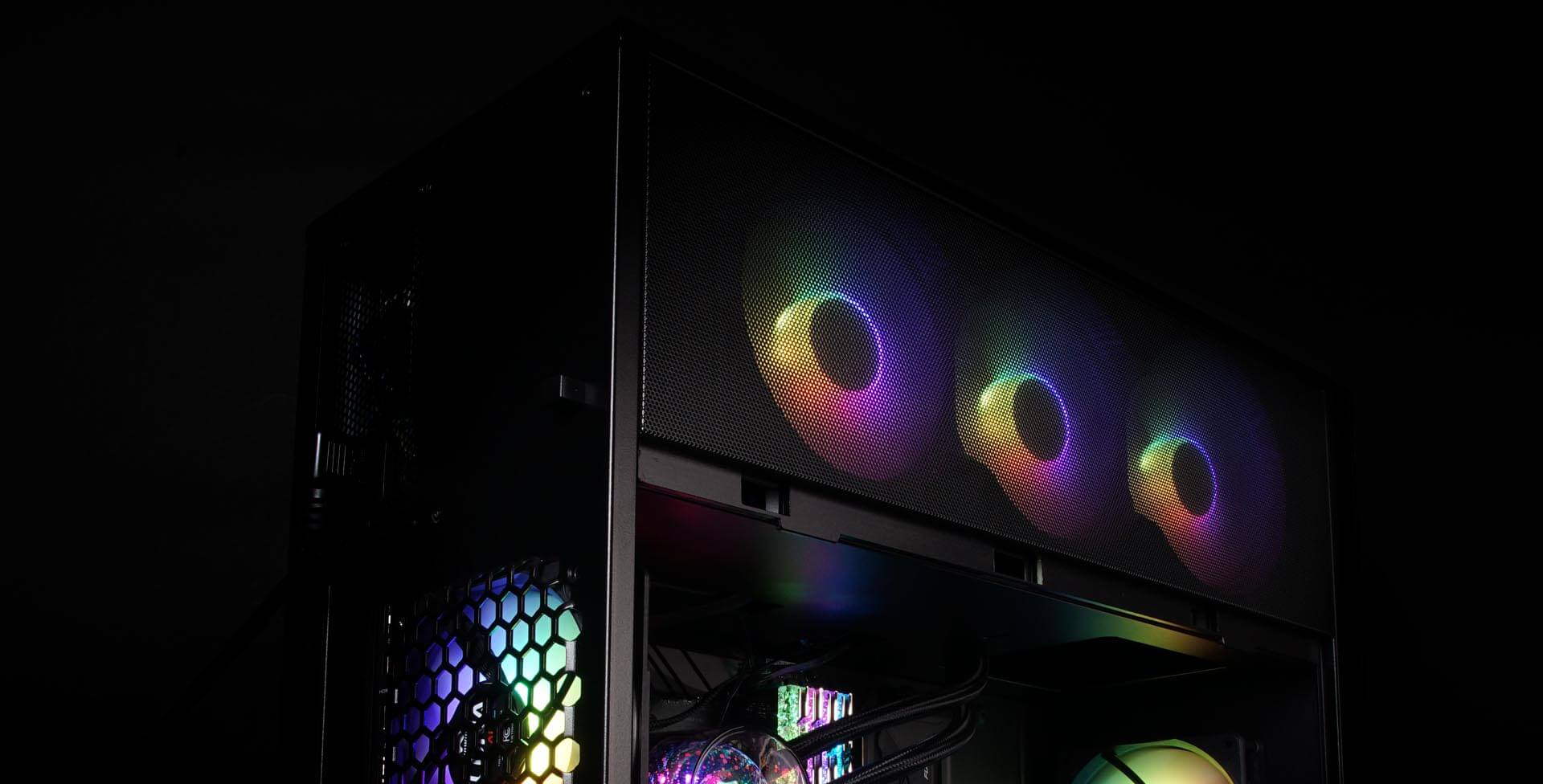

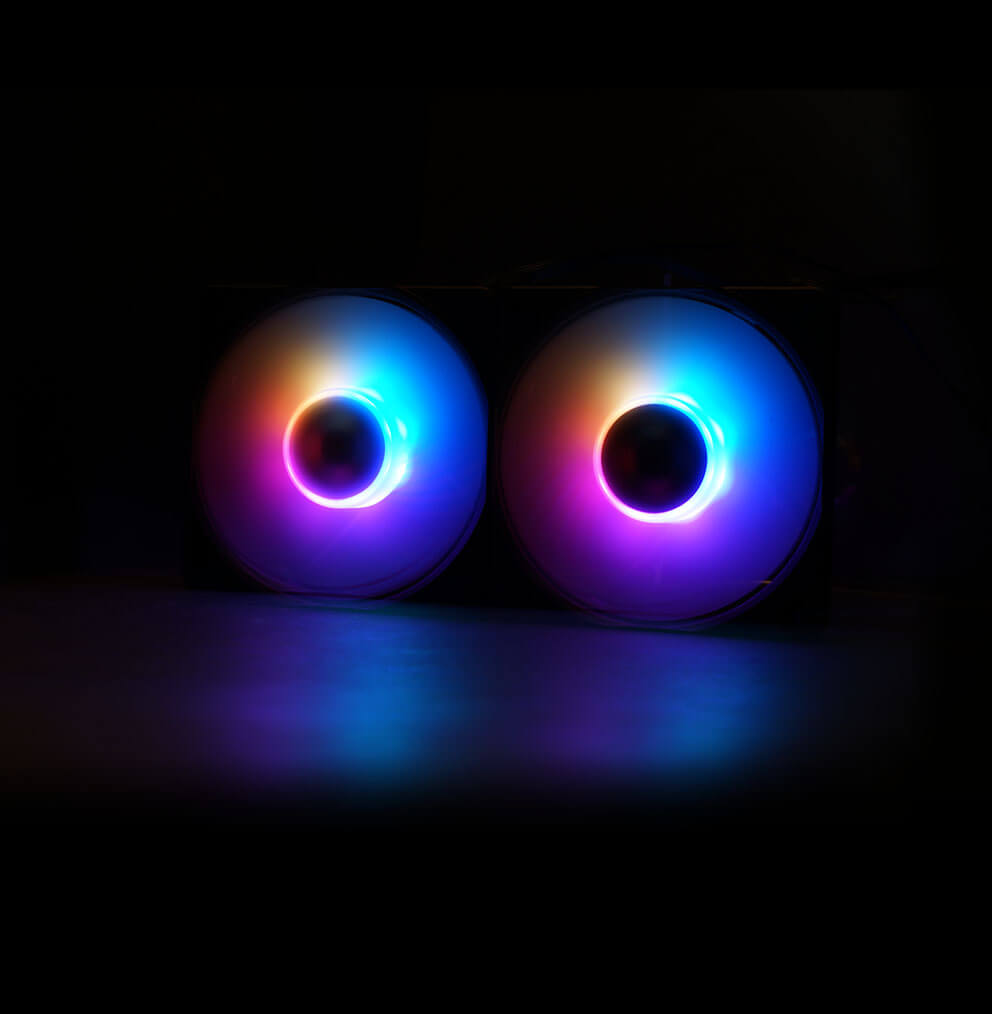

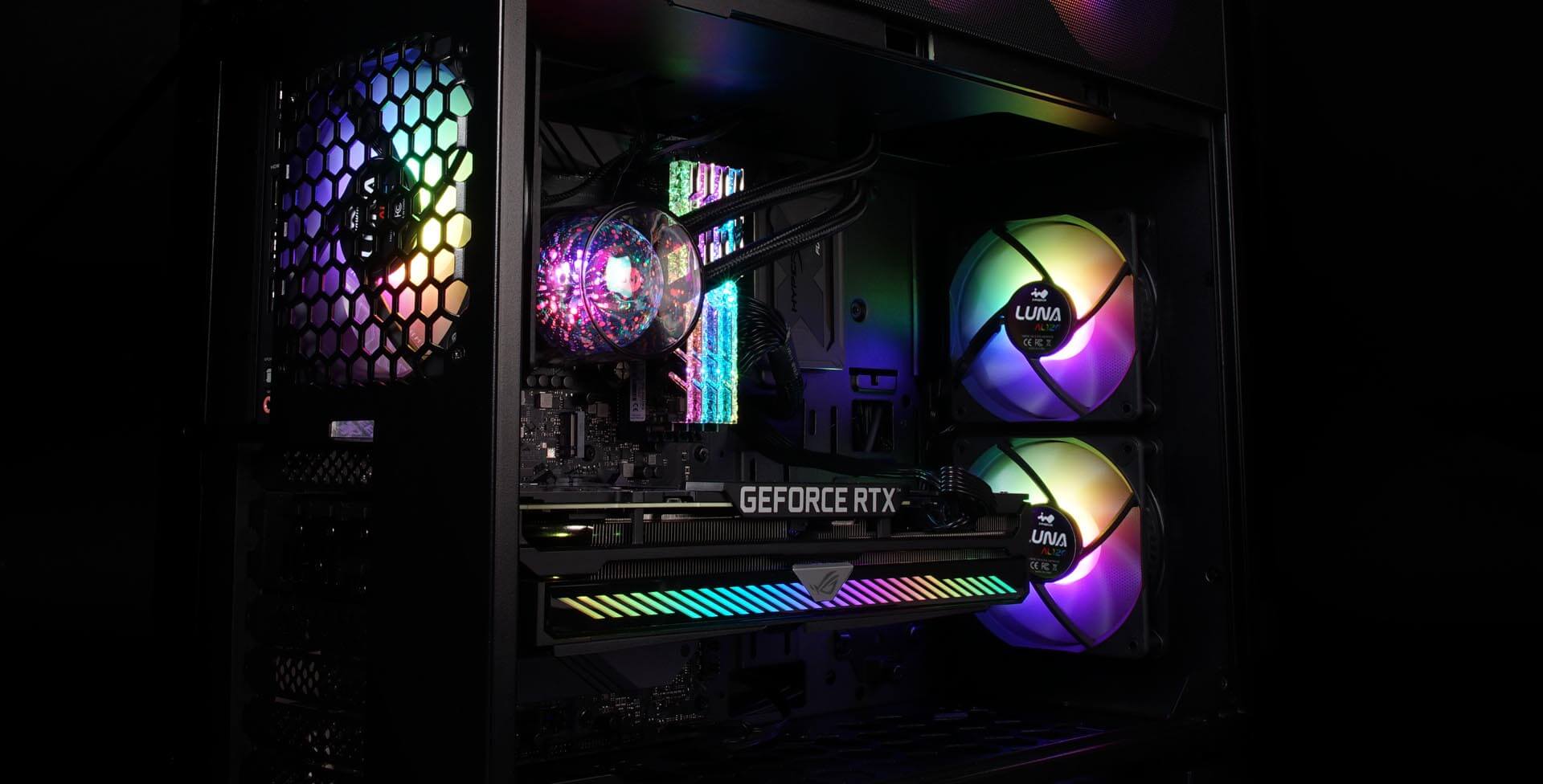

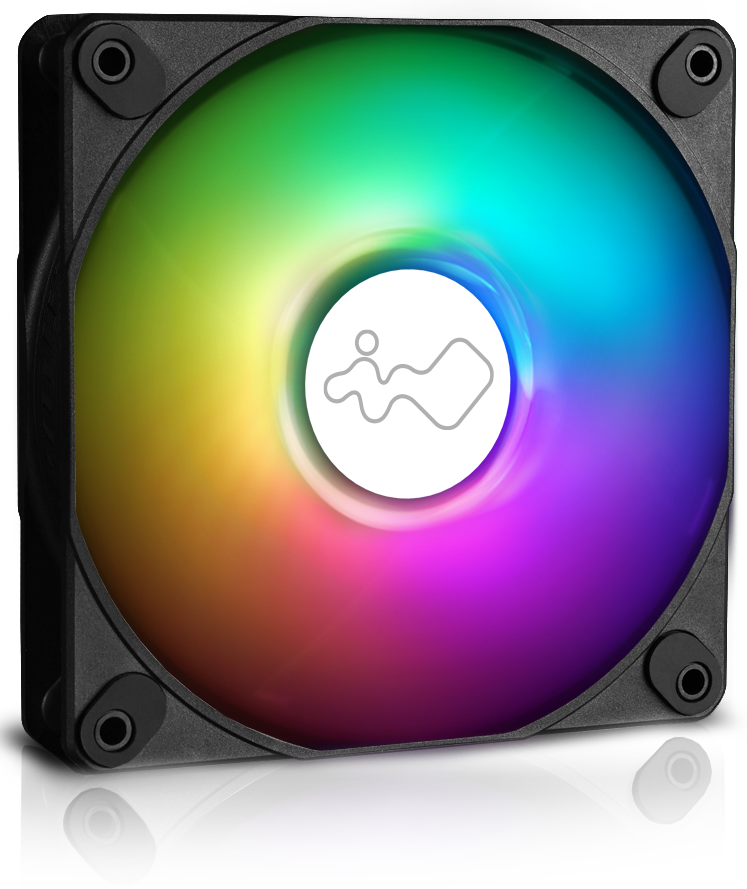

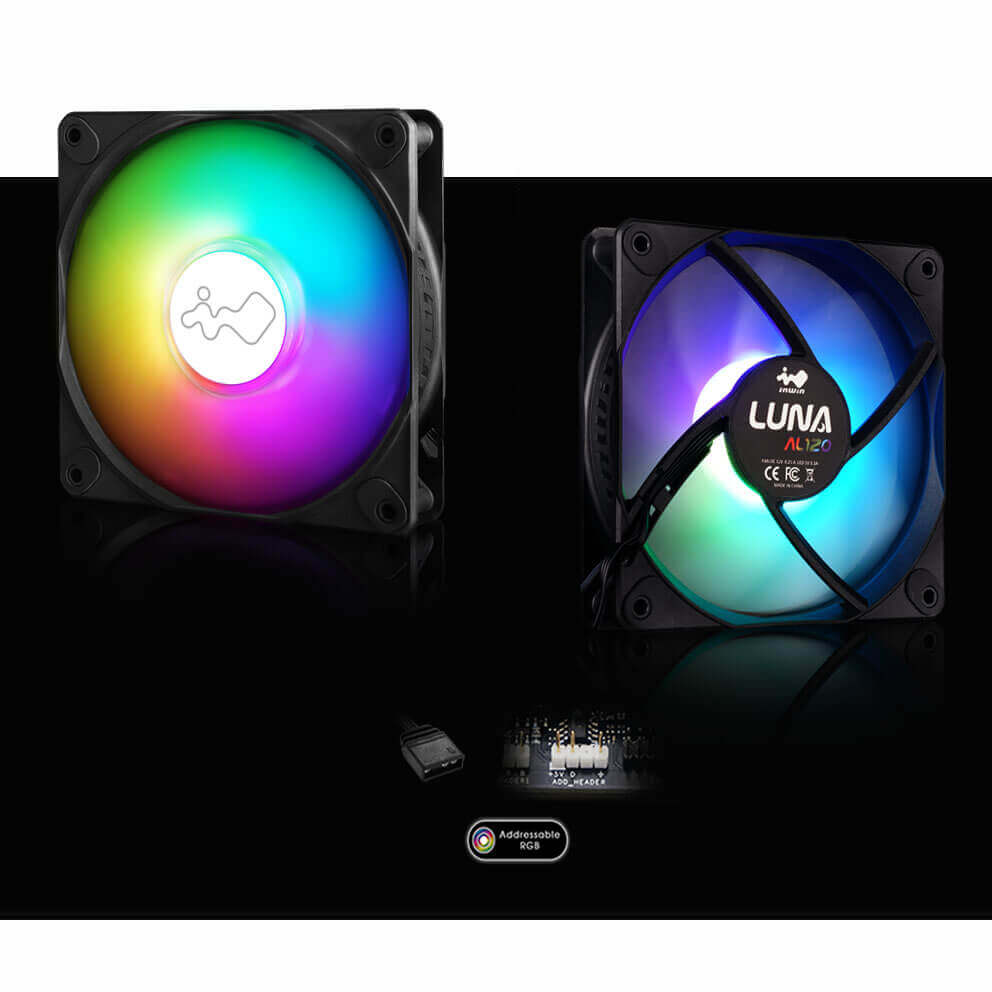

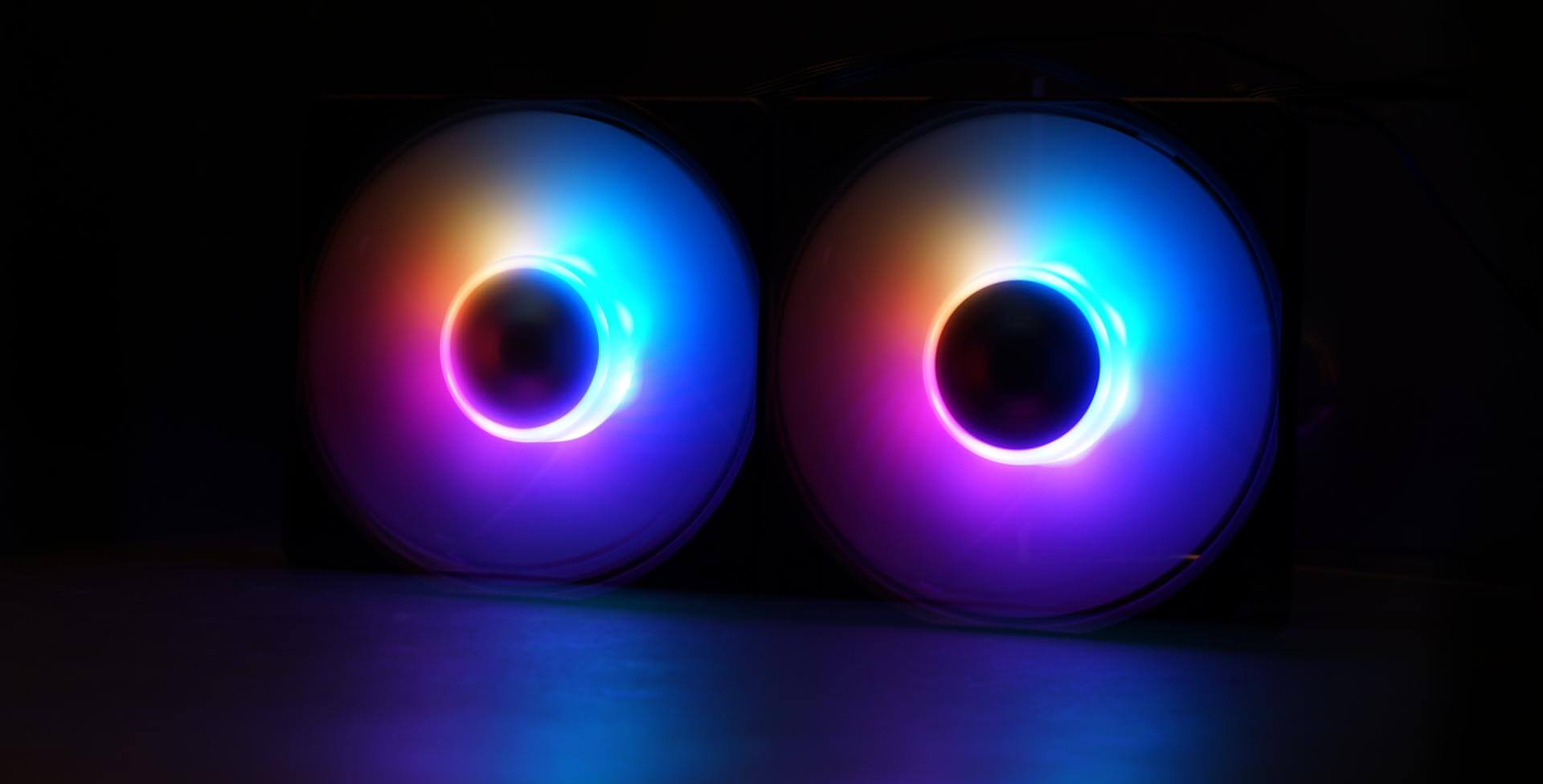

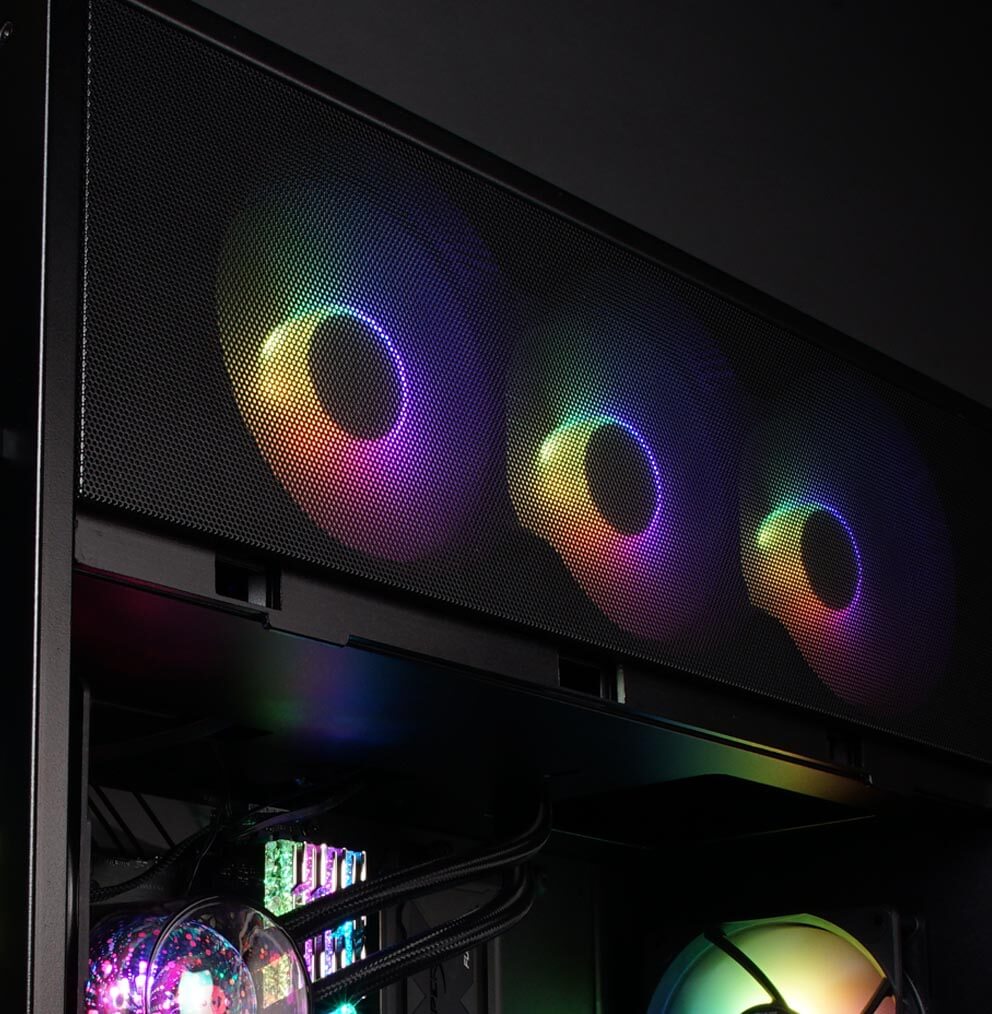

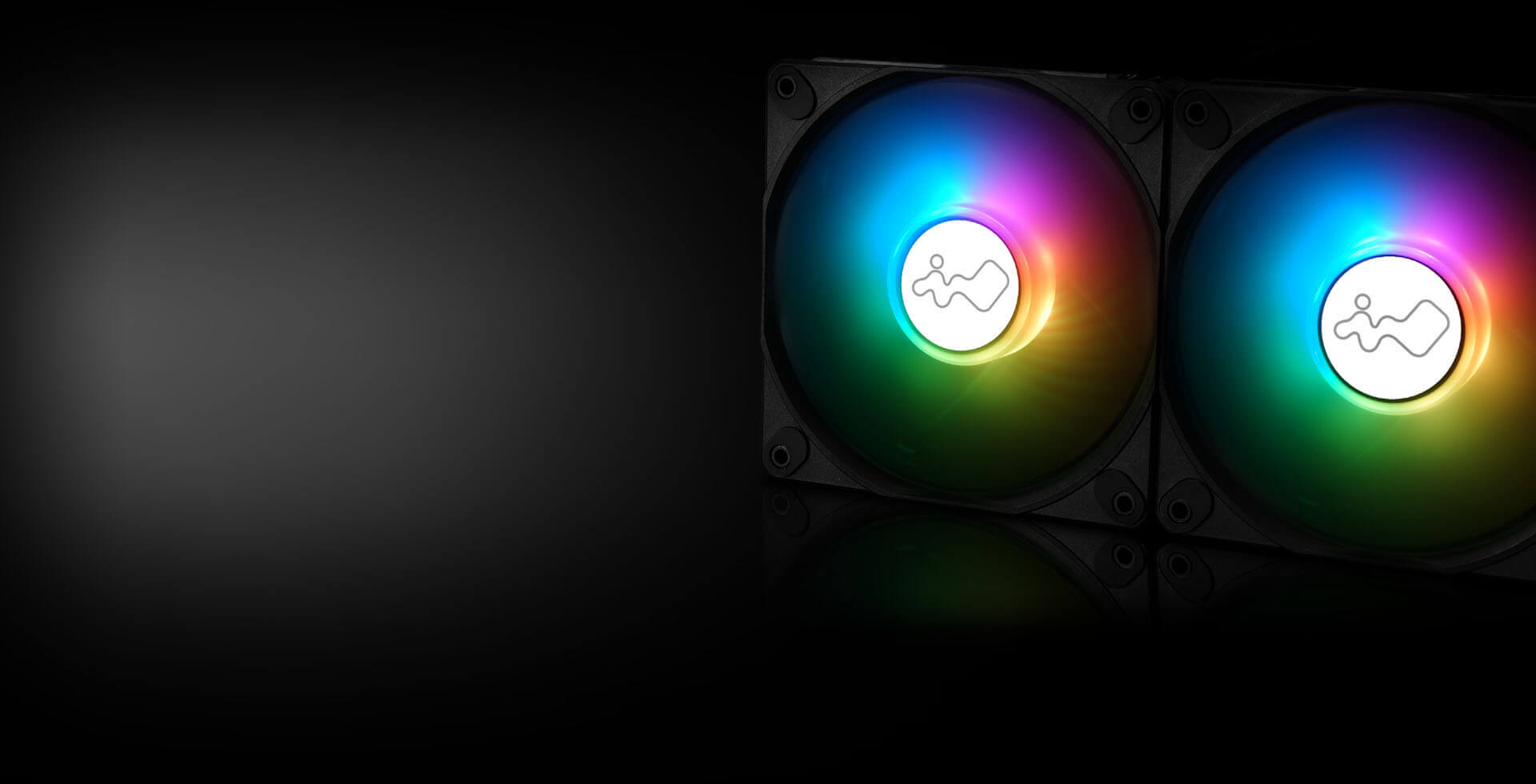

ARGB Bright as a Moonlit Night

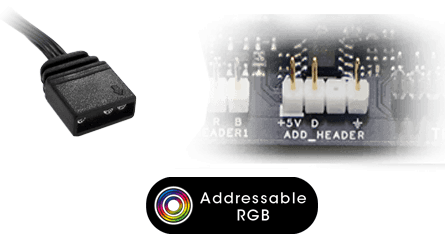

Stunning and bright ARGB colors shine through the white matte blades of Luna AL120, presenting your build in the most beautiful light possible. The lighting effect can be synced with an ARGB motherboard.

ARGB Bright as a Moonlit Night


Stunning and bright ARGB colors shine through the white matte blades of Luna AL120, presenting your build in the most beautiful light possible. The lighting effect can be synced with an ARGB motherboard.

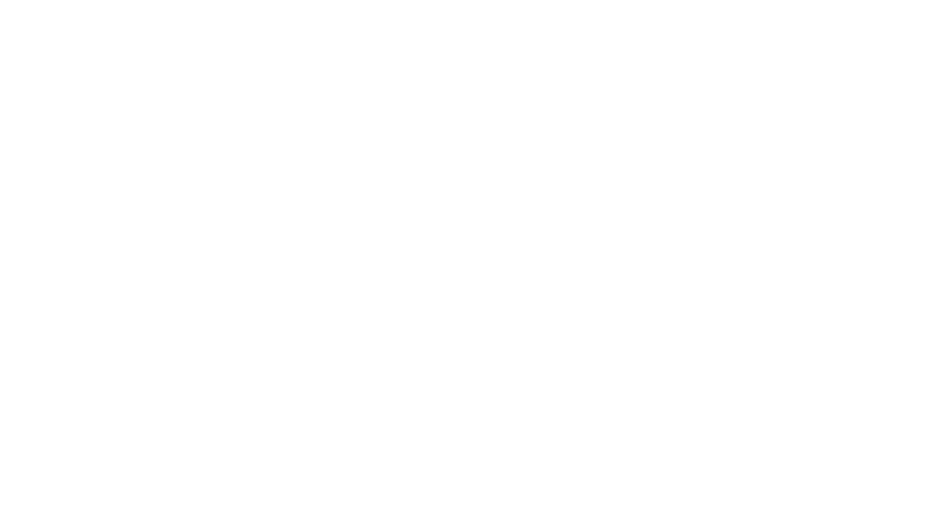

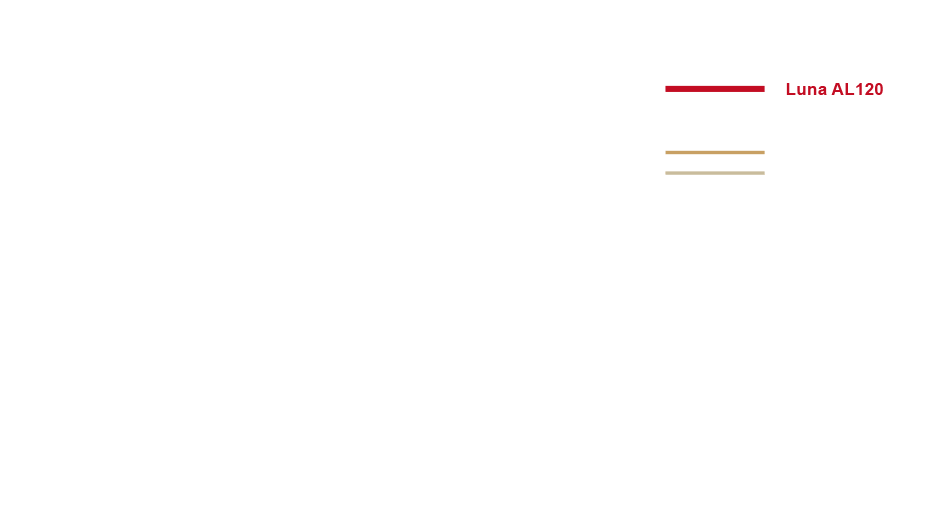

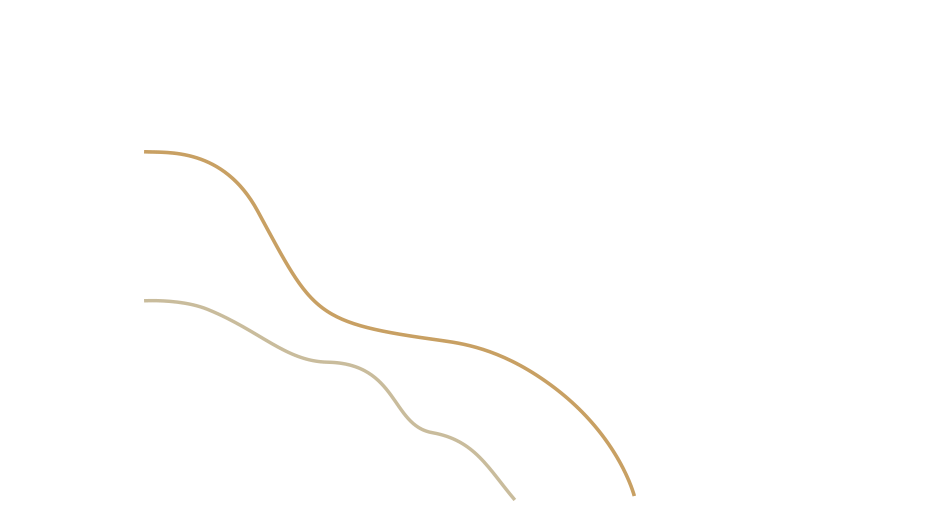

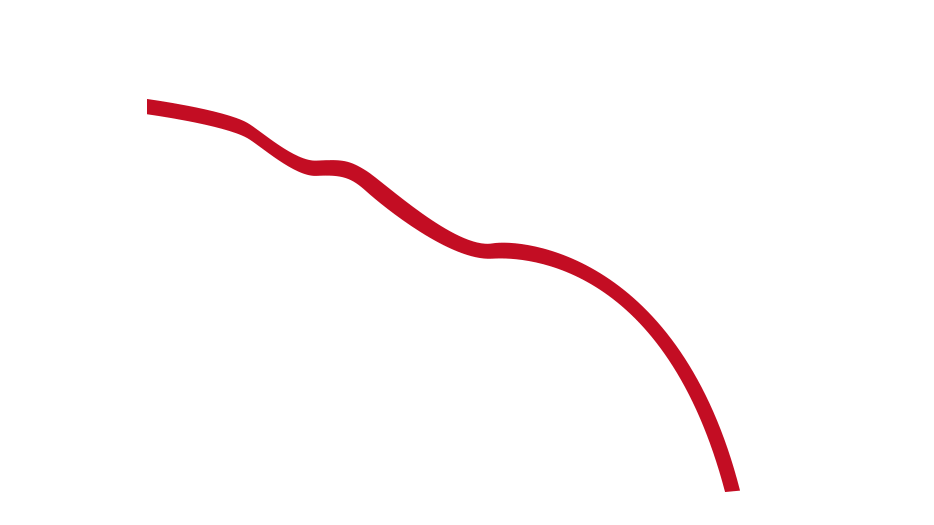

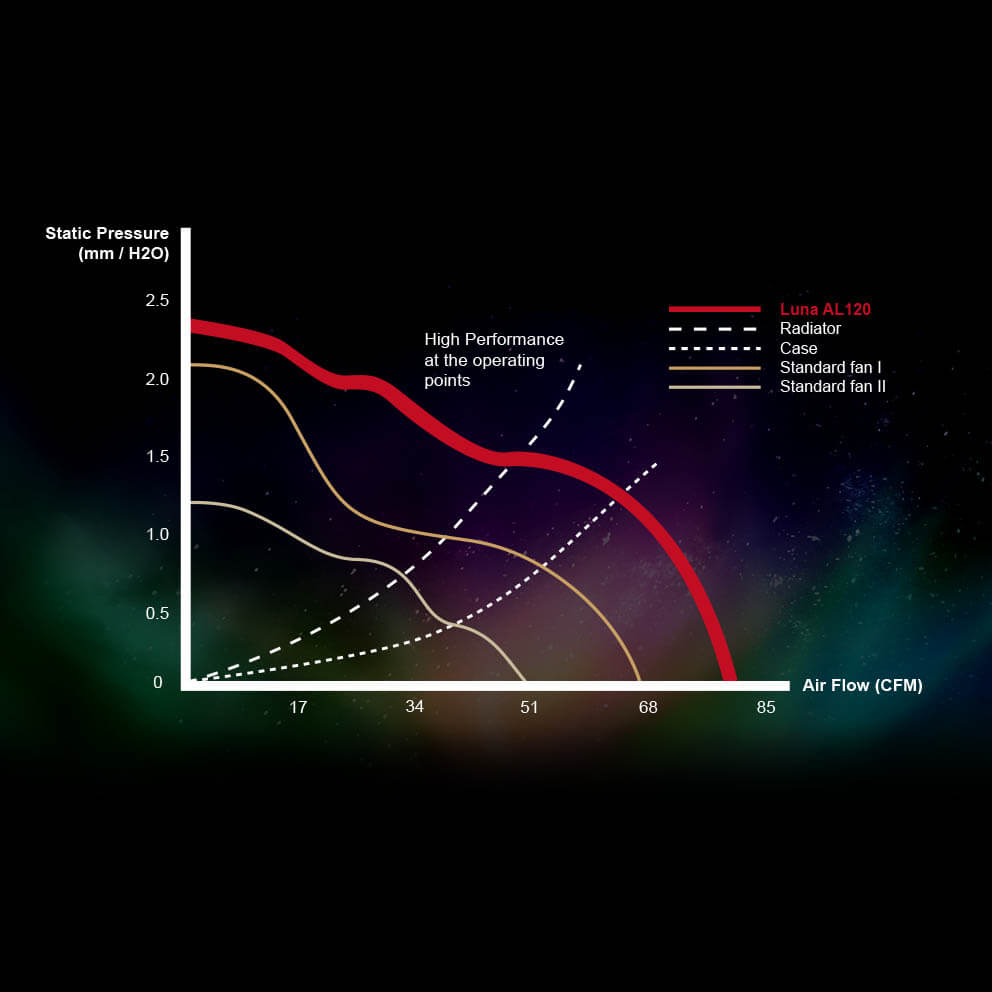

Optimized PQ Curve for enhanced performances

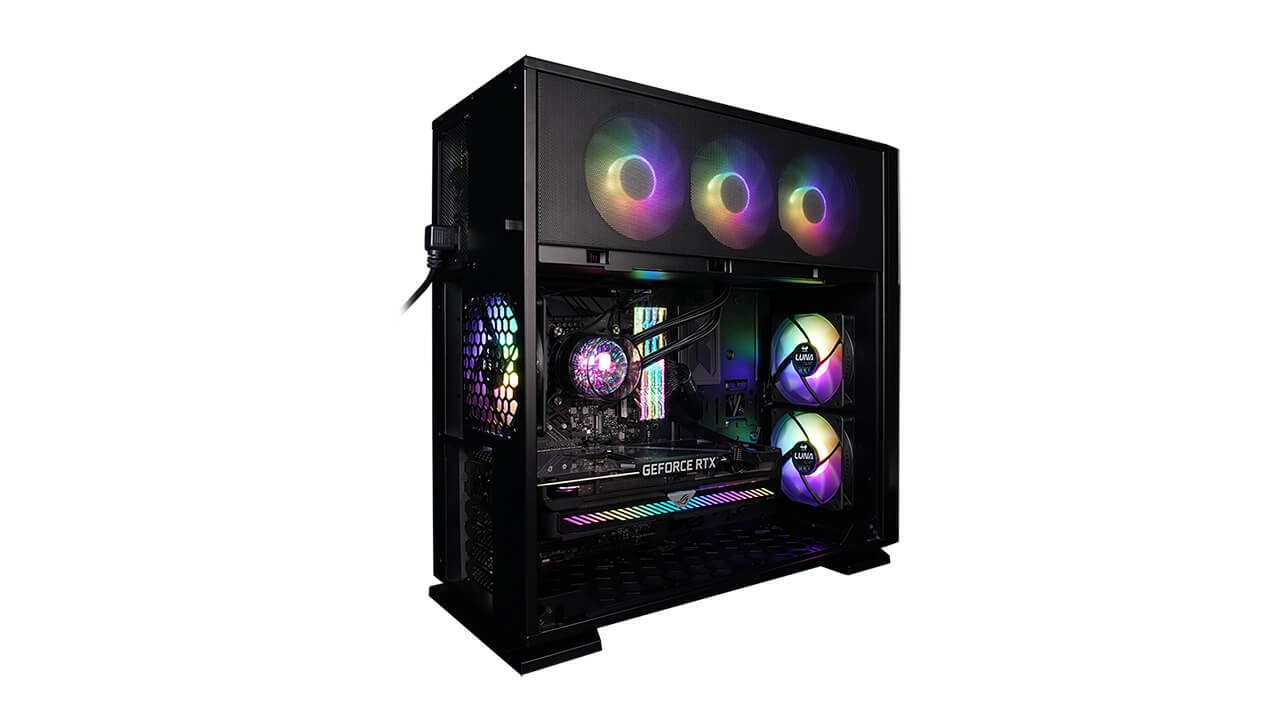

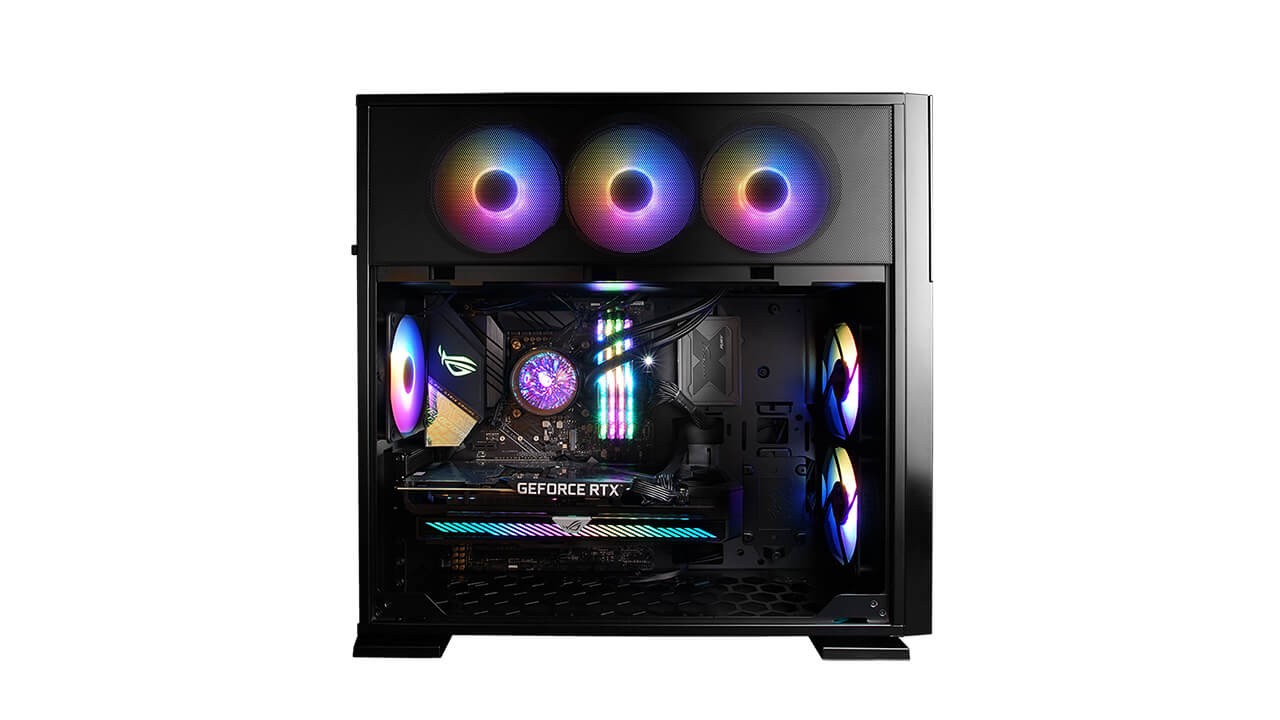

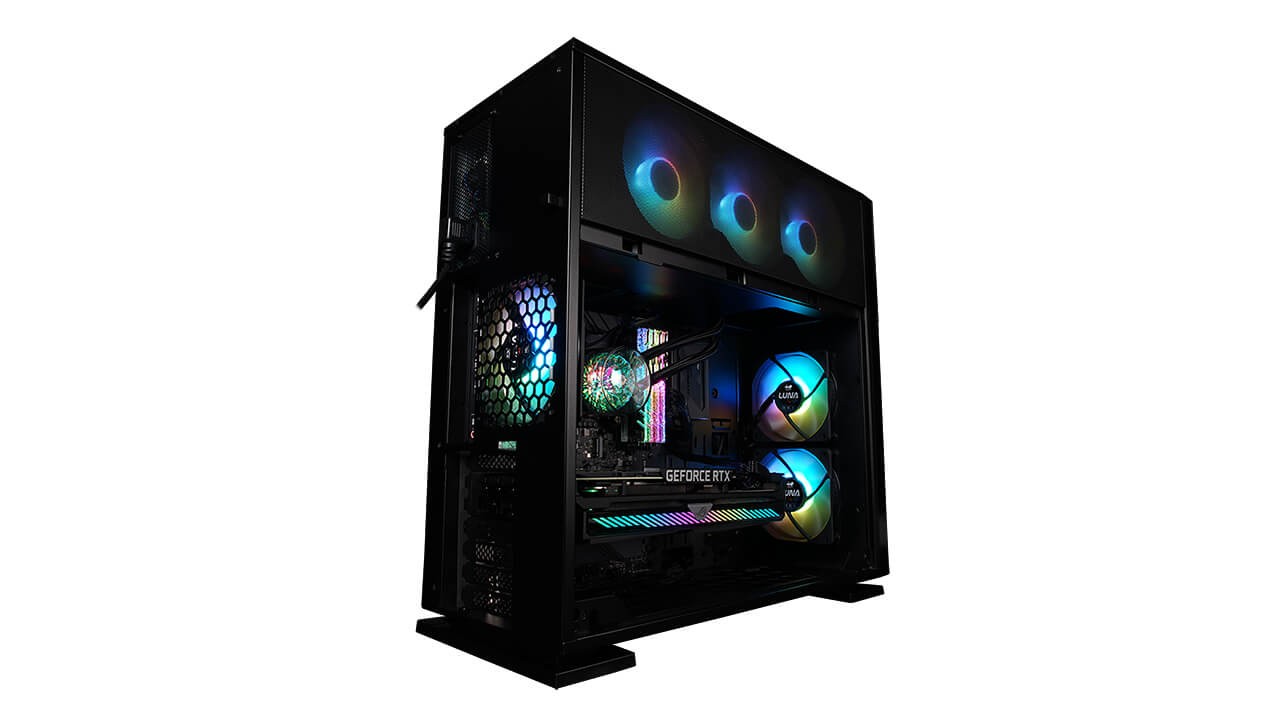

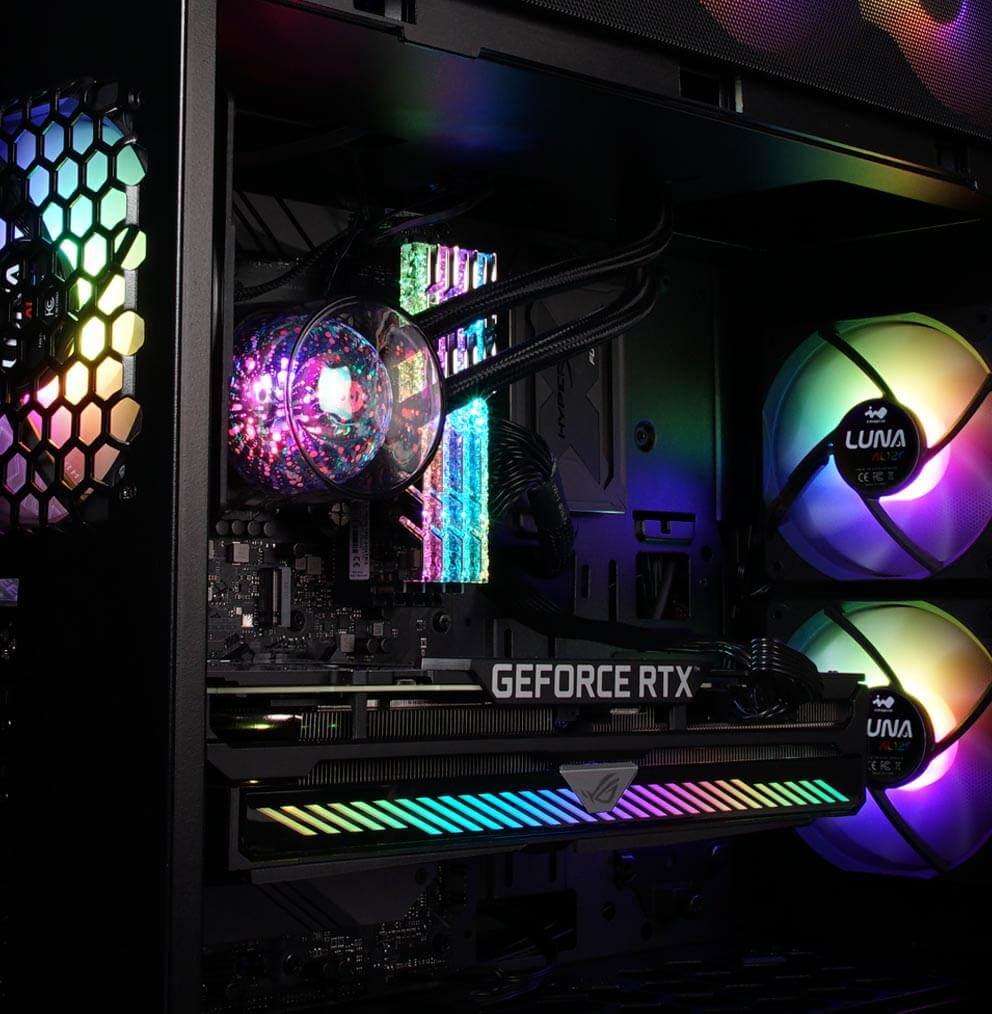

Luna AL120 is suited for all cooling applications and excels as case or radiator fans.

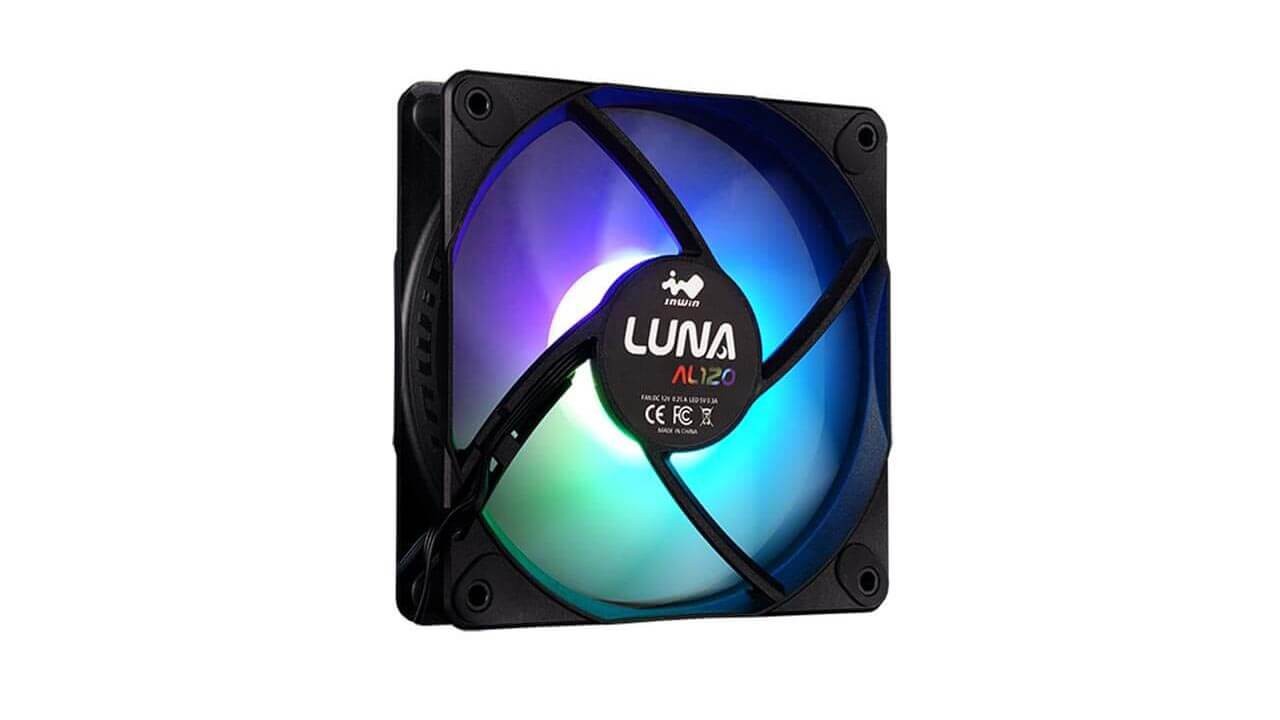

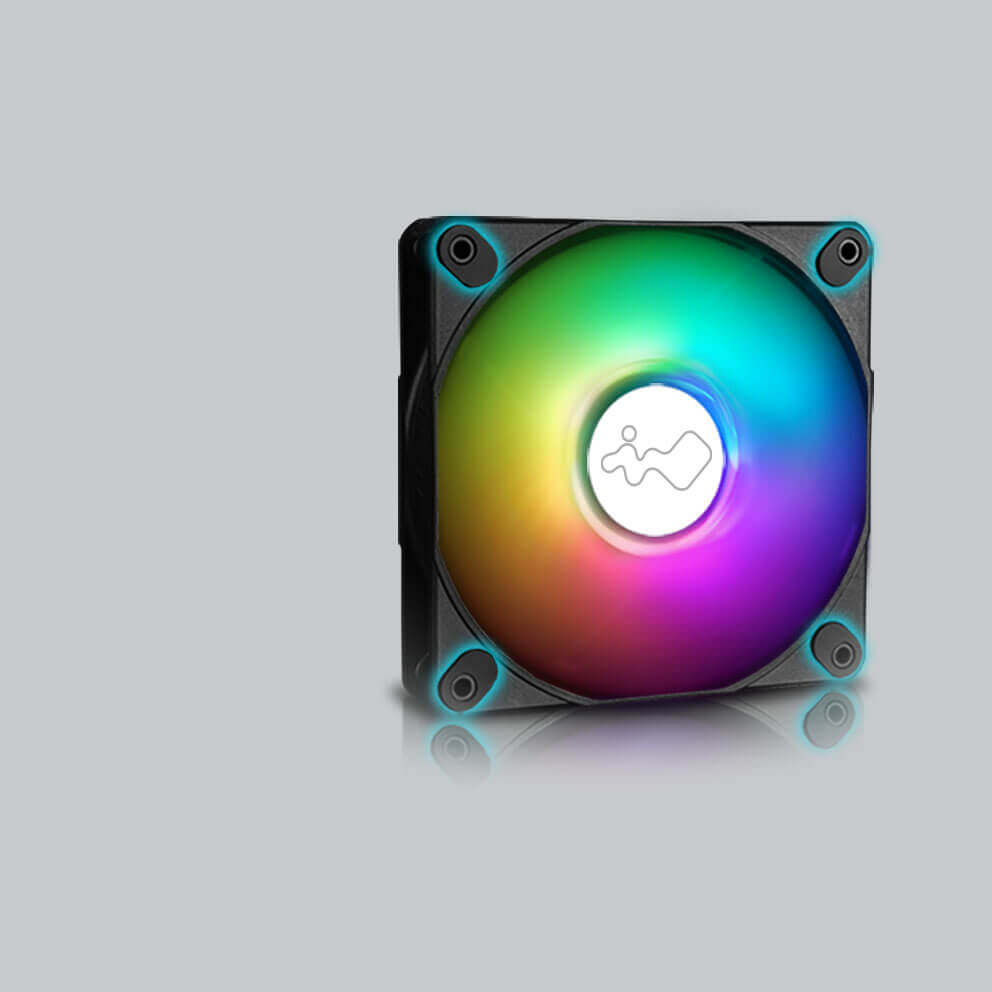

Shockproof Rubber Stands


There are shockproof rubber stands on each edge of the fan that reduces vibrations and noises to an absolute minimum.

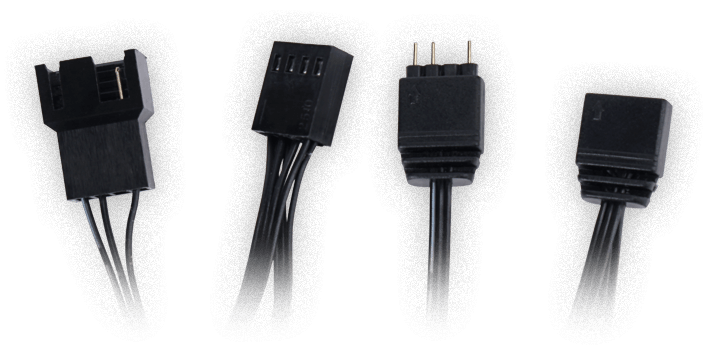

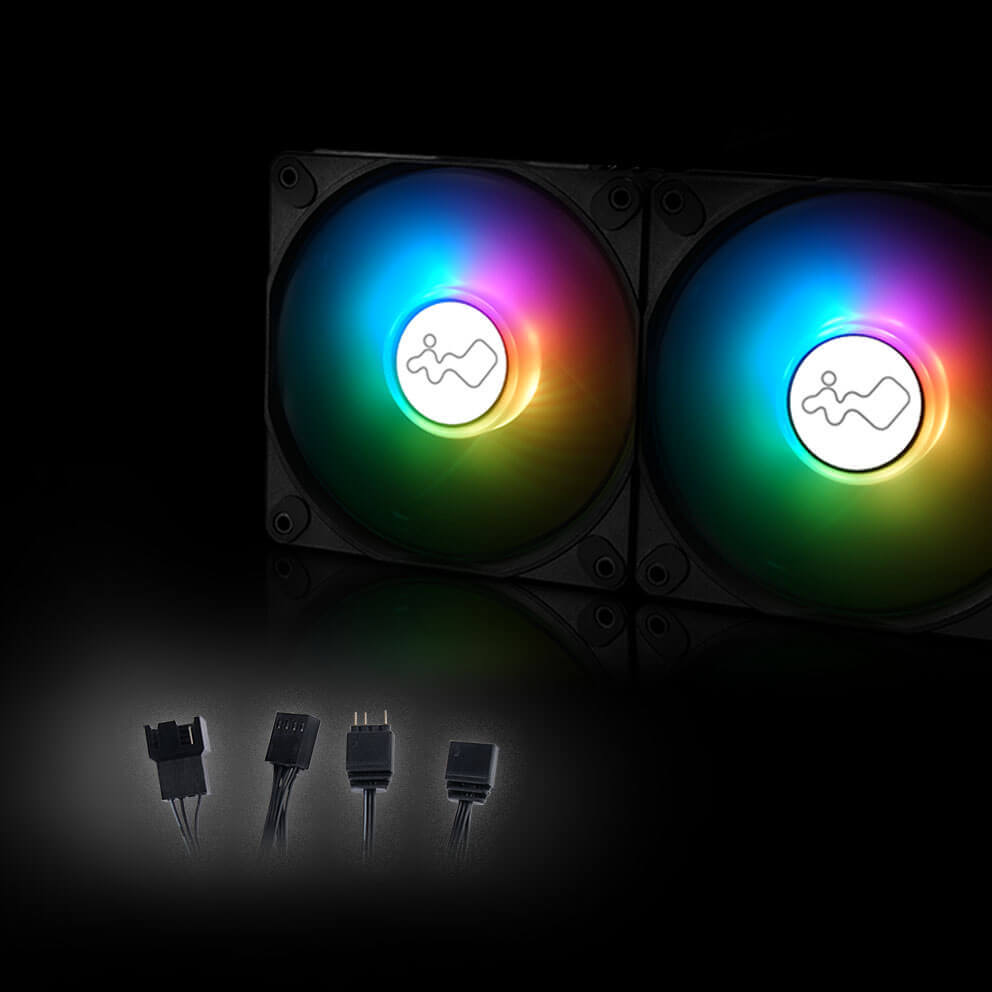

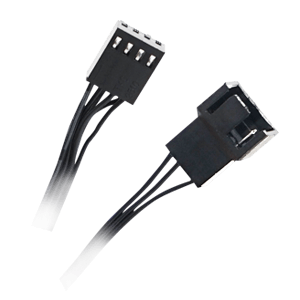

Easy Cable Connection


Luna AL120 possesses a user-friendly cable management design, which allows builders to daisy-chain fans together for quick and easy installation.

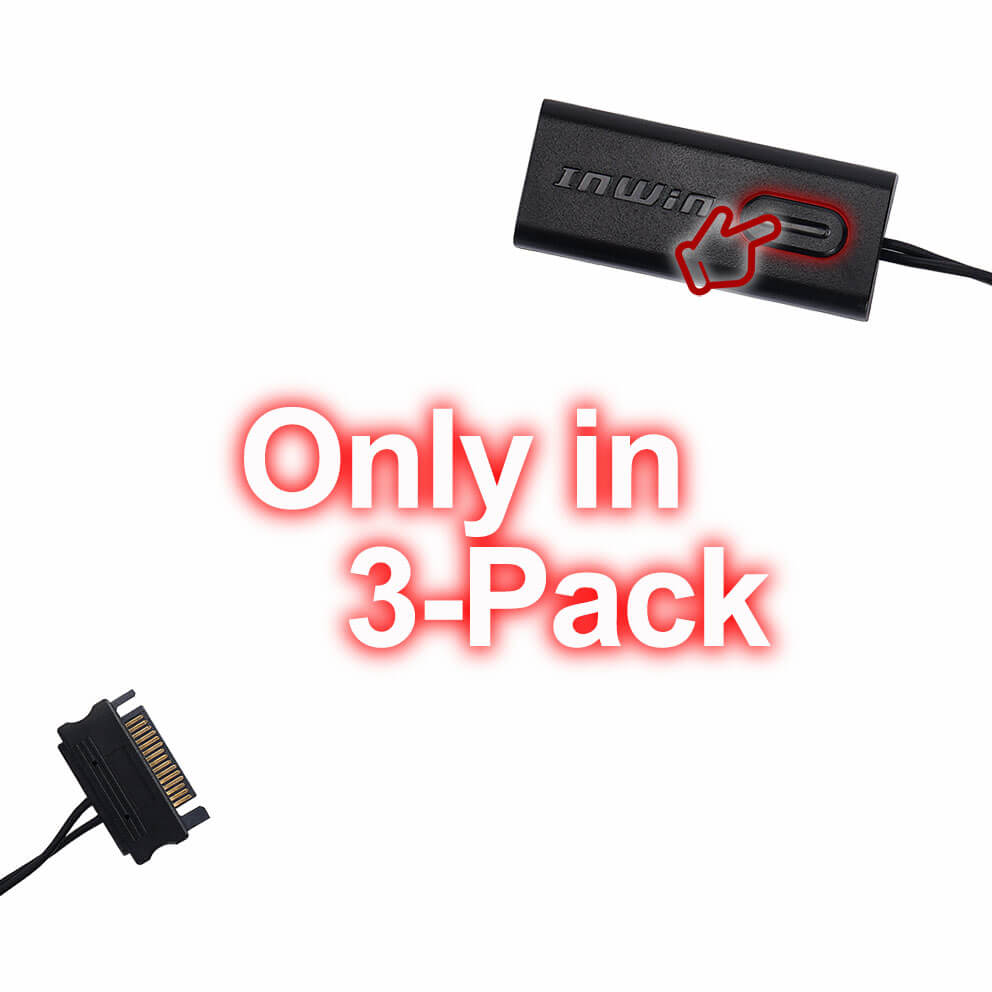

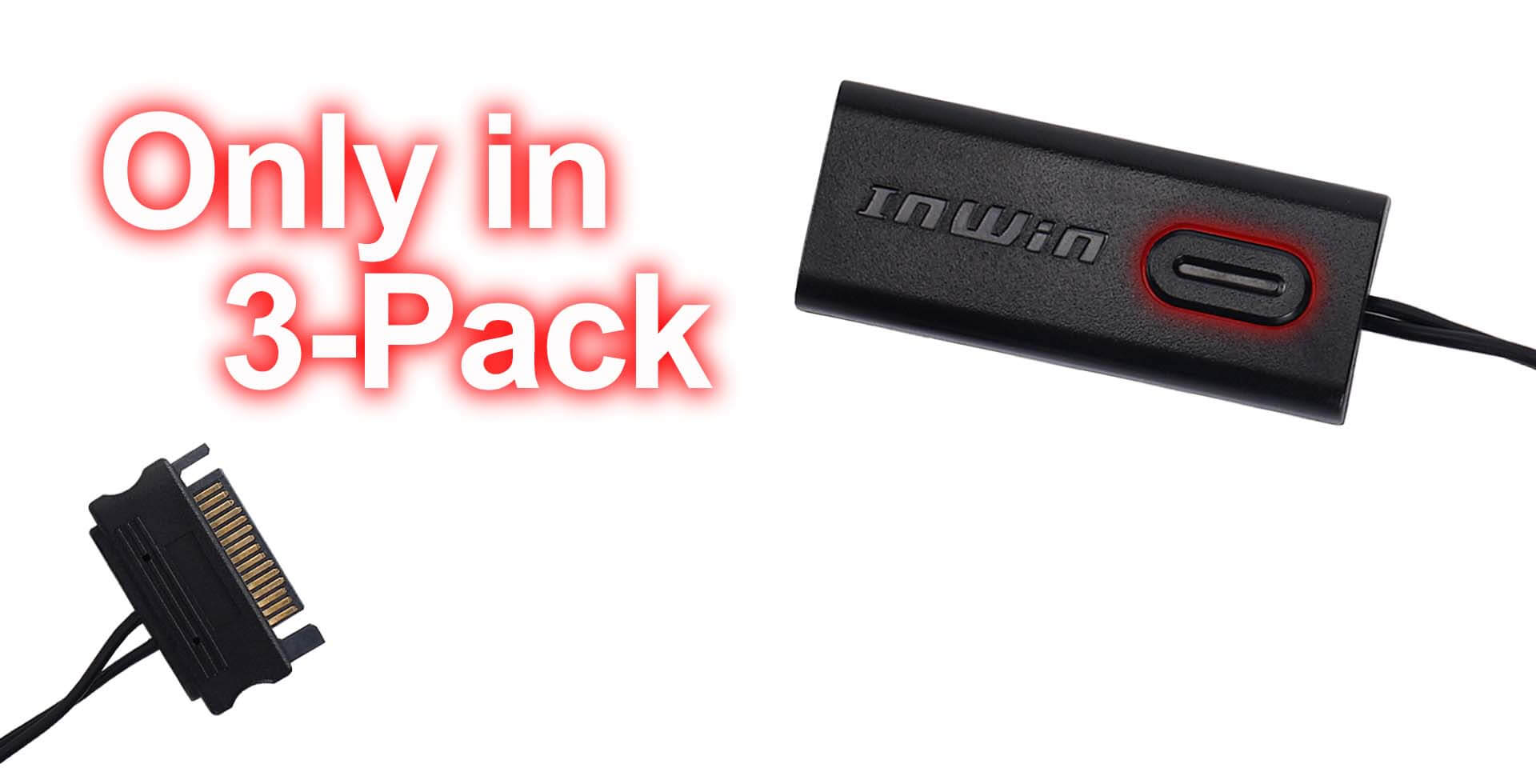

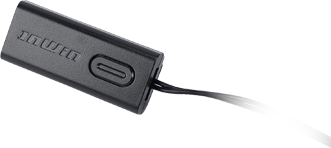

ARGB One-Click Controller


If you don’t have an ARGB motherboard, you can also control the ARGB components via the One-Click Controller, which provides 14 lighting modes.

Note: The Controller only comes with the 3-Pack.

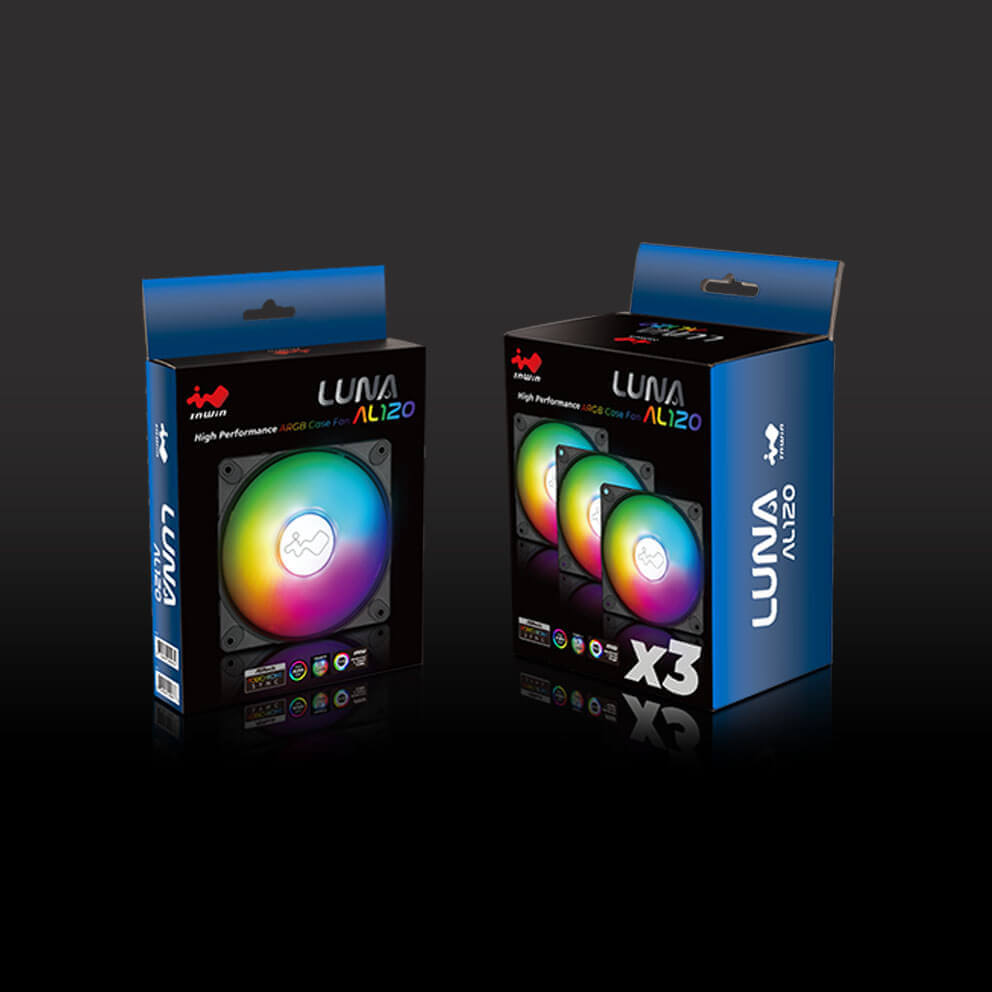

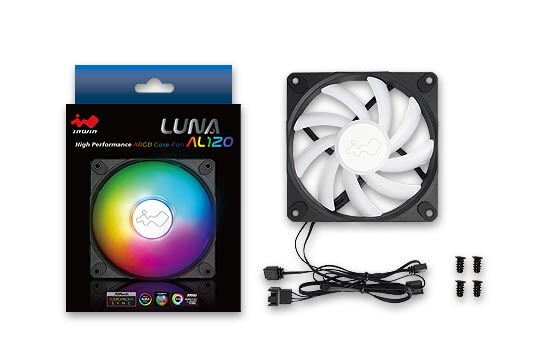

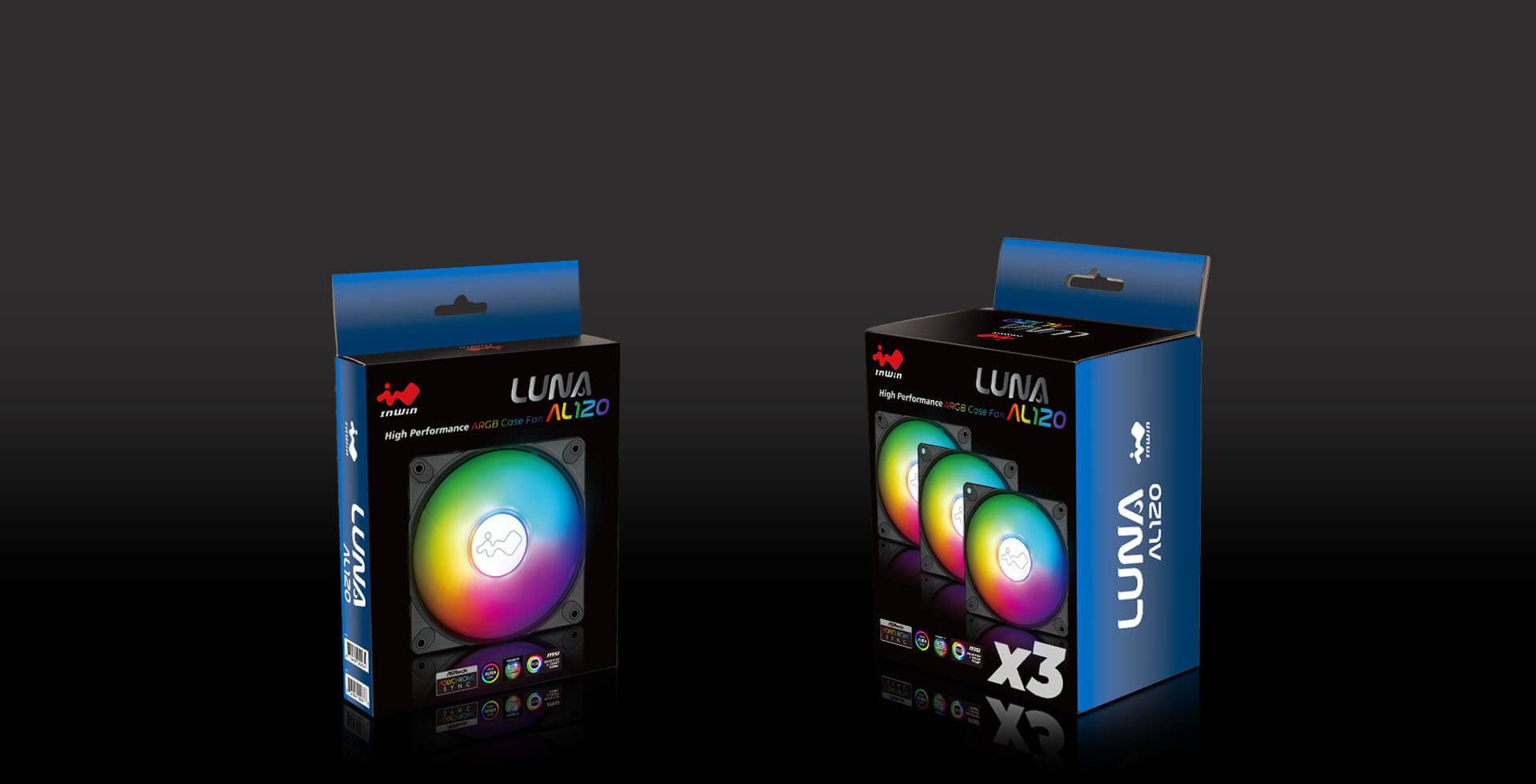

Luna Quantity Included


Single Pack

Triple Pack

Cable Information


Single Pack Cable Information

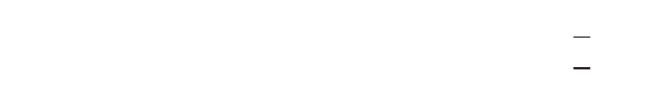

PWM Fan Cable

600mm+100mm

Addressable RGB Cable

500mm+100mm

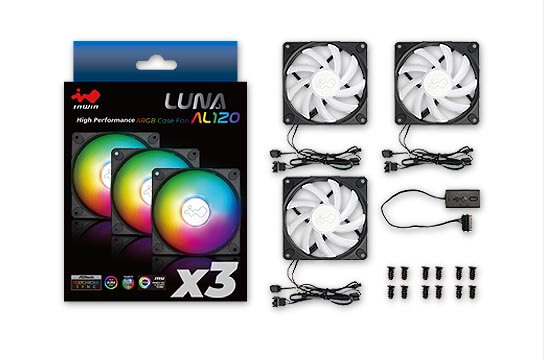

Triple Pack Cable Information

PWM Fan Cable

600mm+100mm

Addressable RGB Cable

500mm+100mm

Addressable RGB One-Click Controller

200mm

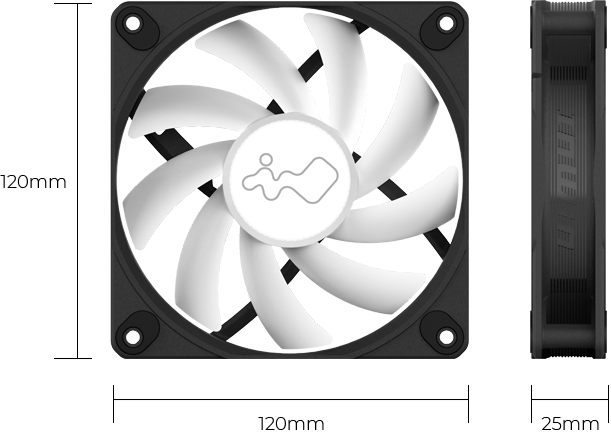

Specifications

Model Luna AL120
Quantity Included Single Pack Triple Pack
Model Number IW-FN-AL120-1PK IW-FN-AL120-3PK
Colors Black

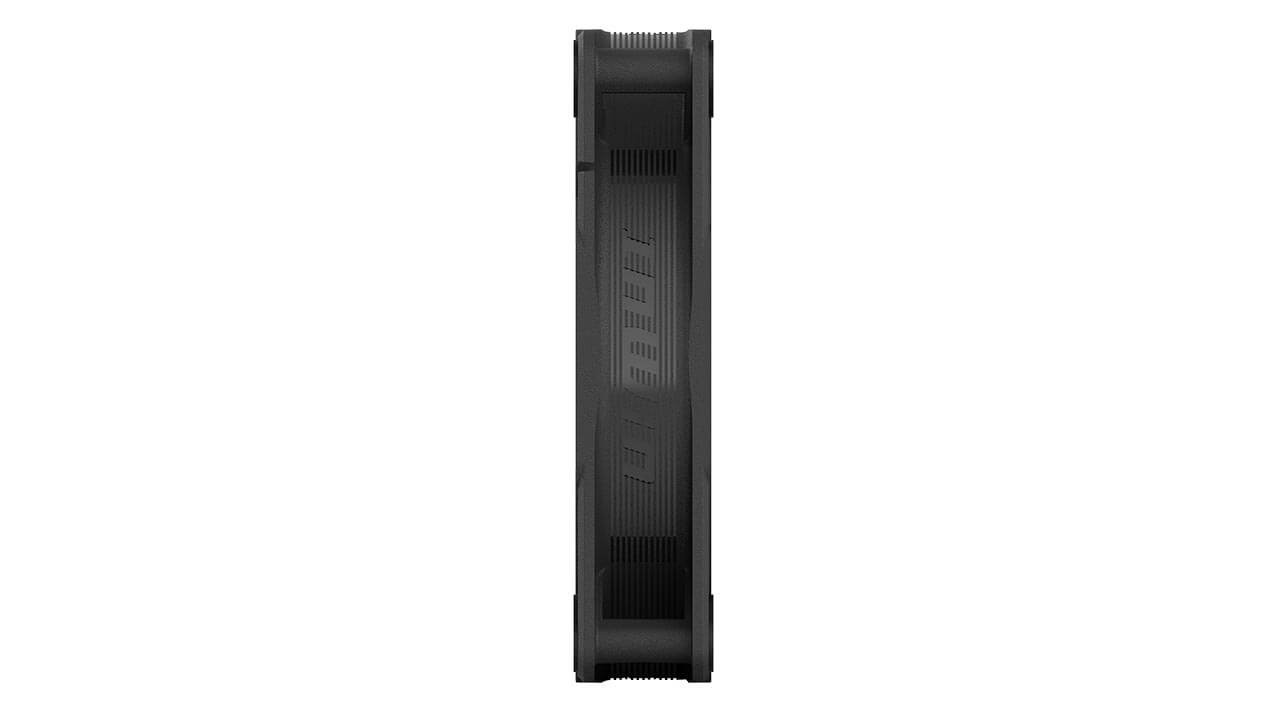

Fan Size 120 x 120 x 25 mm
Materials PC, PBT
Rated Voltage DC 12V
Rated Power 3.96W
Rated Current 0.33A
ADD RGB Rated Voltage DC 5V
ADD RGB Rated Power 1.5W
ADD RGB Rated Current 0.3A
Speed Mode PWM 600-1800 +/-10% RPM
Air Flow 82.96 CFM
Air Pressure 2.31 mm / H2O
LED Addressable RGB
Connector (Fan to Fan) Non-Modular Cables
Connector to M/B 4-Pin (PWM, 12V), 3-Pin (ARGB, 5V)
Noise Level 25 dB(A) (Normal)
Bearing Type Long Lifespan Sleeve Bearing
Net Weight 133 g 399 g
Gross Weight 169 g 484 g
Package Dimensions
(L x W x H)
185 x 125 x 30 mm 185 x 125 x 82 mm
Warranty 2 Years
* Specifications may vary based on different regions.
* Our products comply with RoHS regulations.

Download

Video

eStore

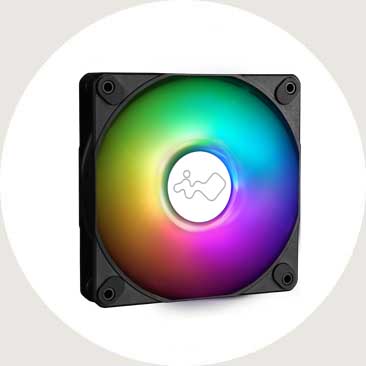

Luna AL120 is on InWin Official eStore Now!
