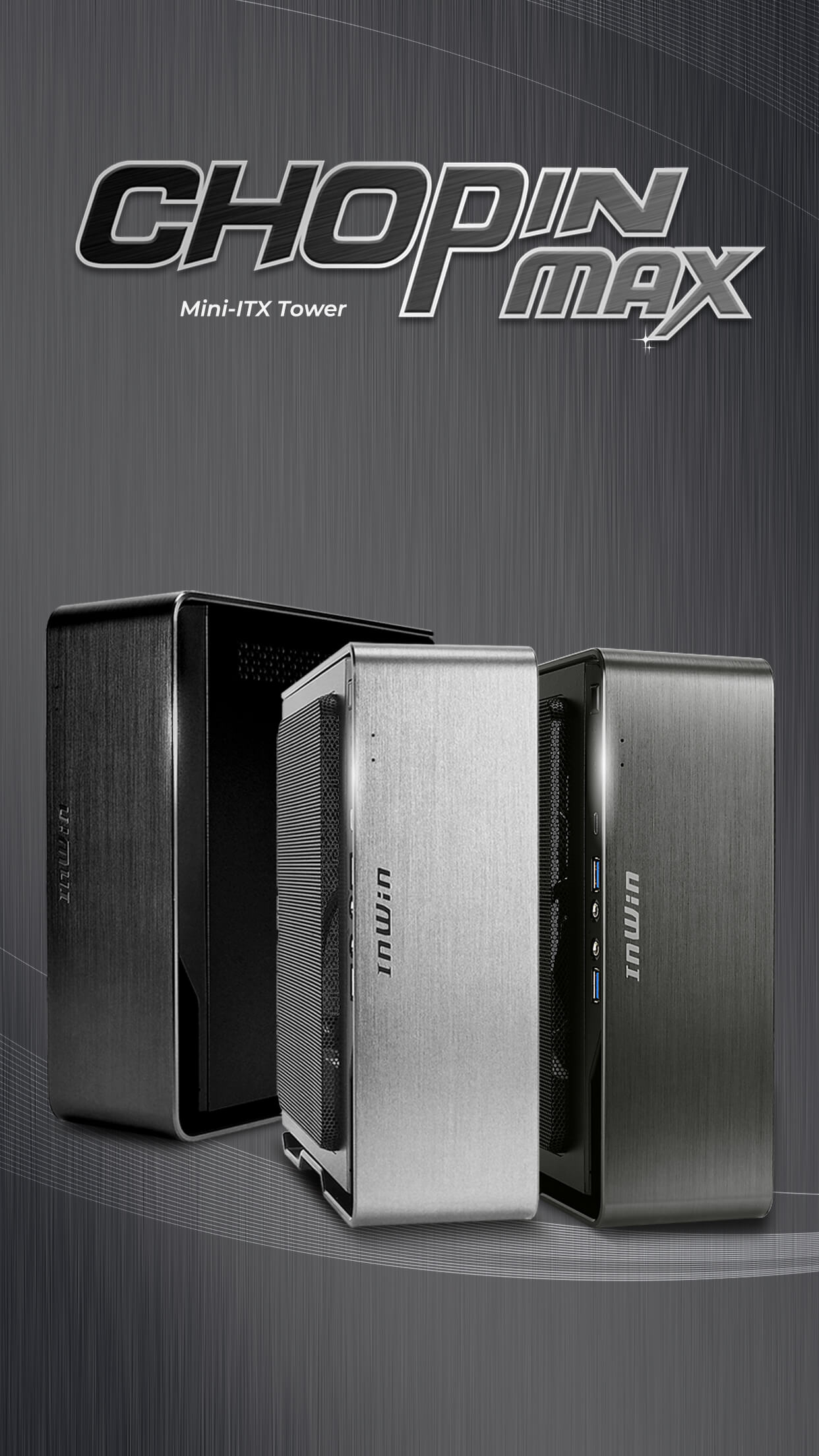

Chopin MAX

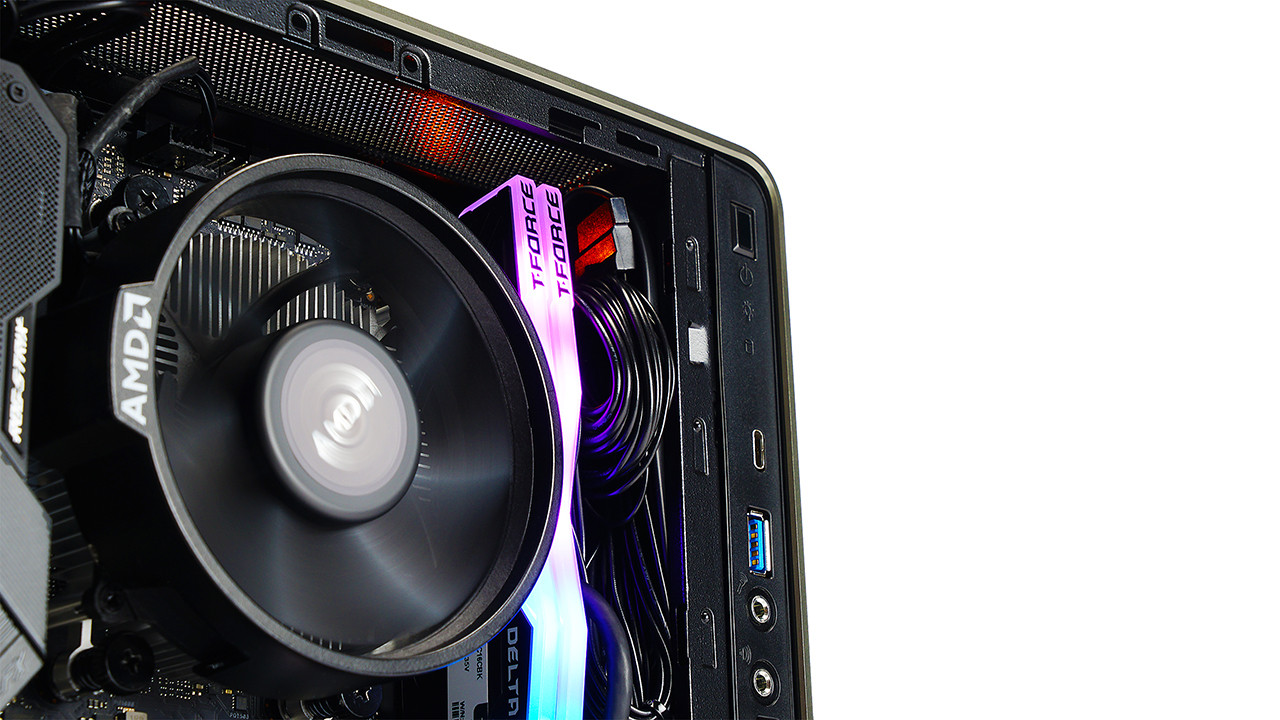

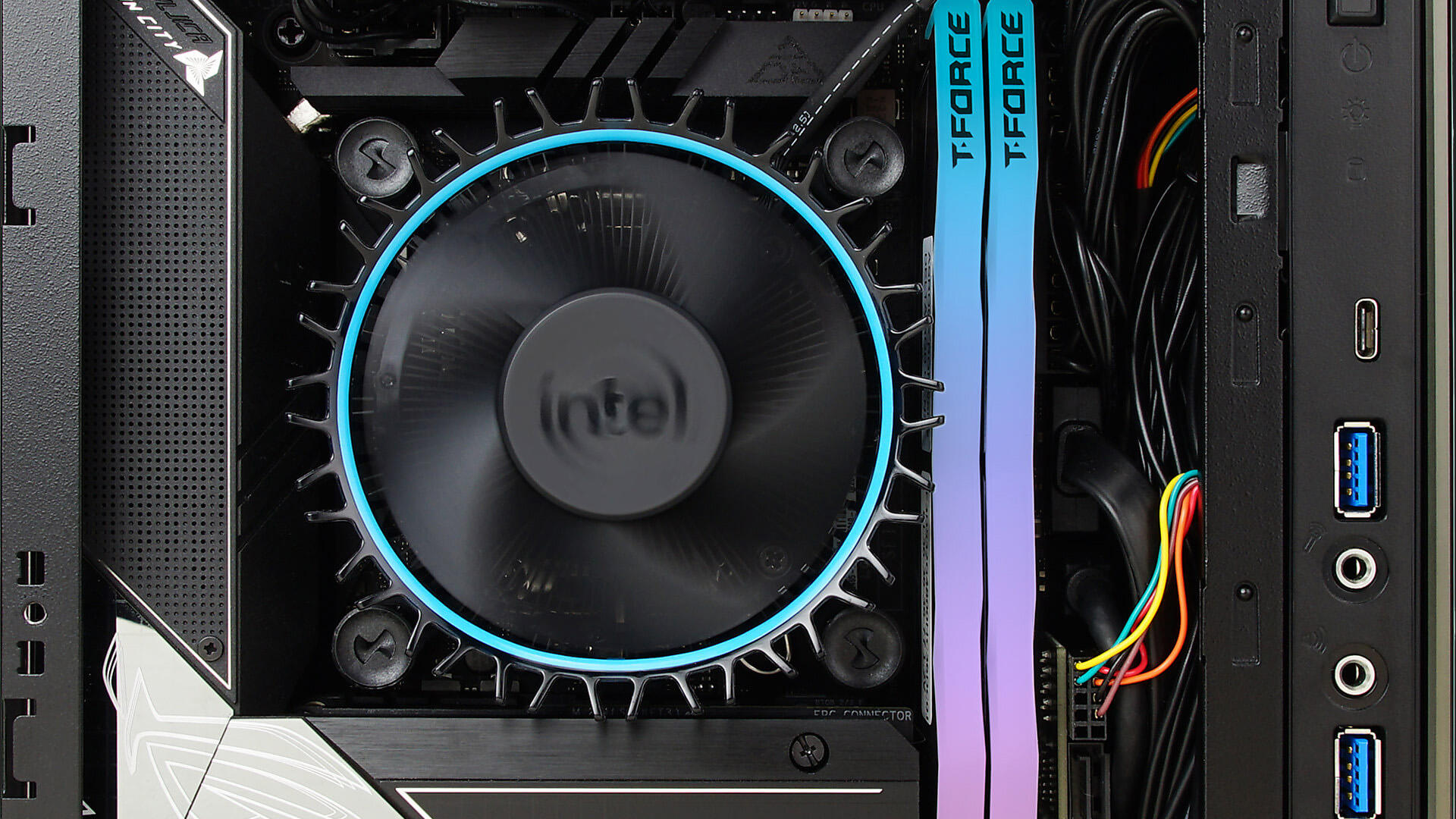

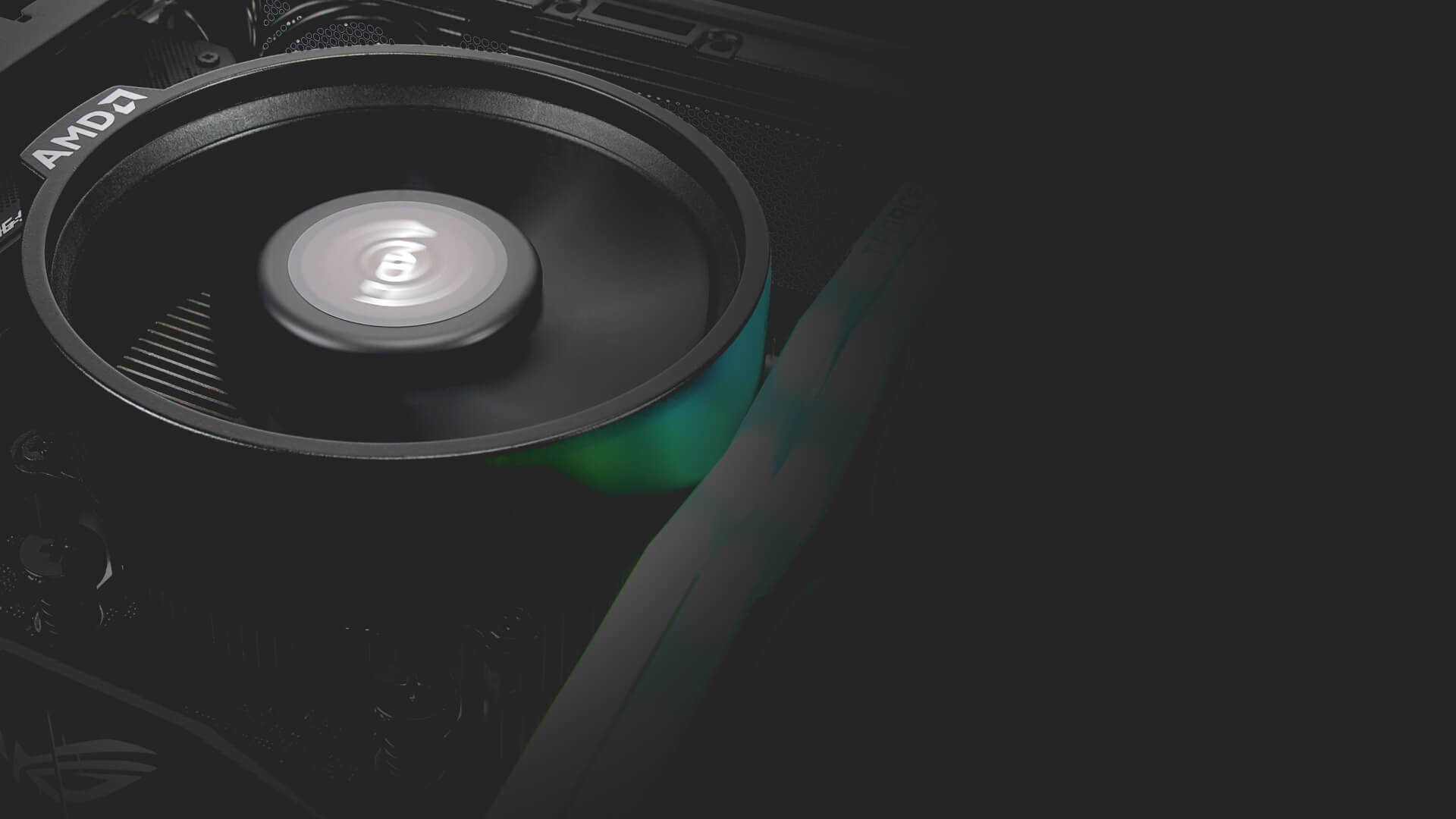

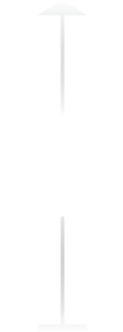

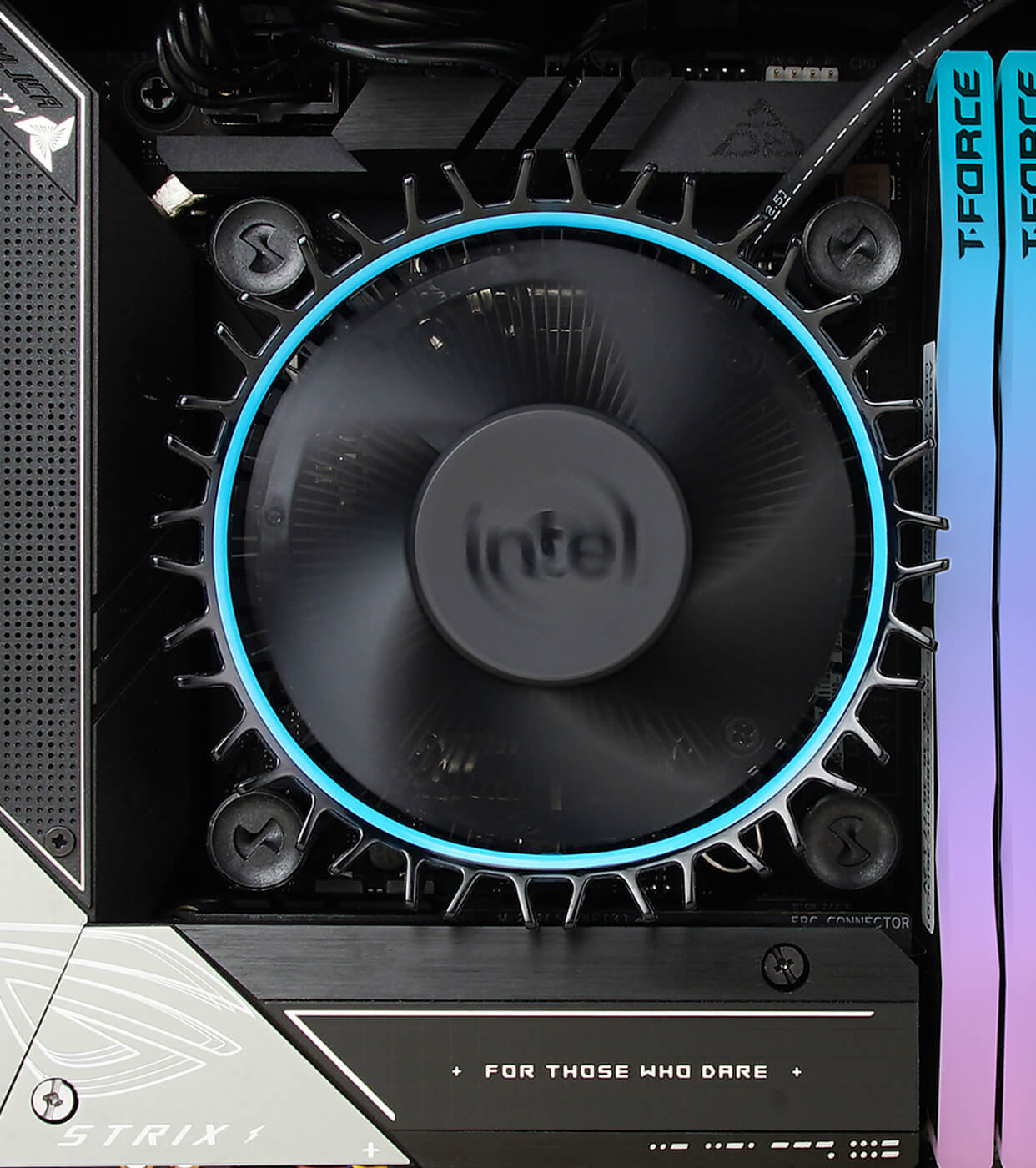

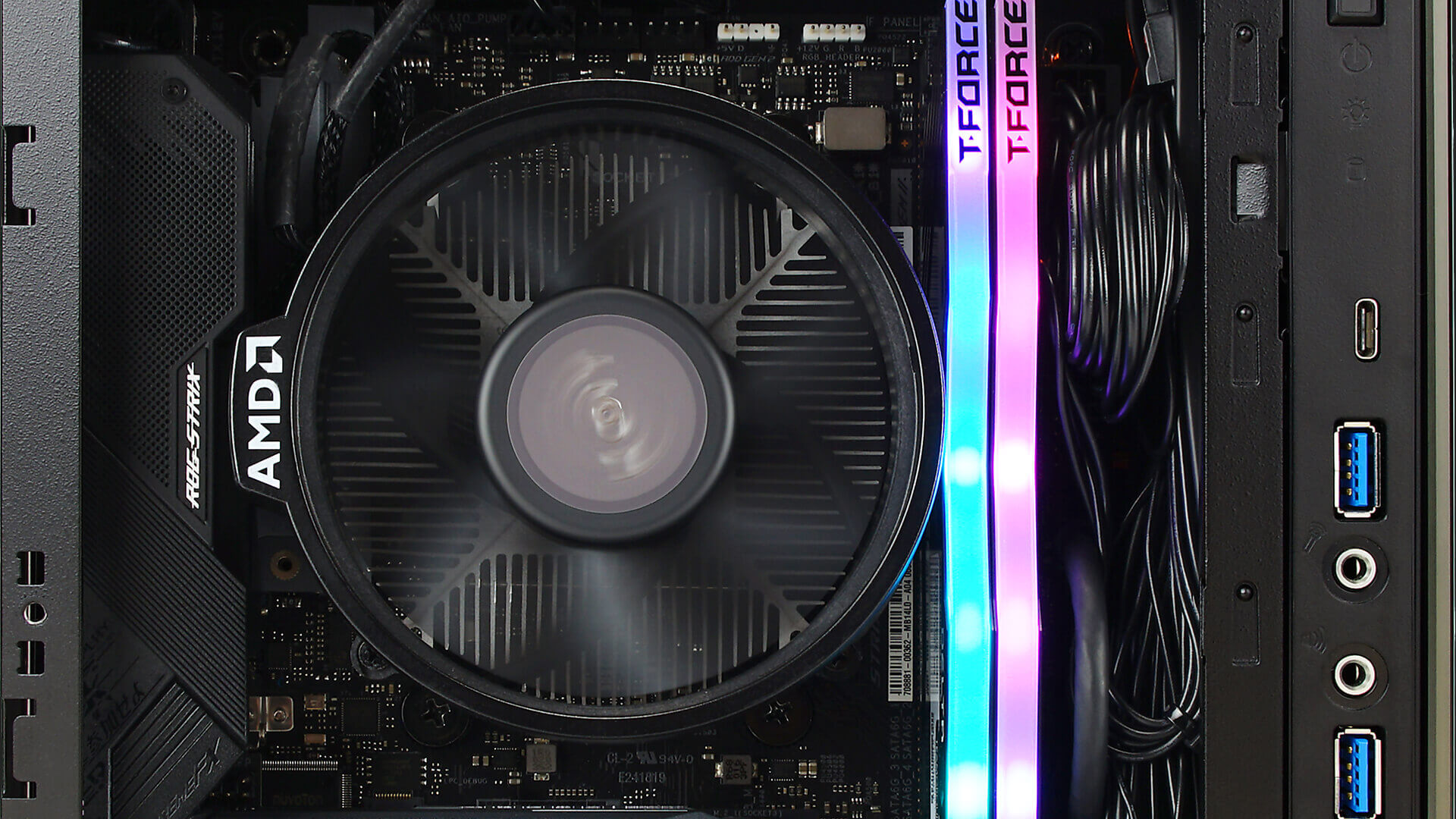

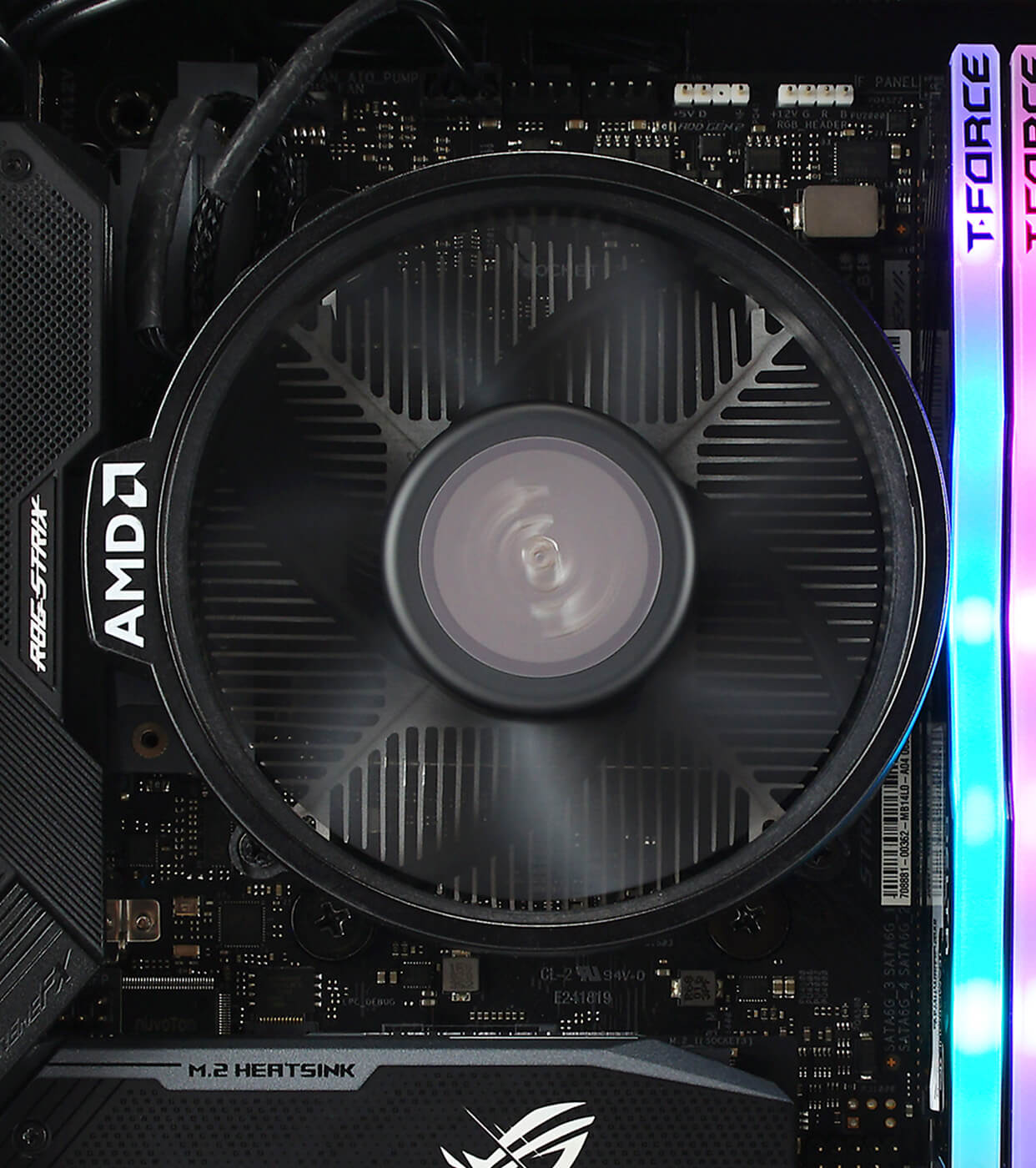

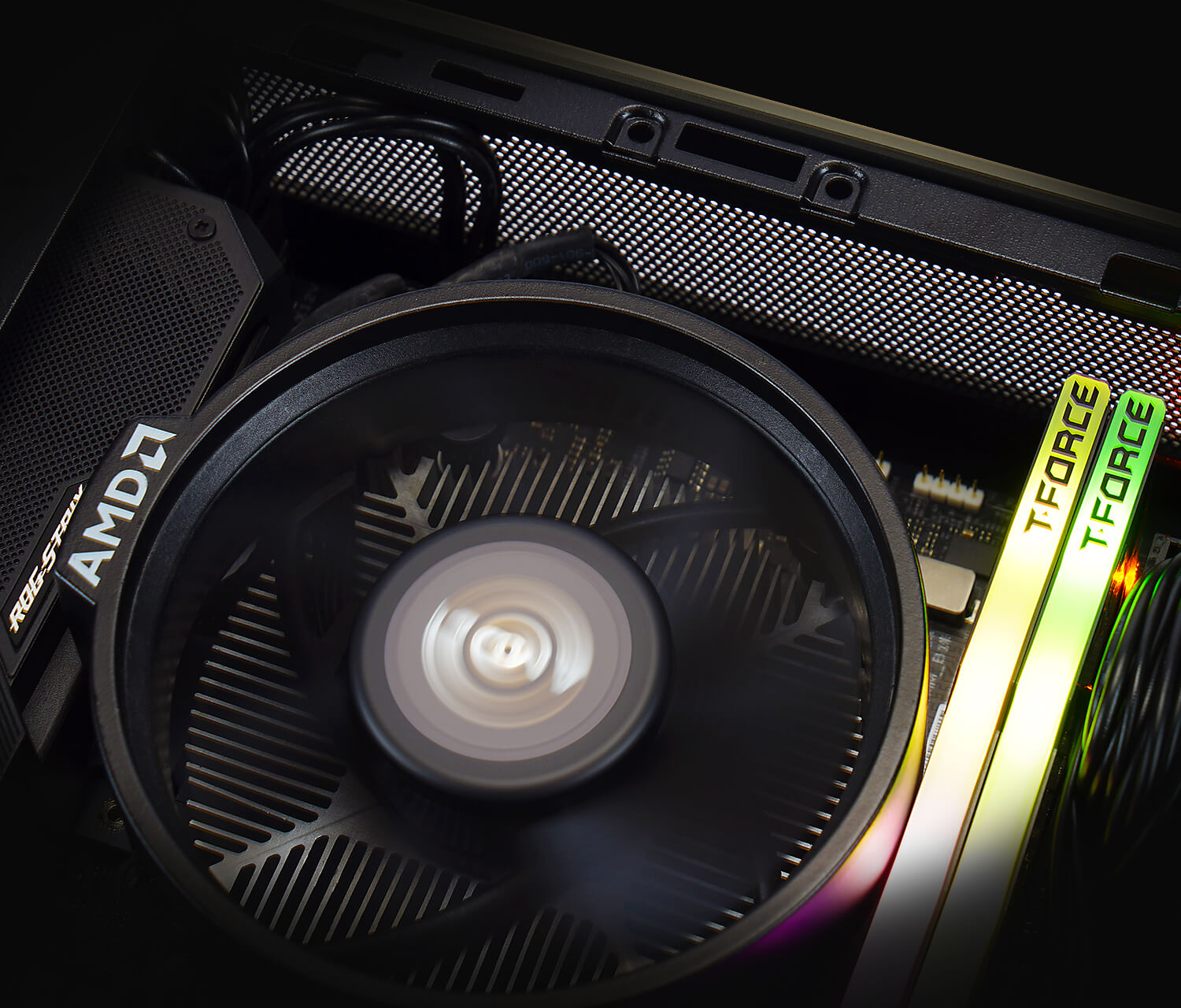

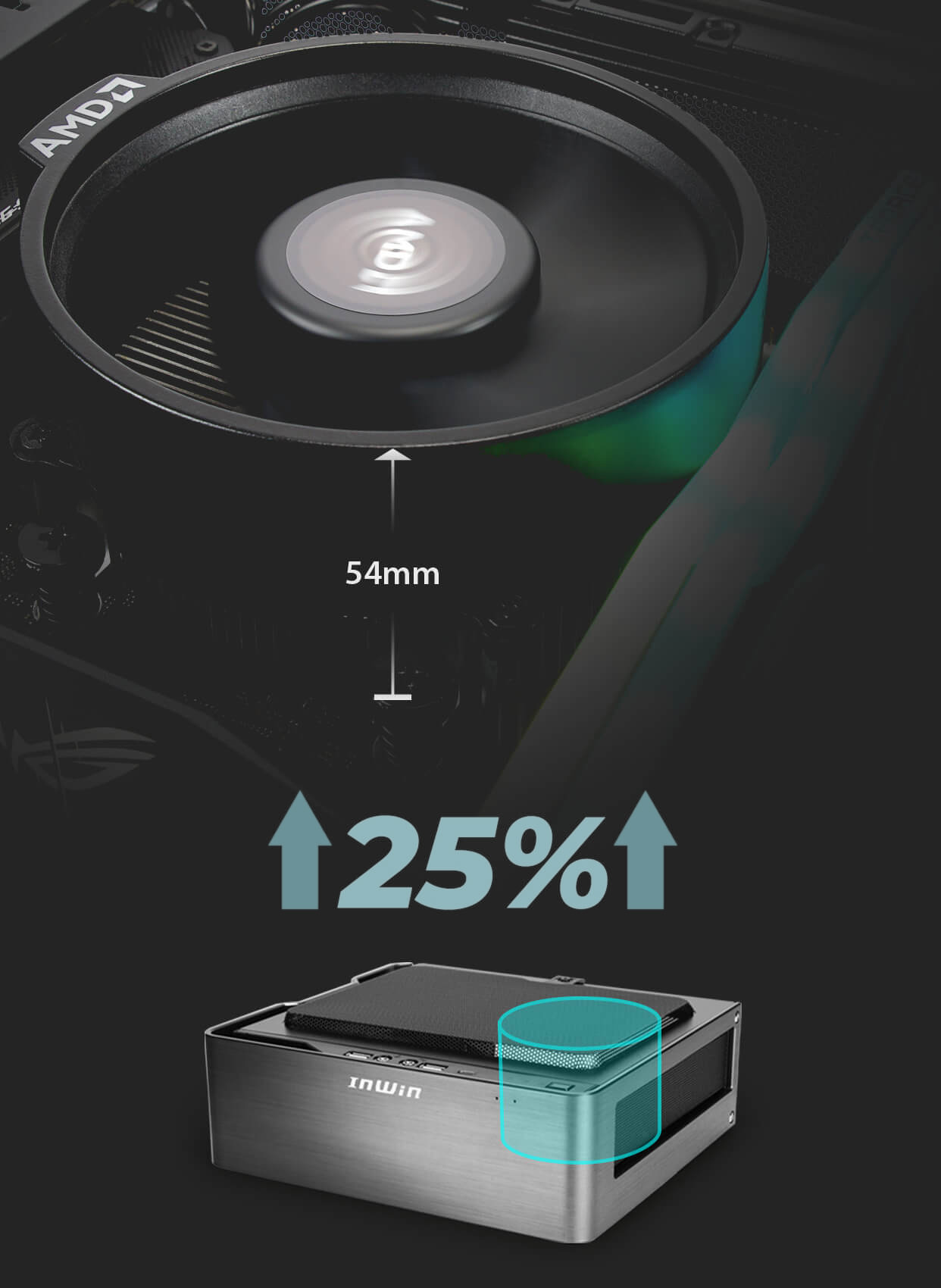

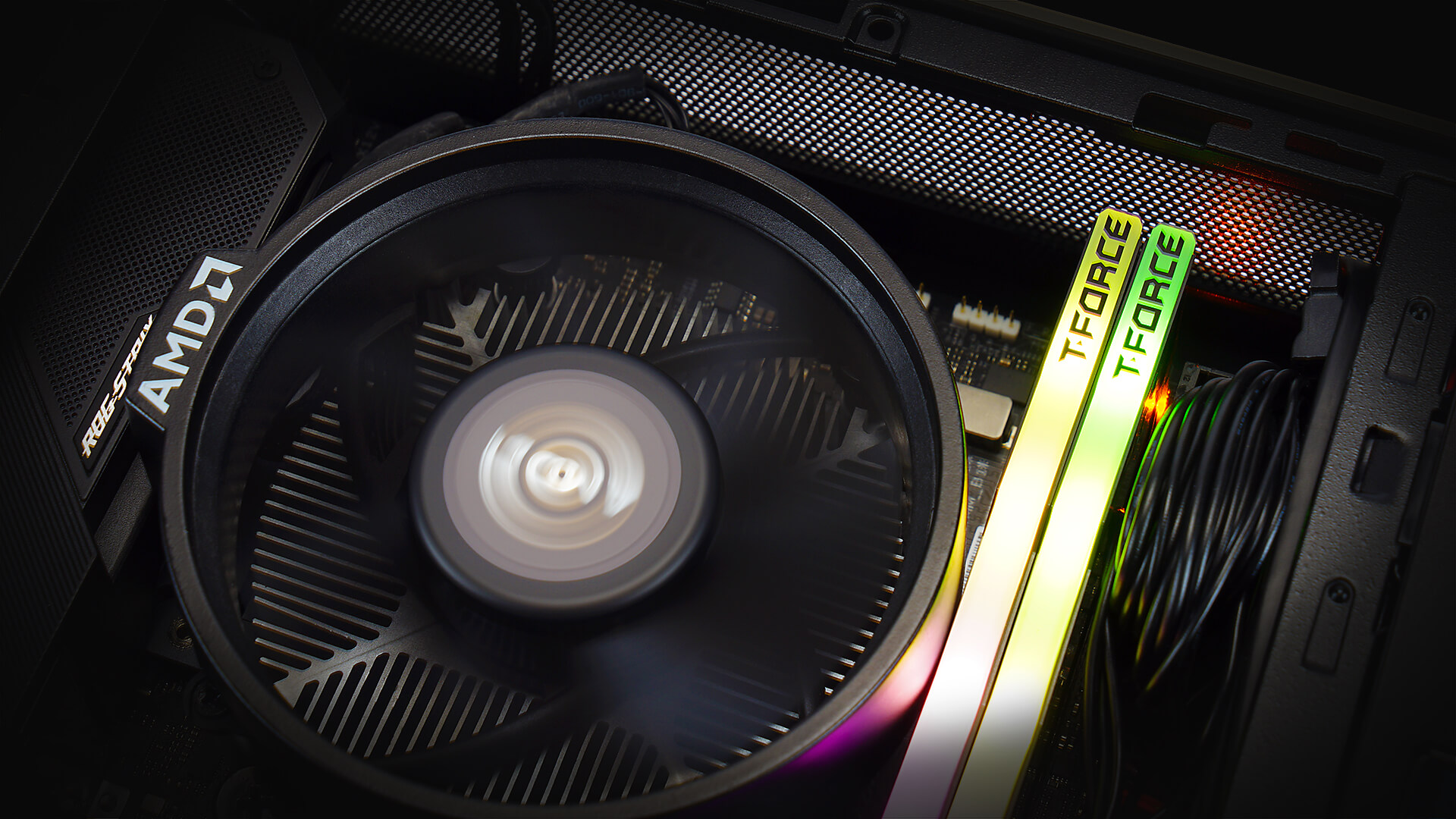

More CPU Heatsink-Clearance

Optimal CPU Heatsink height up to 54 mm. Supports both AMD and Intel CPU coolers.

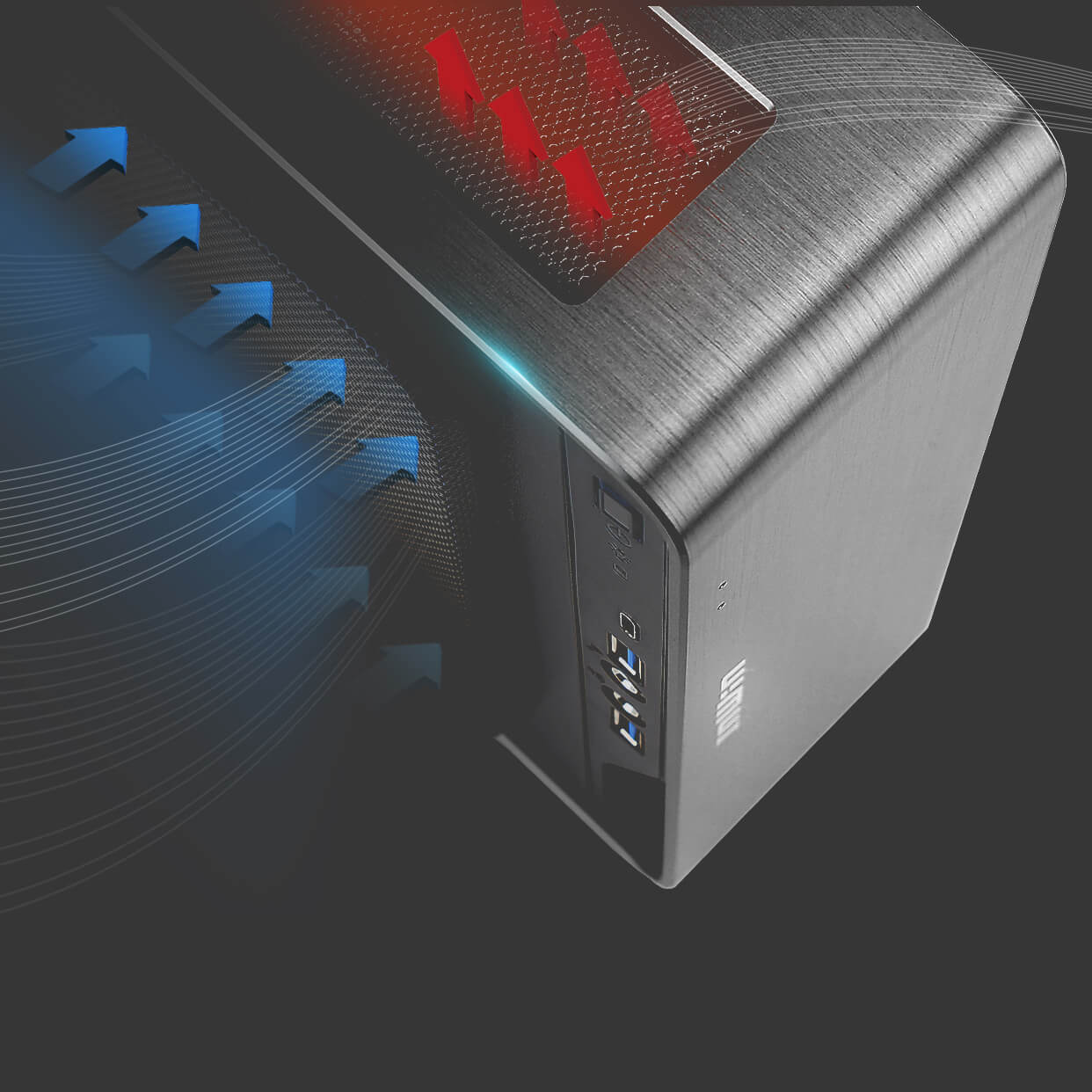

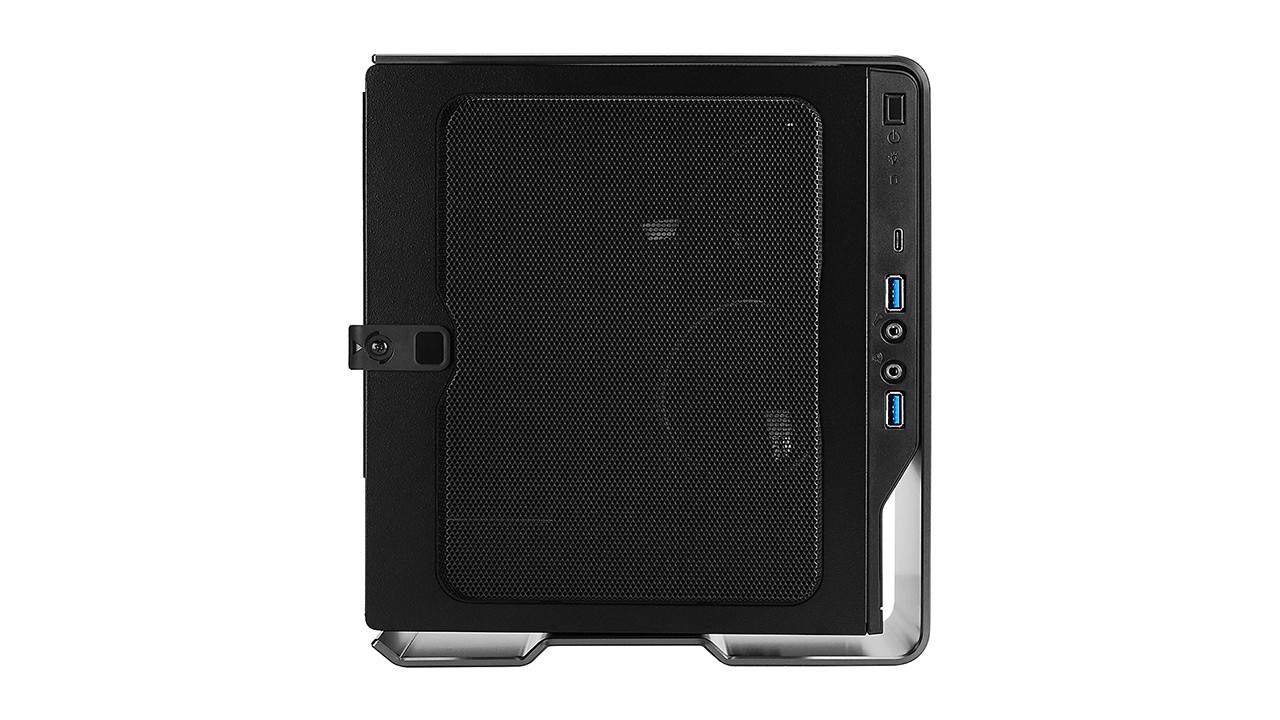

Perforated Mesh Panel

Newly redesigned mesh panel increases the ventilation surface area to enhance heat dissipation.

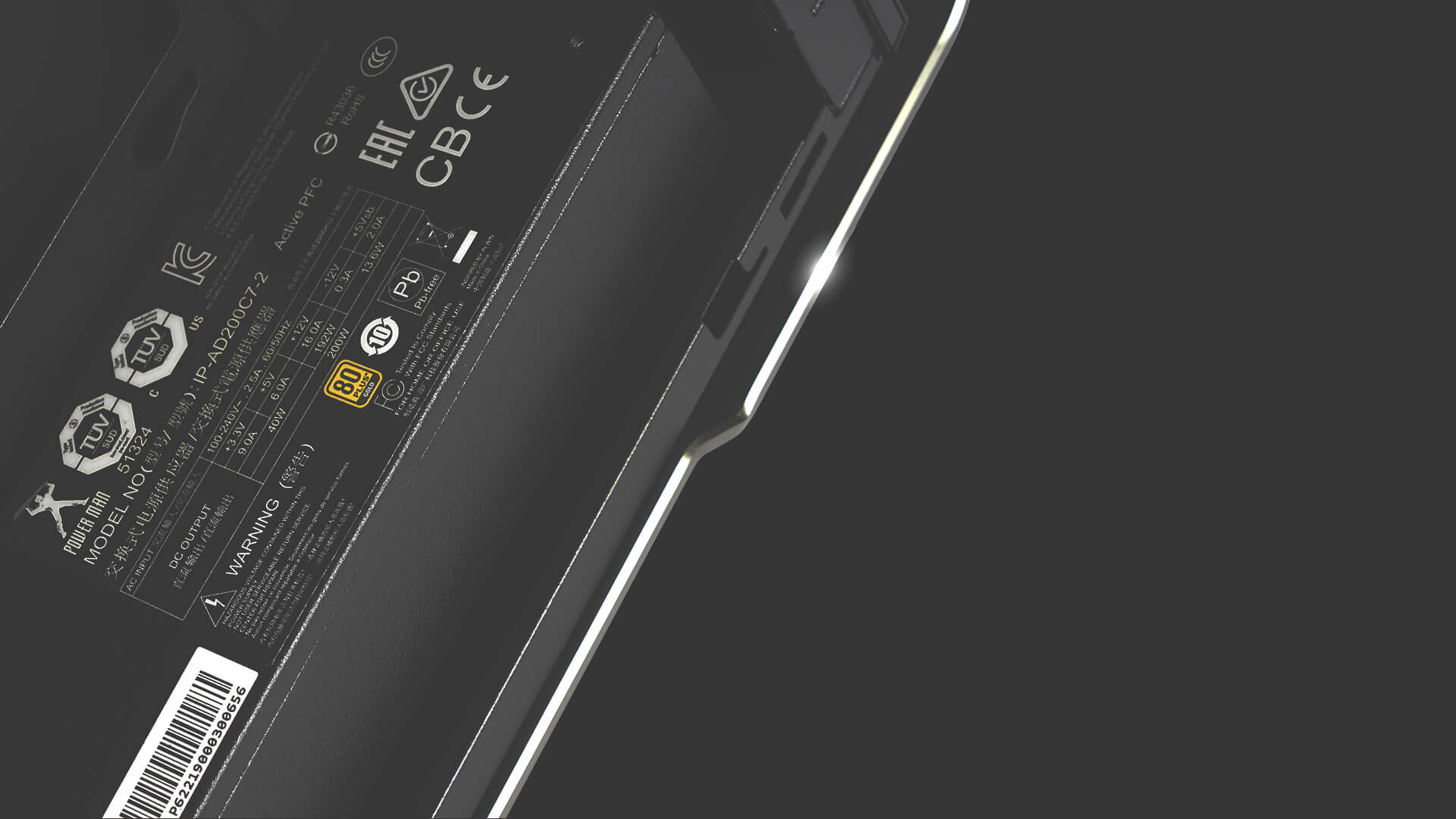

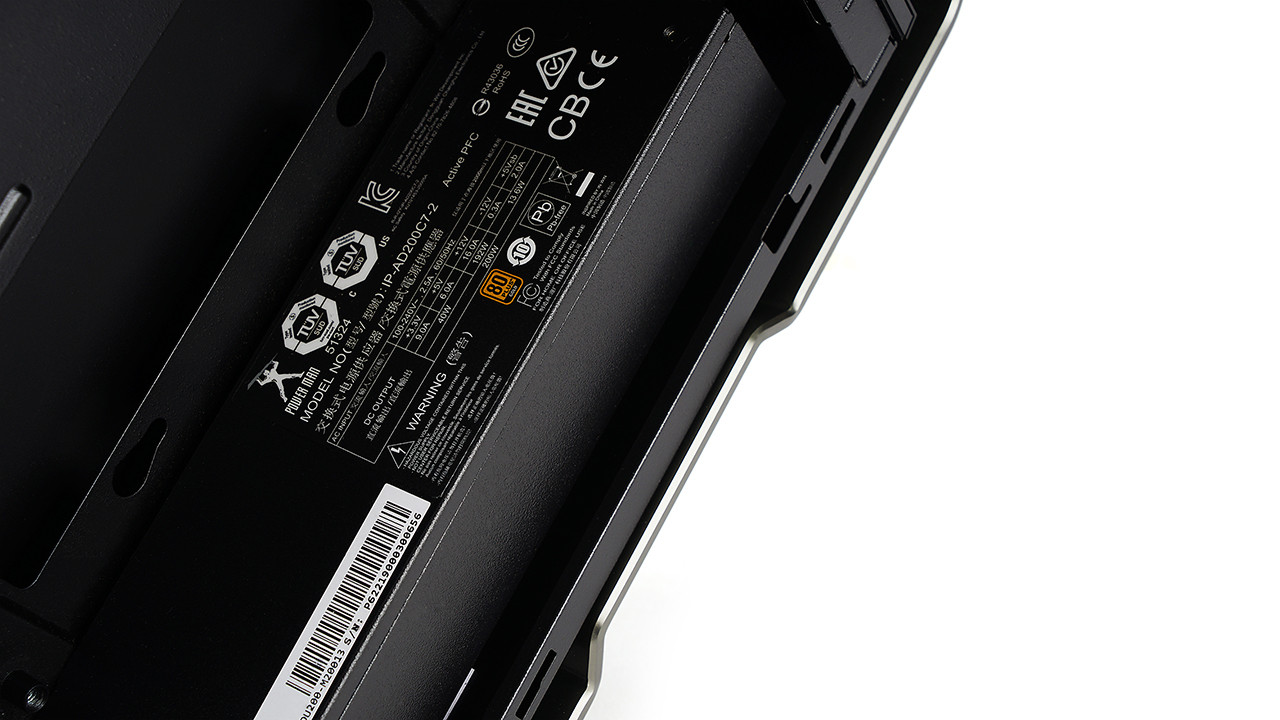

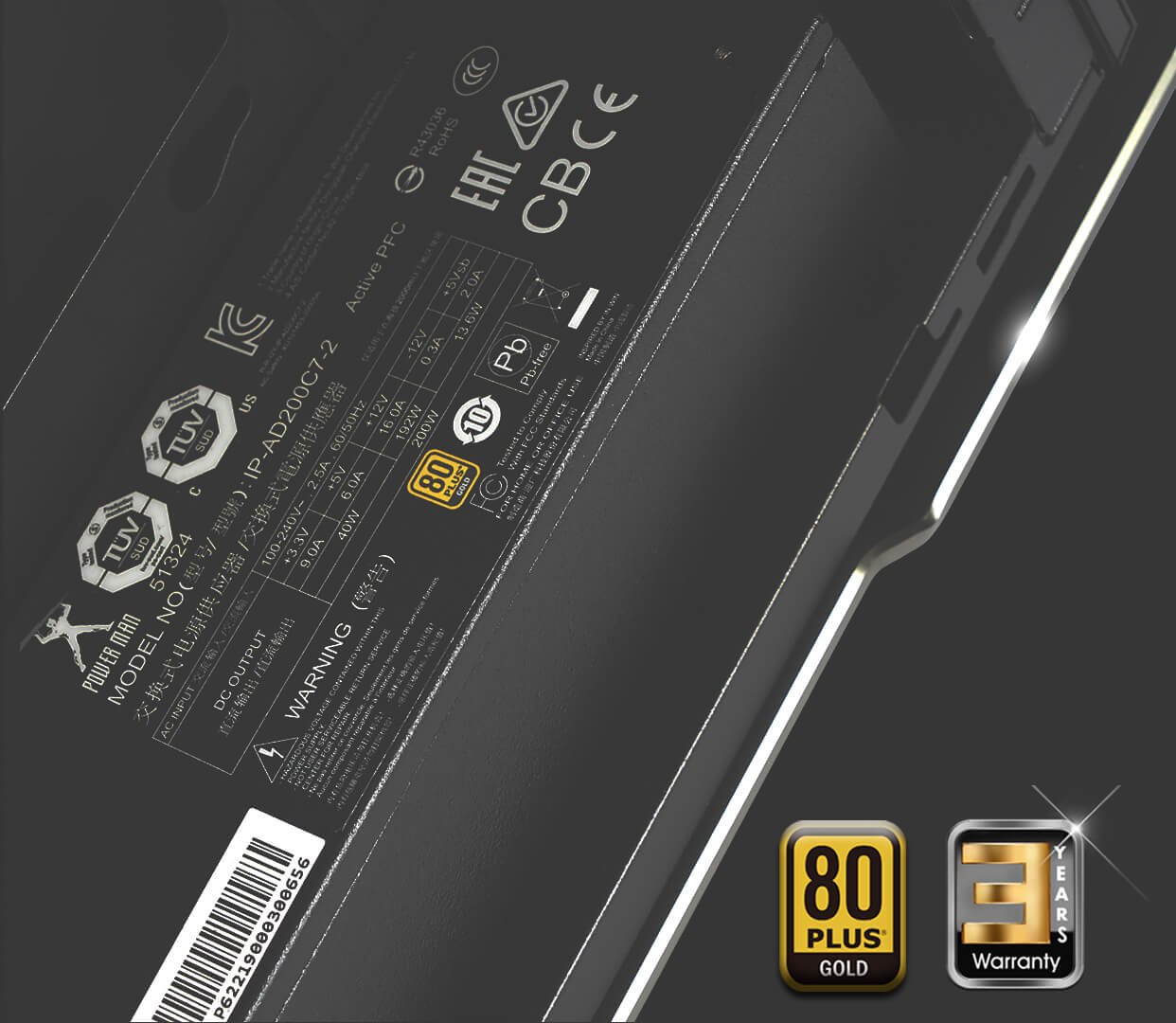

InWin 200W 80 PLUS Gold PSU Included

The Chopin MAX provides maximum efficiency while keeping the noise pollution at a minimum.

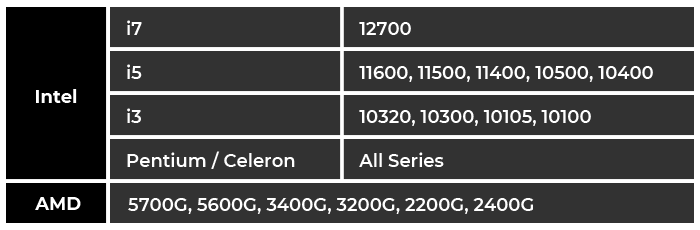

Chopin MAX Recommended CPU (Integrated Graphics)

Using a CPU model that is not listed above may result in system crash due to overclocking or other factors. Over power consumption will also affect the lifespan of the power supply, please choose proper CPU with caution.

USB 3.2 Gen 1
5Gbps
USB 3.2 Gen 2
10Gbps
USB 3.2 Gen 2x2
20Gbps

*The transfer speeds may vary depending on hardware configuration.

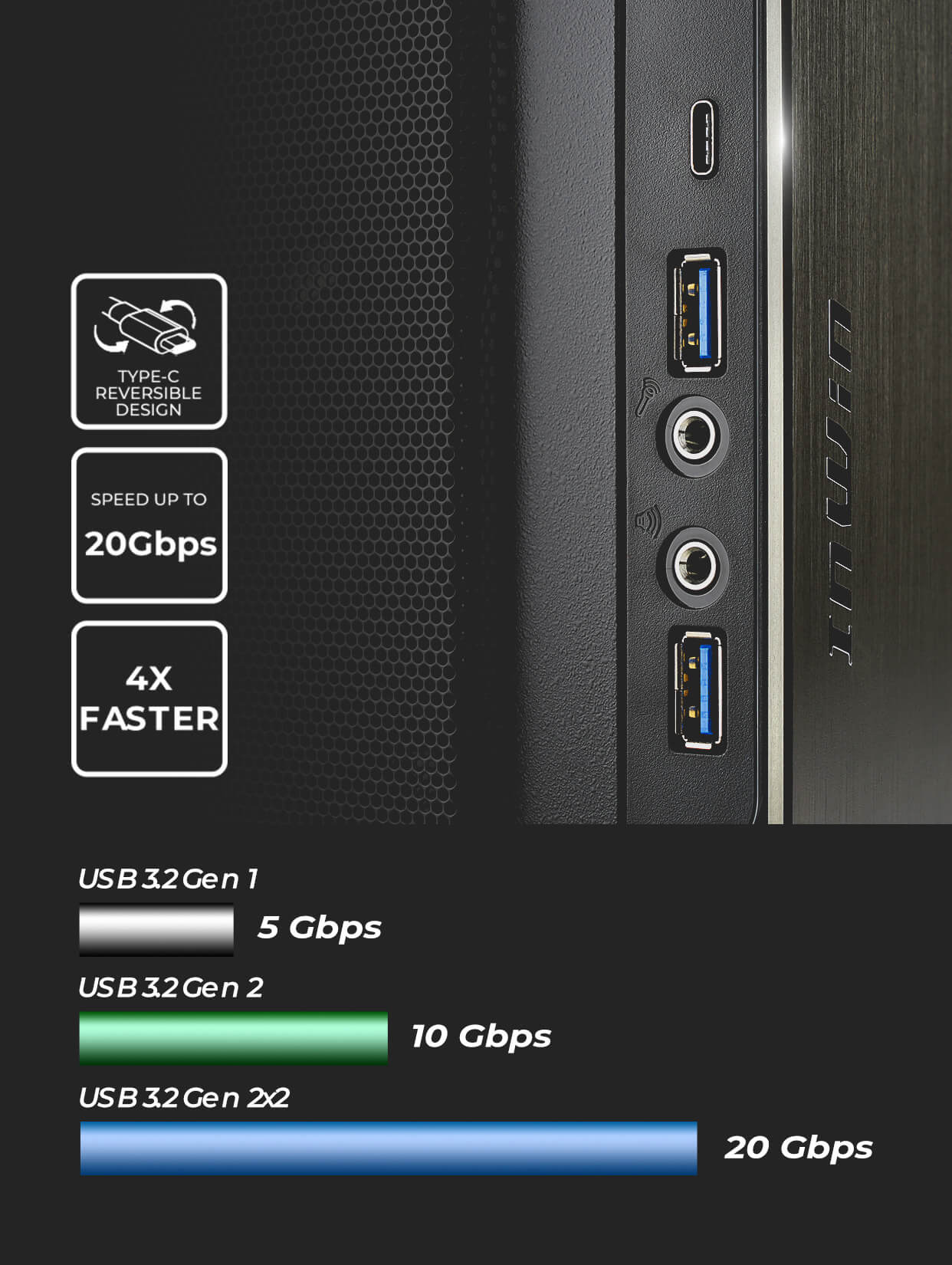

Super Transfer Speeds

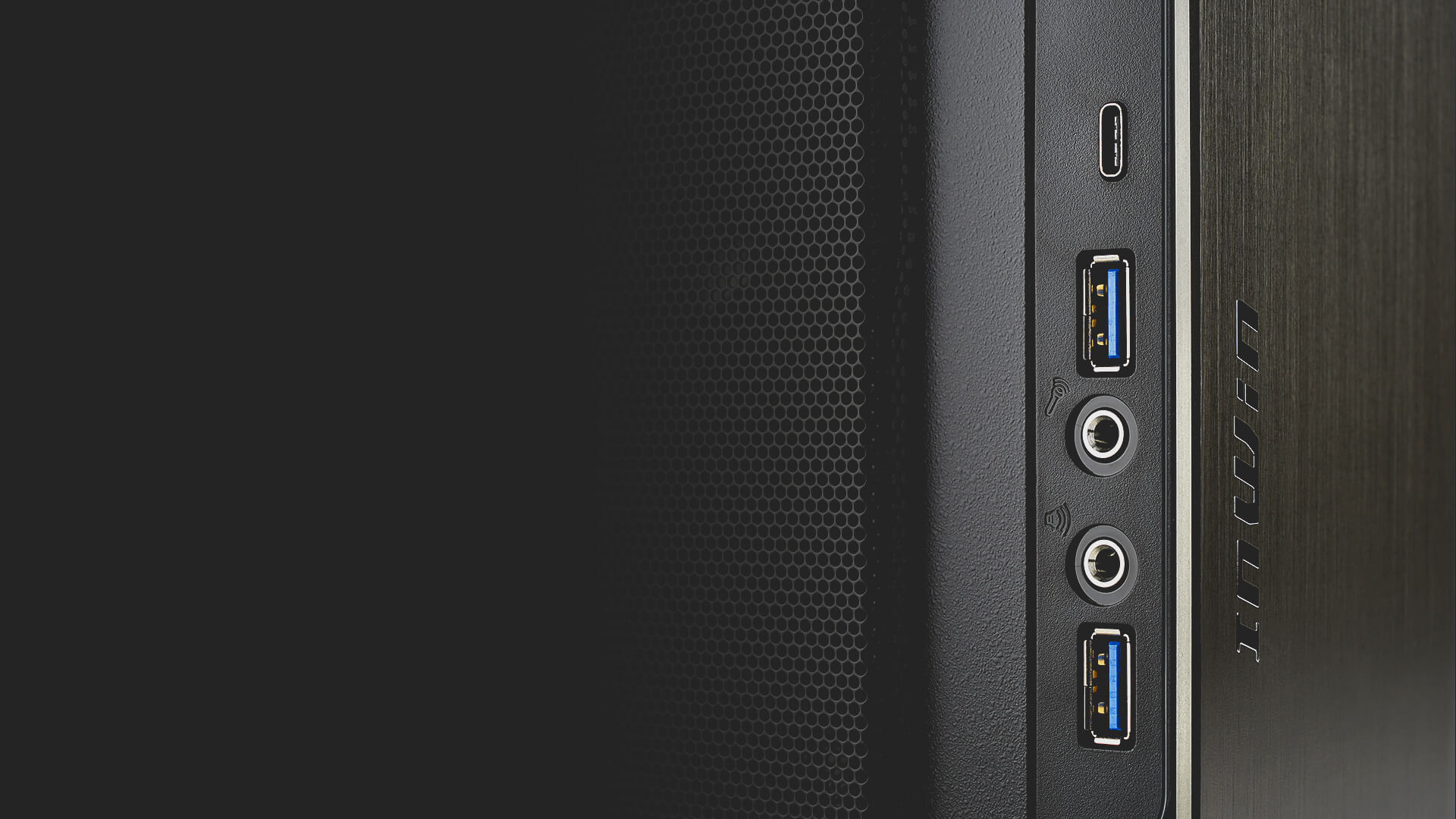

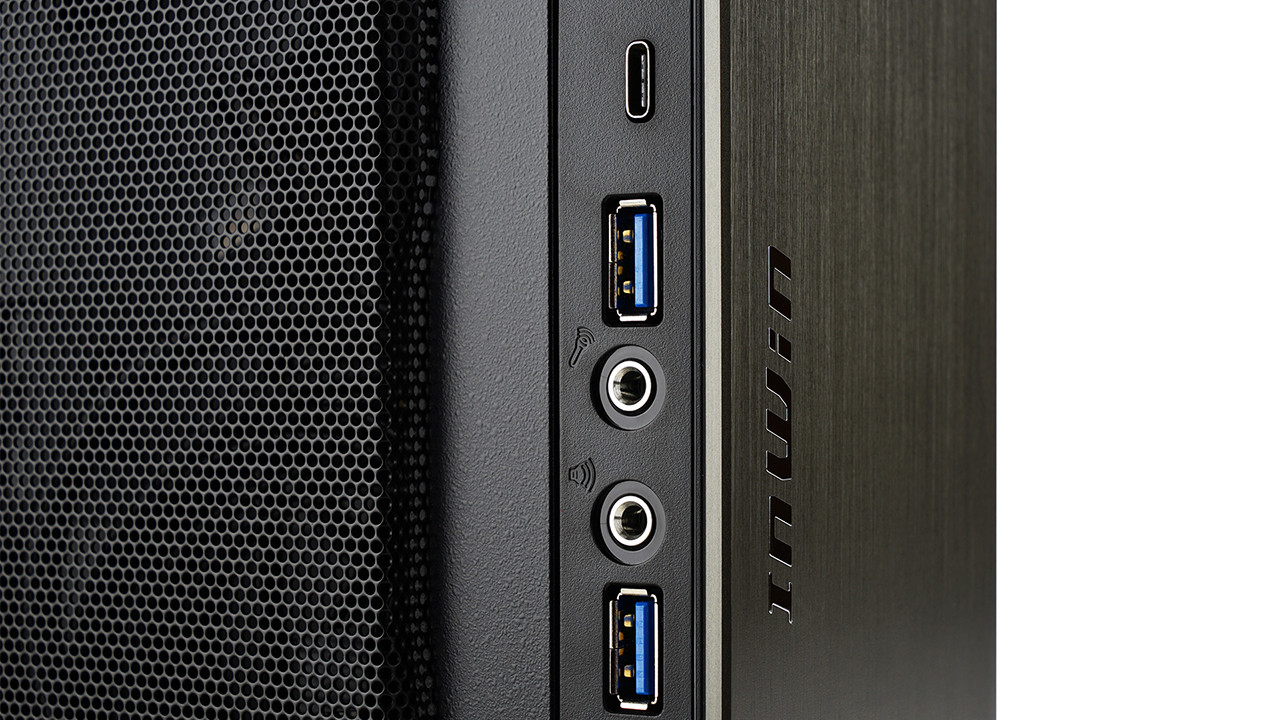

The Chopin MAX is built with one USB 3.2 Gen 2X2 Type-C USB port and two USB 3.2 Gen 1 Type-A ports for faster data transfer speeds.

*The transfer speeds may vary depending on hardware configuration.

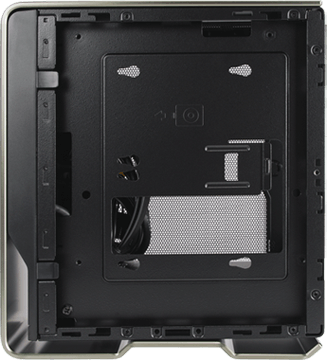

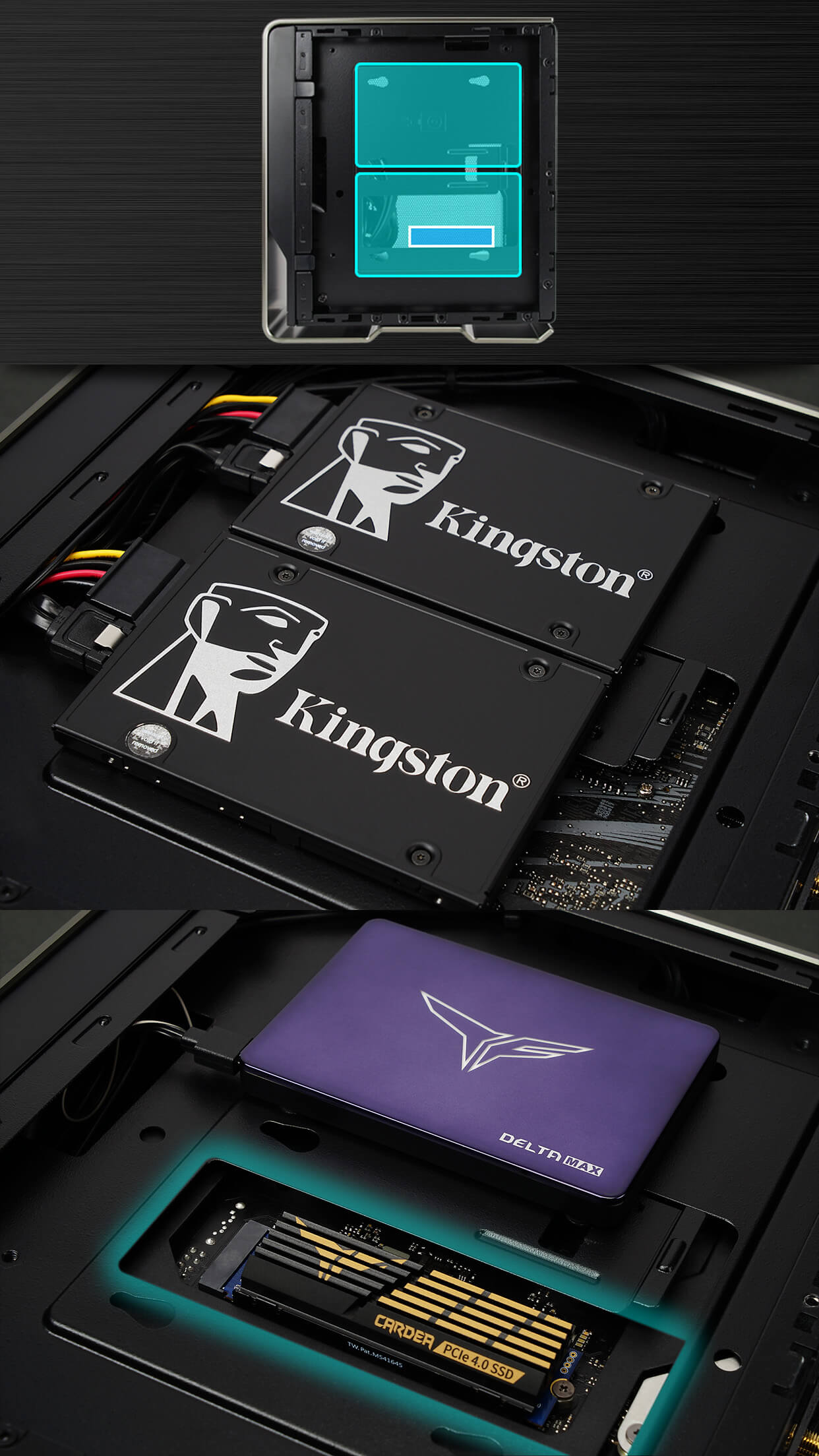

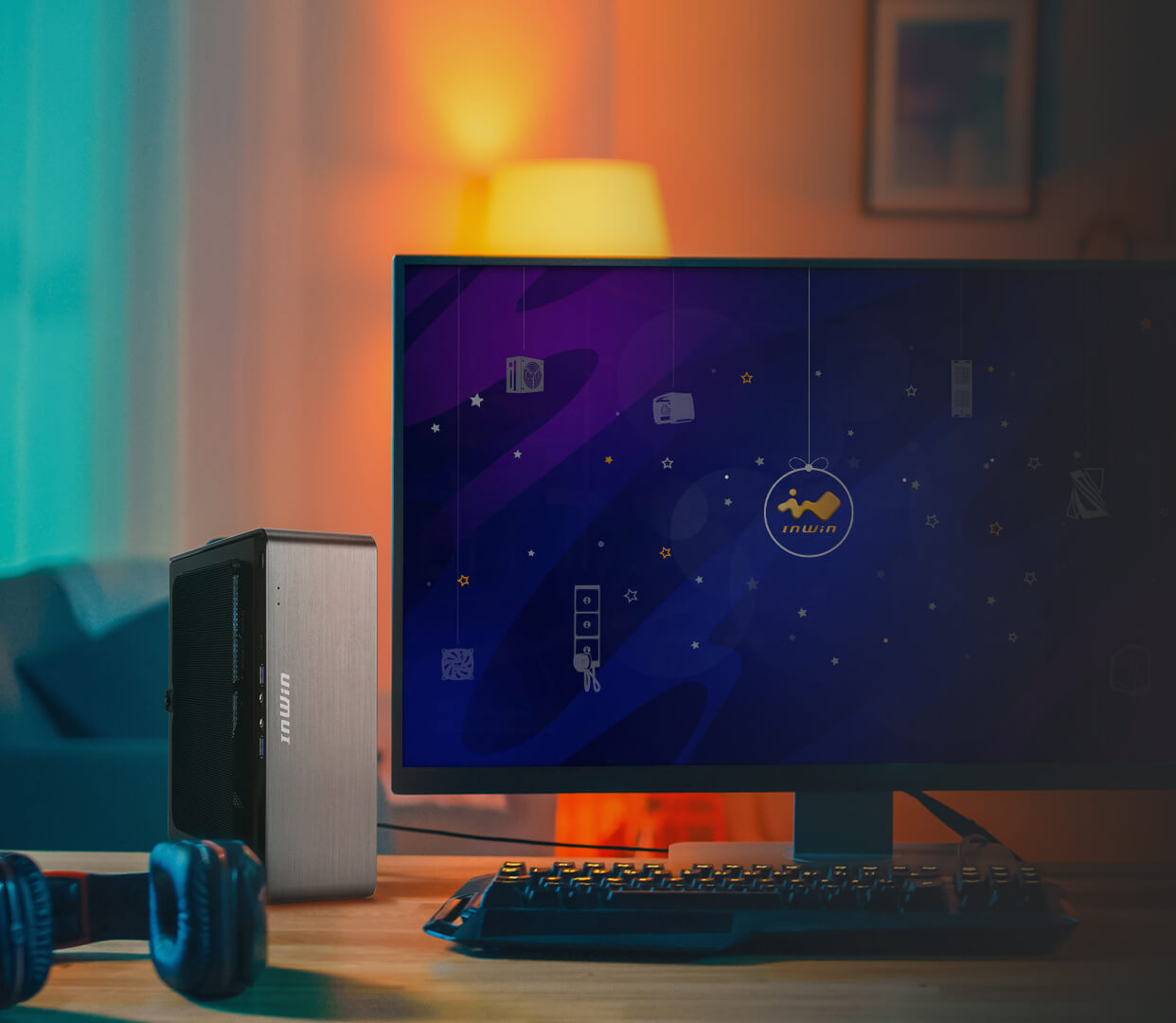

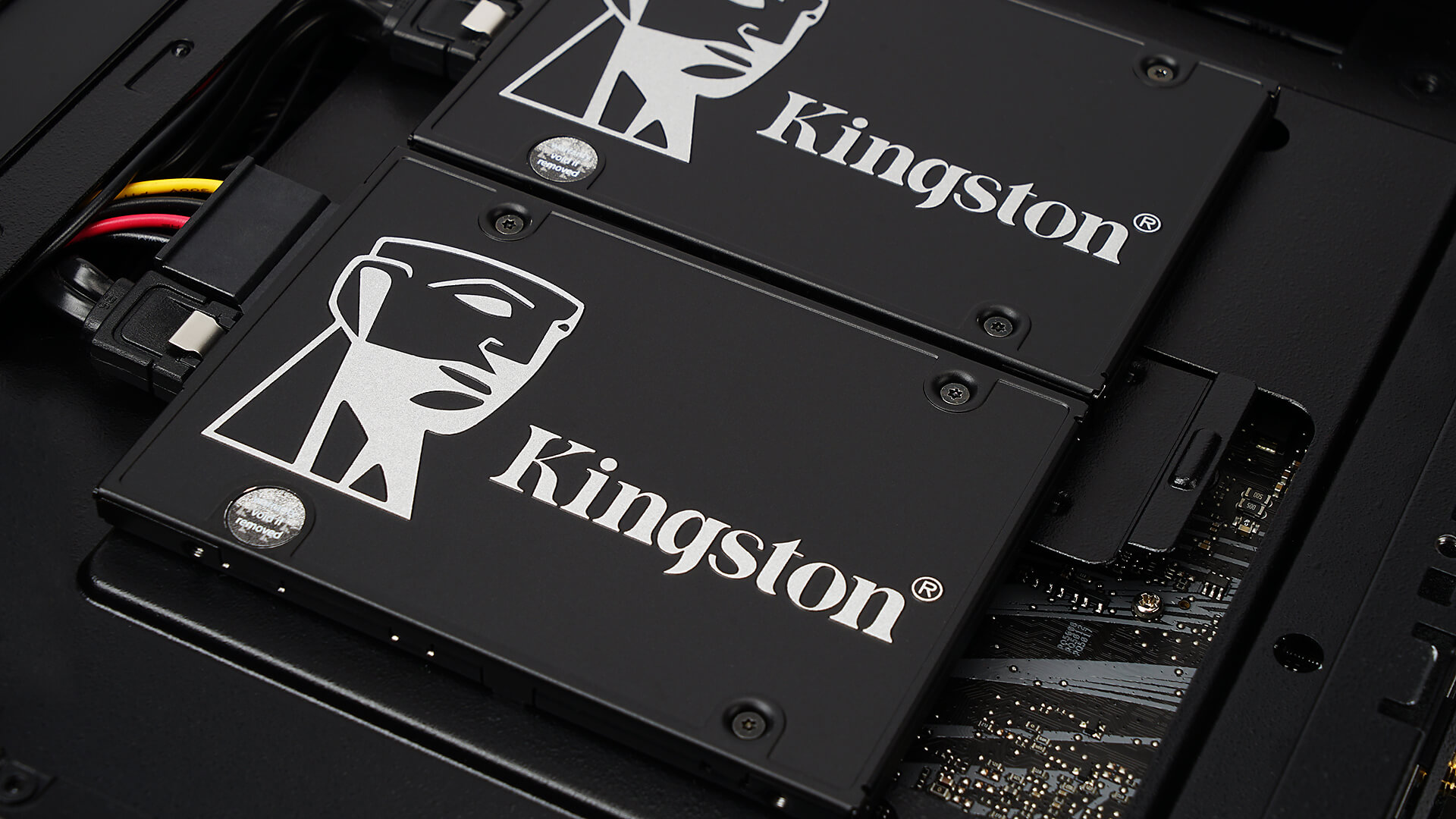

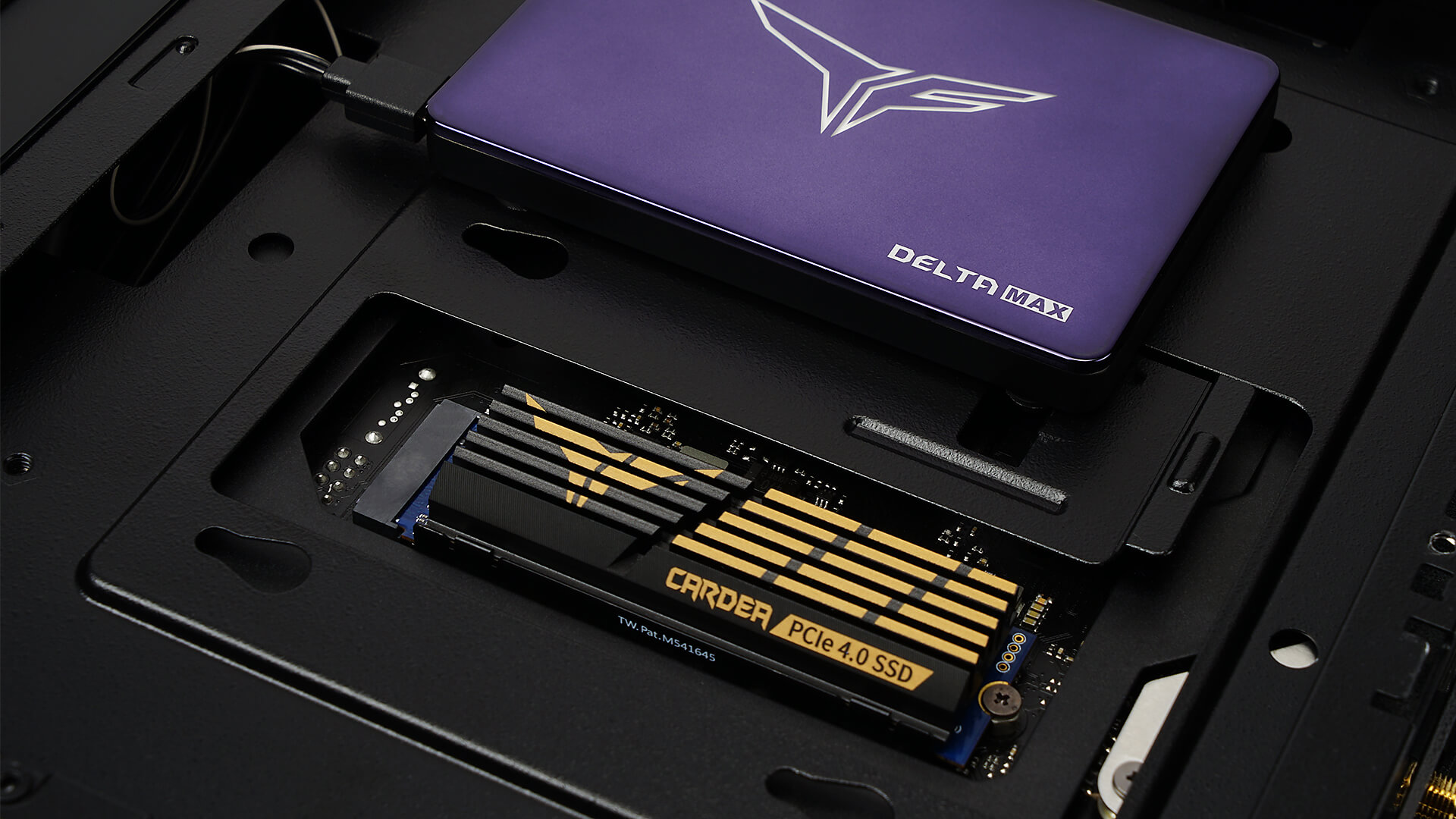

Itty-Bitty Living Space

The Chopin MAX can house 2 x 2.5” SSDs in a compact enclosure. The user-friendly design allows for simplified M.2 SSD installation.

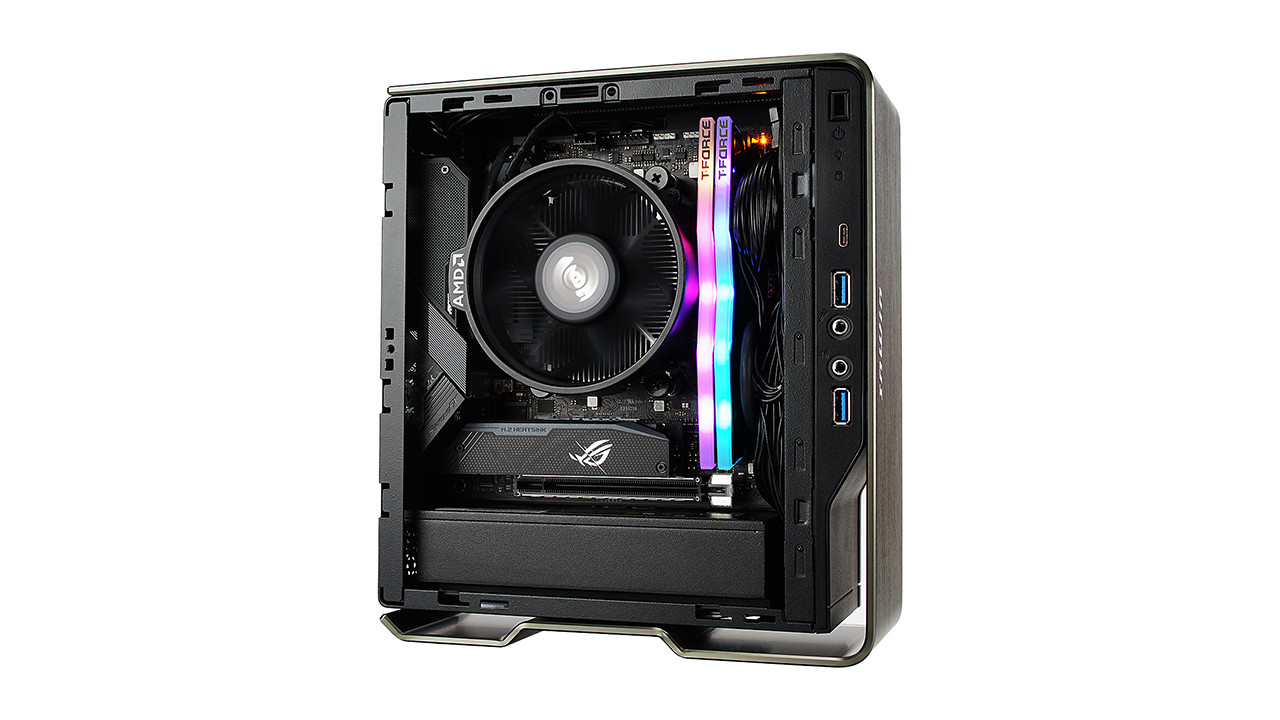

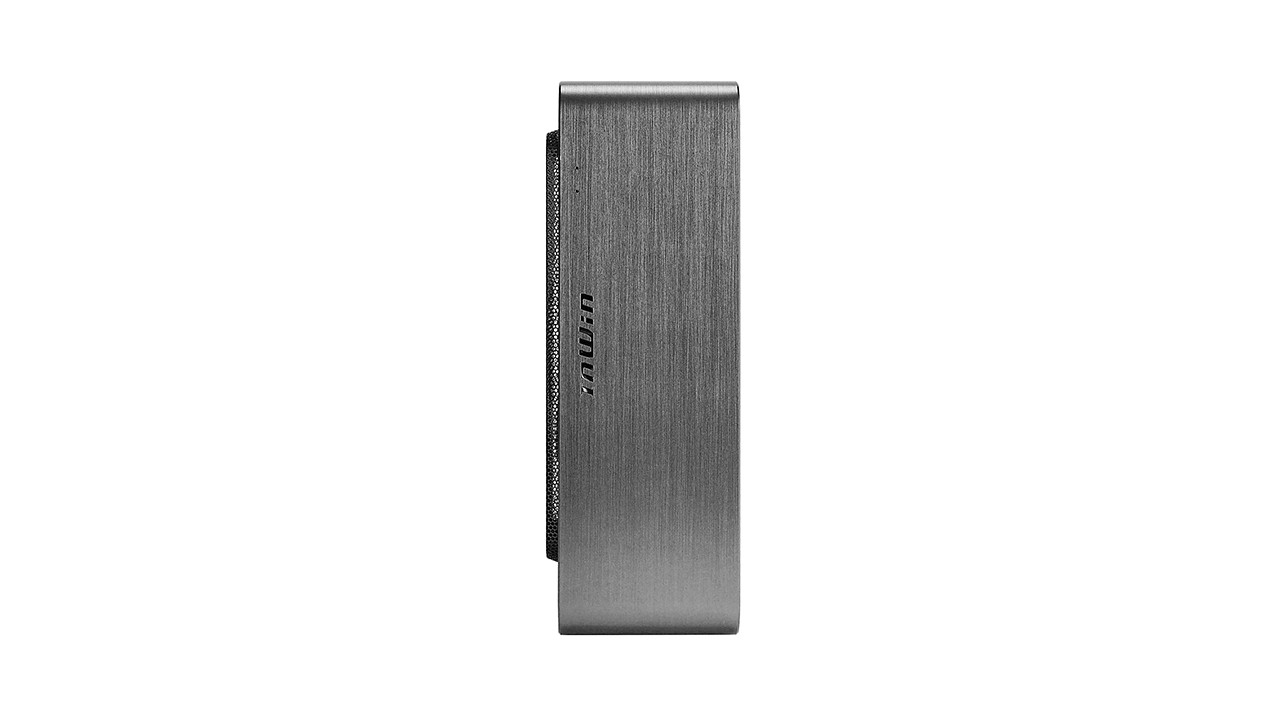

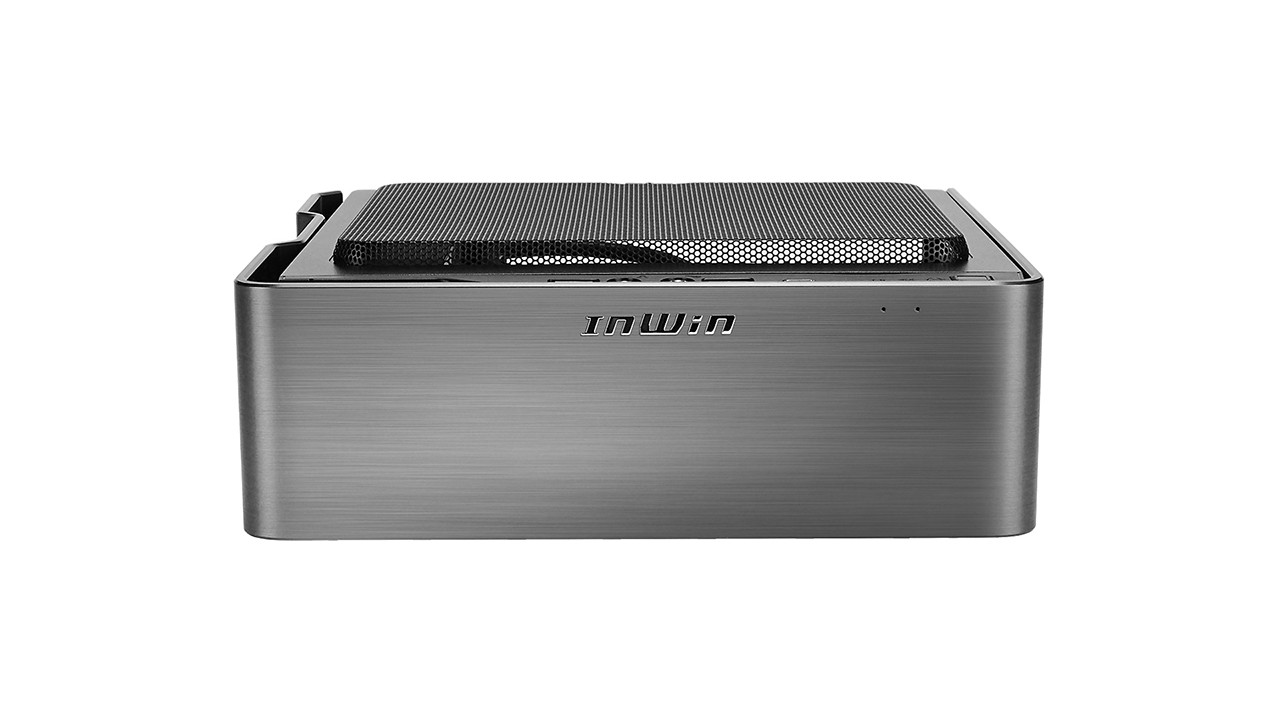

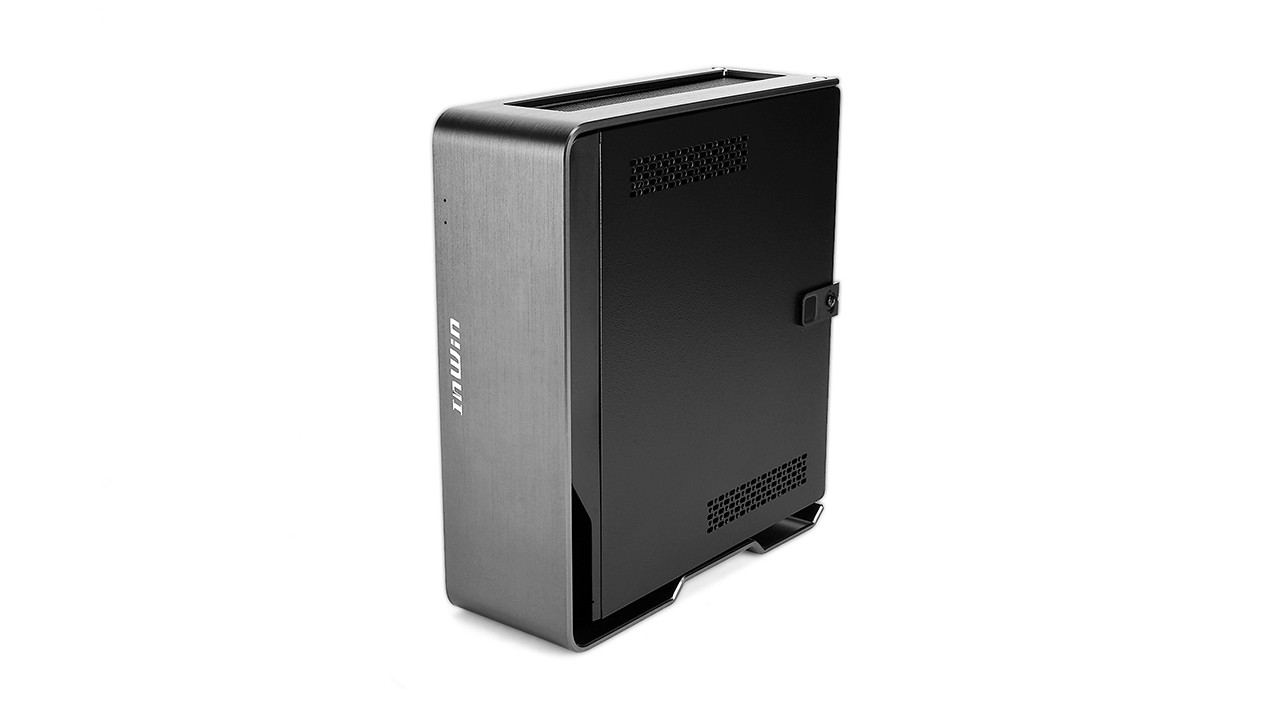

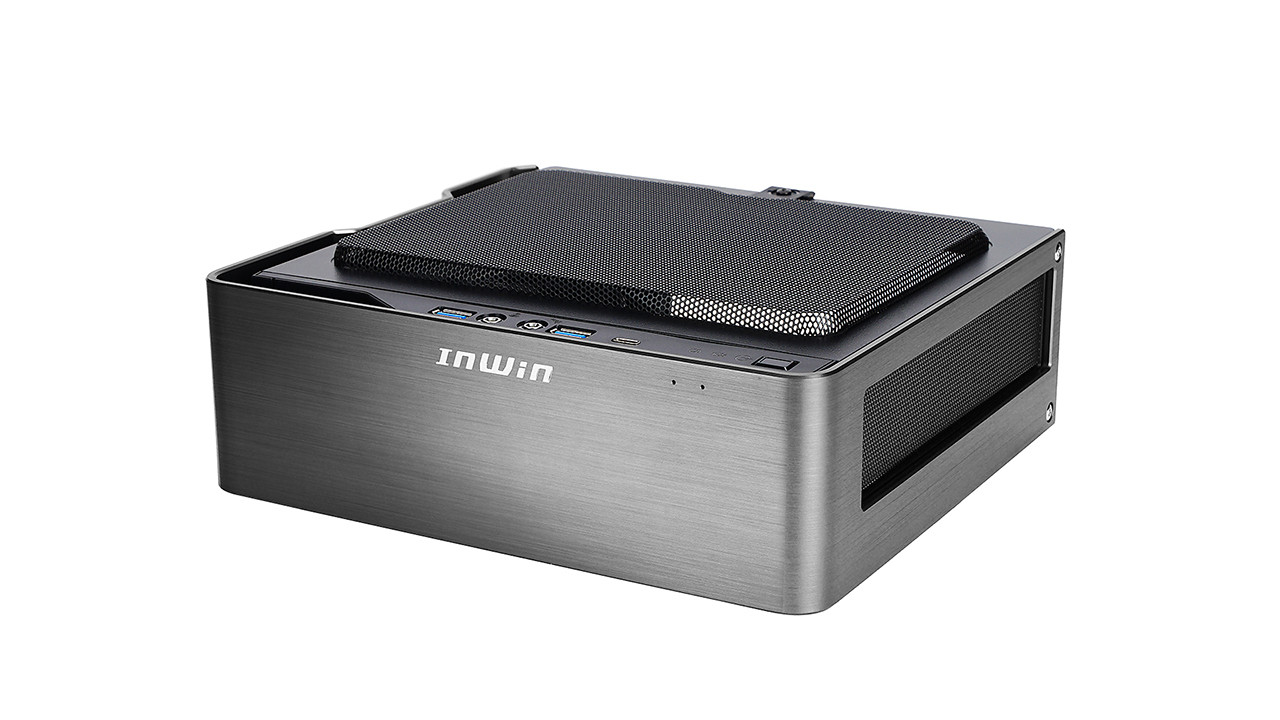

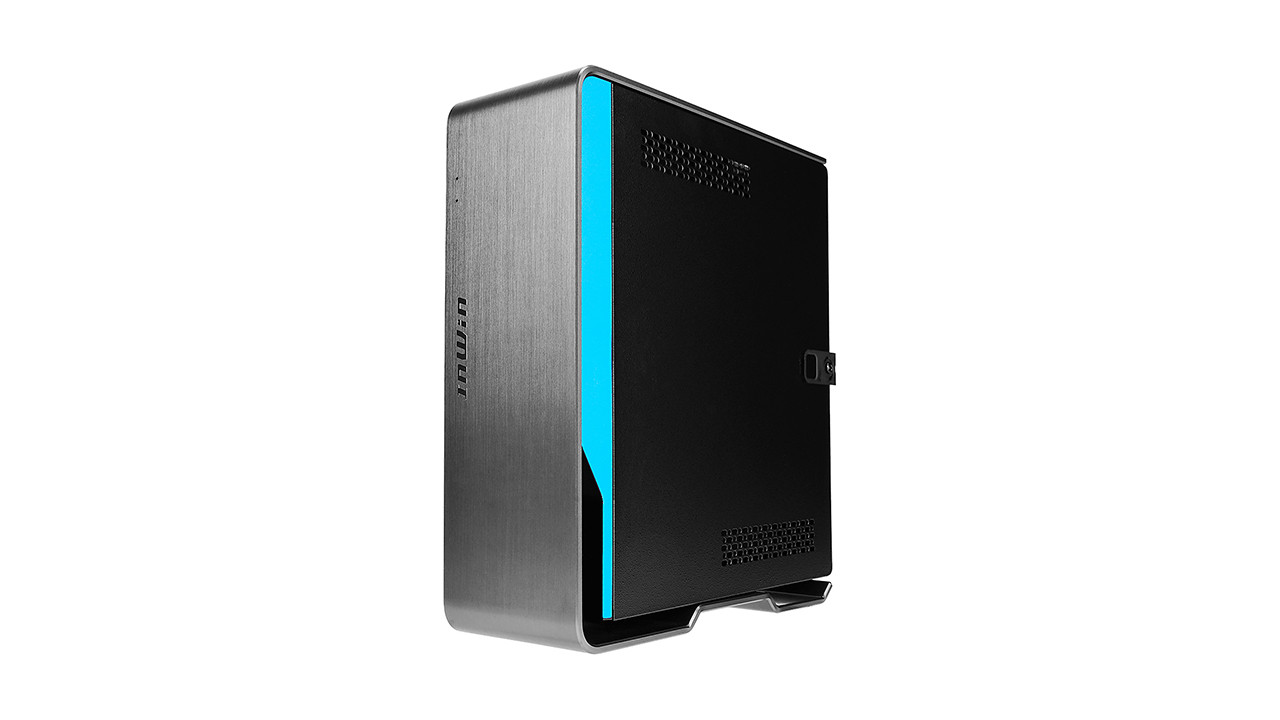

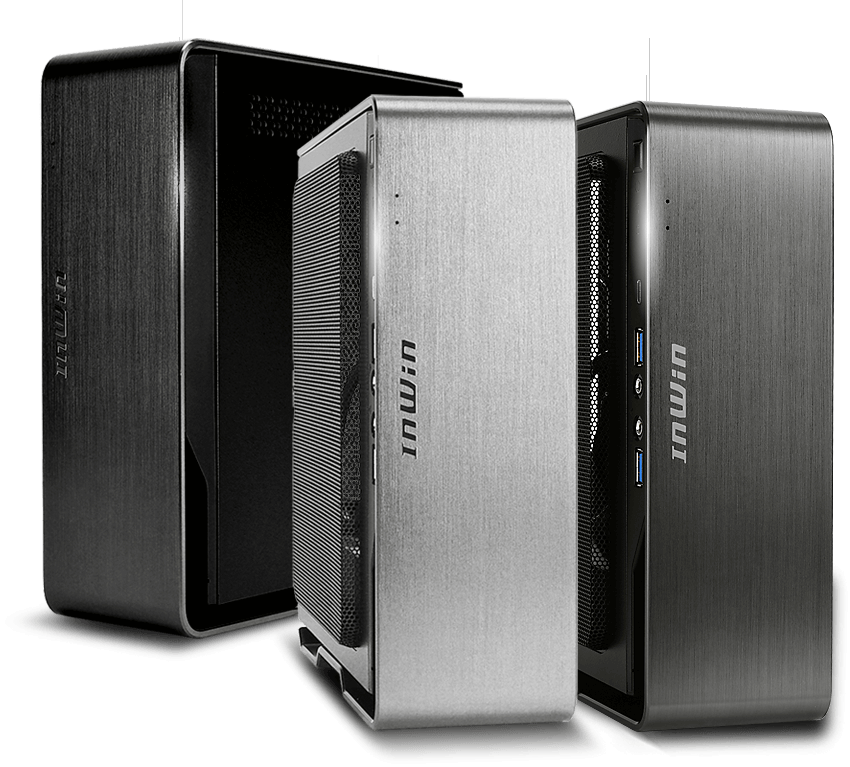

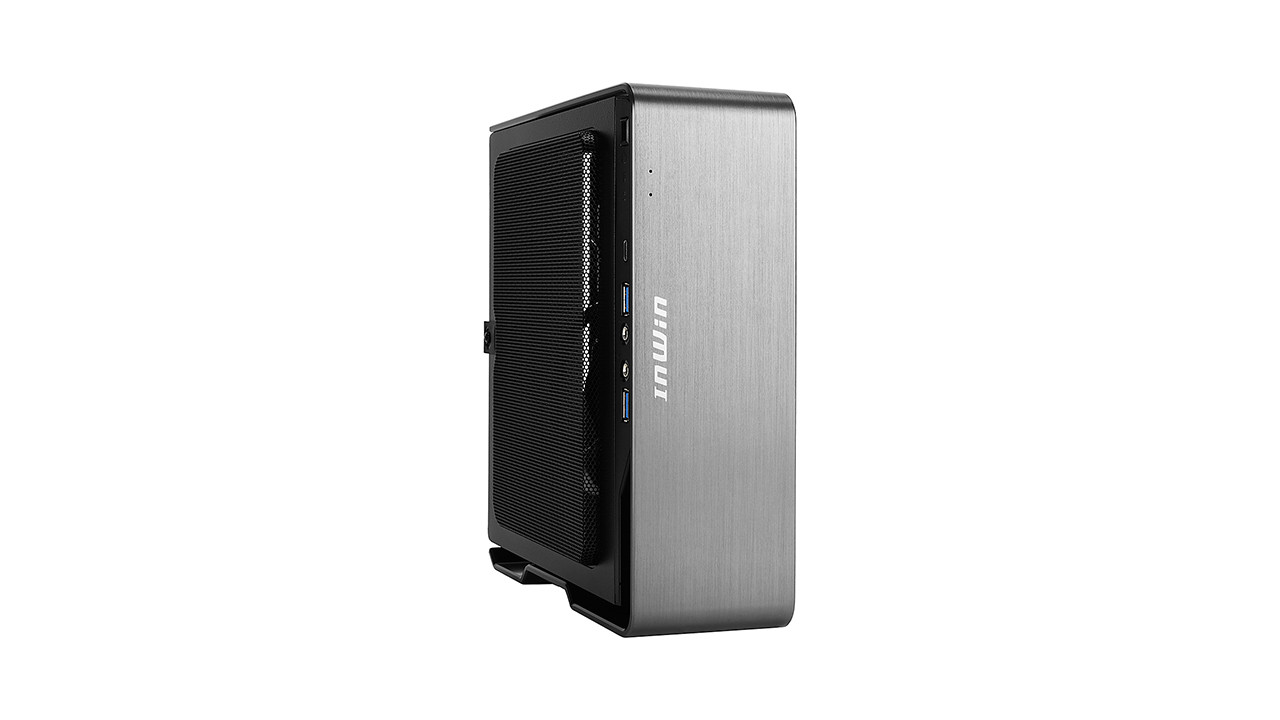

Mini-ITX Aluminium Chassis

The Chopin MAX is an ultra slim form factor case designed with the intention of being a multifaceted PC case with a small footprint.

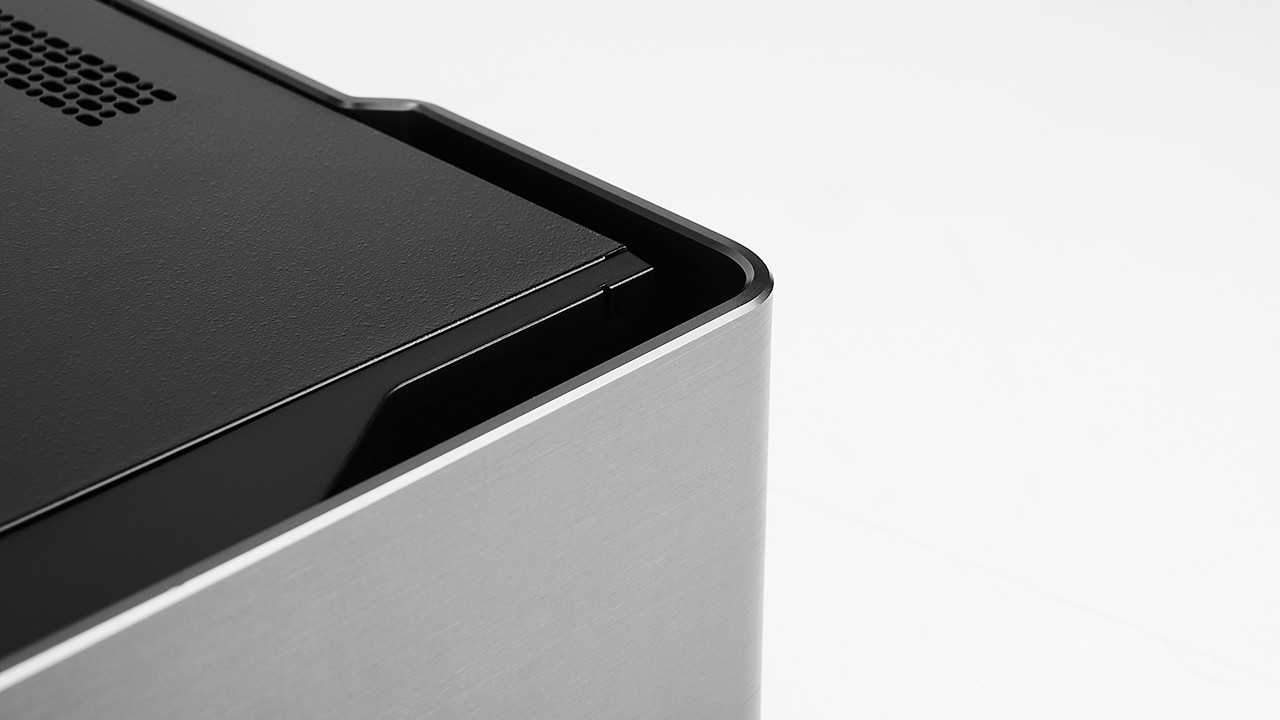

The 4 mm aluminium shell is bent and shaped to manifest its surroundings, all while being presented with a classic hairline finish.

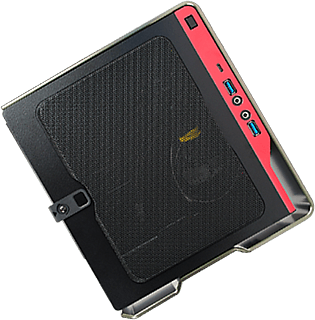

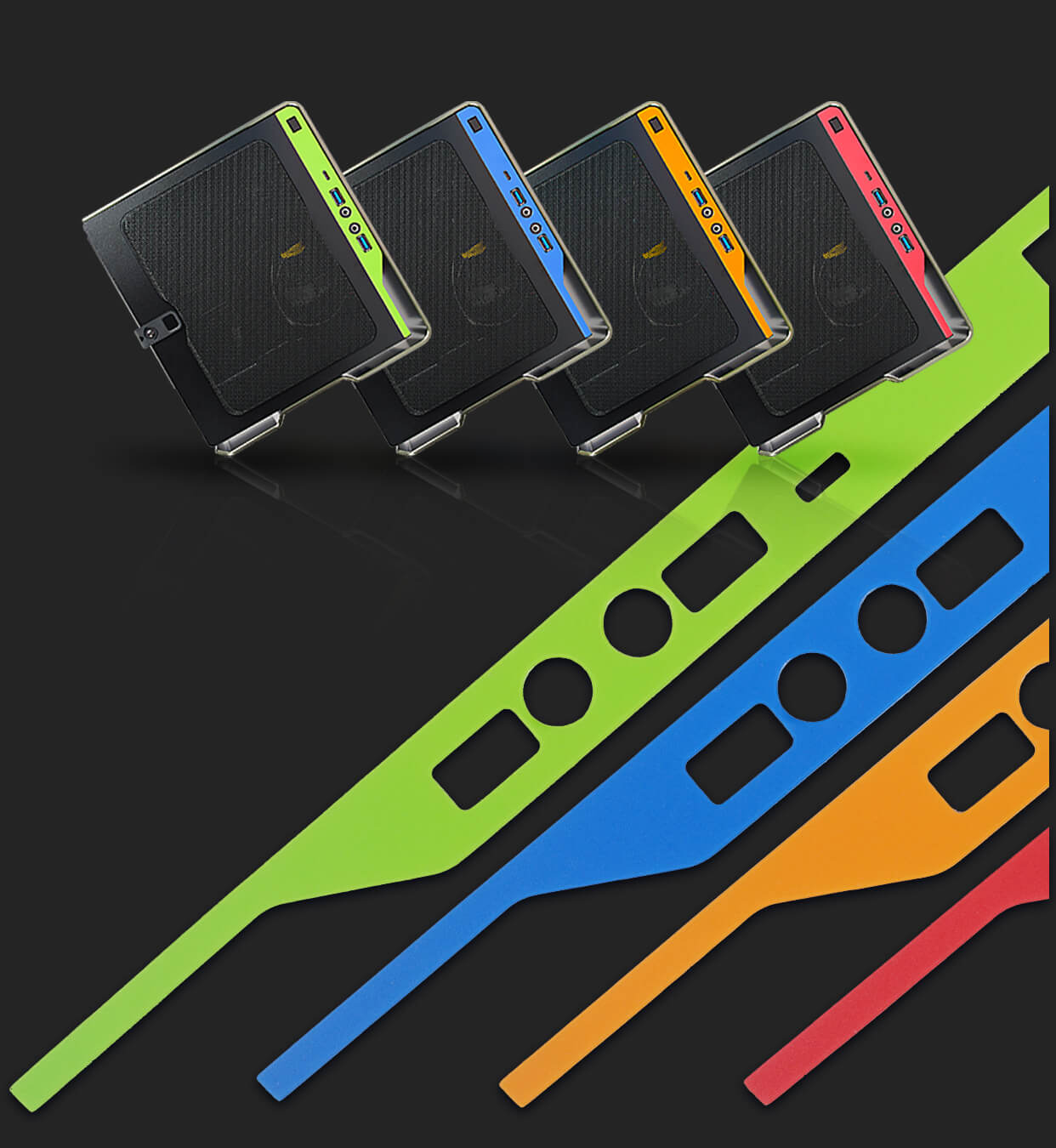

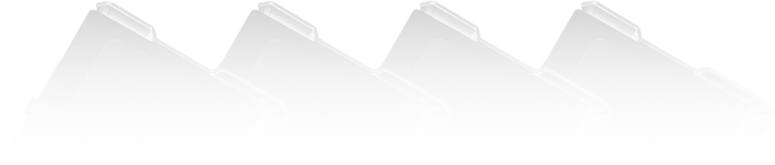

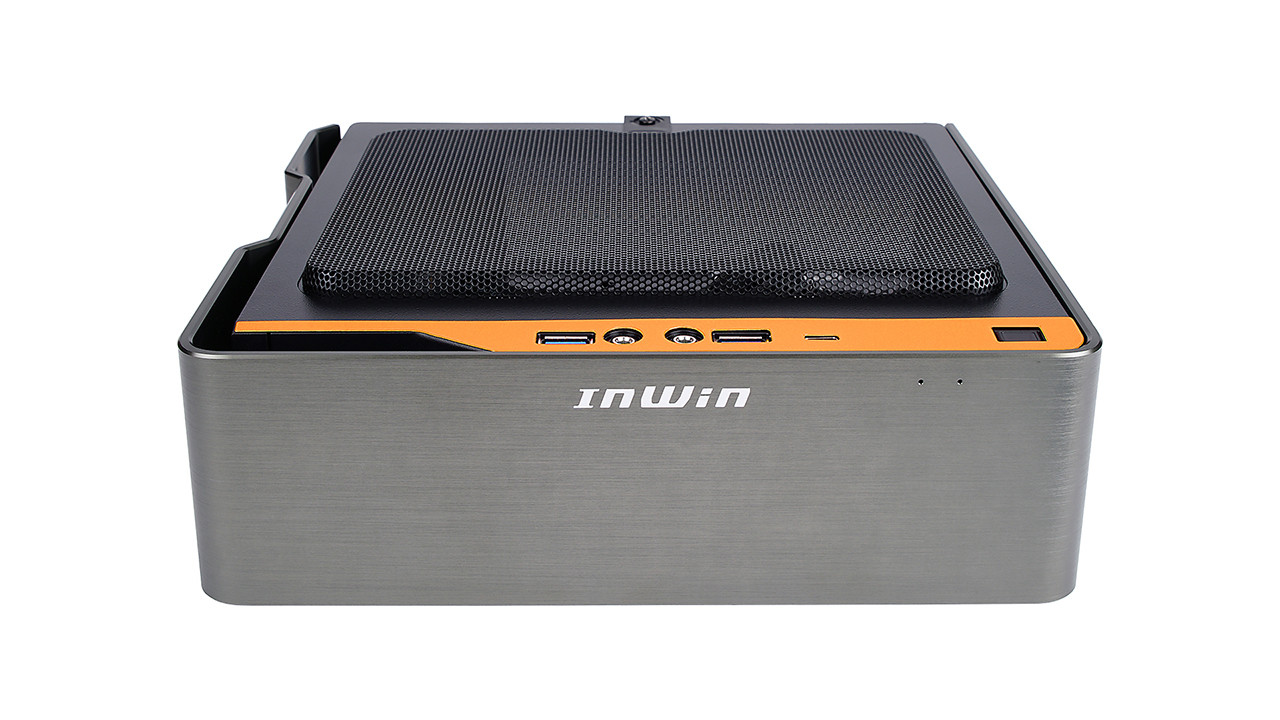

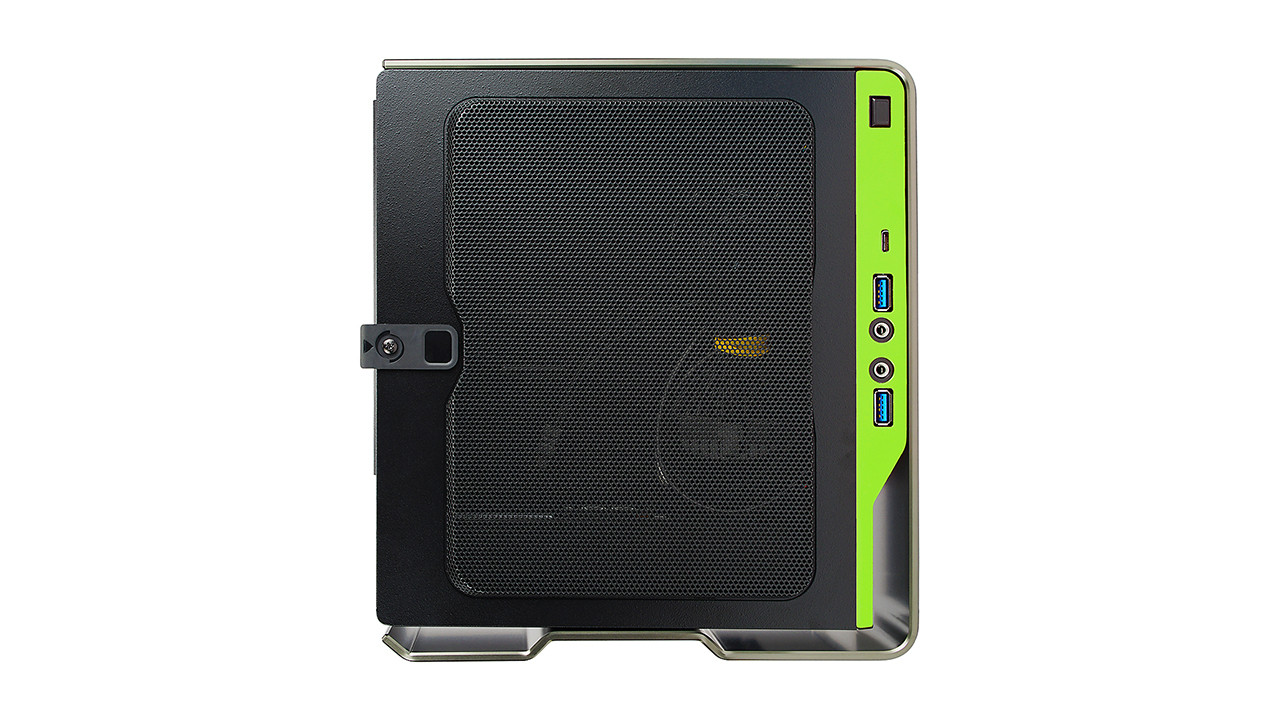

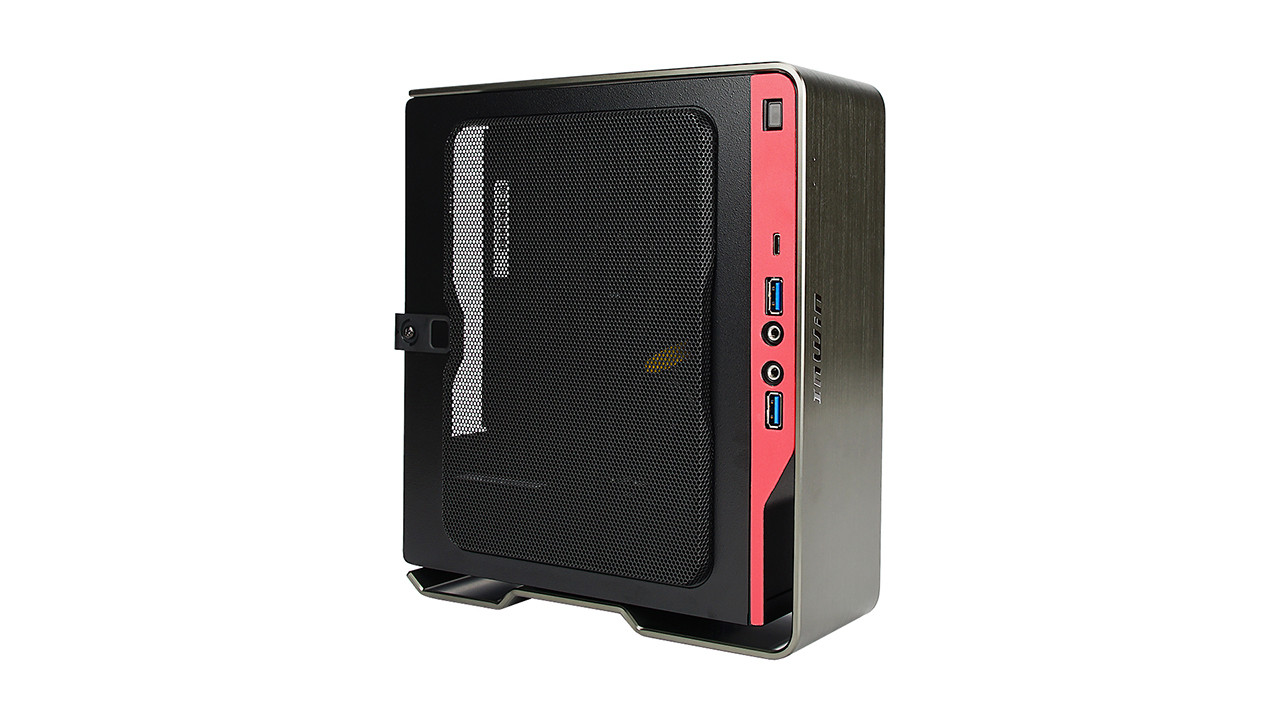

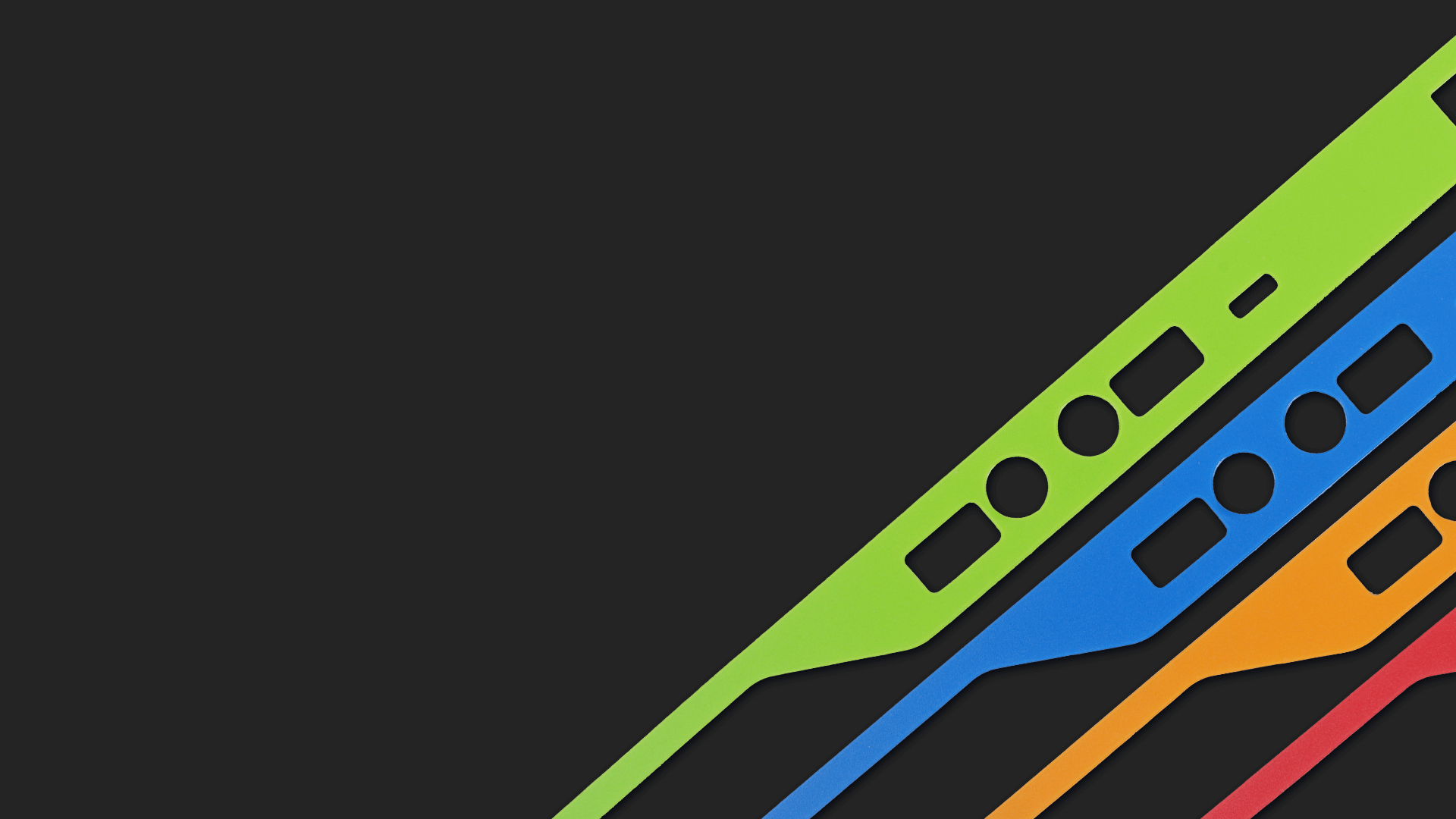

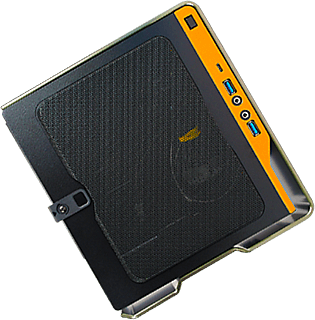

Customizable I/O Strip

Four color I/O strip options to allow you to customize your own case with your unique style.

Specifications

Model Chopin MAX
Model Number IW-CS-CHOPINMAXGRE-PS200W
IW-CS-CHOPINMAXBLK-PS200W
IW-CS-CHOPINMAXSIL-PS200W
Colors Titanium Grey, Black, Silver
Case Type Mini-ITX Tower
Materials SECC, Aluminium
M/B Compatibility Mini-ITX
I/O Ports 1 x USB 3.2 Gen 2x2 Type-C
2 x USB 3.2 Gen 1
HD Audio
CPU Heatsink Height Up To 54 mm
Internal Drive Bays 2 x 2.5" (H 9.5 mm Max.)
Power Supply Compatibility InWin 200W 80 PLUS Gold PSU Included

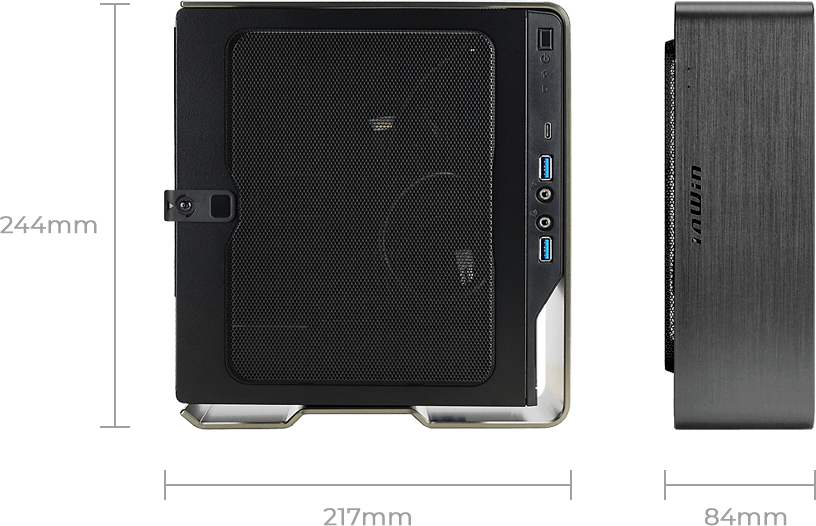

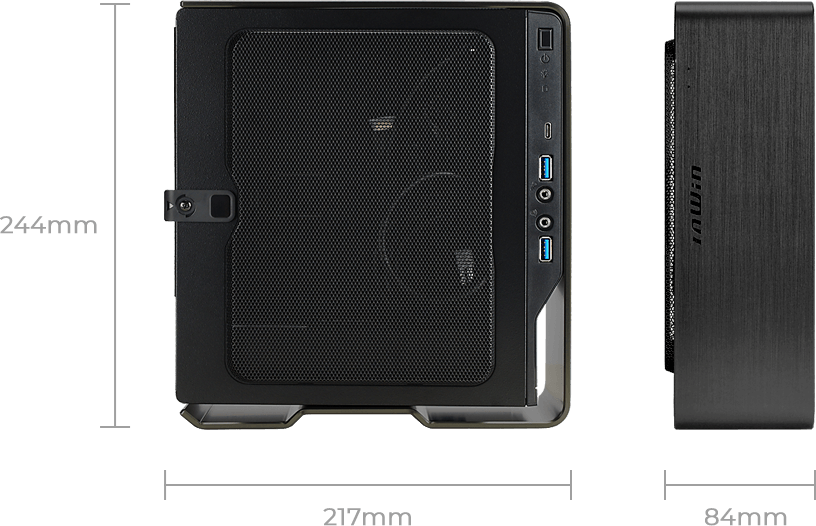

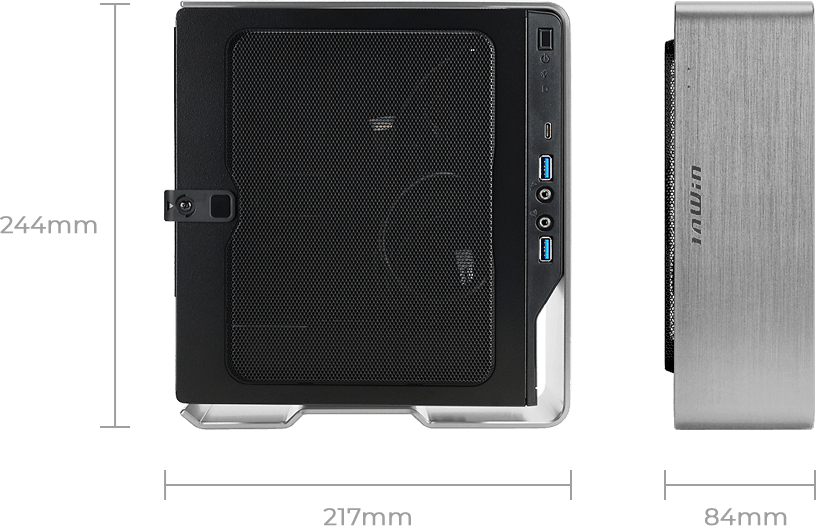

Product Dimensions
(L x W x H)
217 x 84 x 244 mm
8.5 x 3.3 x 9.6"
Package Dimensions
(L x W x H)
270 x 120 x 276 mm
10.6 x 4.7 x 10.9"
Net Weight 2.2 Kg / 4.85 lbs
Gross Weight 2.5 Kg / 5.5 lbs
* InWin's products comply with RoHS regulation.
* Specifications may vary based on different regions.

Download

Video

News / Reviews

eStore

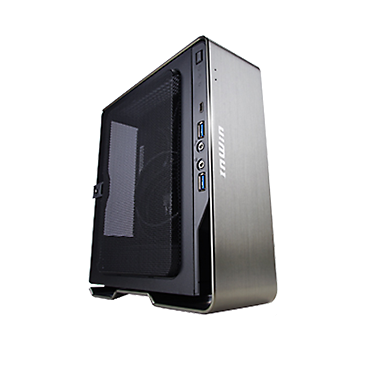

Chopoin MAX is on InWin Official eStore Now!
