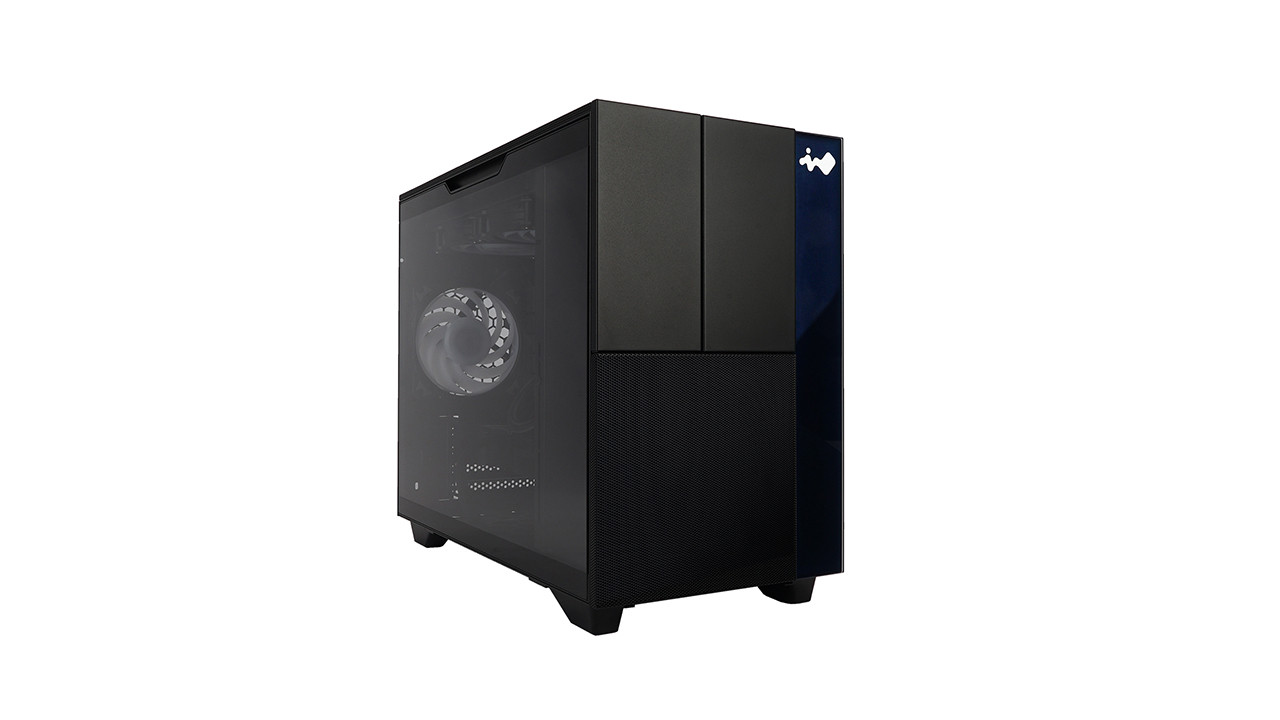

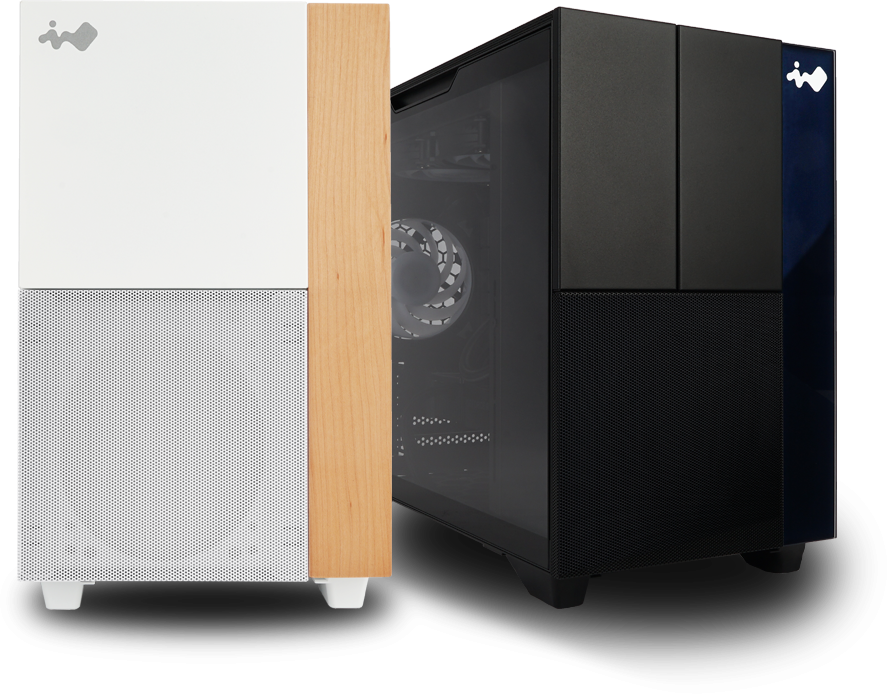

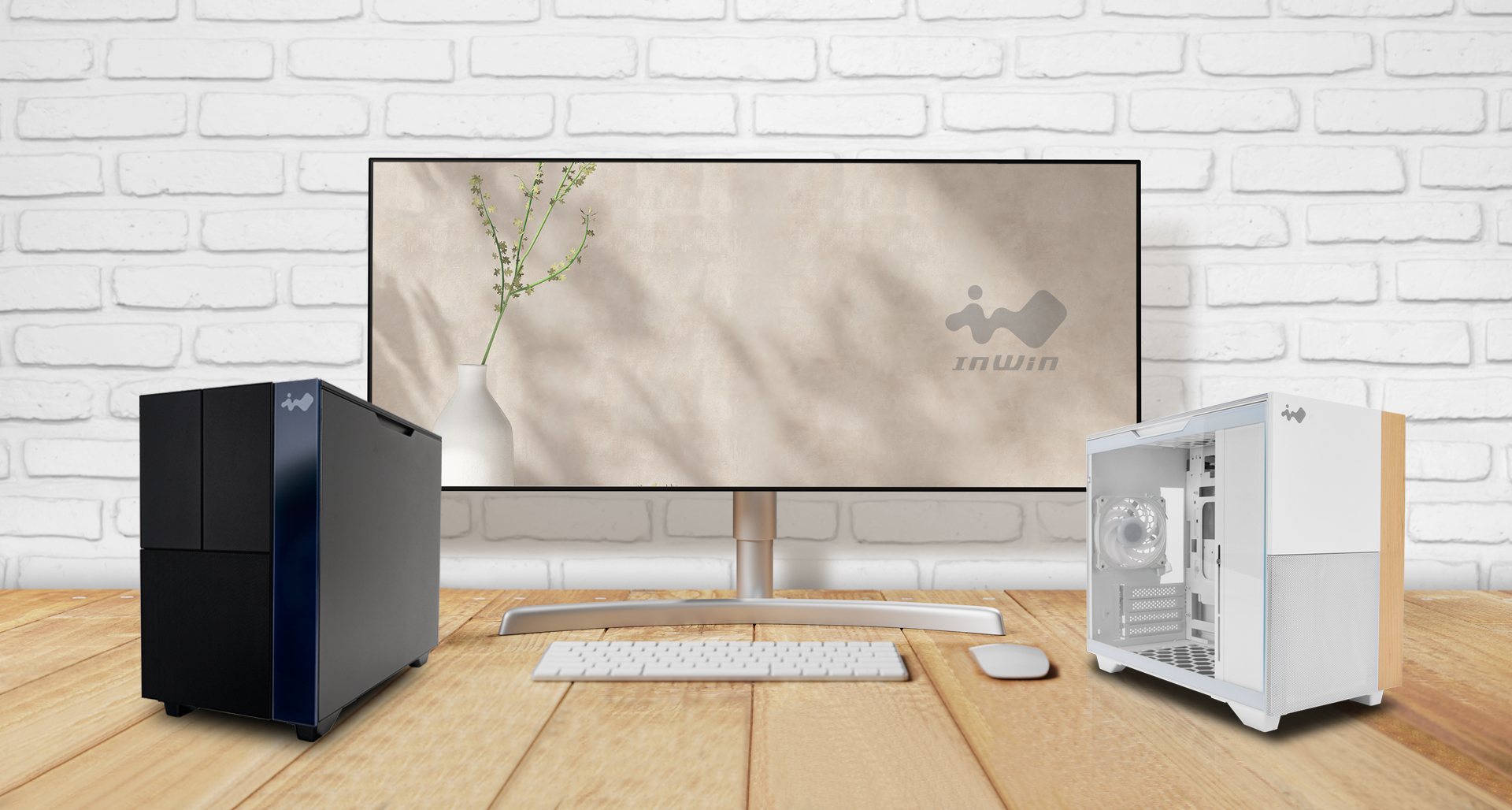

Redefine Your PC Aesthetic

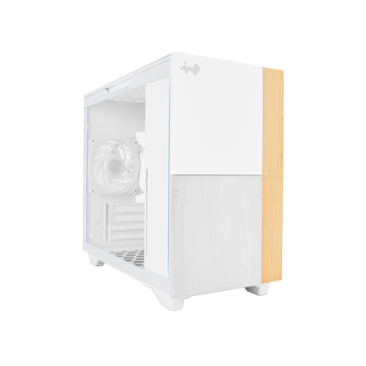

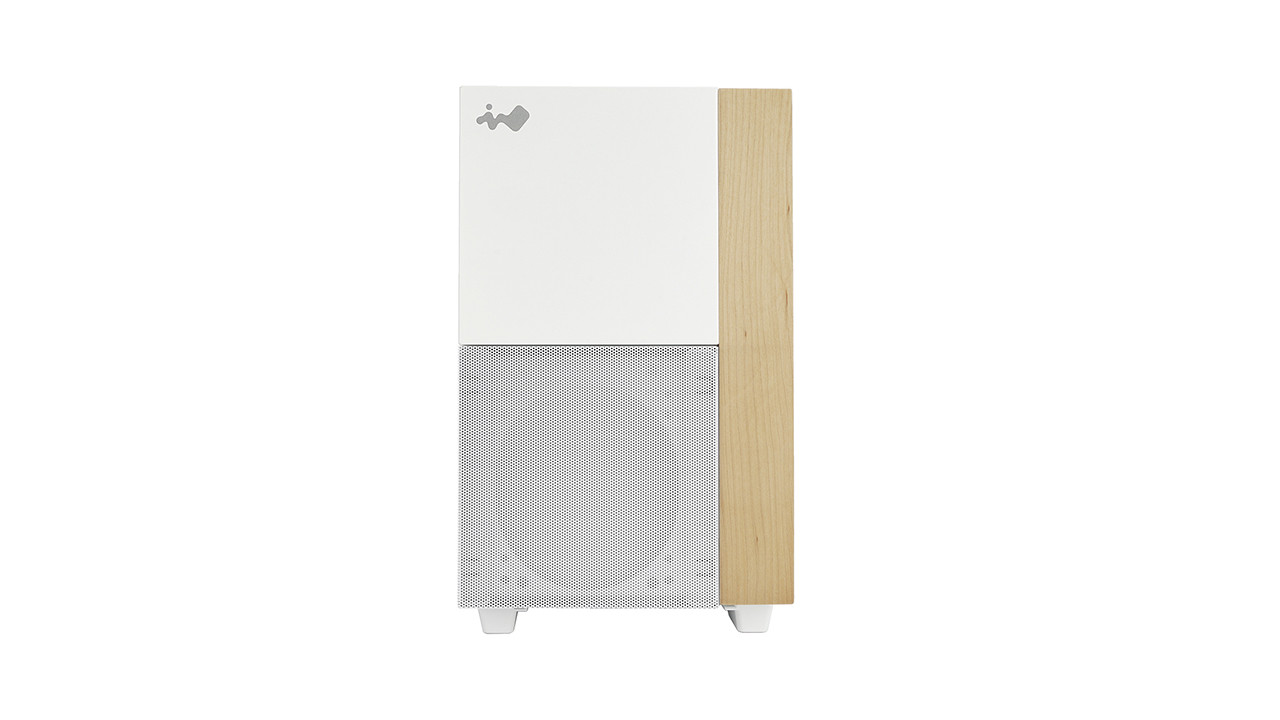

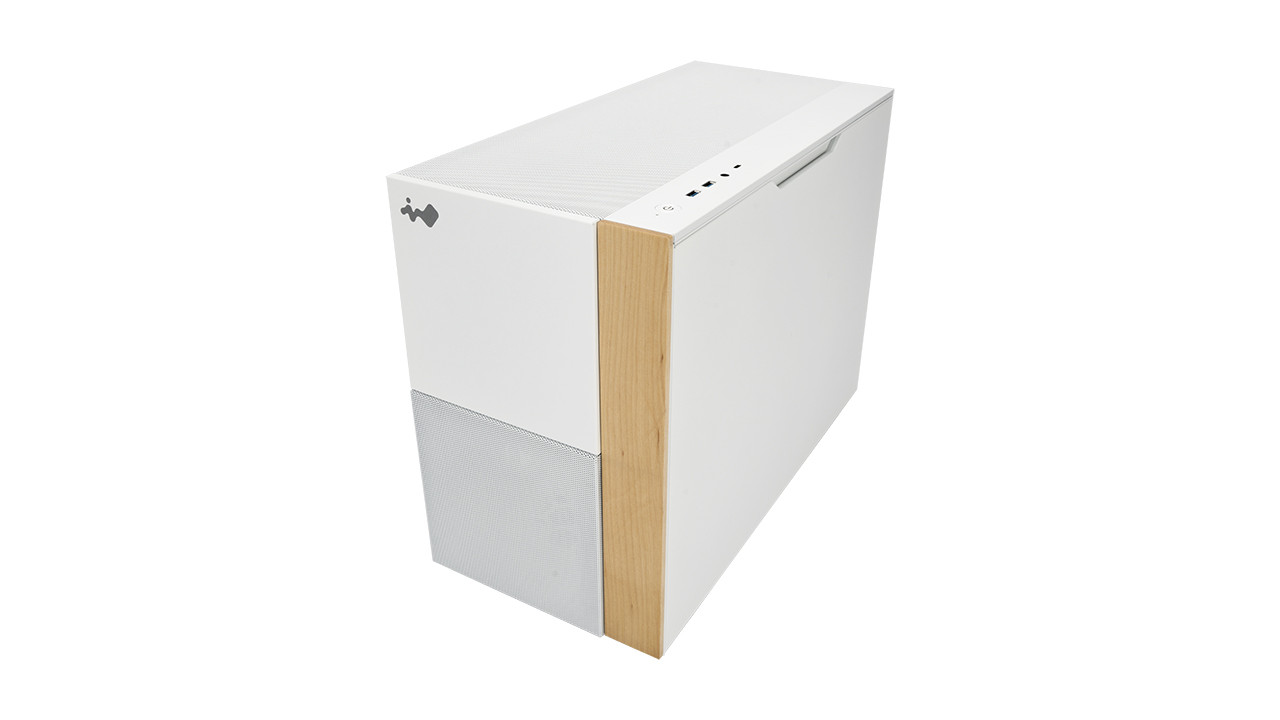

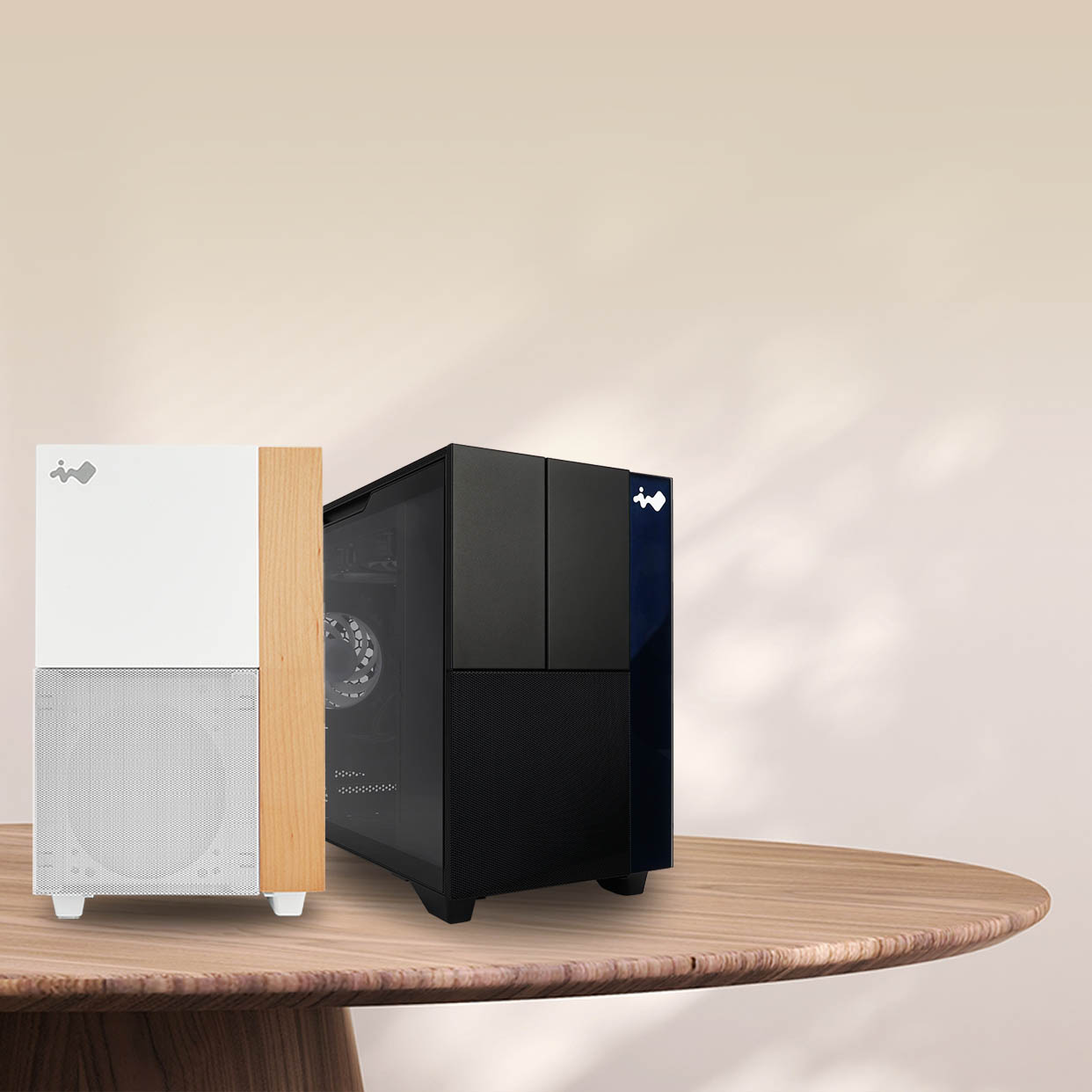

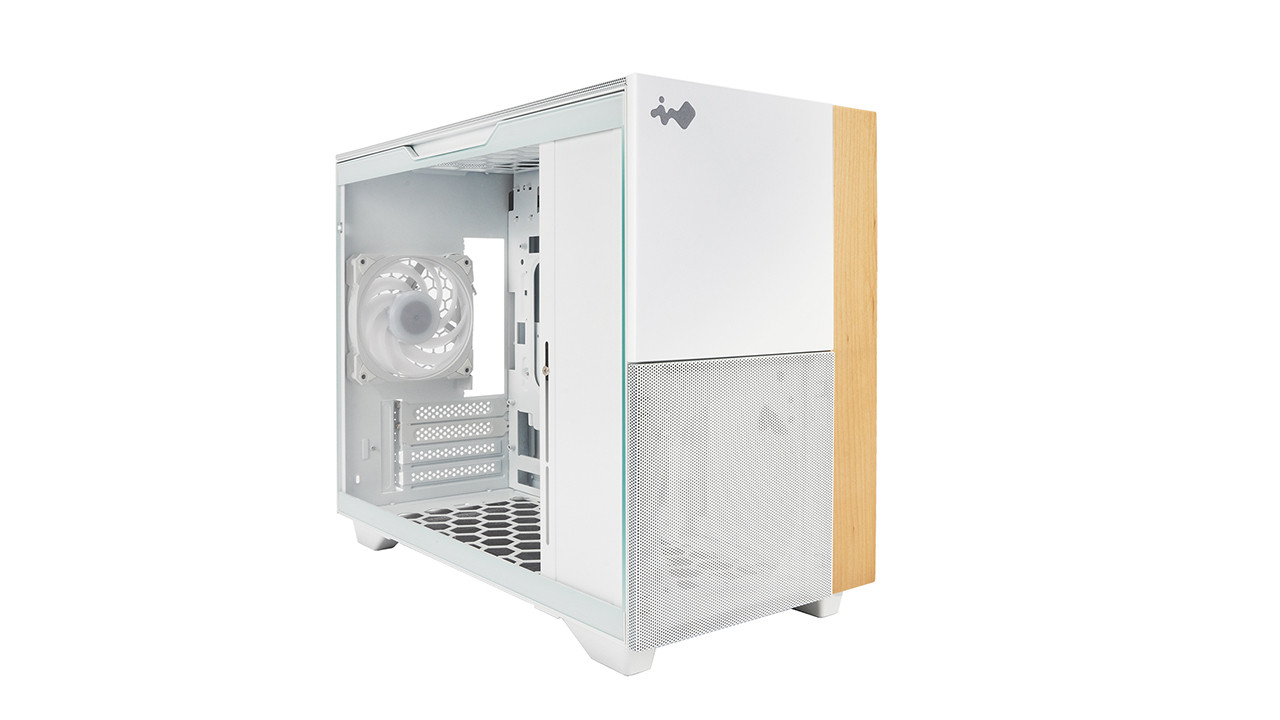

Inheriting the classy F-Series design, the new F3 case offers a choice between elegant maple wood and modern glass, allowing your PC to fit your lifestyle and taste.

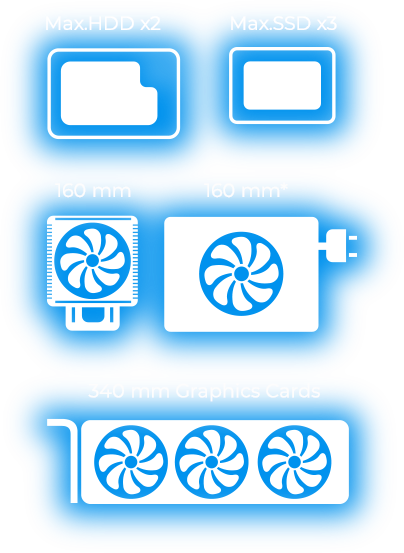

All About the Hardware Flair

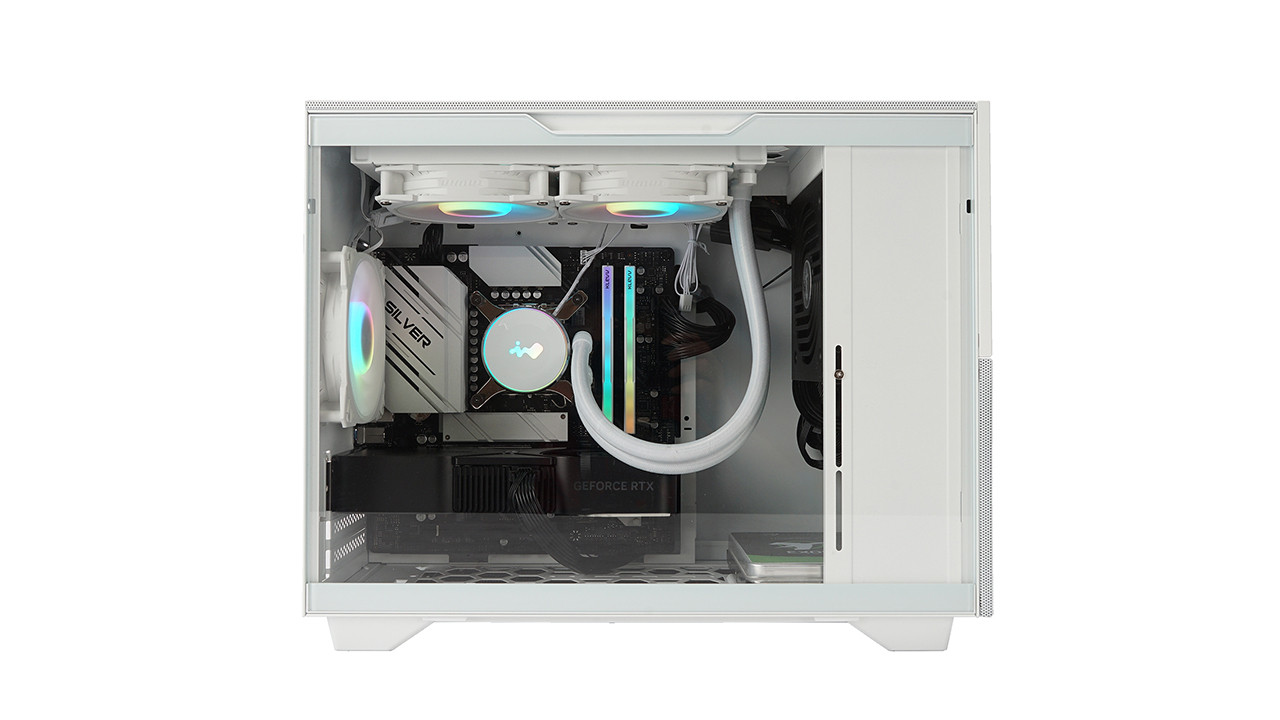

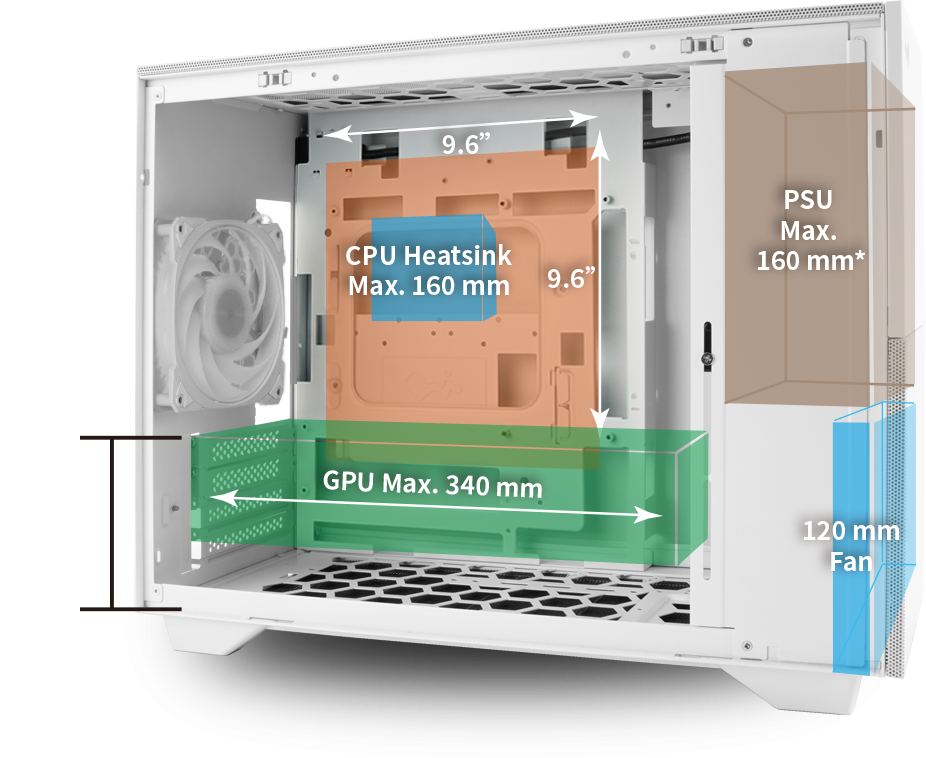

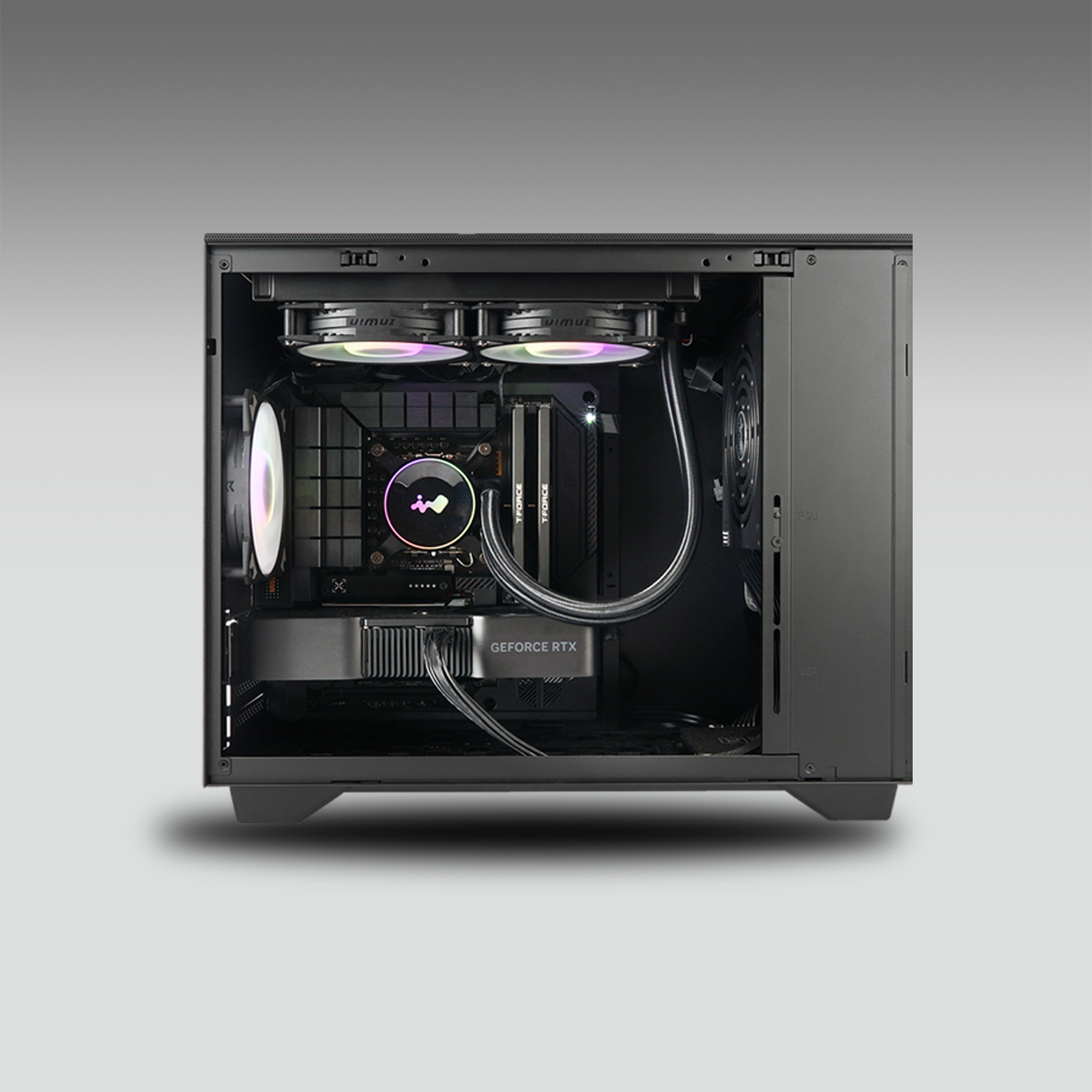

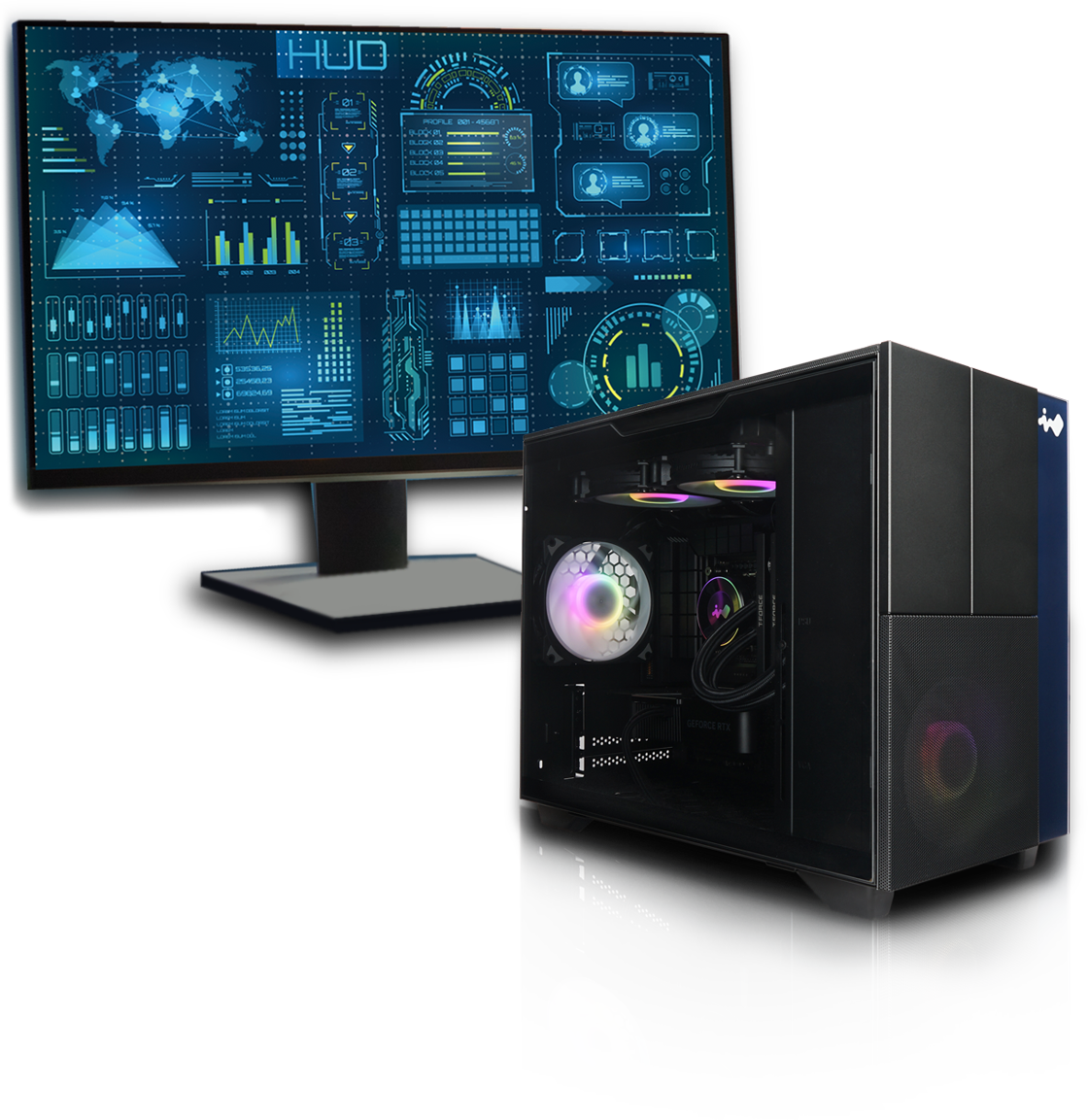

The F3 accommodates micro-ATX motherboards and supports GPU lengths up to 340 mm. It can even fit high-end graphics cards to make it ideal for creating compact workstations capable of light AI computation or a killer gaming PC. The choice is yours!



* Max PSU mounting area (Including cable management) is 160 mm with 120 mm fan installed beneath.
** Bottom fans are optional based on GPU size/orientation.

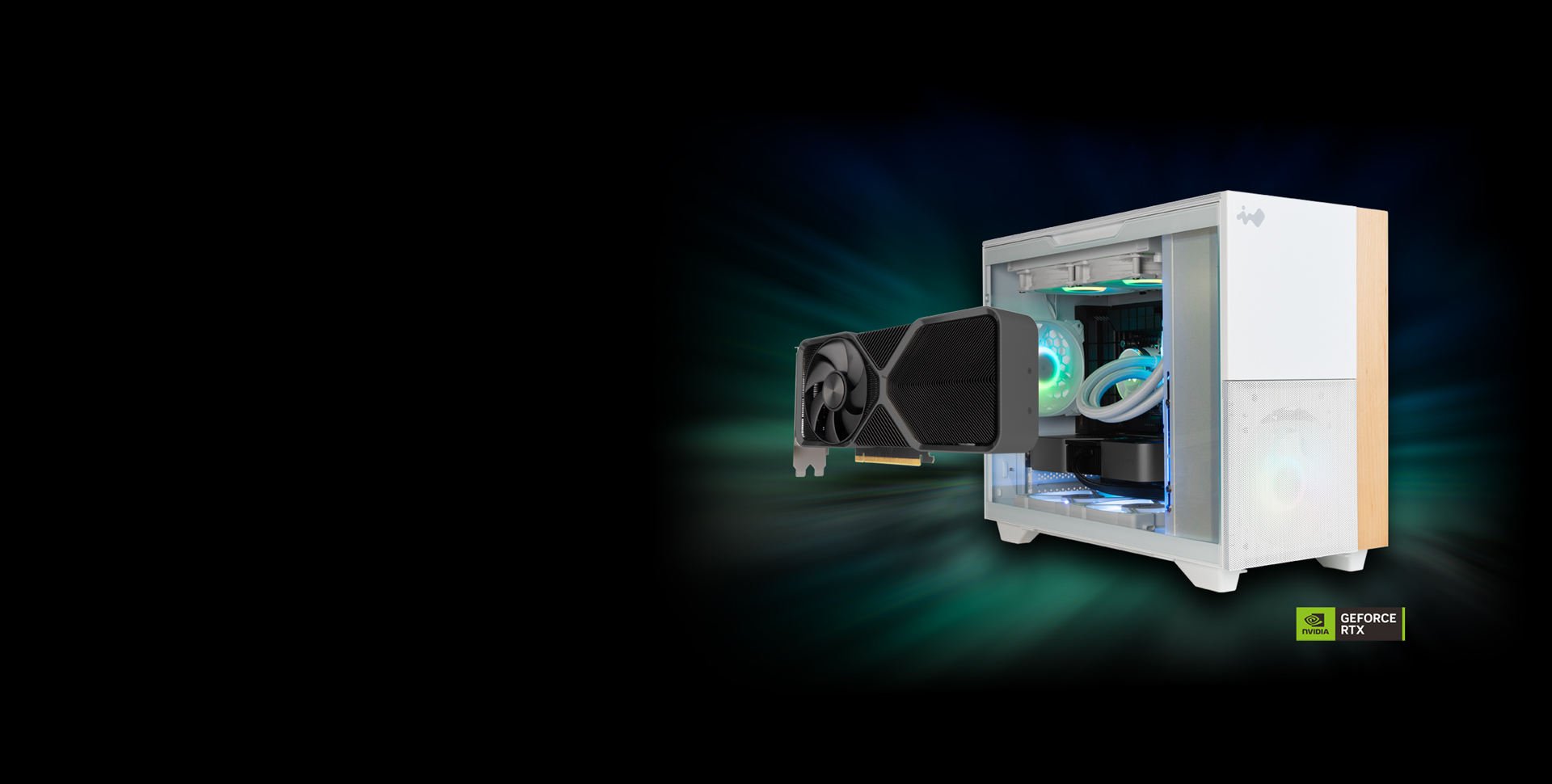

Build Small. Play Big.

This case is compatible with SFF-Ready Enthusiast GeForce cards, so you can pack high performance into a smaller footprint. Look for SFF-Ready Enthusiast GeForce Cards to get a sure fit and streamline your PC build.

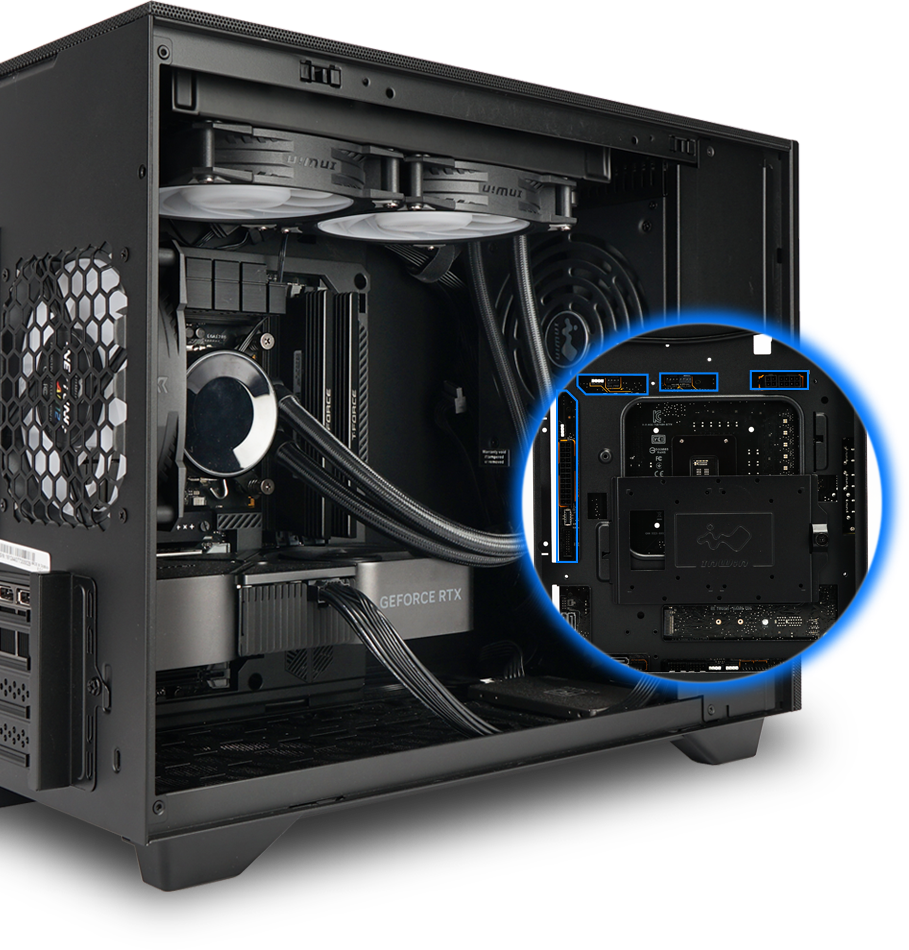

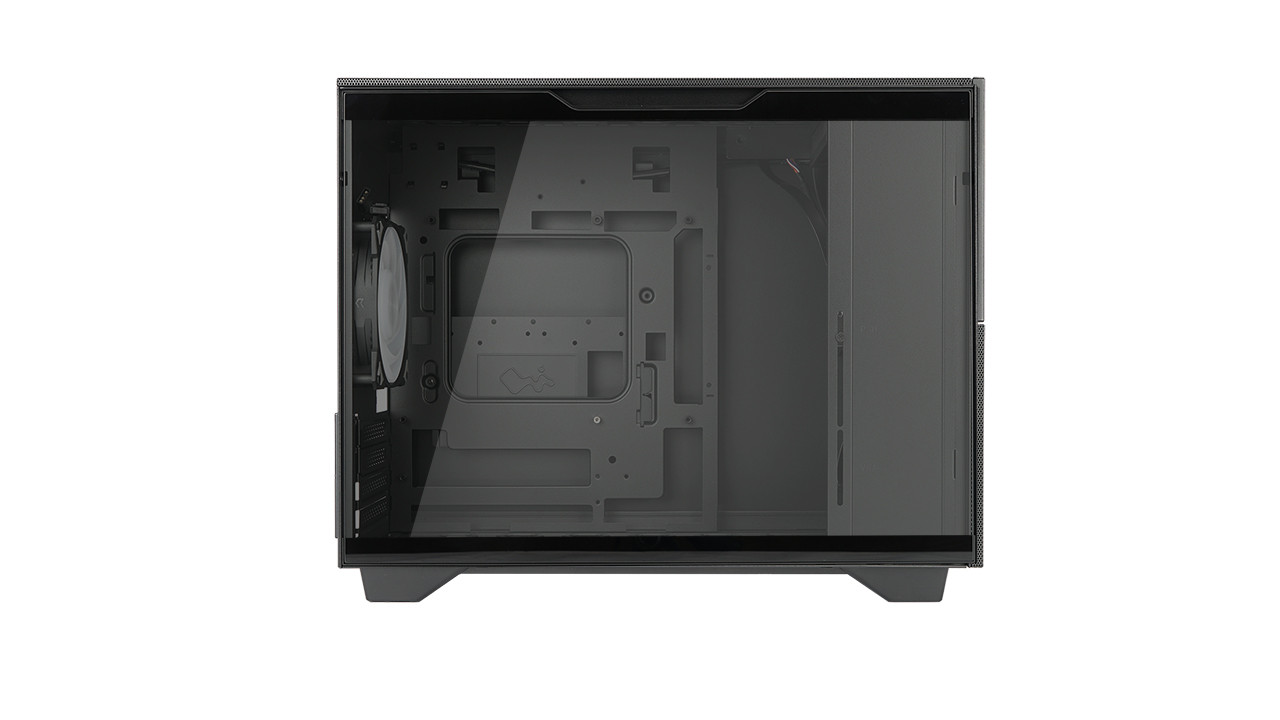

Back-Connector M/B Design

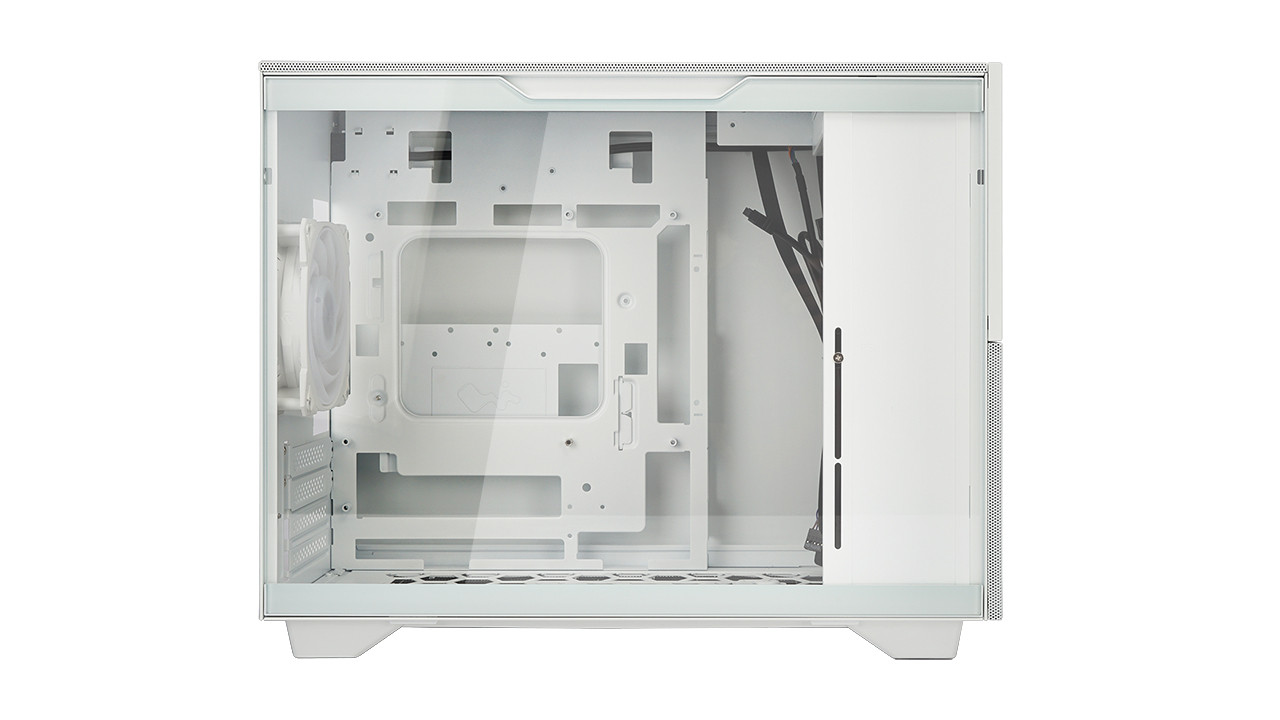

The F3 supports back-connecting motherboards provide tidier cable management and allows for easy installation of two HDDs or three SSDs.

* Supports ASUS BTF and MSI Project Zero Series back-connector mATX motherboards.

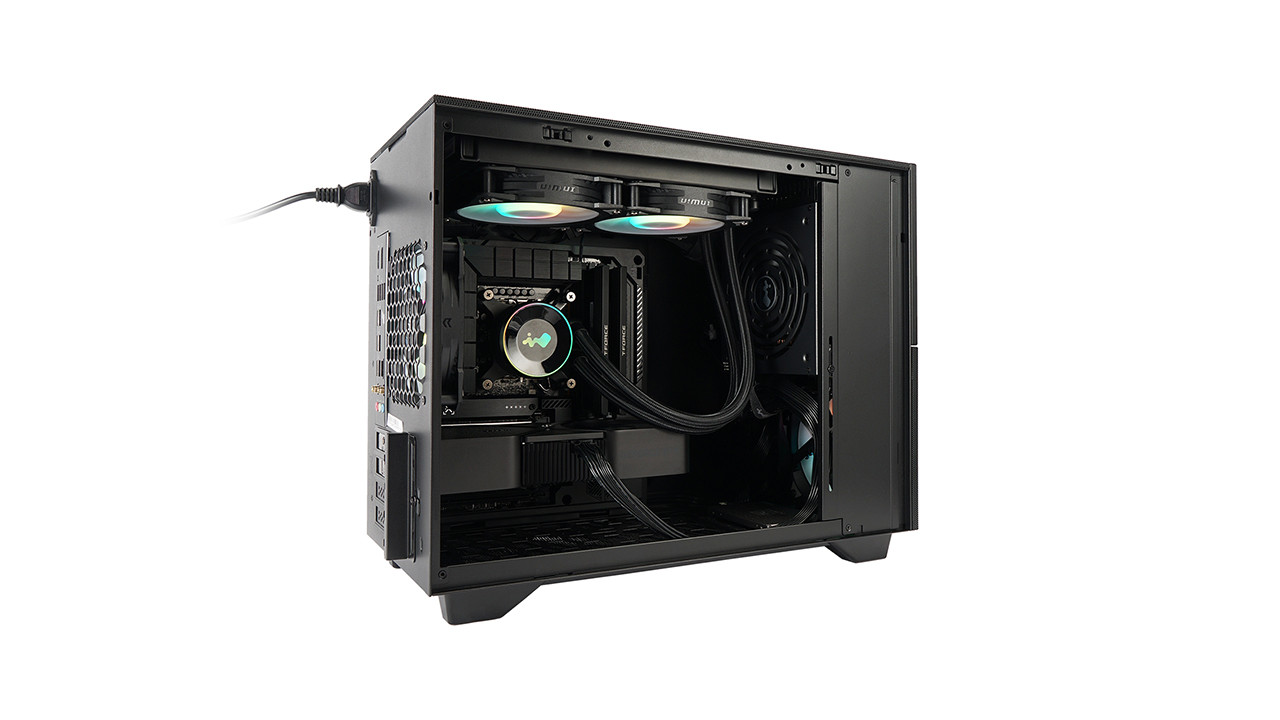

Breathe Easy

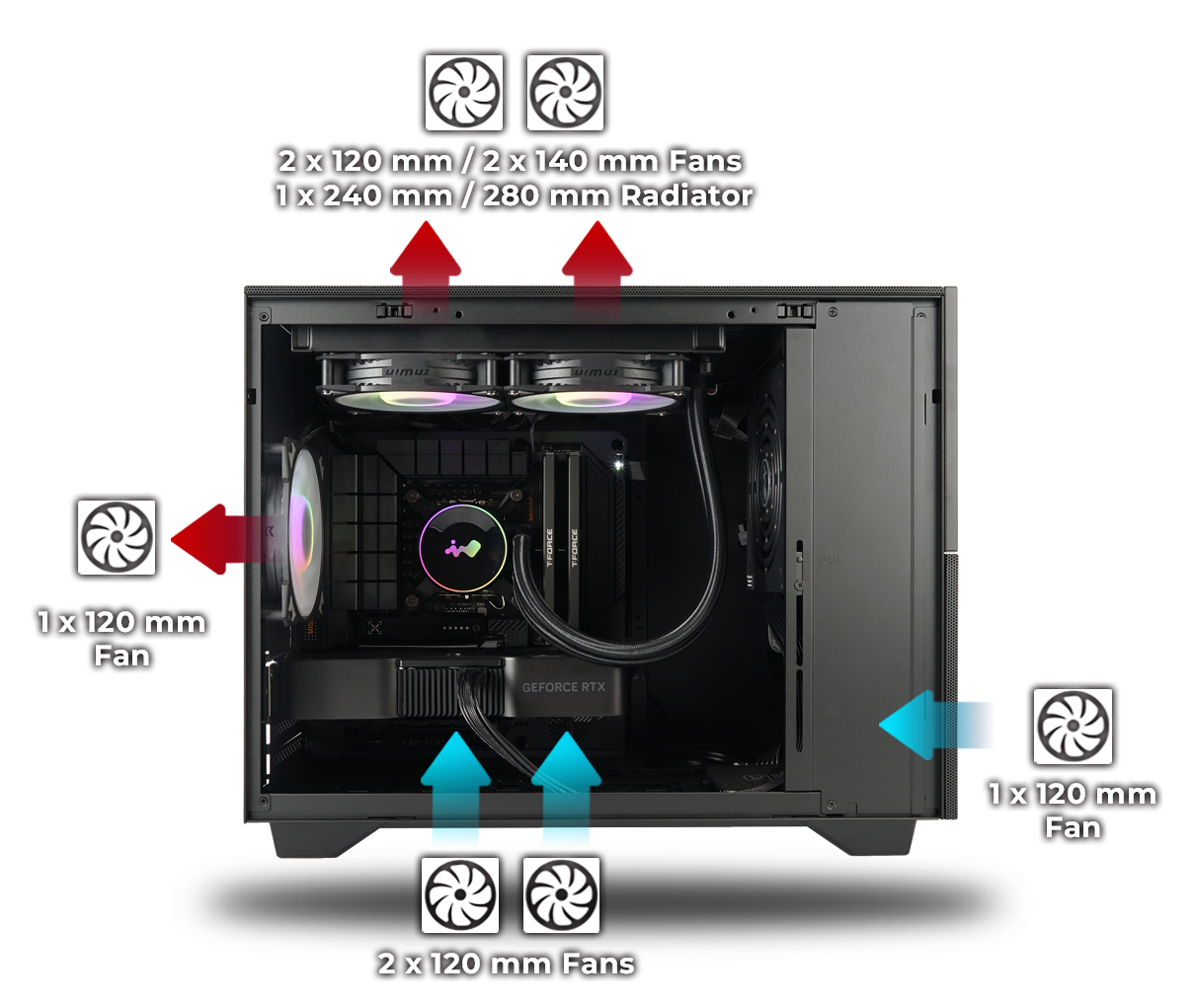

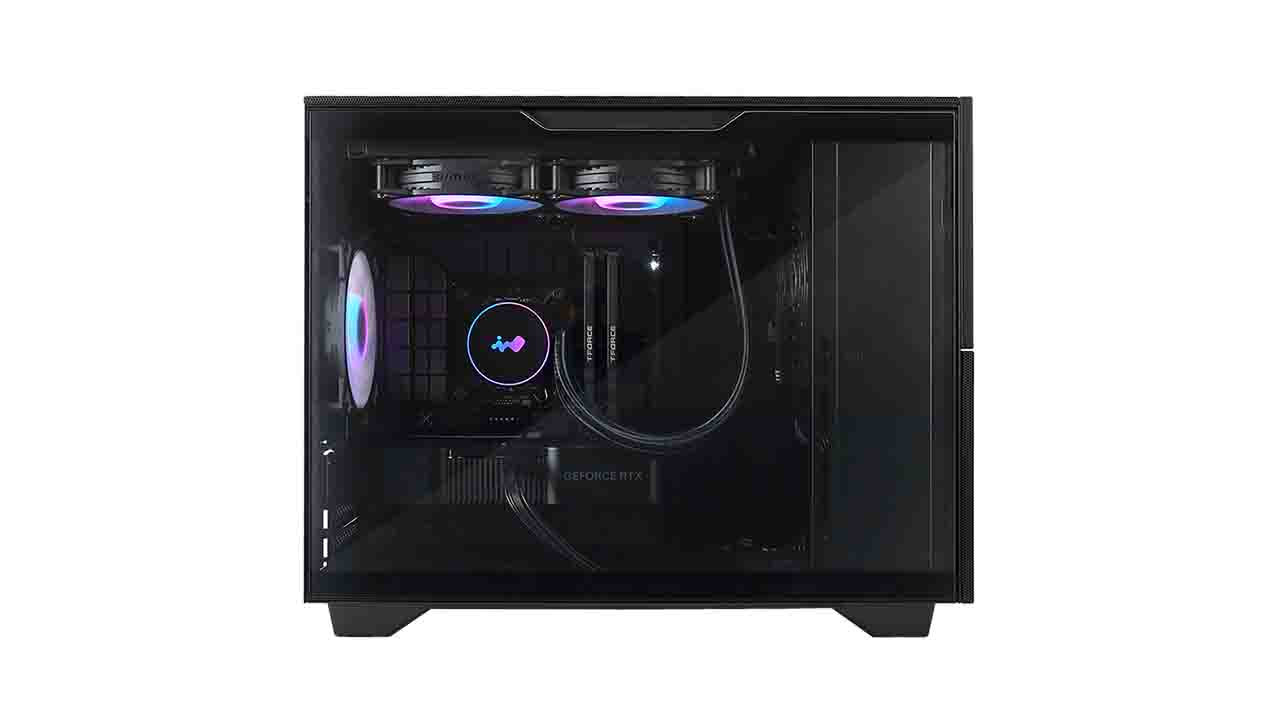

The F3 boasts exceptional ventilation by supporting up to six fans. Two 120/140 mm fans or a 240/280 mm AIO coolers can be installed on the top. The front mesh panel allows for ample ventilation.

* AN120 x 1 for Black version
* AN120P x 1 for White version

Learn More

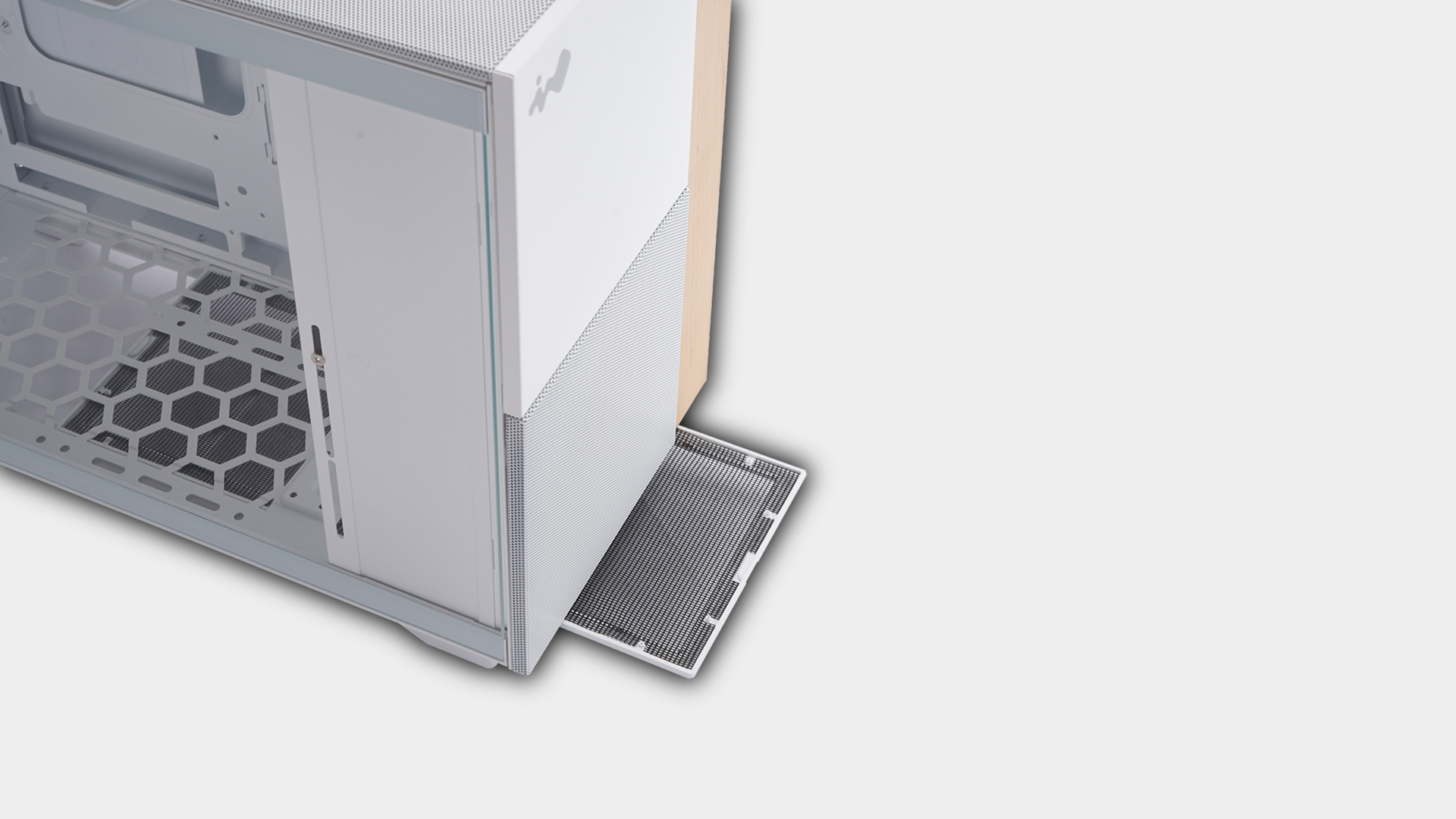

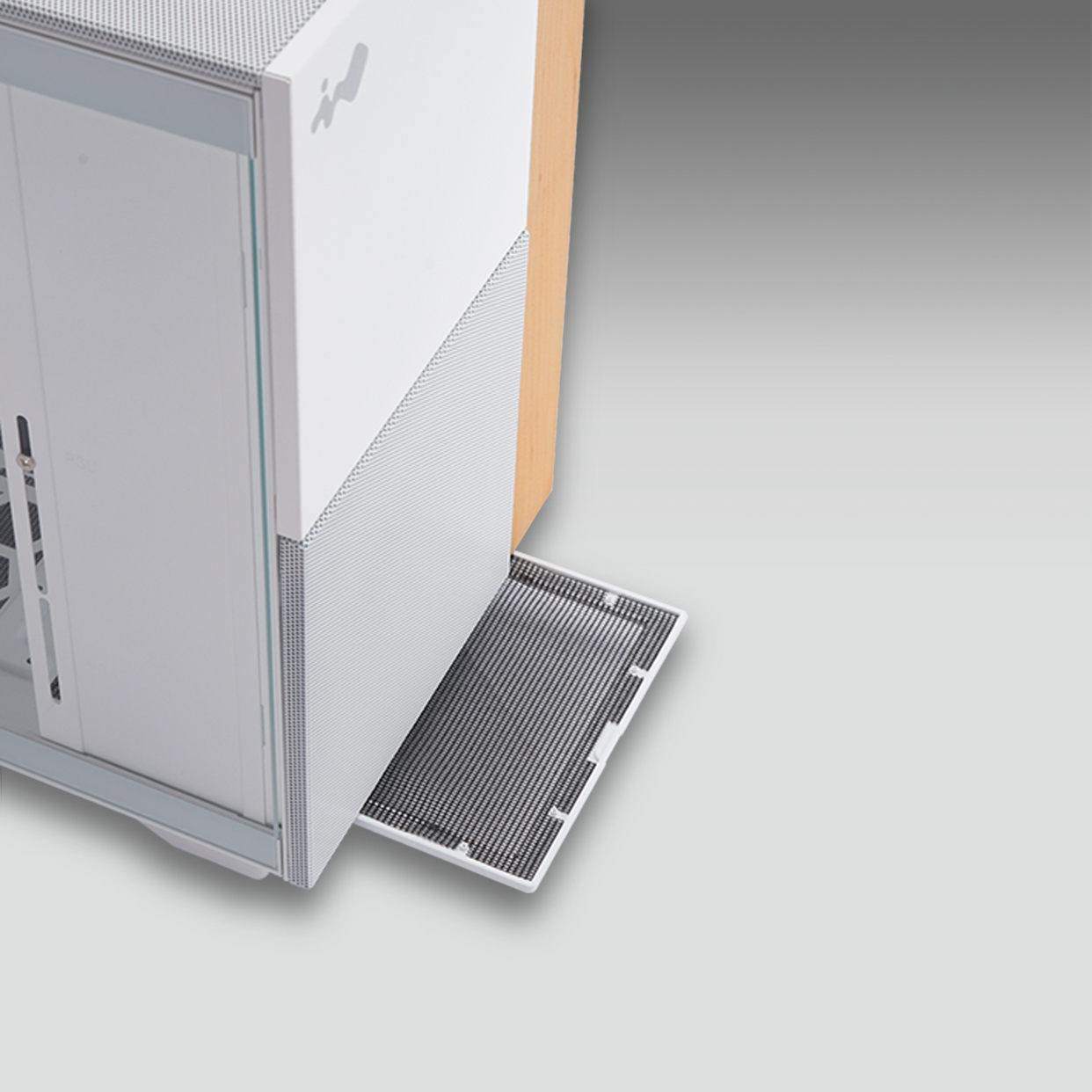

Dust Filter

Efficiently reduces the entry of dust particles, providing a flexible and effective solution for cleaning your system.

The Clean Scene

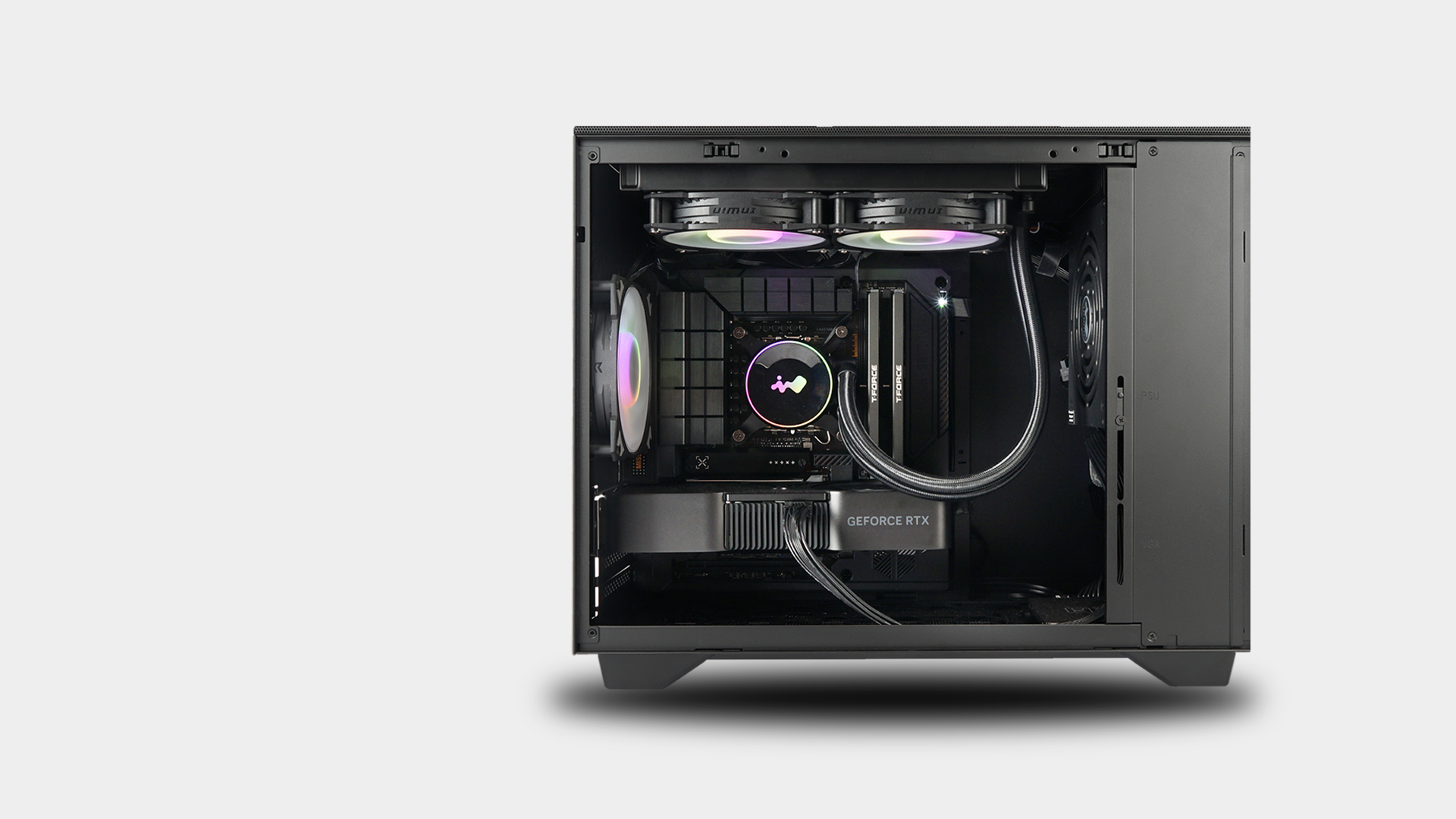

With a back-connector motherboard design, cable management in a micro-ATX case can be neat and tidy.

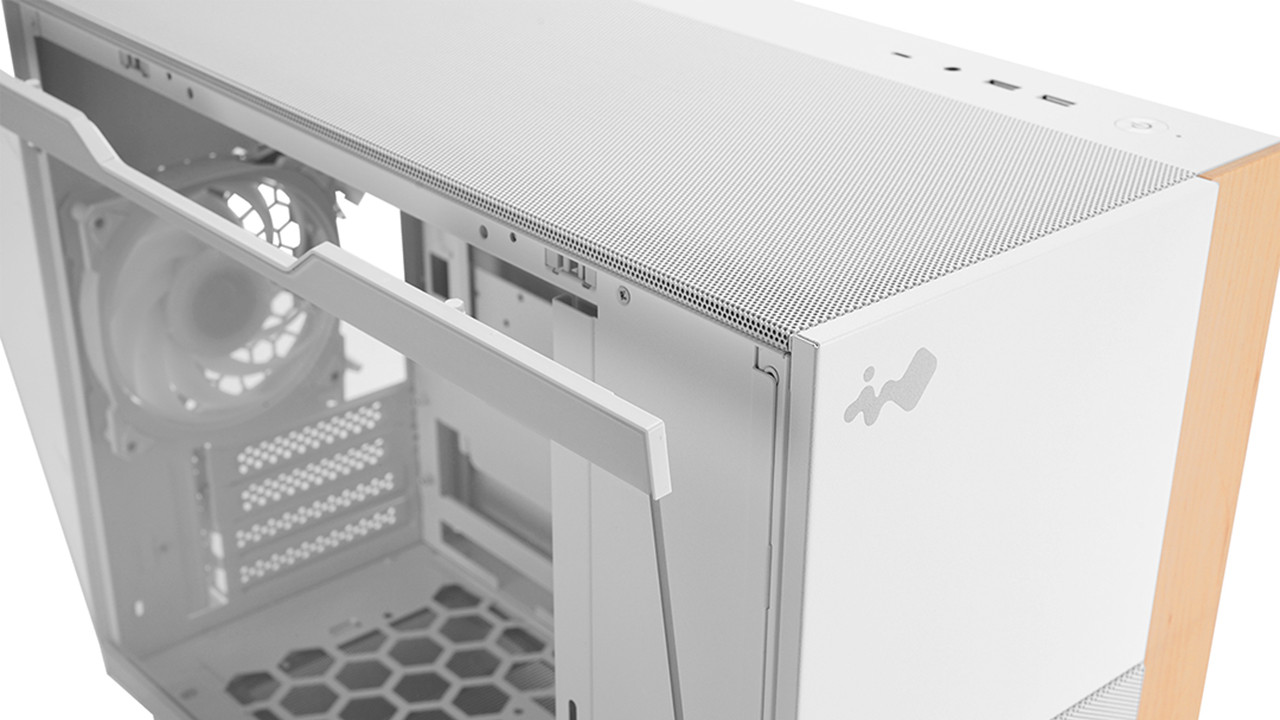

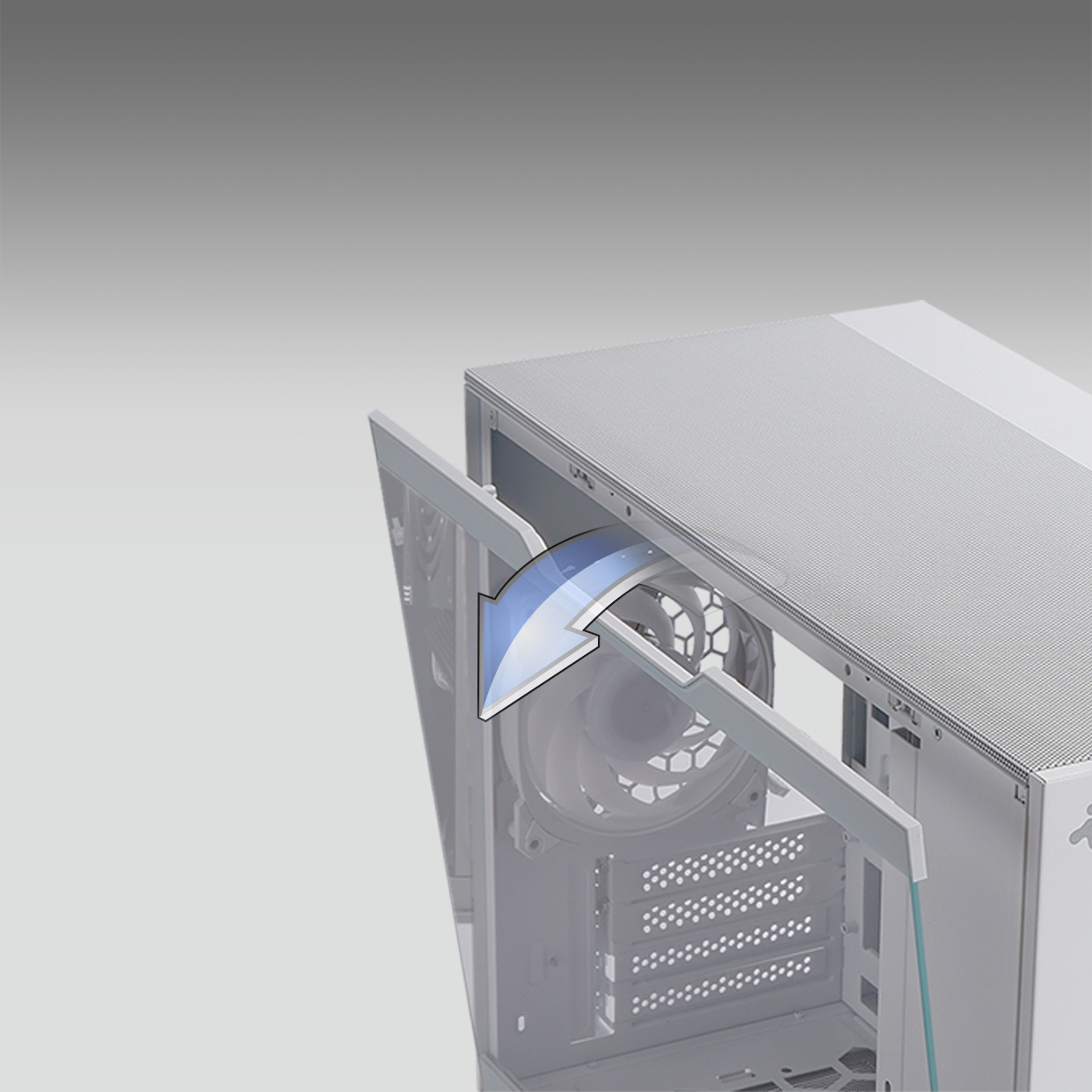

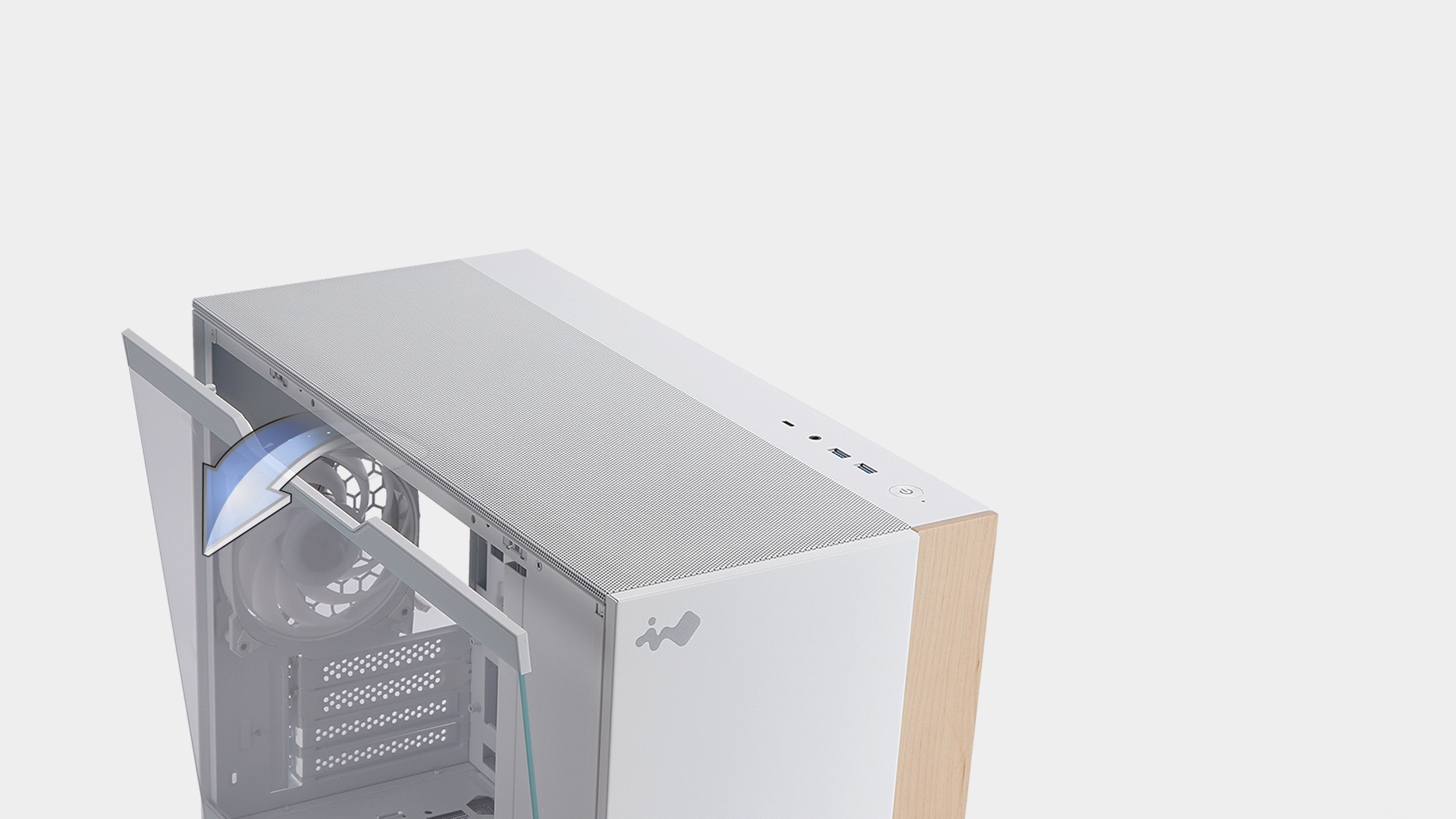

Hassle-Free Design

Simplify your building experience with our hassle-free design.

Specifications

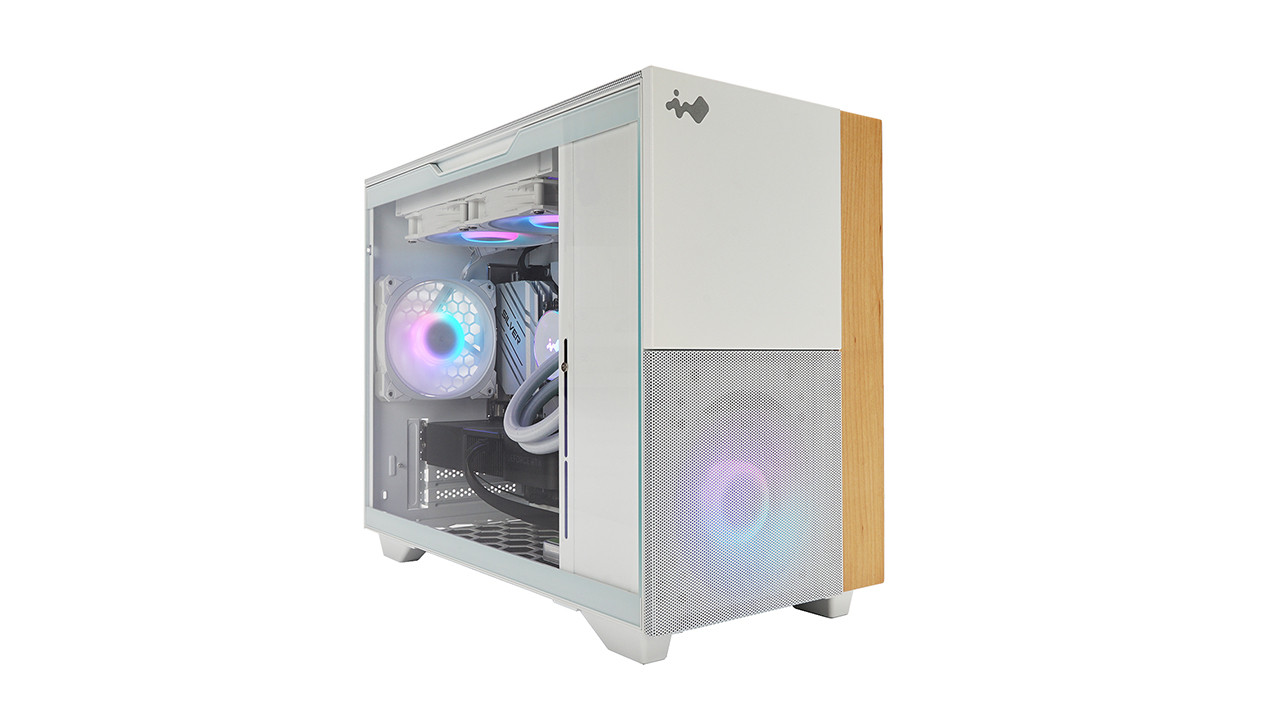

Model F3
Model Number IW-CS-F3BLK-1AN120, IW-CS-F3WHI-1AN120P

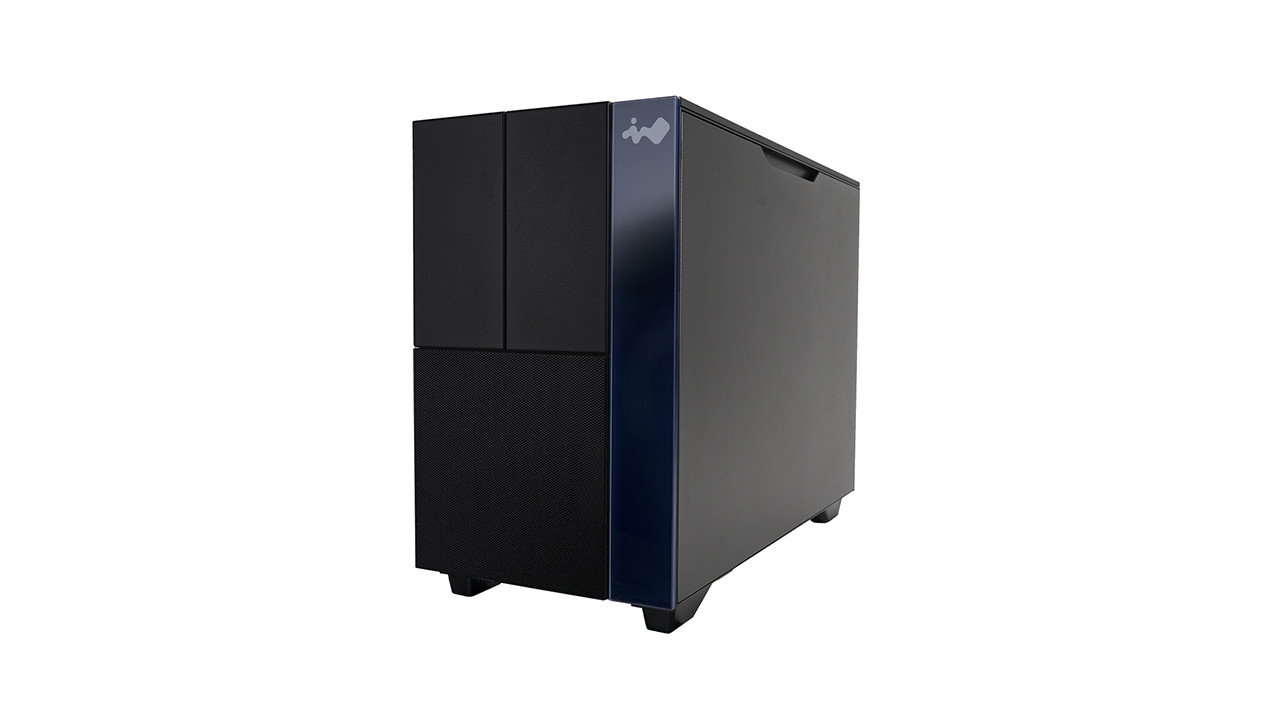

Colors Black, White
Case Type Mini Tower
Materials SECC, Tempered Glass
SECC, Tempered Glass, Wood
M/B Compatibility Micro-ATX, Mini-ITX
Expansion Slots 4 x PCI-E
Maximum Compatibility GPU Length: 340 mm
CPU Heatsink Height: 160 mm

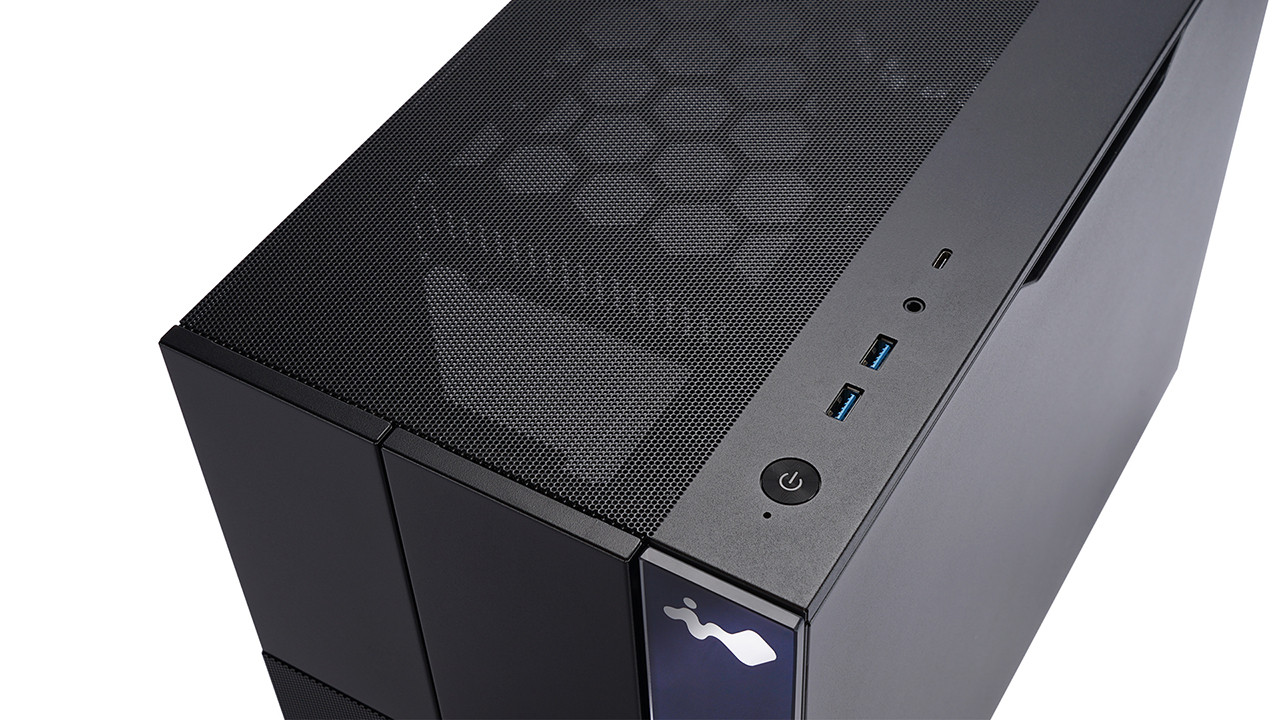

I/O Ports 1 x USB 3.2 Gen 2x2 Type-C
2 x USB 3.2 Gen 1
HD Audio Combo (CTIA – SPK/Mic)
Internal Drive Bays 1 x 3.5" / 2.5"
1 x 3.5" / 2 x 2.5"
Thermal Solution Compatibility Air Cooling Fans:
Front: 1 x 120 mm
Top: 2 x 120 / 140 mm
Rear: 1 x 120 mm
Bottom: 2 x 120 mm
(1 InWin AN120 / AN120P Fan Included)

Water Cooling Radiator:
Top: 1 x 240 / 280 mm
Power Supply Compatibility PSII: ATX12V
- Length up to 160 mm (cable management Included)

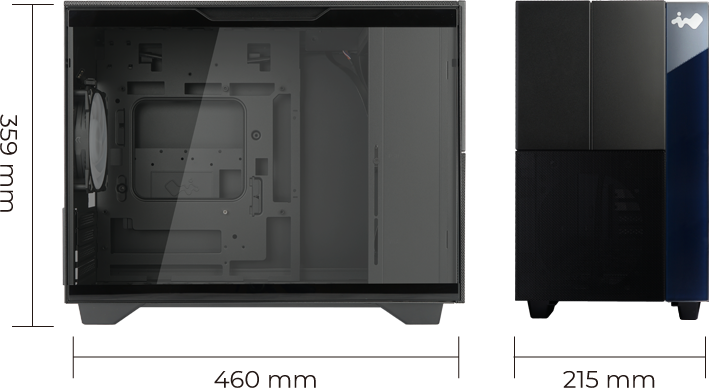

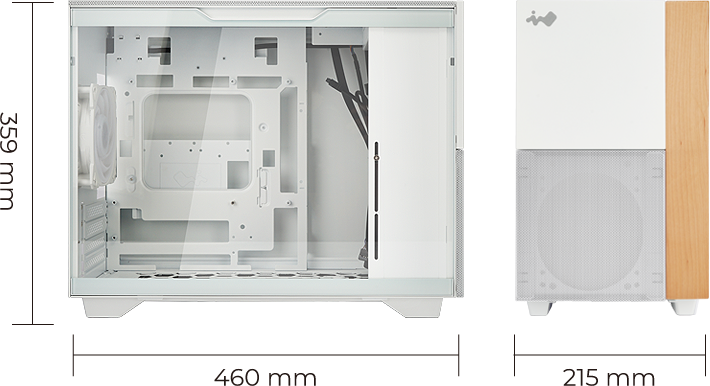

Product Dimensions
(L x W x H)
460 x 215 x 359 mm
18.1 x 8.5 x 14.1"

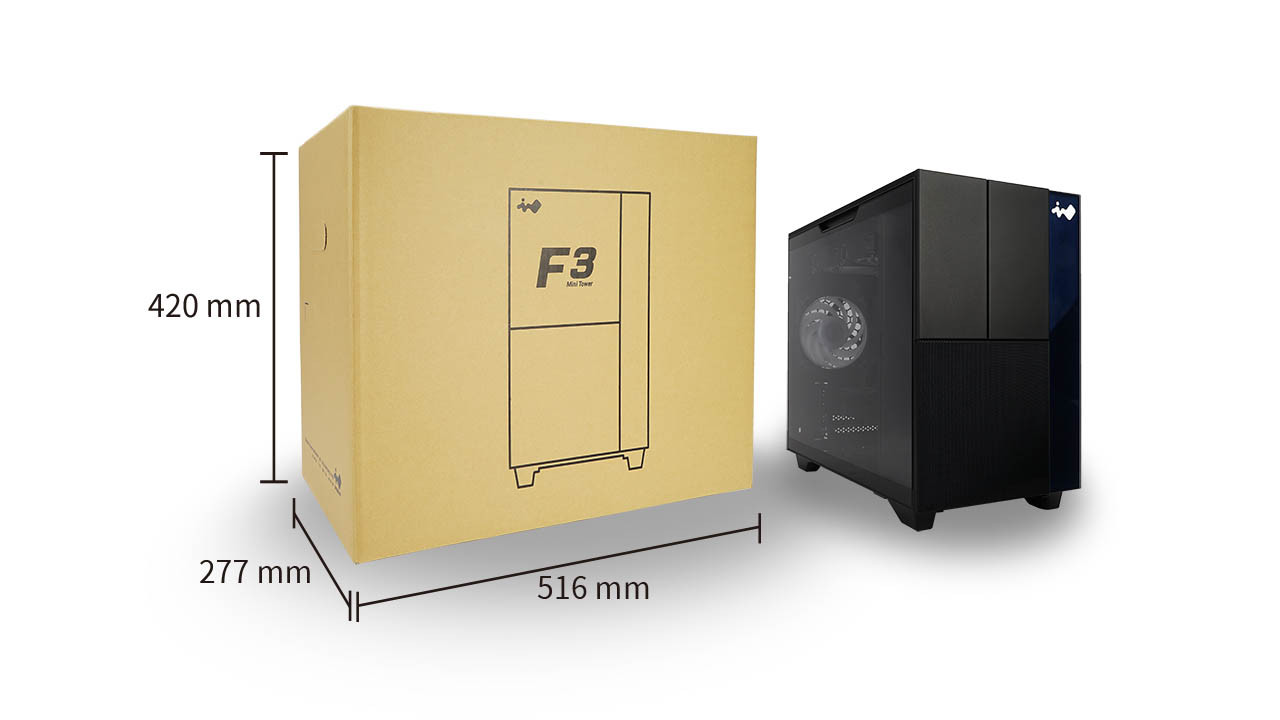

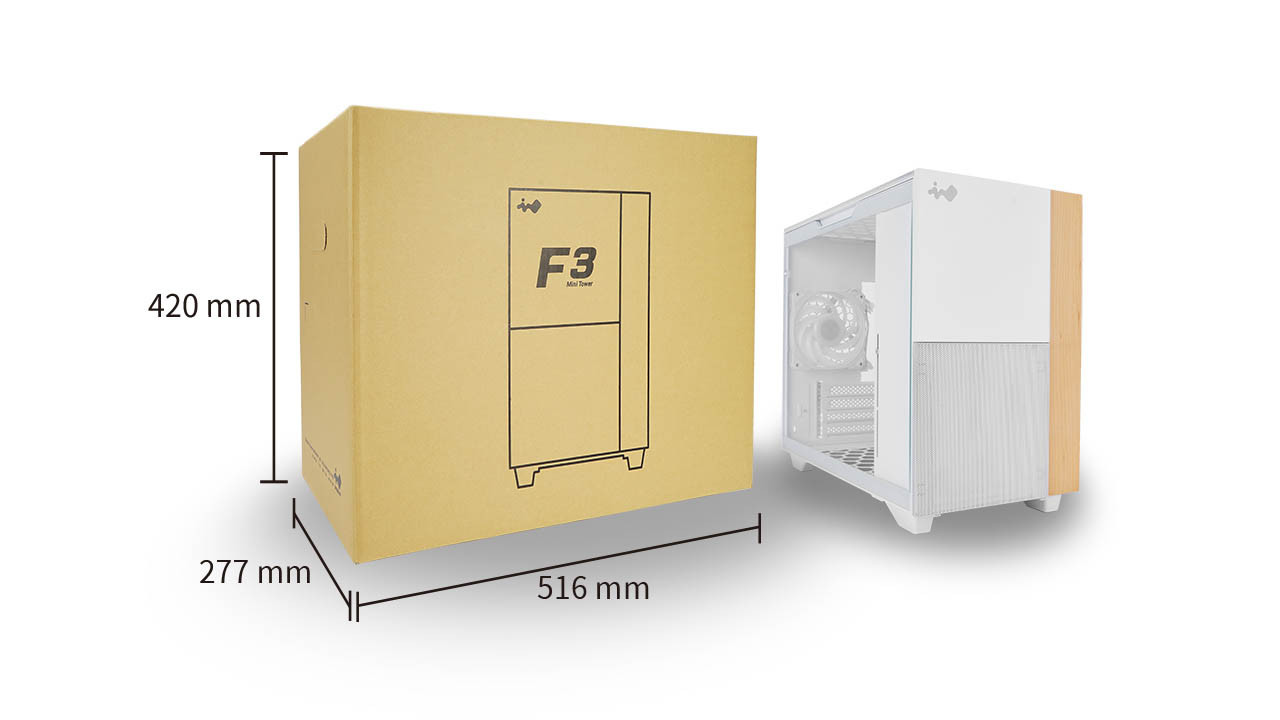

Package Dimensions
(L x W x H)
516 x 277 x 420 mm
20.3 x 10.9 x 16.5"
Net Weight 7.25 kg / 16 lbs
Gross Weight 8.38 kg / 18 lbs
* InWin's products comply with RoHS regulations.
* Specifications may vary based on different regions.
