F5

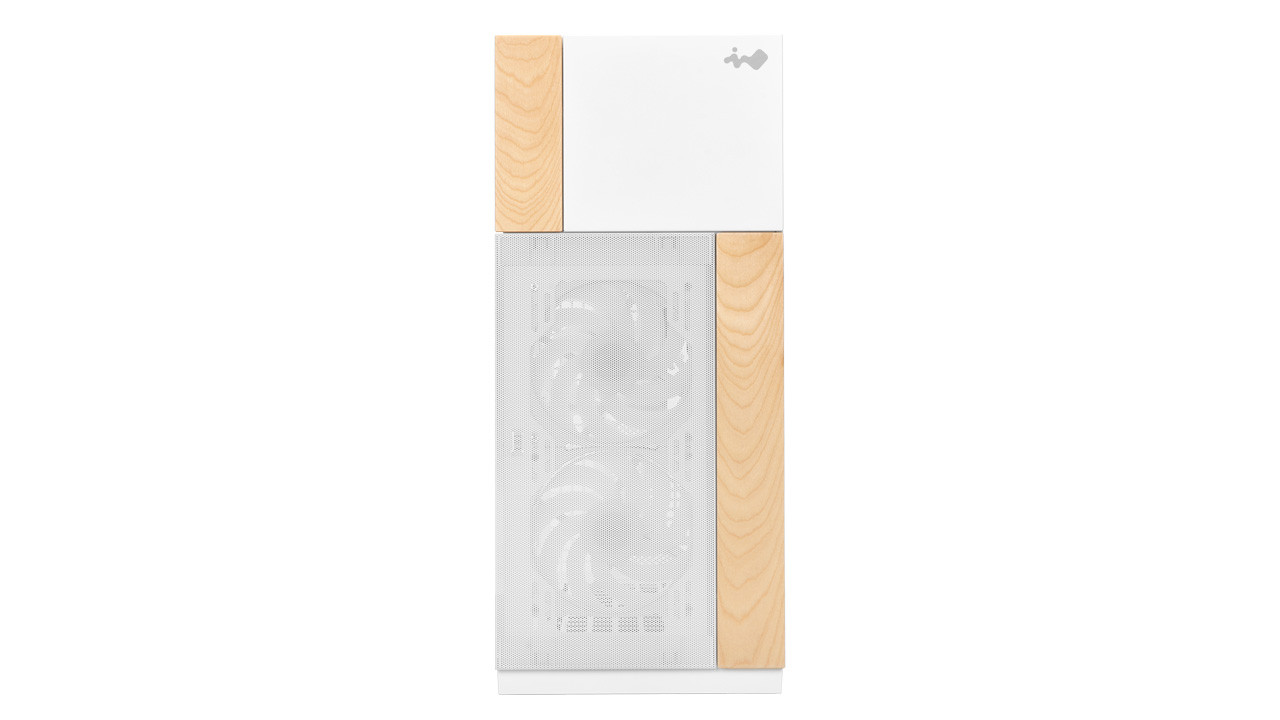

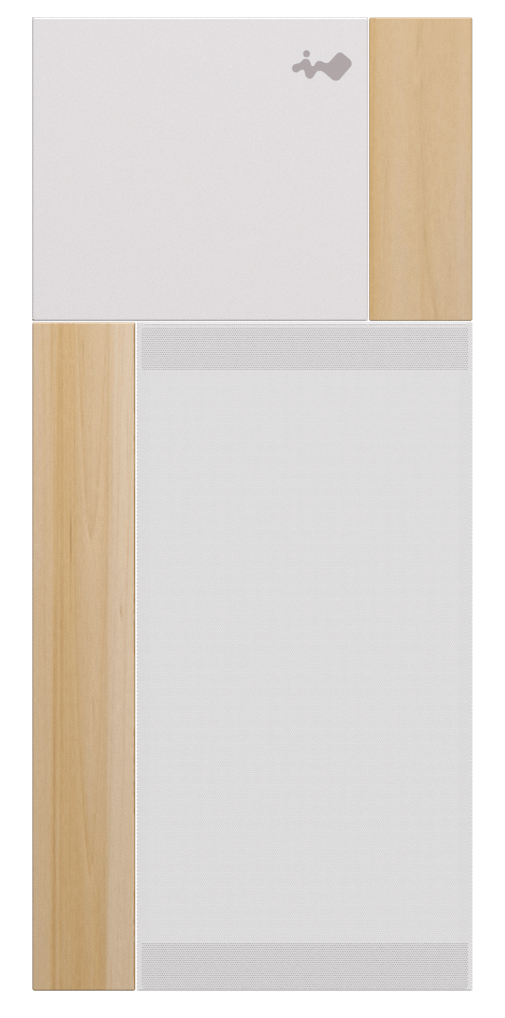

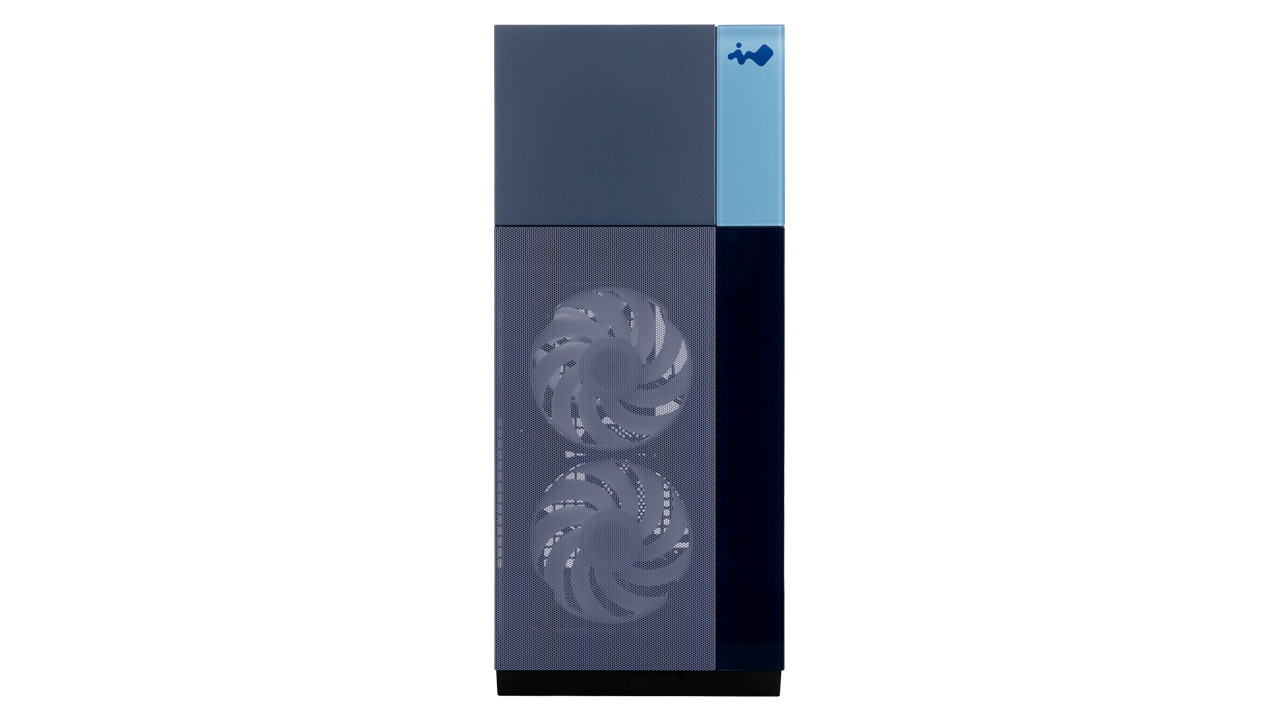

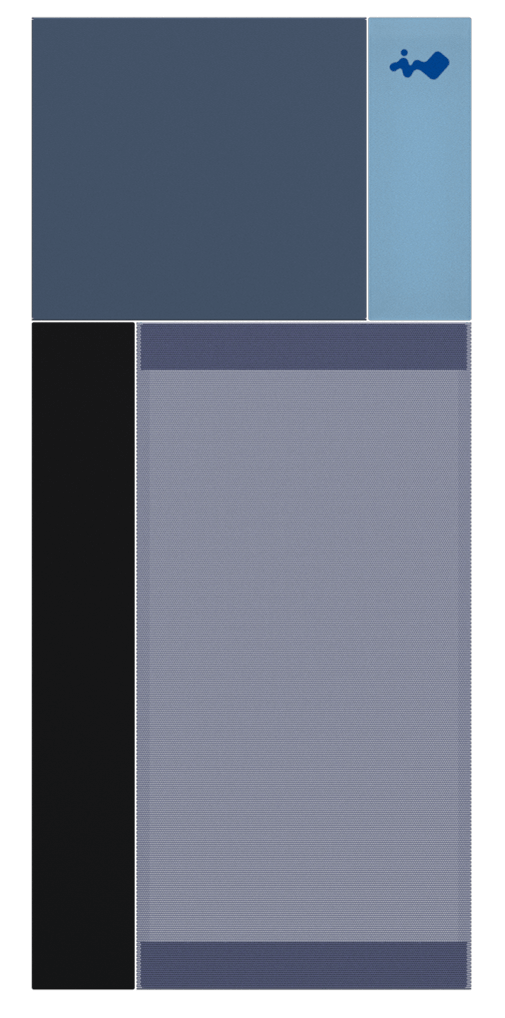

Shift and Shuffle Your Front Panel

The F5’s front panel features detachable panels, providing the freedom to swap for various PC appearances. Make it your personal PC now!

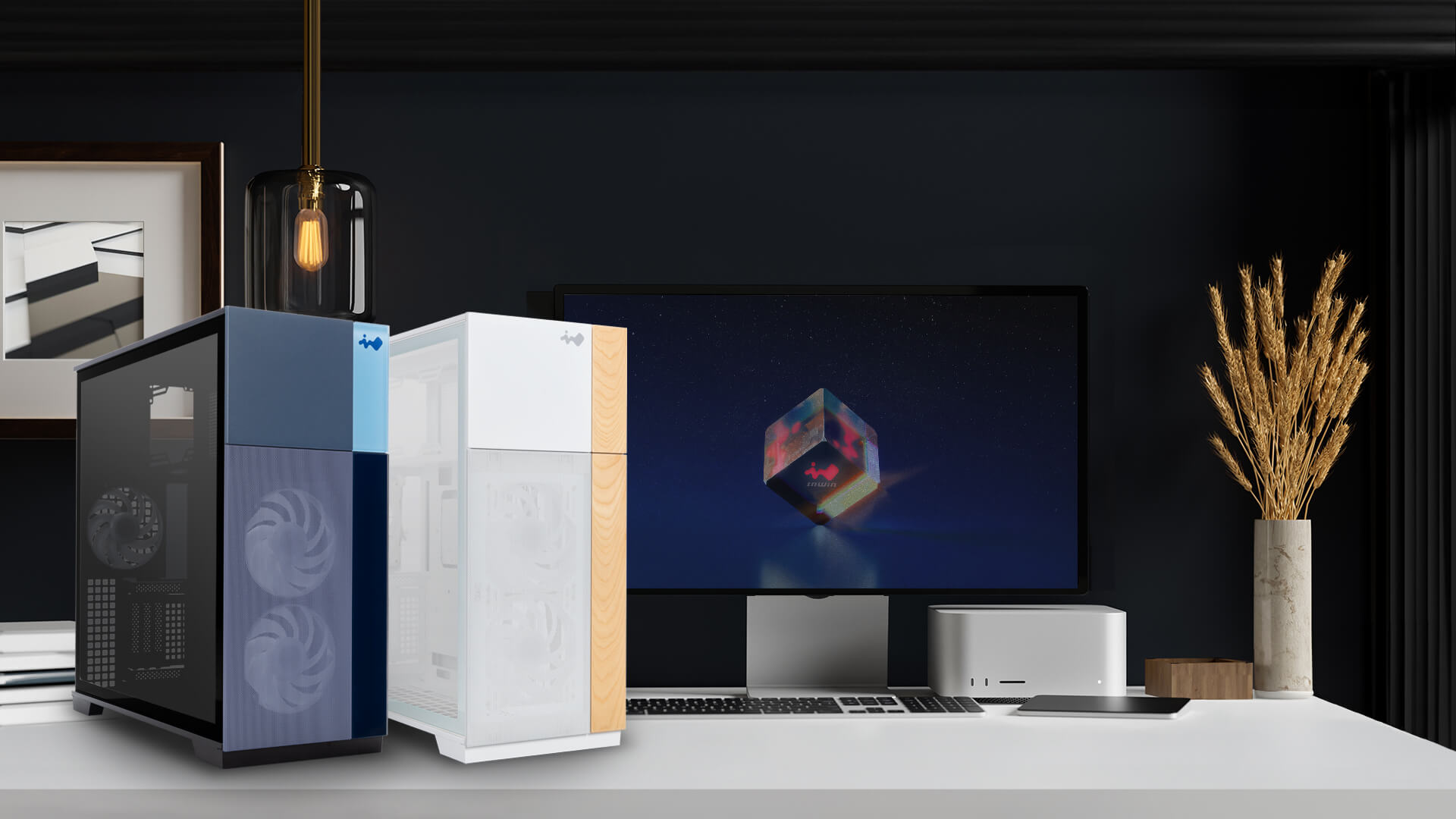

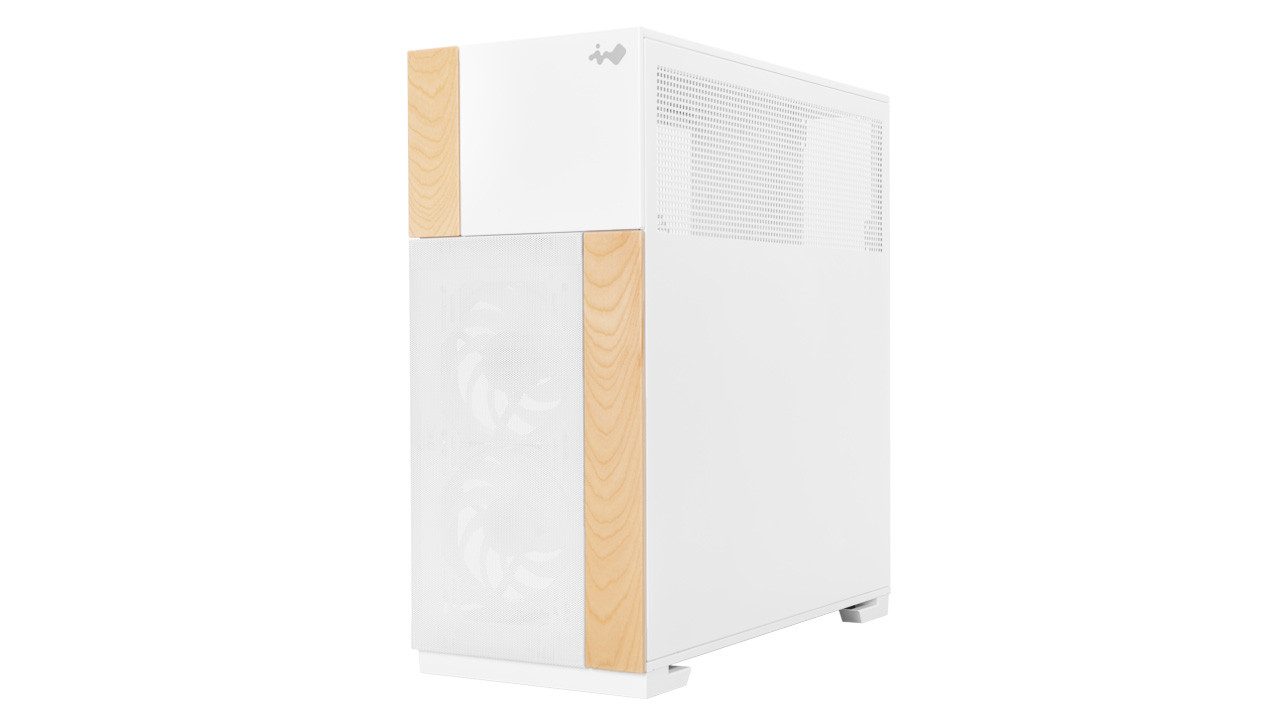

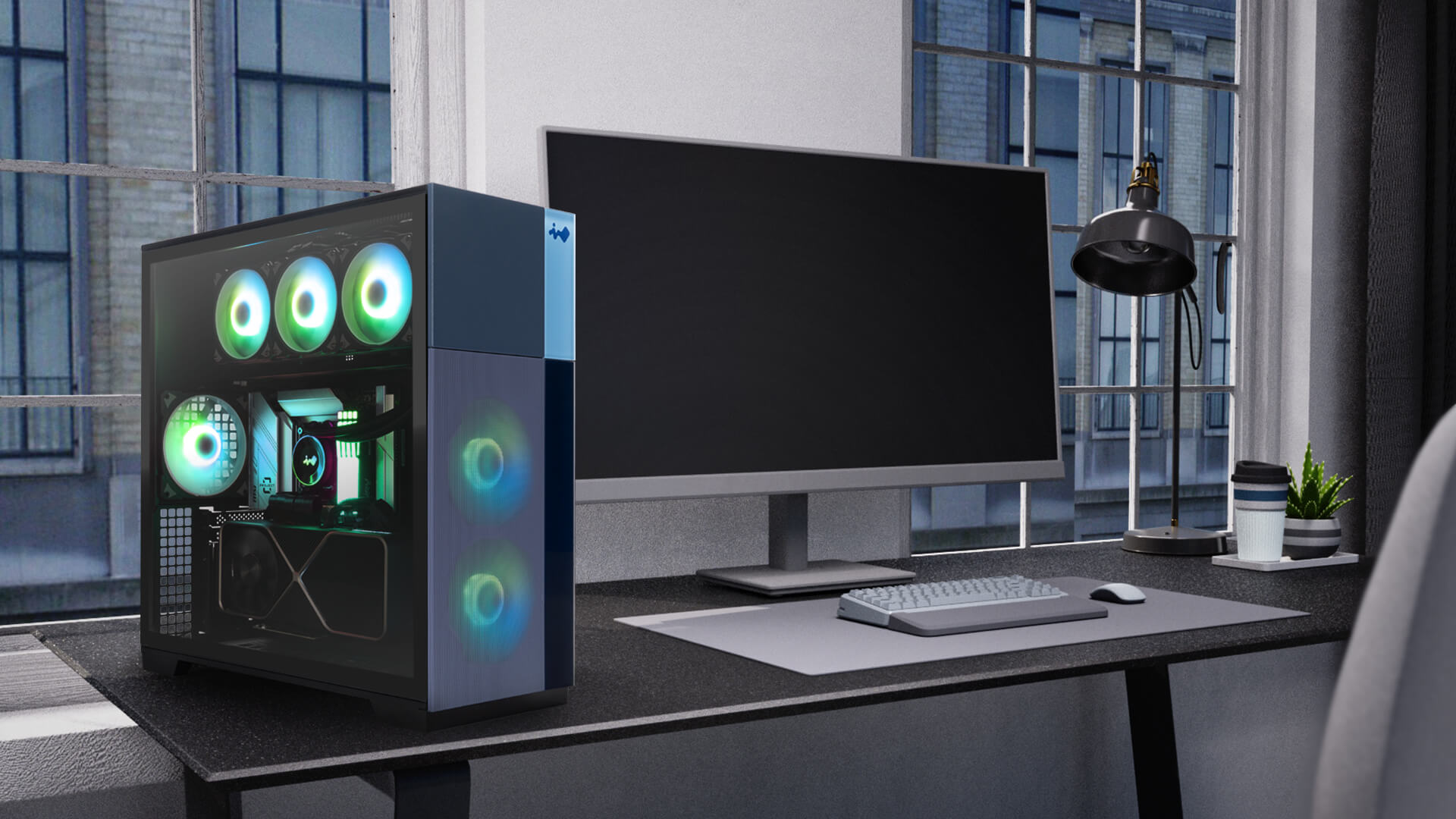

Select Your Vibe

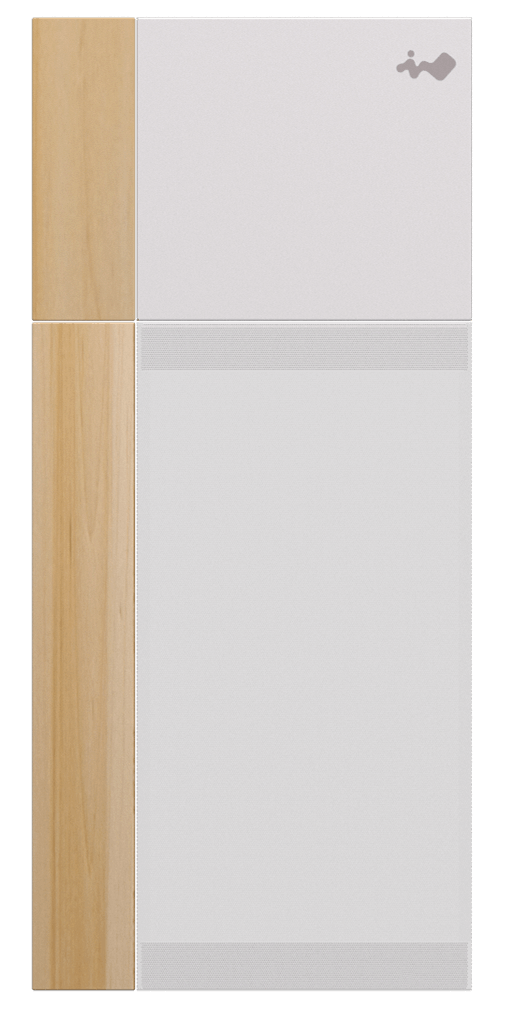

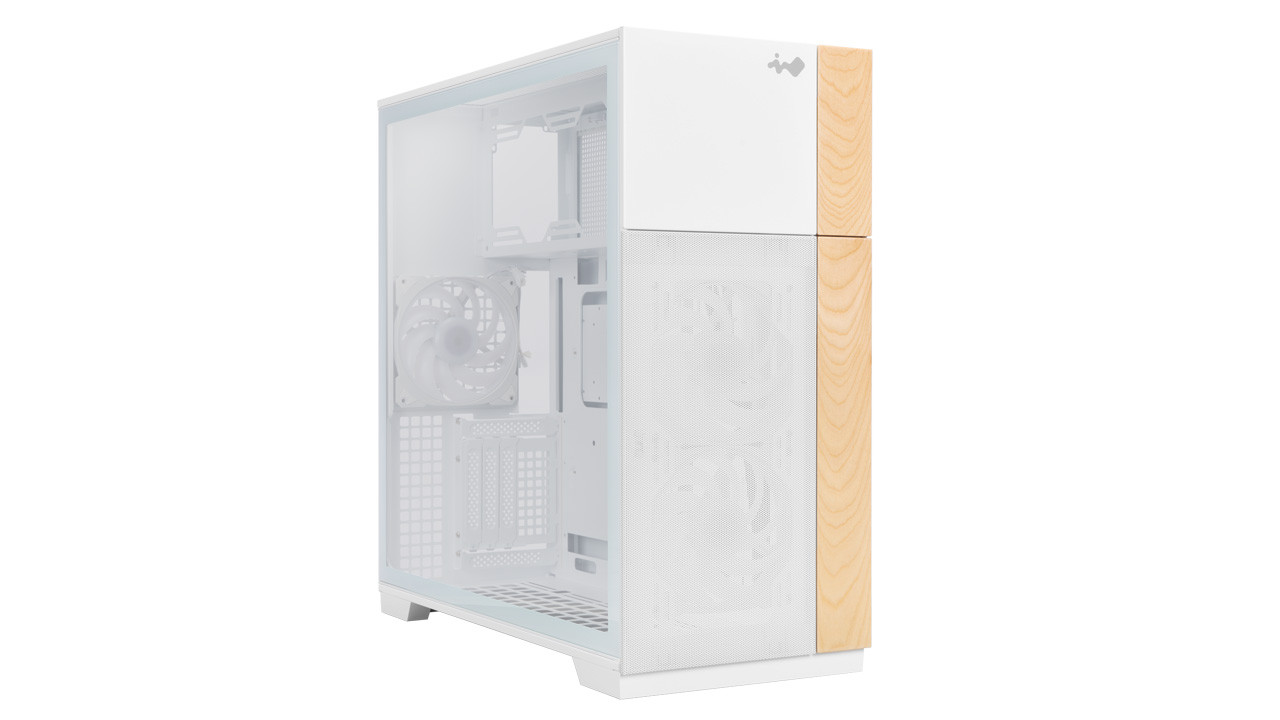

Elegant Maple Wood and Modern Tinted Glass offer different materials on a PC that blends into your home or office setting.

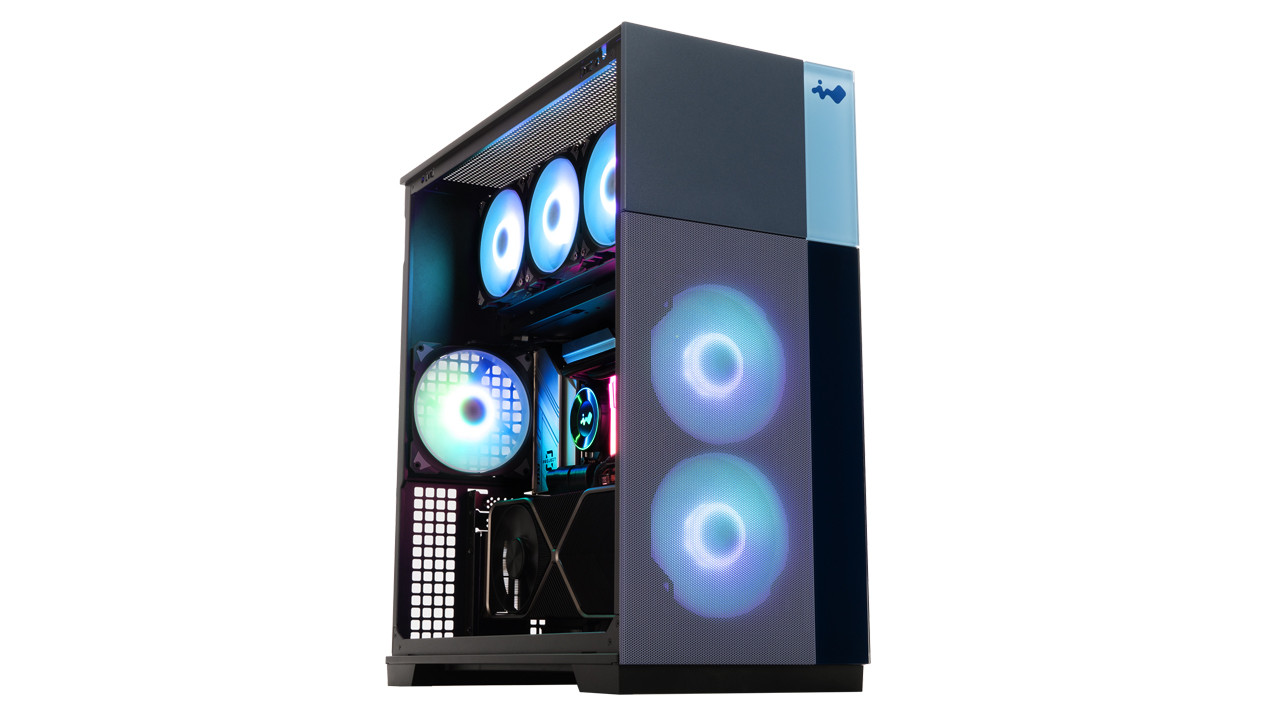

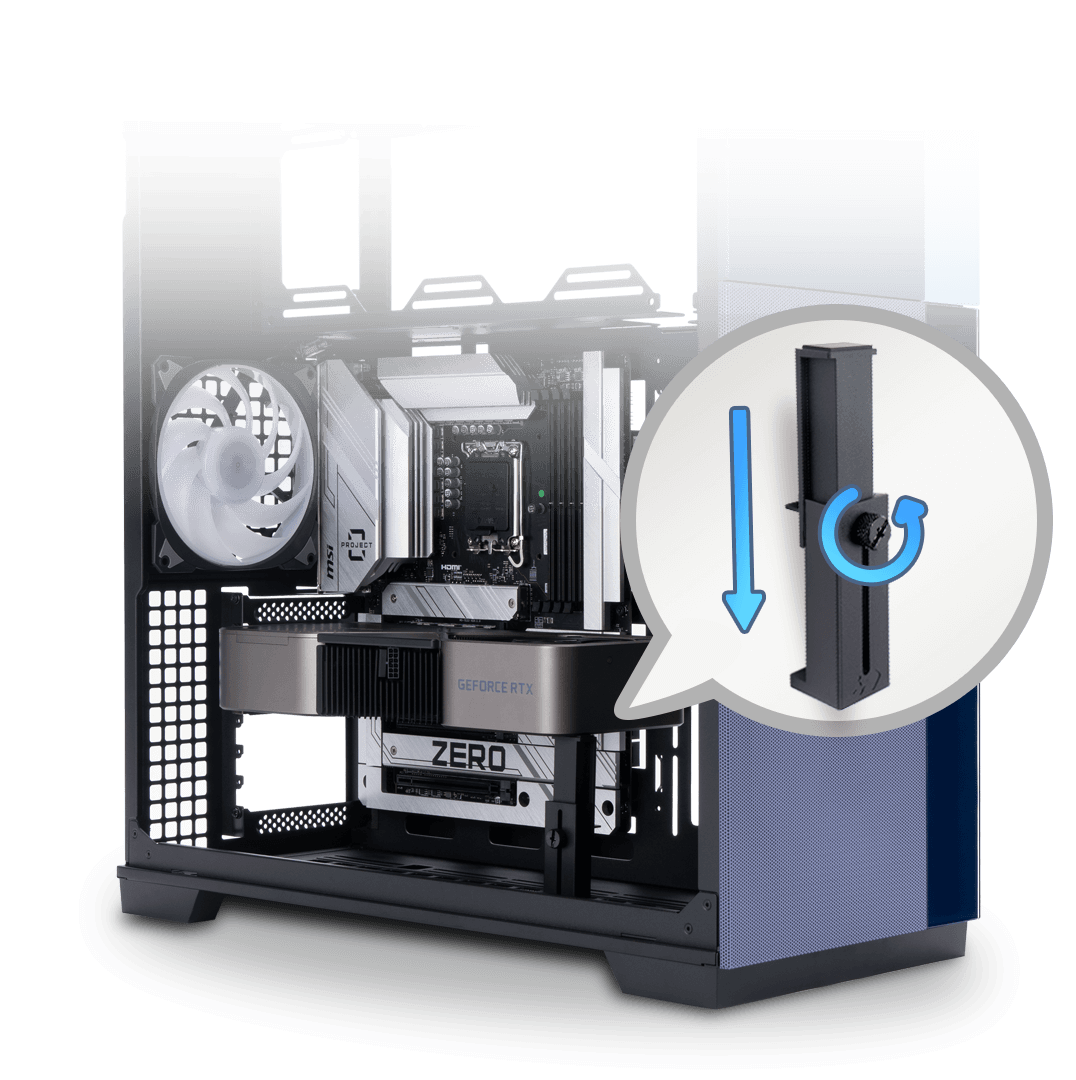

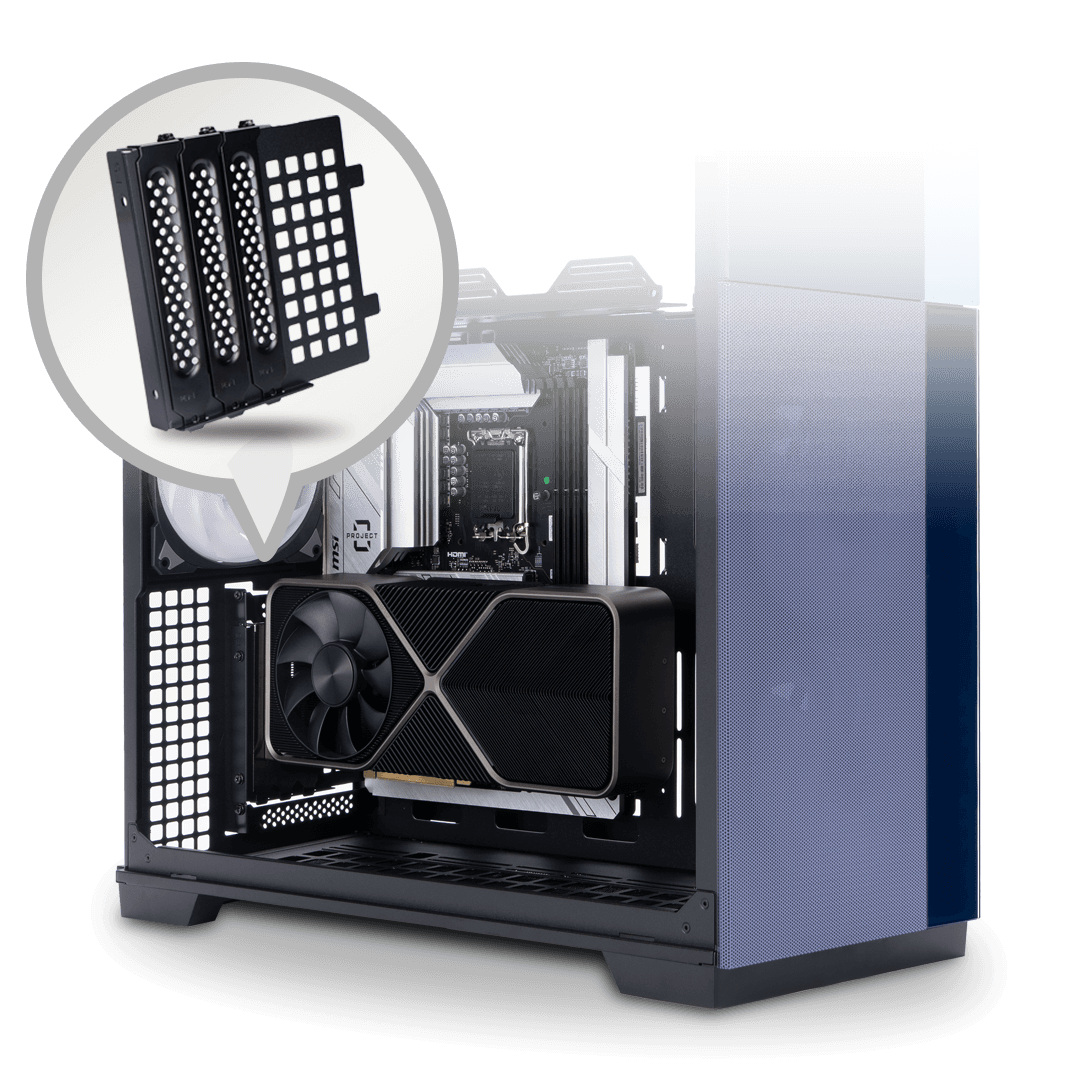

Versatile GPU Support

InWin has innovated a magnetic GPU holder and a modular PCI-E slot for dual GPU orientation to ensure GPU stability and displays the card horizontally or vertically.

* The PCI-E riser cable is not included in package.

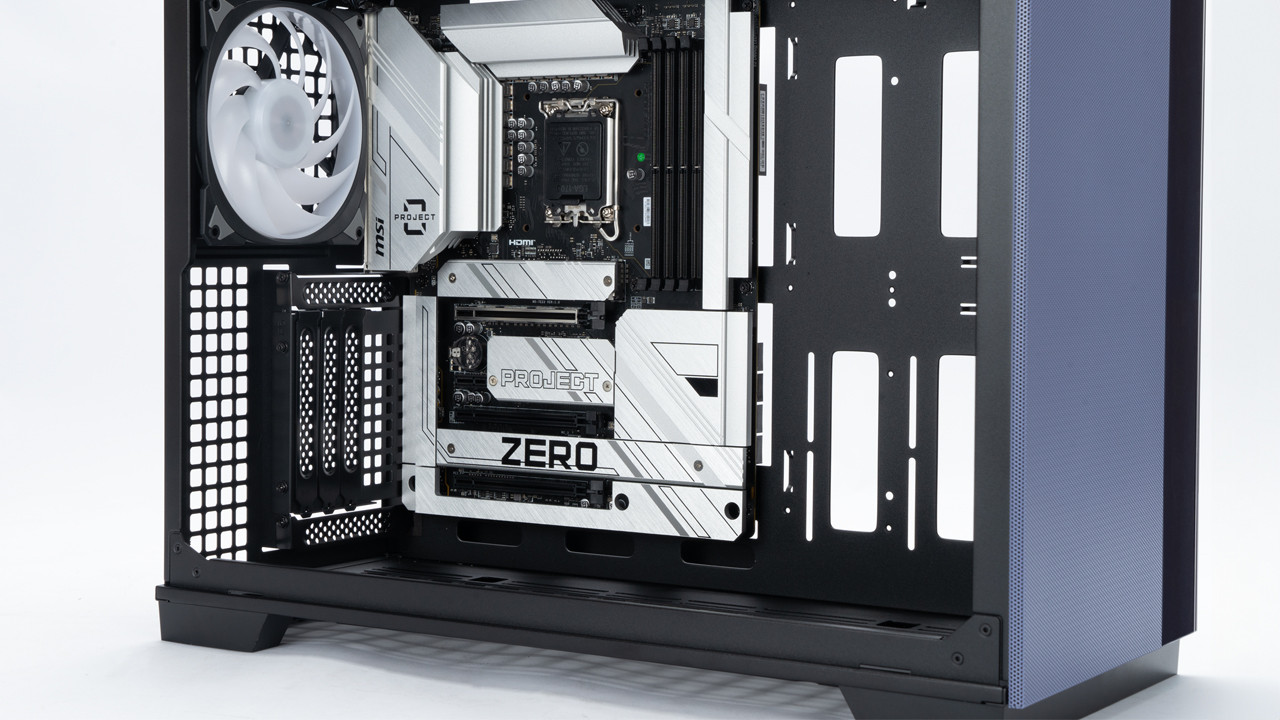

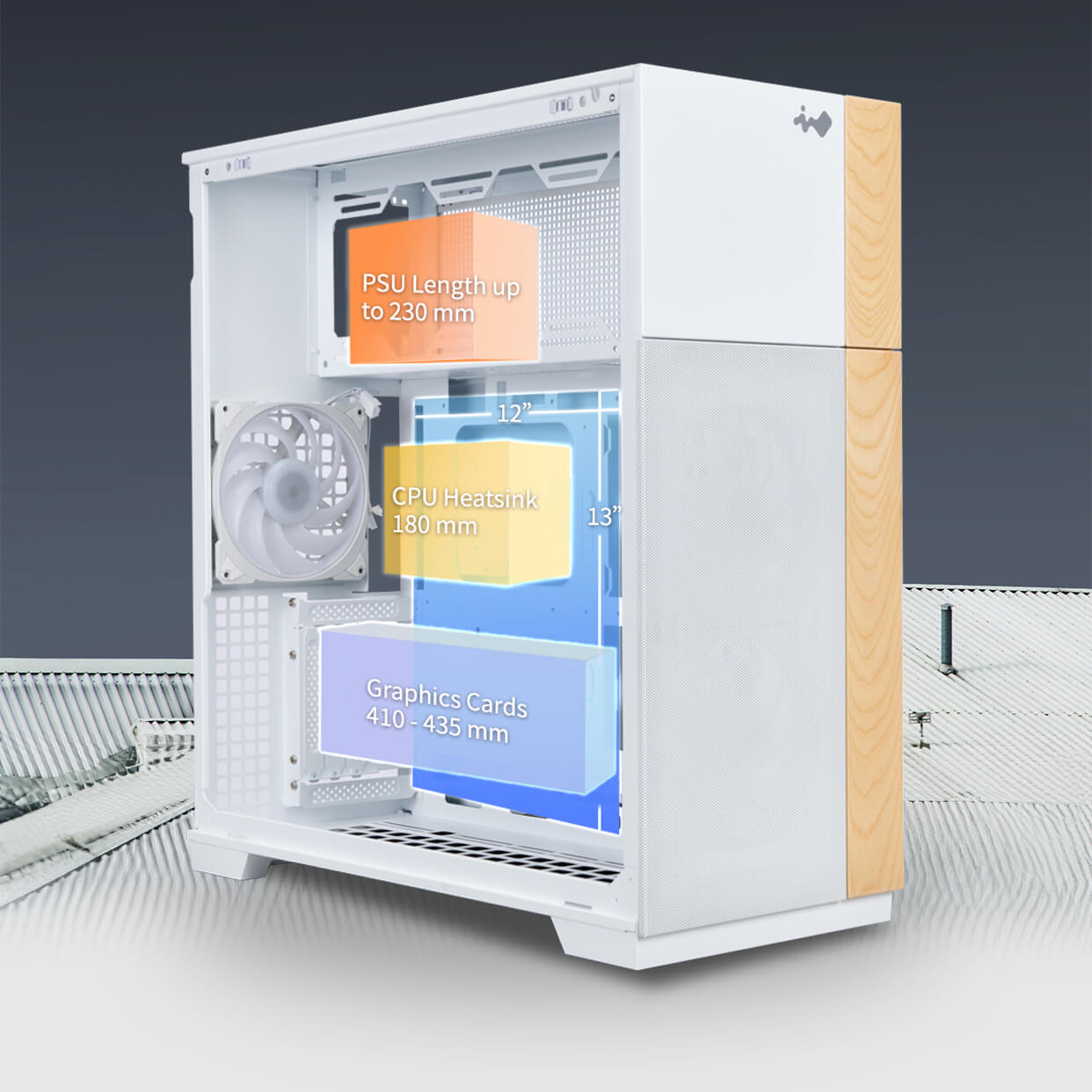

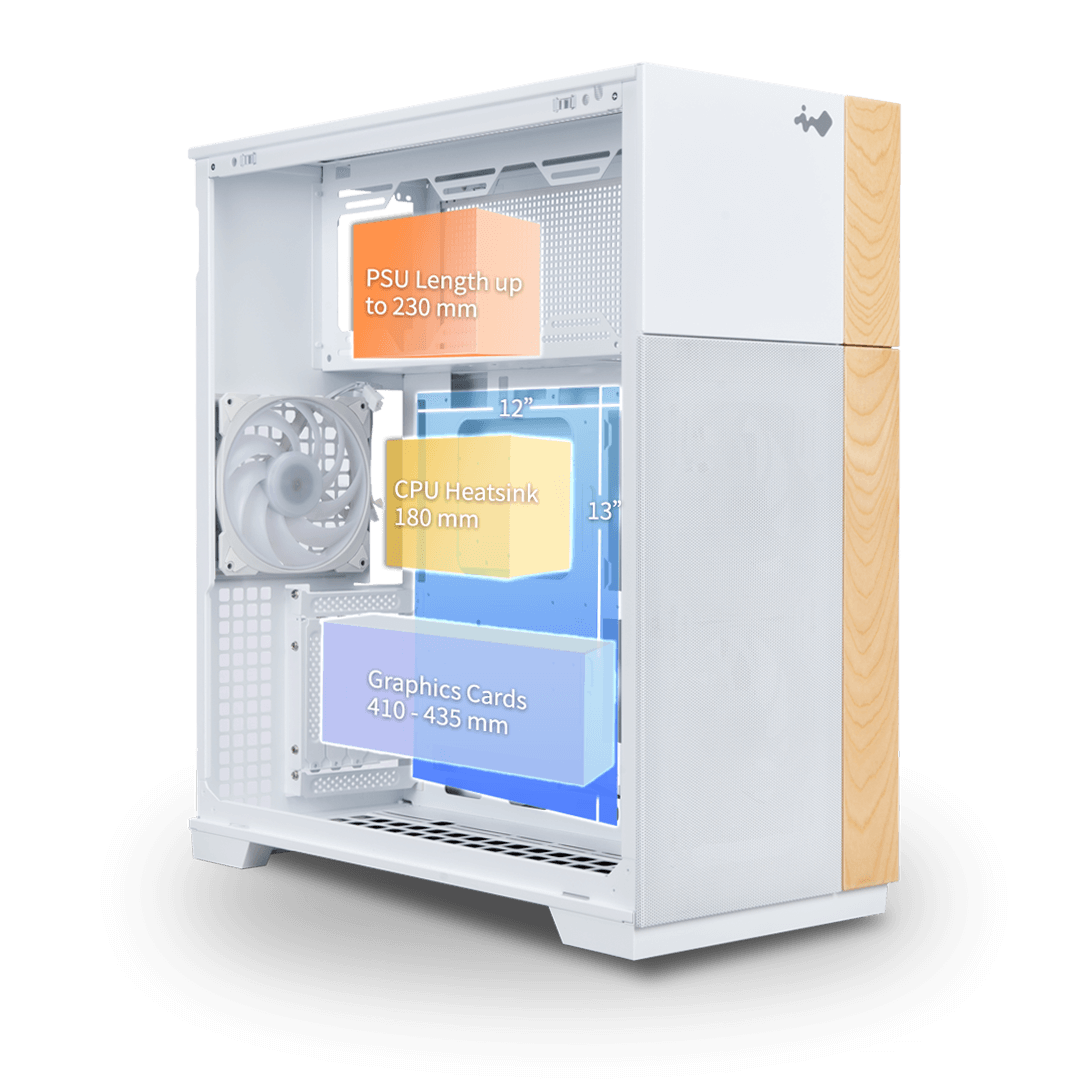

Highly Expandable

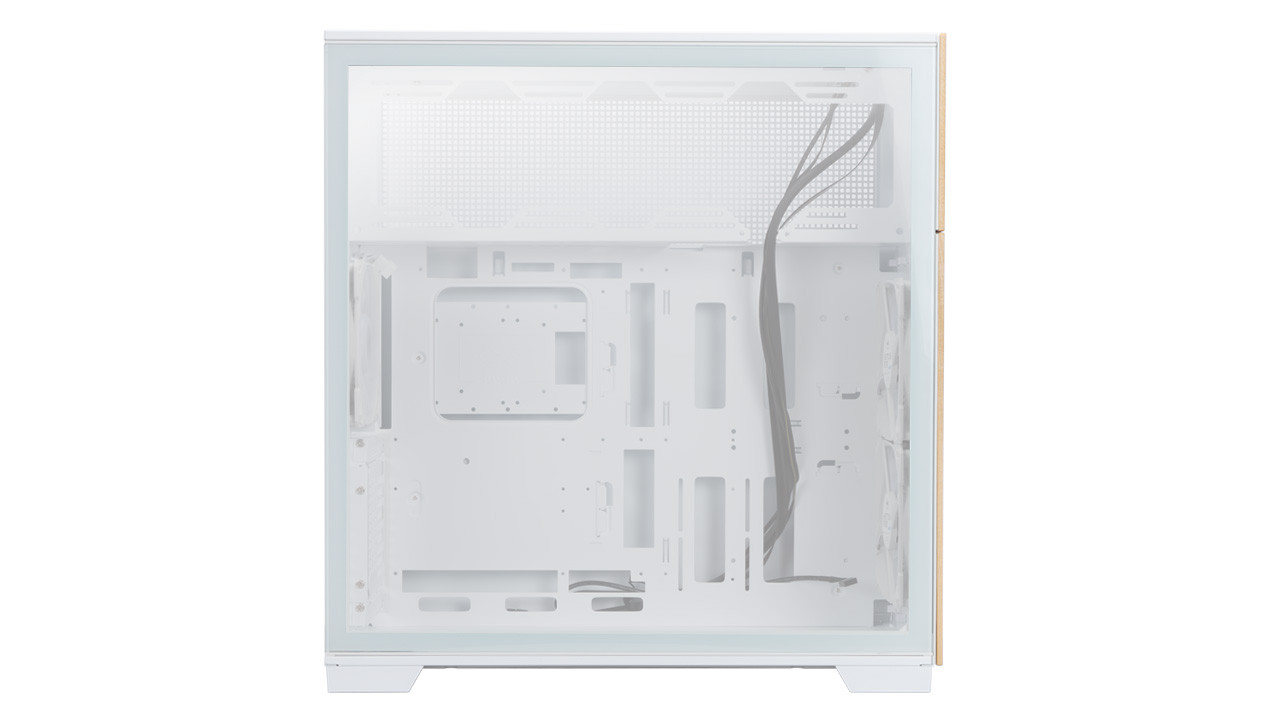

The F5 supports Back-Connector motherboards, compatible with GPUs up to 435 mm, and possesses multiple 2.5”/3.5” storage drive trays.

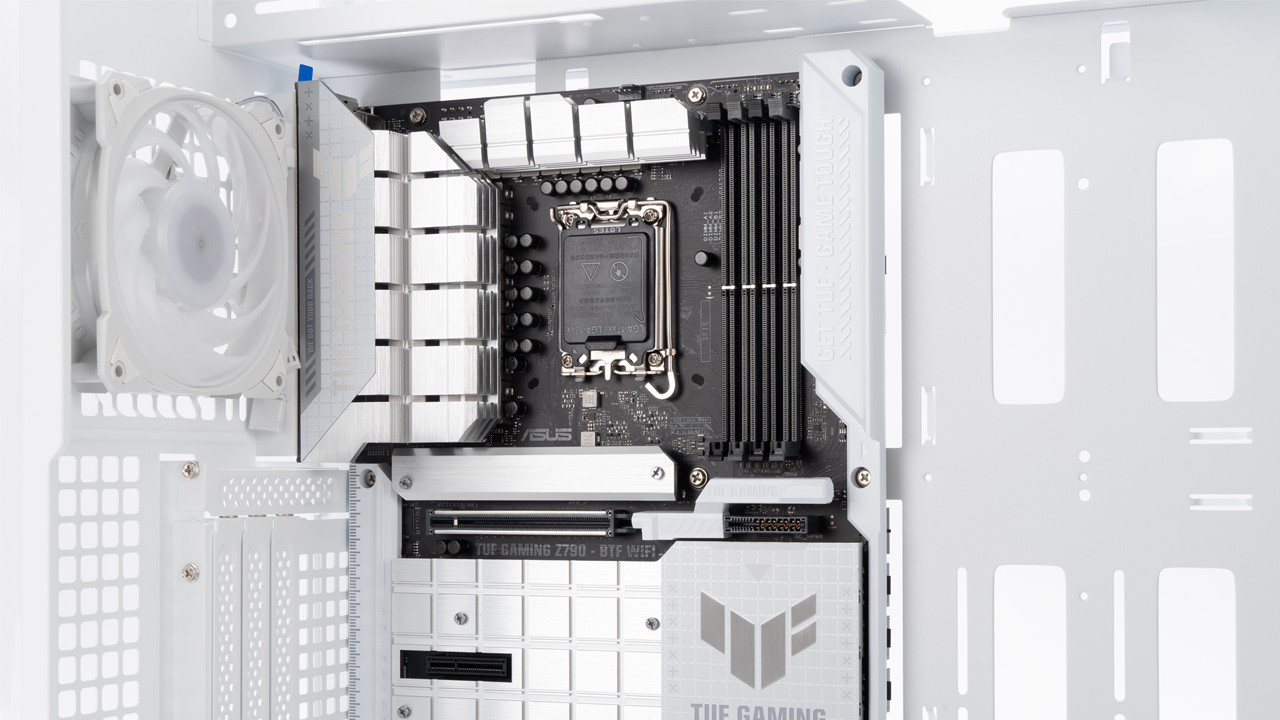

* Supports ASUS BTF、 MSI Project Zero Series and GIGABYTE Project STEALTH Back-Connector ATX motherboards.

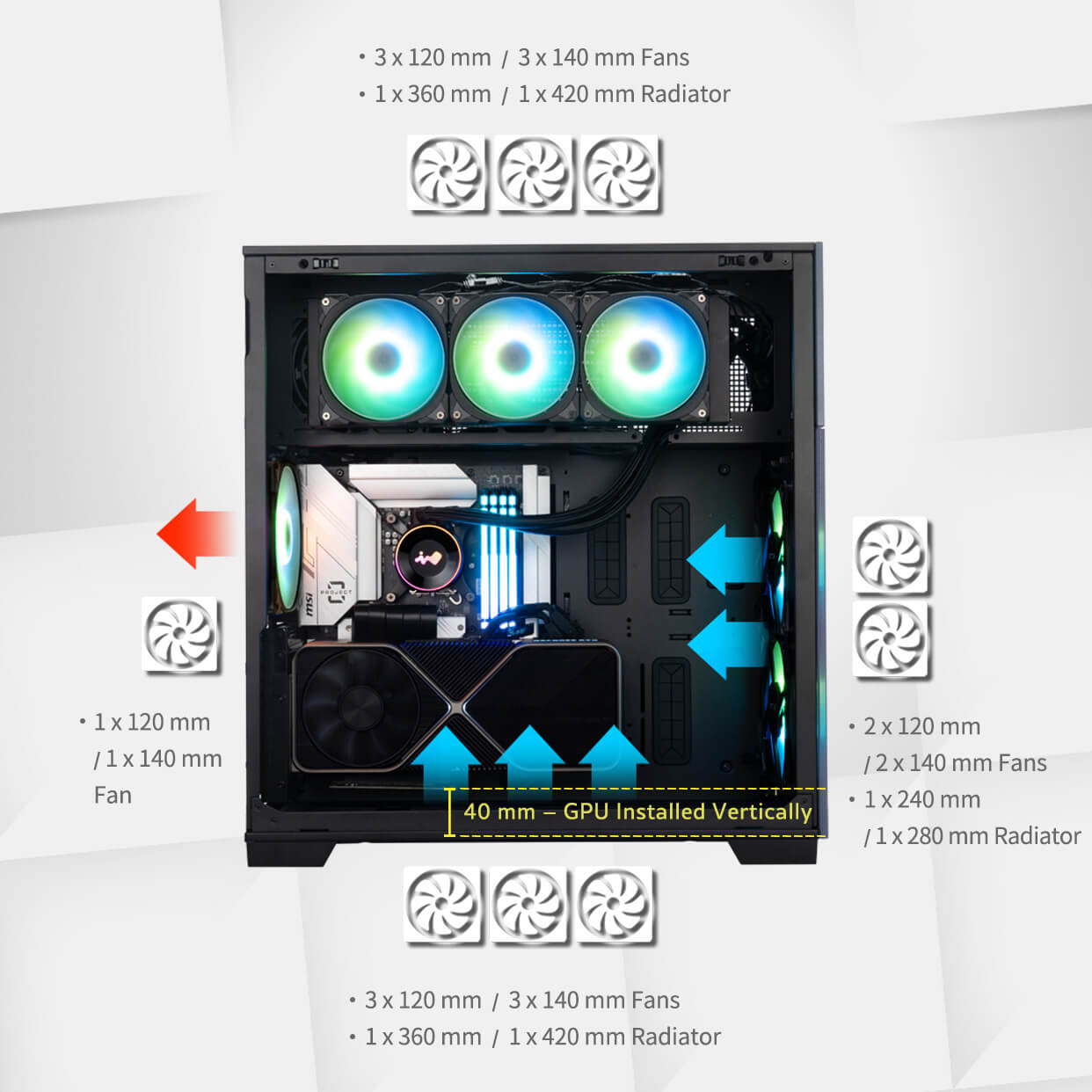

3x120mm / 3x140mm Fans
1x360mm / 1x420mm Radiator

1 x 120 mm
/ 1 x 140 mm Fans

2 x 120 mm
/ 2 x 140 mm Fans
1 x 240 mm
/ 1 x 280 mm Radiator

3 x 120 mm / 3 x 140 mm Fans
1 x 360 mm / 1 x 420 mm Radiator

40 mm – GPU Installed Vertically

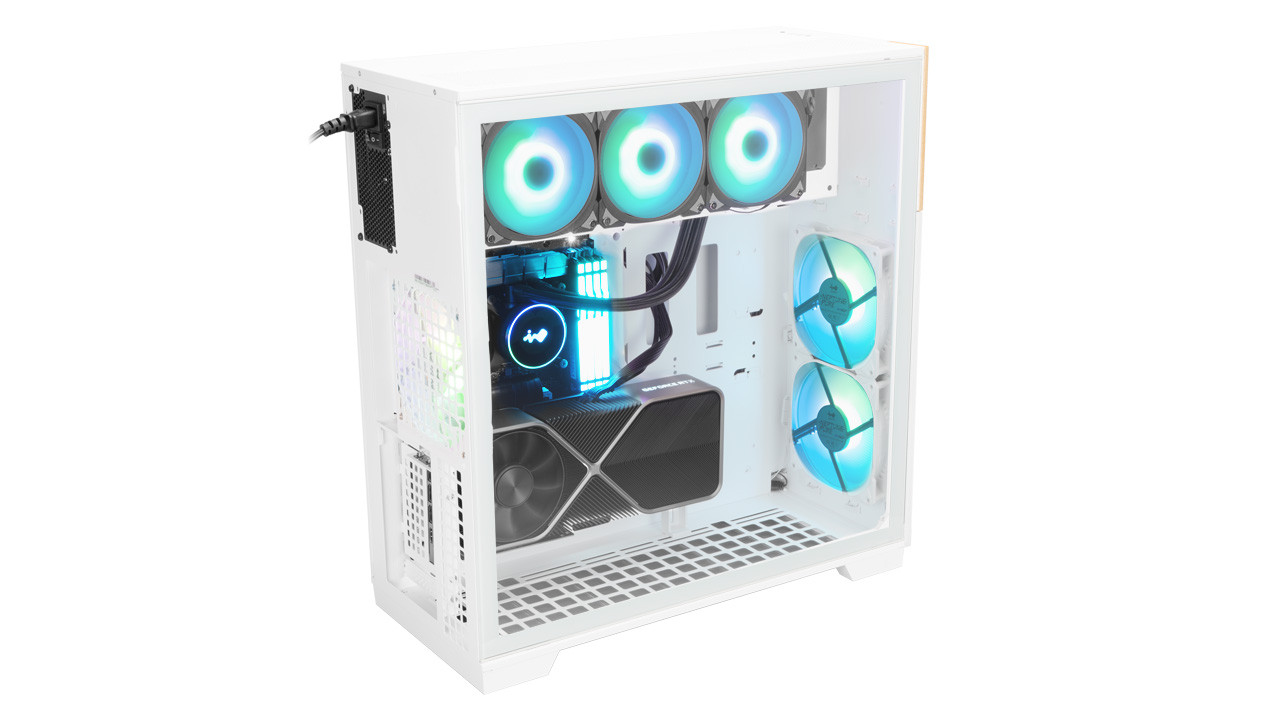

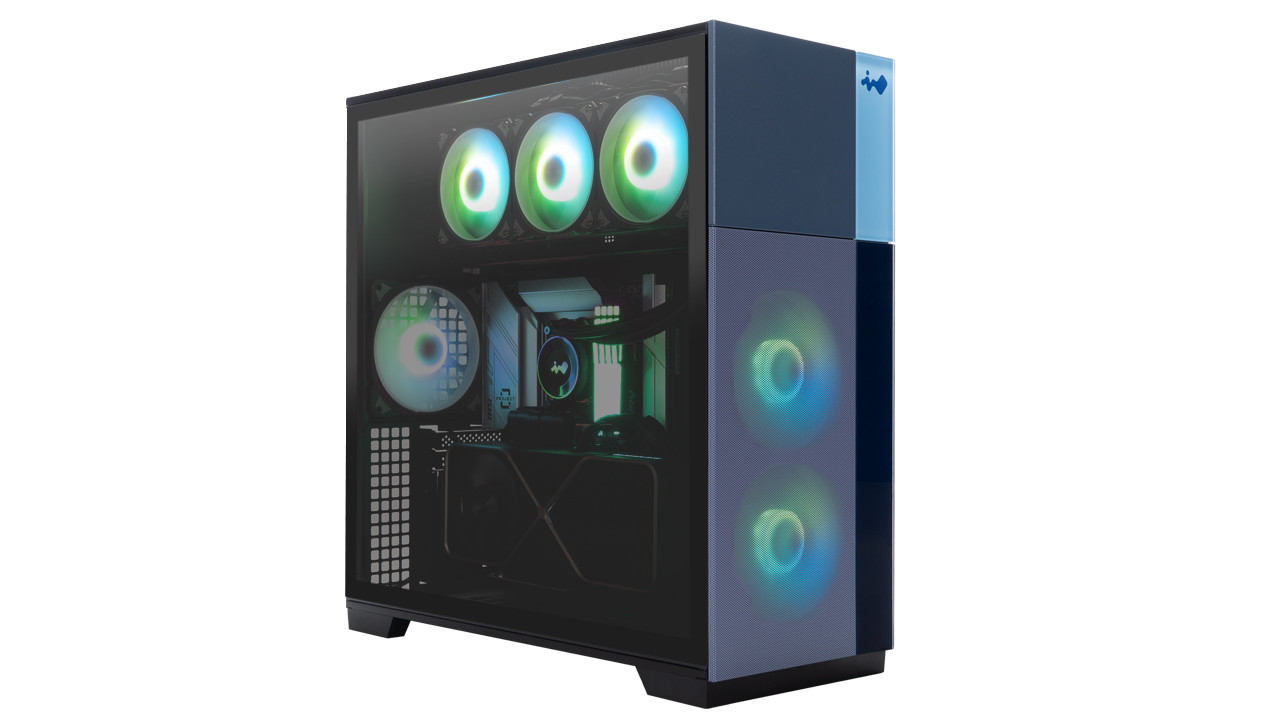

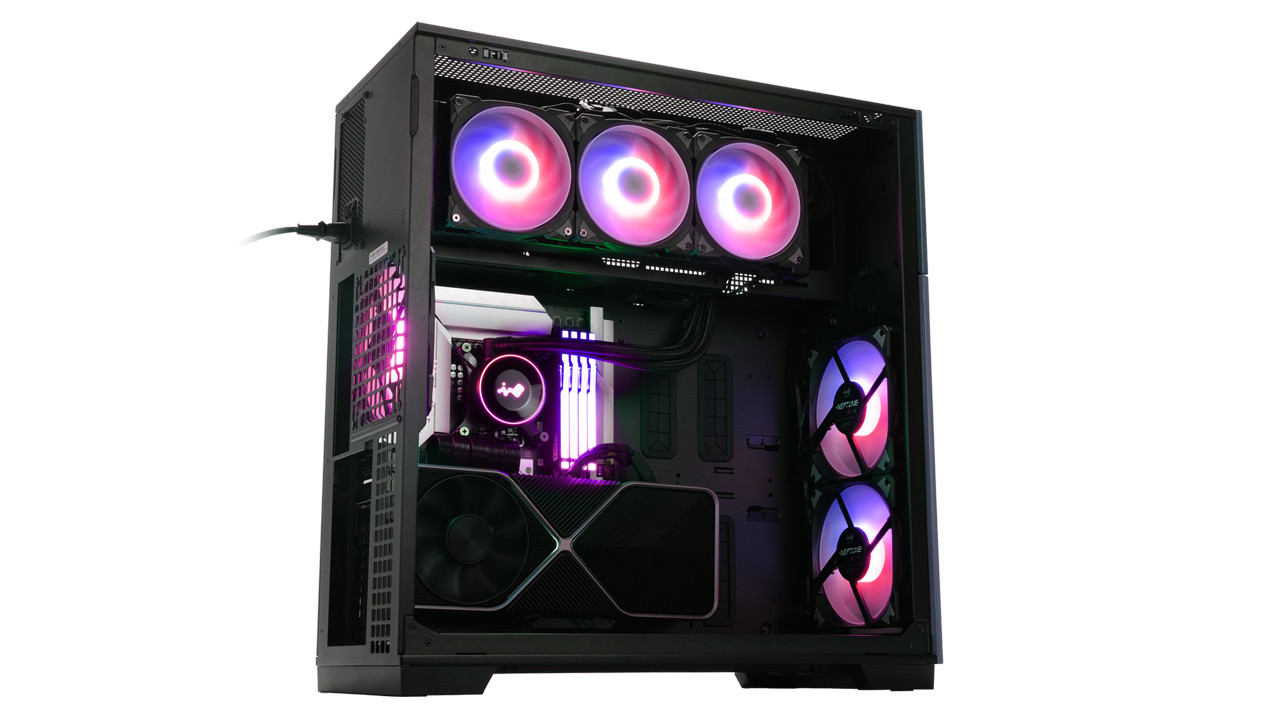

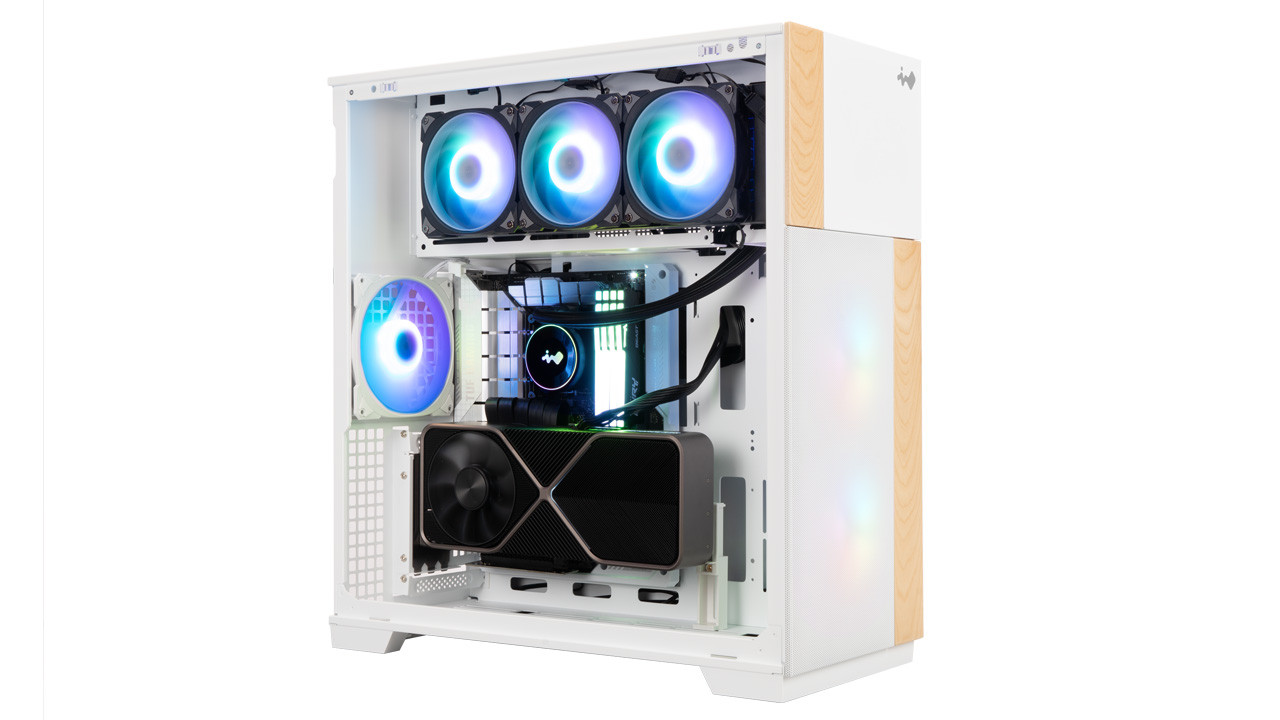

Versatile Cooling Options

The F5 provides versatile cooling configurations, supporting up to 9 fans and accommodating radiator sizes of 240, 280, 360, and 420 mm. F5 comes with three complementary Neptune AN140/AN140P fans.

* AN140 x 3 for Black version
* AN140P x 3 for White version

Learn More

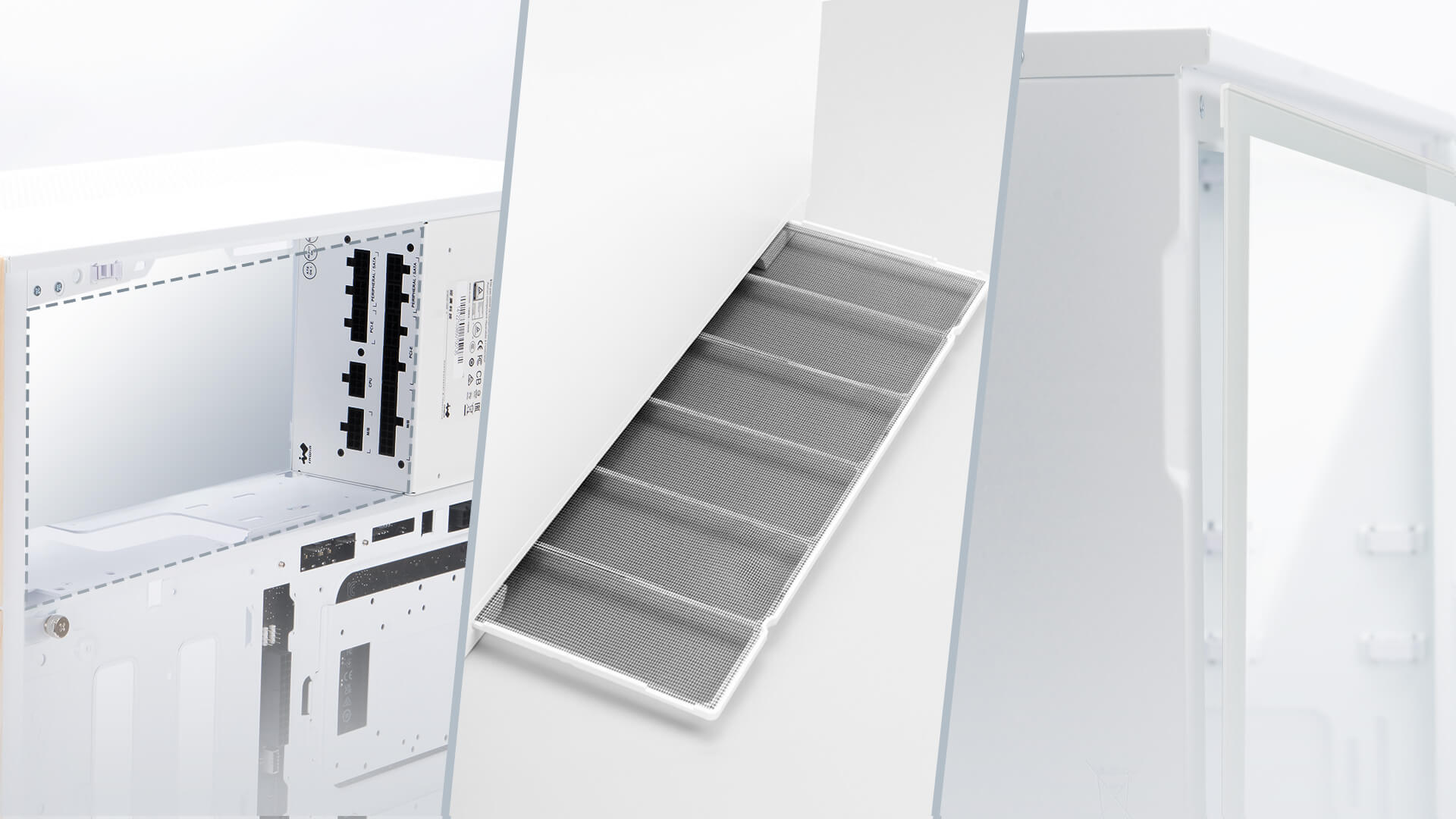

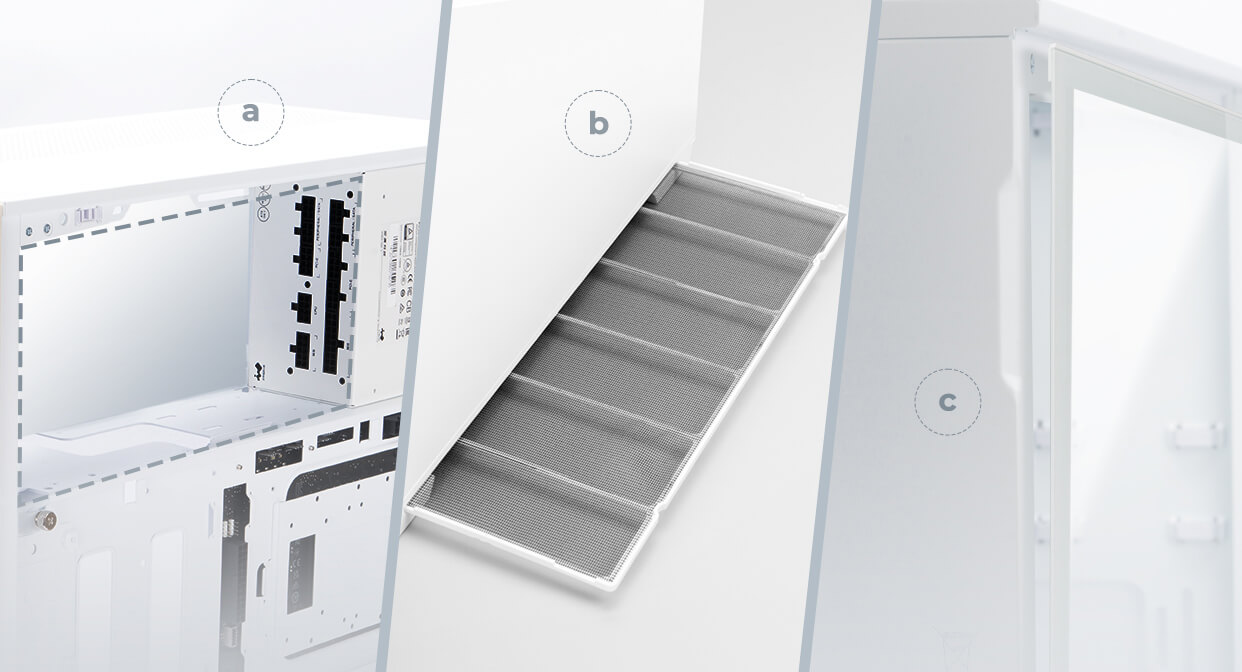

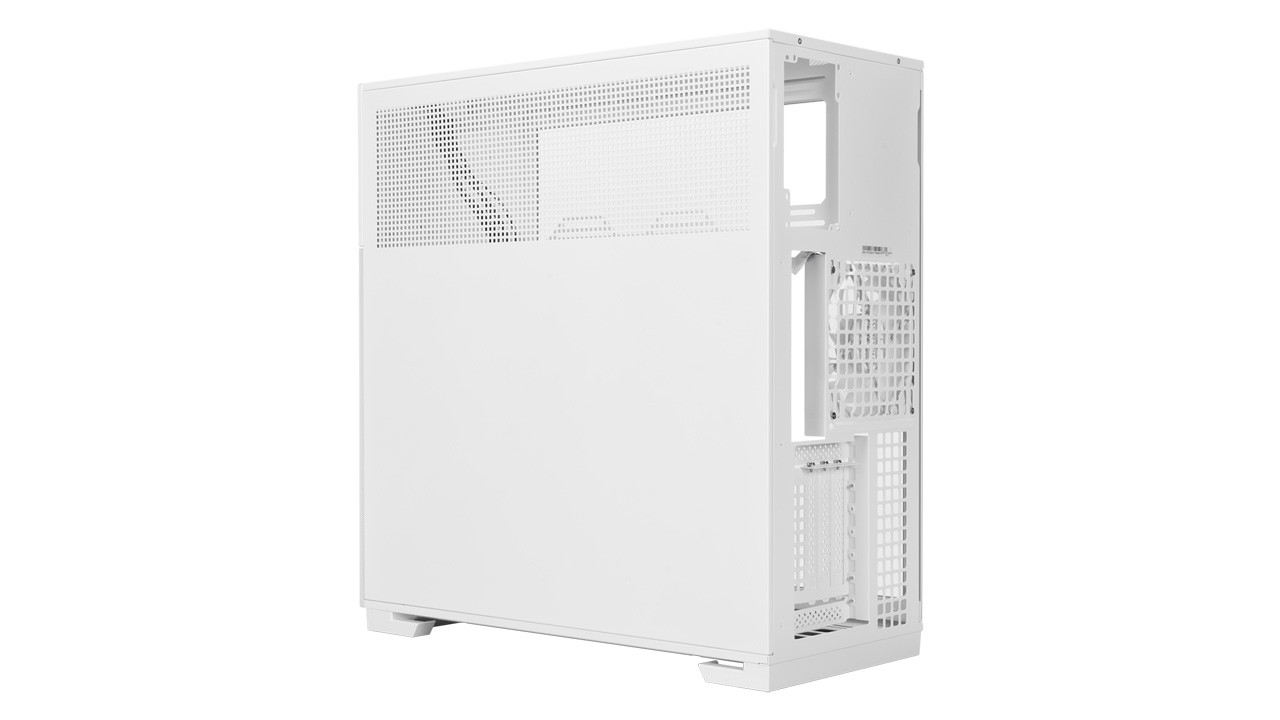

Attention to Details

a. Ample Space for PSUs

b. Dust Filter

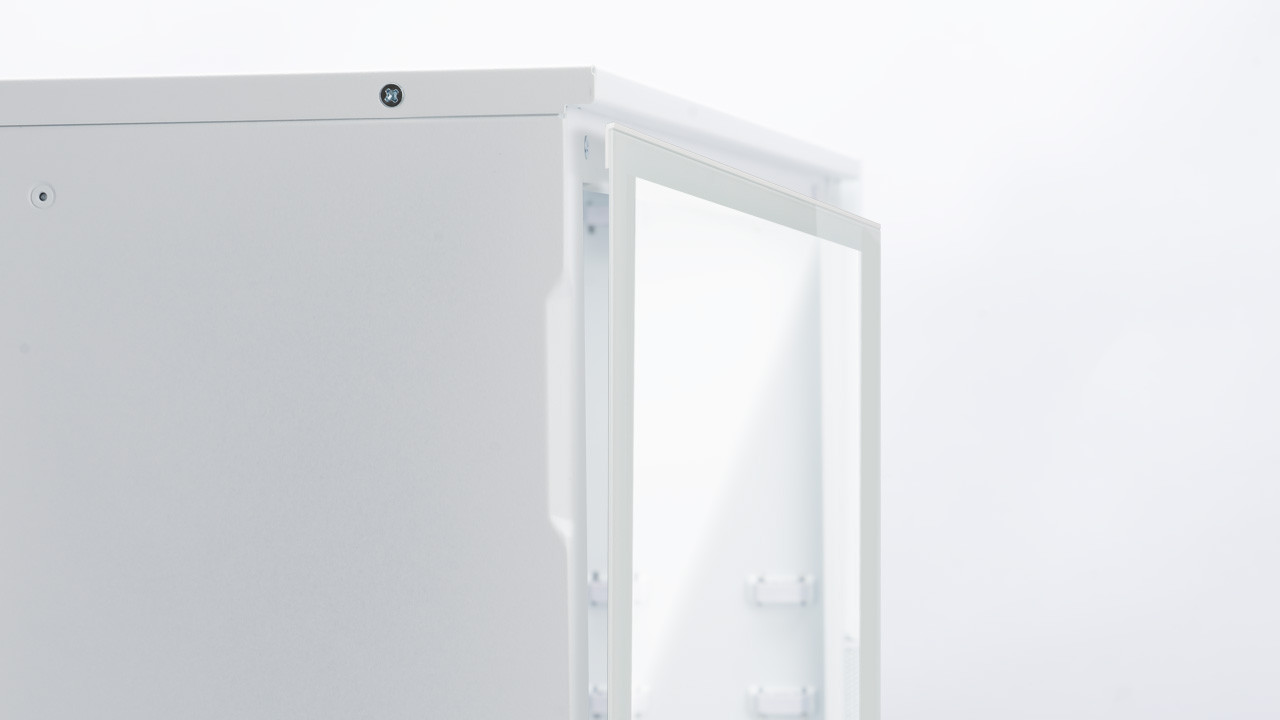

c. Hassle-Free Design

Easily access the side panel with just your index finger.

Specifications

Model F5
Model Number IW-CS-F5BLK-3AN140, IW-CS-F5WHI-3AN140P
Colors Black, White
Case Type Full Tower
Materials SECC, Tempered Glass
SECC, Tempered Glass, Wood
M/B Compatibility 12" x 13" E-ATX, ATX, Micro-ATX, Mini-ITX
Expansion Slots 8 x PCI-E
3x Vertical PCI-E
(Riser Cable Optional; Not Included in Package)
Maximum Compatibility GPU Length: 410 - 435 mm
CPU Heatsink Height: 180 mm
I/O Ports 1 x USB 3.2 Gen 2x2 Type-C
2 x USB 3.2 Gen 1
HD Audio Combo (CTIA – SPK/Mic)
Internal Drive Bays 2 x 3.5" / 4 x 2.5"
2 x 2.5"
Thermal Solution Compatibility Air Cooling Fans:
Front: 2 x 120 / 140 mm
Top: 3 x 120 / 140 mm
Rear: 1 x 120 / 140 mm
Bottom: 3 x 120 / 140 mm
(3 InWin AN140 / AN140P Fans Included)

Water Cooling Radiator:
Front: 1 x 240 / 280 mm
Top: 1 x 360 / 420 mm
Bottom: 1 x 360 / 420 mm
Power Supply Compatibility PSII: ATX12V
- Length up to 230 mm

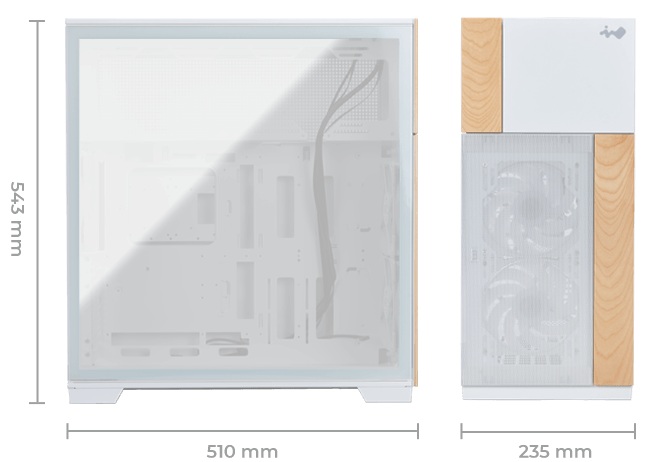

Product Dimensions
(L x W x H)
510 x 235 x 543 mm
20 x 9.2 x 21.3"

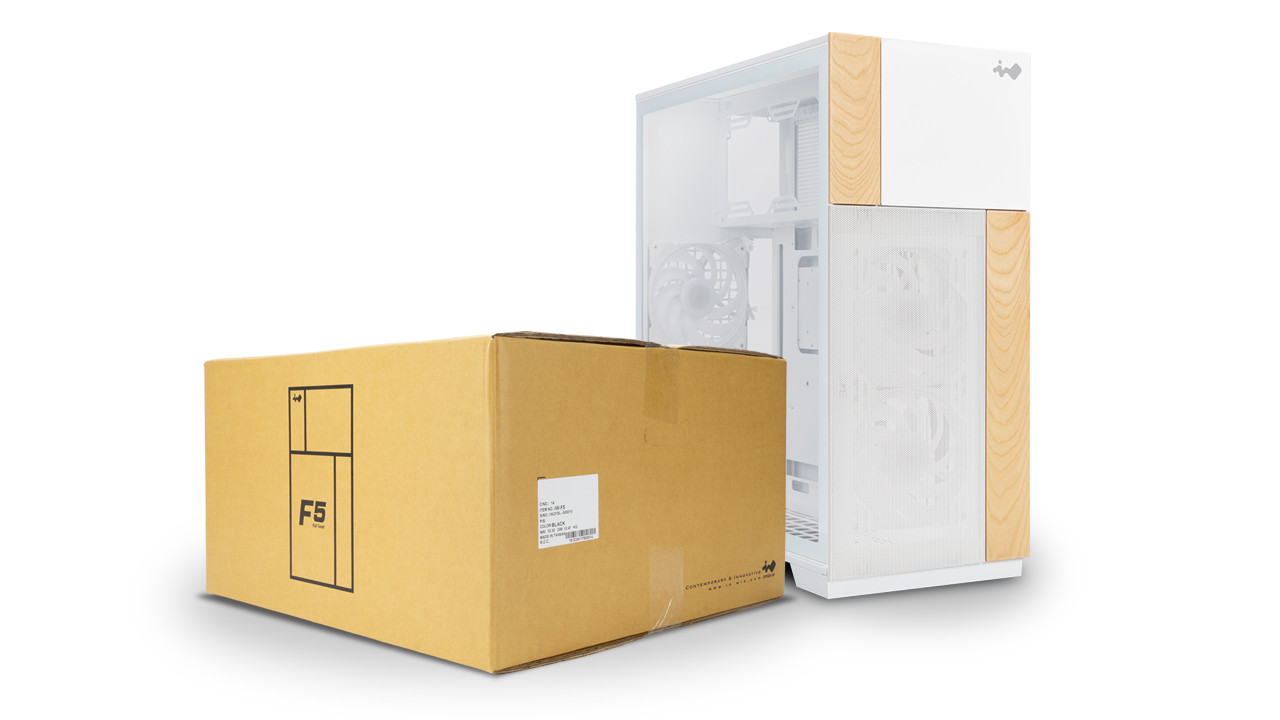

Package Dimensions
(L x W x H)
653 x 600 x 355 mm
25.7 x 23.6 x 13.9"
Net Weight Black : 10.73 kg /23.6 lbs
White : 10.57 kg /23.3 lbs
Gross Weight Black : 12.9 Kg / 28.4 lbs
White : 12.68 kg /27.9 lbs
* InWin's products comply with RoHS regulation.
* Specifications may vary based on different regions.
