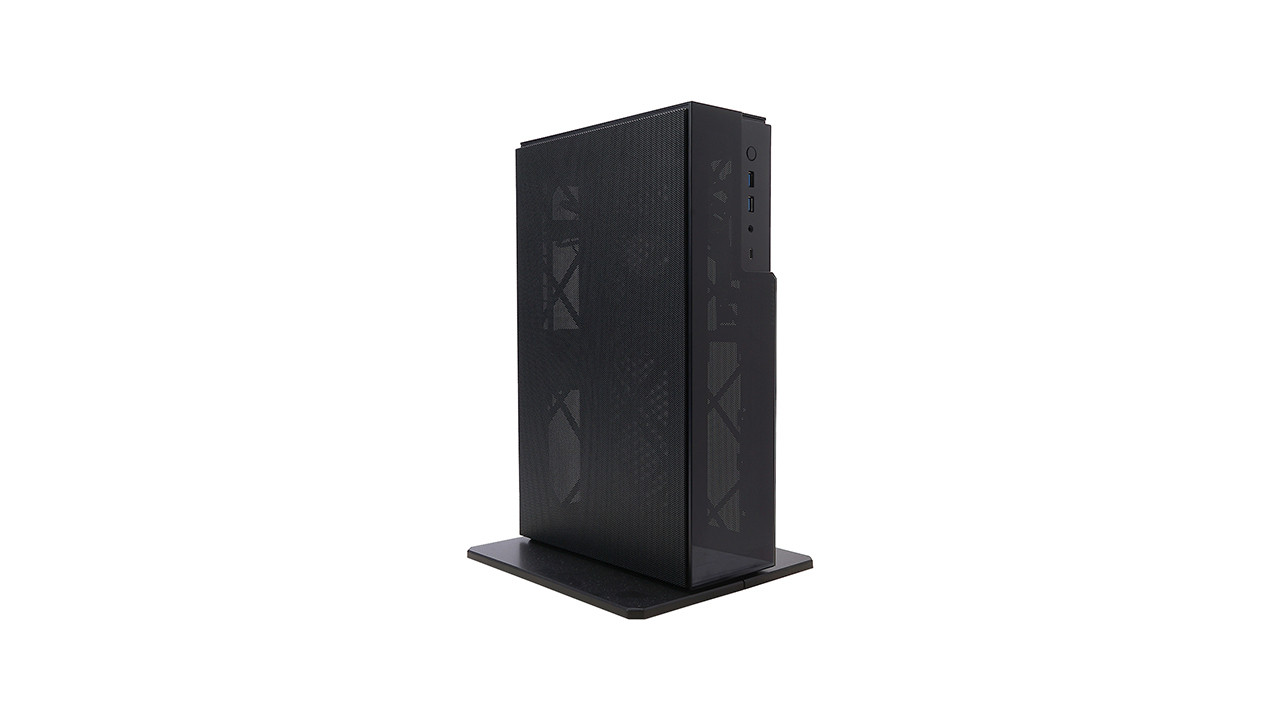

Mini-ITX Tower
In the PC customization world, ModFree Mini is more than an extension of ModFree. It embodies the ModFree DNA, allowing users to configure their PC’s true purpose. Its compact form can be its own standalone SFF setup or be part of a multisystem station. Explore the possibilities and experience the future of PC customization with ModFree mini.
| Hardware Expansion 2 | ModFree Mini | Hardware Expansion 1 |

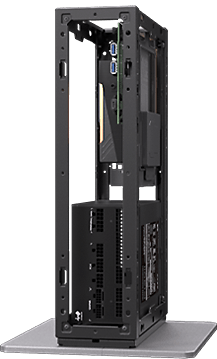

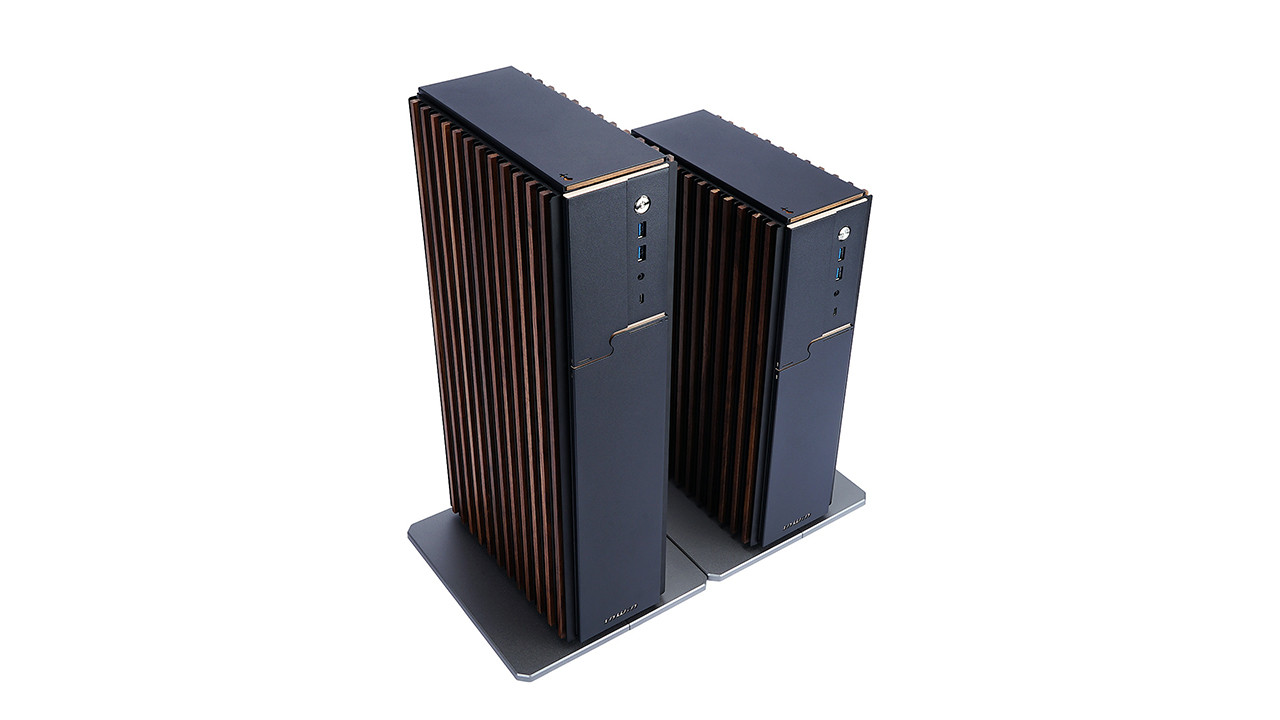

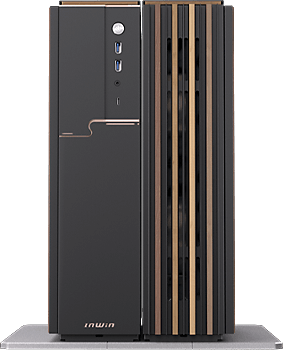

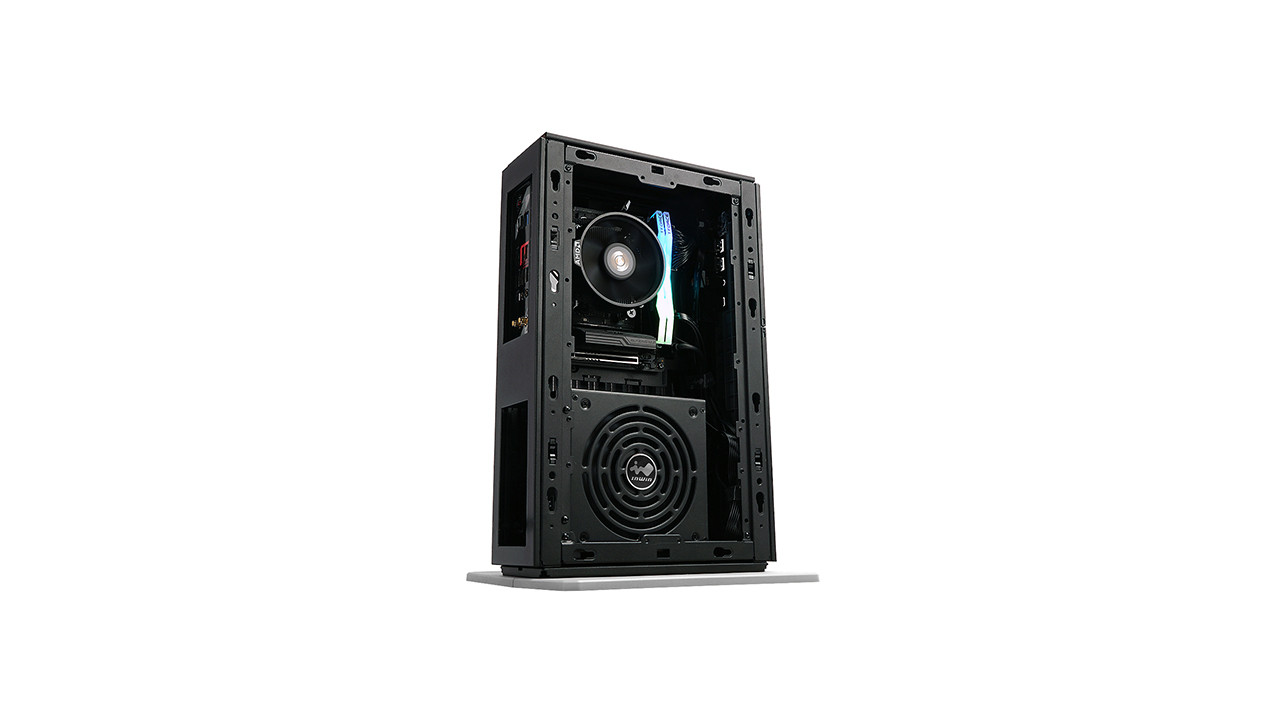

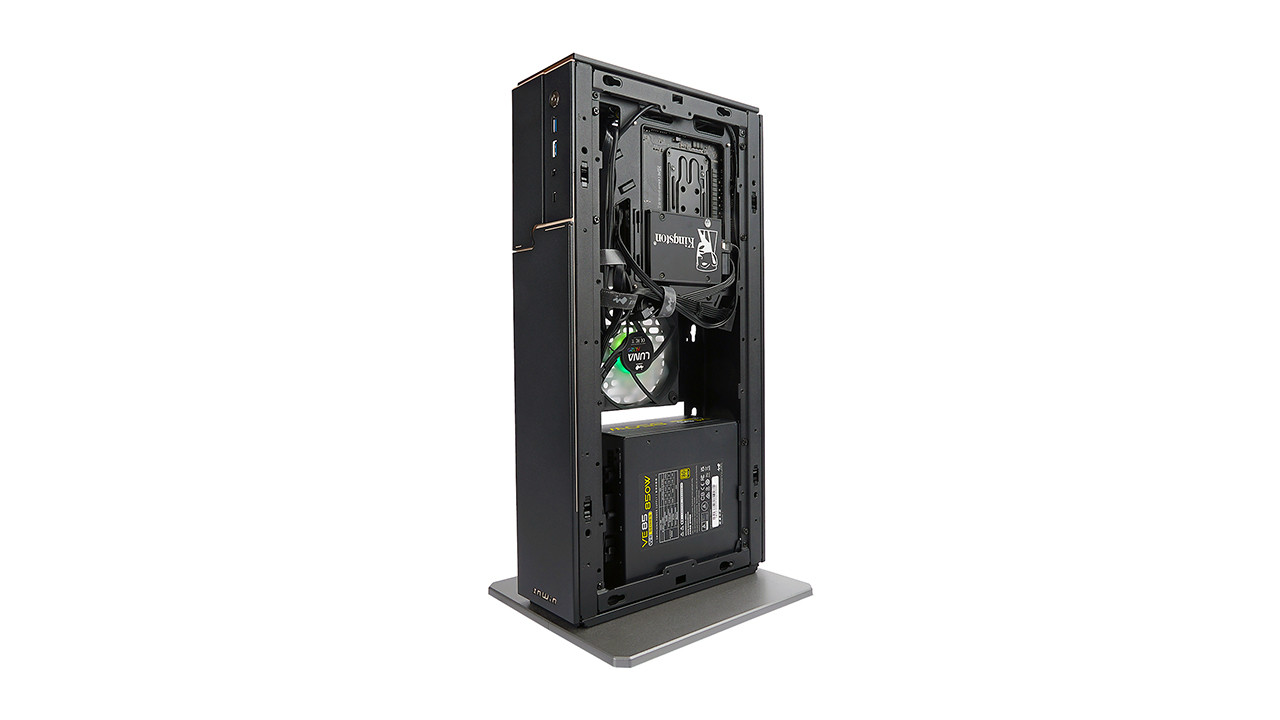

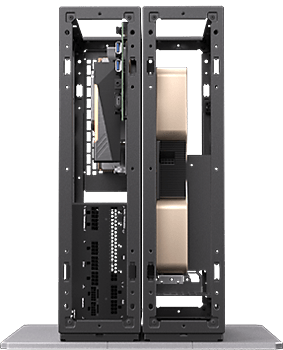

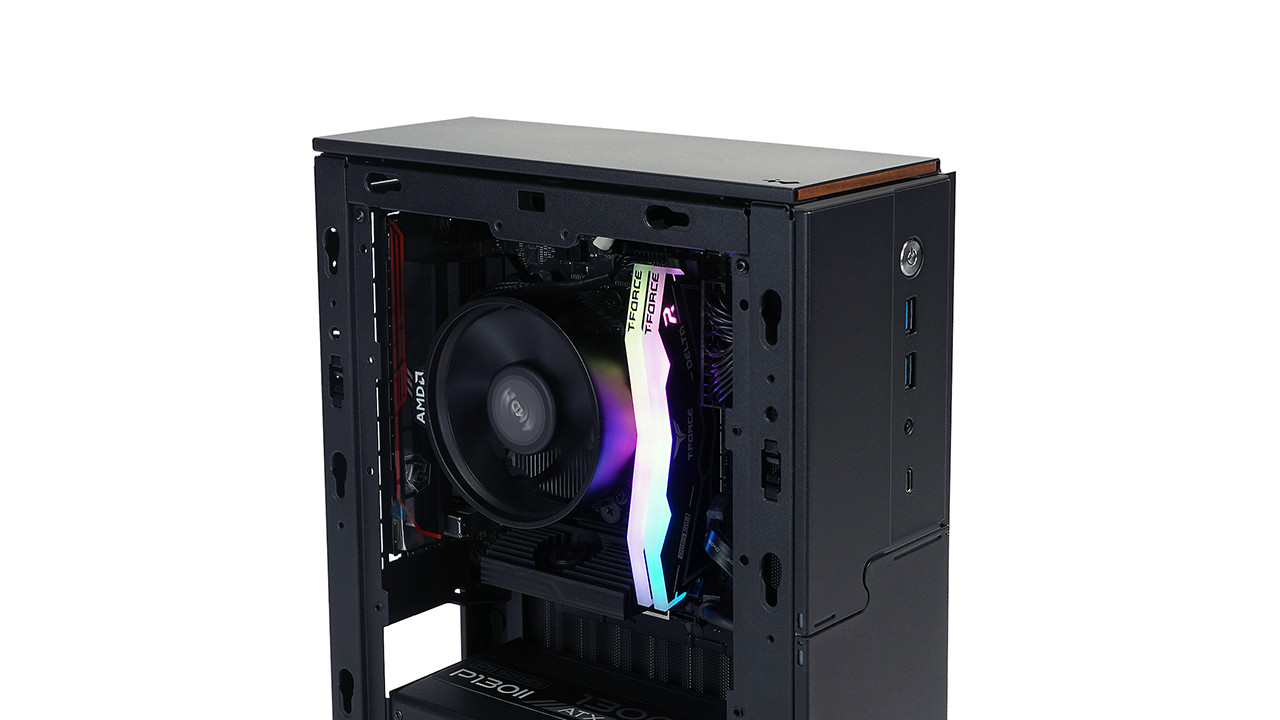

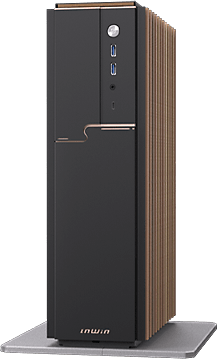

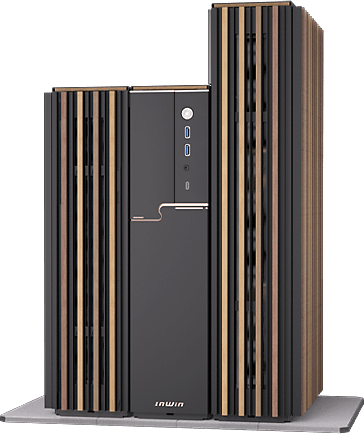

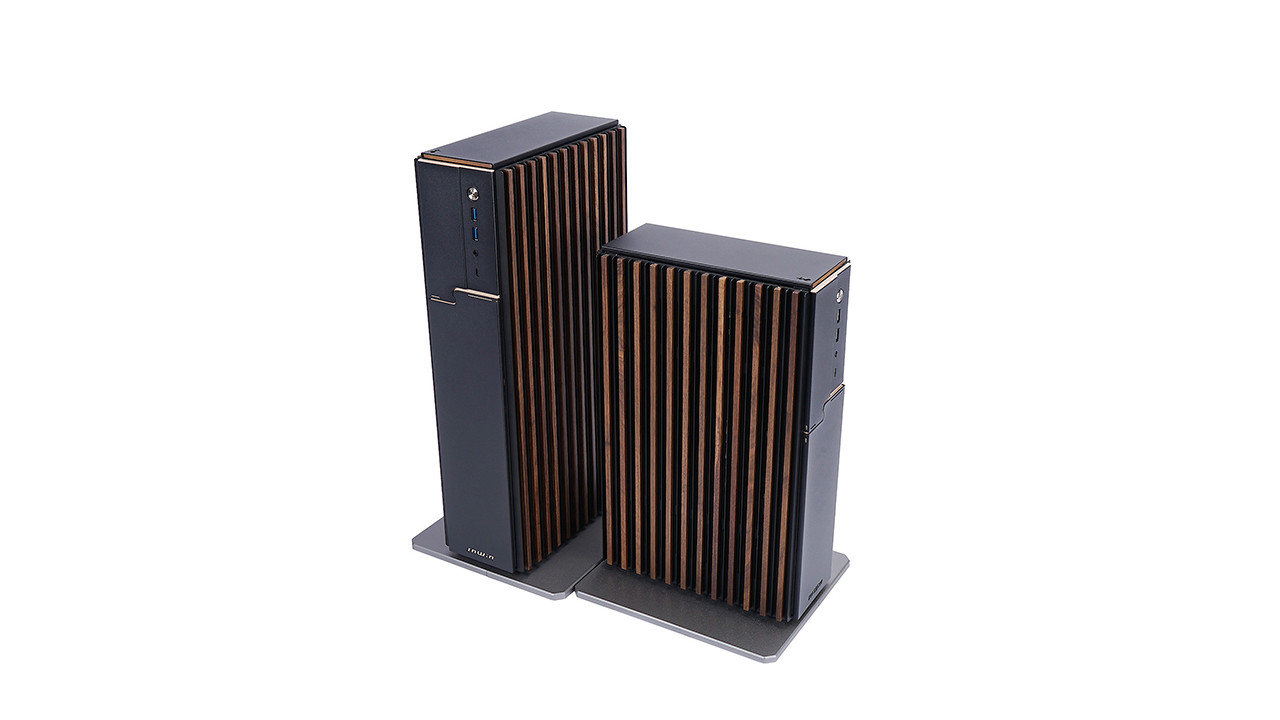

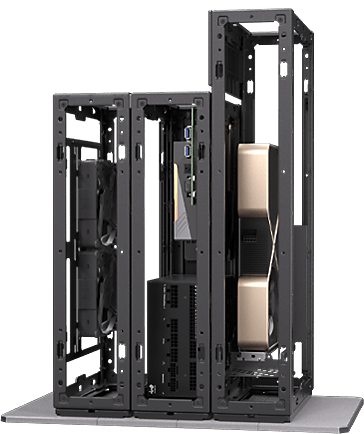

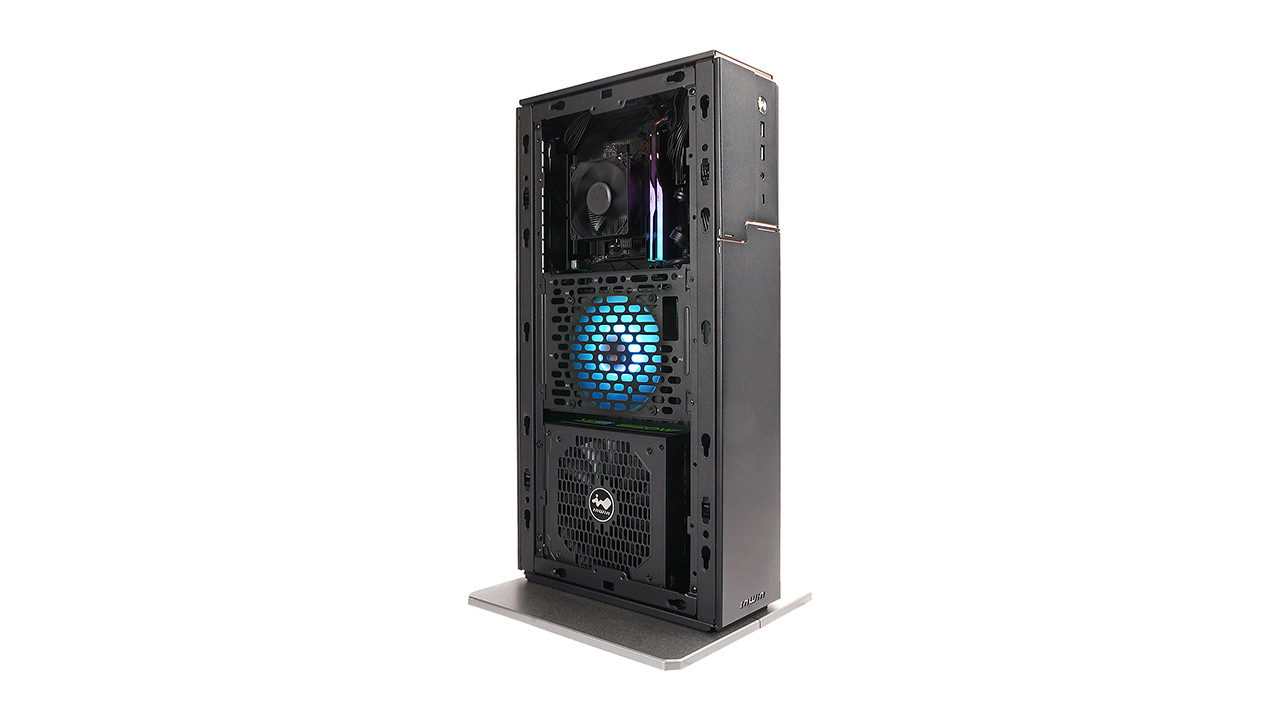

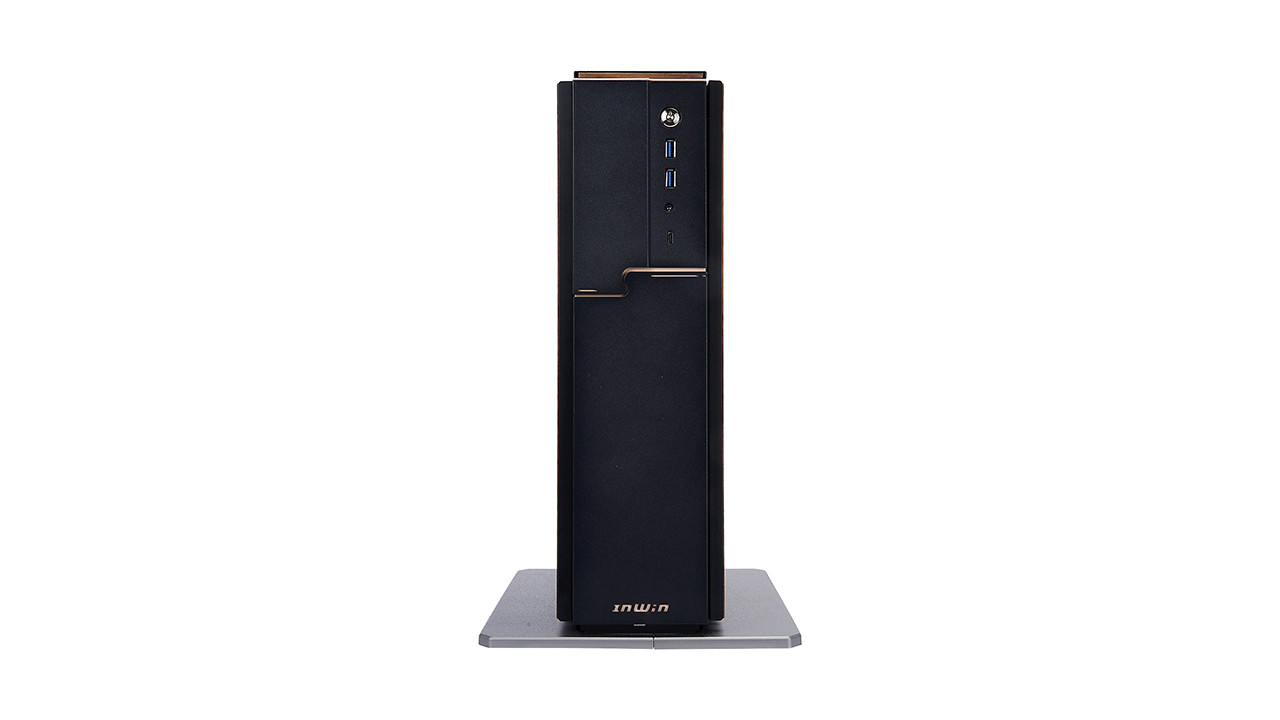

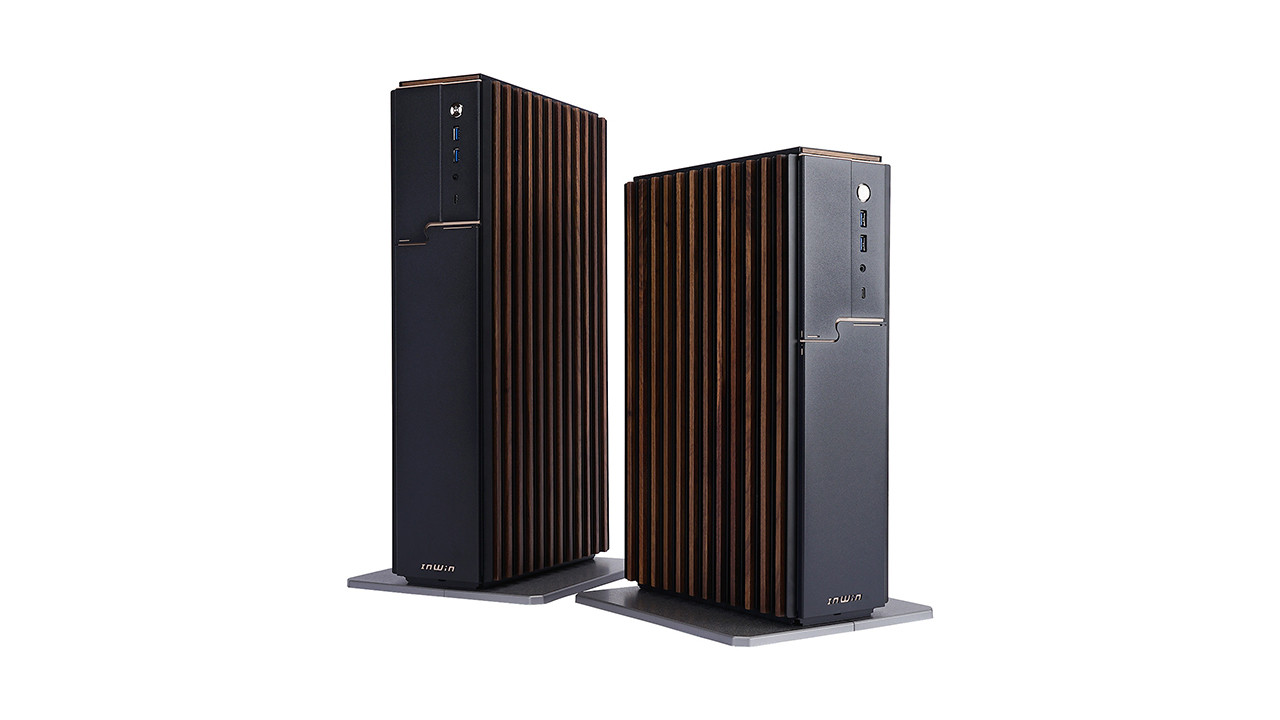

The hallmark of ModFree Mini is its compact size combined with the ModFree ecosystem. Build a SFF system to fit your needs, a compact transportable PC or even merge it with your main ModFree system to create a multi-PC setup!

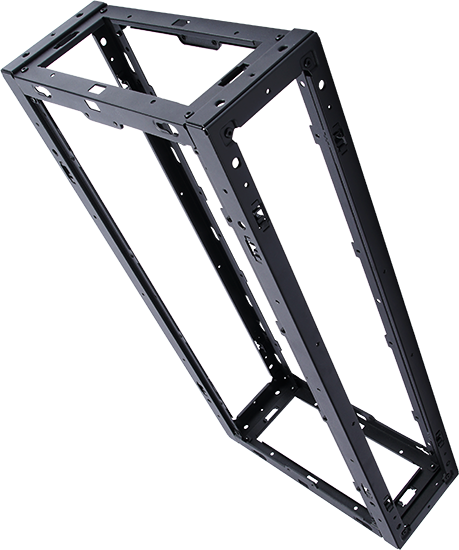

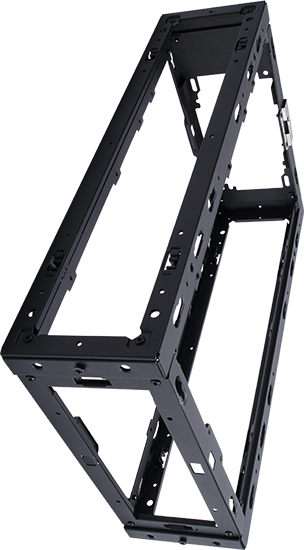

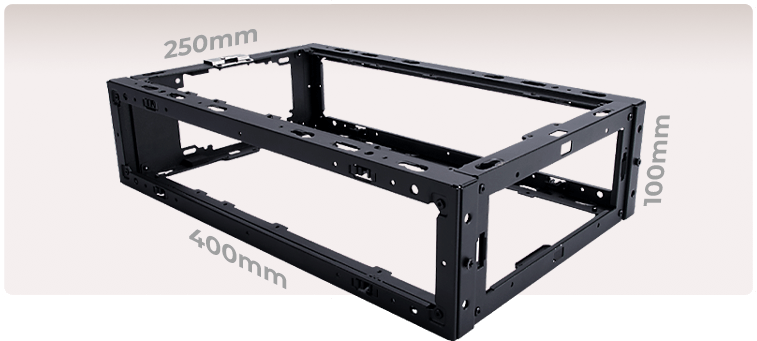

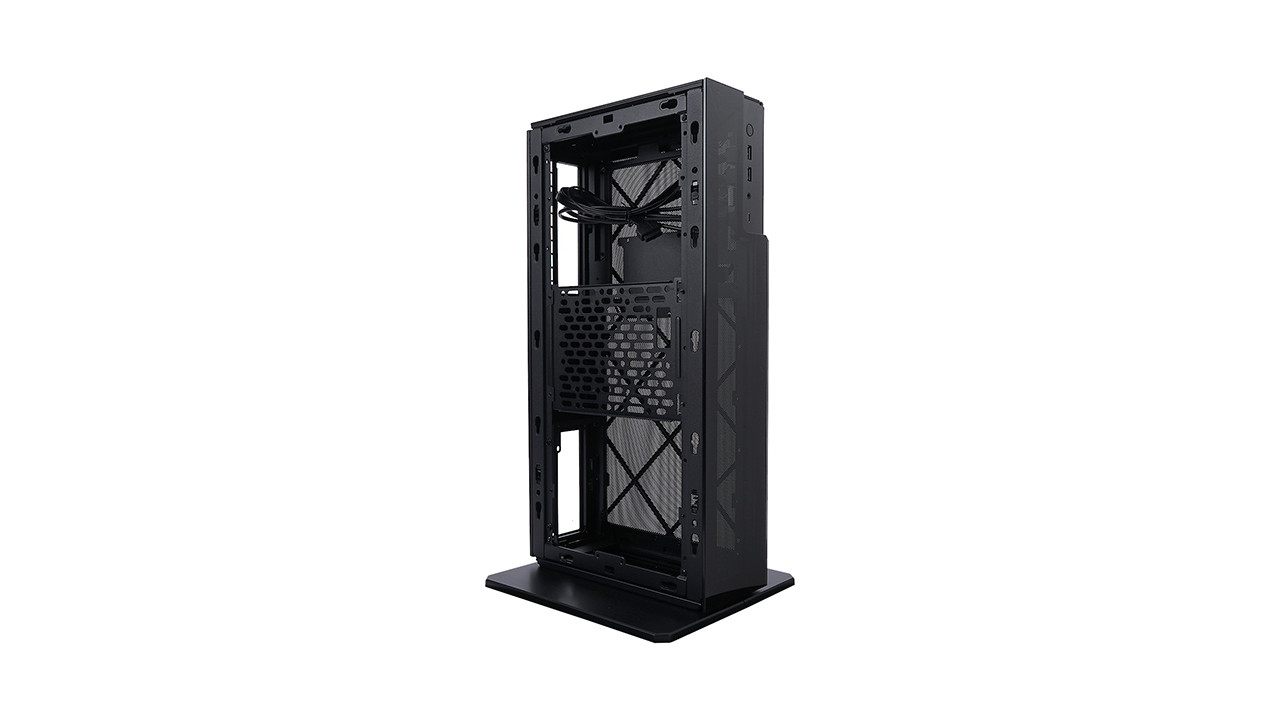

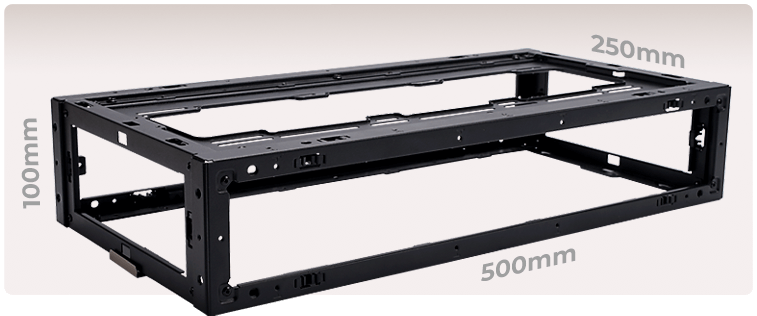

The ModFree ecosystem allows users to be as creative as they wish with their system. Adding modules Mod-II and Mod-III offers a variety of options when strategizing your component emphasis.
| Expansion Modes | Maximum Compatibility |

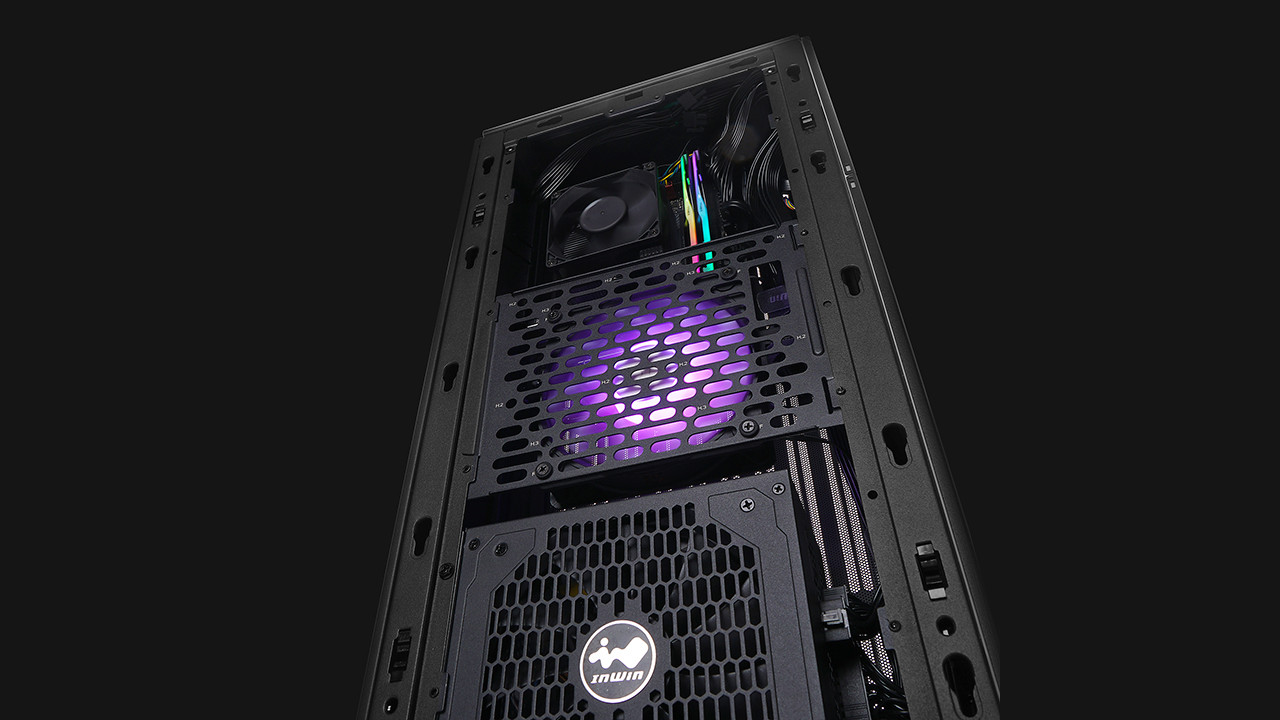

| PSU Expansion Mode | PSII: ATX12V – Length up to 240 mm |
| Cooling Expansion Mode | Fan: 120/ 140 mm x 2 Radiator: 240 / 280 mm x 1 |

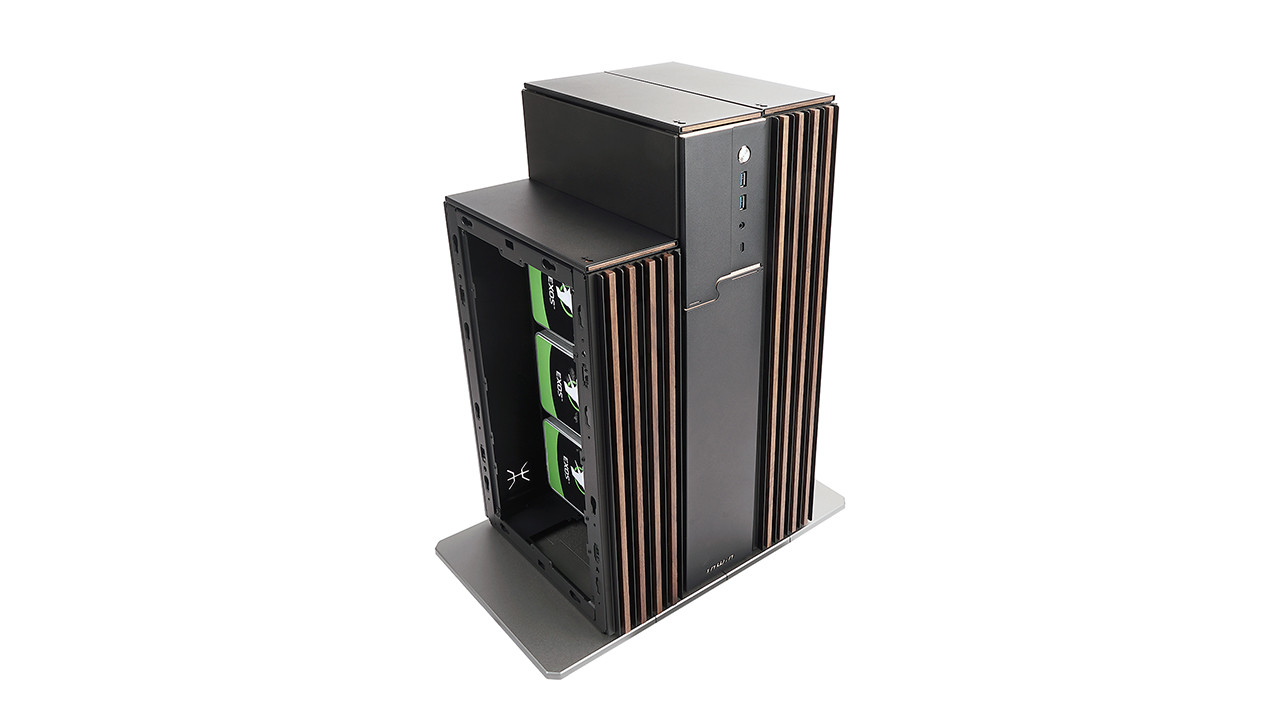

| Storage Expansion Mode * Additional Expansion Set needed. |
3 x 3.5" HDD or 4 x 2.5" SSD |

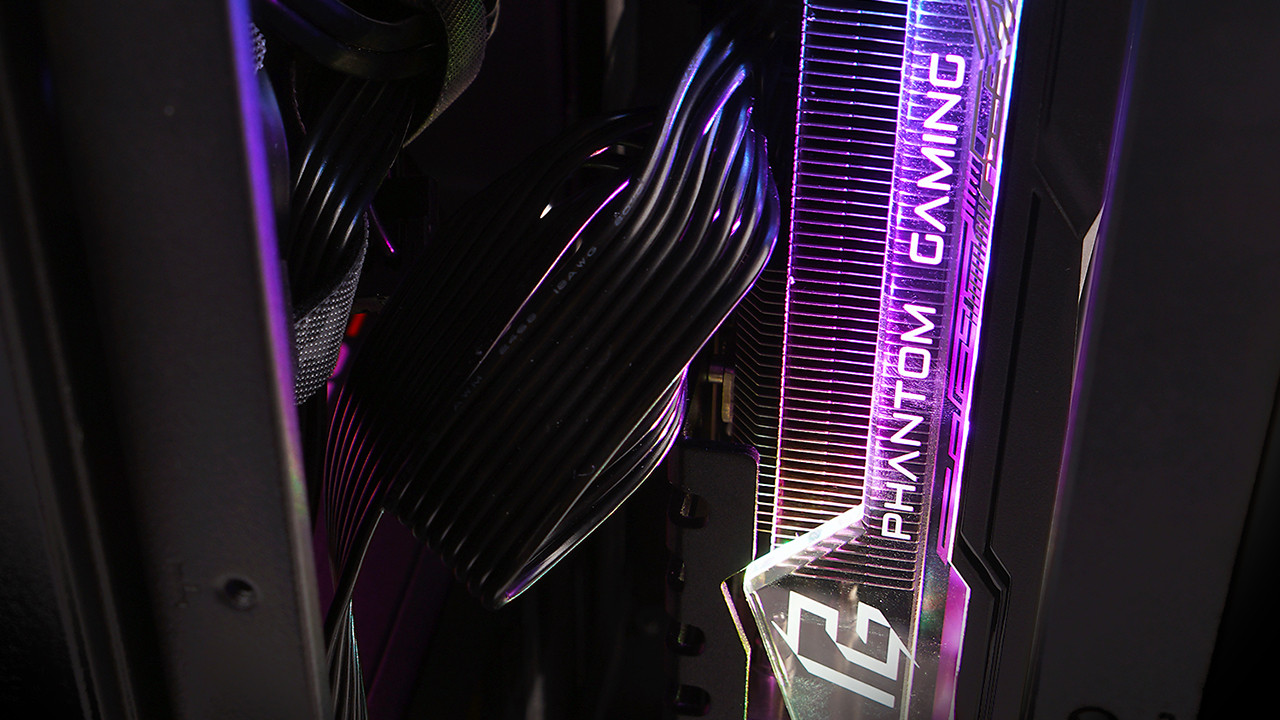

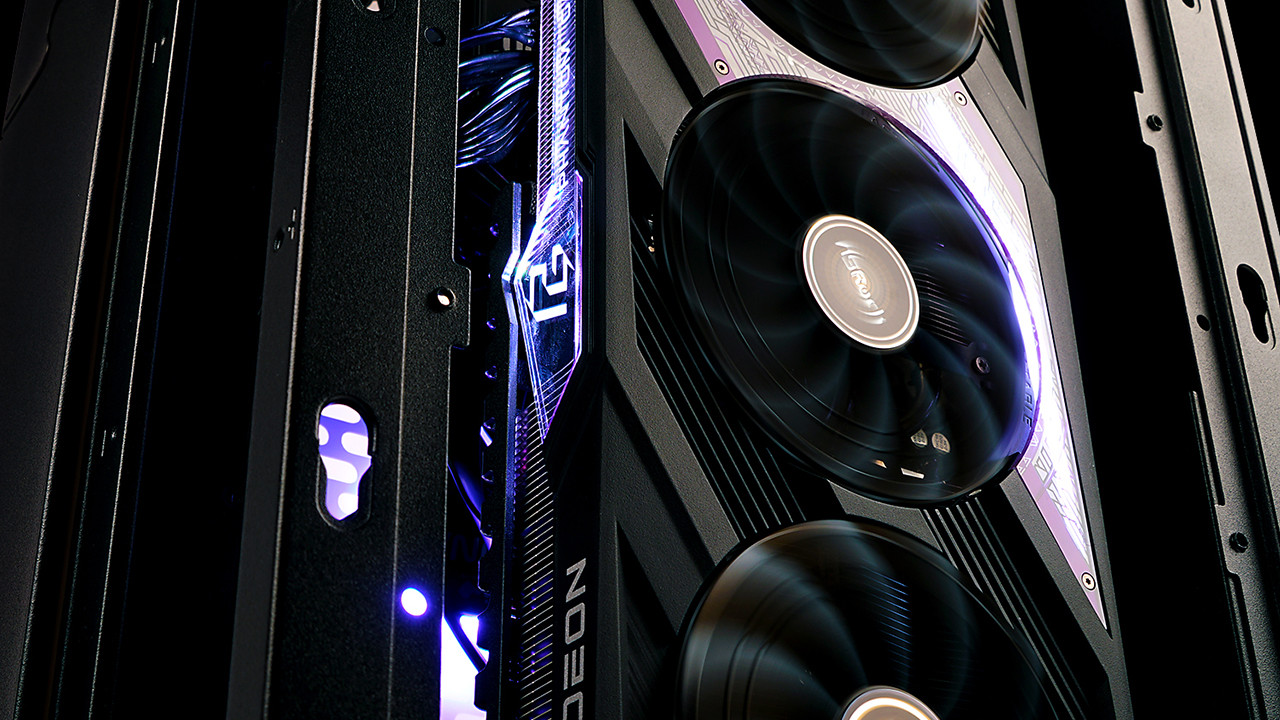

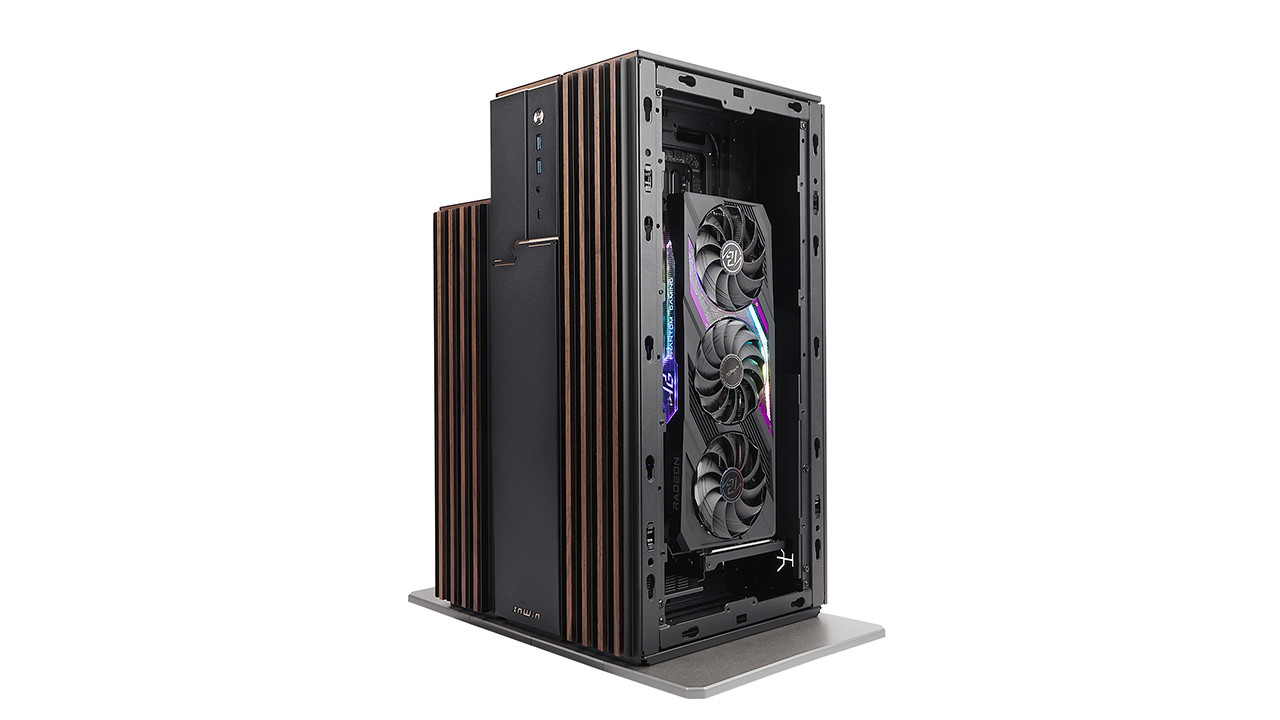

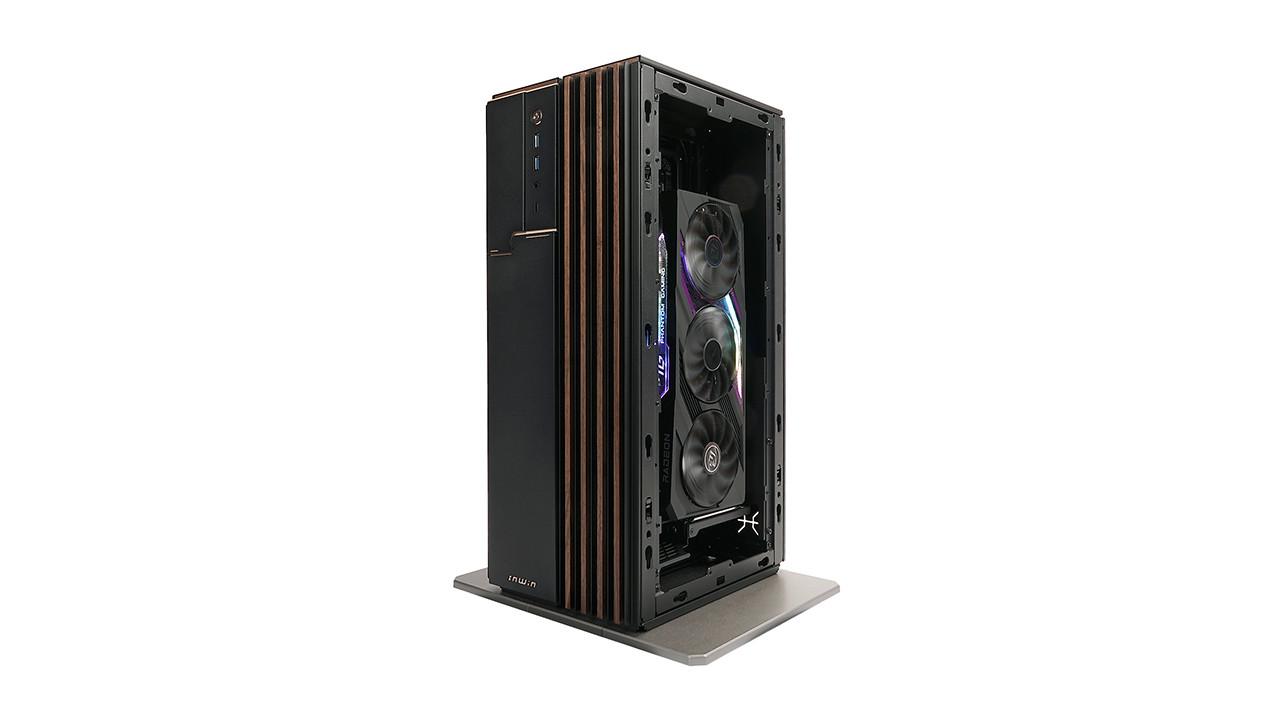

| GPU Expansion Mode * Additional Expansion Set needed. |
320 mm, 3.5 slots |
| Mini-ITX Expansion Mode * Additional Expansion Set needed. |
Mini-ITX M/B, PSII: ATX12V PSU up to 170 mm, 1 x 2.5" SSD. |
| Expansion Modes | Maximum Compatibility |
| Cooling Expansion Mode | Fan: 120 / 140 mm x 3 Radiator: 360 / 420 mm x 1 |
| Storage Expansion Mode * Additional Expansion Set needed. |
4 x 3.5" HDD or 4 x 2.5" SSD |
| GPU Expansion Mode * Additional Expansion Set needed. |
420 mm, 3.5 slots |
| Mini-ITX Expansion Mode * Additional Expansion Set needed. |
Mini-ITX M/B, PSII: ATX12V PSU up to 170 mm, 1 x 2.5" SSD, 1 x 3.5"/ 2 x 2.5" or 120 mm fan/ radiator. |
* Additional expansion sets can be purchased at the InWin eStore or resellers.
Check with your local InWin rep for more information.

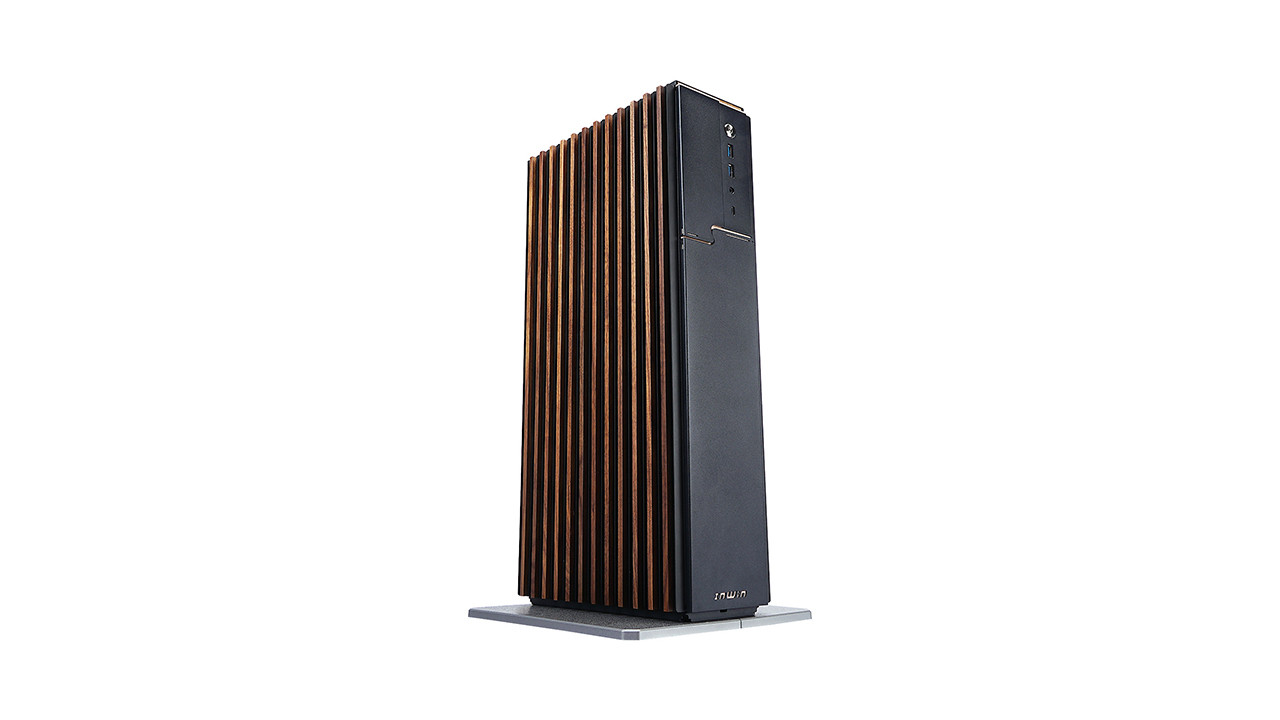

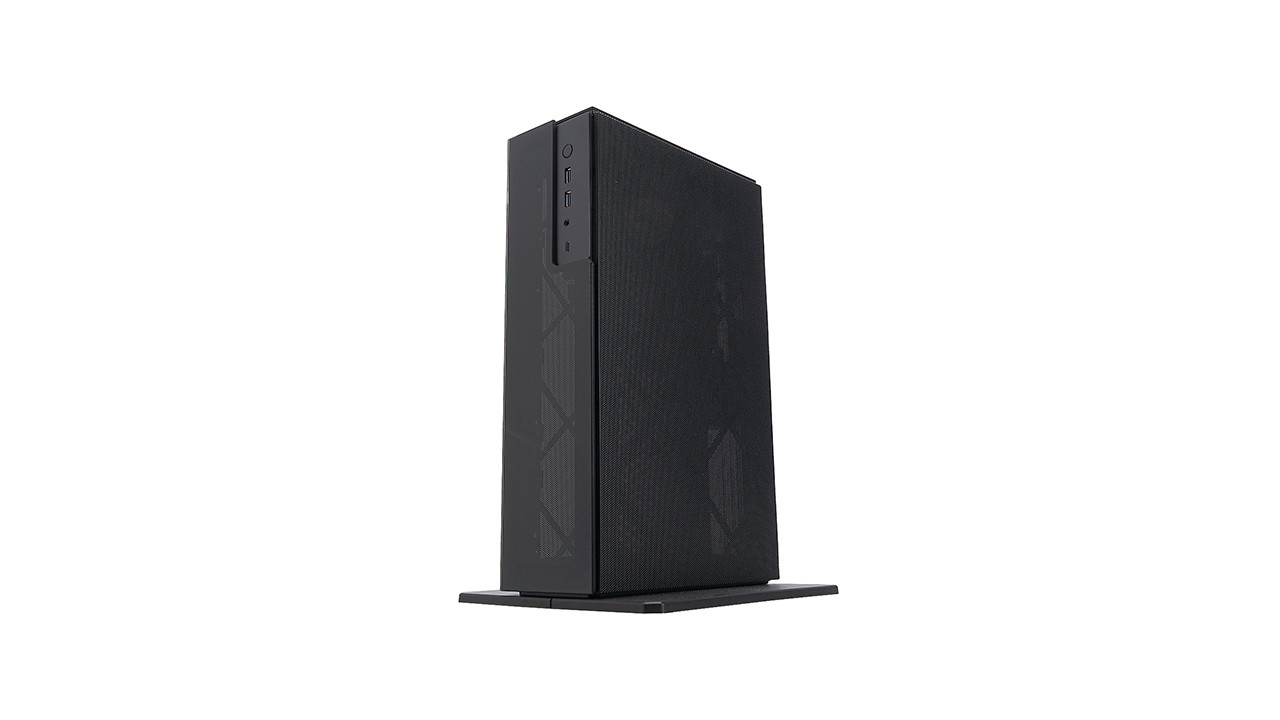

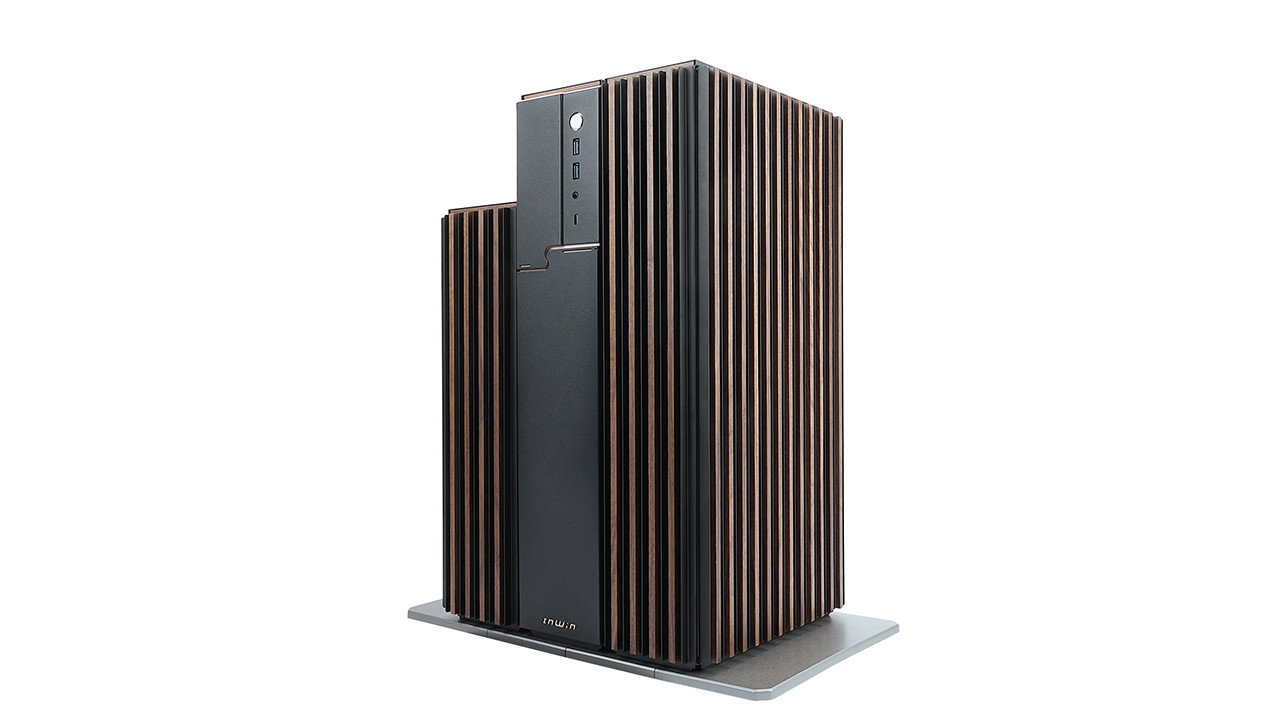

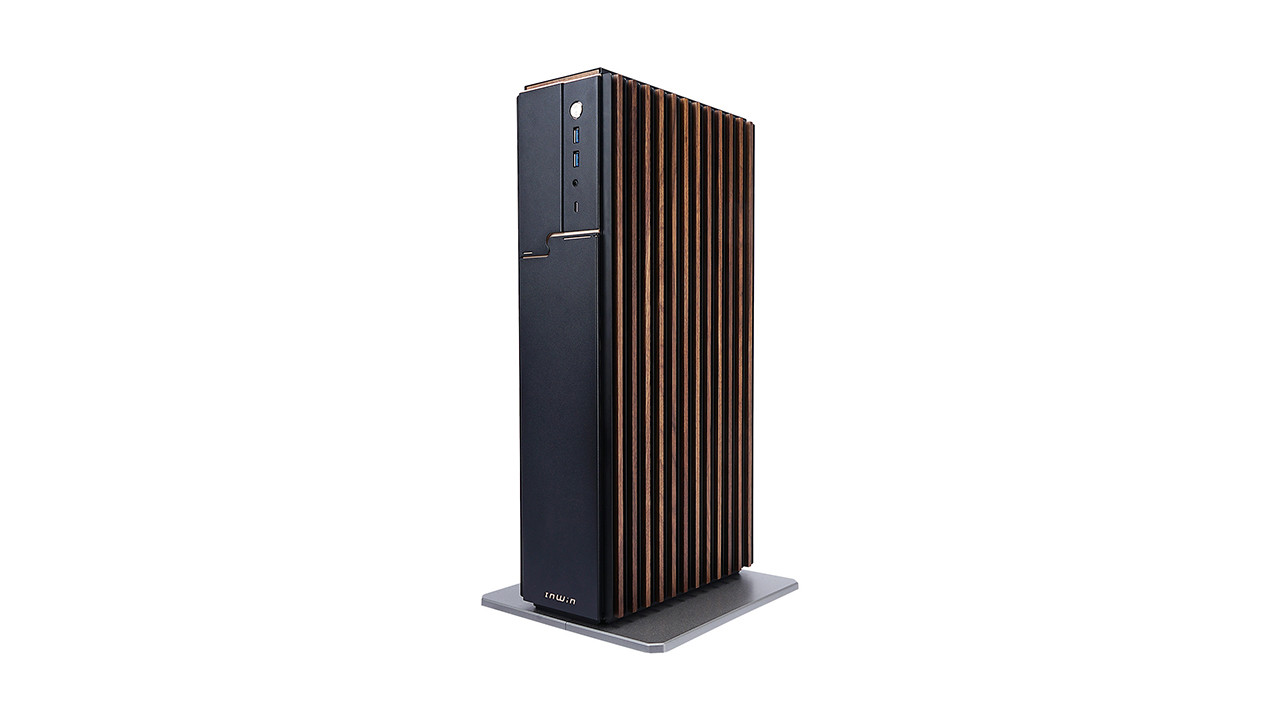

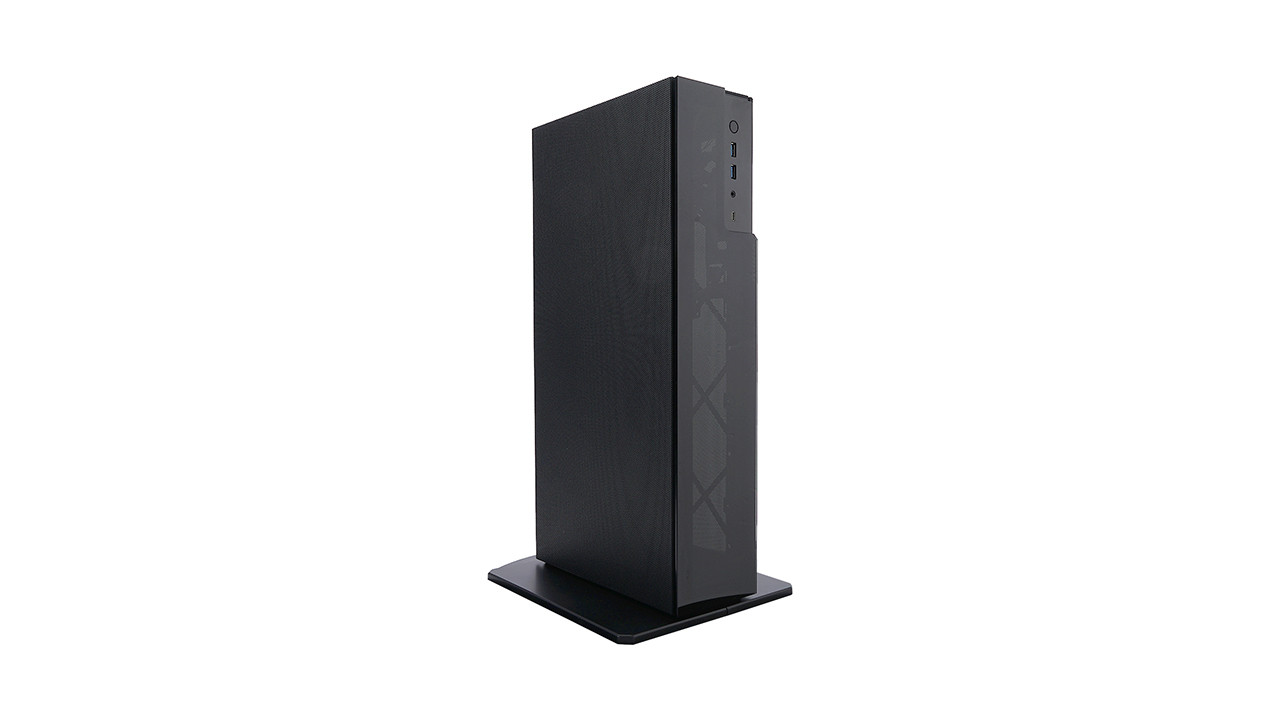

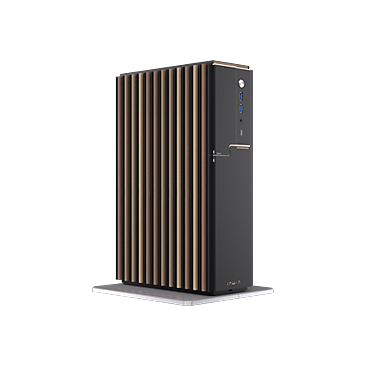

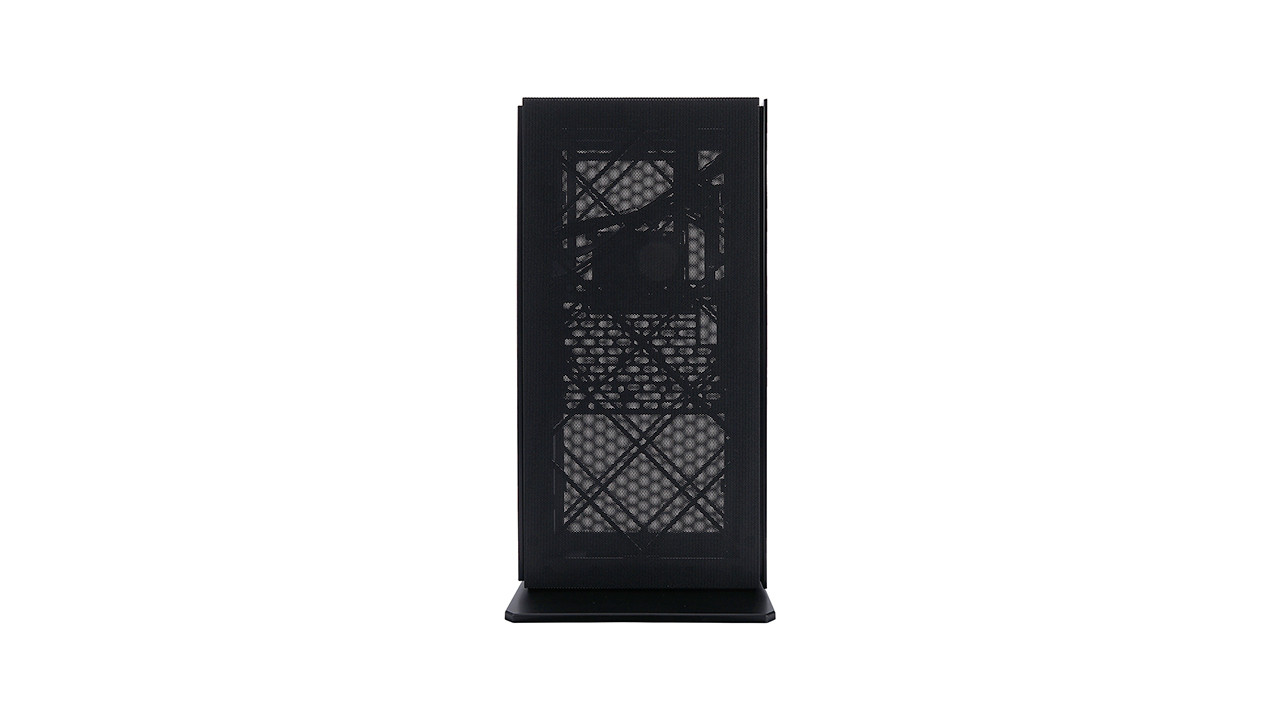

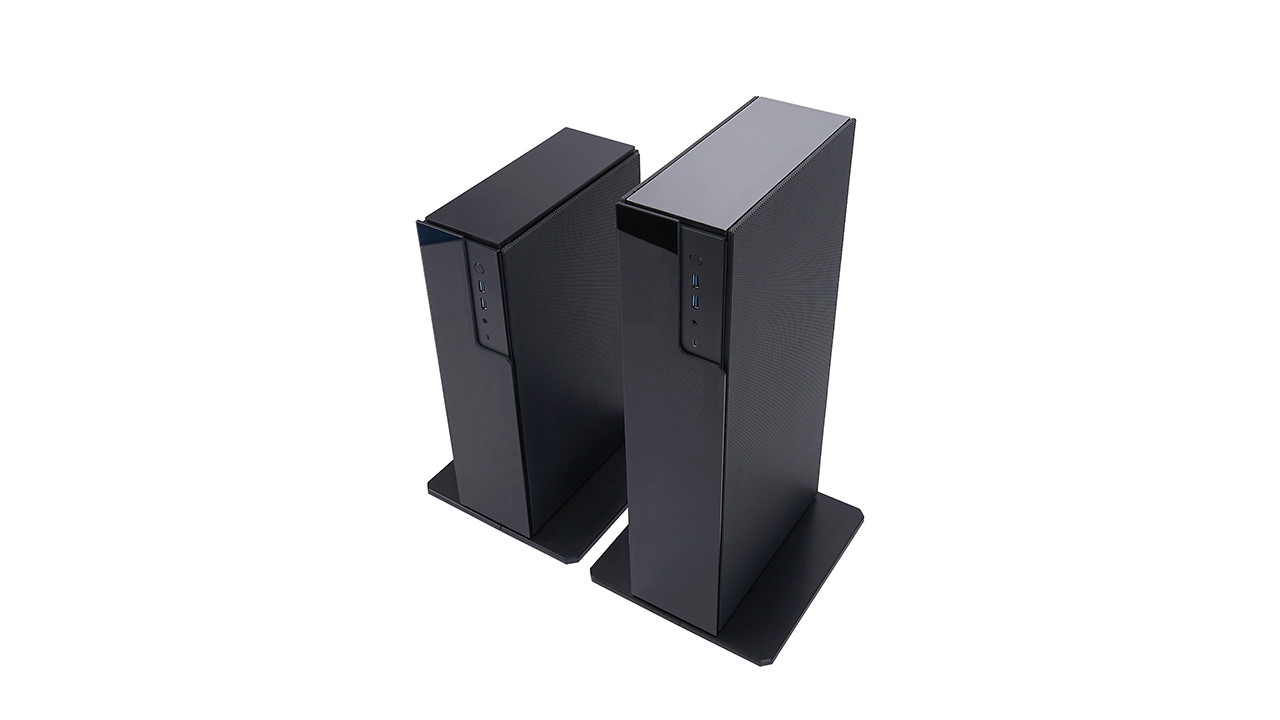

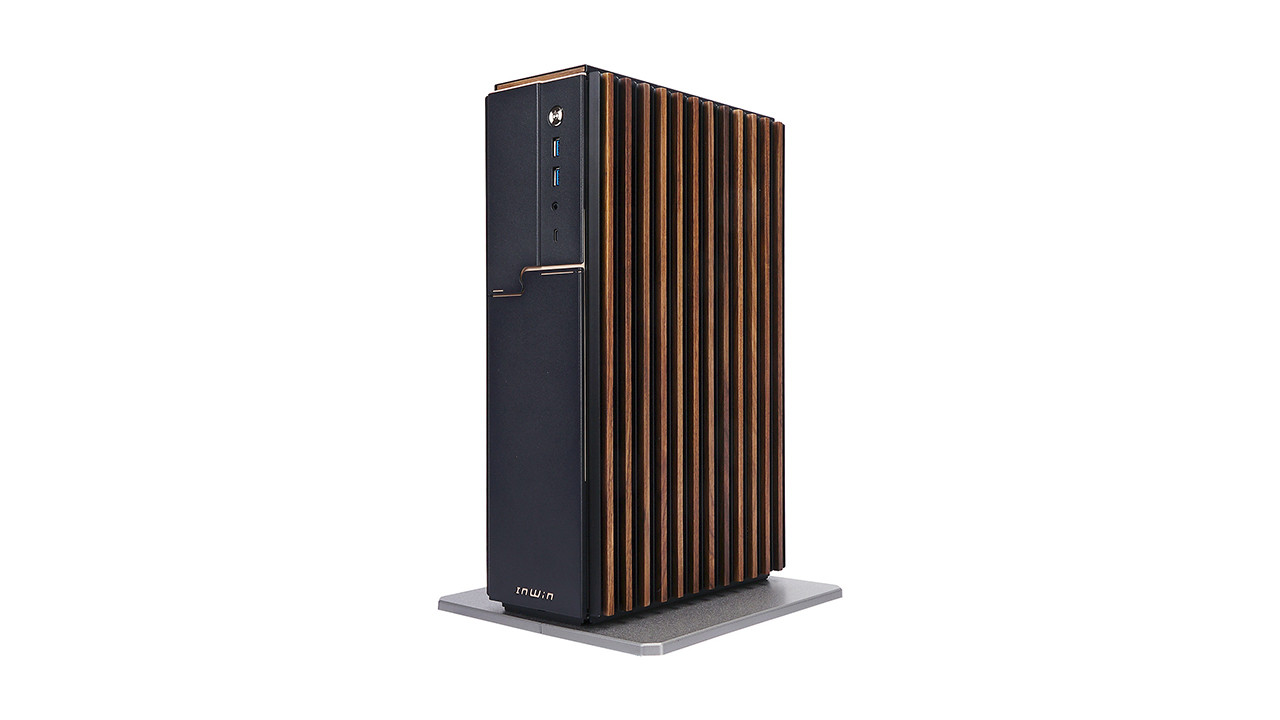

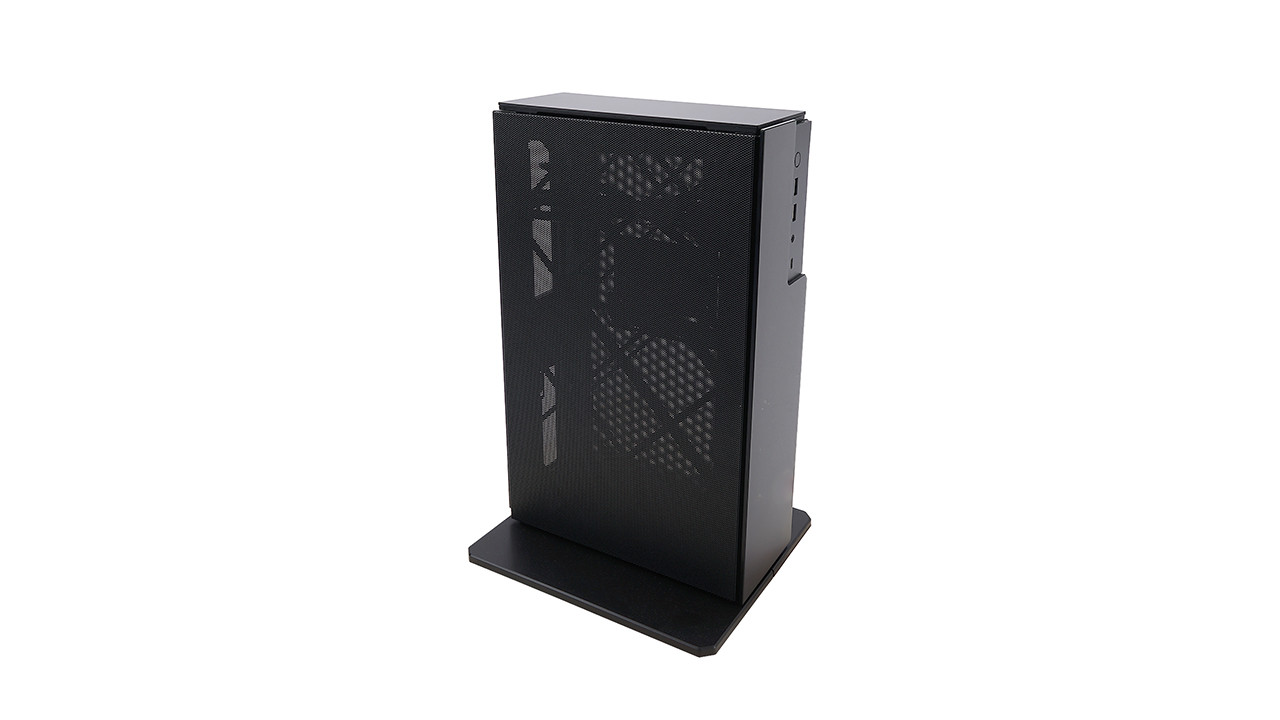

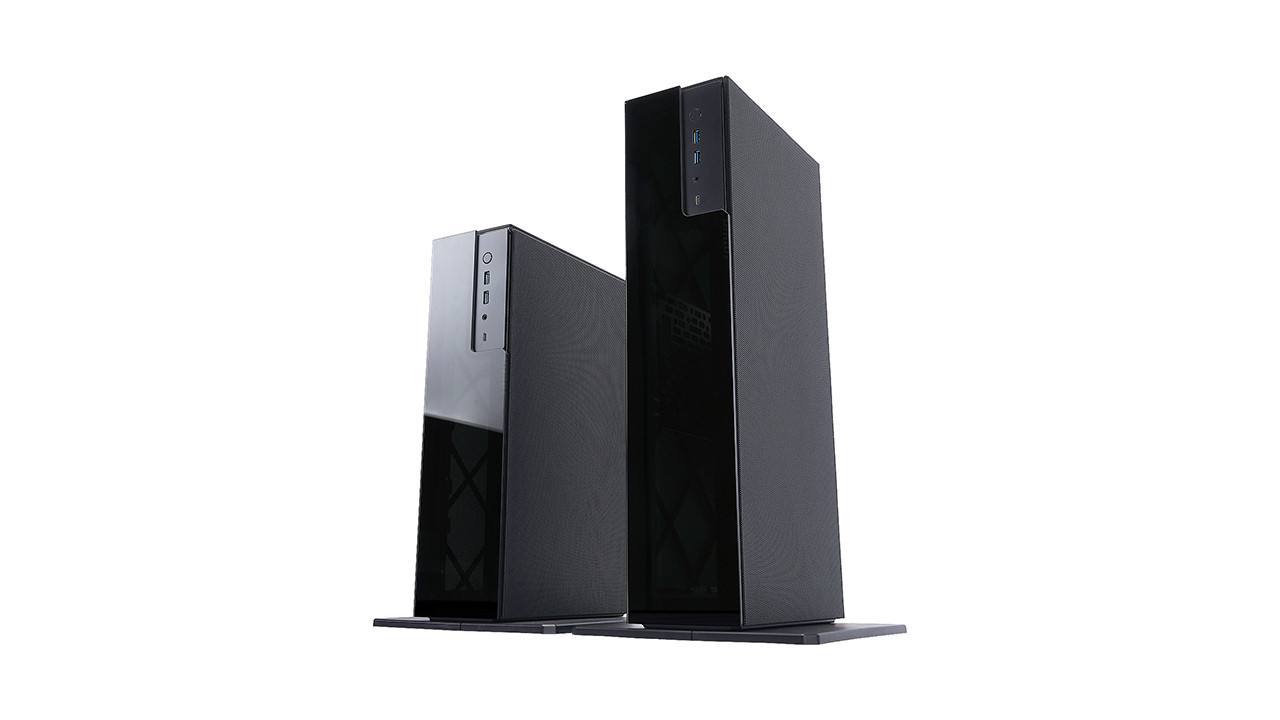

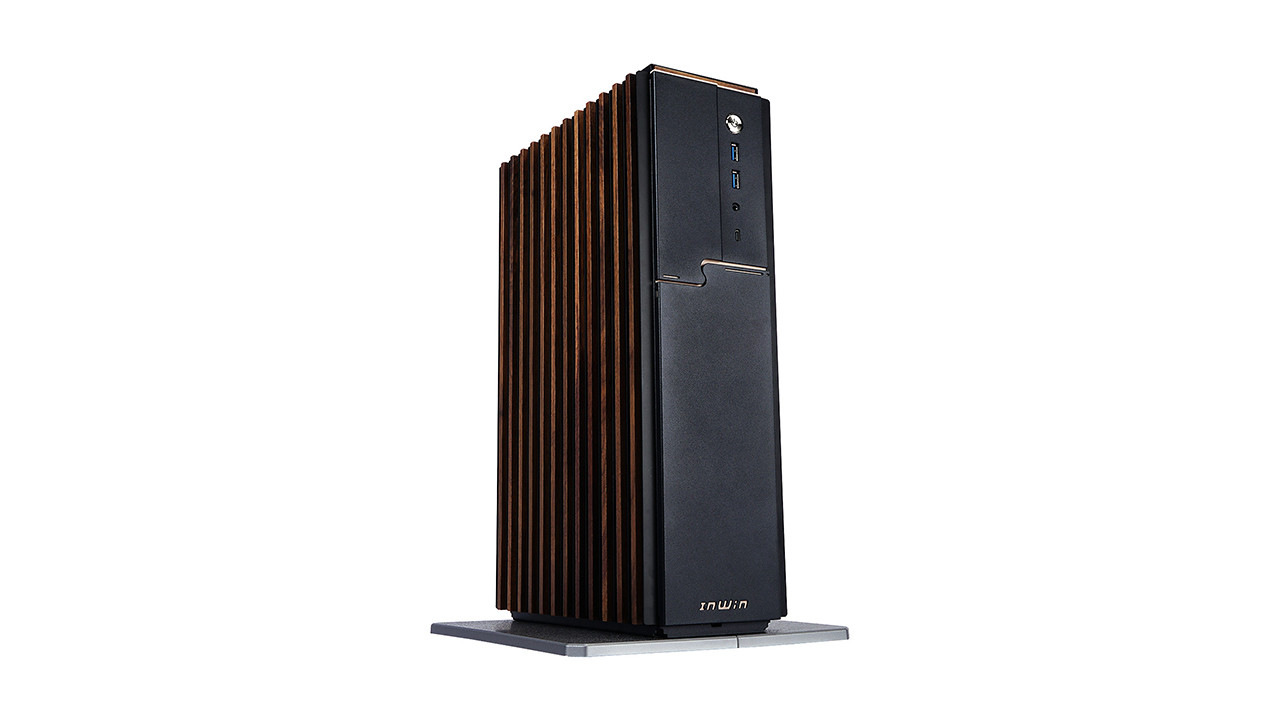

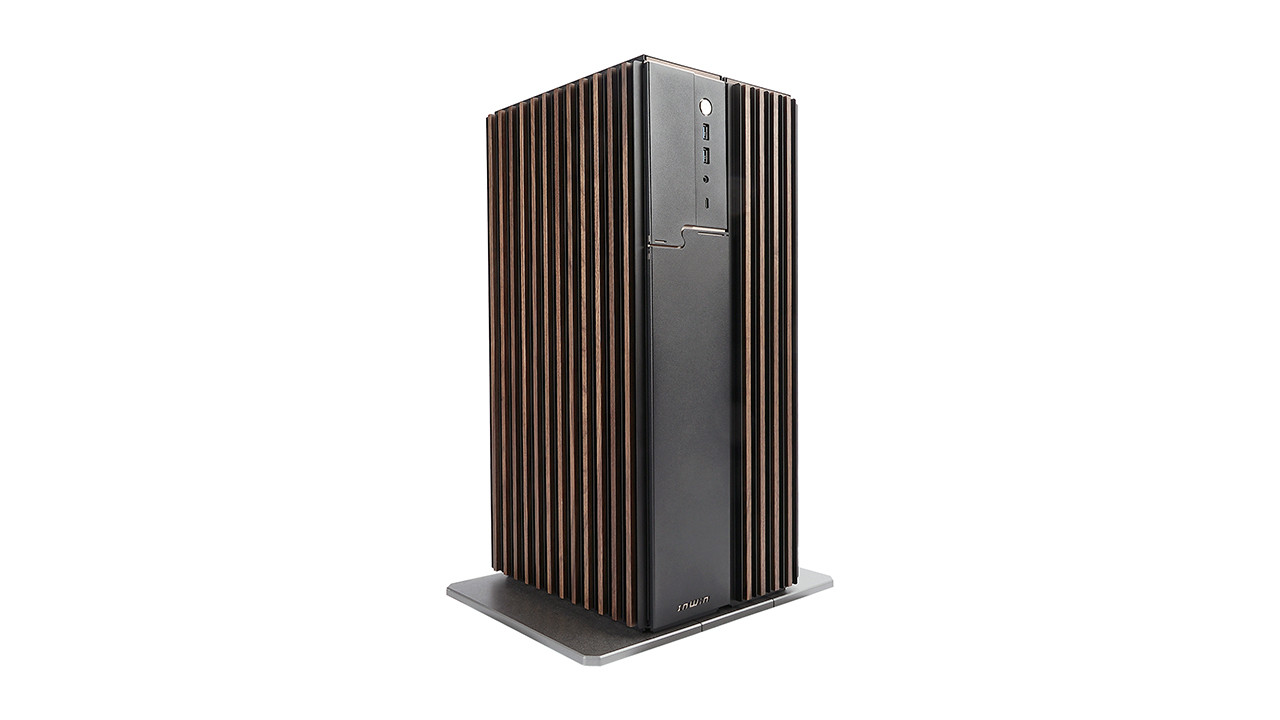

Discover the freedom of personalization with our three exquisite panel styles: Monarch, Timber, and Mesh Up, allowing you to craft a PC chassis that reflects your unique taste.
* Monarch & Mesh Up will be available in late July 2024.

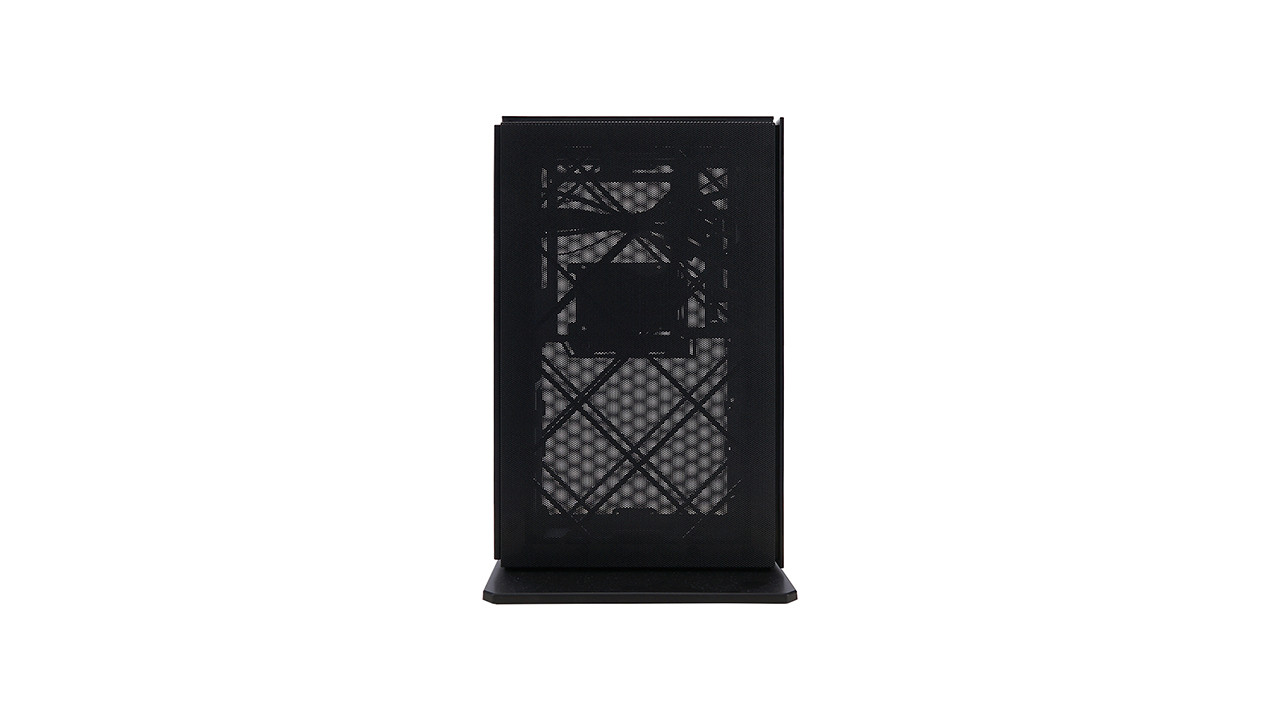

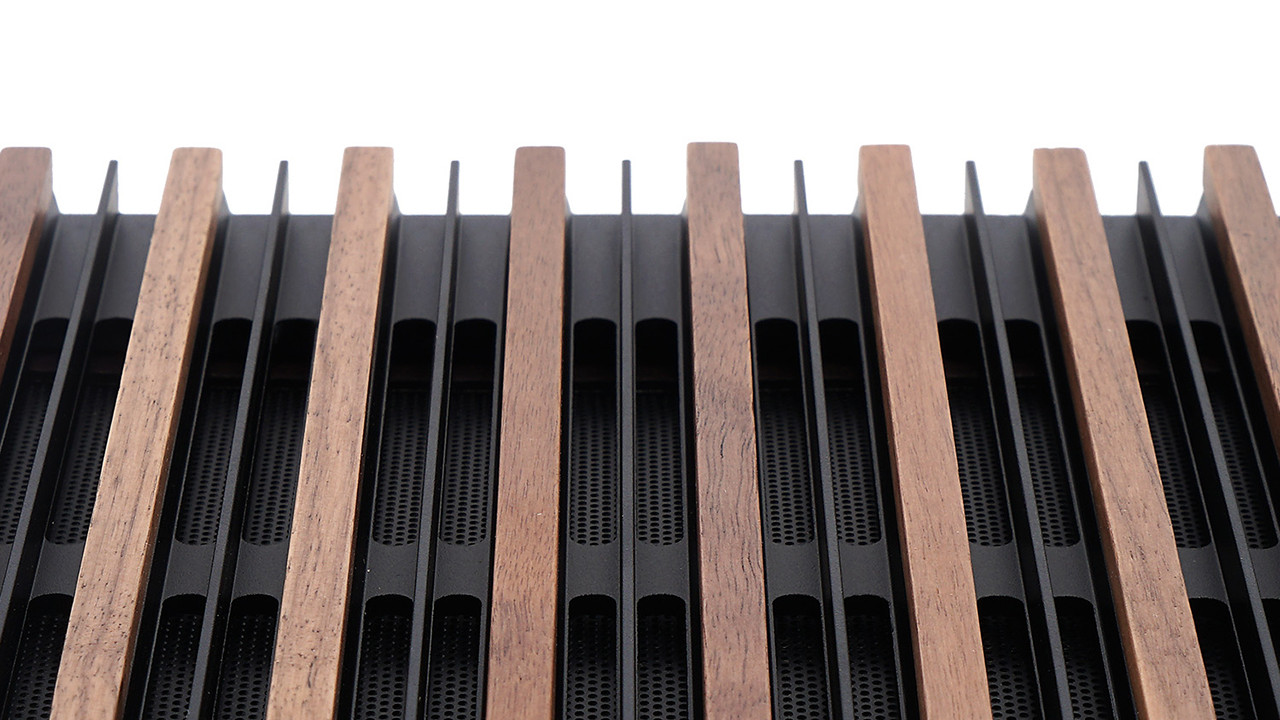

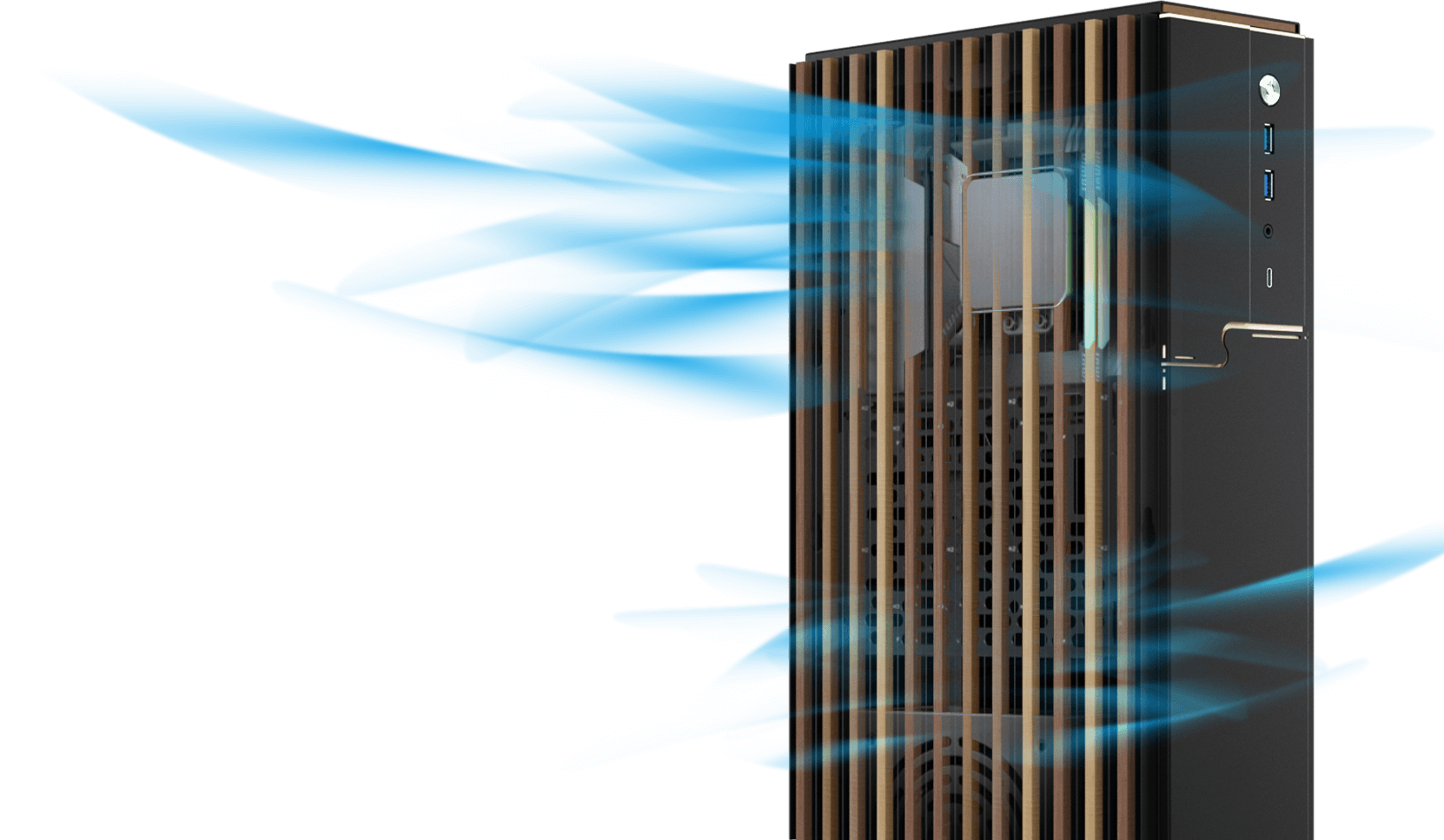

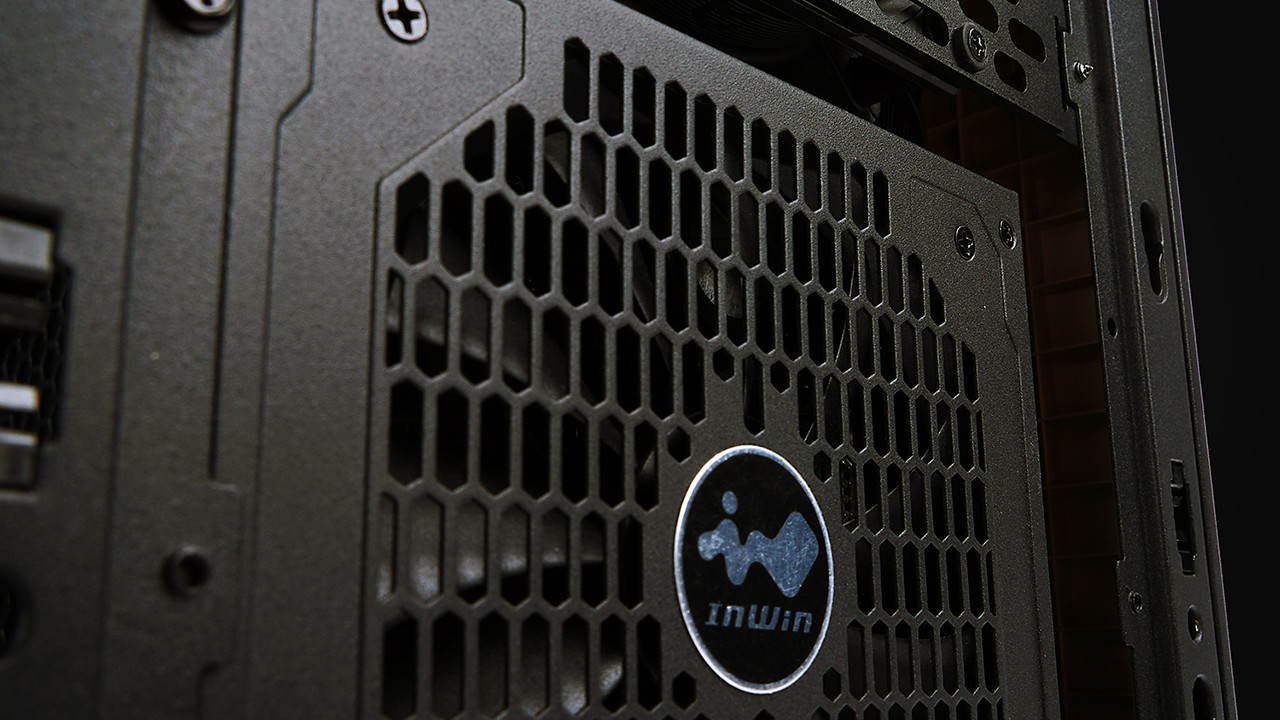

InWin enhanced the ventilation with unique panel designs adorned with aesthetically pleasing ventilated patterns across all three panel styles, ensuring optimal airflow and cooling performance.
Building your dream PC has never been easier. ModFree Mini offers a dedicated mobile app with an interactive 3D assembly guide, ensuring a smooth and hassle-free setup process.
| Model | ModFree Mini – Mod-II Edition | ModFree Mini – Mod-III Edition | |
|---|---|---|---|
| Model Number | Timber | IW-CS-MFMINIM2-TBR | IW-CS-MFMINIM3-TBR |
| Mesh Up | IW-CS-MFMINIM2-MESH | IW-CS-MFMINIM3-MESH | |
| Monarch | IW-CS-MFMINIM2-MNC | IW-CS-MFMINIM3-MNC | |
| Colors | Timber | Black, Brown | |
| Mesh Up | Black | ||
| Monarch | White, Black, Orange | ||
| Case Type | Mini-ITX Tower | ||
| Materials | Timber | SECC, ABS, Aluminium, Walnut Wood | |
| Mesh Up | SECC, ABS, Tempered Glass | ||
| Monarch | SECC, PMMA, ABS | ||
| M/B Compatibility | Mini-ITX | ||
| Maximum Compatibility | CPU Heatsink Height: 65 mm | ||
| I/O Ports | 1 x USB 3.2 Gen 2x2 Type-C 2 x USB 3.2 Gen 1 HD Audio Combo (CTIA – SPK/MIC) |
||
| Internal Drive Bays | 1 x 2.5" | ||
| 2-in-1 Bracket Compatibility | N/A | 1 x 3.5"/ 2 x 2.5" or 1 x 120 mm Fan / Radiator |
|
| Power Supply Compatibility | PSII: ATX12V - Length up to 170 mm | ||
| Product Dimensions (L x W x H) without Foot Stand |

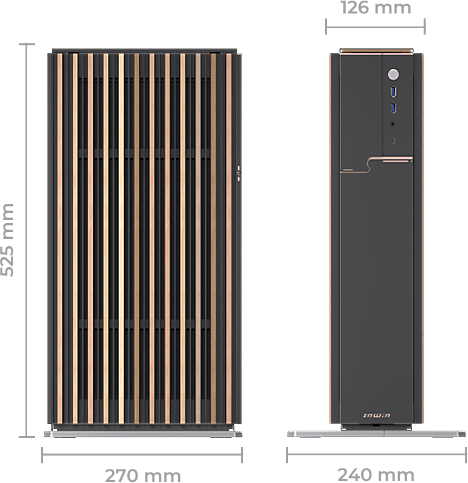

Timber | 270 x 126 x 407 mm (10.6 x 5 x 16") |
270 x 126 x 507 mm (10.6 x 5 x 20") |

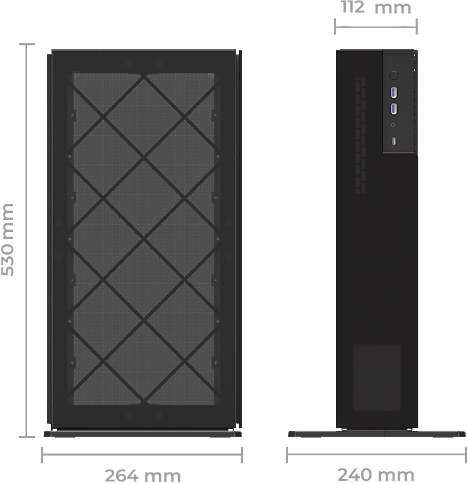

| Mesh Up | 264 x 112 x 412 mm (10.4 x 4.4 x 16.2") |
264 x 112 x 512 mm (10.4 x 4.4 x 20.2") |
|

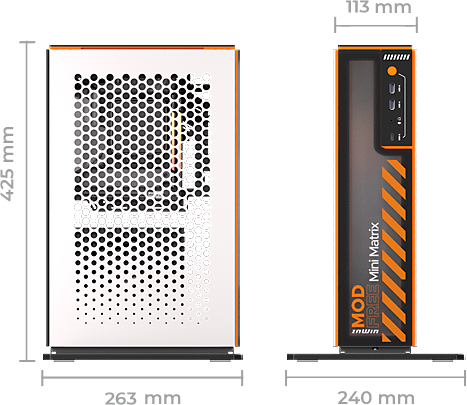

| Monarch | 263 x 113 x 407 mm (10.4 x 4.4 x 16") |
263 x 113 x 507 mm (10.4 x 4.4 x 20") |
|

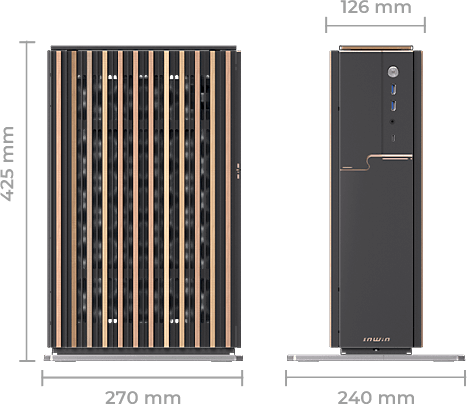

| Product Dimensions (L x W x H) |
Timber | 268 x 240 x 425 mm (10.6 x 9.5 x 16.7") |
268 x 240 x 525 mm (10.6 x 9.5 x 20.7") |

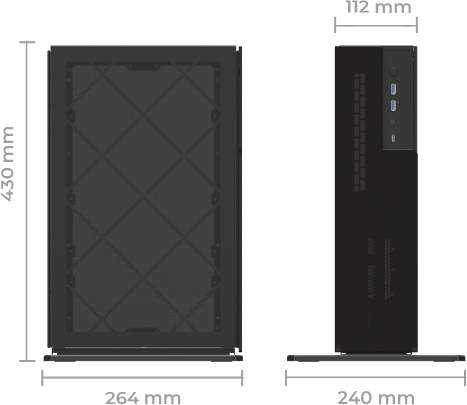

| Mesh Up | 268 x 240 x 430 mm (10.6 x 9.5 x 16.9") |
268 x 240 x 530 mm (10.6 x 9.5 x 20.9") |
|

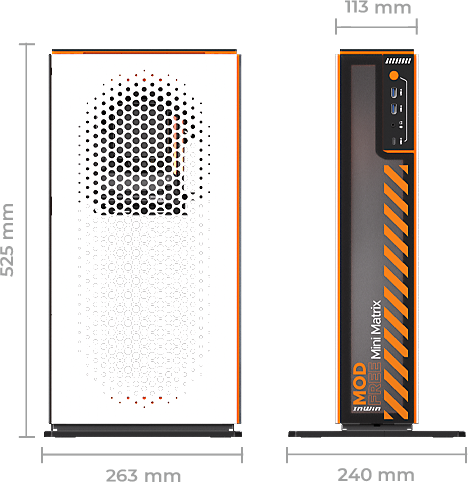

| Monarch | 268 x 240 x 425 mm (10.6 x 9.5 x 16.7") |
268 x 240 x 525 mm (10.6 x 9.5 x 20.7") |
|

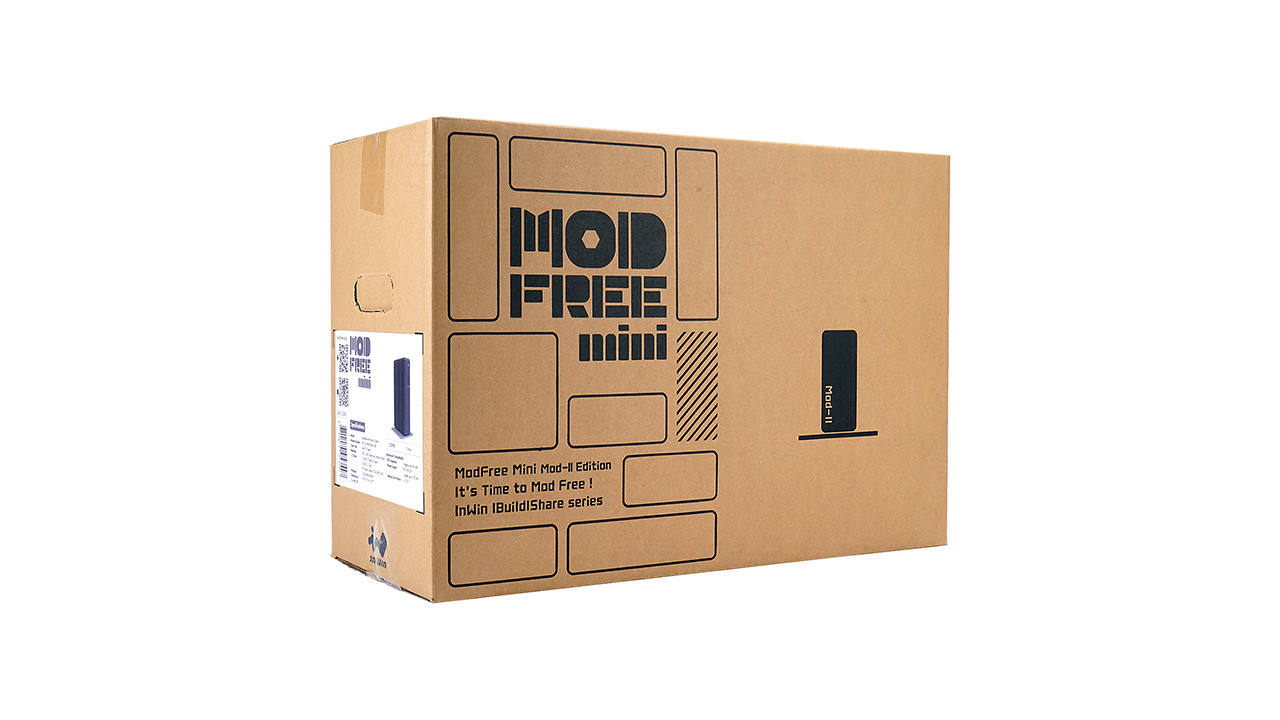

| Package Dimensions (L x W x H) |
Timber | 530 x 240 x 380 mm (20.9 x 9.4 x 14.9") |
630 x 240 x 380 mm (24.8 x 9.4 x 14.9") |
| Mesh Up | 518 x 228 x 362 mm (20.4 x 9 x 14.3") |
618 x 228 x 362 mm (24.7 x 9 x 14.3") |
|
| Monarch | 518 x 228 x 362 mm (20.4 x 9 x 14.3") |
618 x 228 x 362 mm (24.7 x 9 x 14.3") |
|
| Net Weight | Timber | 5.3 kg / 11.68 lbs | 6.1 kg / 13.44 lbs |
| Mesh Up | 4.1 kg / 9.03 lbs | 5.1 kg / 11.24 lbs | |
| Monarch | 3.7 kg / 8.15 lbs | 4.7 kg / 10.36 lbs | |
| Gross Weight | Timber | 6.25 kg / 13.77 lbs | 7.25 kg / 15.98 lbs |
| Mesh Up | 4.7 kg / 10.36 lbs | 5.8 kg / 12.78 lbs | |
| Monarch | 4.3 kg / 9.47 lbs | 5.4 kg / 11.9 lbs | |
| * InWin's products comply with RoHS regulation. * Specifications may vary based on different regions. |
|||
