Freedom to Mod
PATENT PENDING

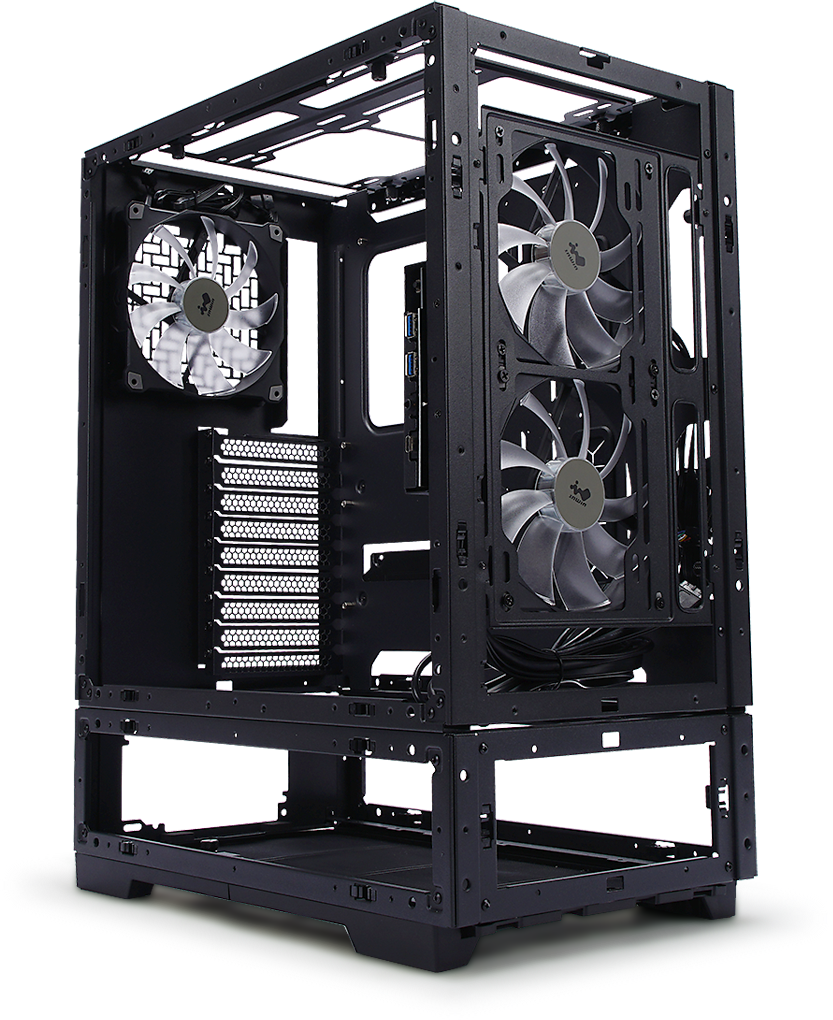

ModFree utilizes a fully systematic architectural structure that consists of interchangeable toolless modules. PC enthusiasts can freely transform their new PC internally and externally to accommodate their needs and preferences.
Three preconfigured sets are starting points for users.
The Base Edition consists of two modules, the Stretch Edition consists of three modules, while the Deluxe Edition possesses four modules providing additional options for your pc setup.
Users can add expansion modules to enhance their builds at anytime.

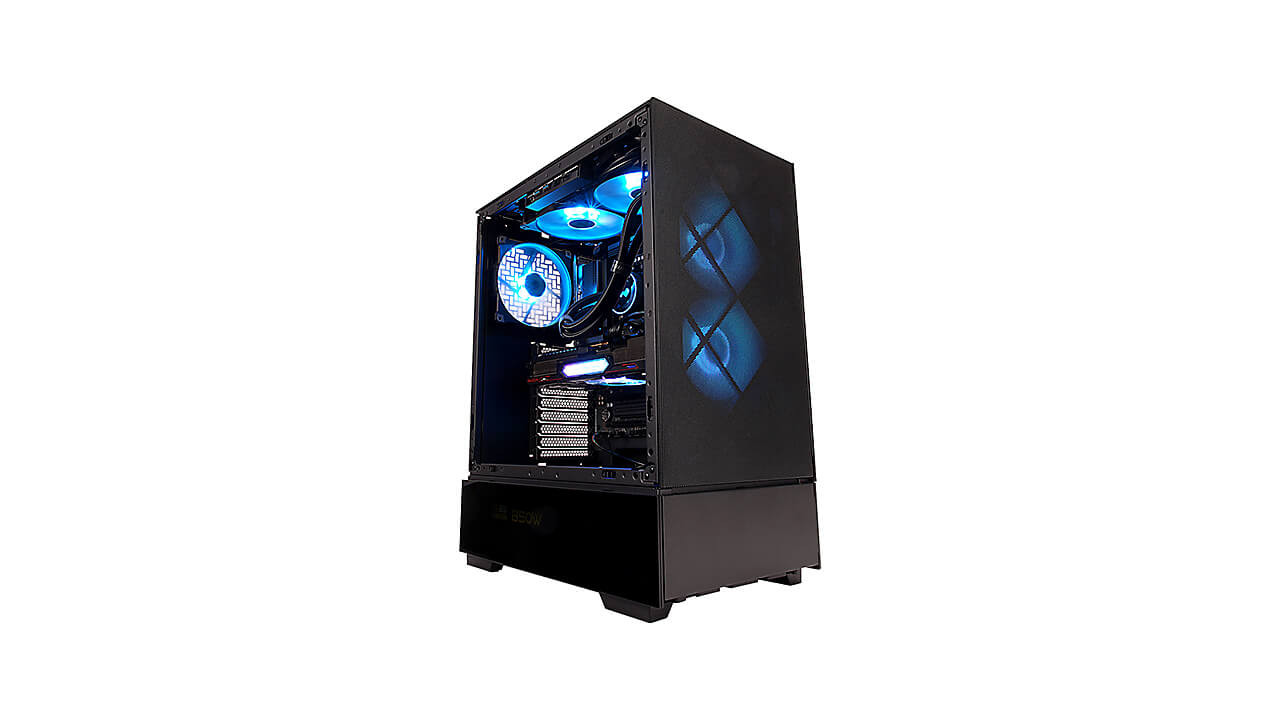

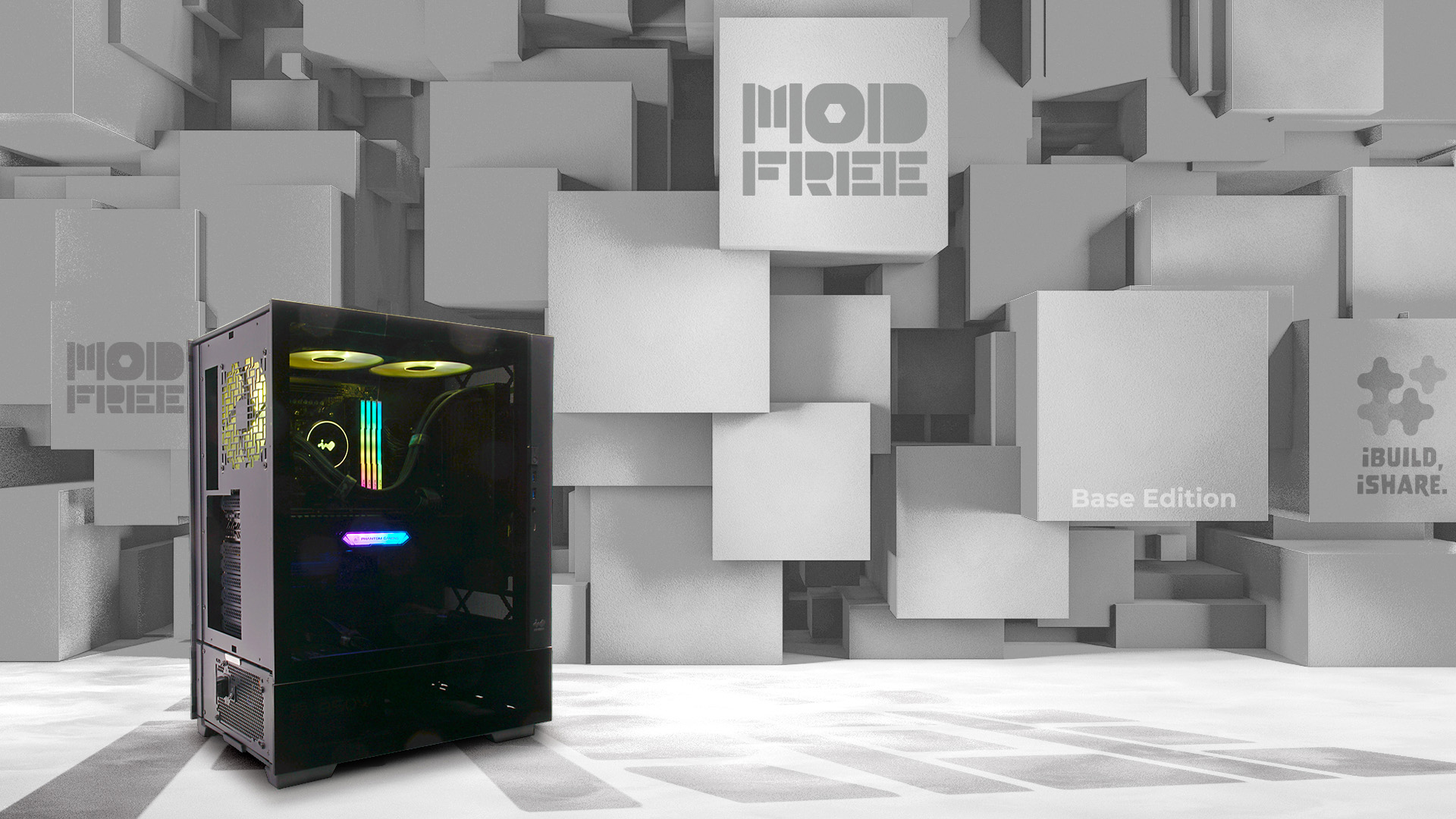

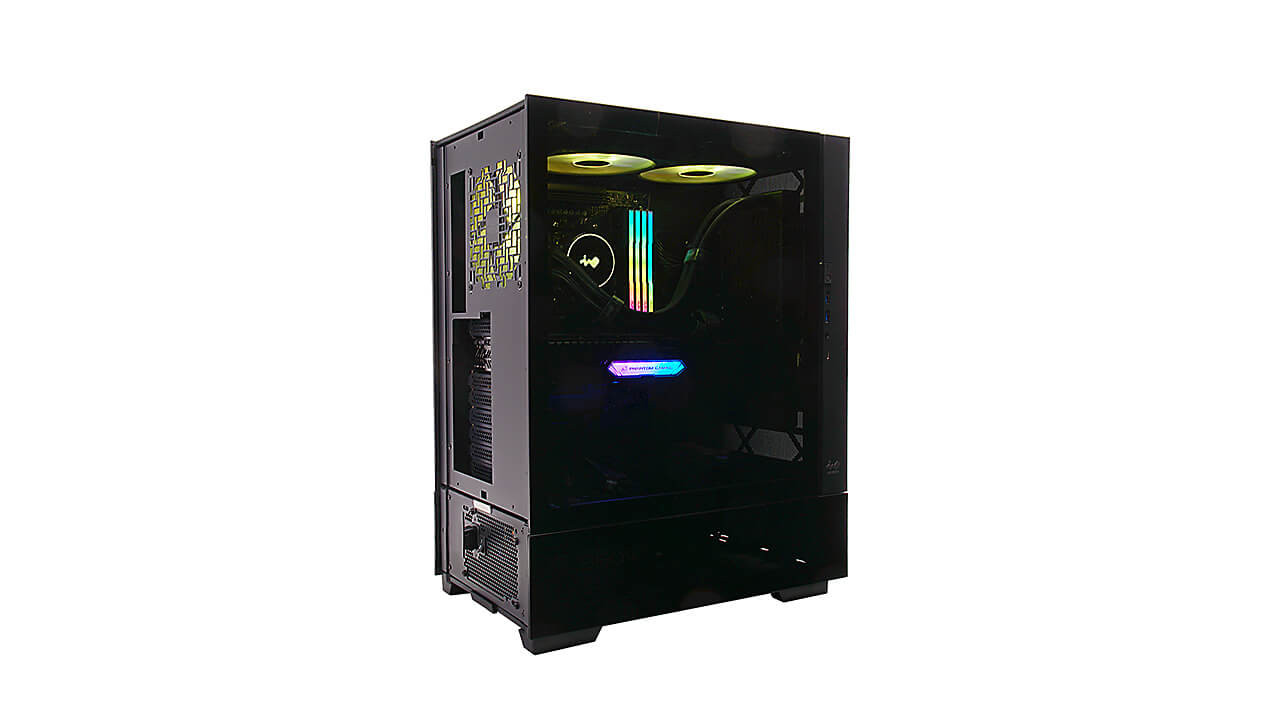

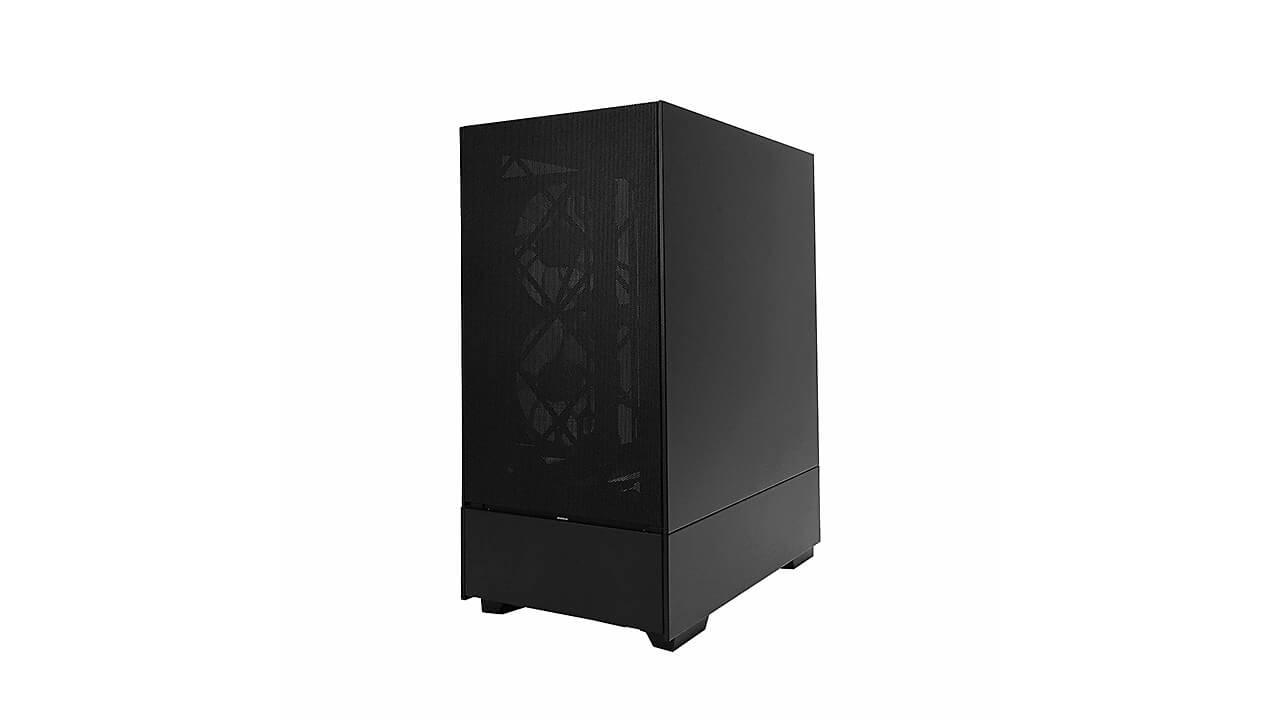

Base Edition

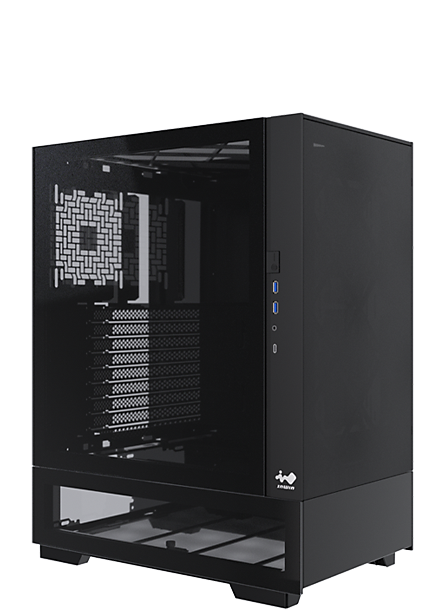

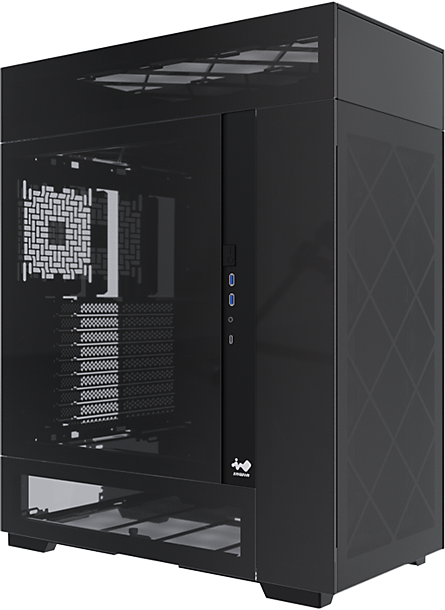

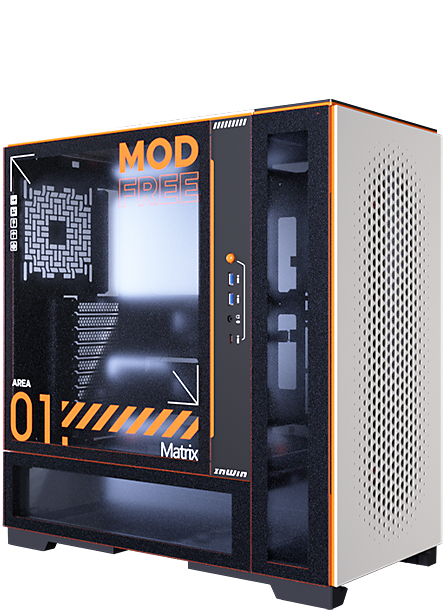

Stretch Edition

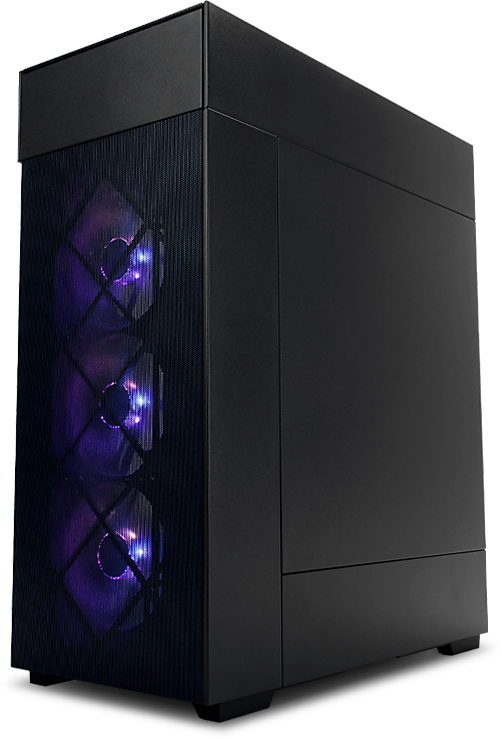

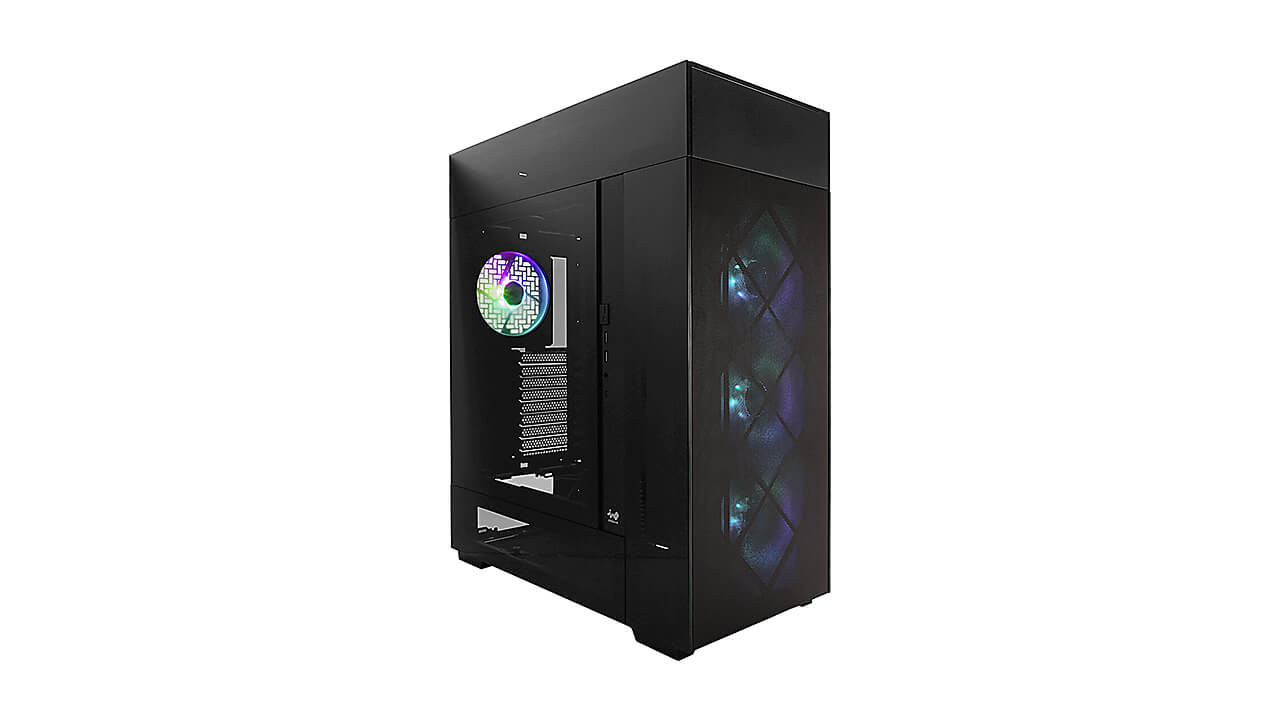

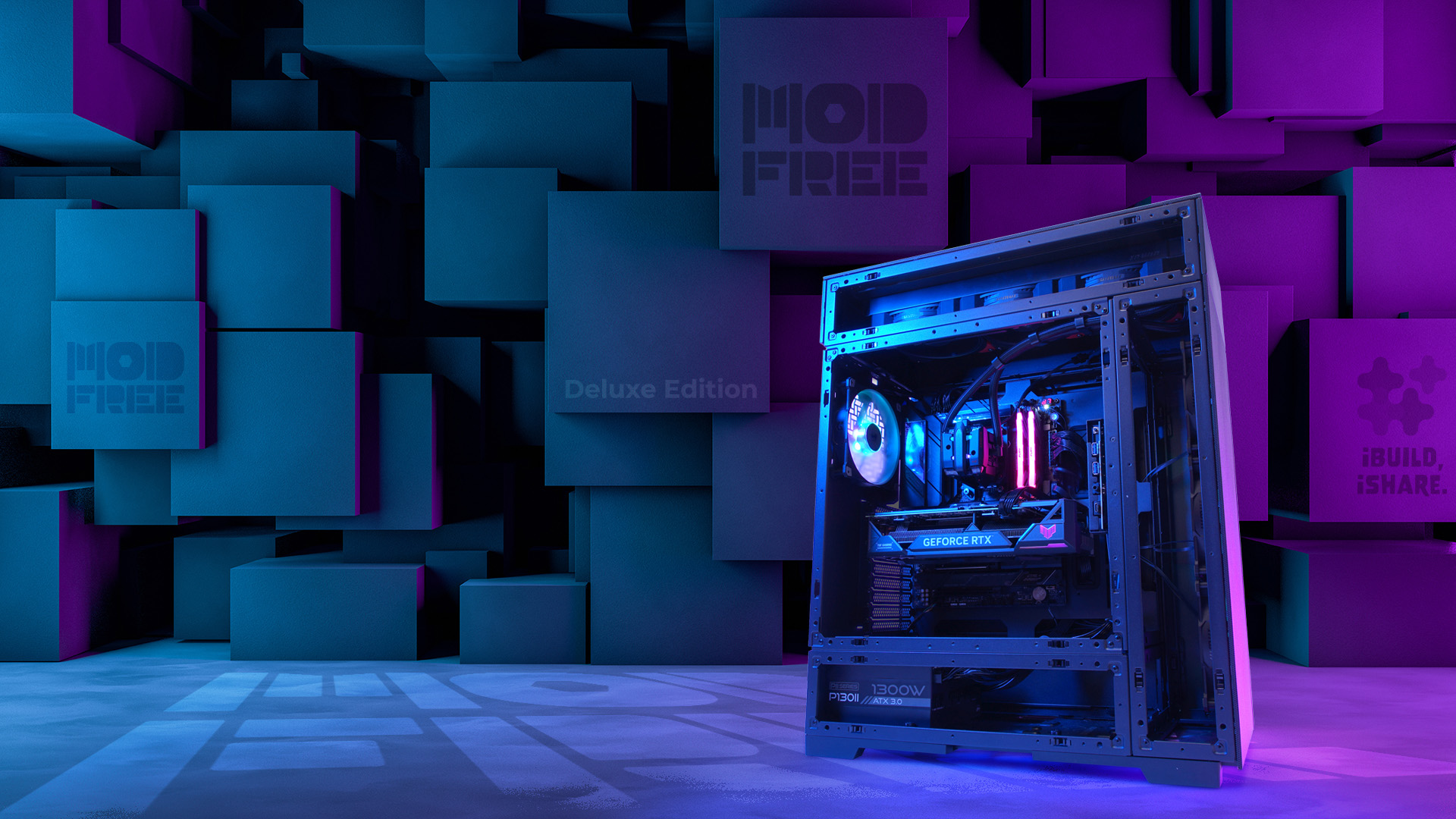

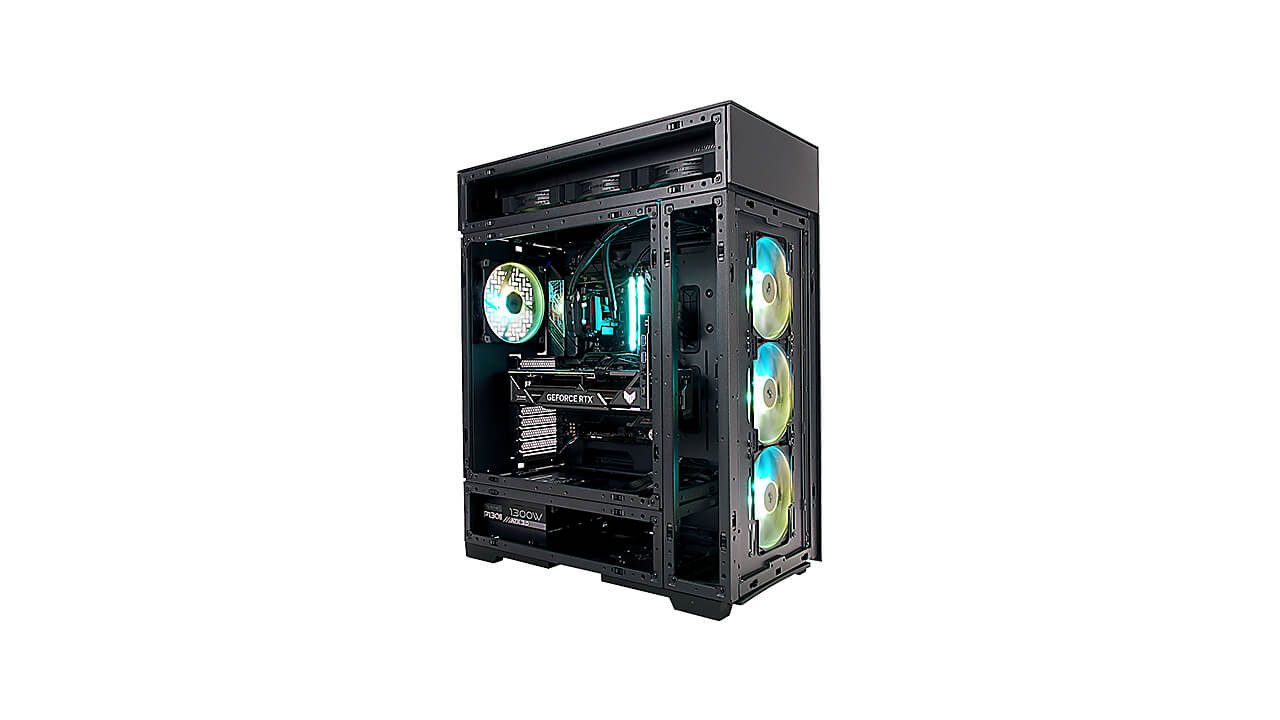

Deluxe Edition

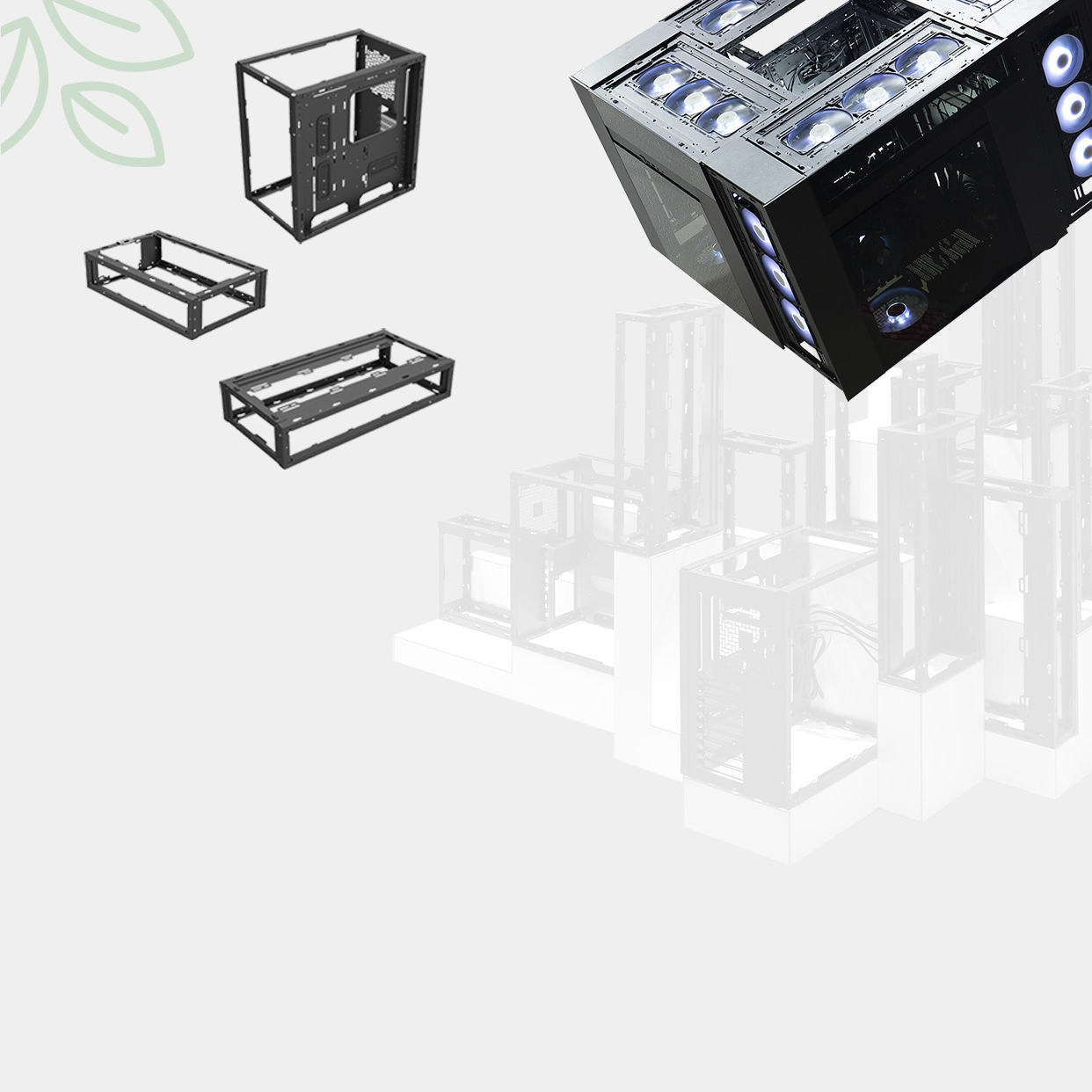

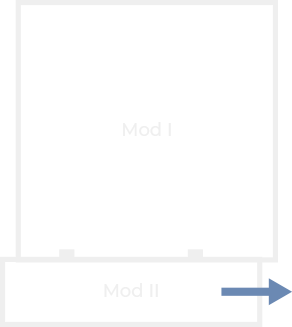

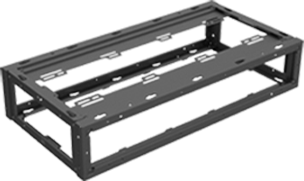

ModFree has three different modules to customize a system to meet your requirements.
Investing in this ecosystem will prove cost-effective since upgrades are just a module away, which also reduces environmental impact with less hardware waste.

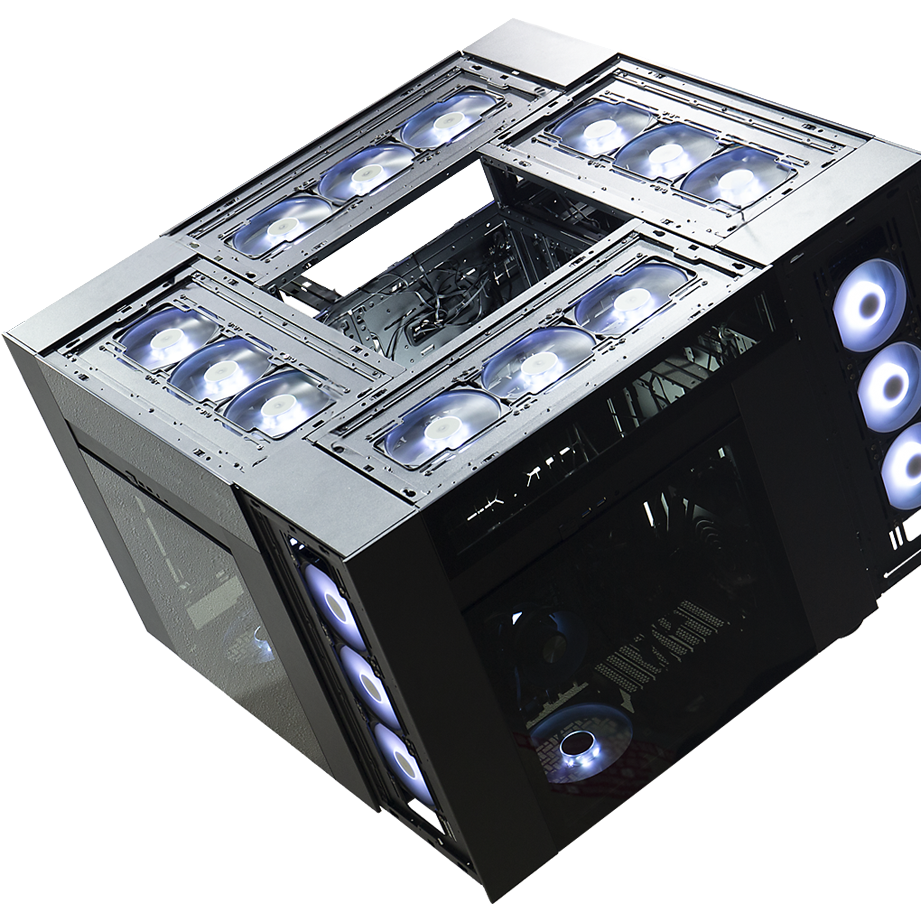

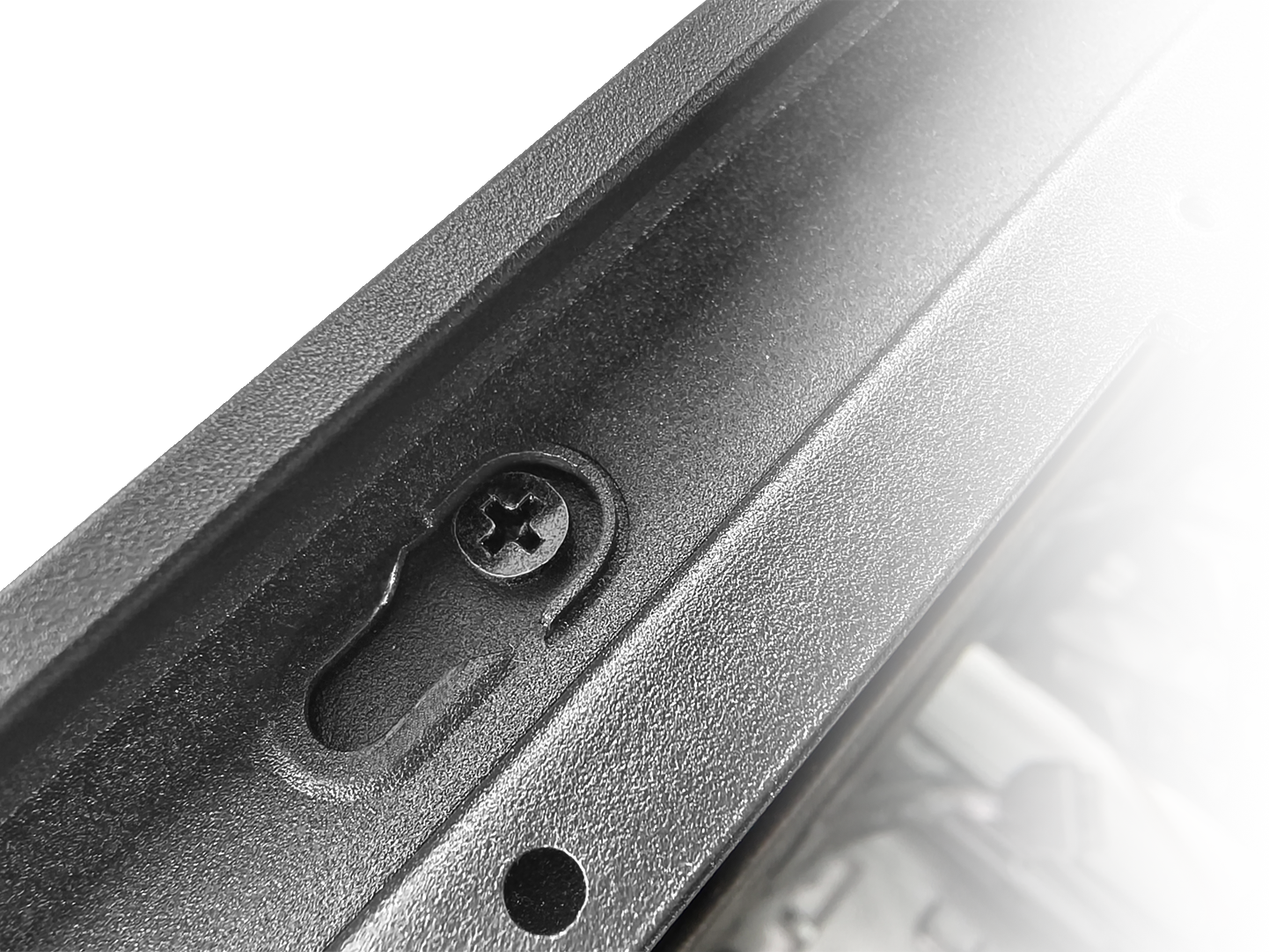

The toolless interlocking clip design allows users to switch modules in an instant. Building hardware in each module is hassle-free, and assembling the modules together requires just one step.
The toolless interlocking clip design allows users to switch modules in an instant. Building hardware in each module is hassle-free, and assembling the modules together requires just one step.

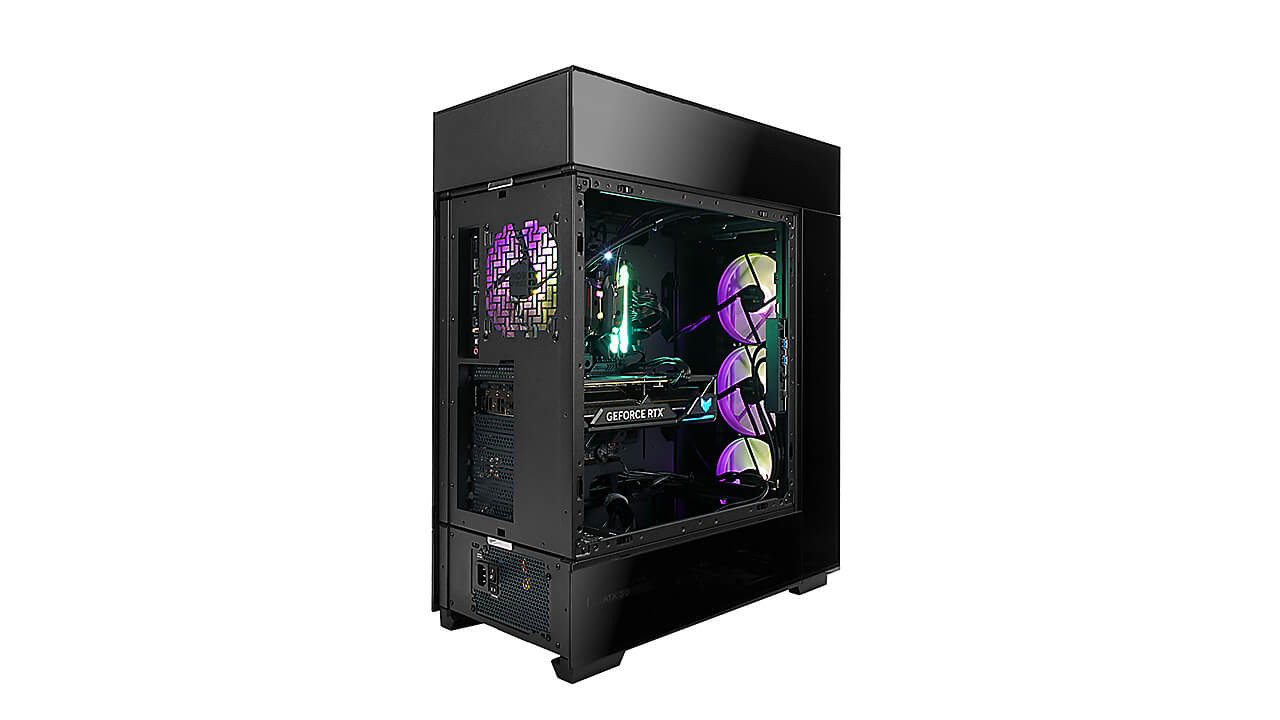

Unlike conventional cases, inverted layouts benefit users wanting to showcase their hardware from the left side of the desk, where they may have more space.
ModFree offers a 3D interactive assembly guide to facilitate the building process and demonstrates the capabilities of each module. Users can explore more by experimenting with a virtual ModFree within the APP.

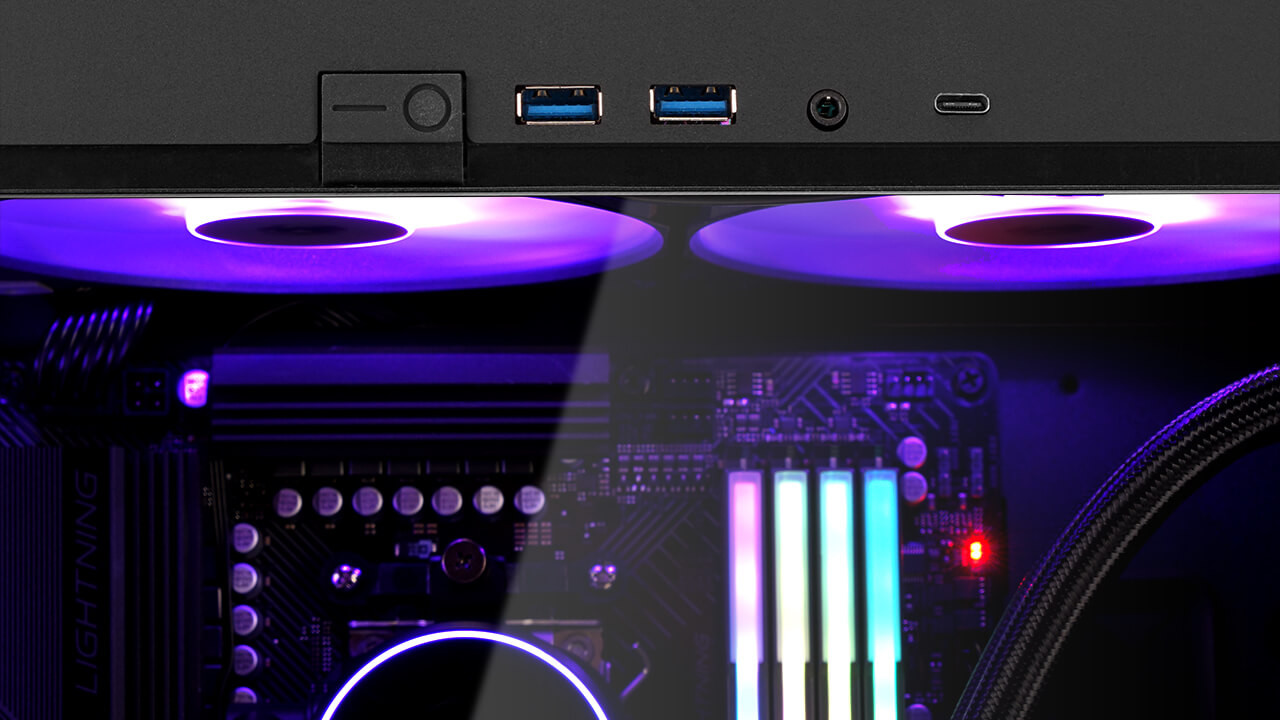

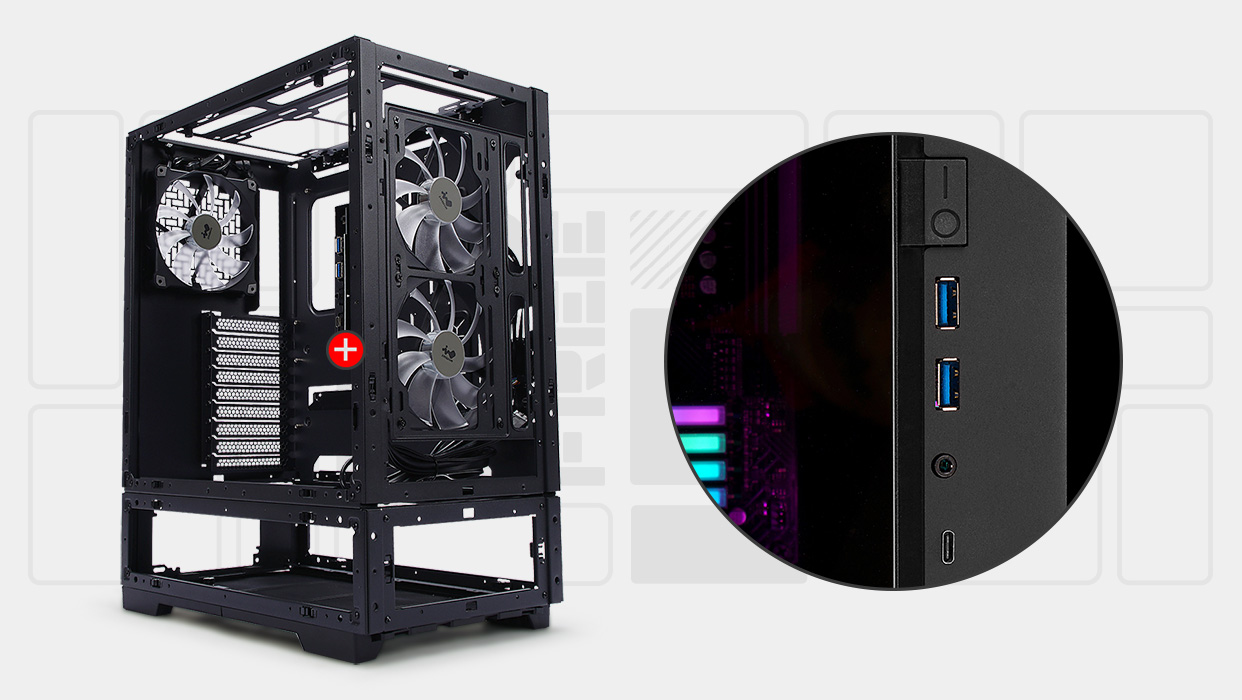

Equipped with a 2-in-1 audio/microphone jack utilizing the international CTIA standard, which is compatible with most gaming peripherals.

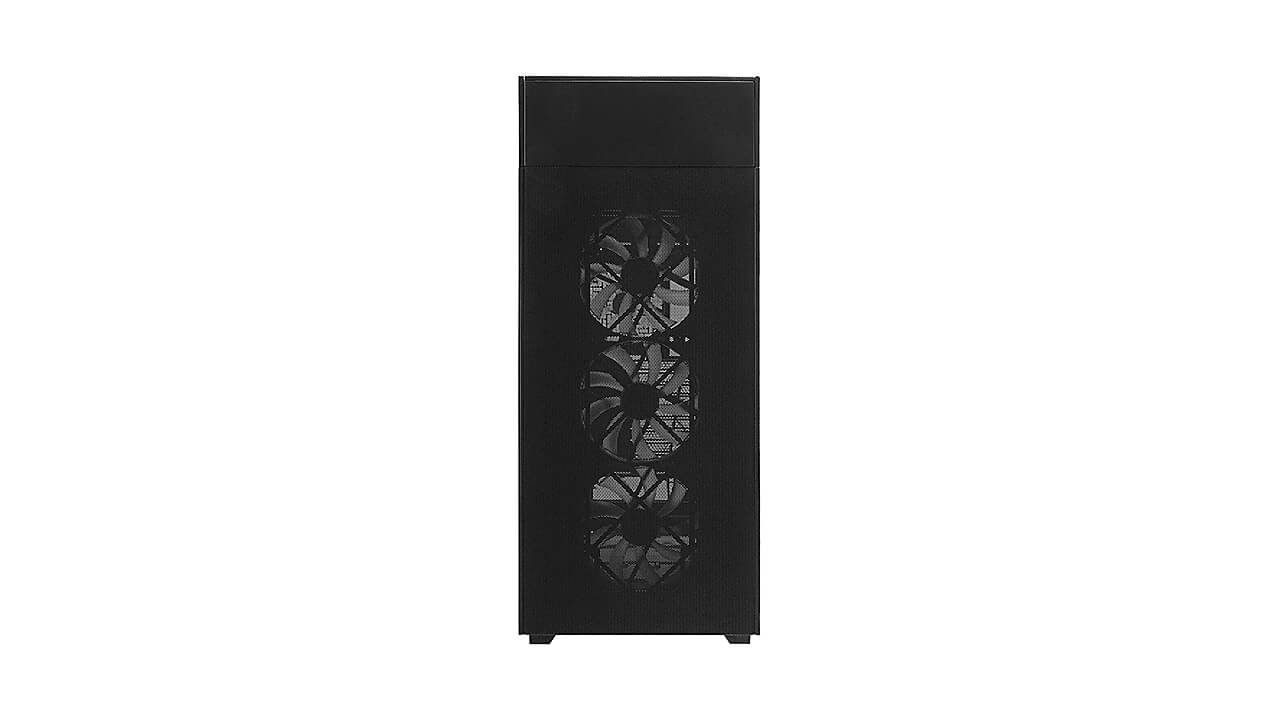

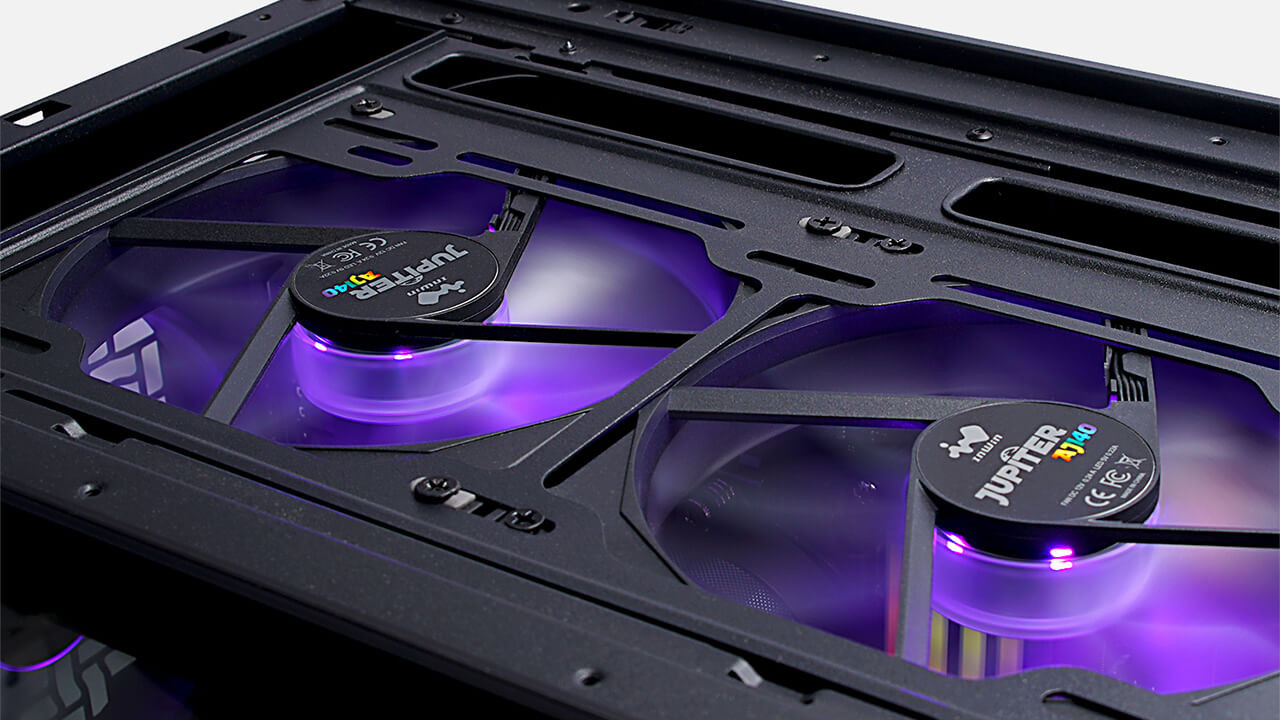

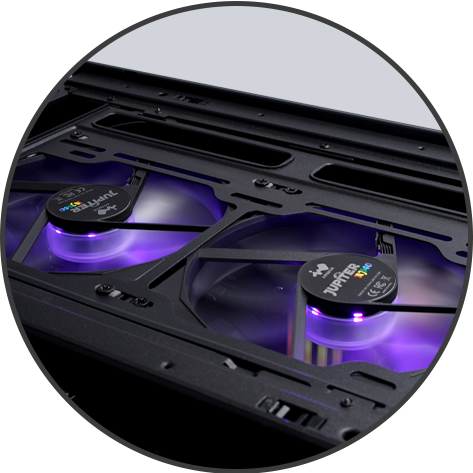

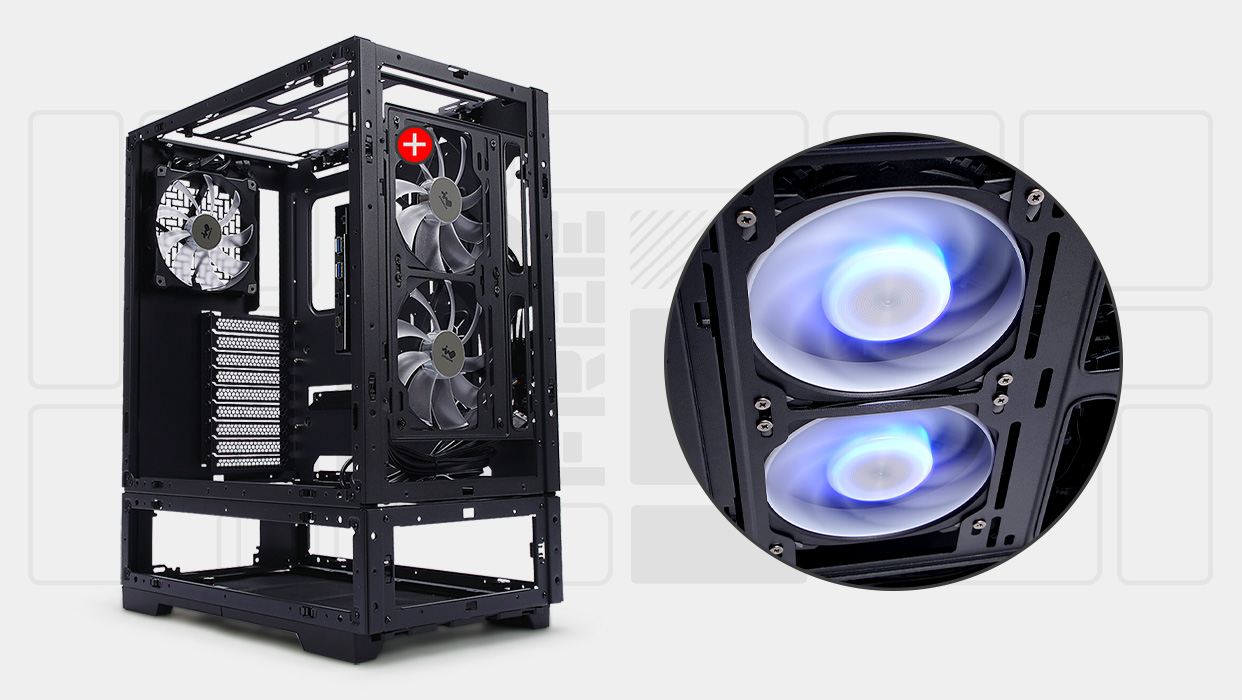

The Jupiter fans provide high airflow to perform excellent heat dissipation, and protect your PC components from overheating.
Learn More

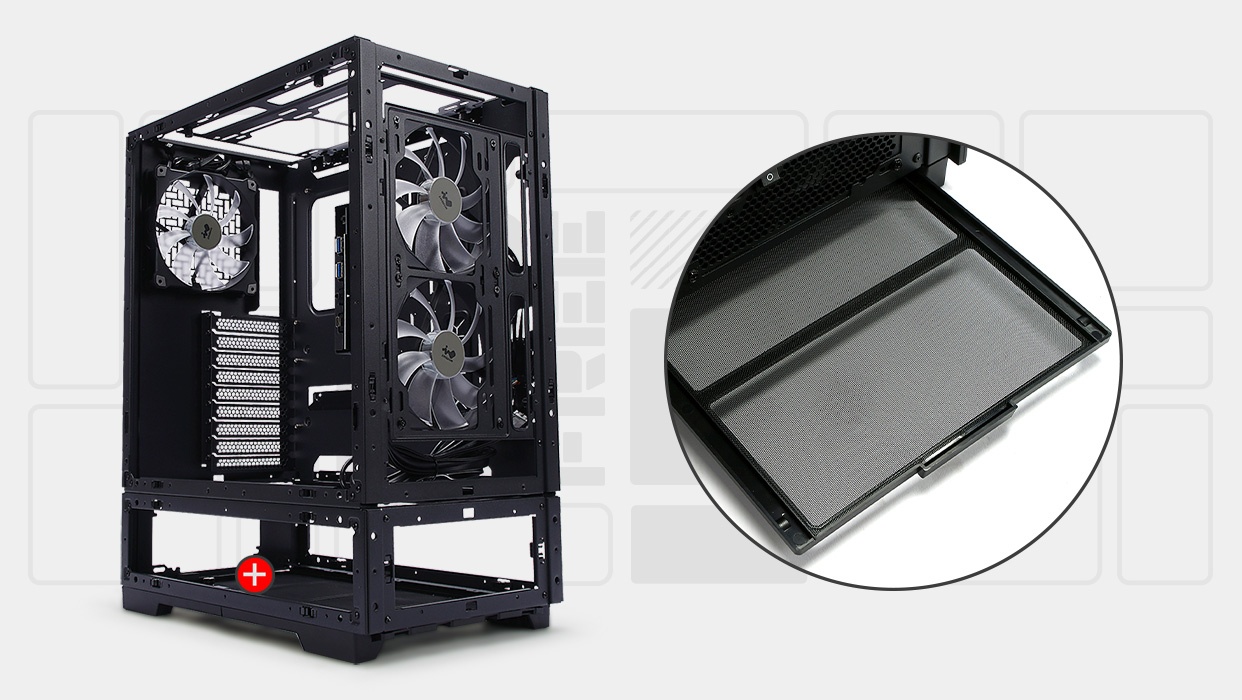

Quick removable filter and feet design allow users to not only clean quickly, but install on different modules easily, too.

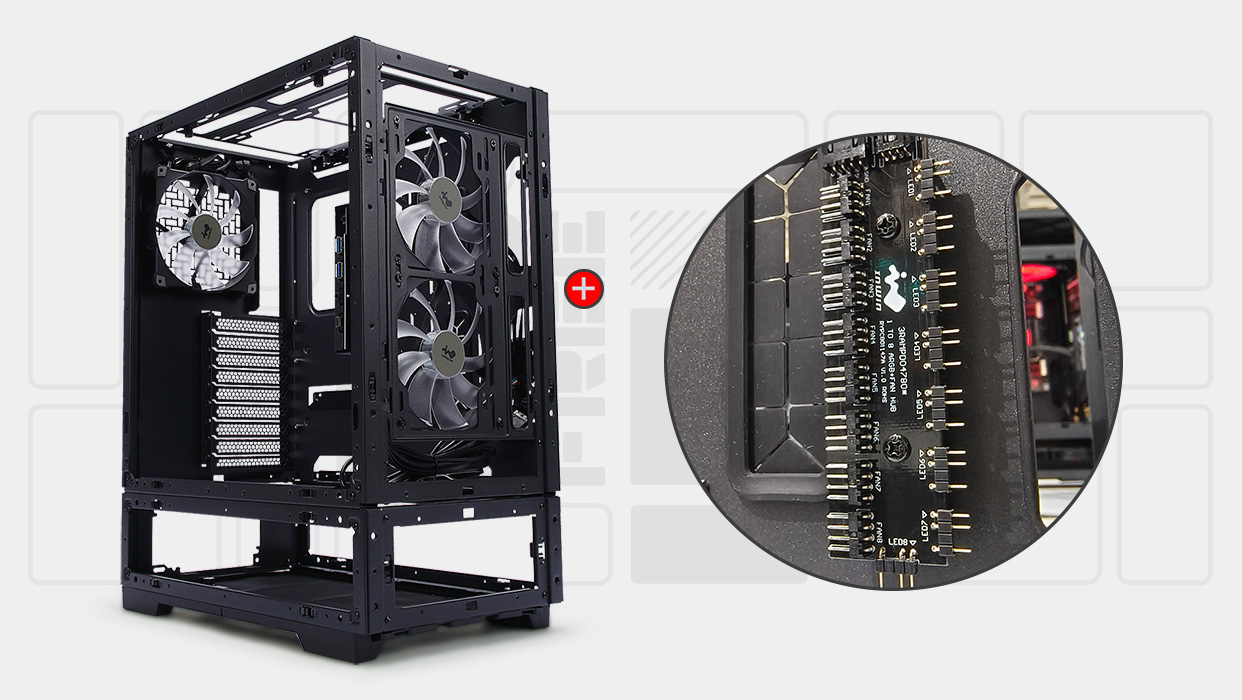

InWin fan hub controls up to 8 ARGB fans (3-pin) and PWM headers. SATA connector provides stable output.
The Jupiter fans provide high airflow to perform excellent heat dissipation, and protect your PC components from overheating.
Learn MoreEquipped with a 2-in-1 audio/microphone jack utilizing the international CTIA standard, which is compatible with most gaming peripherals.
InWin fan hub controls up to 8 ARGB fans (3-pin) and PWM headers. SATA connector provides stable output.
Quick removable filter and feet design allow users to not only clean quickly, but install on different modules easily, too.
| Model | ModFree – Base Edition |
ModFree – Stretch Edition |
ModFree – Deluxe Edition |
|---|---|---|---|
| Model Number | IW-CS-MFBASE-BLK | IW-CS-MFSTRE-MNC | IW-CS-MFDELU-BLK |
| Color | Black | White, Black, Orange | Black |
| Case Type | Full Tower | ||
| Materials | SECC, Tempered Glass, ABS | SECC, PMMA, ABS | SECC, Tempered Glass, ABS |
| M/B Compatibility | 12" x 13" E-ATX, ATX, Micro-ATX, Mini-ITX | ||
| Expansion Slots | 9 x PCI-E | ||
| Maximum Compatibility | GPU Card Length: 369 mm or 345 mm with Fan pre-installed | GPU Card Length: 369 mm or 440mm with Mod-III and Fans pre-installed | |
| CPU Heatsink Height: 200 mm | |||
| I/O Ports | 1 x USB 3.2 Gen 2x2 Type-C 2 x USB 3.2 Gen 1 HD Audio Combo (CTIA – SPK/MIC) |
||
| Internal Drive Bays | 2 x 2.5" 1 x 3.5" or 2 x 2.5" with HDD Bracket |
||

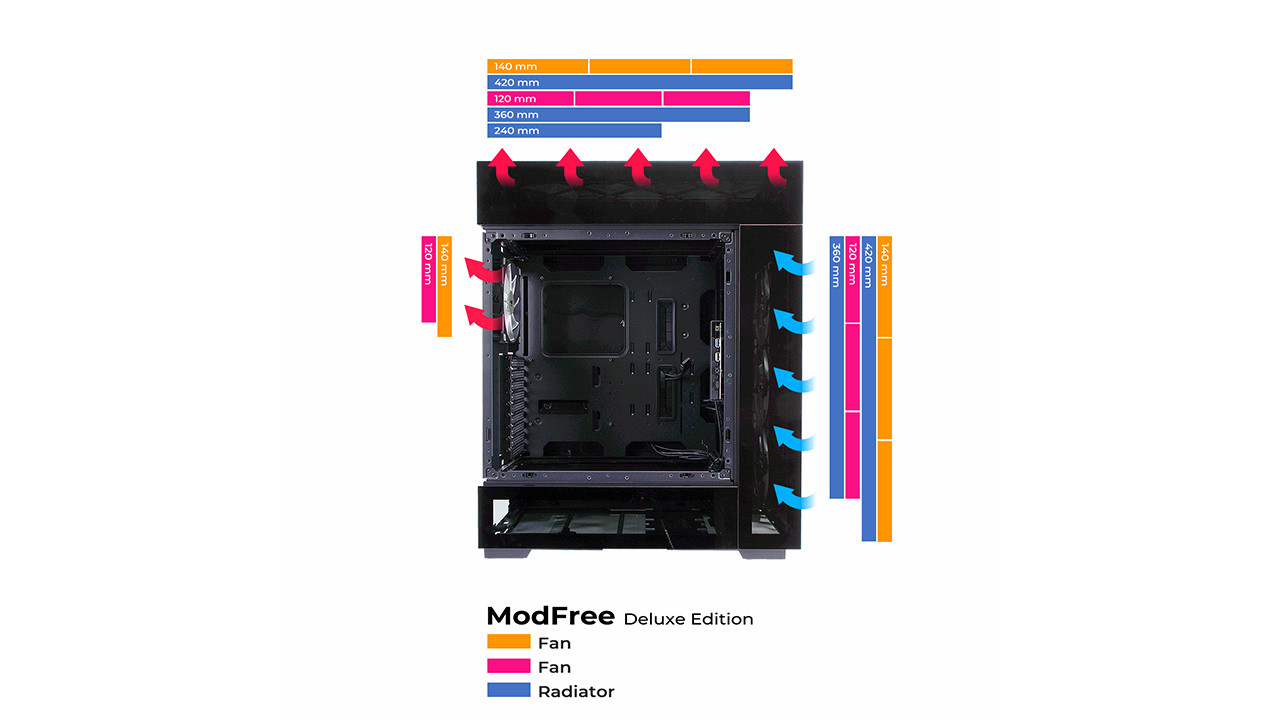

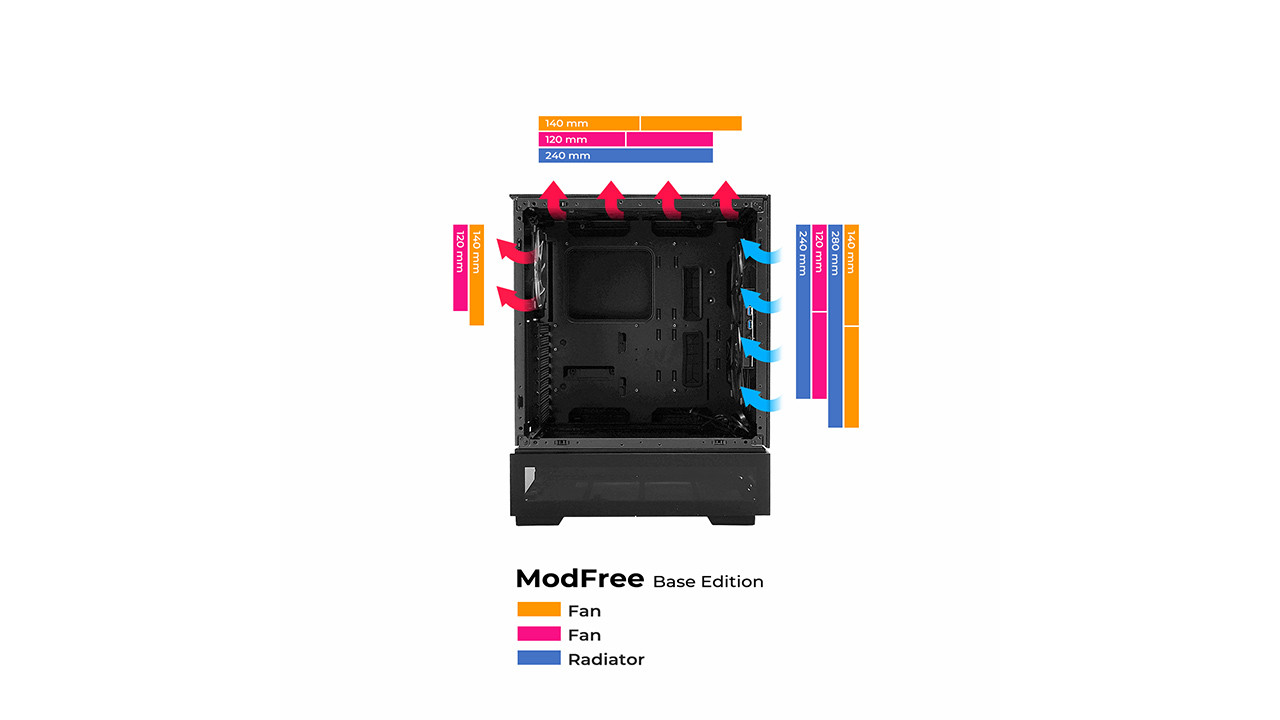

| Thermal Solution Compatibility | Air Cooling Fans: Front: 2 x 120 / 140 mm Top: 2 x 120 / 140 mm Rear: 1 x 120 / 140 mm Water Cooling Radiator: Front: 1 x 240 / 280 mm Top: 1 x 240 mm |
Air Cooling Fans: Front: 3 x 120 / 140 mm Top: 2 x 120 / 140 mm Rear: 1 x 120 / 140 mm Water Cooling Radiator: Front: 1 x 360 / 420 mm Top: 1 x 240 mm |
Air Cooling Fans: Front: 3 x 120 / 140 mm Top: 3 x 120 / 140 mm Rear: 1 x 120 / 140 mm Water Cooling Radiator: Front: 1 x 360 / 420 mm Top: 1 x 360 / 420 mm |
| Power Supply Compatibility | PSII: ATX12V - Length up to 390 mm or 240 mm with Hard Drive Tray Installed |
||

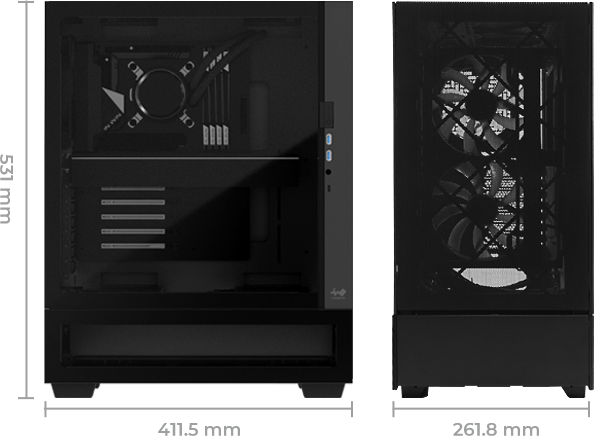

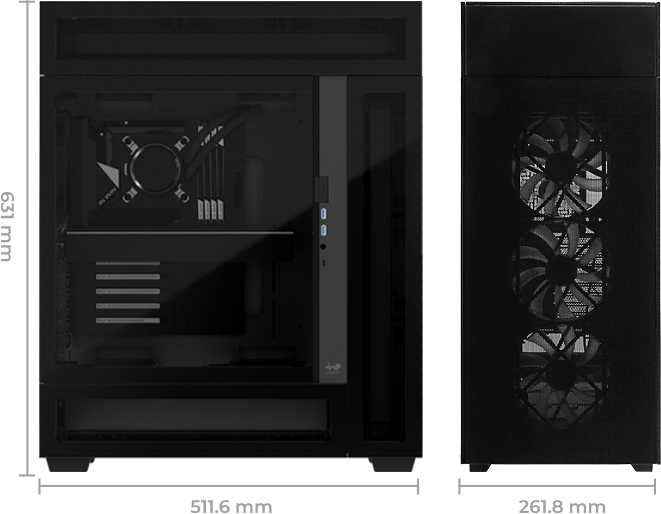

| Product Dimensions (L x W x H) |
411.5 x 261.8 x 531 mm 16.2 x 10.3 x 20.9" |
513 x 263 x 531.5 mm 20.2 x 10.4 x 20.9" |
511.6 x 261.8 x 631 mm 20.1 x 10.3 x 24.8" |
| Package Dimensions (L x W x H) |
532 x 342 x 630 mm 20.9 x 13.5 x 24.8" |
640 x 354 x 642 mm 25.2 x 13.9 x 25.3" |
642 x 352 x 740 mm 25.3 x 13.9 x 29.1" |
| Net Weight | 9.2 kg / 20.28 lbs | 9.7 kg / 21.38 lbs | 14 kg / 30.86 lbs |
| Gross Weight | 11.4 kg / 25.13 lbs | 12.5 kg / 27.56 lbs | 17 kg / 37.48 lbs |
| * InWin's products comply with RoHS regulation. * Specifications may vary based on different regions. |
|||
