Acoustic Expression: Silence

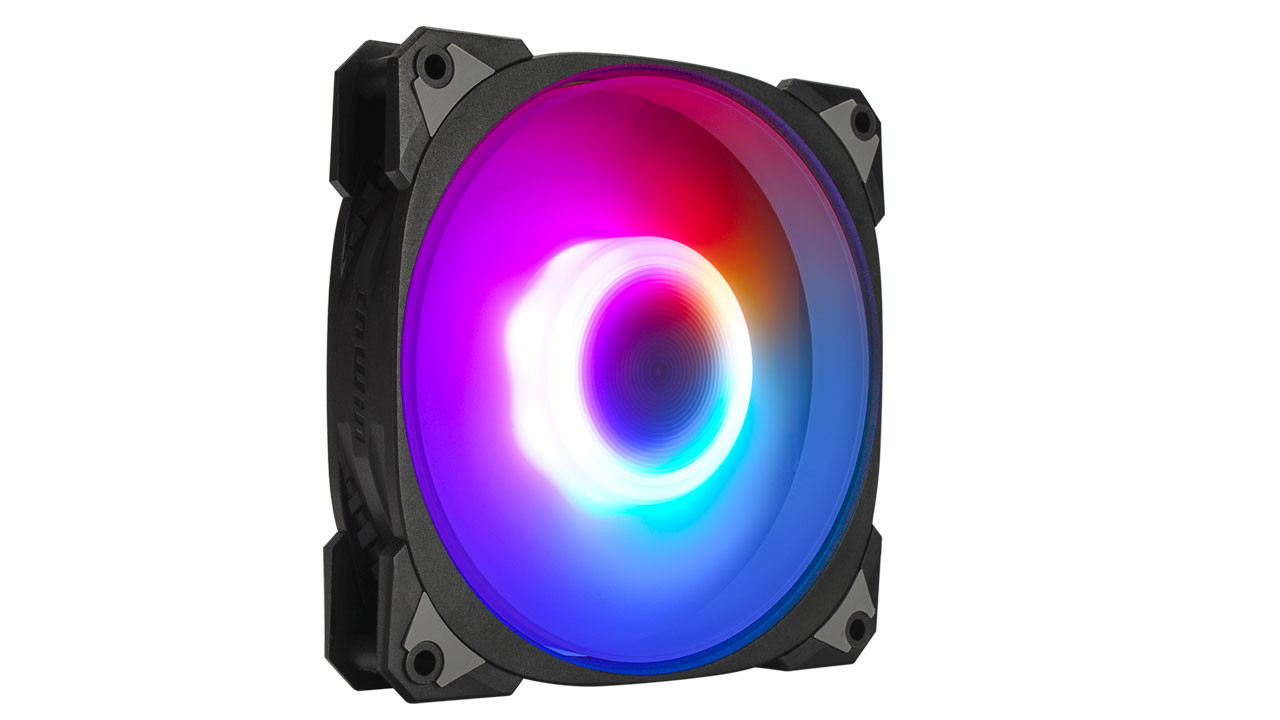

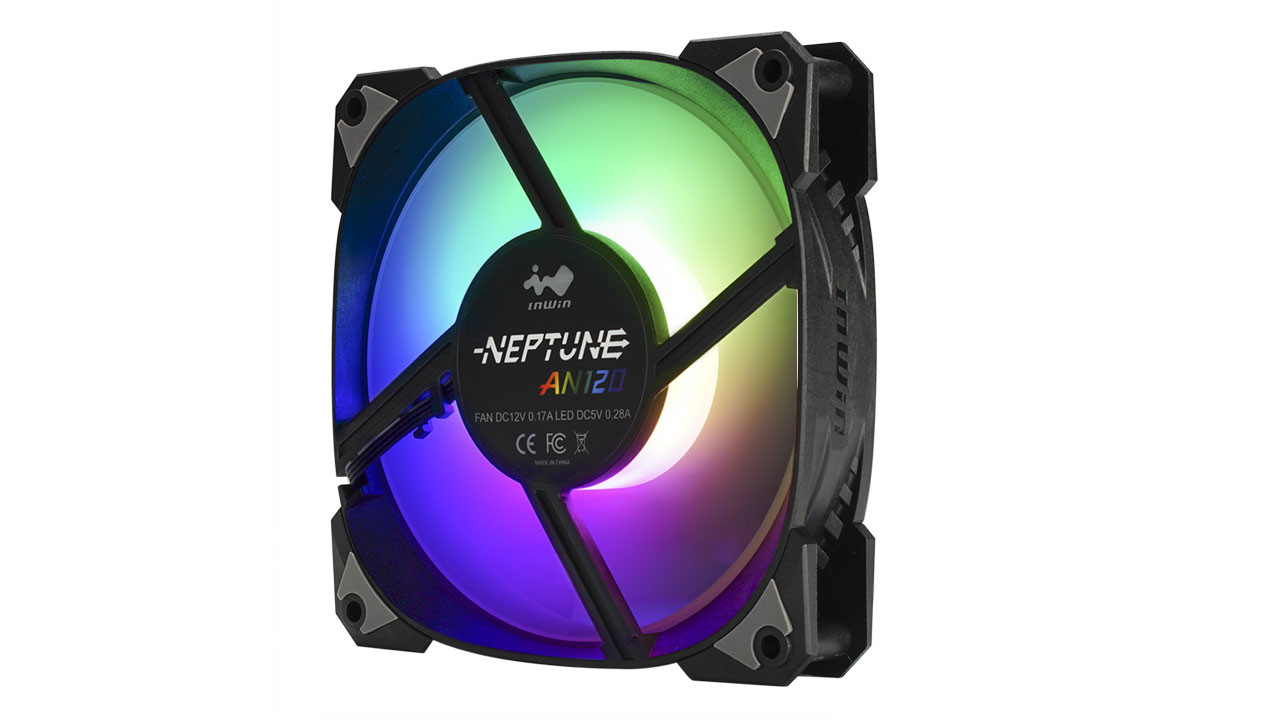

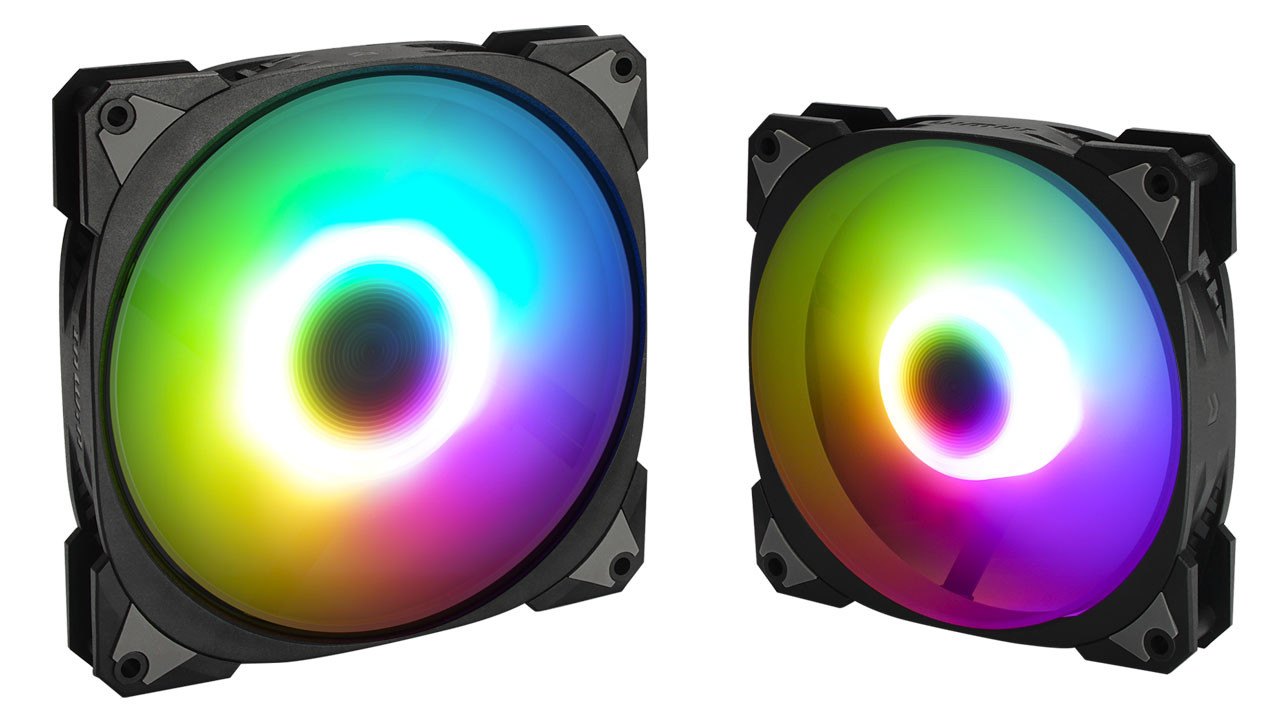

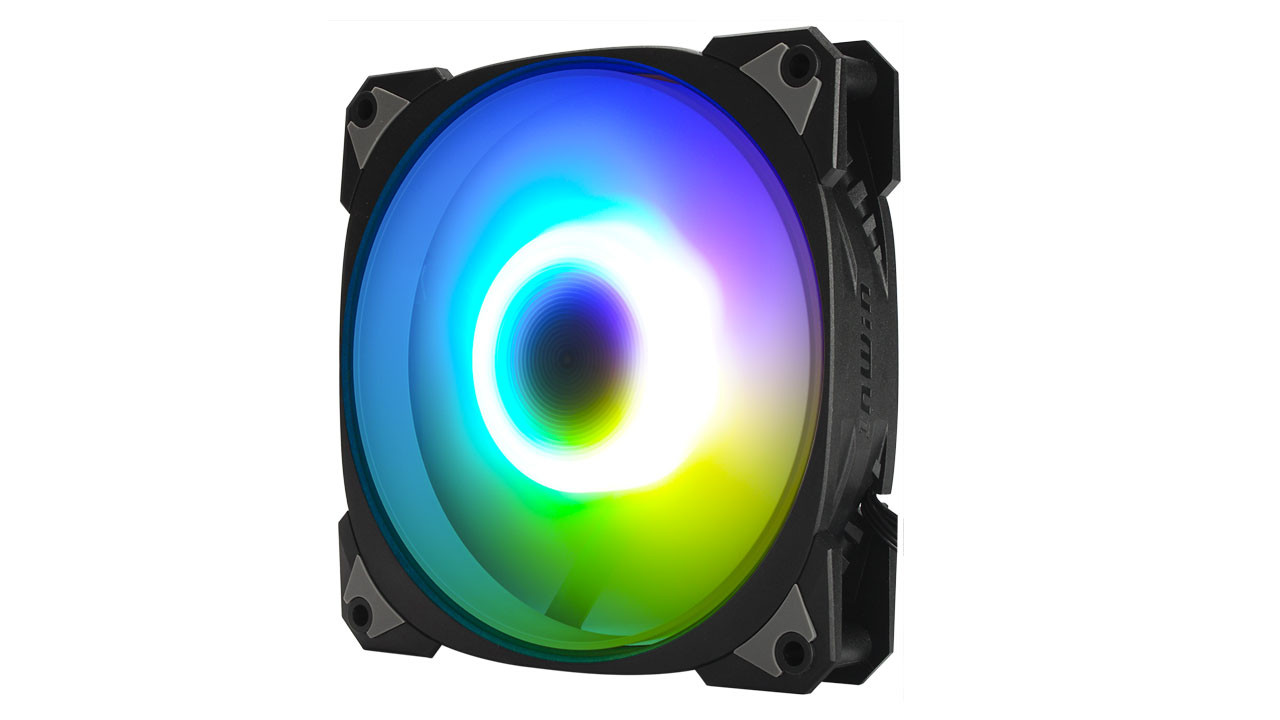

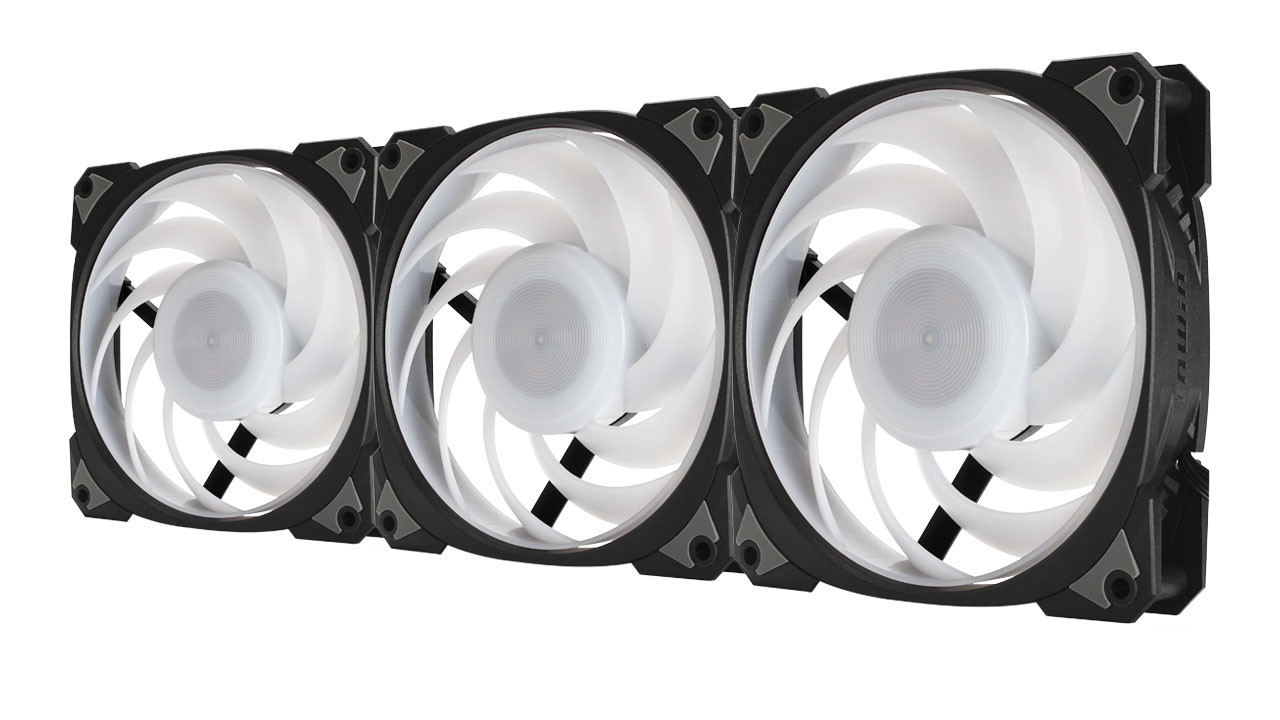

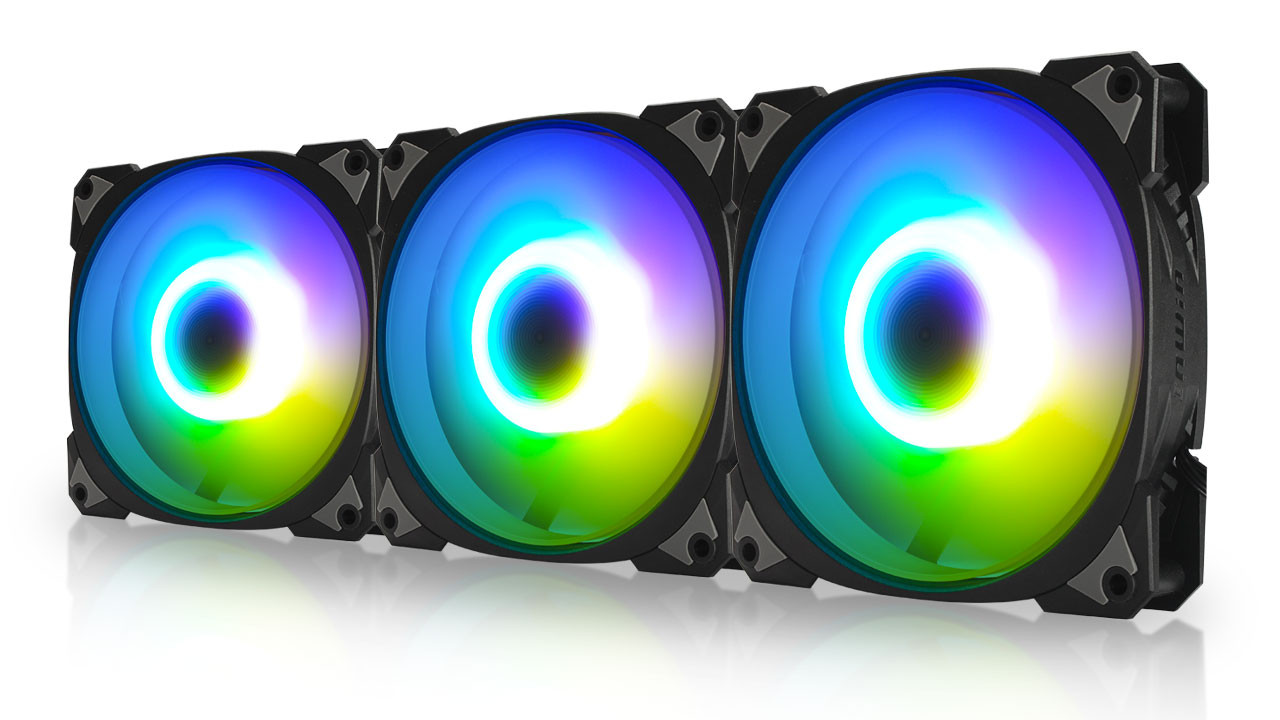

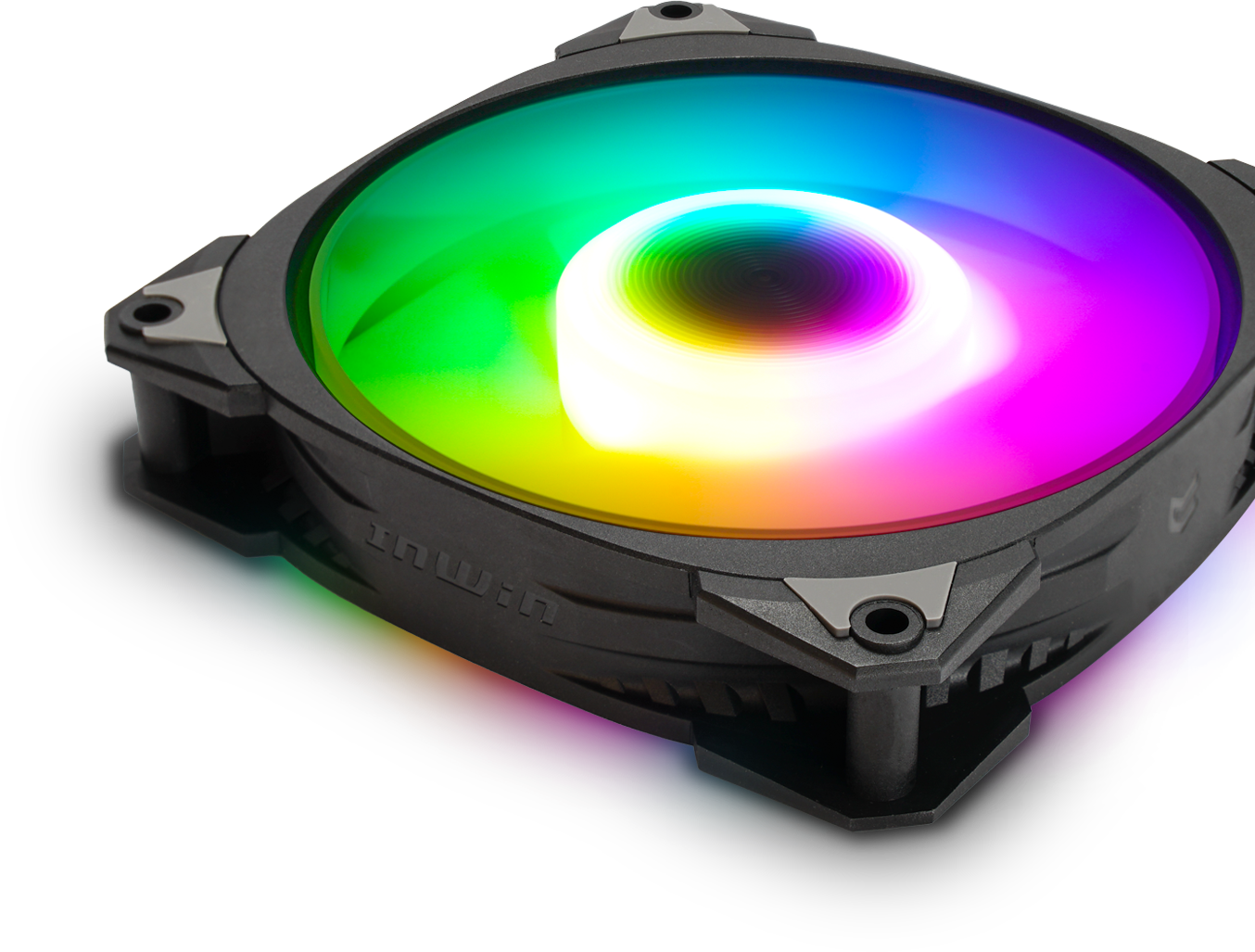

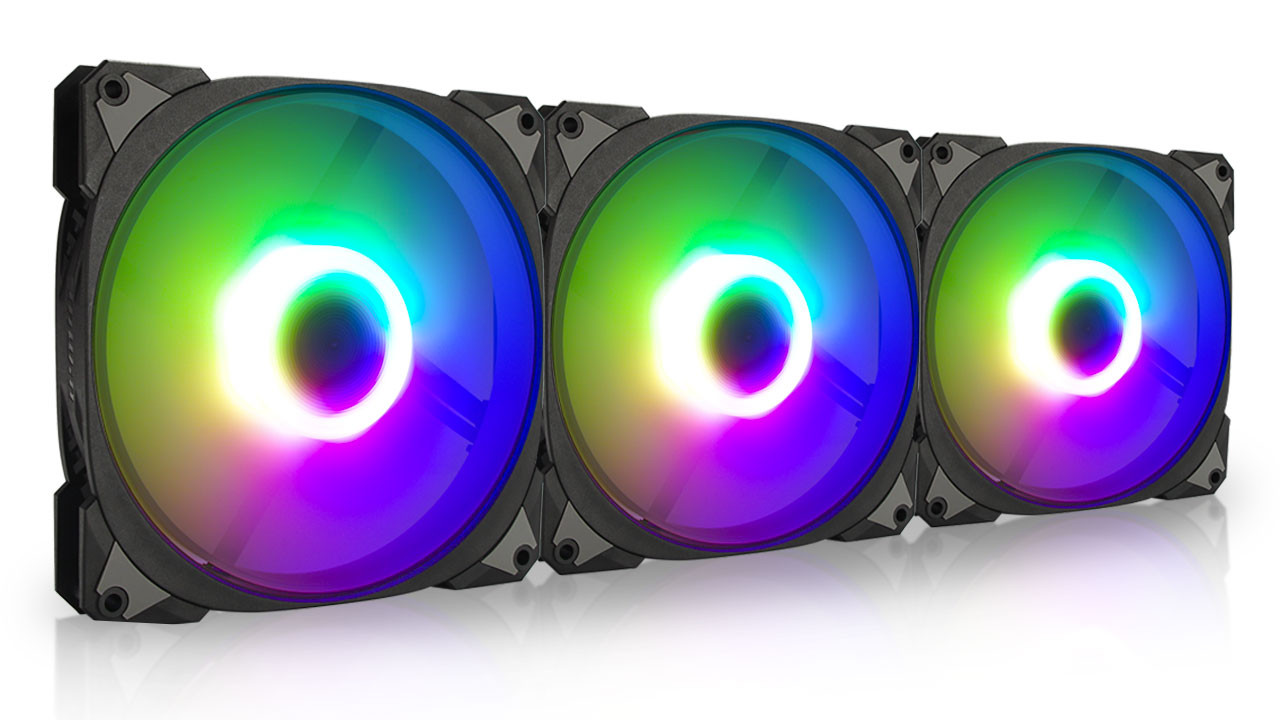

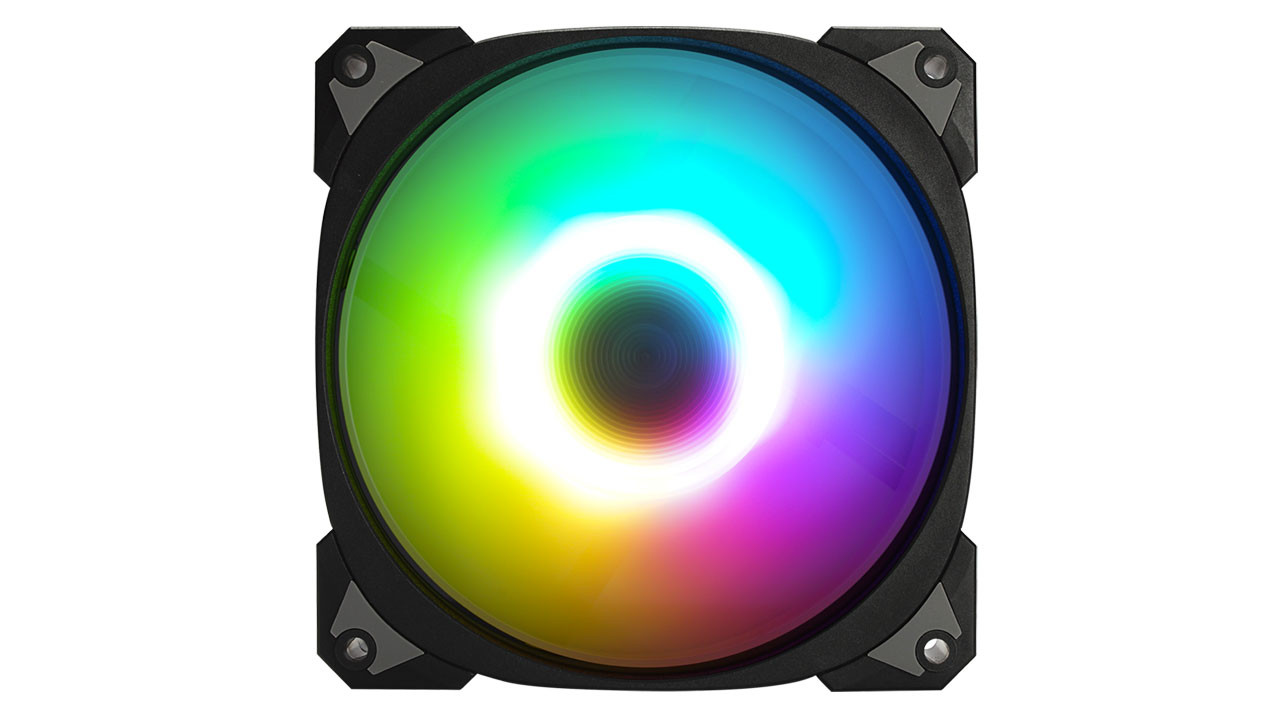

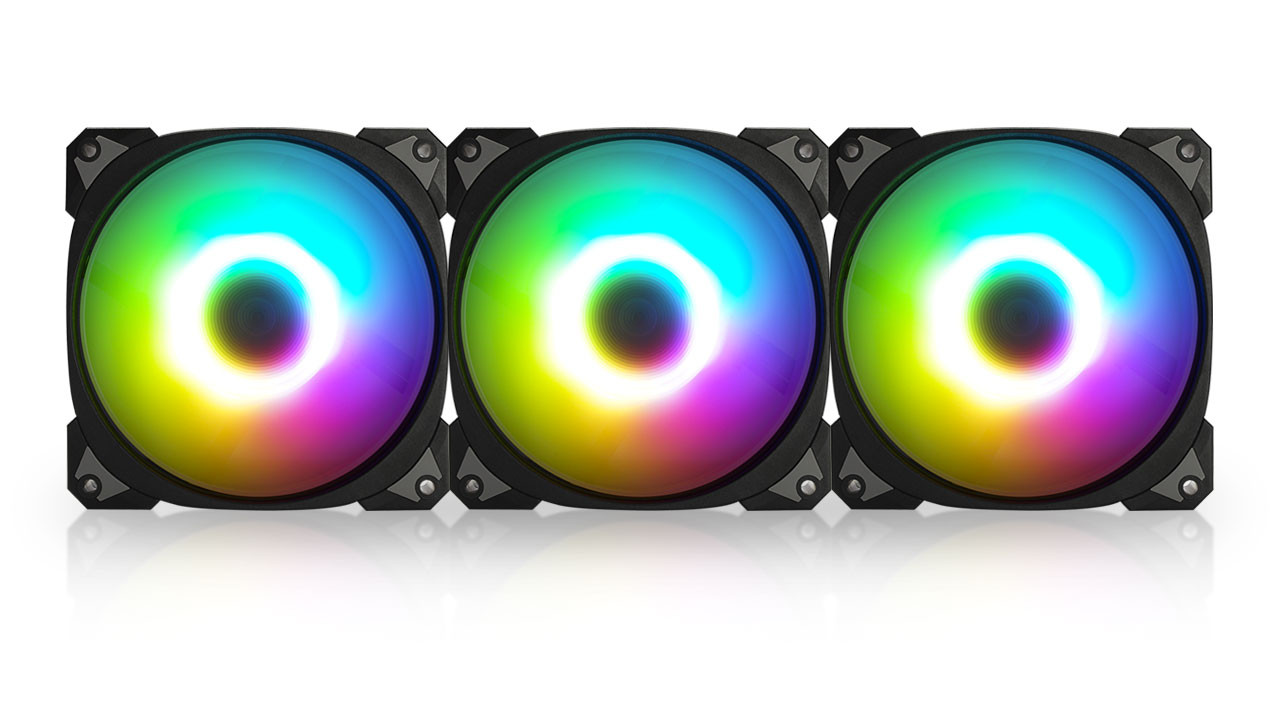

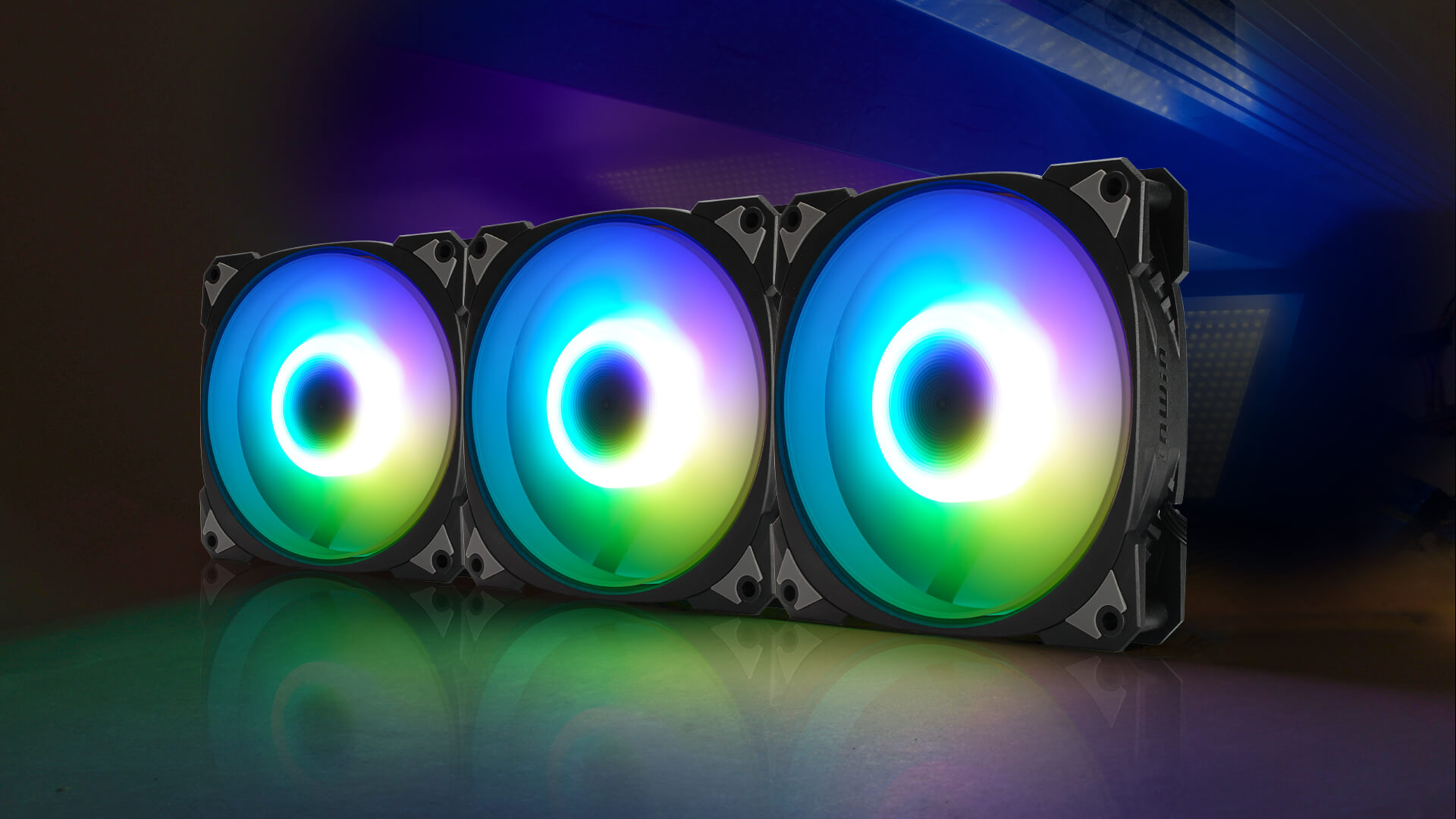

The Neptune AN fans, integrated with innovative aerodynamic blades, maintain efficiency while sustaining a silent, tranquil environment. The 8-individual-ARGB-LEDs enrich the PC’s overall visual aesthetic.
The Neptune AN fans, integrated with innovative aerodynamic blades, maintain efficiency while sustaining a silent, tranquil environment. The 8-individual-ARGB-LEDs enrich the PC’s overall visual aesthetic.

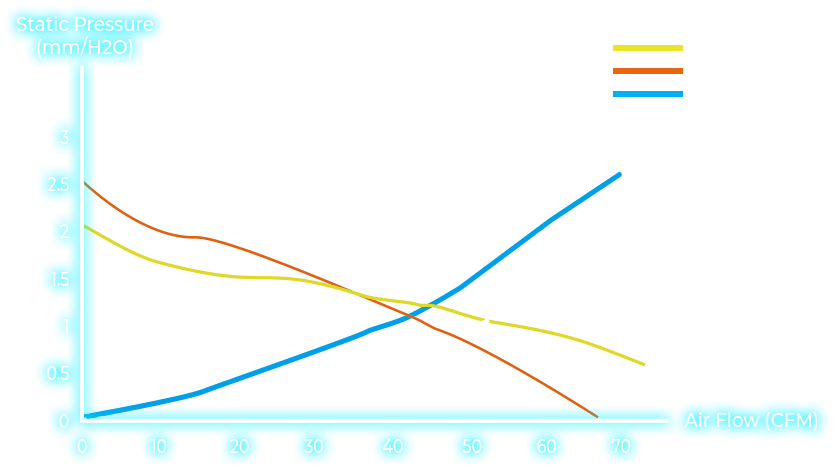

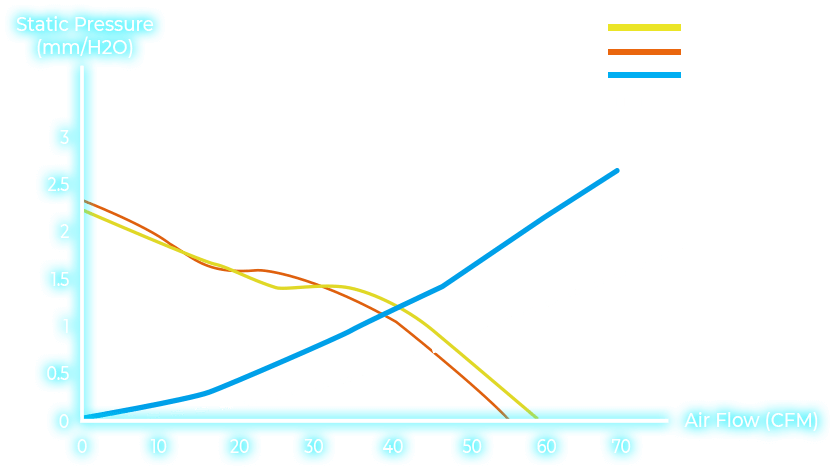

The Neptune fans underwent rigorous testing, fortifying a strong pressure-to-airflow P-Q curve. The critical middle section indicates that the Neptune fans possess high static pressure and airflow that outperforms the competition.
Besides enhancing speed, the Neptune series creates a more balanced performance, which includes reducing noise. Turbulence, resonance, and pitch from air dispersal were all taken into consideration. InWin dissected the fan's anatomy to produce these silent high static-pressure fans.

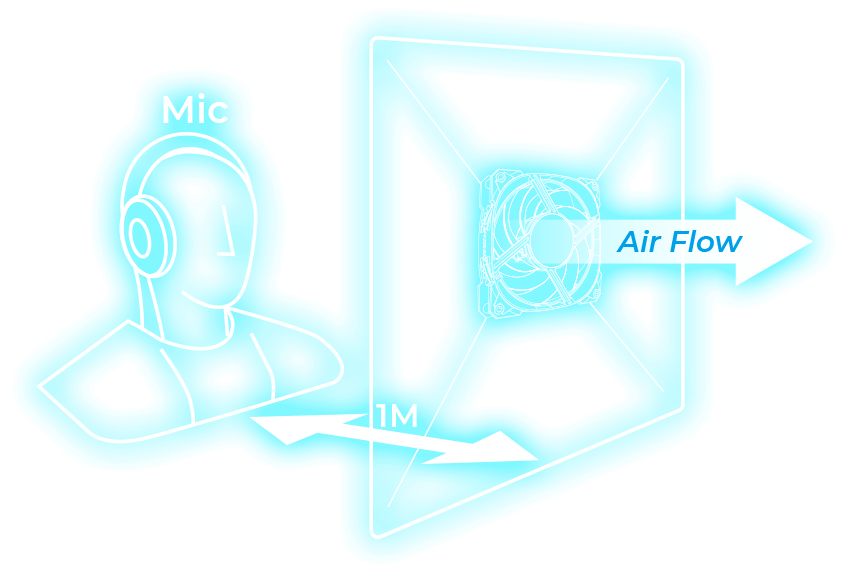

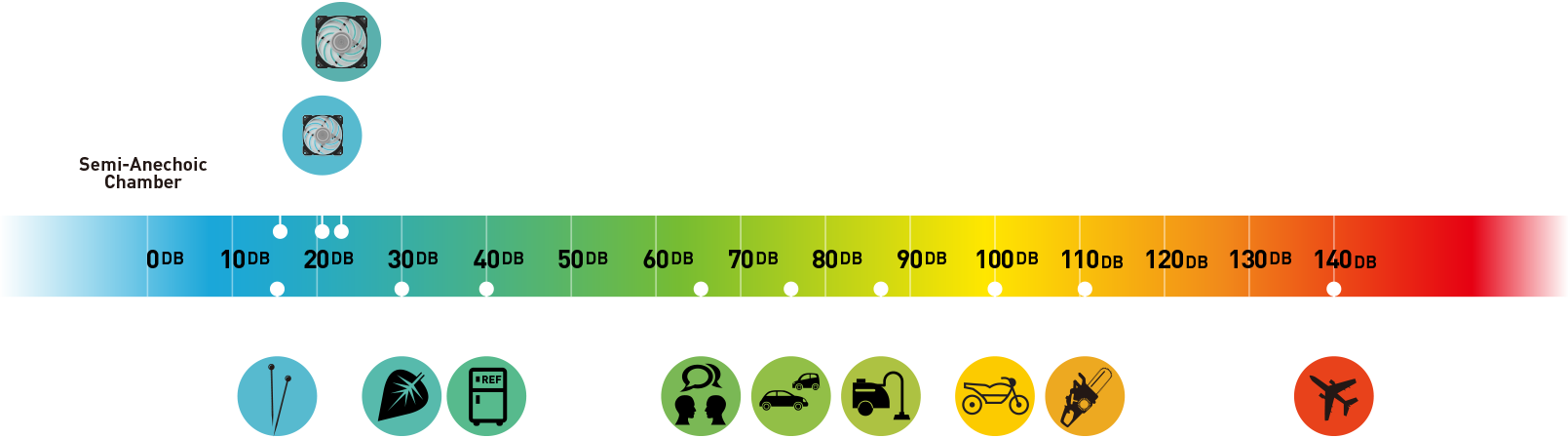

InWin’s Semi-Anechoic Chamber’s background noise level is at 17 dB(A). The sound test distance between the fan and the microphone is 1 meter.
Neptune AN Fan
Without airflow leakage

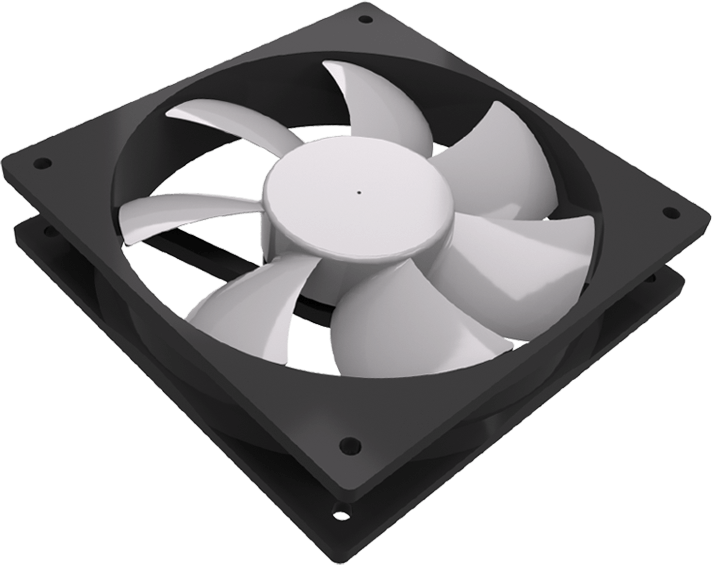

Regular Fan
With airflow leakage

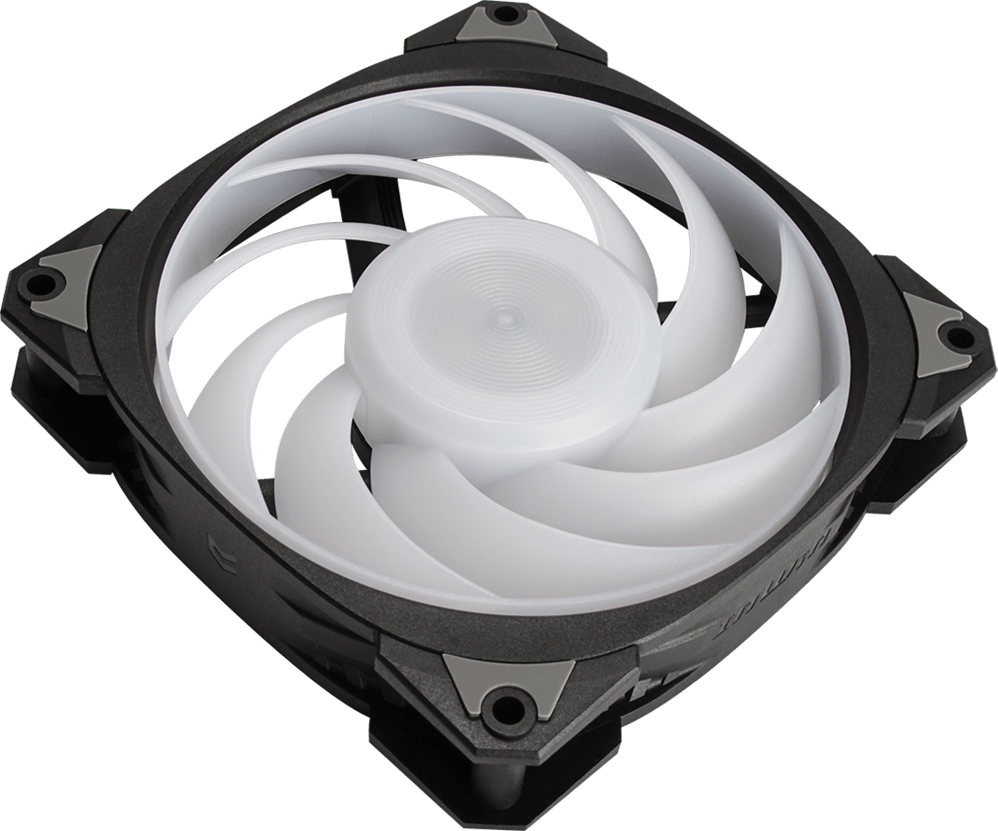

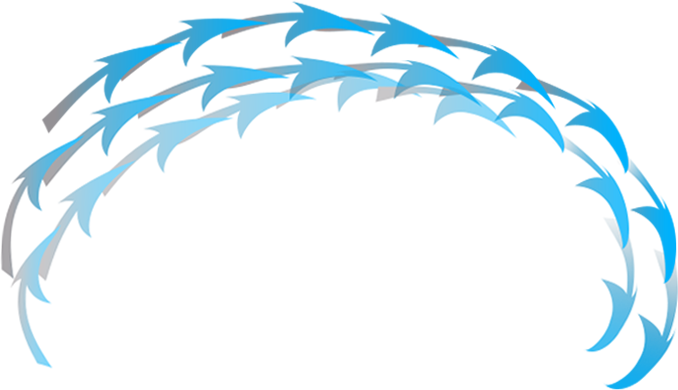

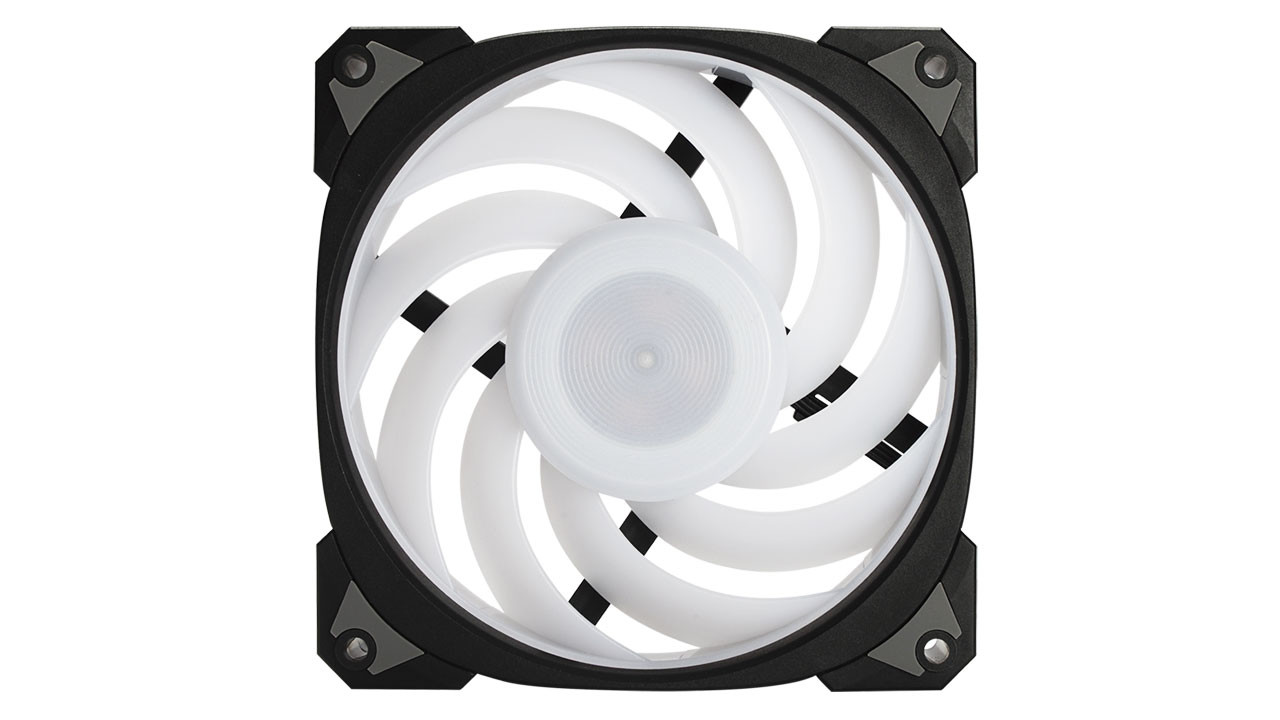

Experience quiet cooling and efficient airflow with InWin’s signature Turbine Blade design. Molding the fan blades into the frame creates a more concentrated airflow, preventing air leakage and irritating noise pollution.
Neptune AN Fan
Airflow Concentrated
Regular Fan
Airflow Dispersed

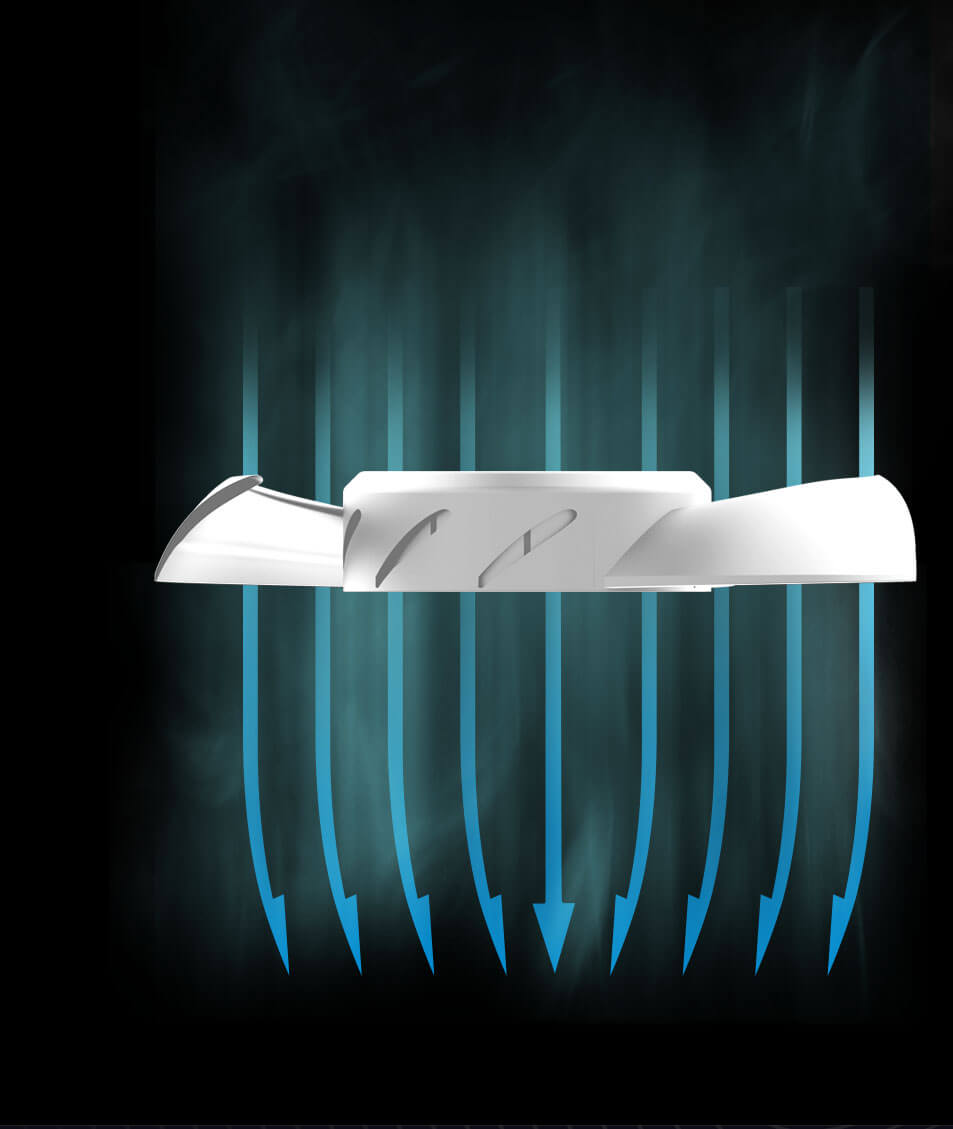

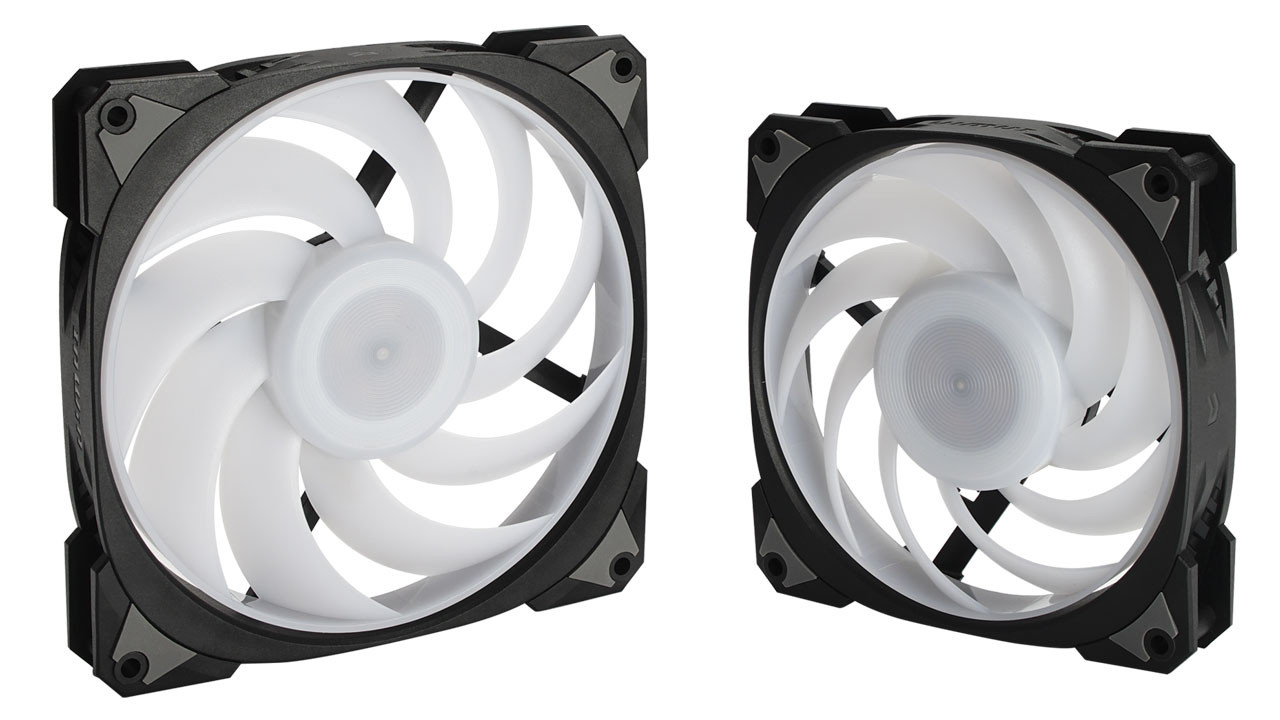

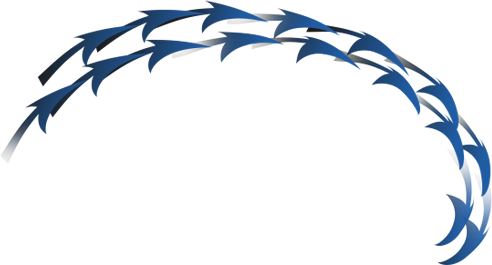

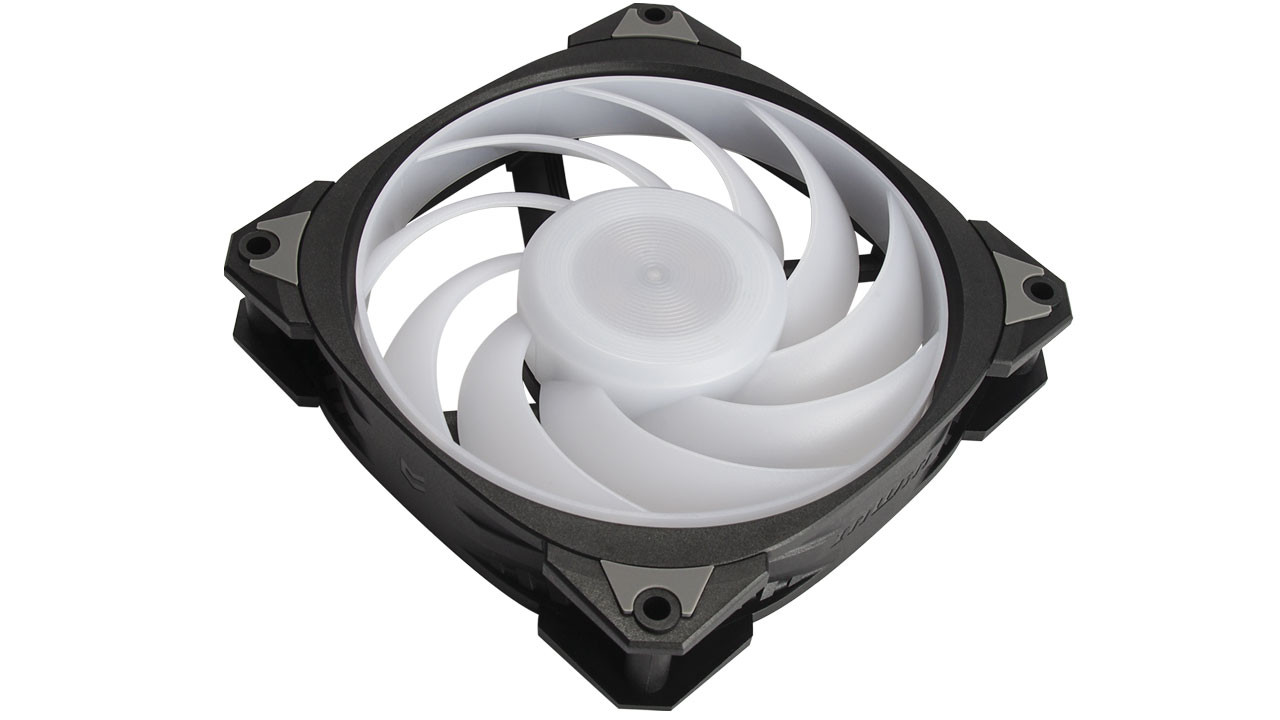

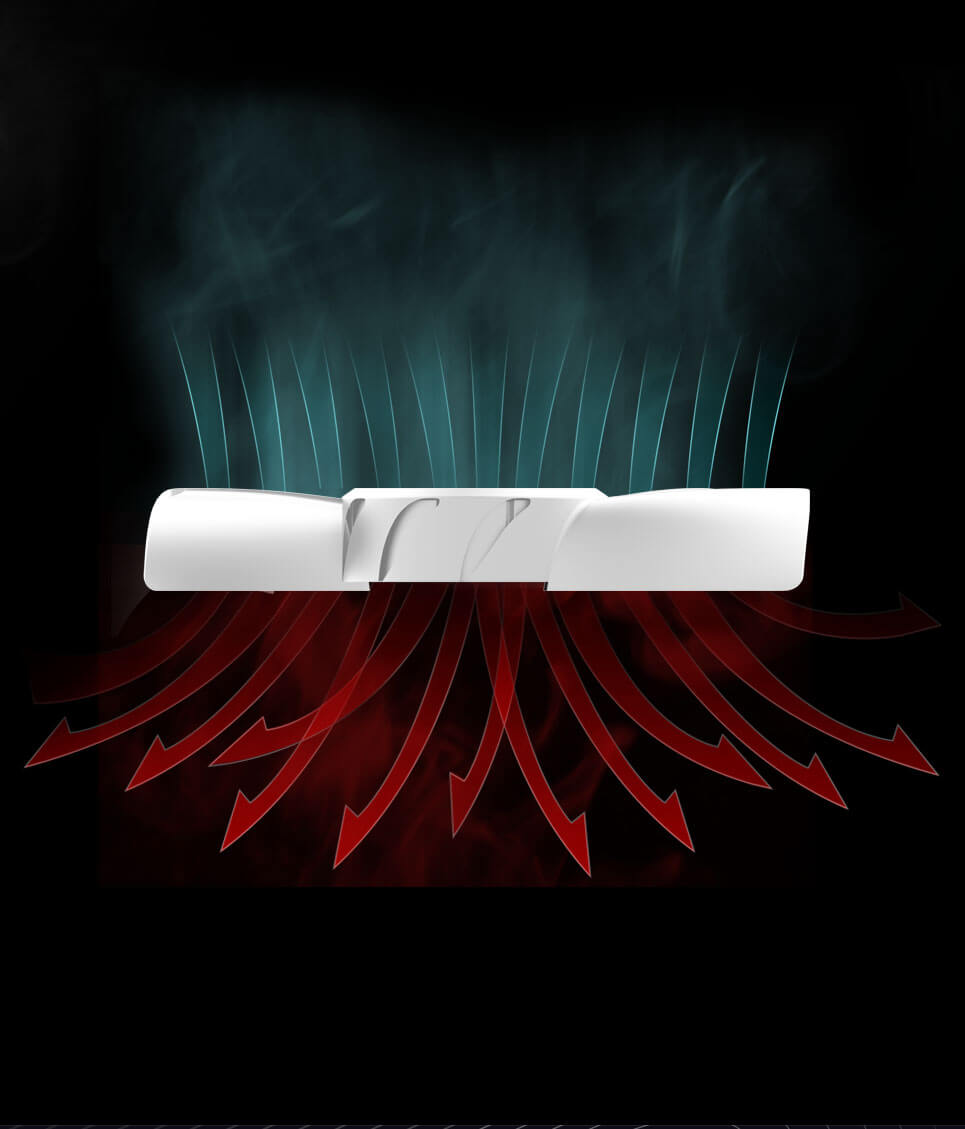

Neptune’s fan blades are angled slightly to ensure the airflow is channeled in a more focused stream. This tactical design allows the static pressure to increase.
The Neptune case fan series PWM initiates at an immediate 900 RPM. This will provide enough airflow to cool loading PC systems while producing an extremely low noise level at 17.2 dB(A).
The Neptune case fan series PWM initiates at an immediate 900 RPM. This will provide enough airflow to cool loading PC systems while producing an extremely low noise level at 17.2 dB(A).

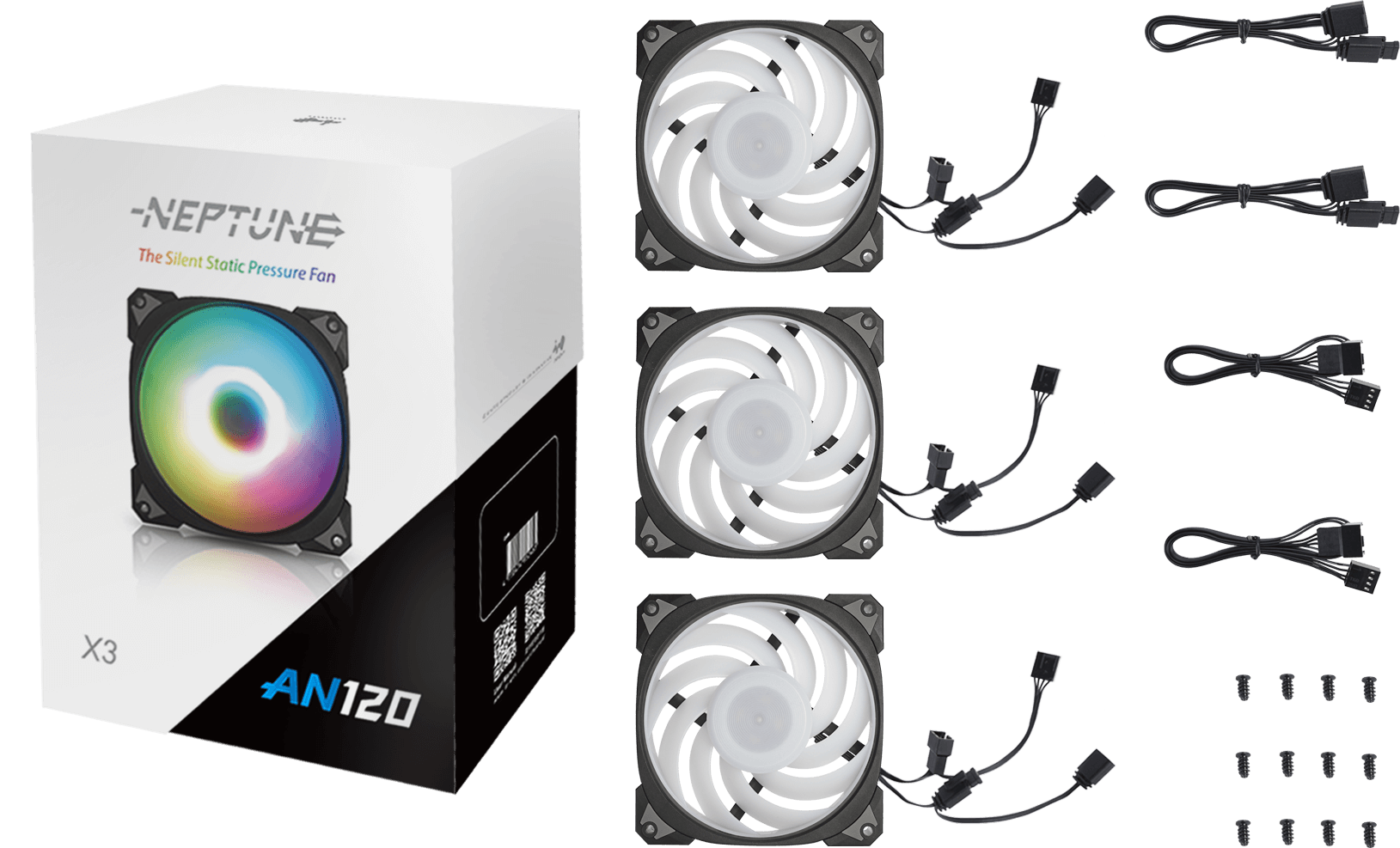

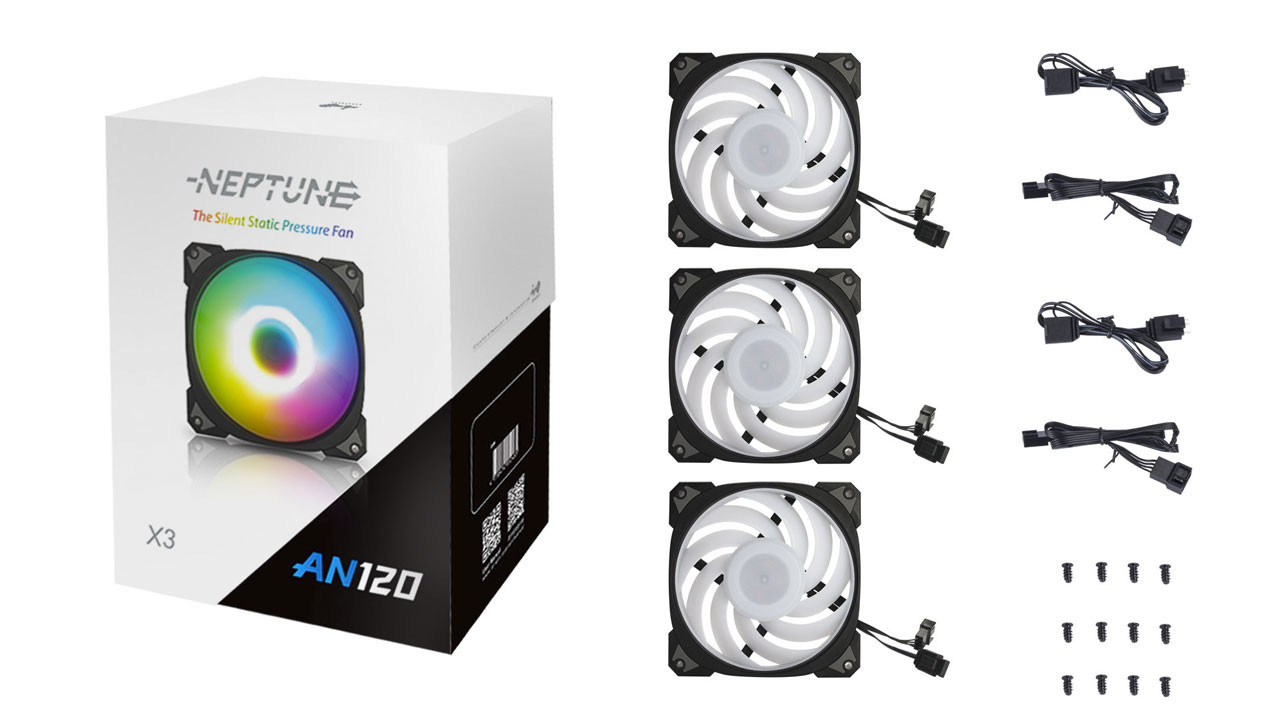

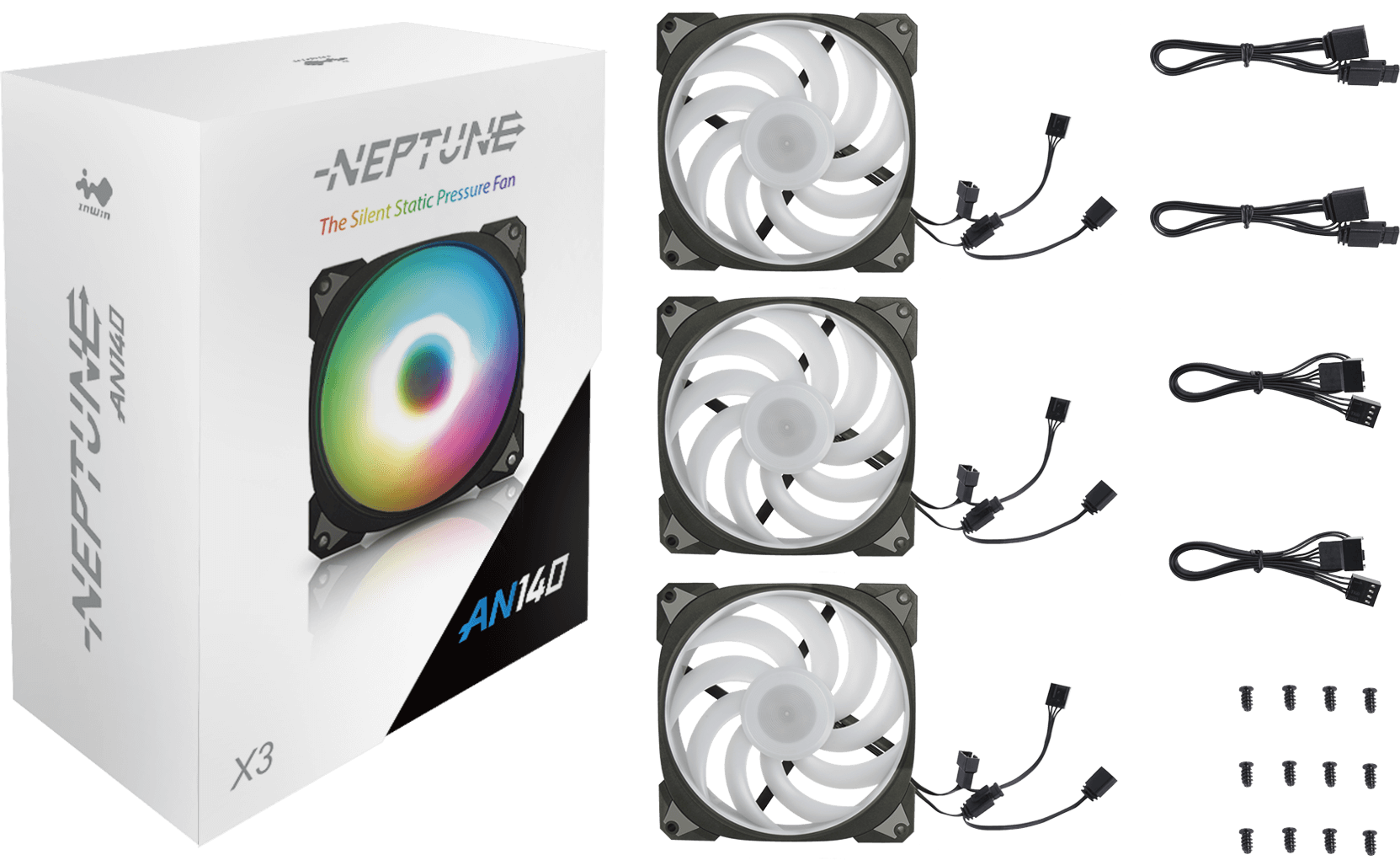

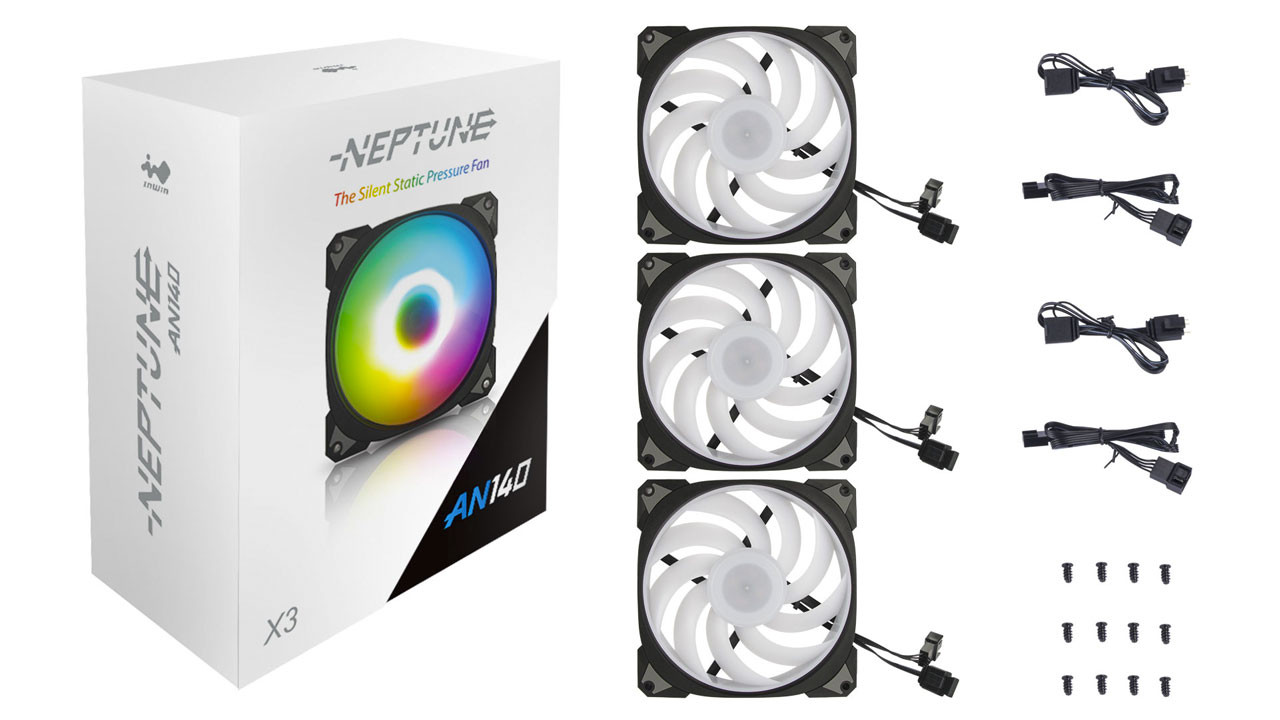

| PWM Fan Cable |  |
 |
 |
|---|---|---|---|
 |
|||
| ARGB Cable |  |
 |
 |
 |
|||
| PWM Fan Extension Cable |  |
 |
 |
| ARGB Extension Cable |  |
 |
 |

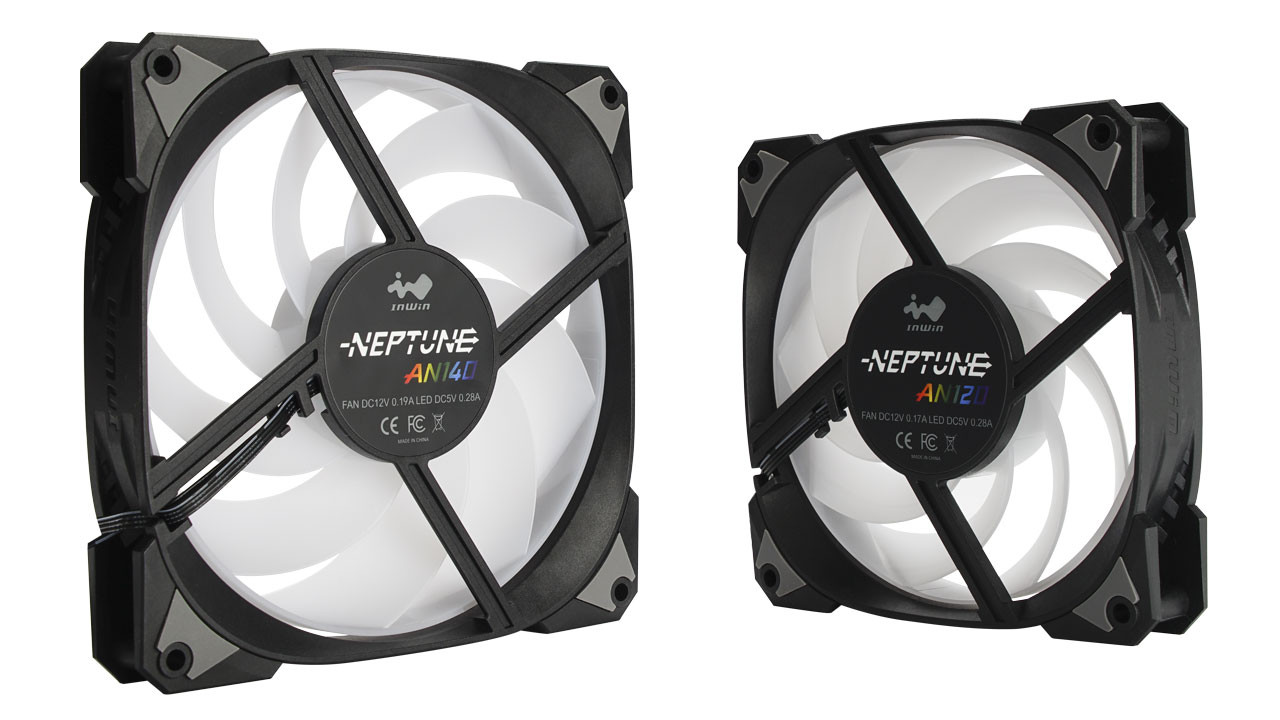

| Model | Neptune AN120 | Neptune AN140 | |
|---|---|---|---|
| Quantity Included | Triple Pack | ||
| Model Number | IW-FN-AN120-3PK | IW-FN-AN140-3PK | |
| Colors | Black | ||

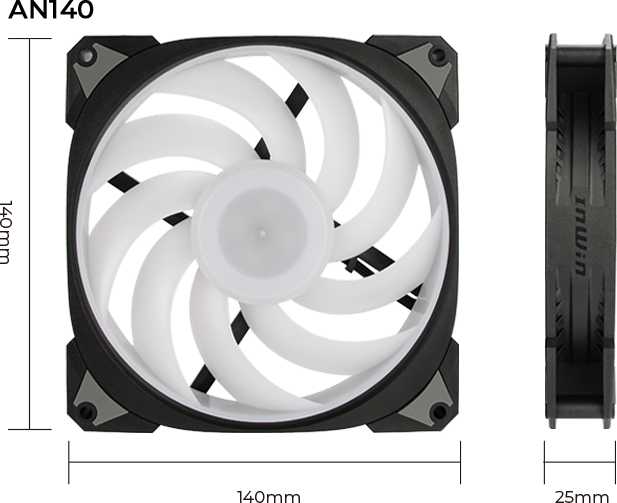

| Fan Size | 120 x 120 x 25 mm | 140 x 140 x 25 mm | |
| Materials | PBT, PC | ||
| Rated Voltage | DC 12V | ||
| Rated Power | 1.92W | 2.16W | |
| Rated Current | 0.17A | 0.19A | |
| ARGB Rated Voltage | DC 5V | ||
| ARGB Rated Power | 1.4W | ||
| ARGB Rated Current | 0.28A | ||
| Speed Mode | PWM 900 - 2200 +/- 10% RPM | PWM 900 - 1800 +/- 10% RPM | |
| Air Flow | 23.87 - 60.1 CFM | 41.67 - 88.89 CFM | |
| Air Pressure | 0.36 - 2.27 mm / H2O | 0.49 - 2.18 mm / H2O | |
| LED | Addressable RGB | ||
| Connector (Fan to Fan) | Non-Modular Cables | ||
| Connector to M/B | 4-Pin (12V, PWM), 3-Pin (5V, ARGB) | ||
| Noise Level | 20.5 dB(A) (Normal) | 24.5 dB(A) (Normal) | |
| Bearing Type | Long Lifespan Sleeve Bearing | ||
| MTBF | >36,000 hrs. | ||
| Net Weight | 541 g / 1.19 lbs | 629 g / 1.39 lbs | |
| Gross Weight | 803 g / 1.77 lbs | 946 g / 2.09 lbs | |
| Package Dimensions (L x W x H) |
131 x 91 x 170 mm 5.15 x 3.58 x 6.7" |
151 x 91 x 190 mm 5.9 x 3.58 x 7.48" |
|
| Warranty | 3 Years | ||
| * InWin's products comply with RoHS regulations. * Specifications may vary based on different regions. |
|||
