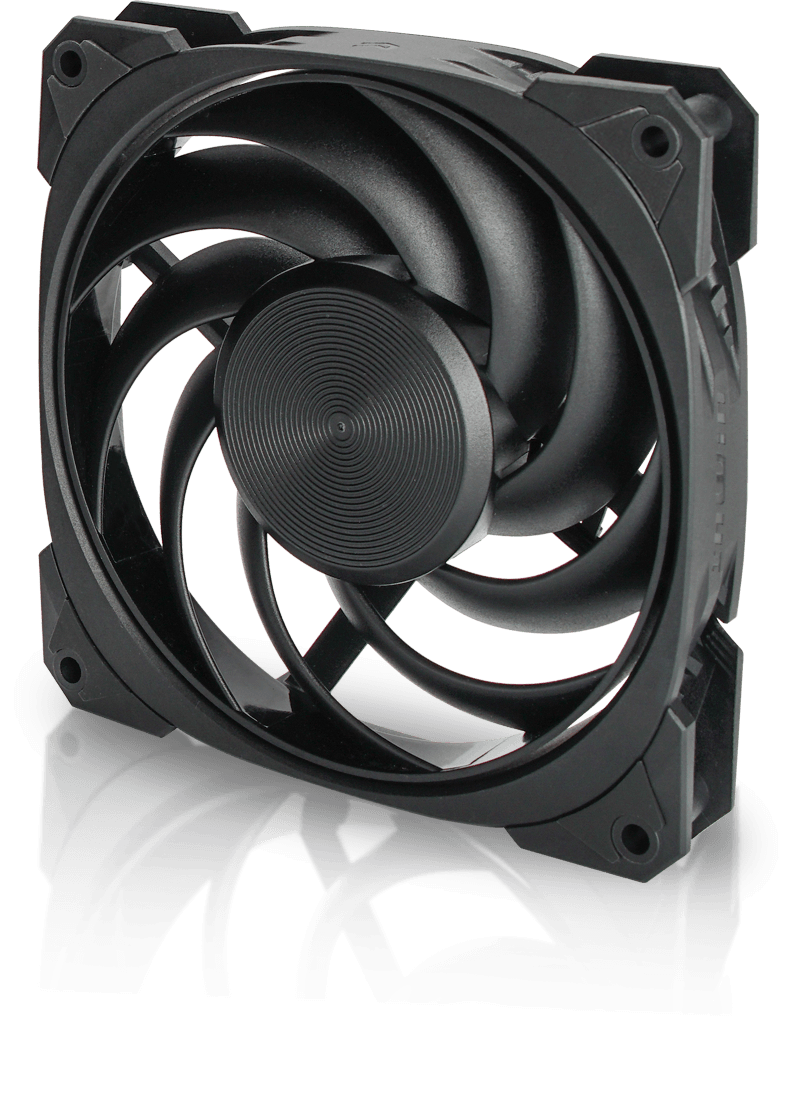

Silence Has Never Been Cooler
The optimal fan blade structure utilizes noise-reduction technology without sacrificing cooling efficiency. The pitch-dark blades channel the aura of deep space and create frigid temperatures to match.
The optimal fan blade structure utilizes noise-reduction technology without sacrificing cooling efficiency. The pitch-dark blades channel the aura of deep space and create frigid temperatures to match.
The Neptune fans underwent rigorous testing, fortifying a strong pressure-to-airflow P-Q curve. The critical middle section indicates that the Neptune fans possess high static pressure and airflow that outperforms the competition.
Besides enhancing speed, the Neptune series creates a more balanced performance, which includes reducing noise. Turbulence, resonance, and pitch from air dispersal were all taken into consideration. InWin dissected the fan's anatomy to produce these silent high static-pressure fans.
InWin’s Semi-Anechoic Chamber’s background noise level is at 17 dB(A). The sound test distance between the fan and the microphone is 1 meter.

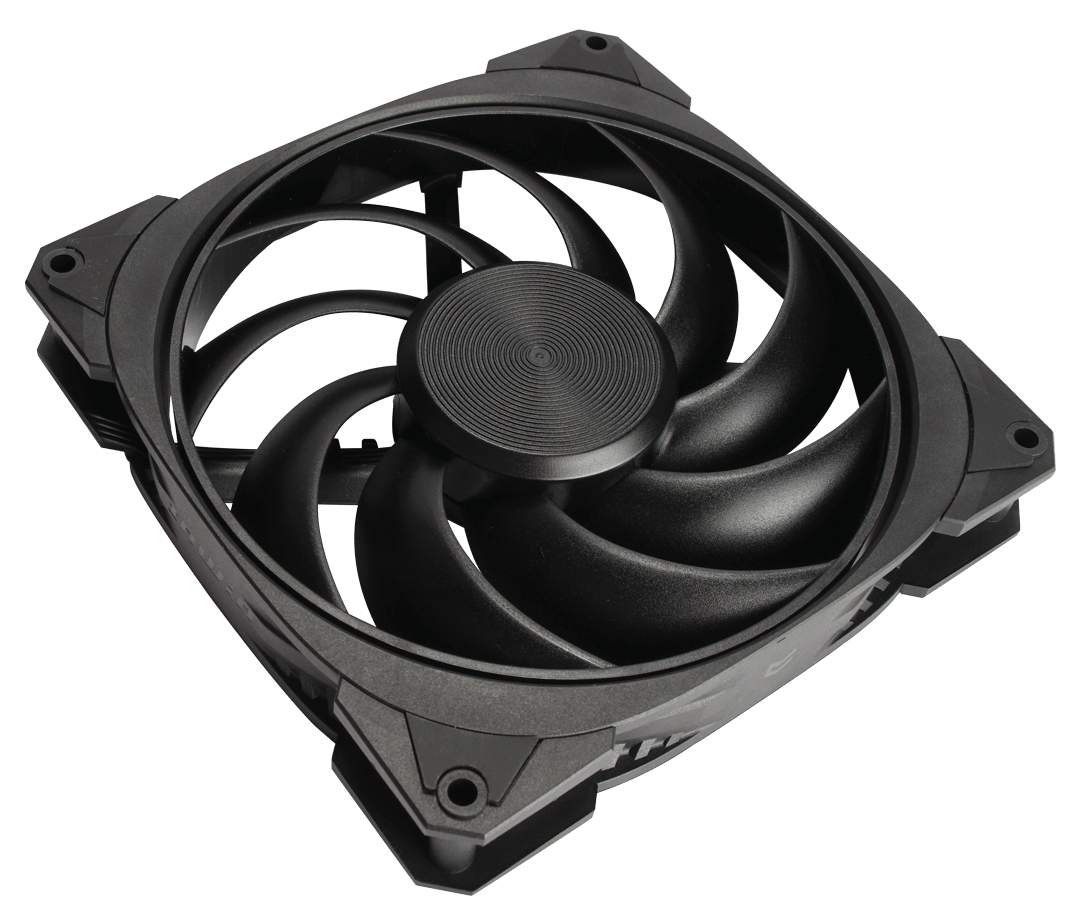

Neptune DN Fan
Without airflow leakage

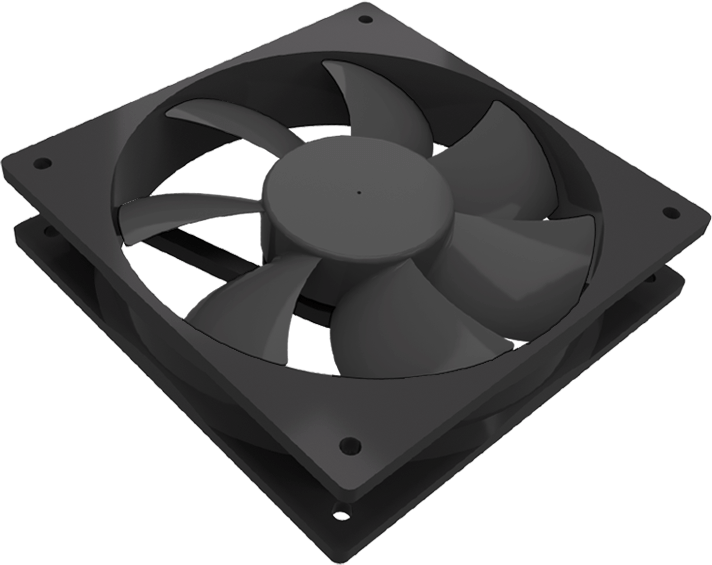

Regular Fan
With airflow leakage

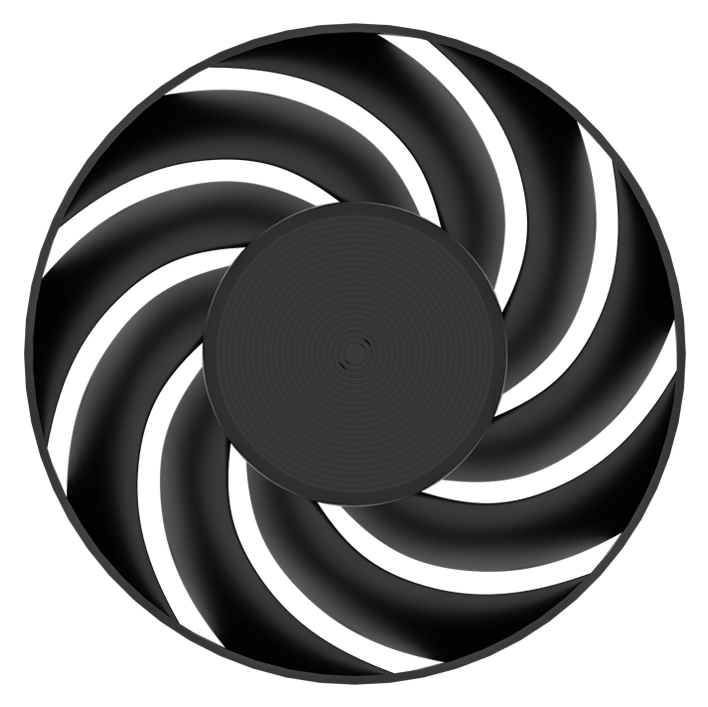

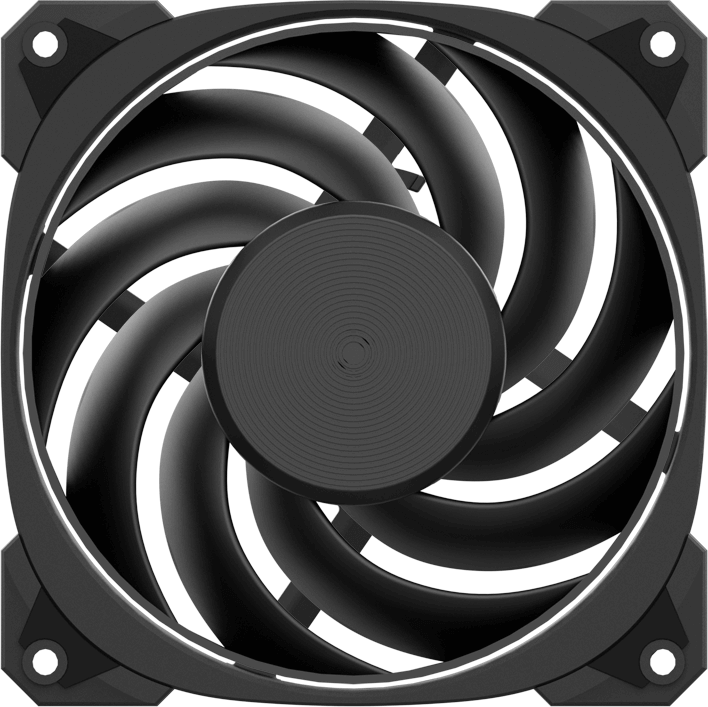

Experience quiet cooling and efficient airflow with InWin’s signature Turbine Blade design. Molding the fan blades into the frame creates a more concentrated airflow, preventing air leakage and irritating noise pollution.

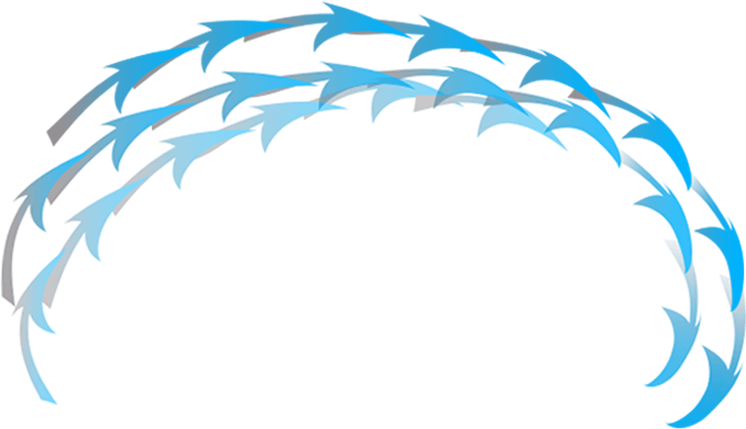

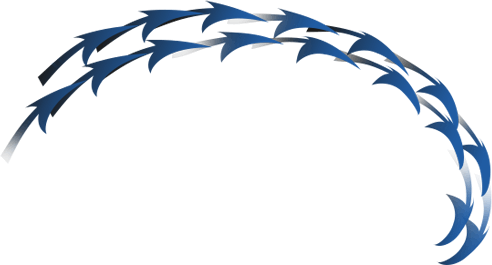

Neptune DN Fan
Airflow Concentrated
Regular Fan
Airflow Dispersed

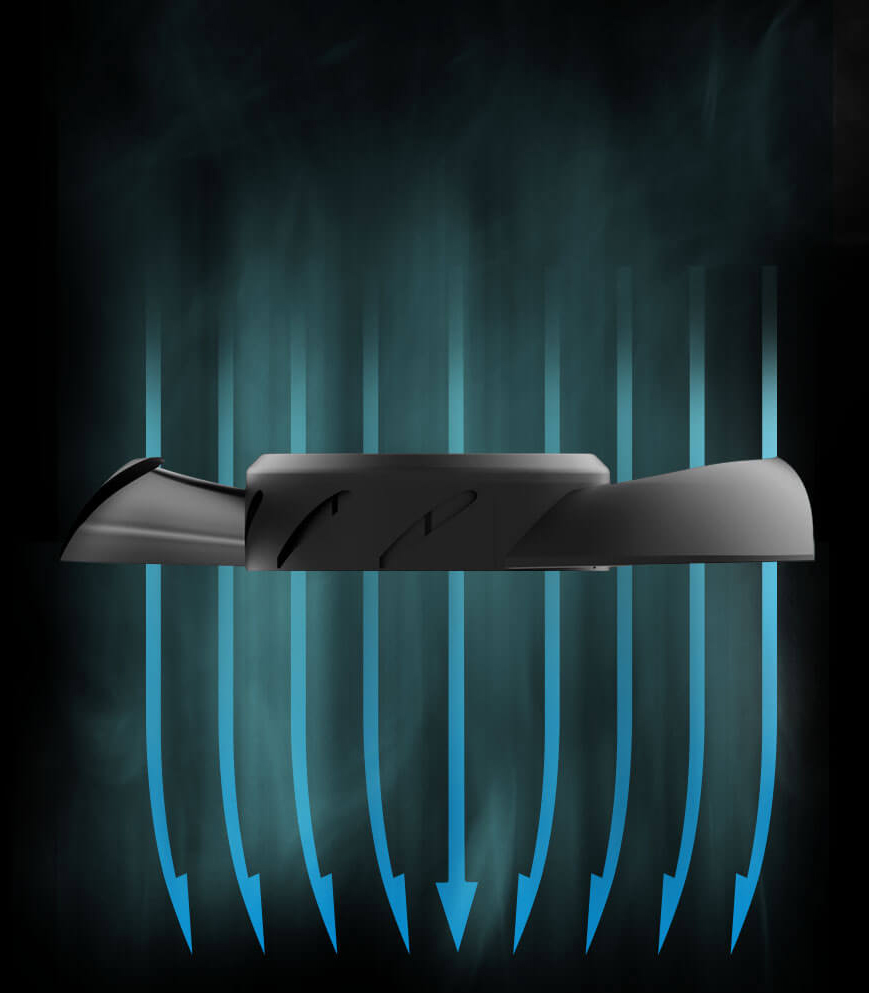

Neptune’s fan blades are angled slightly to ensure the airflow is channeled in a more focused stream. This tactical design allows the static pressure to increase.

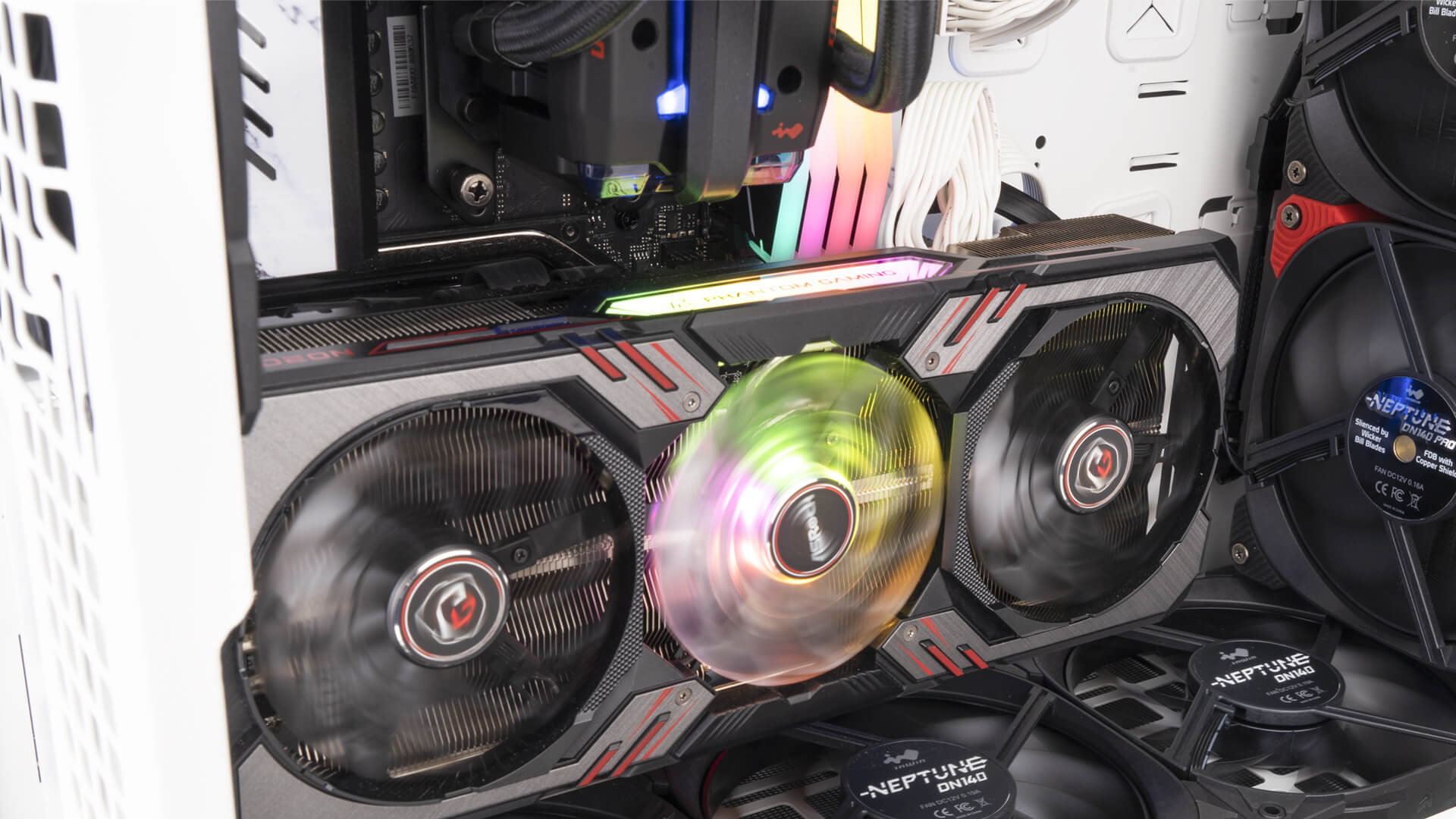

The Neptune case fan series PWM initiates at an immediate 900 RPM. This will provide enough airflow to cool loading PC systems while producing an extremely low noise level at 17.2 dB(A).

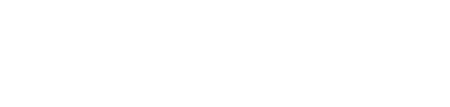

PWM Fan Cable |
---|

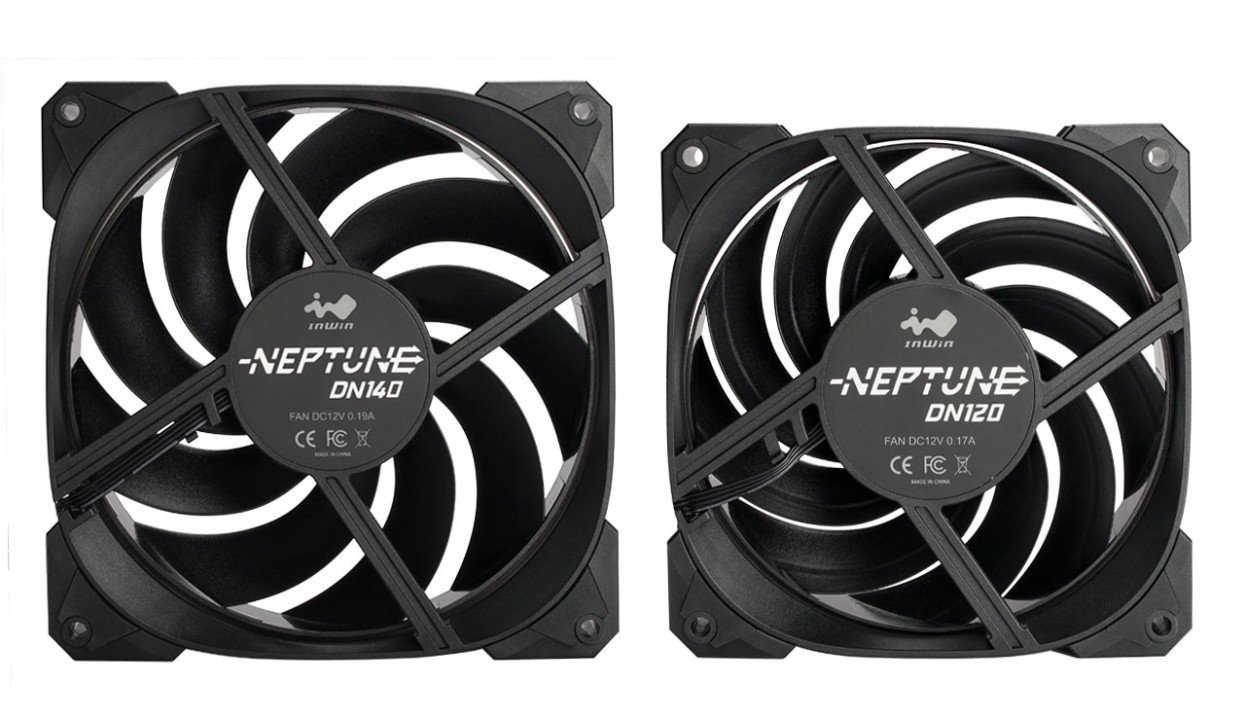

Model | Neptune DN120 | Neptune DN140 | |
---|---|---|---|

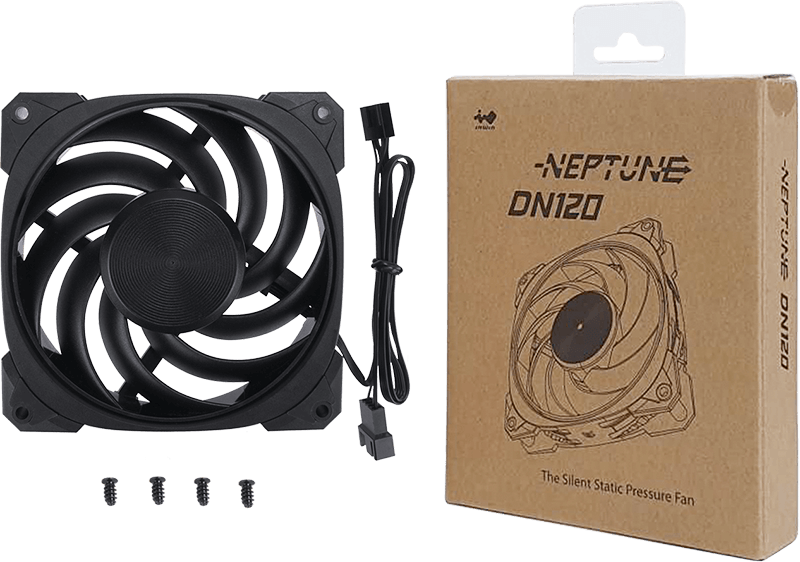

Quantity Included | Single Pack | ||
Model Number | IW-FN-DN120-1PK | IW-FN-DN140-1PK | |
Colors | Black | ||

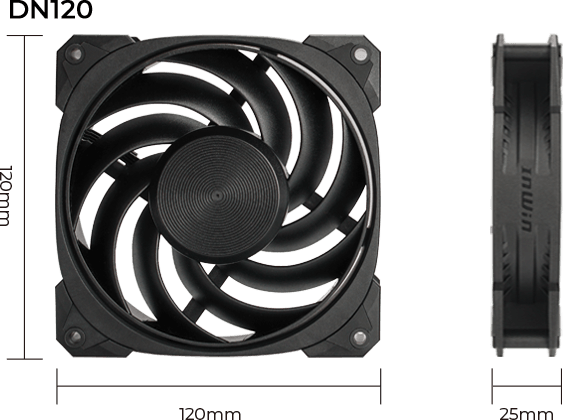

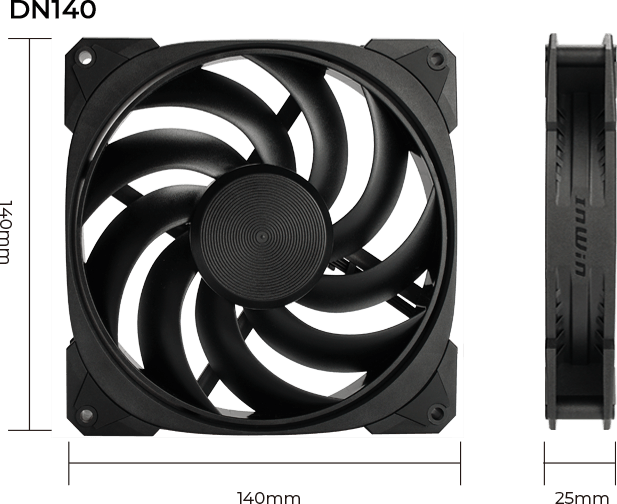

Fan Size | 120 x 120 x 25 mm | 140 x 140 x 25 mm | |
Materials | PBT, PC | ||
Rated Voltage | DC 12V | ||
Rated Power | 1.92W | 2.16W | |
Rated Current | 0.17A | 0.19A | |
Speed Mode | PWM 900 - 2200 +/- 10% RPM | PWM 900 - 1800 +/- 10% RPM | |
Air Flow | 23.87 - 60.1 CFM | 41.67 - 88.89 CFM | |
Air Pressure | 0.36 - 2.27 mm / H2O | 0.49 - 2.18 mm / H2O | |
Connector (Fan to Fan) | Non-Modular Cables | ||
Connector to M/B | 4-Pin (12V, PWM) | ||
Noise Level | 20.5 dB(A) (Normal) | 24.5 dB(A) (Normal) | |
Bearing Type | Long Lifespan Sleeve Bearing | ||
MTBF | >36,000 hrs. | ||
Net Weight | 180 g / 0.4 lbs | 210 g / 0.46 lbs | |
Gross Weight | 215 g / 0.47 lbs | 250 g / 0.55 lbs | |
Package Dimensions (L x W x H) |
125 x 30 x 150 mm 4.92 x 1.18 x 5.9" |
1147 x 28 x 170 mm 5.79 x 1.1 x 6.7" |
|
Warranty | 3 Years | ||
* InWin's products comply with RoHS regulations. * Specifications may vary based on different regions. |
