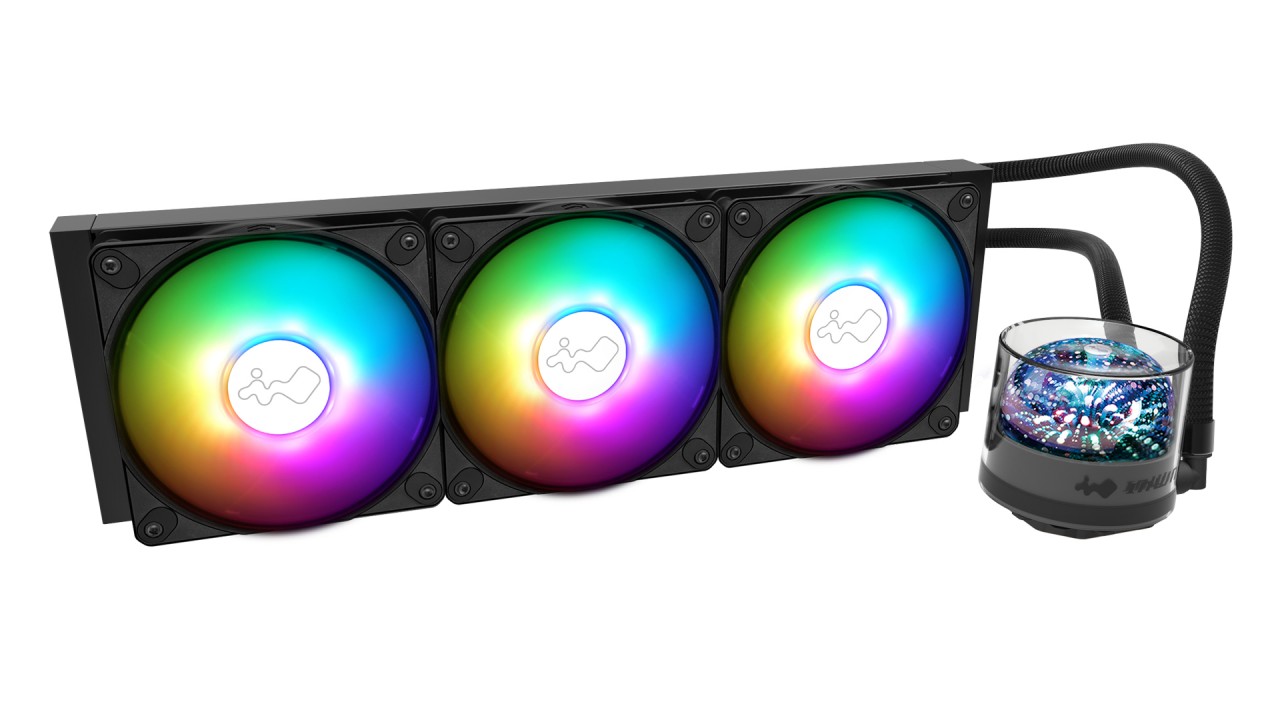

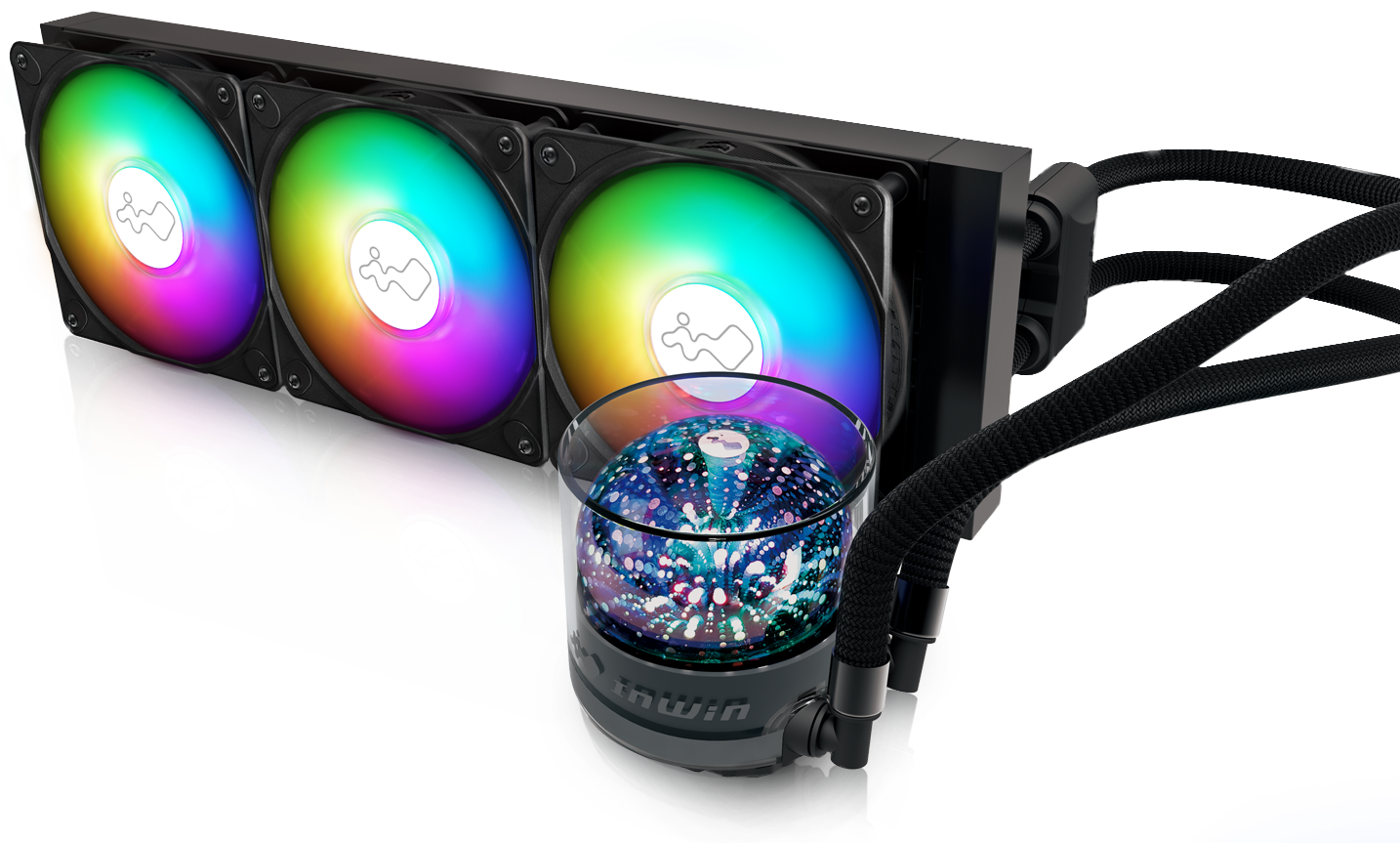

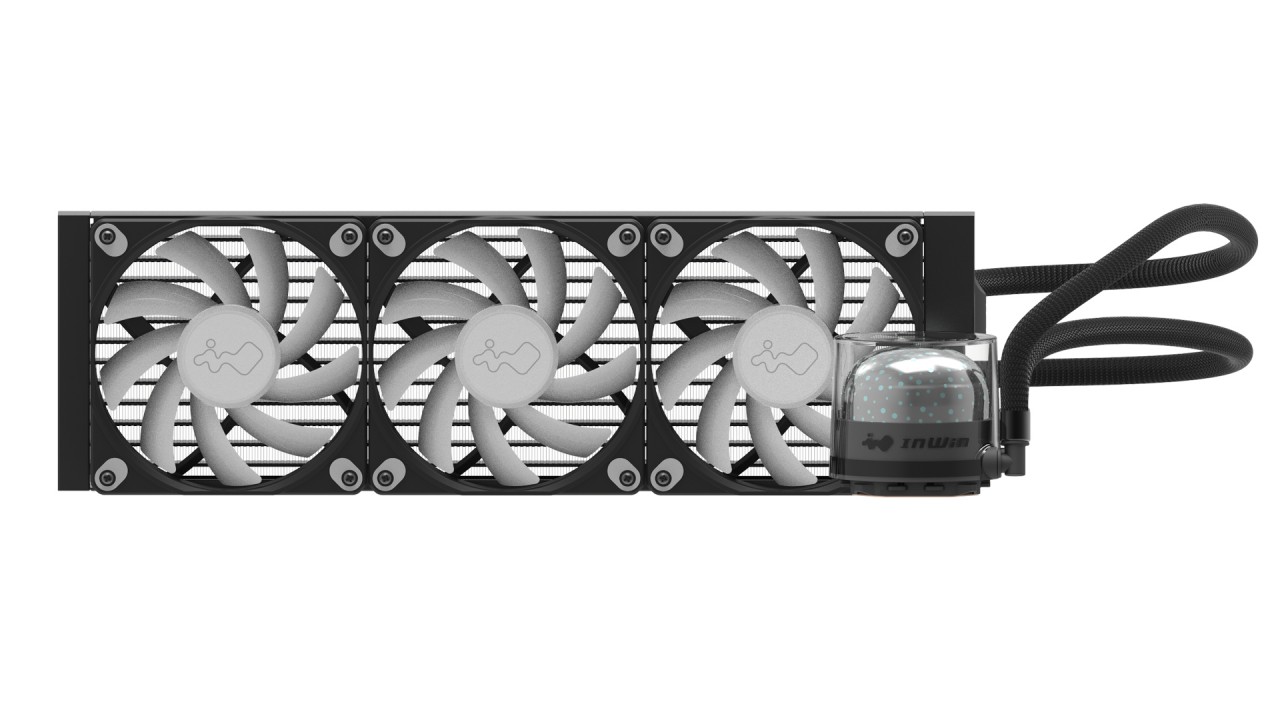

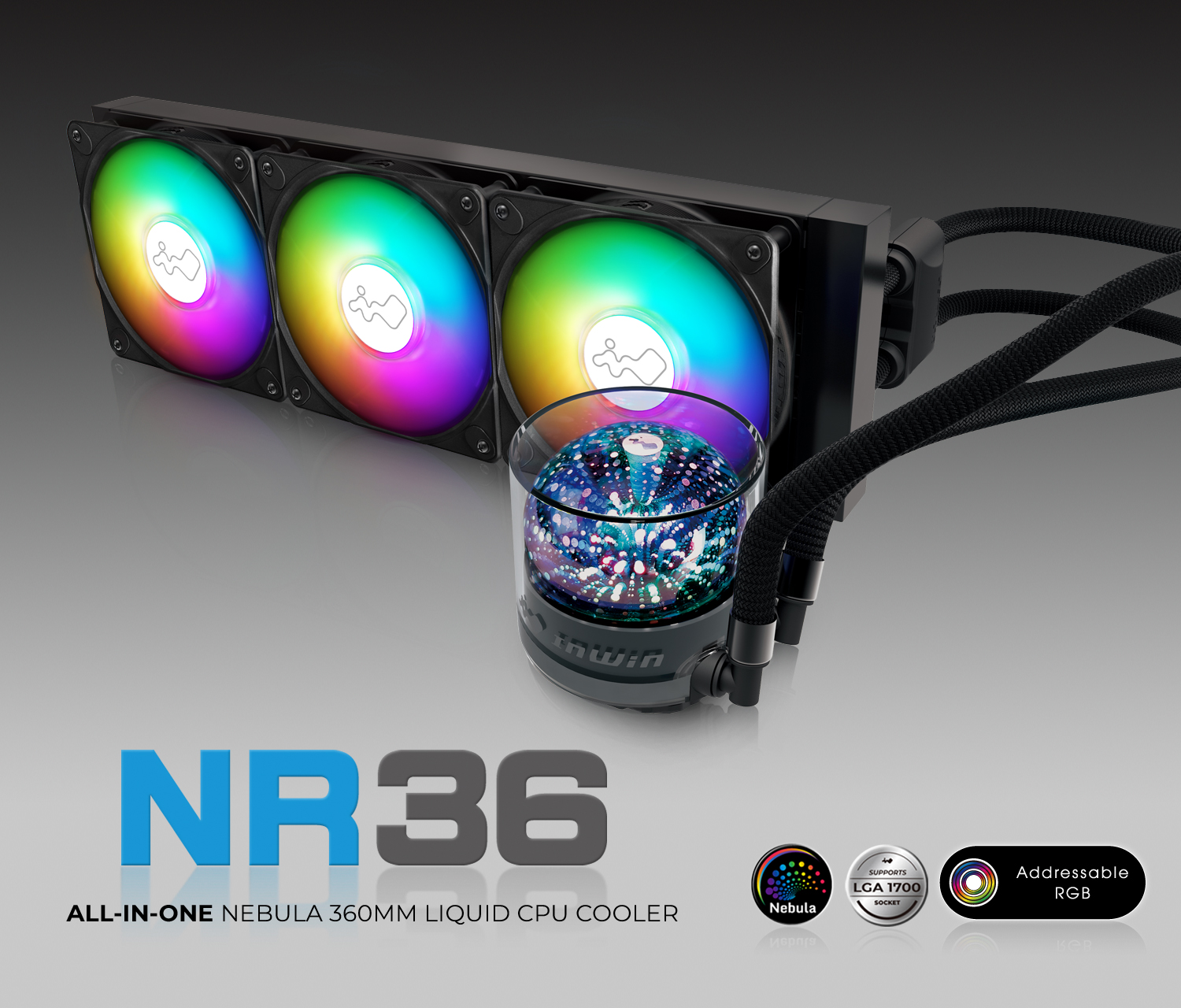

NR36

All-In-One Nebula Liquid CPU Cooler

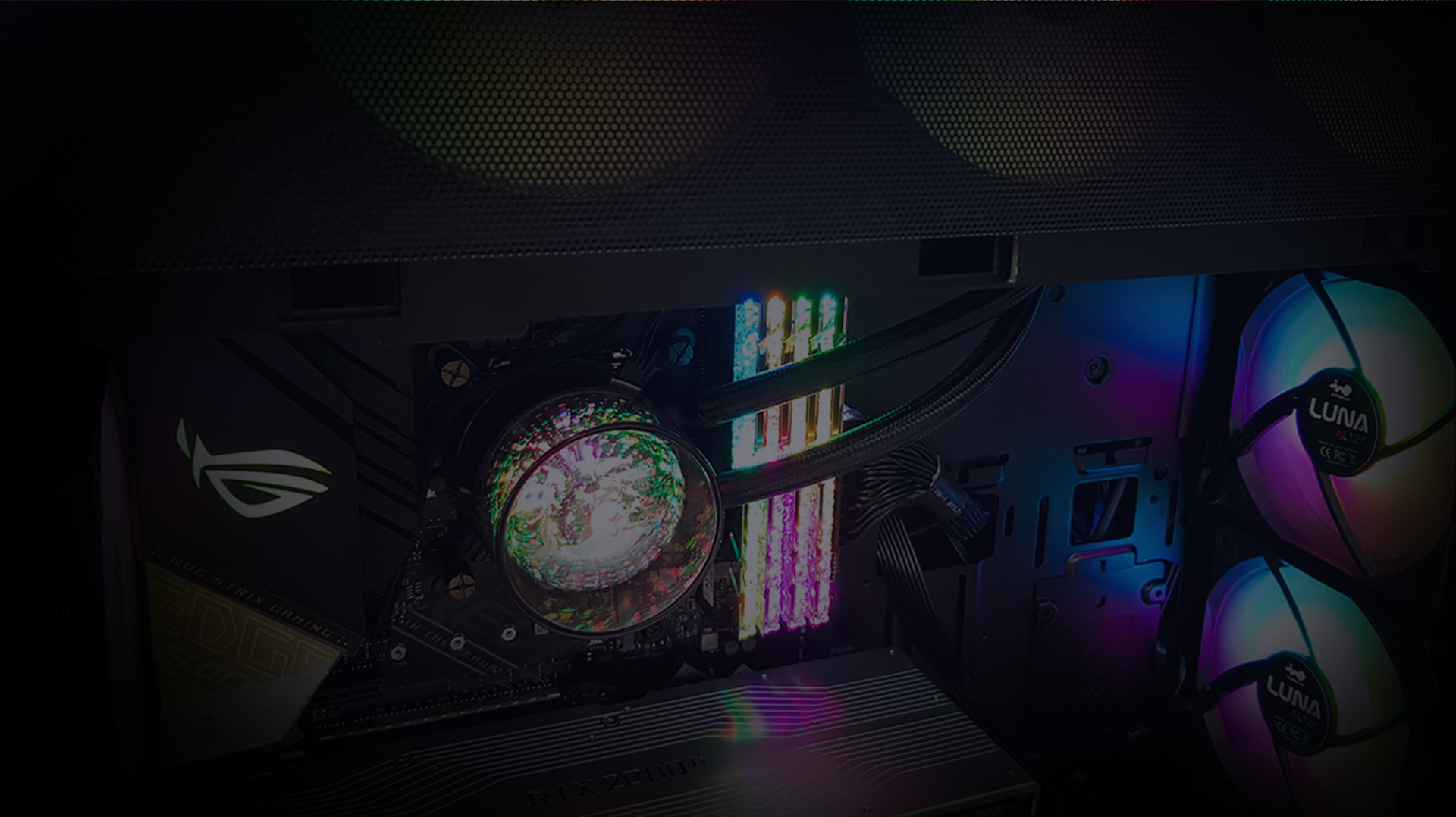

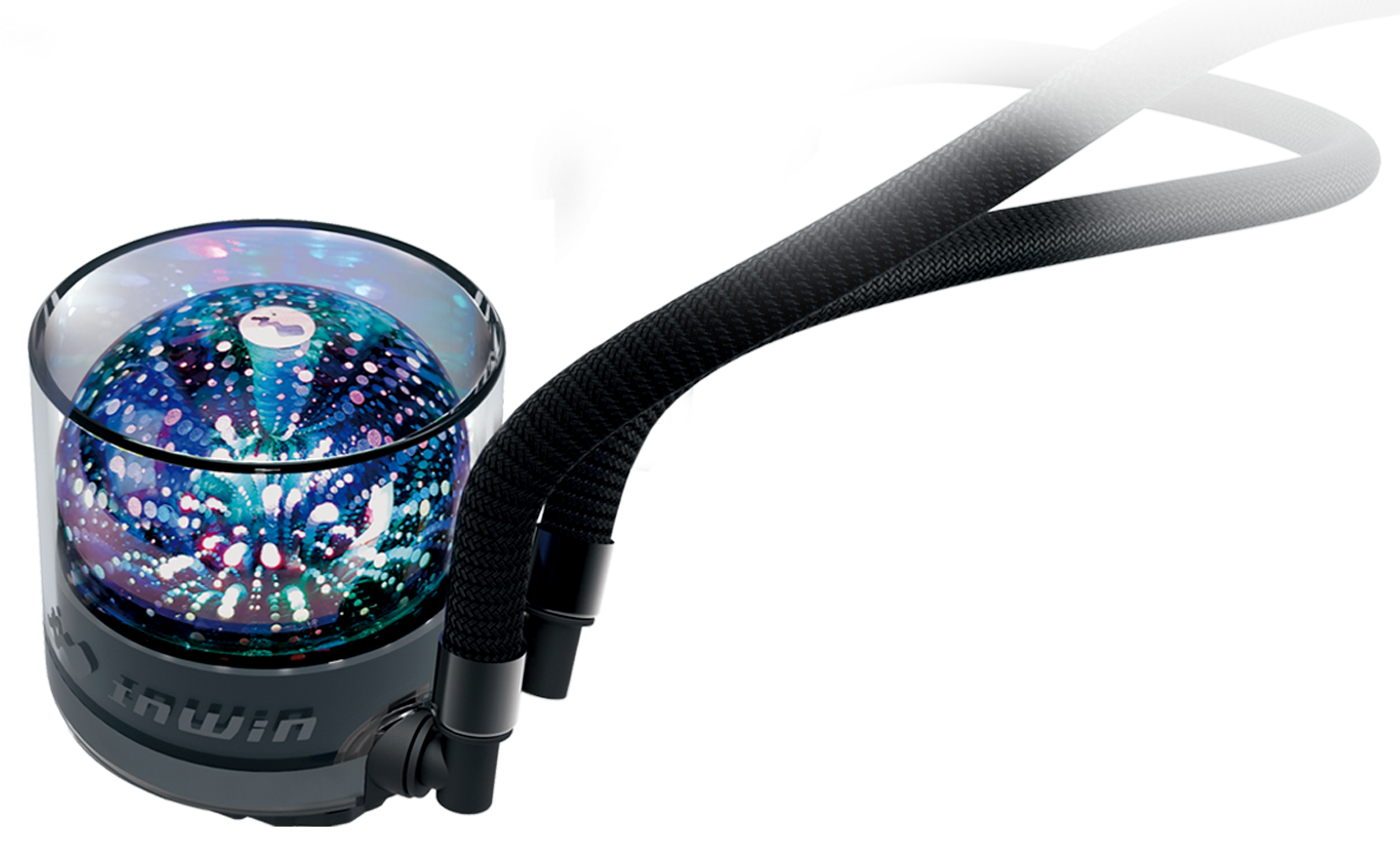

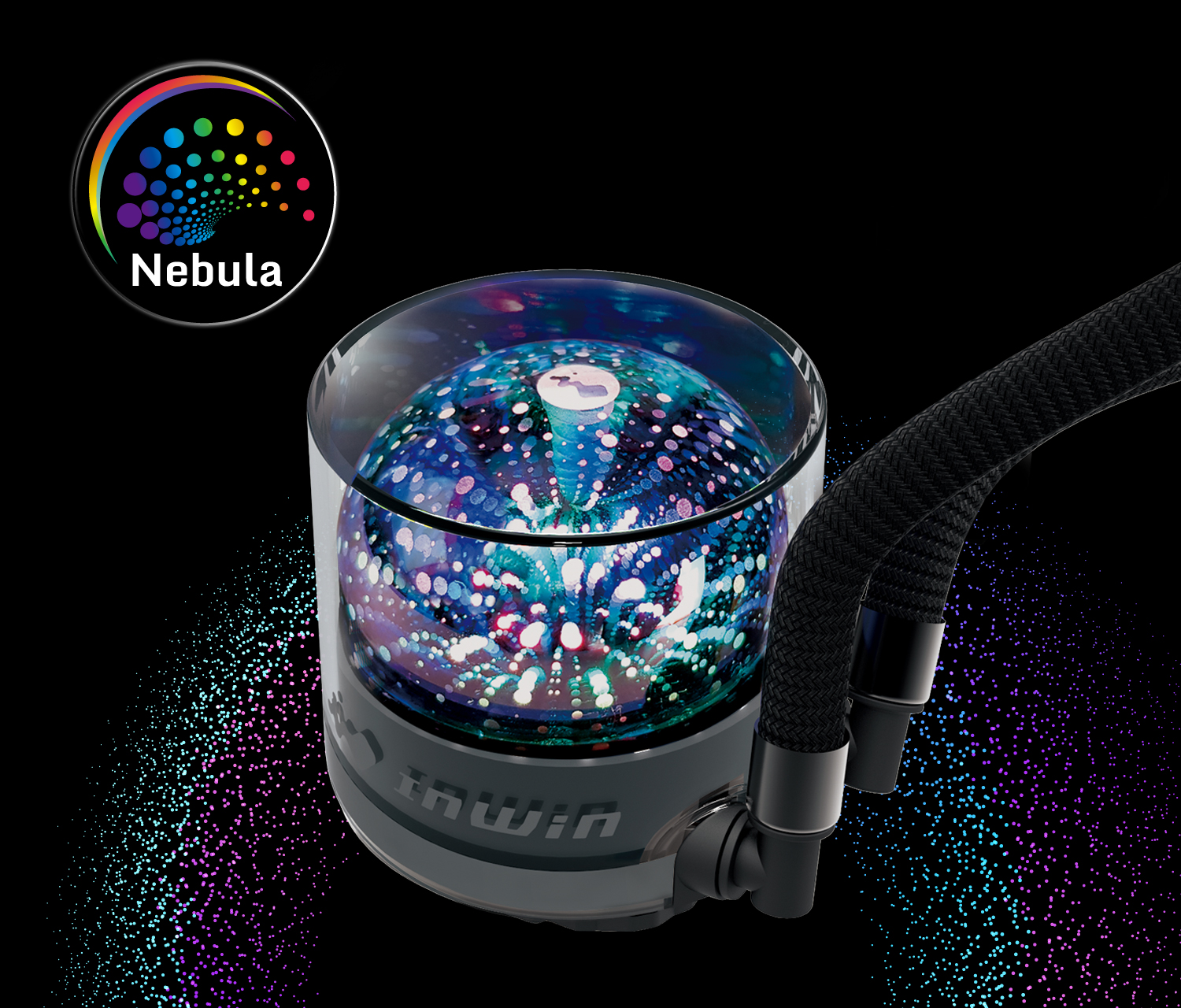

Nebula’s Infinite Shining Stars

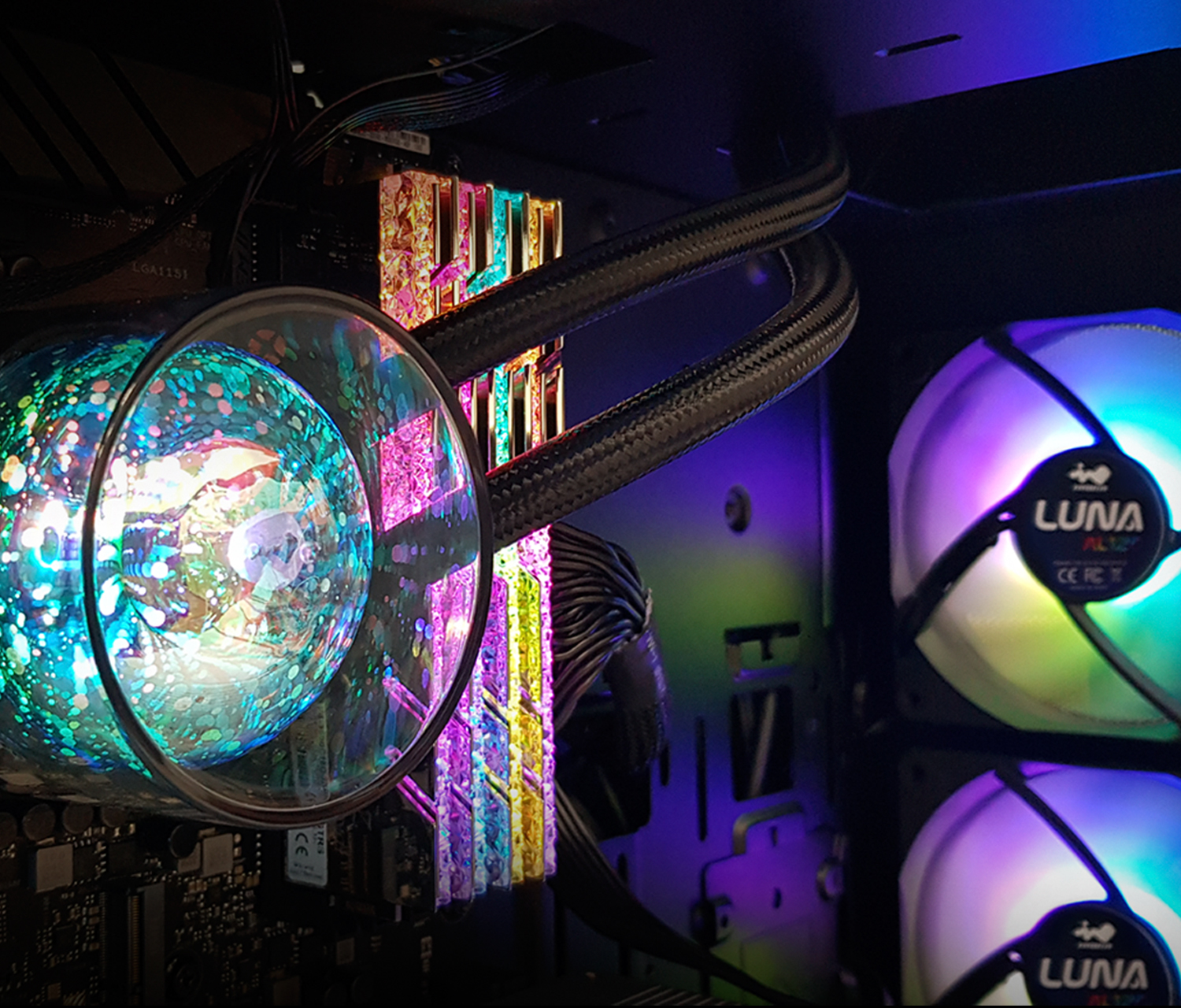

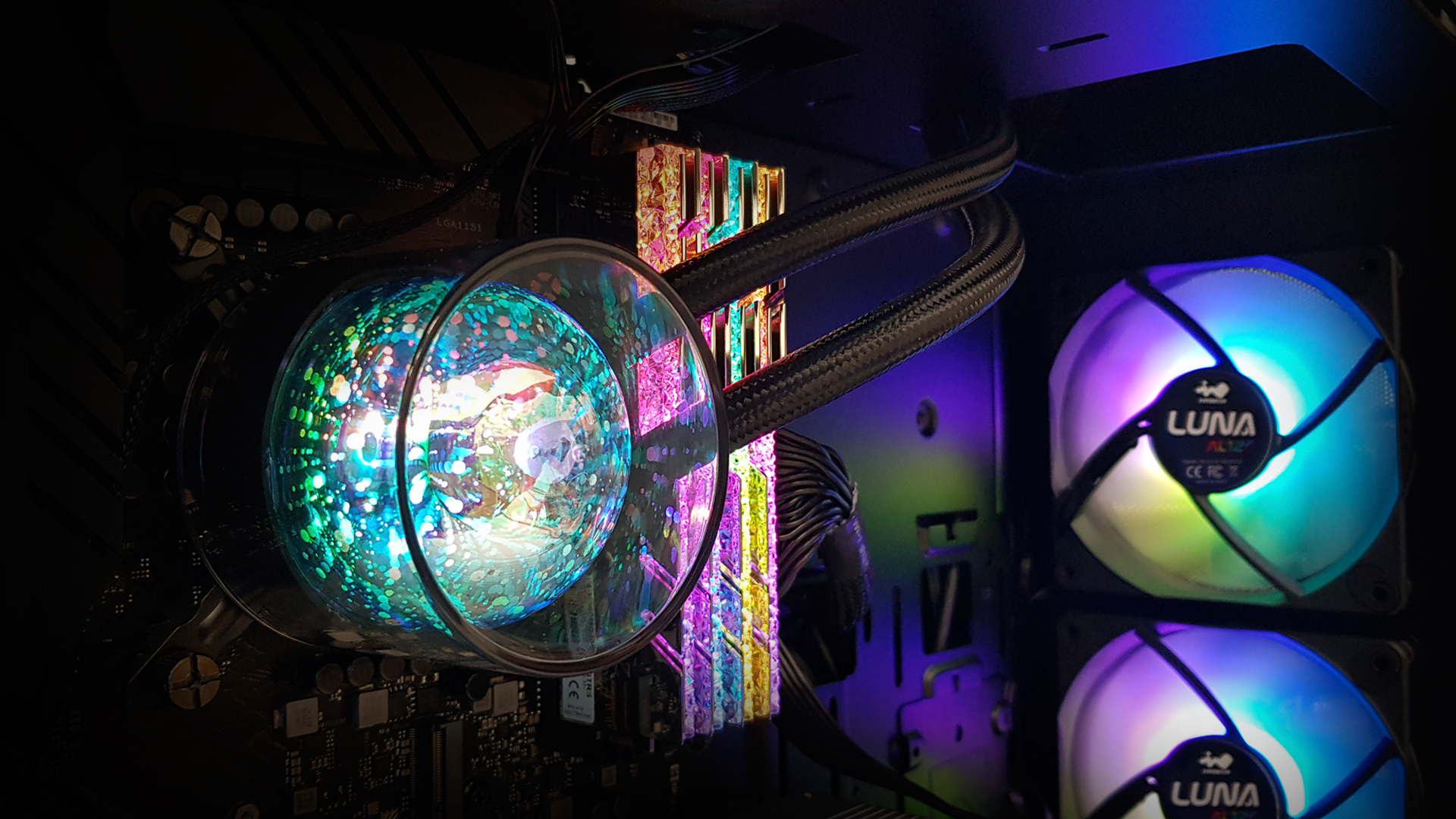

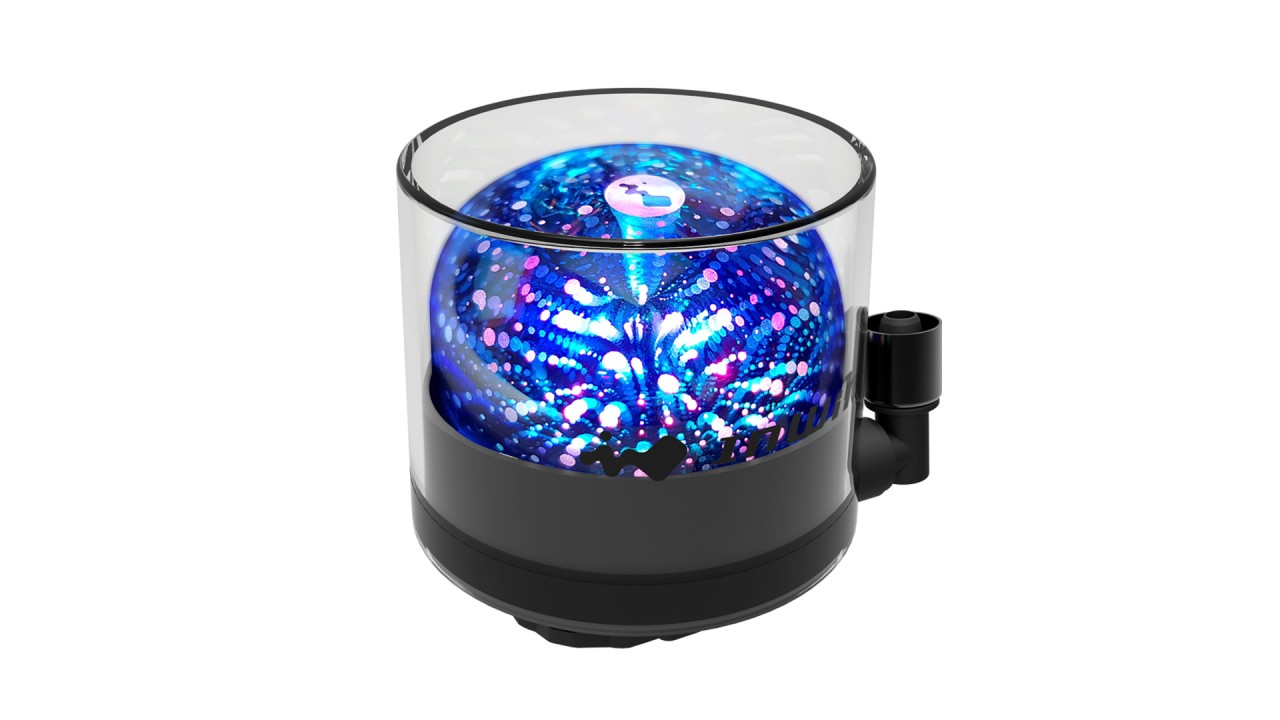

The water block is filled with a myriad of ARGB shimmering shining stars. This lighting effect, referred to as ”Nebula”, will provide your build with the most stunning visual aesthetics. The lighting effects can be synced with an ARGB motherboard. Gaze into the realms of Nebula!

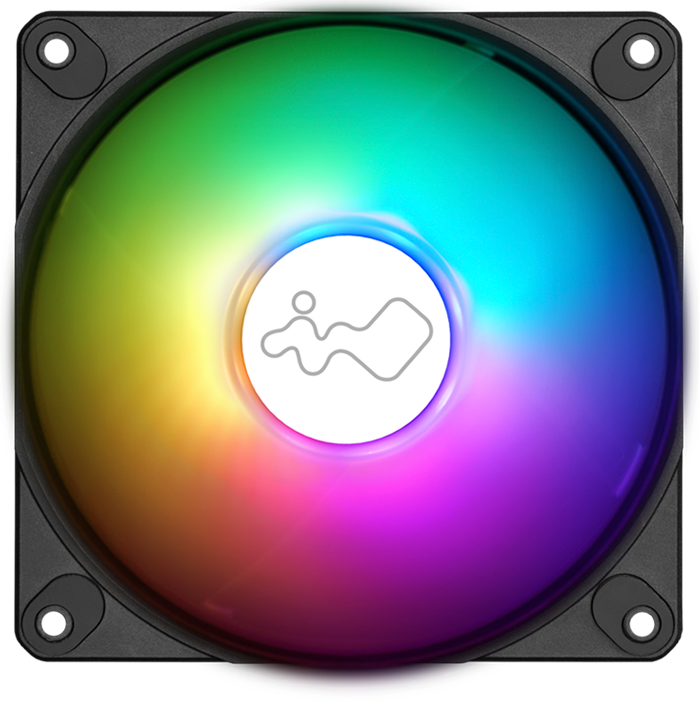

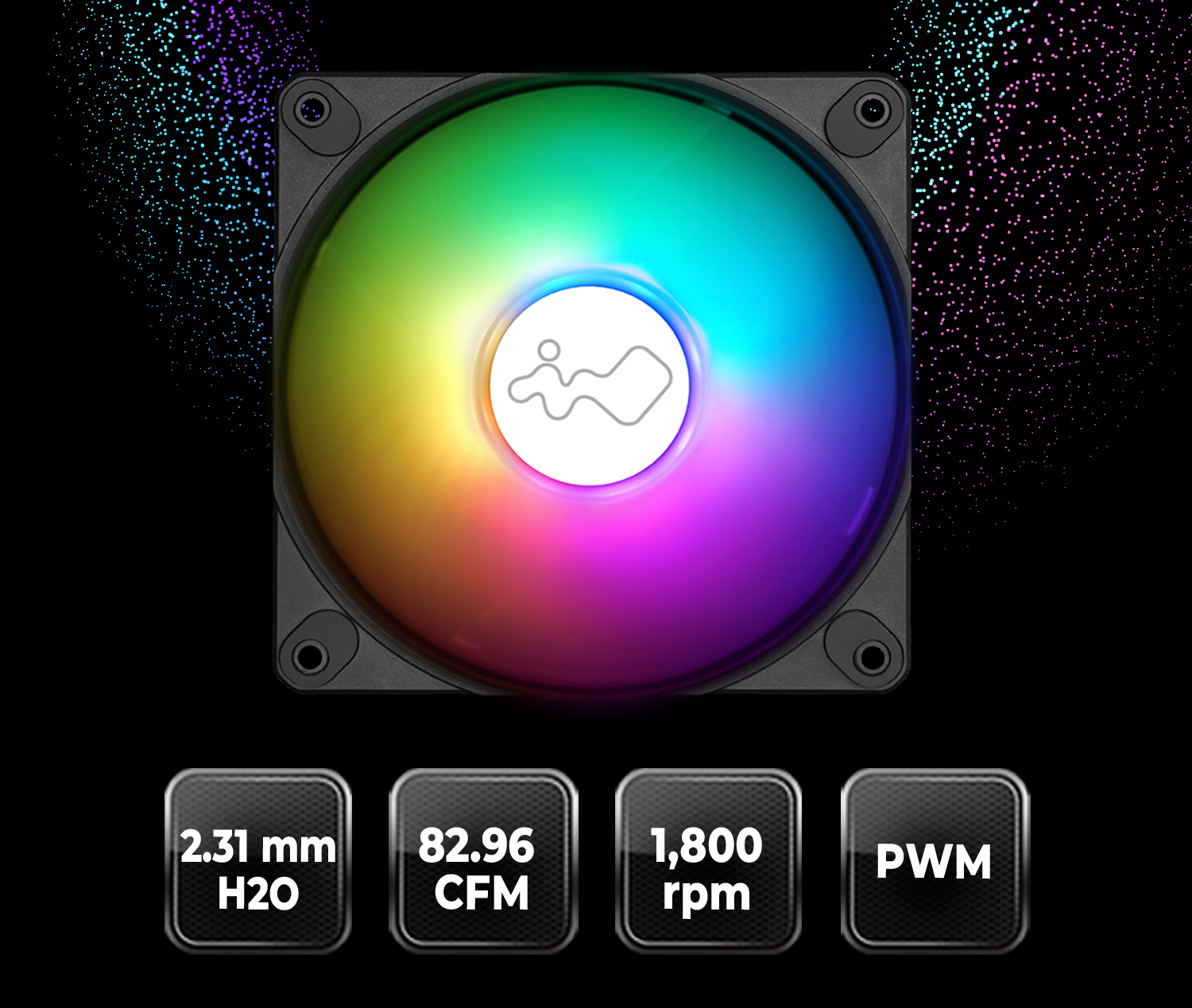

Eclipsed with Luna

High static pressure ARGB fan Luna AL120 is tailor-made for liquid-cooling, providing powerful cooling performances while reflecting ARGB lighting through its crescent white fan blades.

Learn More

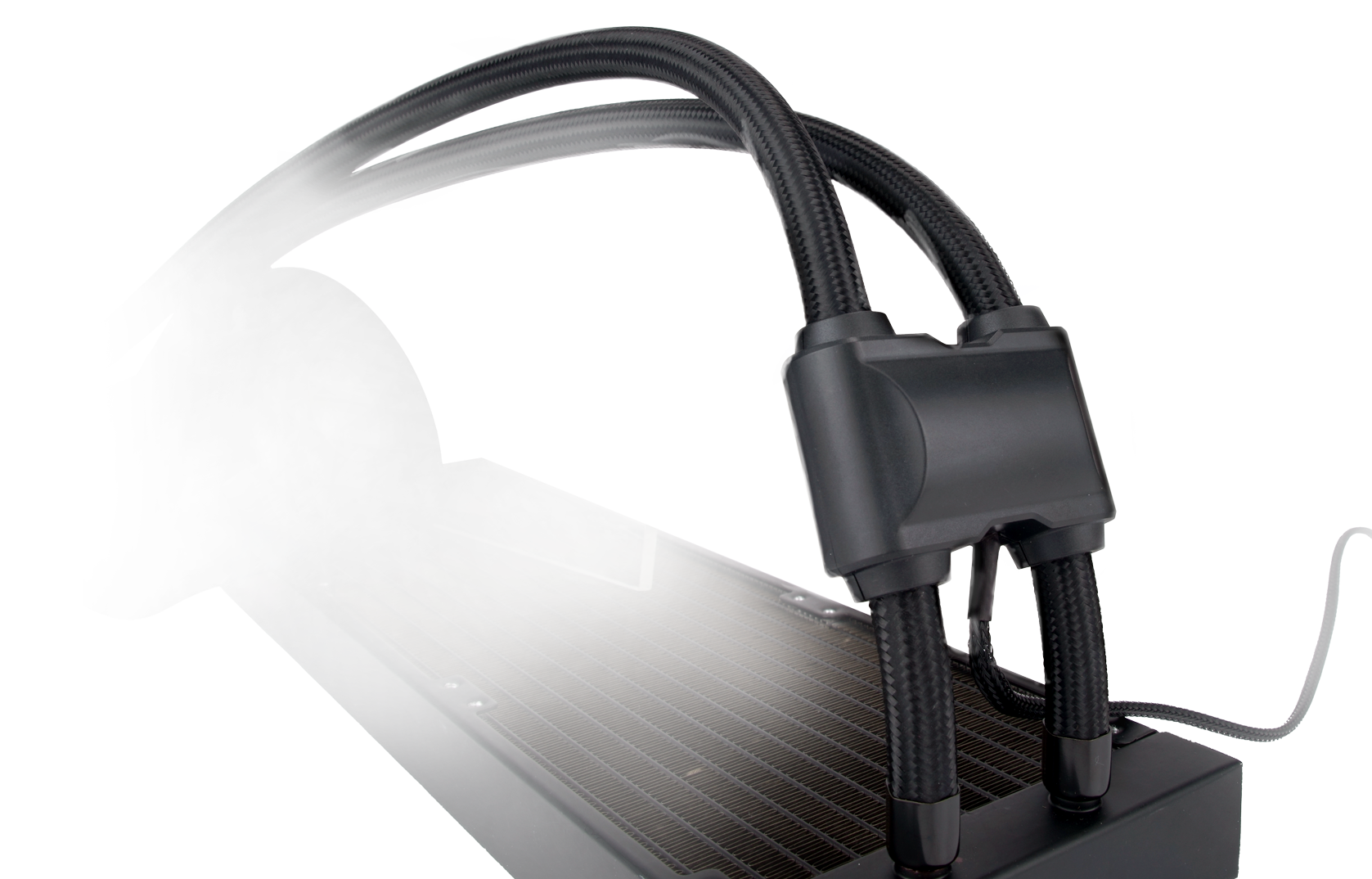

Unique Pump Design

The powerful pump has been specially designed to cushion vibrations and suppress noise pollution.

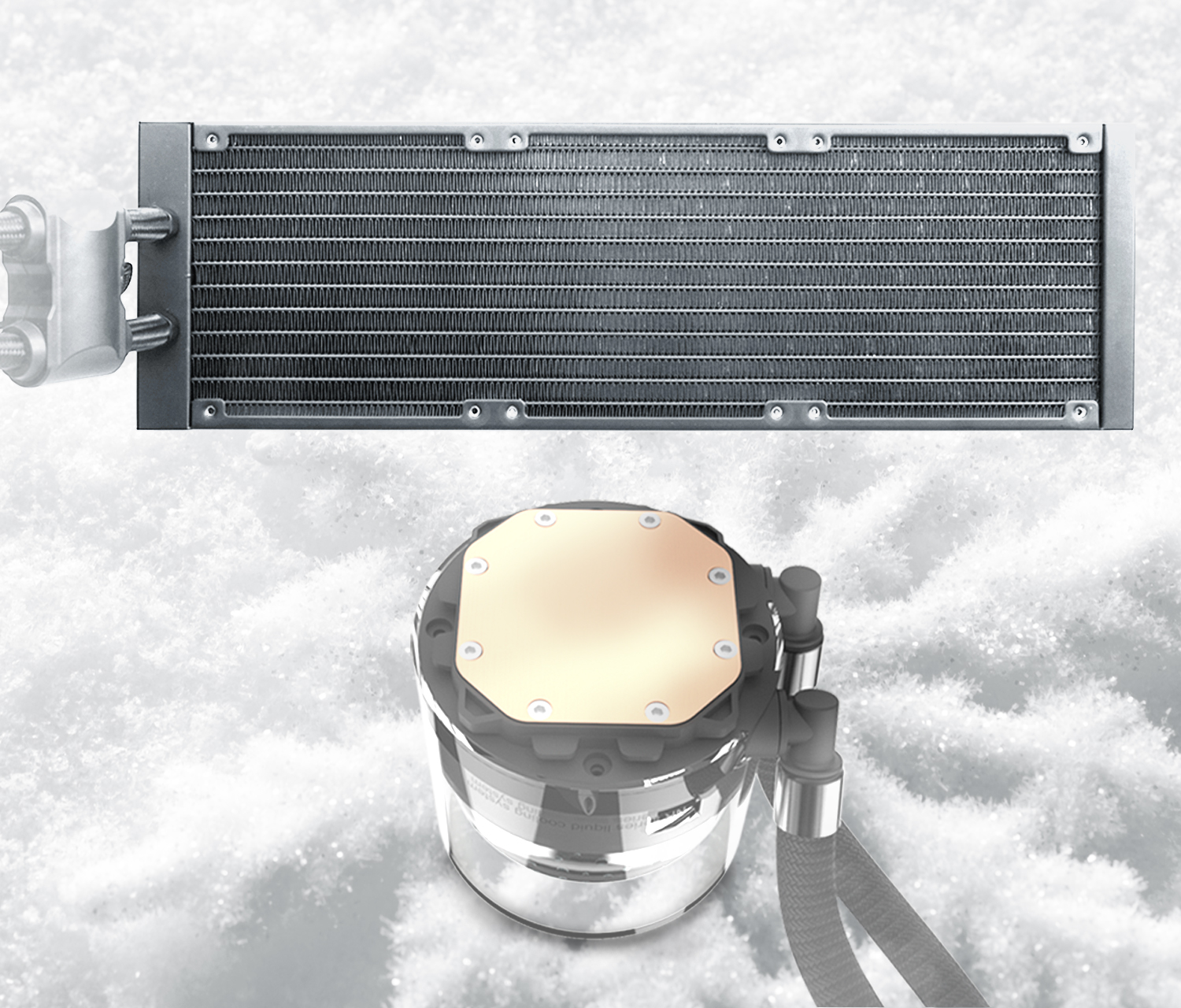

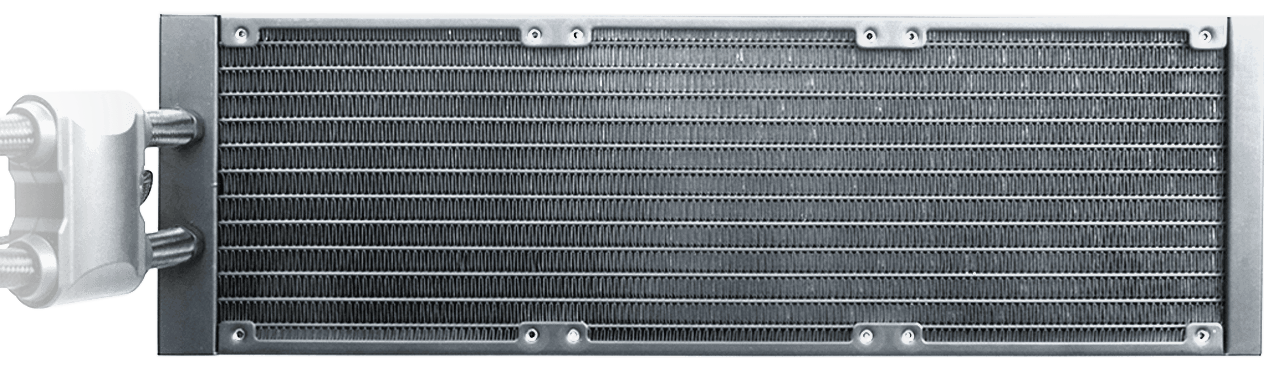

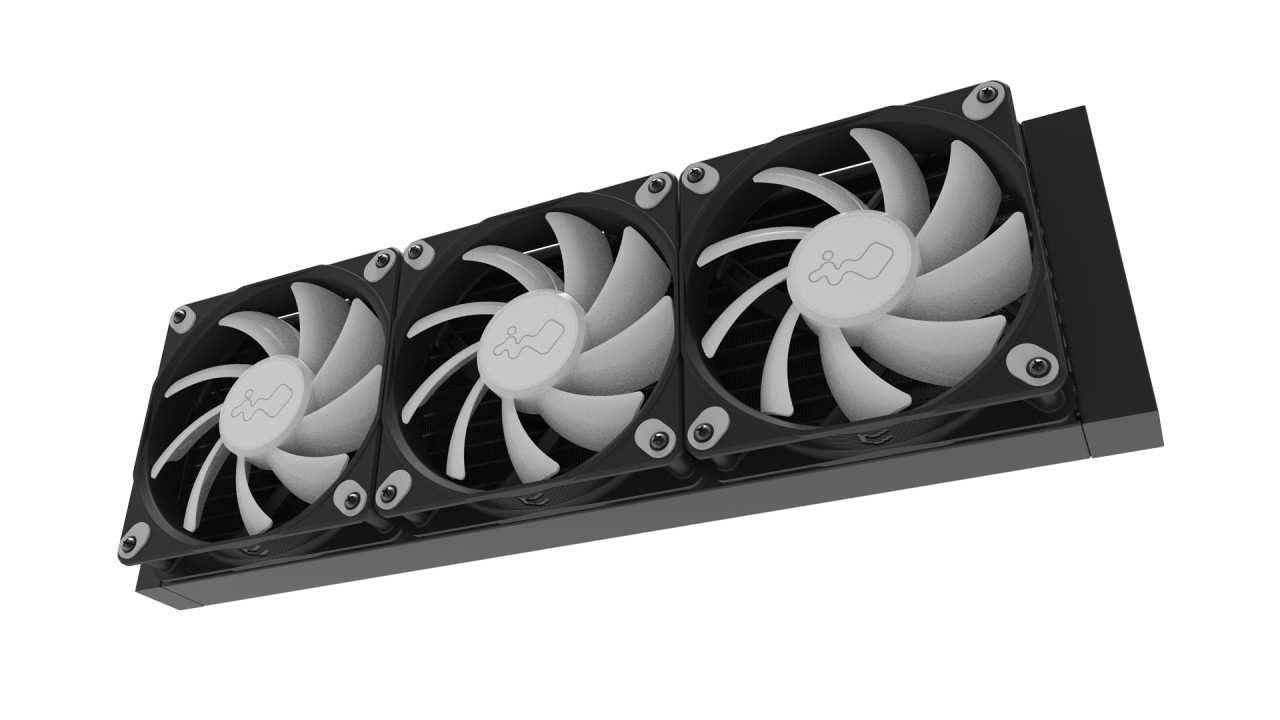

Powerful Heat Dispatching

High-density microchannel fins and large heat dispatching area on the radiator ensure excellent heat conducting efficiency.

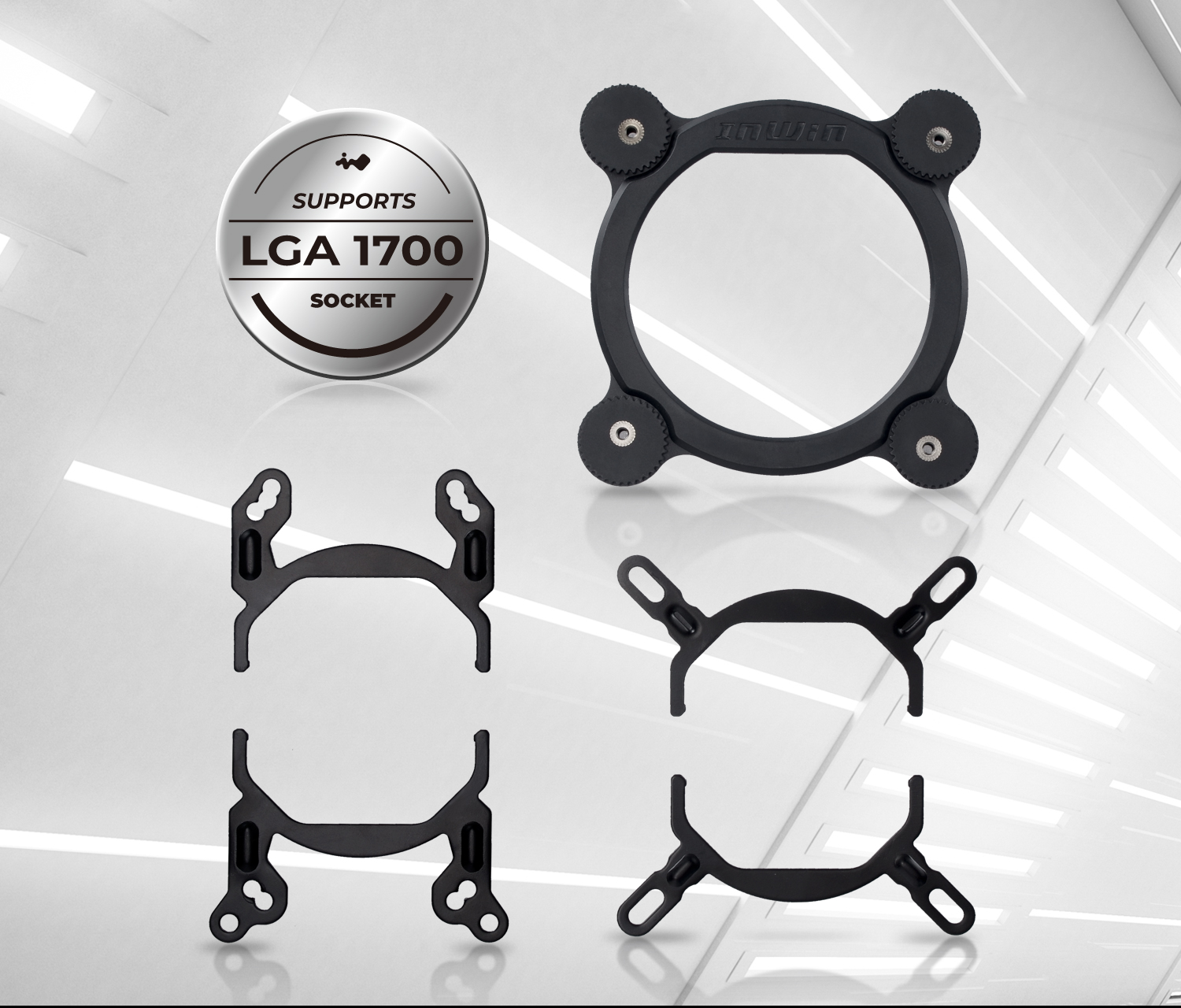

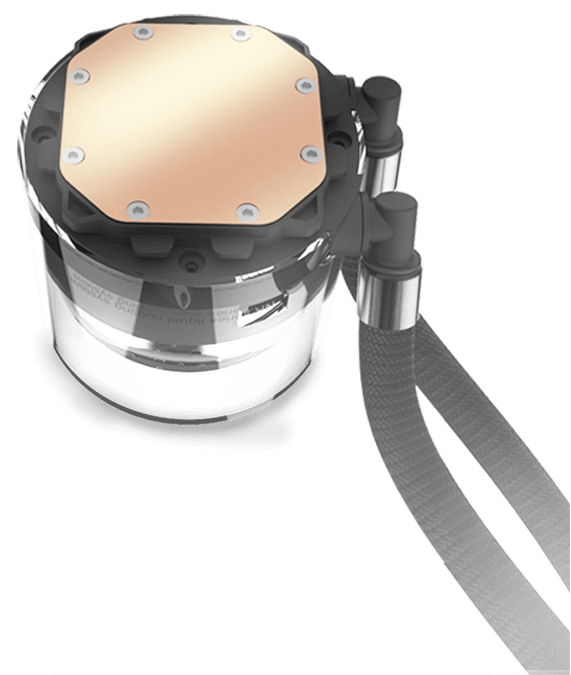

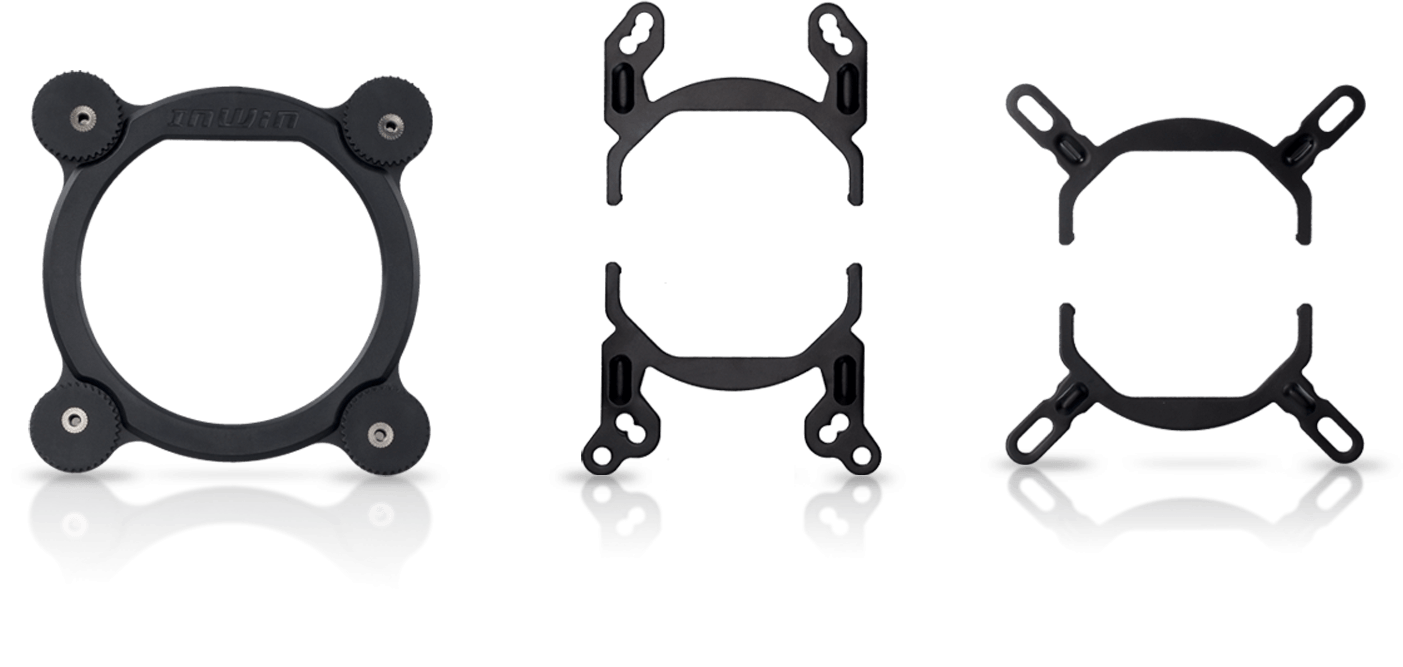

Supports Latest CPU Sockets

The water block is compatible with all the latest Intel and AMD CPU sockets and features user-friendly tools for simple and quick installation.

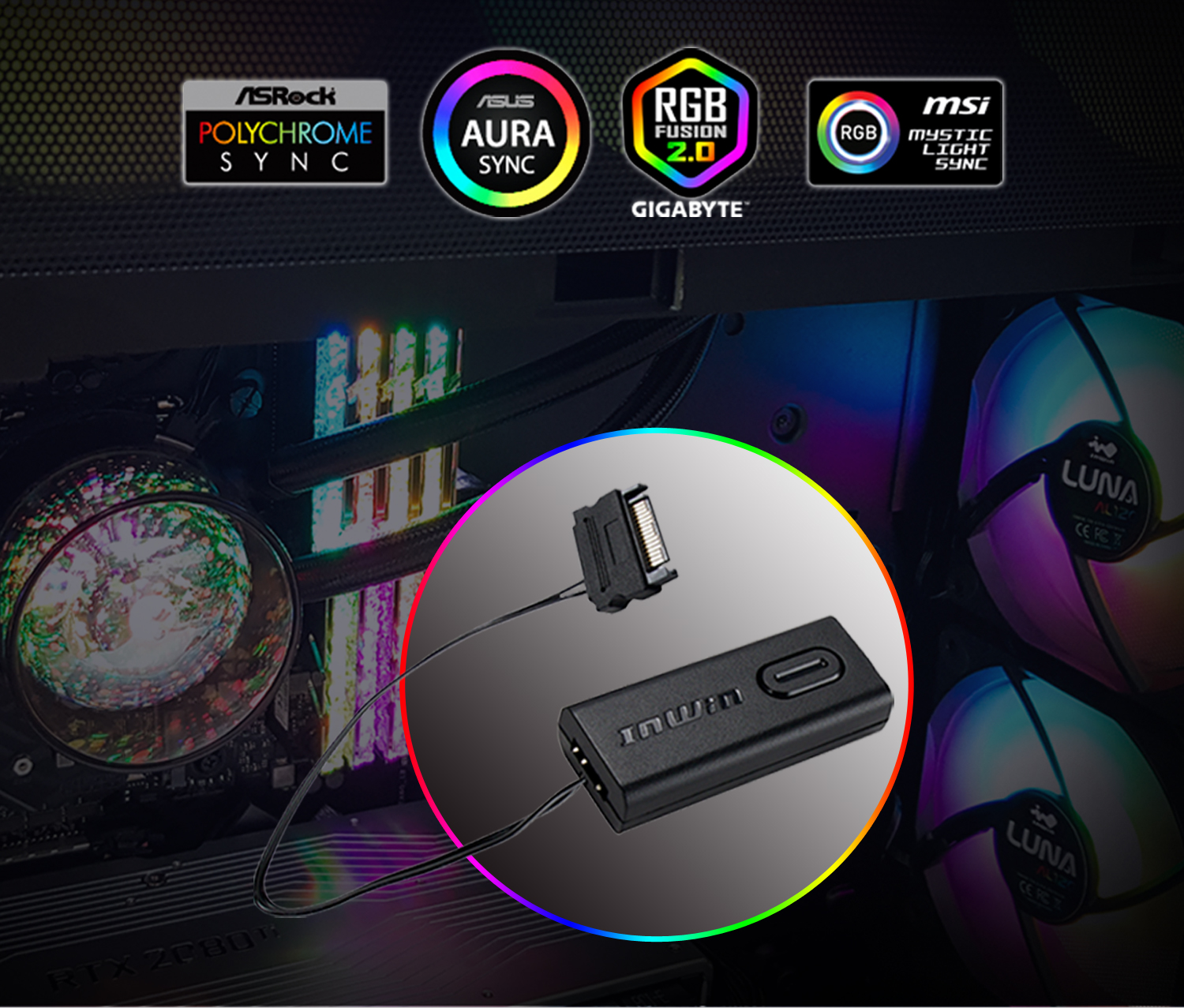

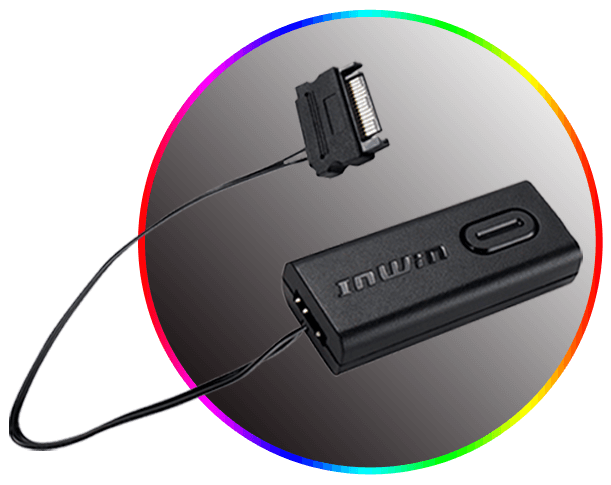

Syncs with Addressable Motherboard and One-Click Controller

The lighting effects can be synced with an addressable motherboard or controlled via the provided ARGB One-Click Controller.

* The addressable cable can only be used with motherboards with an ADD_HEADER (3-pin, 5V).

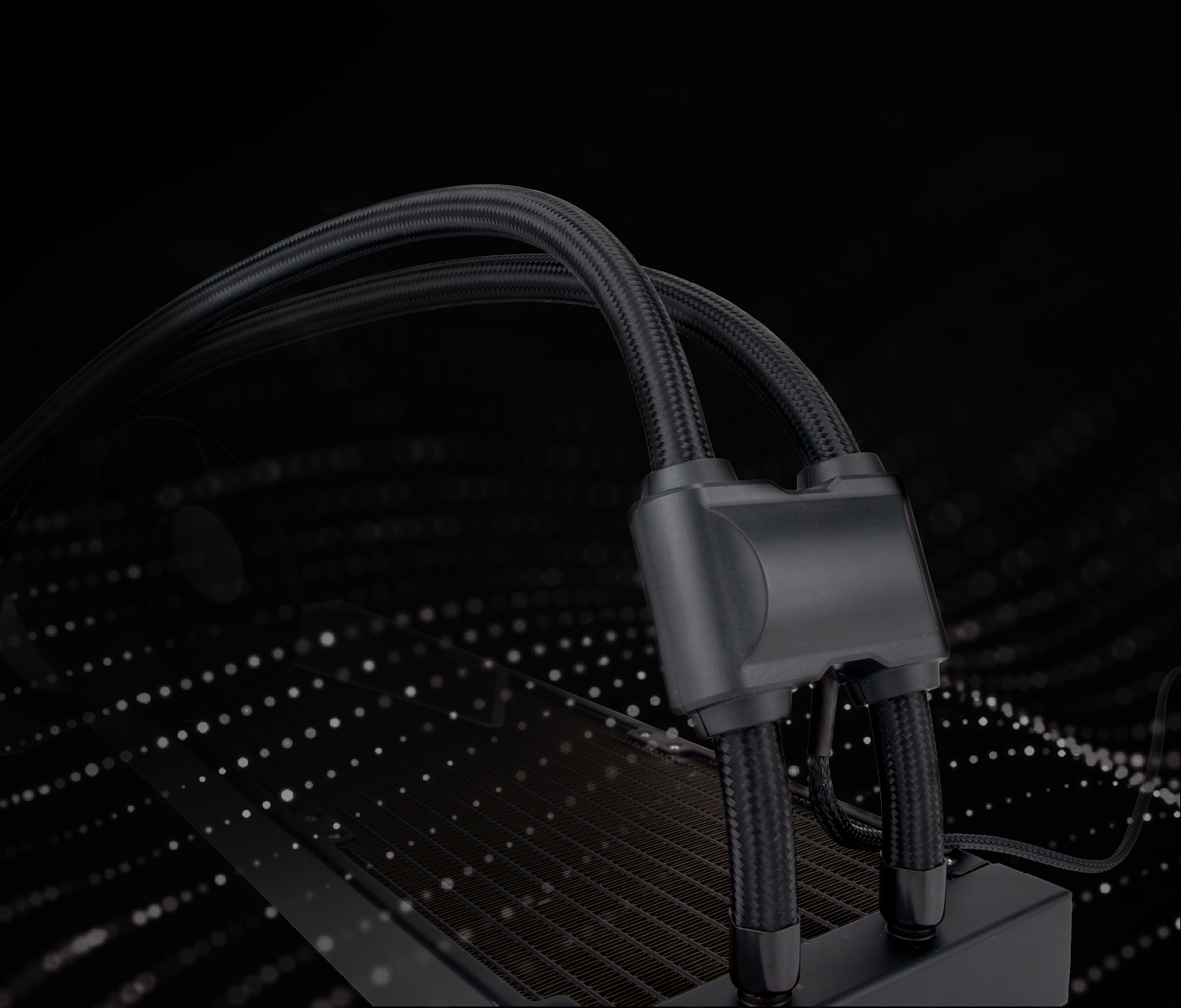

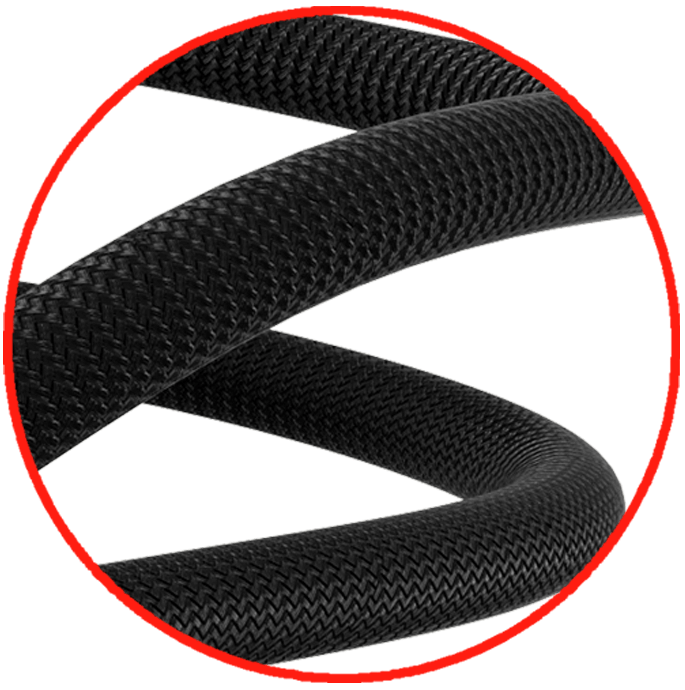

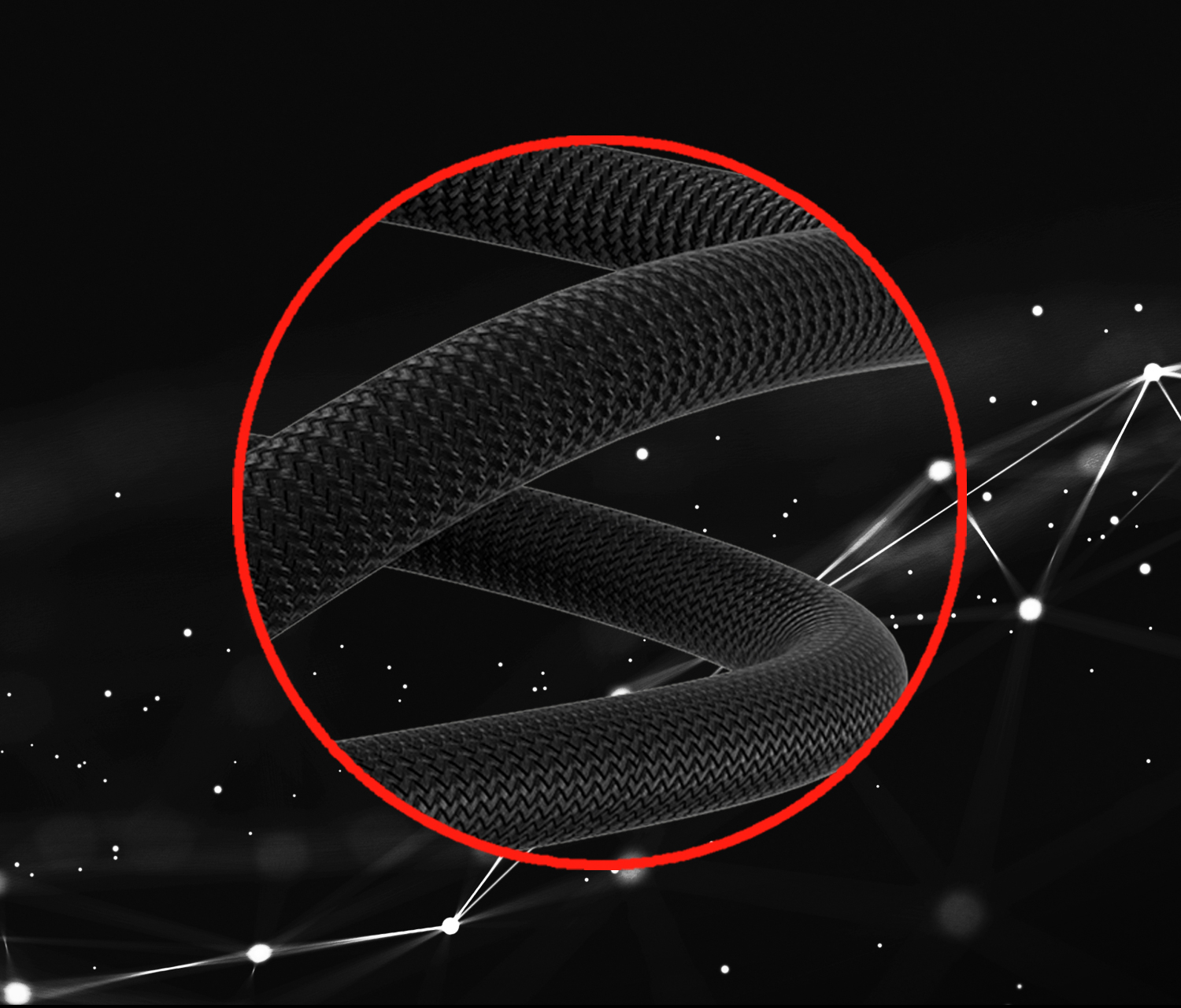

Corrosive Resistant Tubes

The tubing is sleeved with braided nylon for added protection.

Specifications

Model NR36
Model Number IW-LC-NR36
CPU Socket Support Intel® LGA 1851/ 1700/ 1200/ 2066/ 2011-V3/ 2011/ 1366/ 1156/ 1155/ 1151/ 1150
AMD® AM5/ AM4/ AM3+/ AM3/ AM2+/ AM2/ FM2+/ FM2/ FM1/ TR4

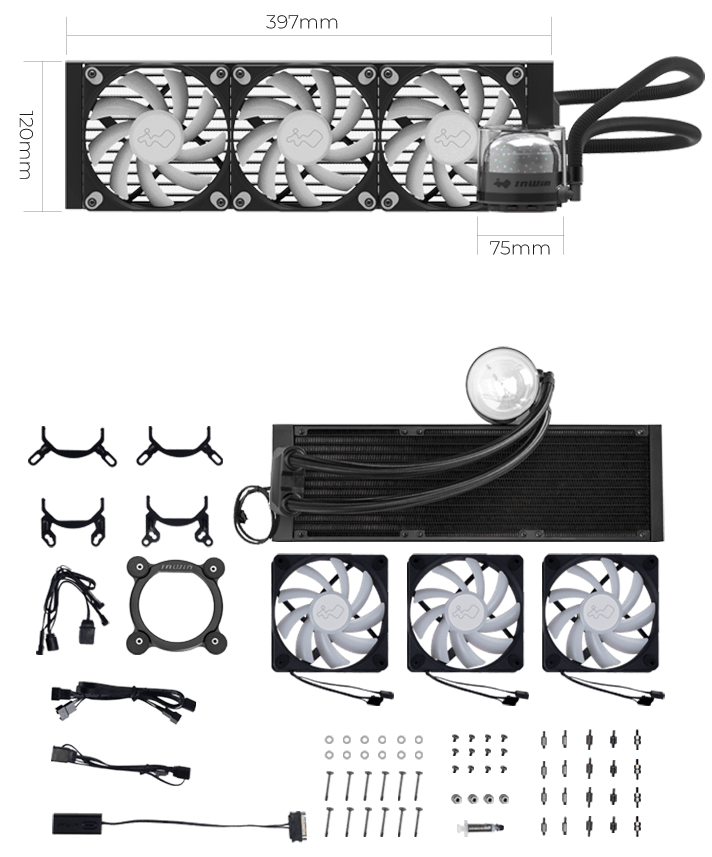

Radiator Dimensions
(L x W x H)
397 x 120 x 27 mm
(15.6 x 4.7 x 1.1")
Materials Aluminium
Tube Length 450 mm
Tube Materials Rubber with Nylon Braided Sleeve
Water Block Dimensions
(L x W x H)
87.3 x 75 x 68 mm
(3.4 x 3.0 x 2.7")
Materials Copper, Glass, Plastic
Pump Dimensions
(L x W x H)
66 x 50 x 31 mm
(2.6 x 2.0 x 1.2")
Materials PPS GF
Pump Speed 5200 RPM +/- 10%
Fans Model Luna Series AL120
Quantity Included 3 PCS
Dimensions
(L x W x H)
120 x 120 x 25 mm
(4.7 x 4.7 x 1.0")
Speed Mode PWM 600 - 1800 +/- 10% RPM
Noise Level 25 dB(A) (Normal)
Airflow 82.96 CFM
Air Pressure 2.31 mm / H2O
Connectors 4-Pin (12V, PWM), 3-Pin (5V, ARGB)
Bearing Type Long Lifespan Sleeve Bearing
Package Contents 1 x InWin NR Series 360 mm CPU Liquid Cooler
3 x InWin AL120 Addressable Fans
ARGB One-Click Controller
Fan and Radiator Mounting Screws Pack
Mounting Kit for CPU Sockets
Cable Pack
Package Dimensions
(L x W x H)
459 x 244 x 136 mm
(18.1 x 9.6 x 5.4")
Net Weight 1.05 kg / 2.31 lb
Gross Weight 2.45 kg / 5.4 lb
Warranty 3 Years
* InWin's products comply with RoHS regulation.
* Specifications may vary based on different regions.

Download

Video

News / Reviews

eStore

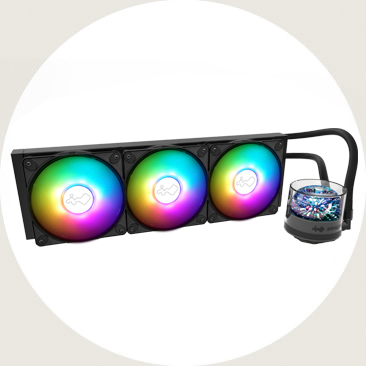

NR36 is on InWin Official eStore Now!
