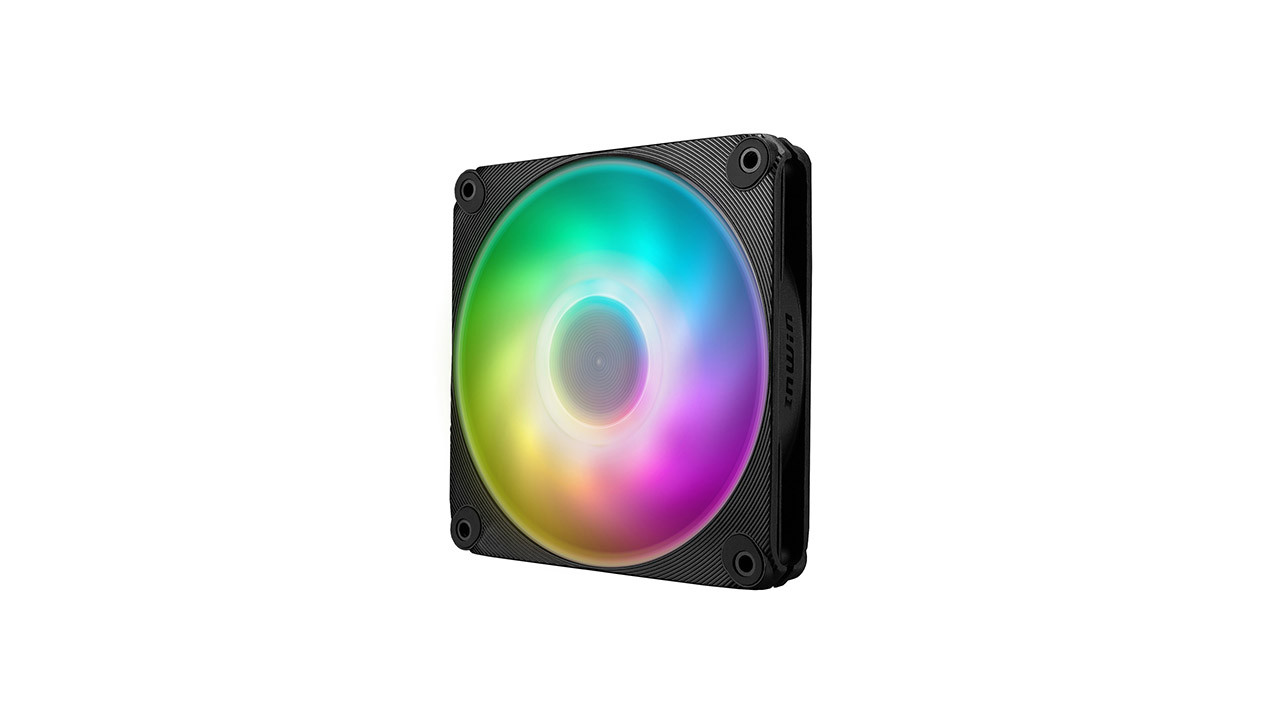

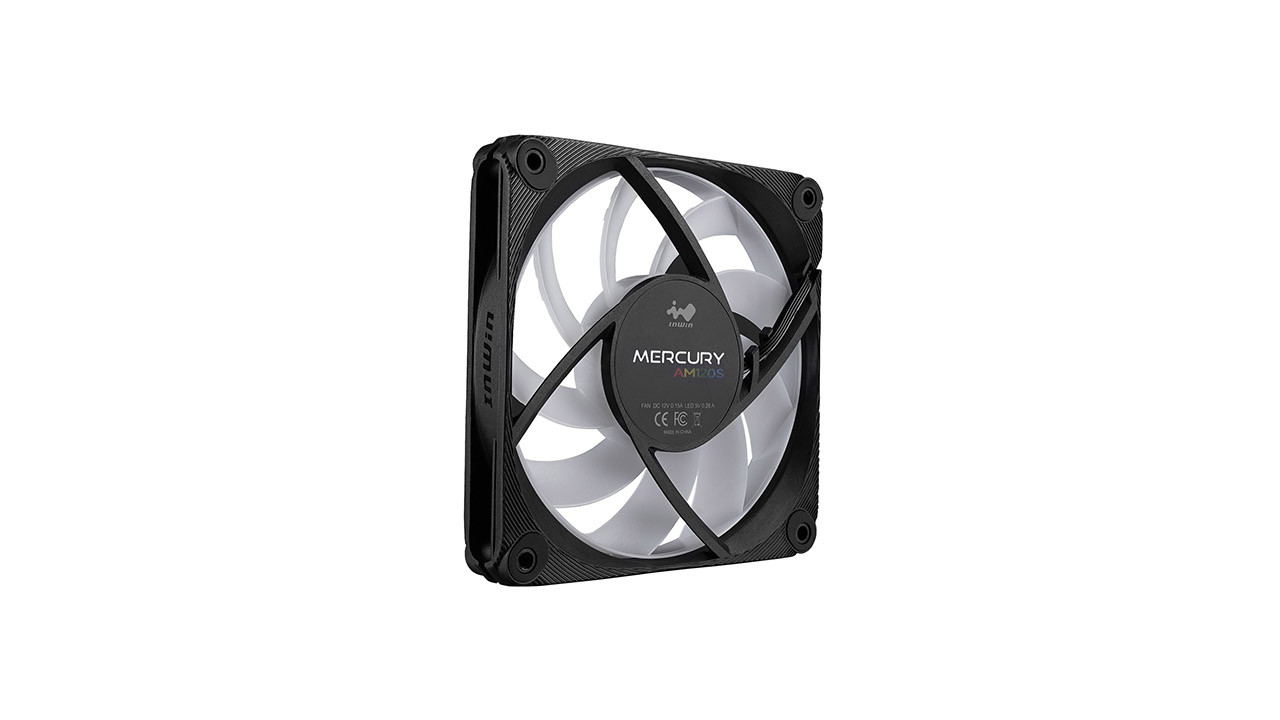

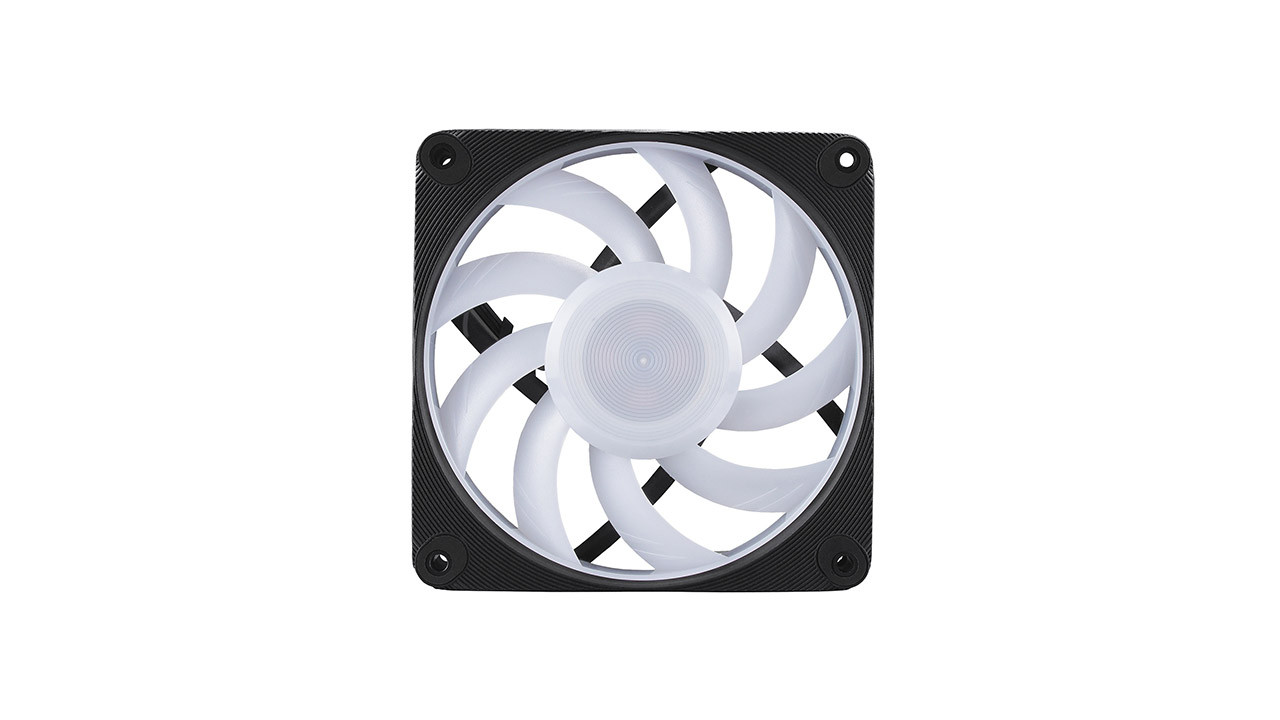

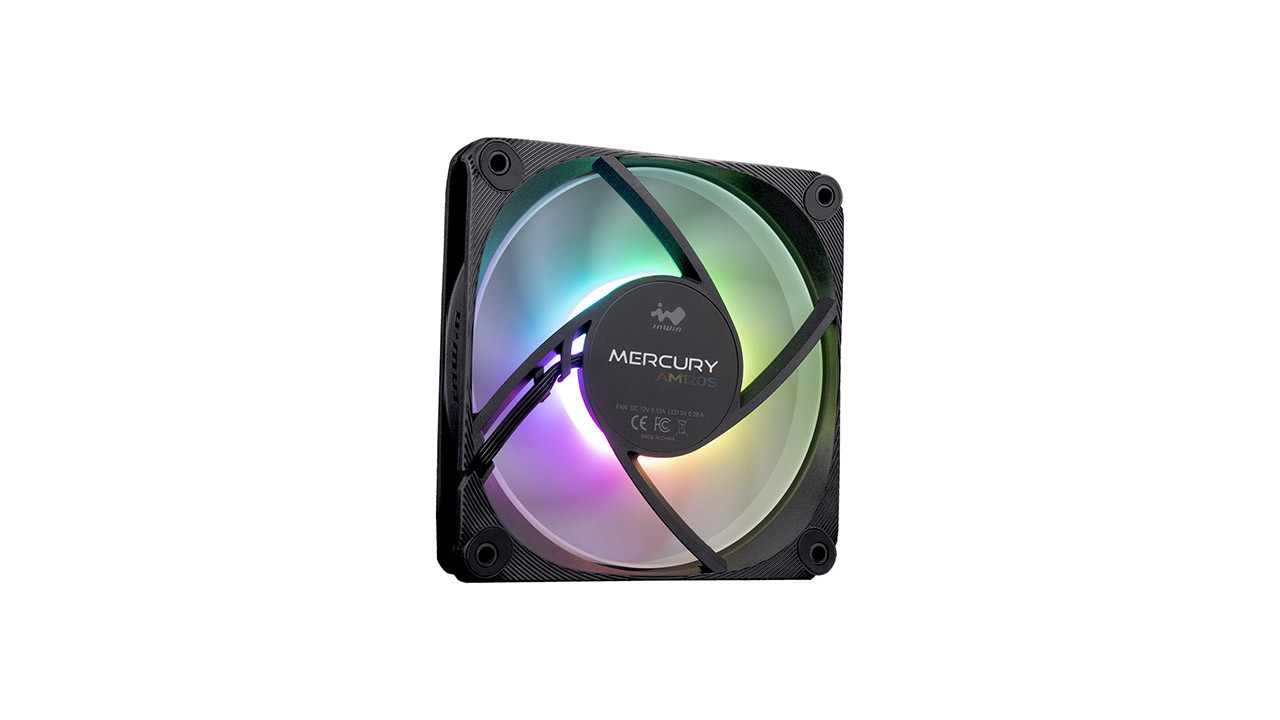

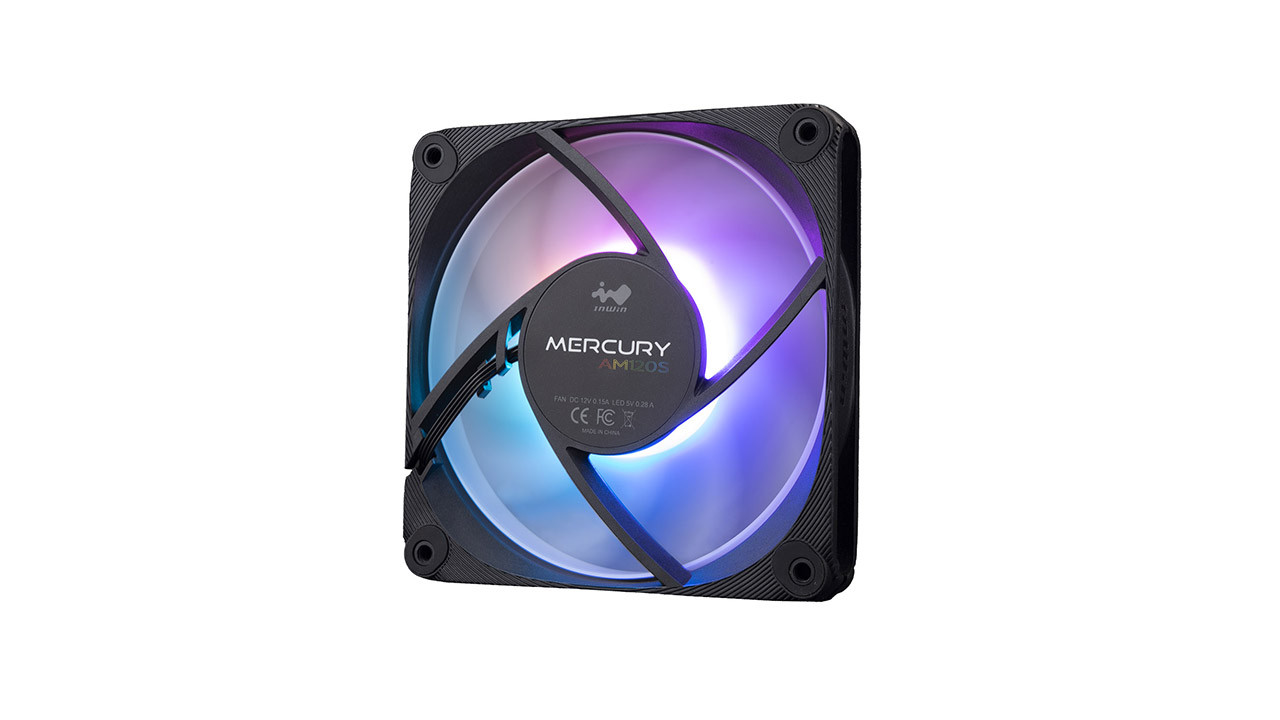

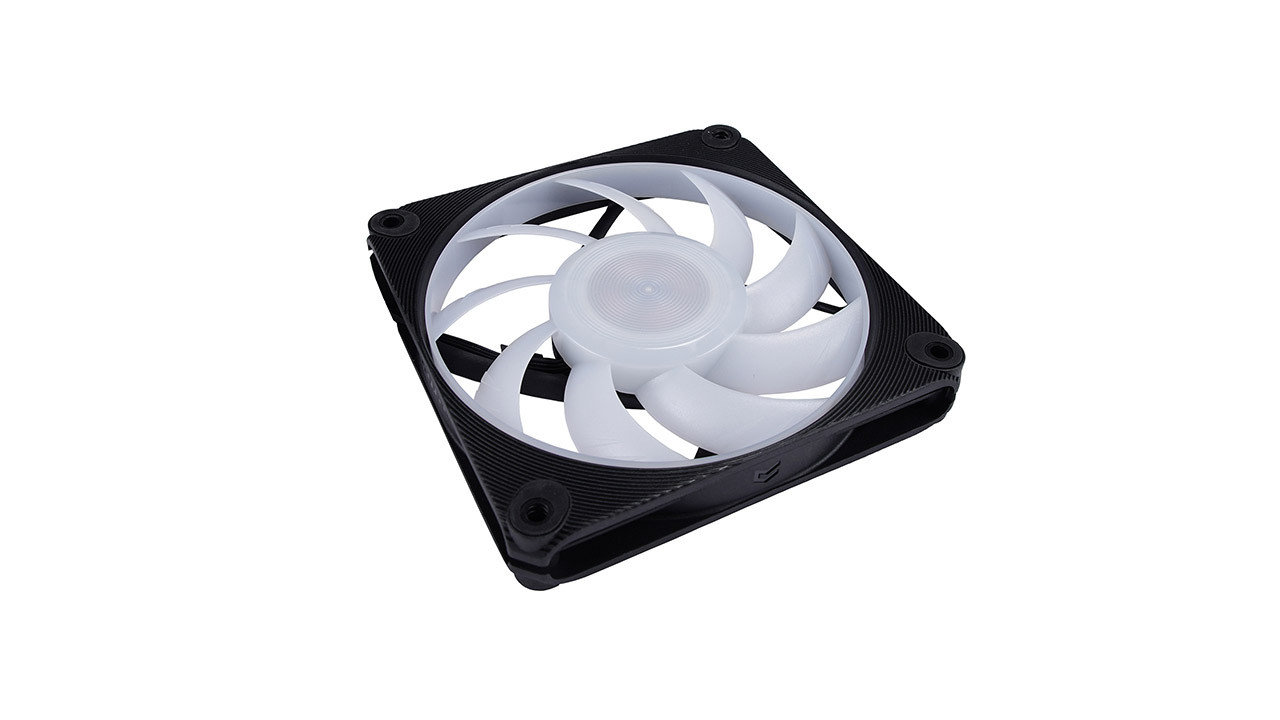

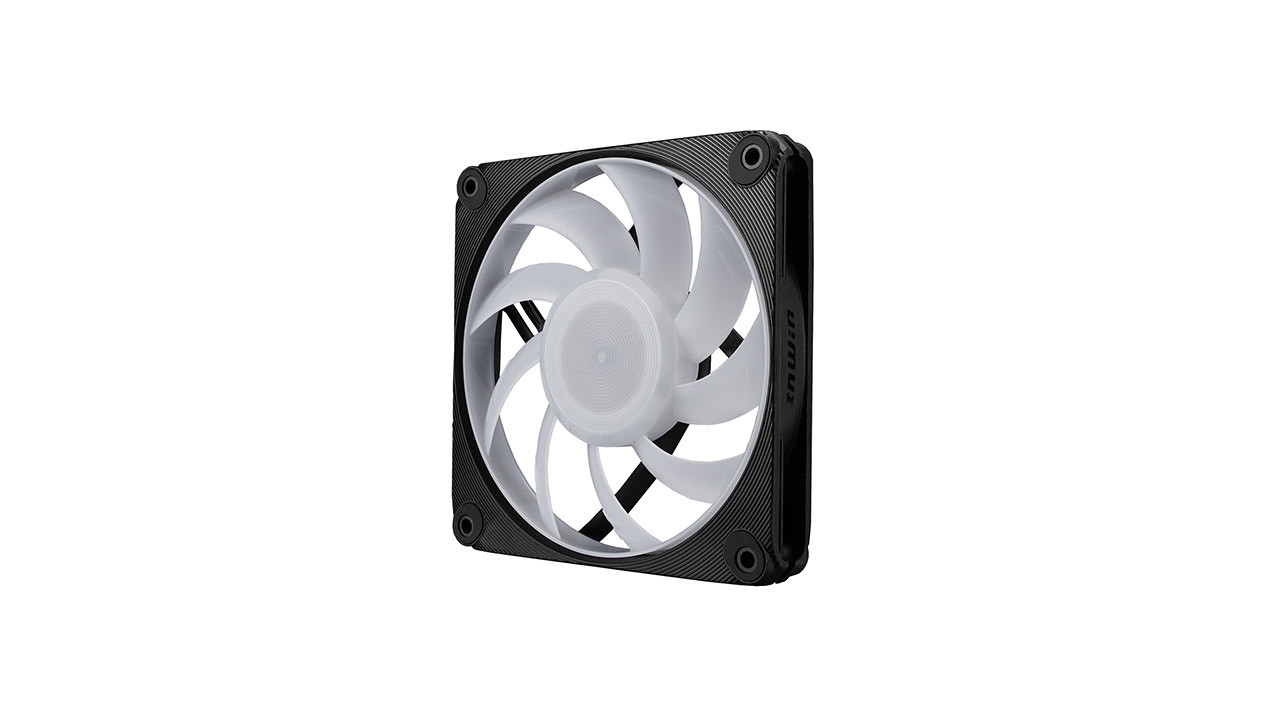

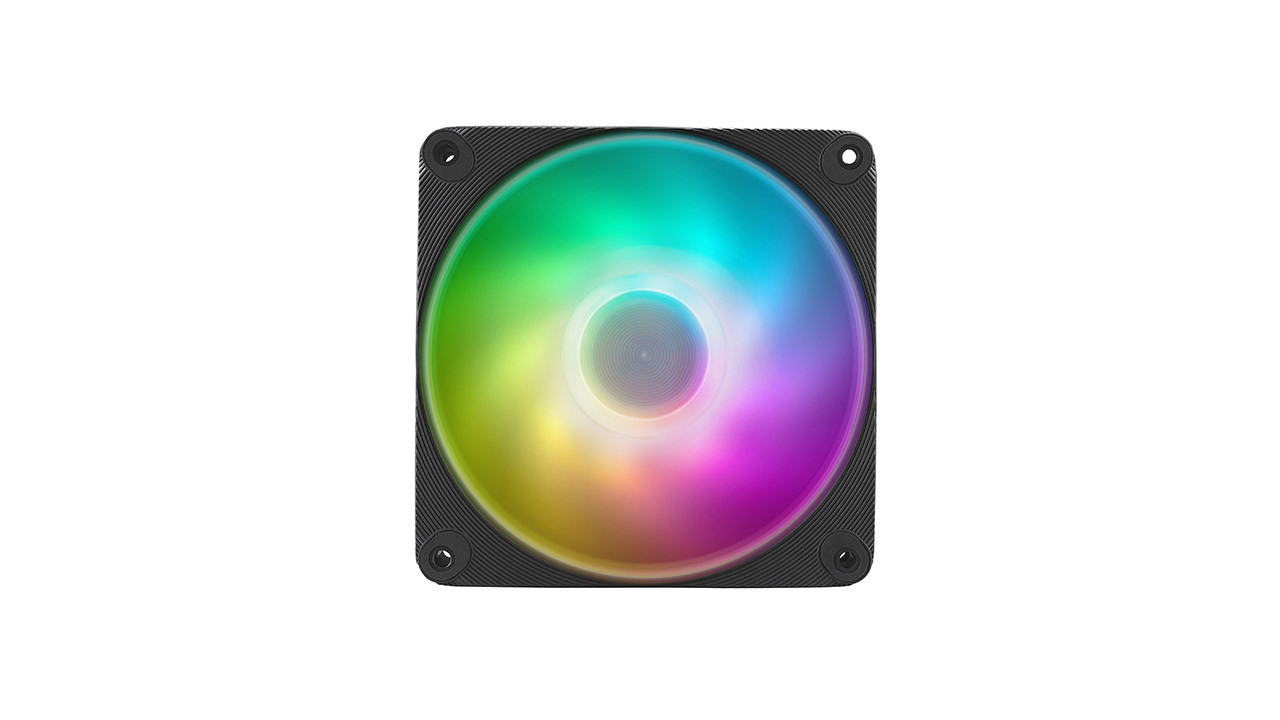

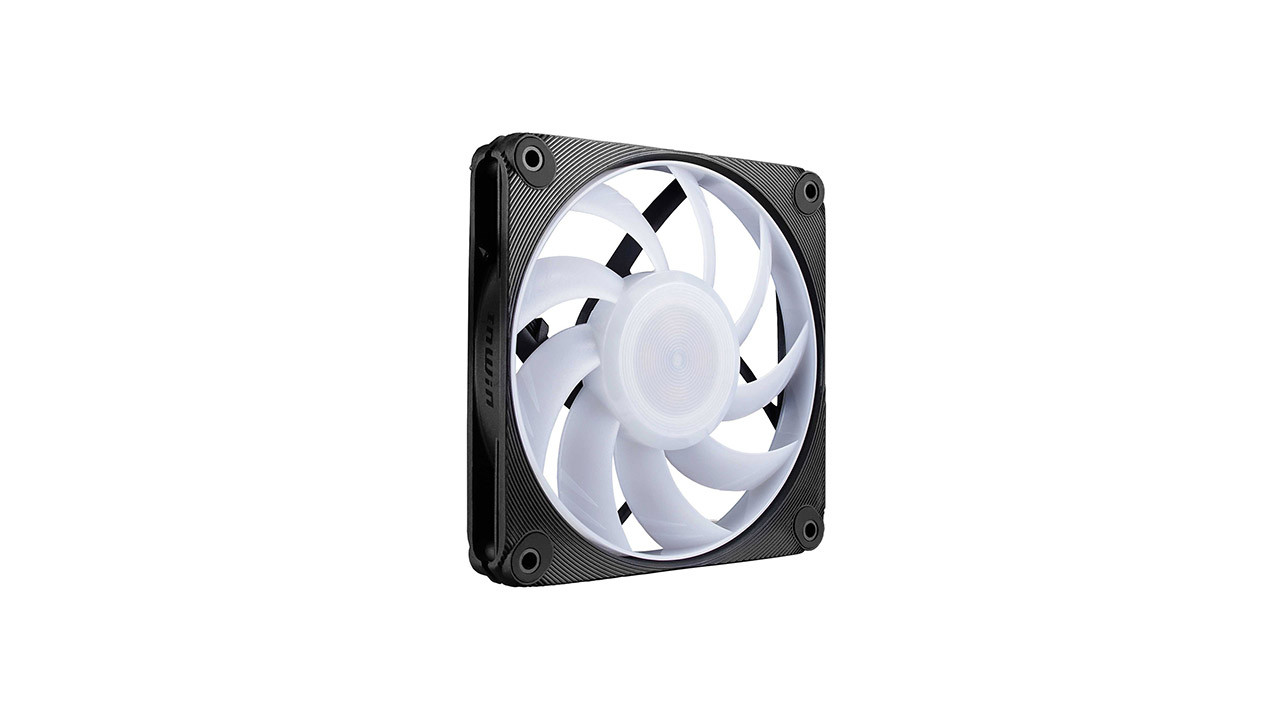

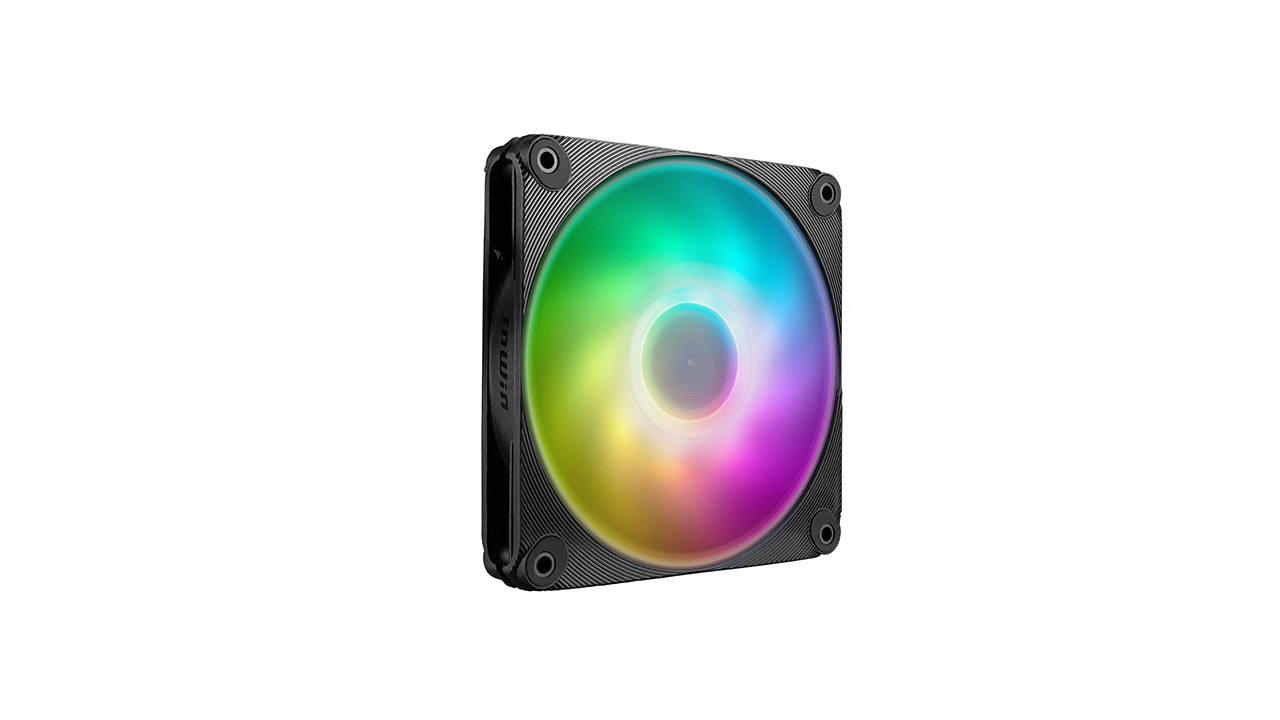

Mercury AM120S

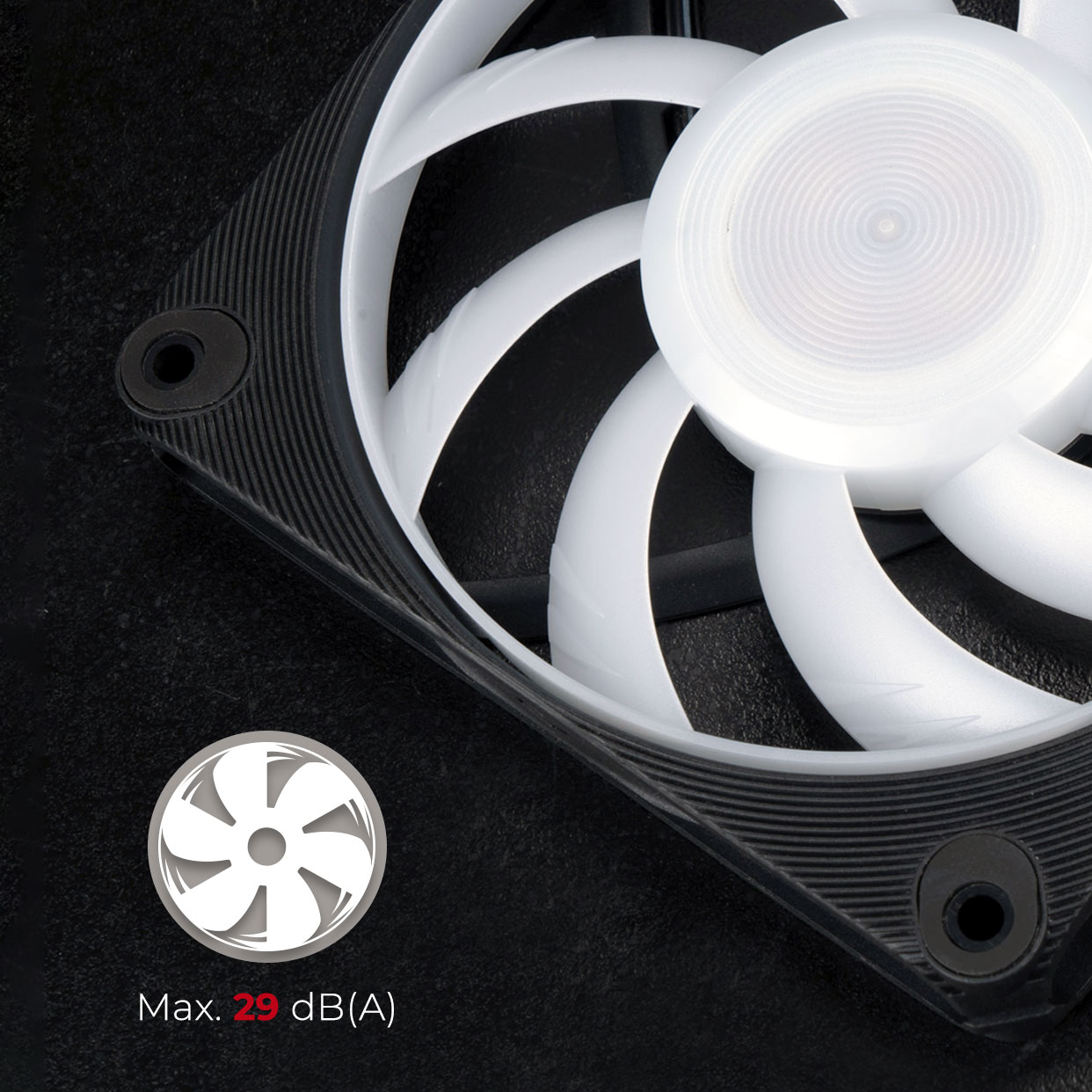

Silencing the Status Flow

InWin has developed a new fan blade engraved design to smooth the airflow and balance blade pressure for a quieter experience at only a maximum of 29 dB(A).

Mercury AM120S
Without airflow leakage
Standard Fan
With airflow leakage

Concentrated Airflow

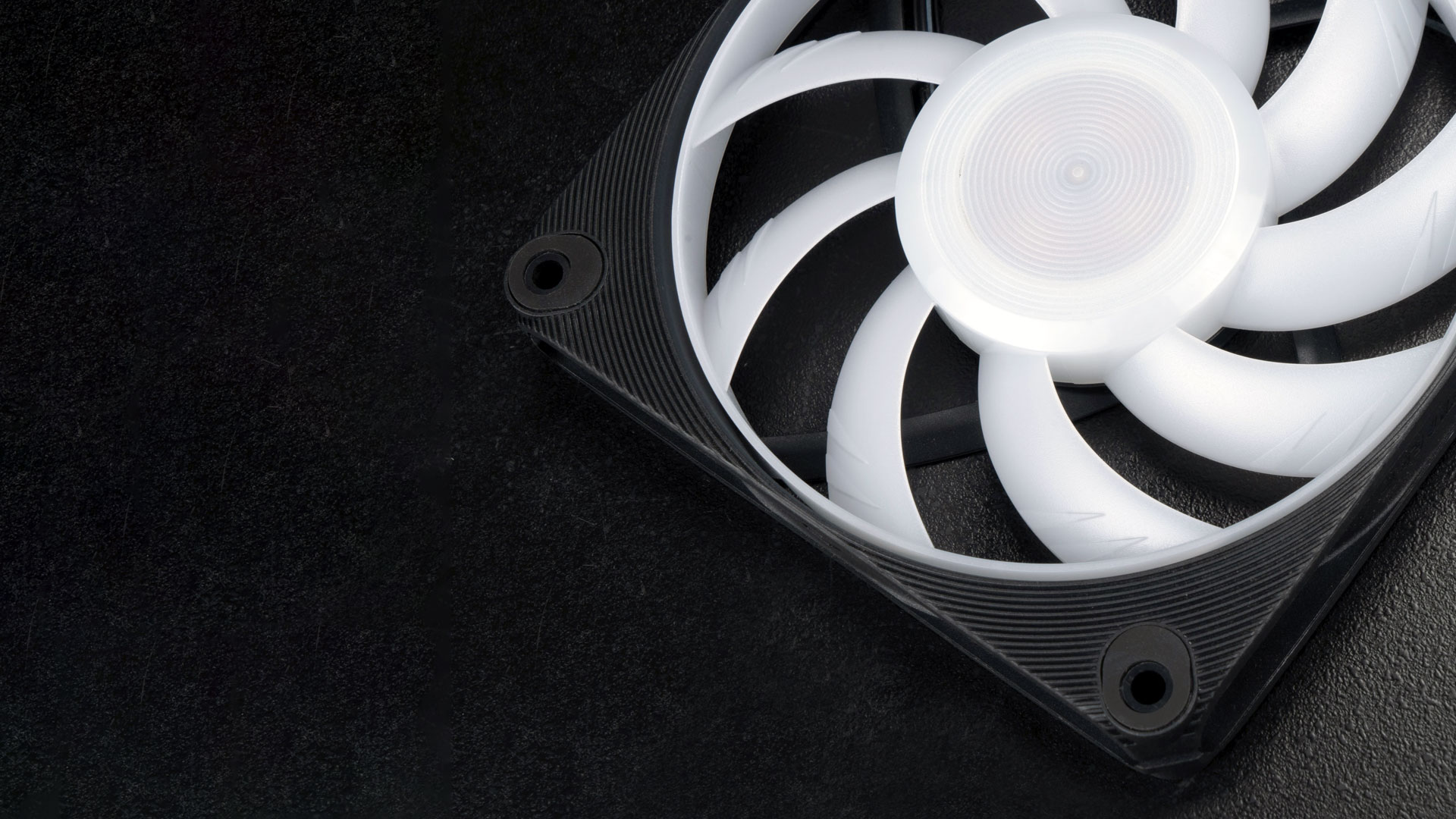

The turbine blade design is molded to the inner frame. The airflow is enhanced without leakage that occurs between the frame and blades. This results in an enriched and concentrated airflow and silent operation.

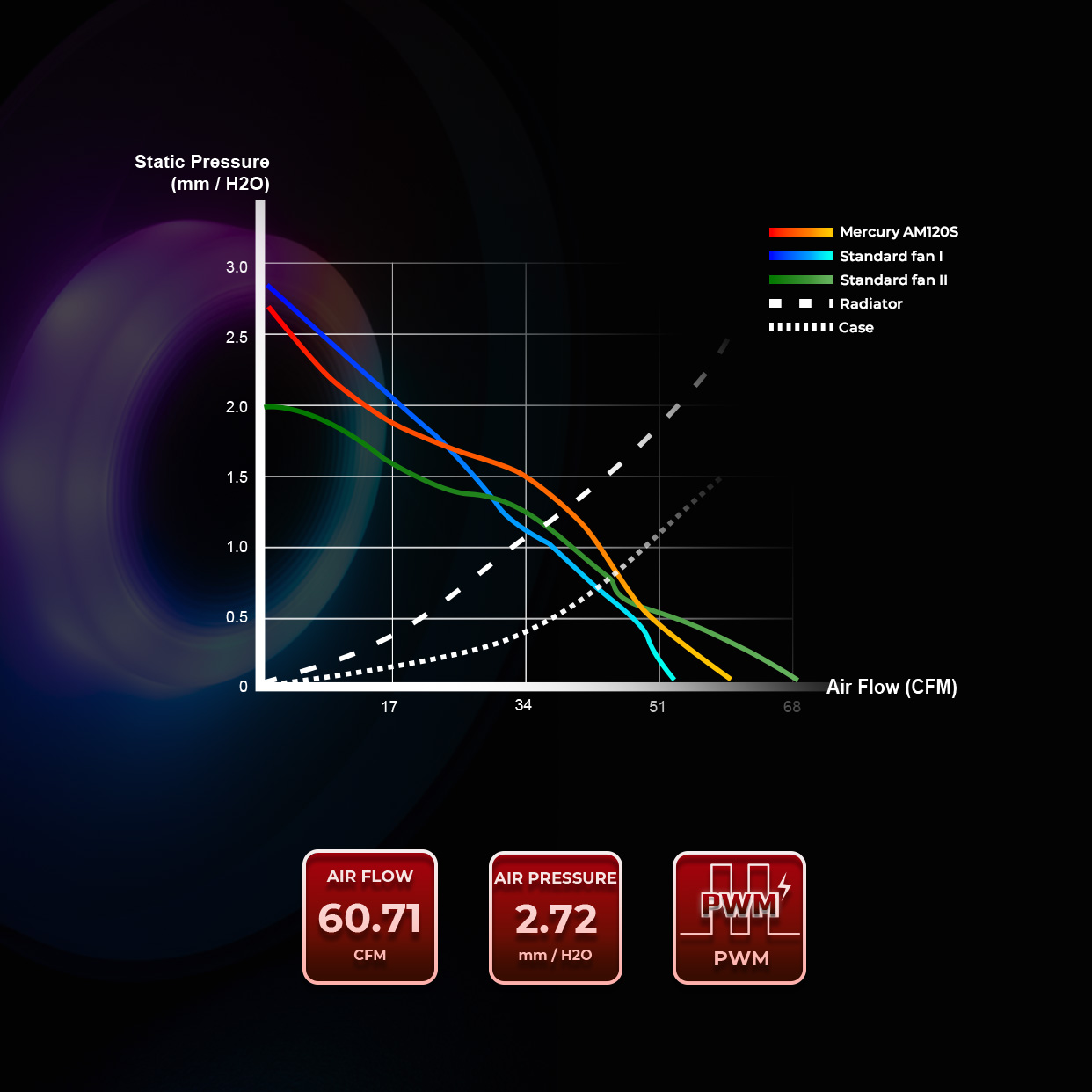

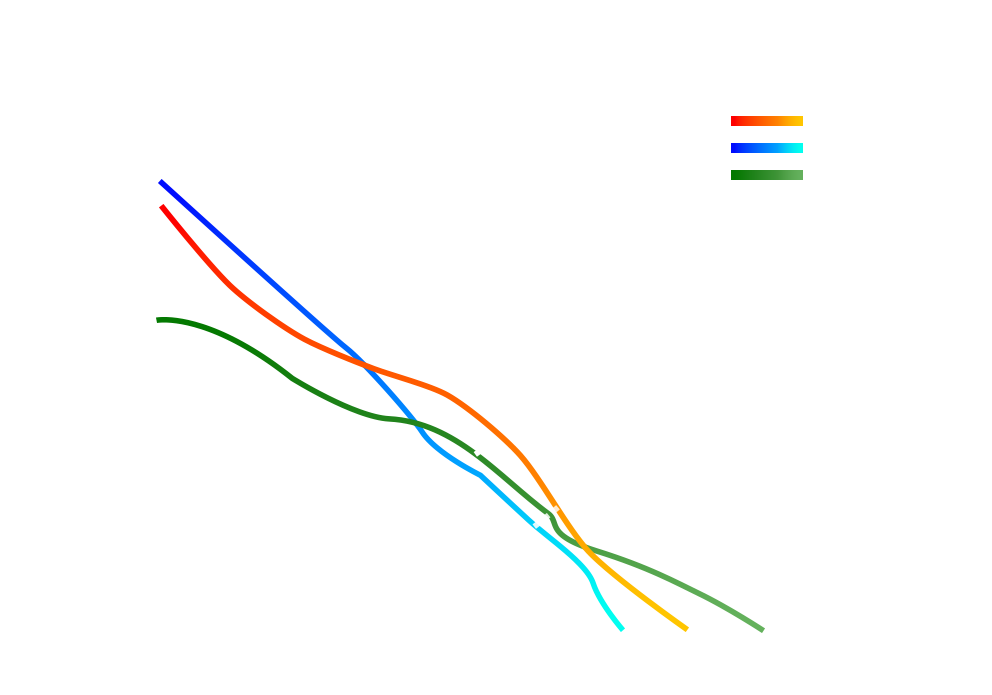

Optimized Performance

Through strict testing, compared to other fans, Mercury AM120S has an outstanding performance with high airflow, low noise output, and static air pressure. This is a cooling fan for all applications.

0%

Space

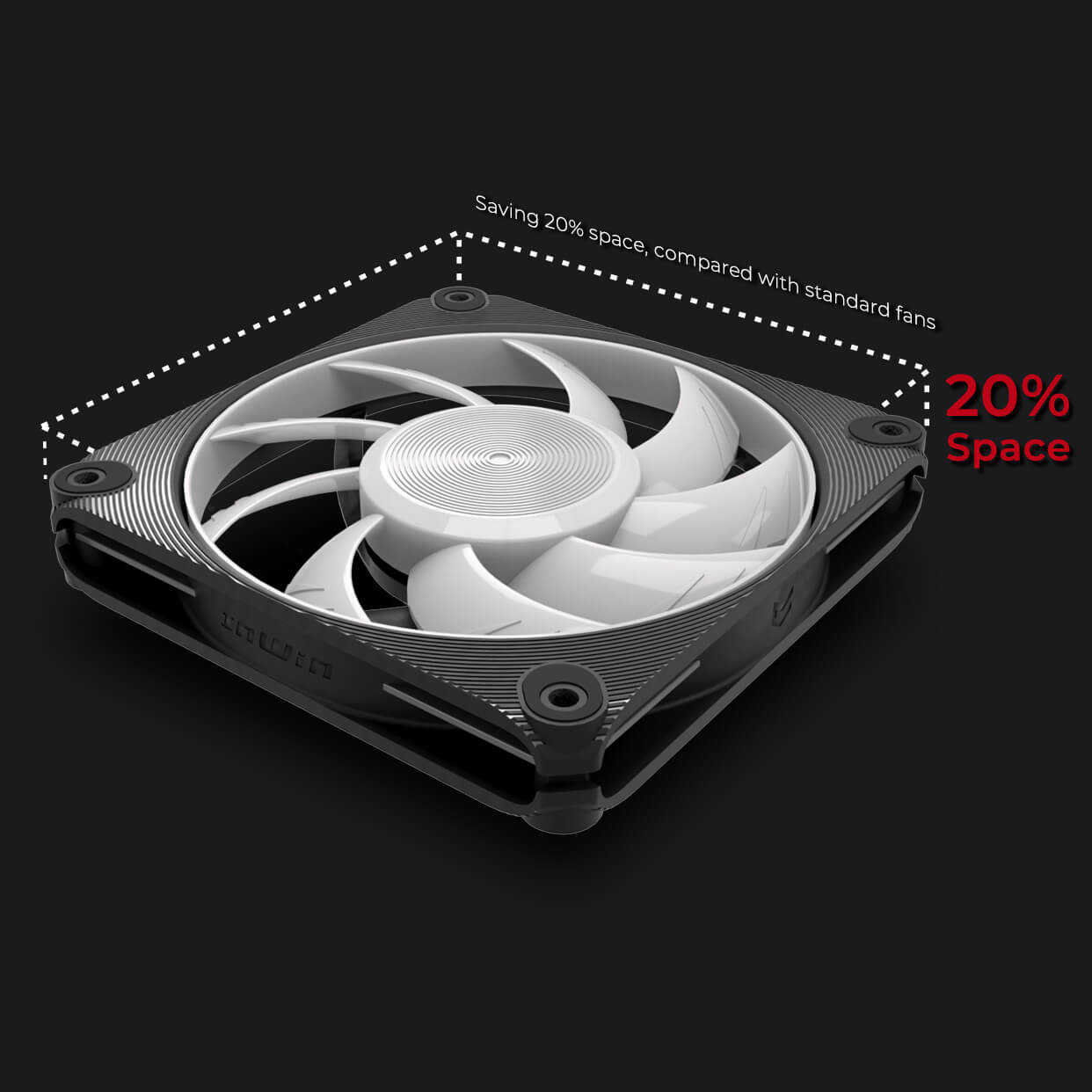

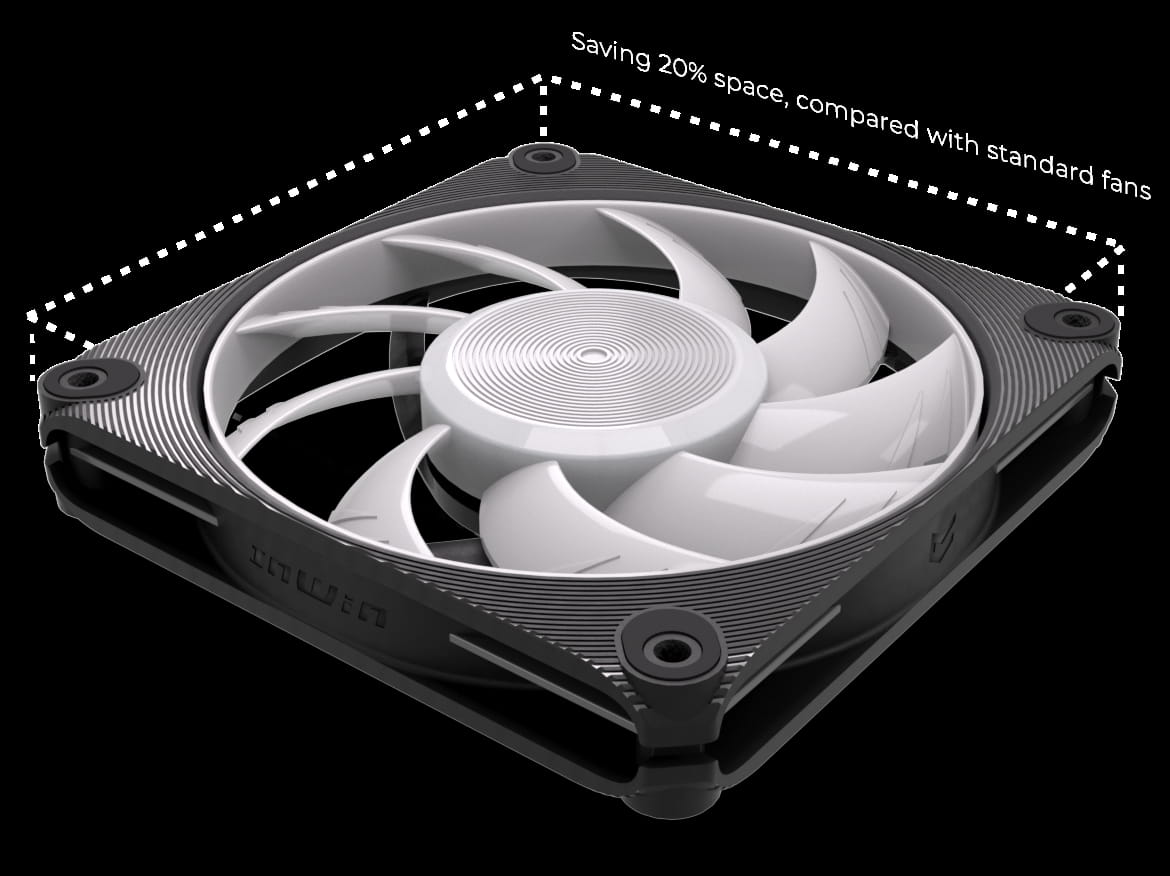

Space Conservation

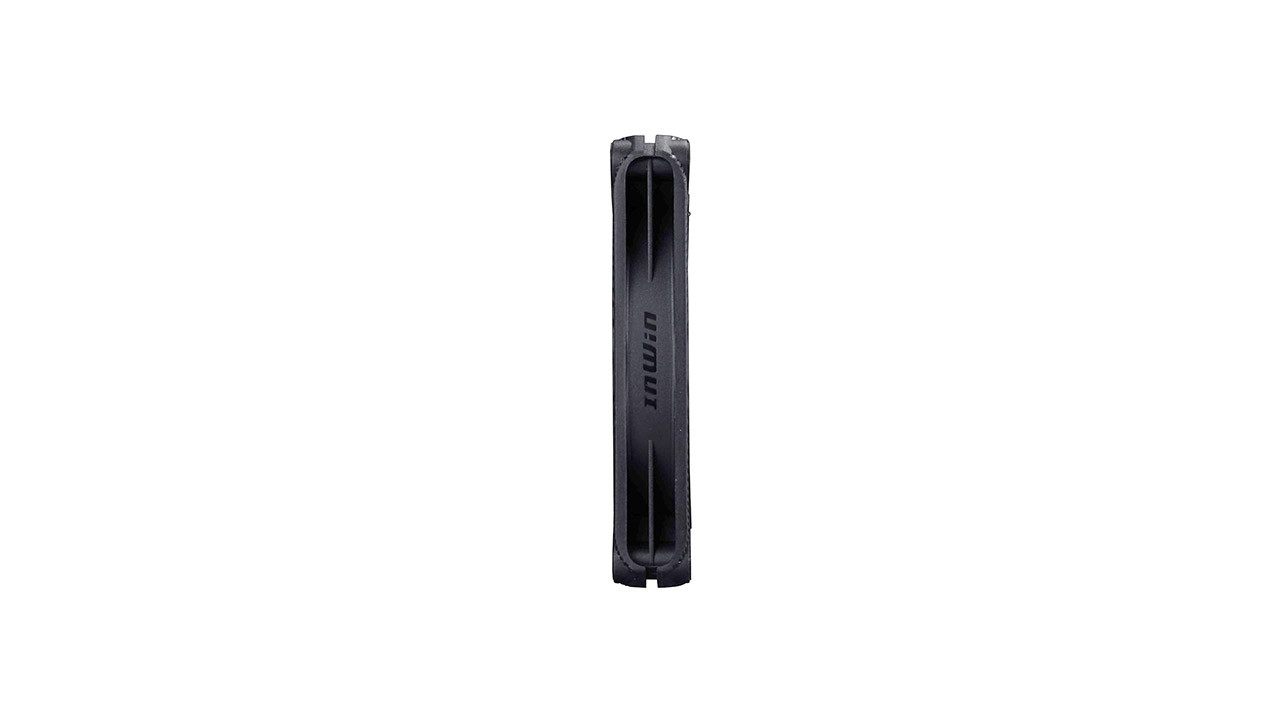

This 20mm-thick fan is versatile enough to be used as radiator fans, CPU cooler fan, and regular case fans and are especially handy when used in a compact enclosure.

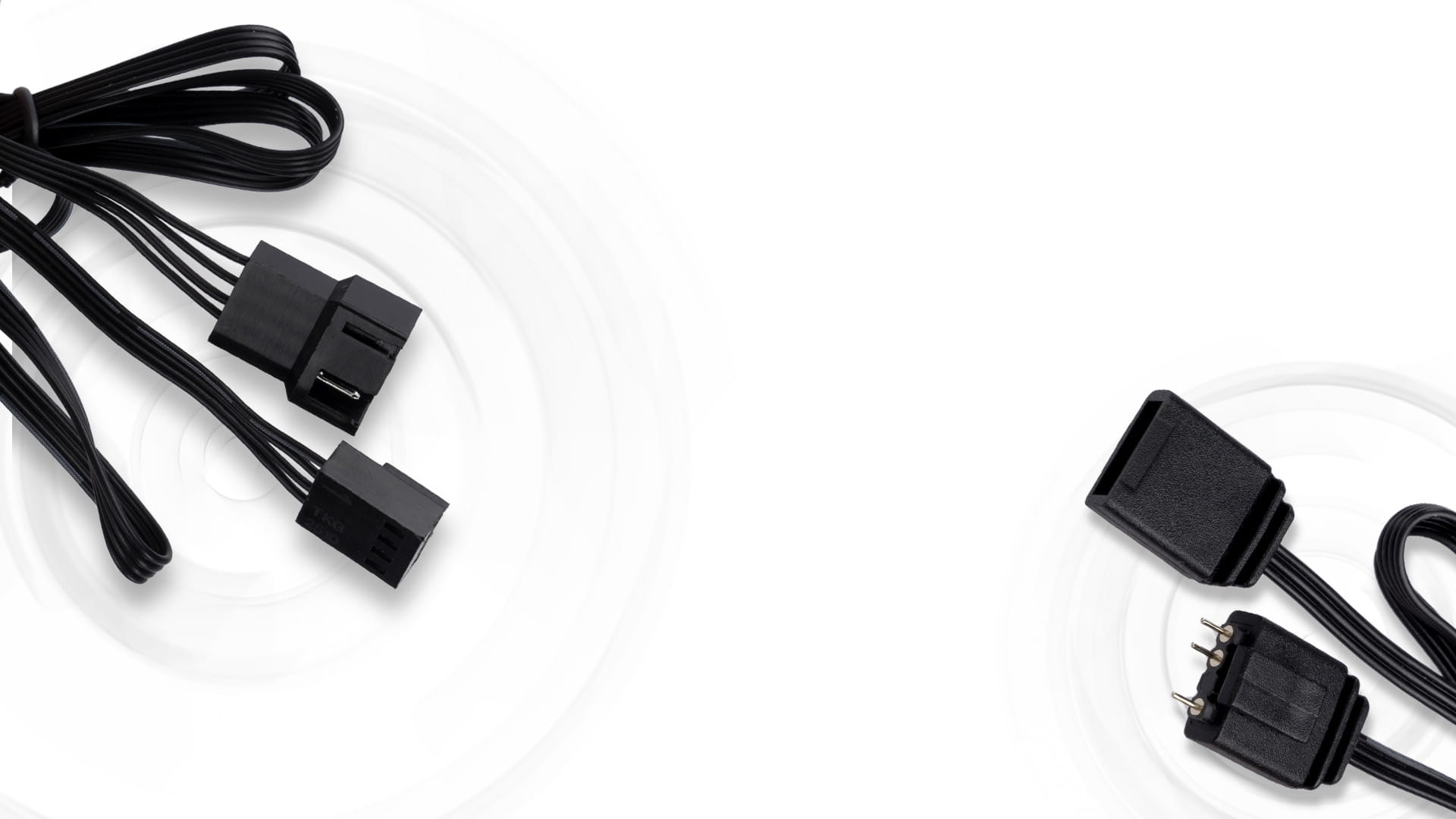

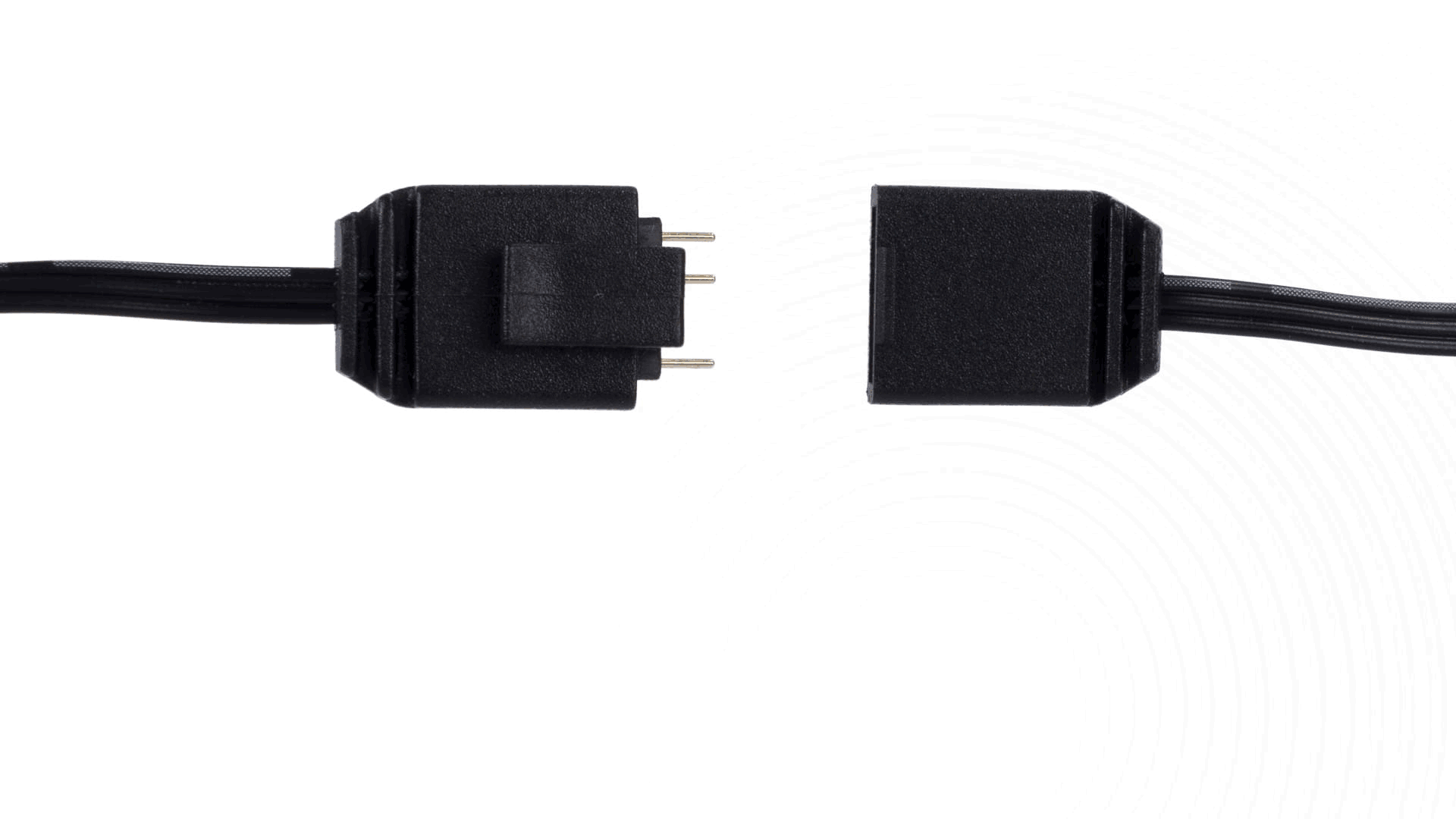

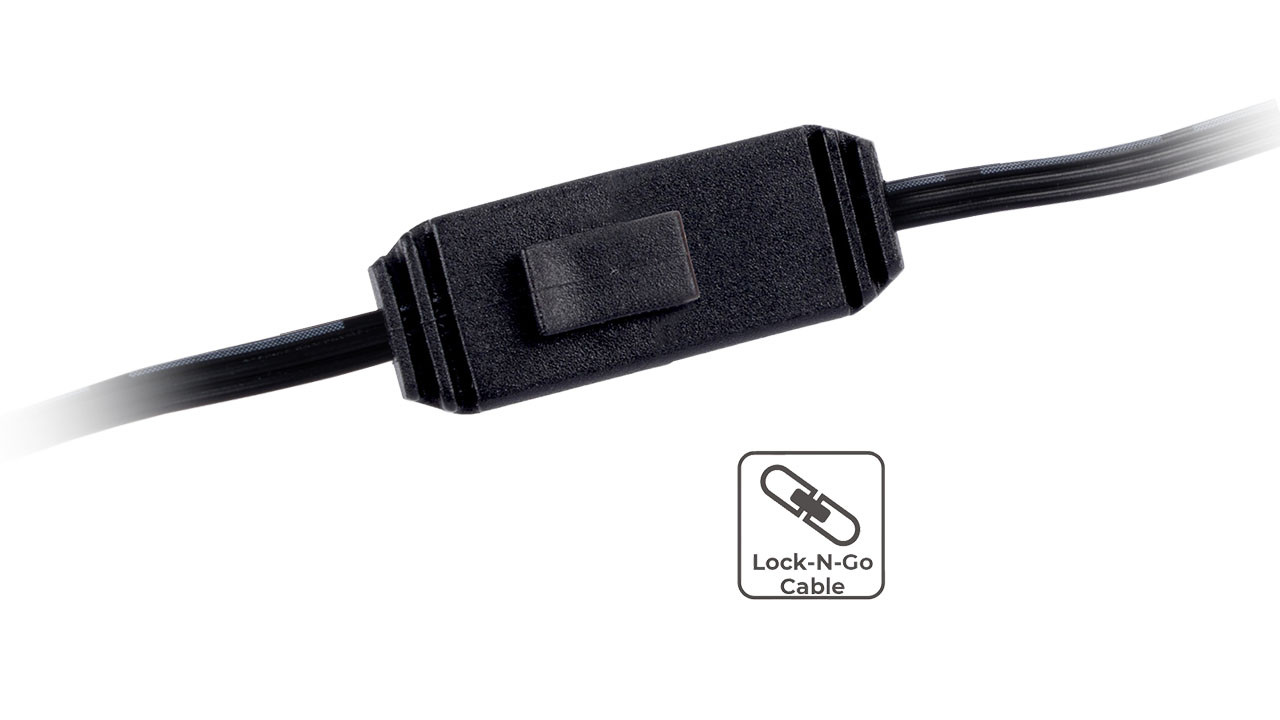

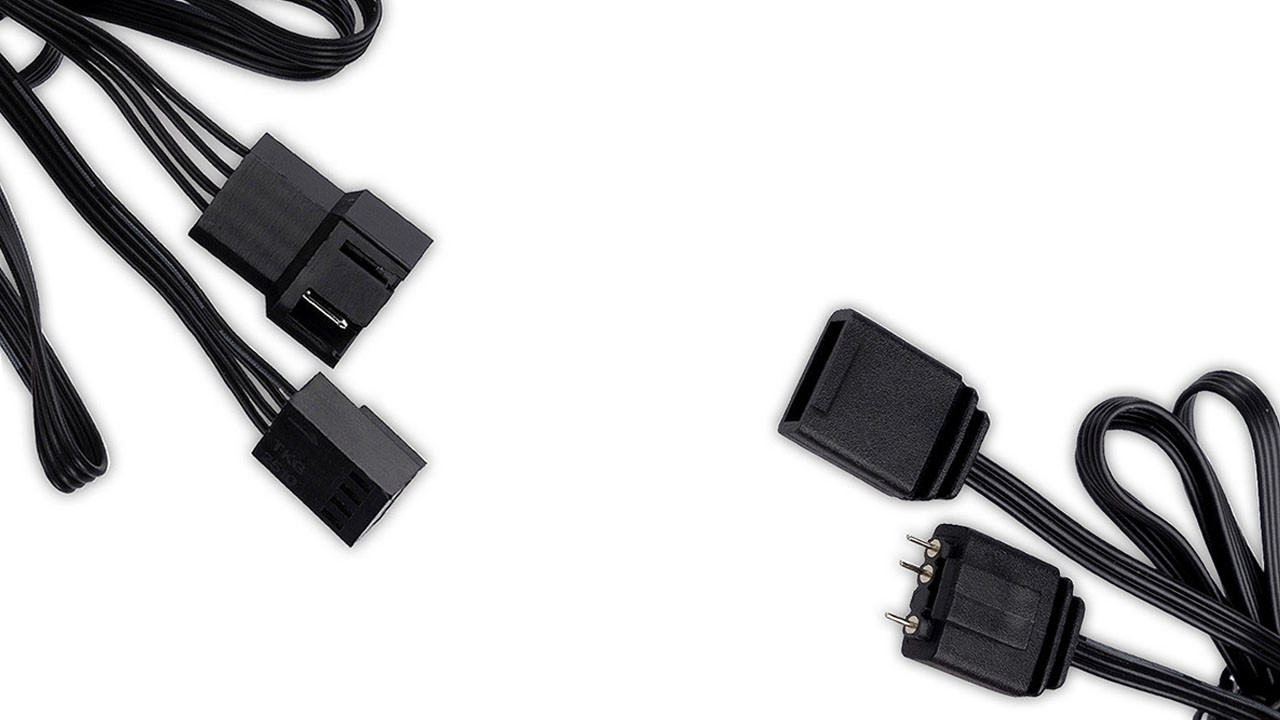

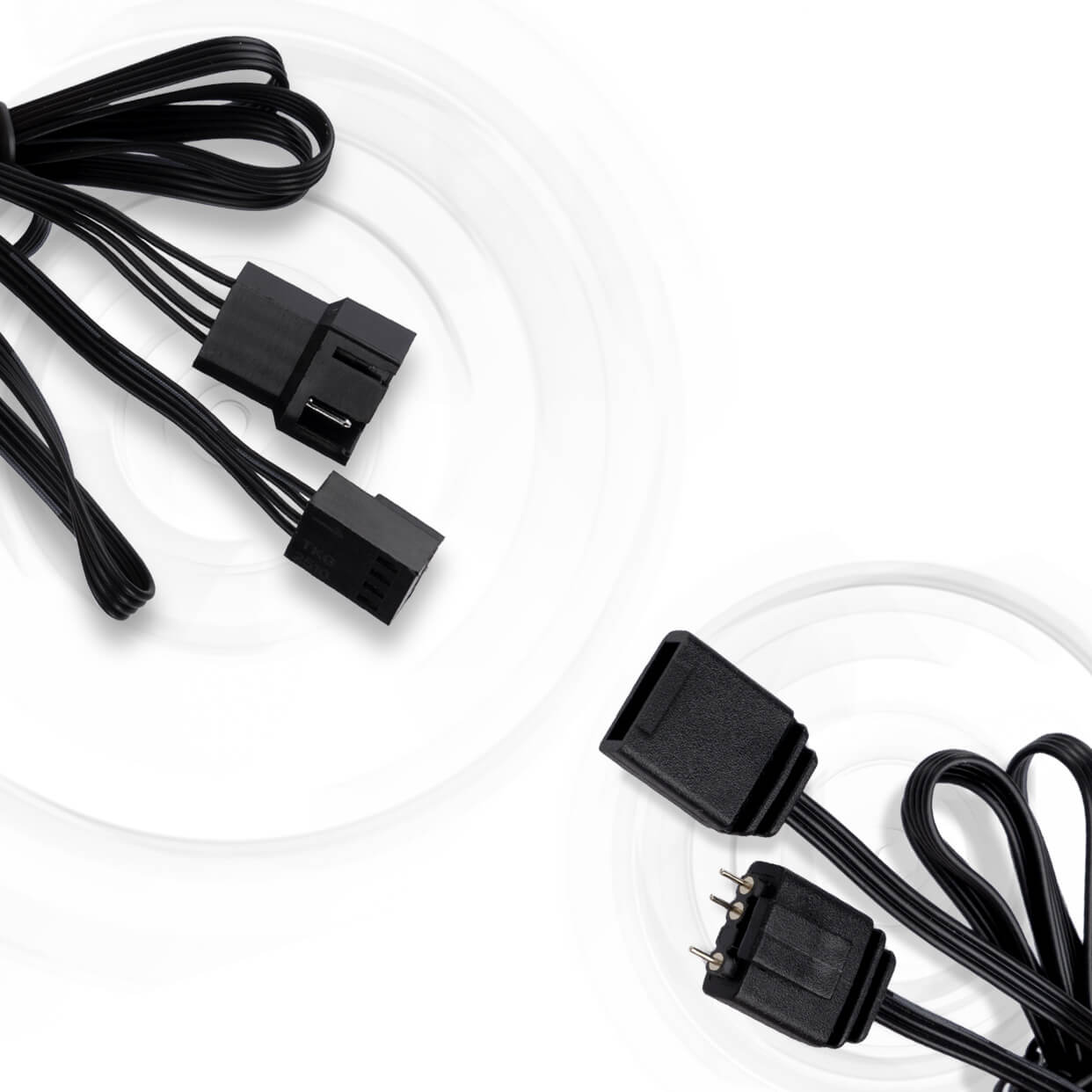

Lock-N-Go Cable

InWin’s new Lock-N-Go Cable with an anti-slide buckle design allows ARGB cable connectors to be secured like never before.

Extension Cable

Mercury AM120S possesses a user-friendly design, which allows users to connect fans via extension cables for more flexible cable management options.

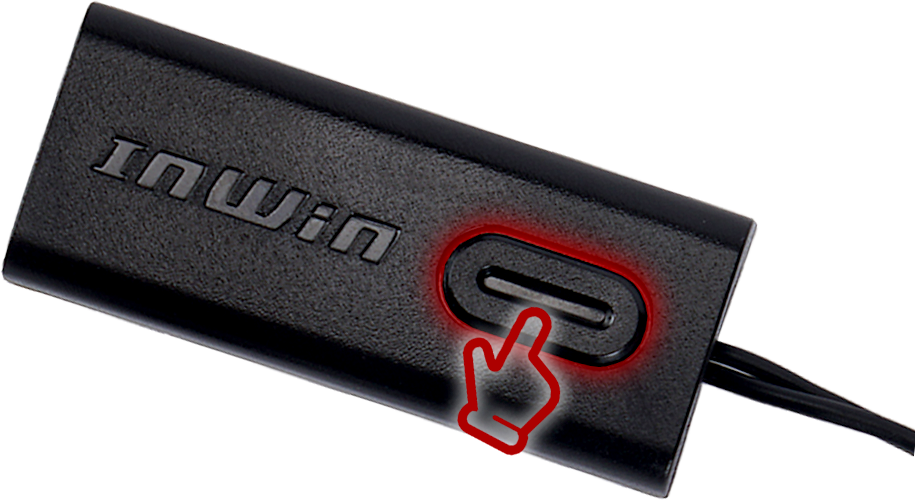

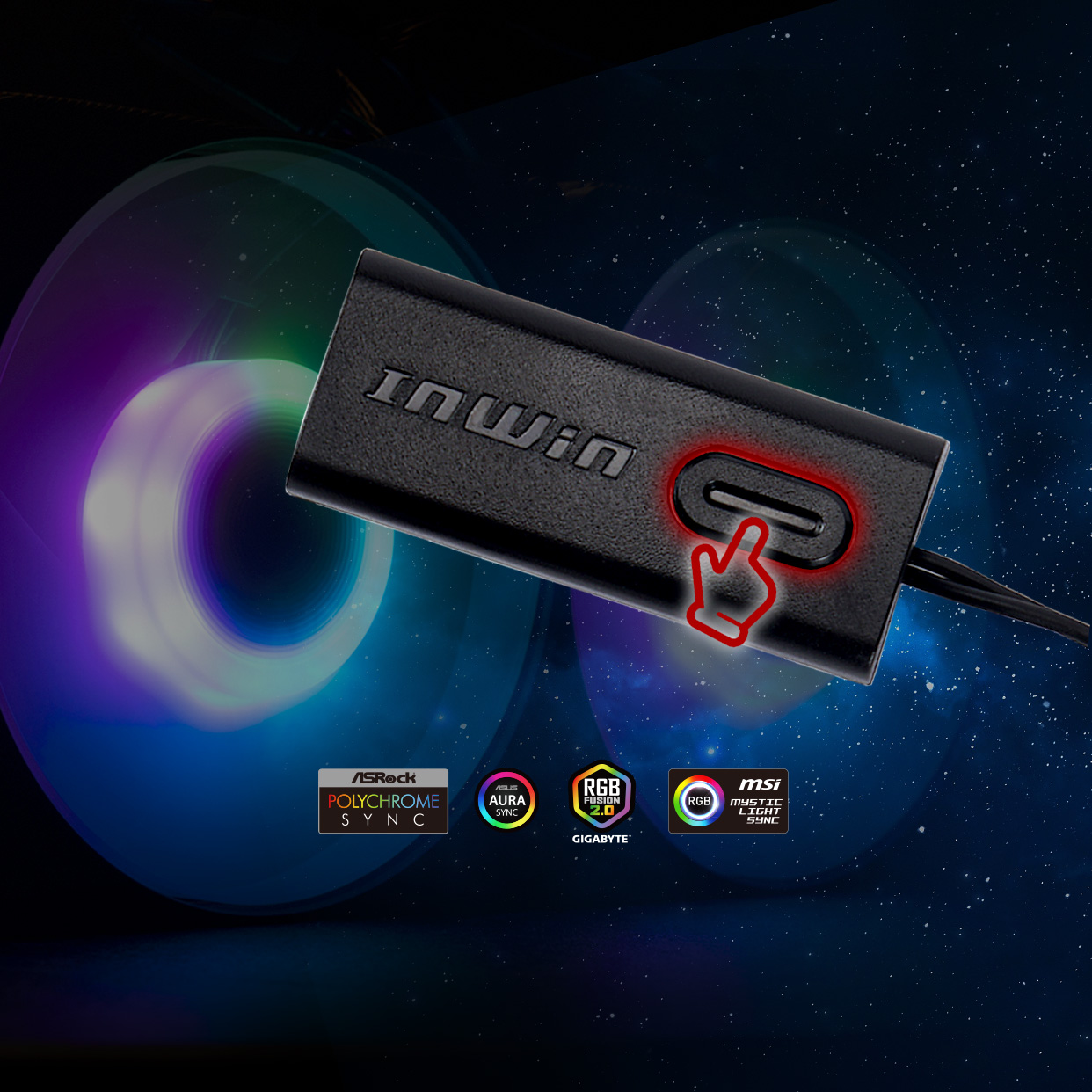

ARGB One-Click Controller

If you don’t have an ARGB motherboard, you can also control the ARGB components via the ARGB One-Click Controller, which provides 14 lighting modes.

Note: The Controller only comes with the 3-Pack.

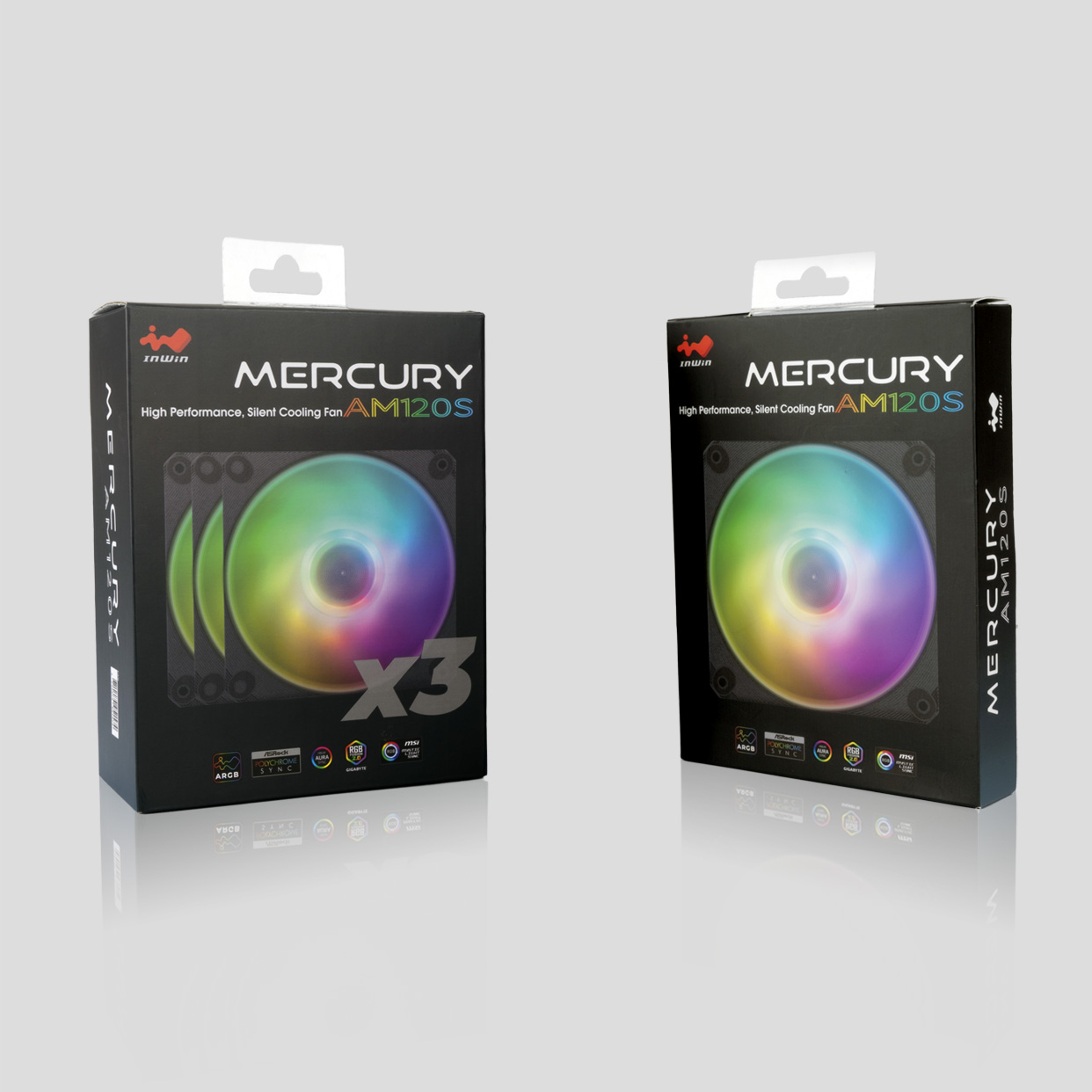

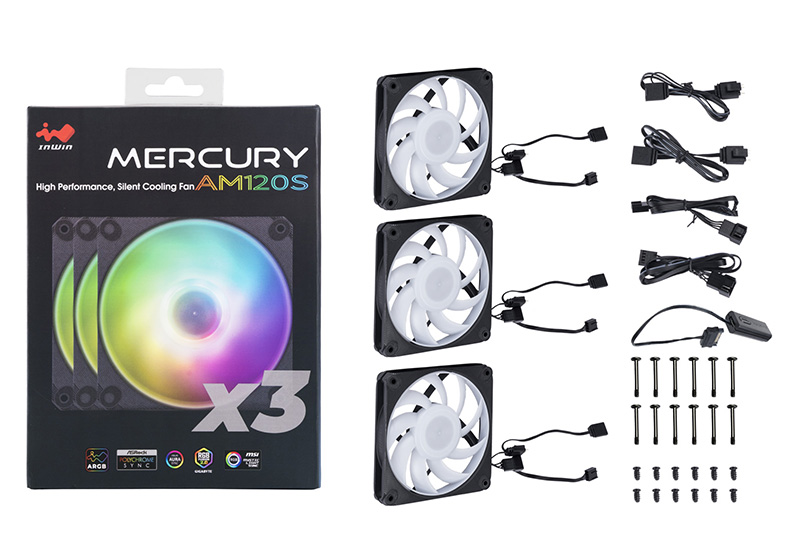

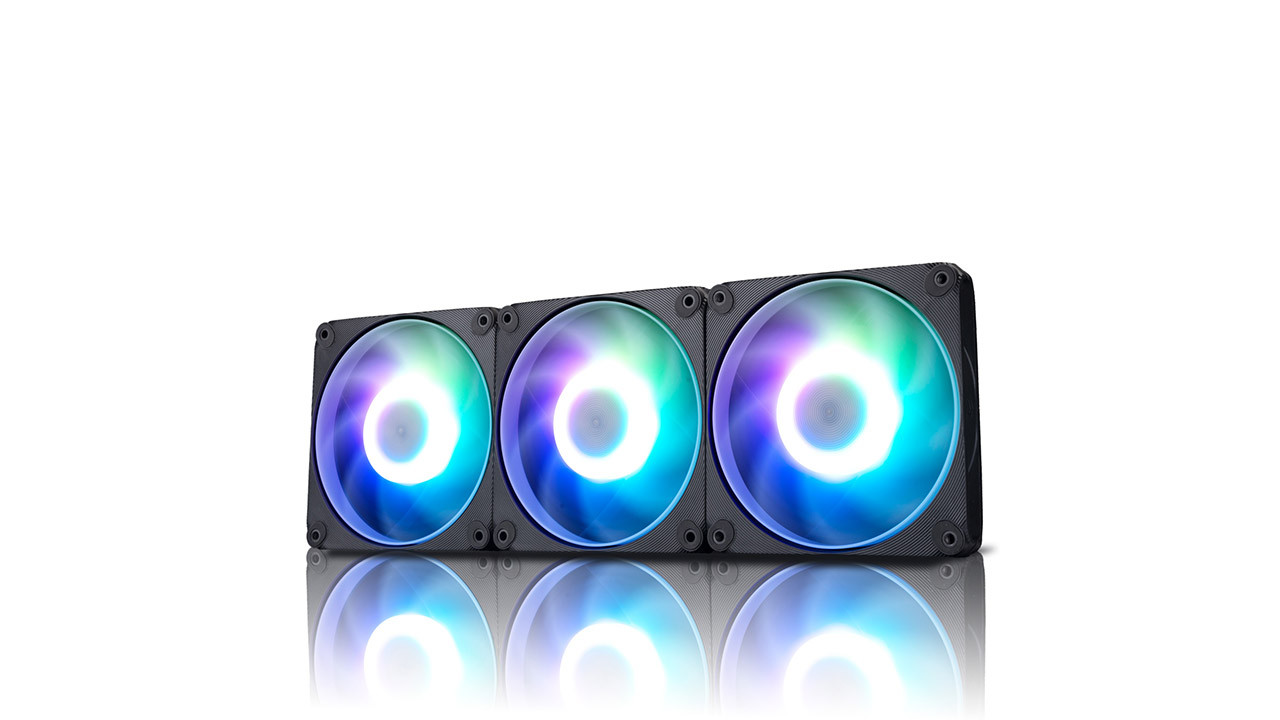

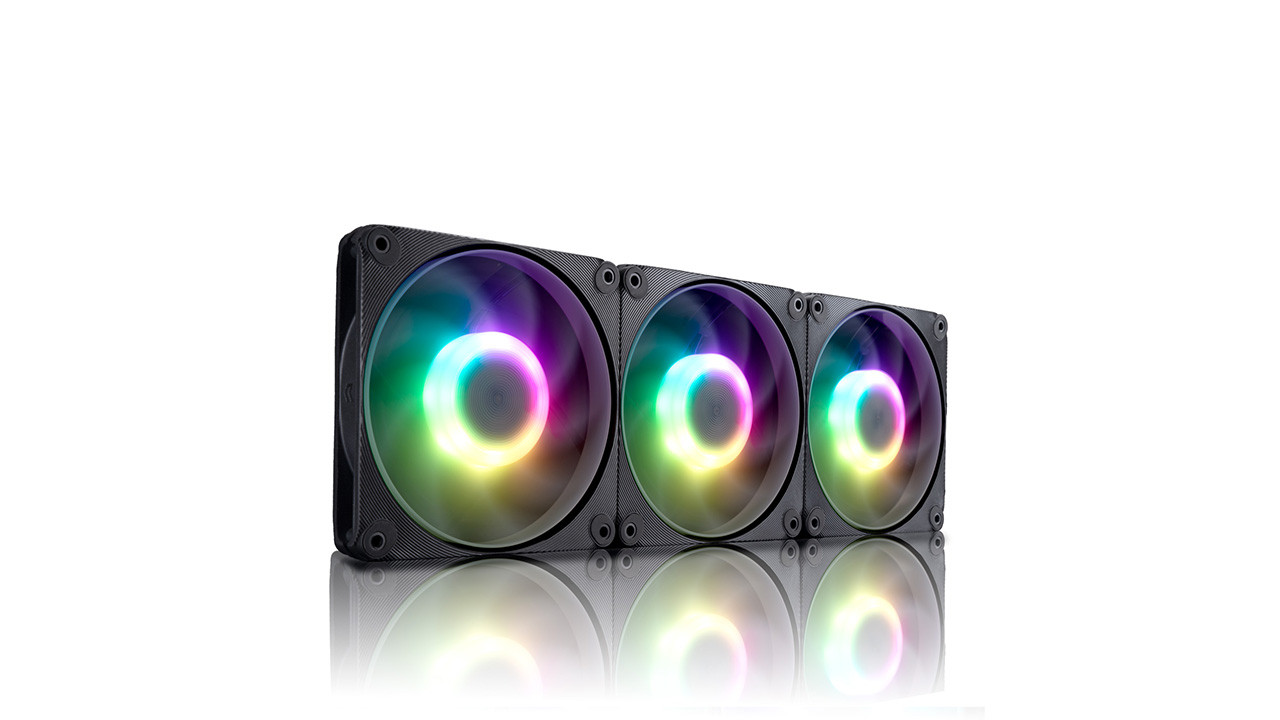

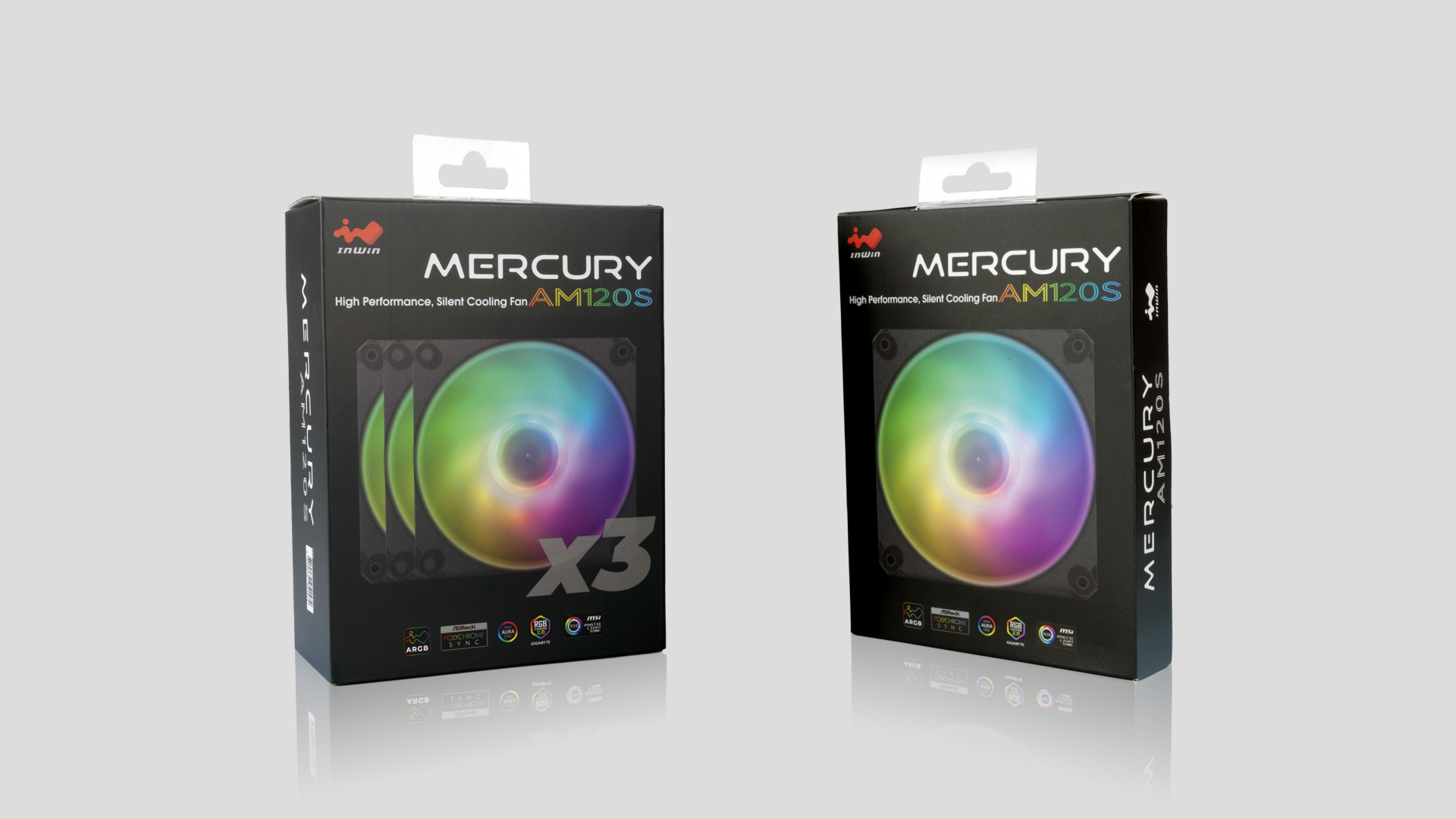

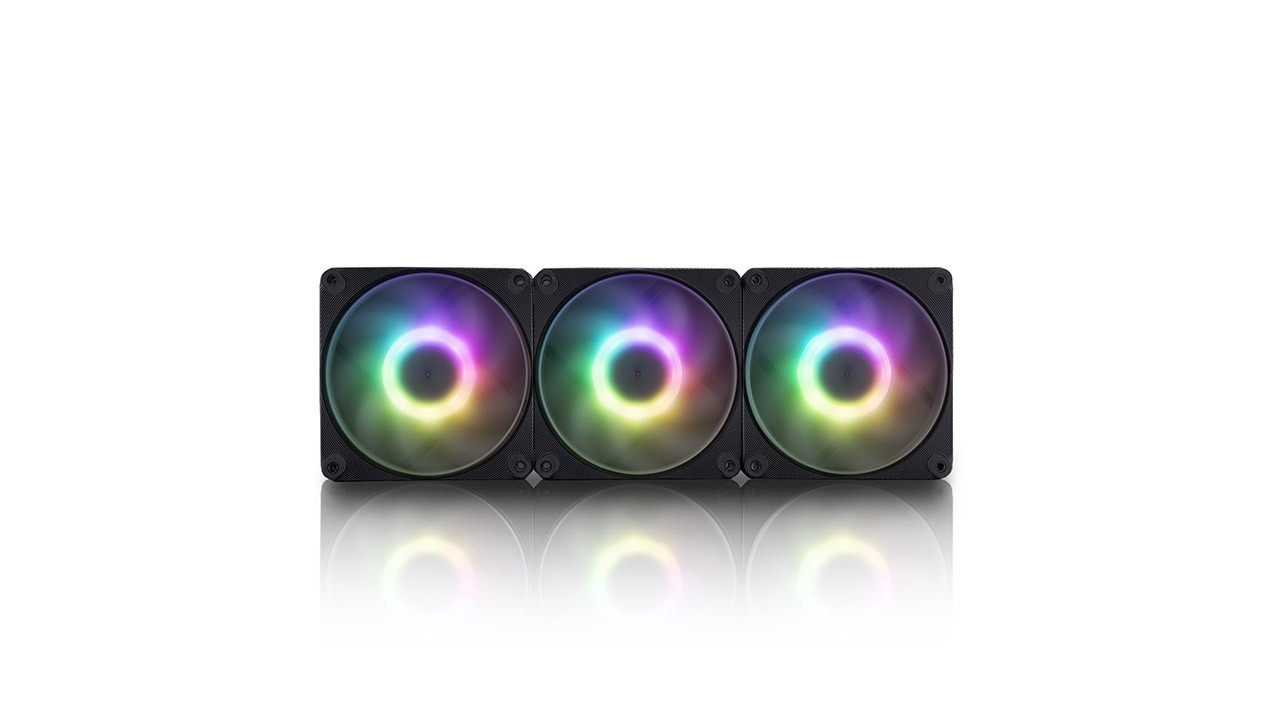

Triple Pack

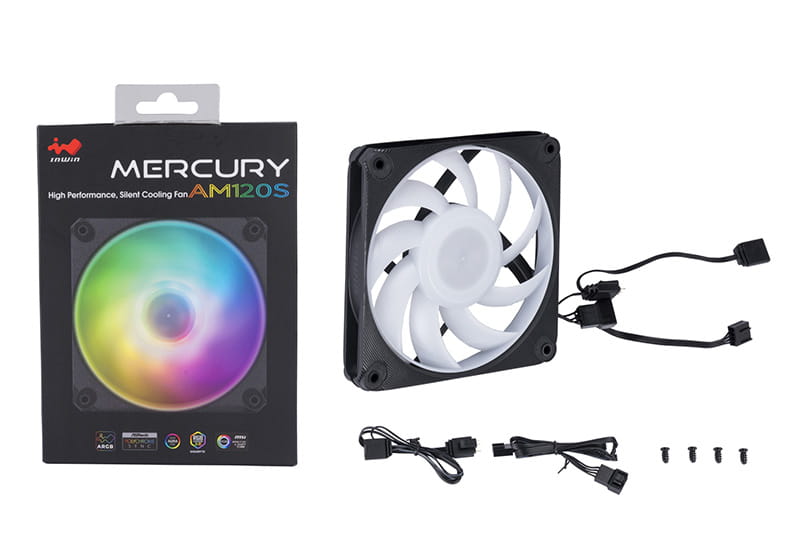

Single Pack

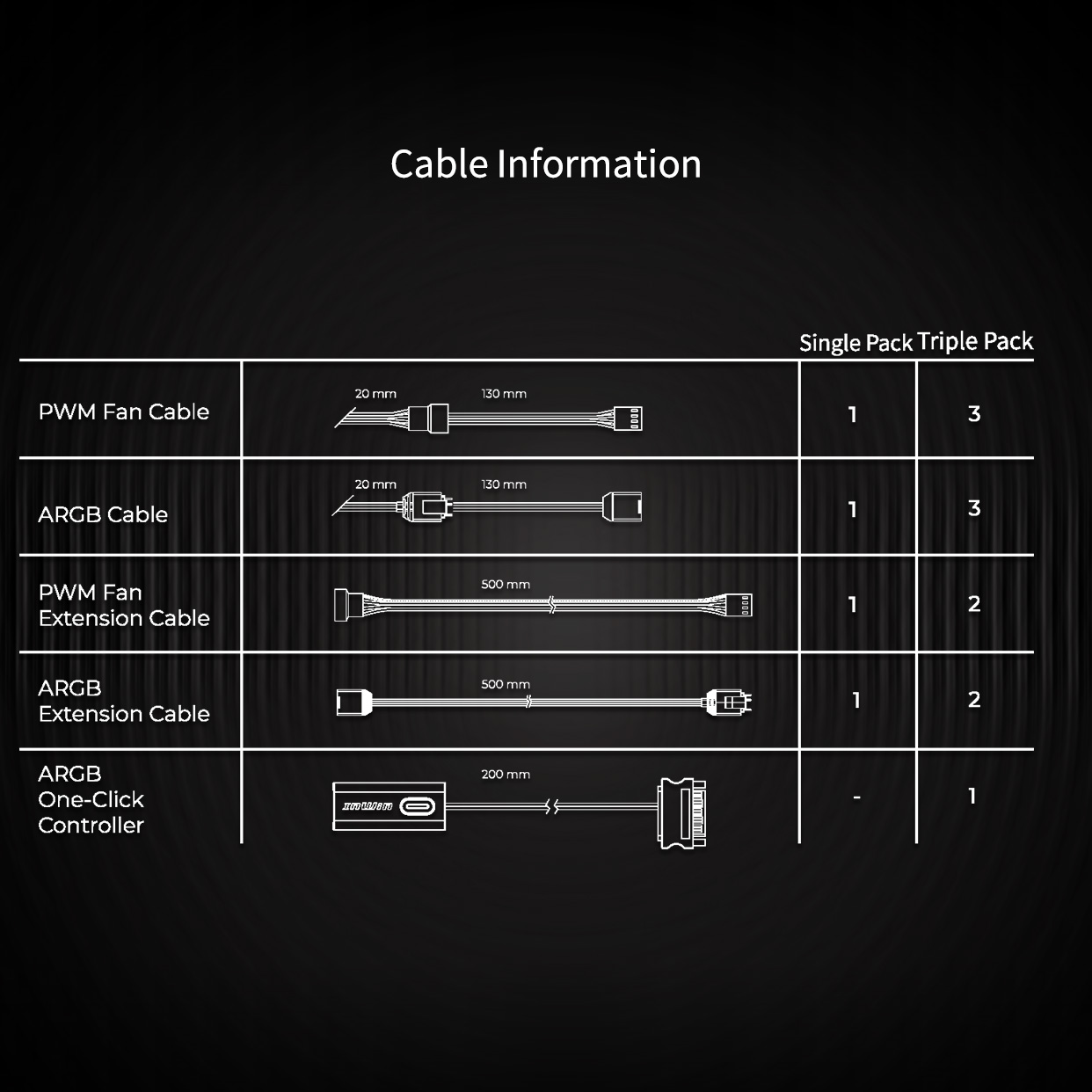

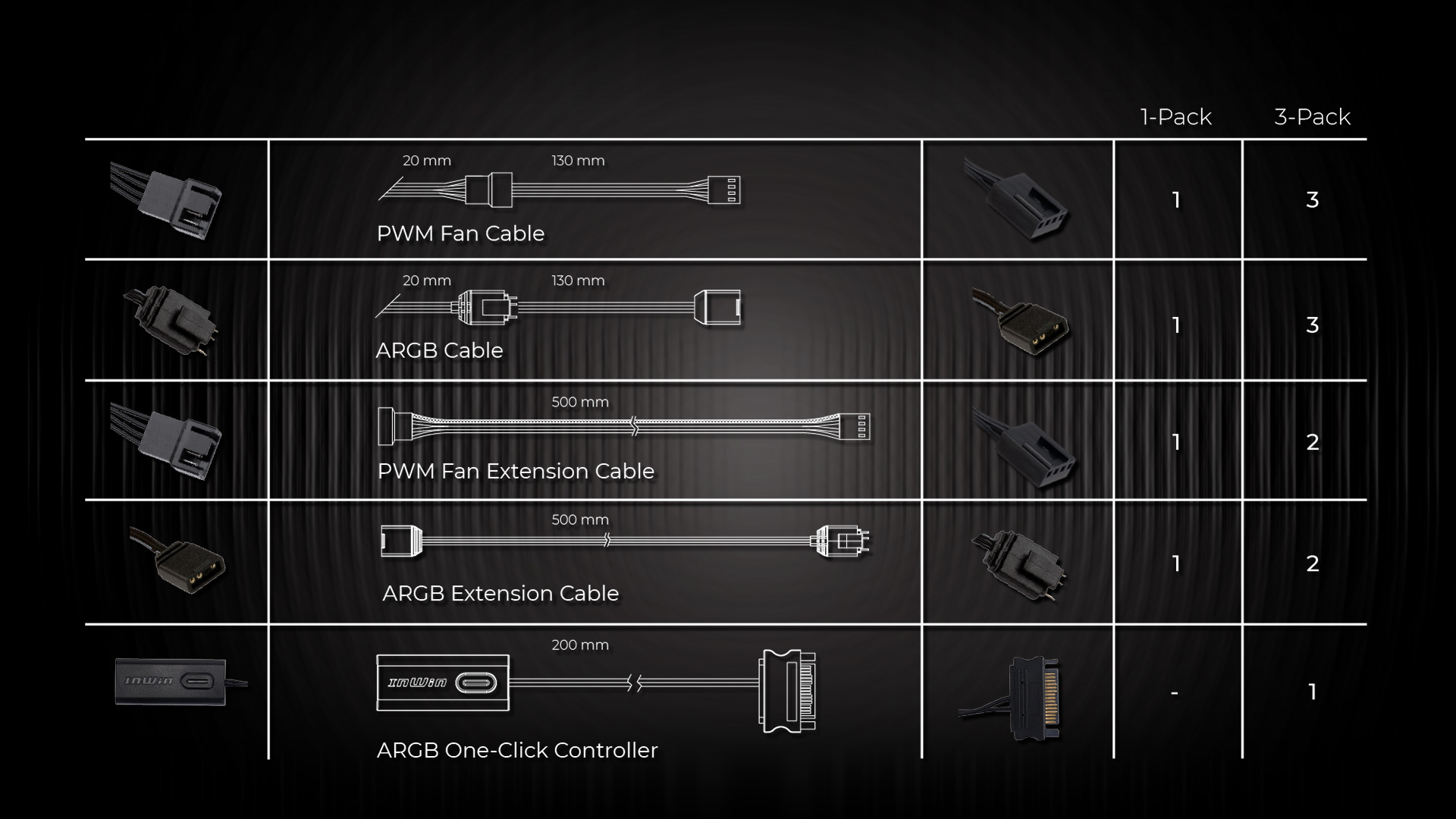

Cable Information

Specifications

Model Mercury AM120S
Quantity Included Single Pack Triple Pack
Model Number IW-FN-AM120S-1PK IW-FN-AM120S-3PK
Colors Black
Fan Size 120 x 120 x 20 mm
Materials PC, PBT
Rated Voltage DC 12V
Rated Power 1.8W
Rated Current 0.15A
ARGB Rated Voltage DC 5V
ARGB Rated Power 1.4W
ARGB Rated Current 0.28A
Speed Mode PWM 400 - 2000 +/- 10% RPM
Air Flow 60.71 CFM
Air Pressure 2.72 mm / H2O
LED Addressable RGB
Connector (Fan to Fan) Non-Modular Cables
Connector to M/B 4-Pin (12V, PWM), 3-Pin (5V, ARGB)
Noise Level 17 - 29 dB(A)
Bearing Type Long Lifespan Sleeve Bearing
MTBF >60,000 hrs.
Net Weight 138 g / 0.3 lbs 418 g / 0.92 lbs
Gross Weight 184 g / 0.4 lbs 519 g / 1.14 lbs
Package Dimensions
(L x W x H)
165 x 125 x 25 mm
6.49 x 4.92 x 0.98"
165 x 125 x 65 mm
6.49 x 4.92 x 2.55"
Warranty 3 Years
* InWin's products comply with RoHS regulation.
* Specifications may vary based on different regions.

Download

Video

News / Reviews

eStore

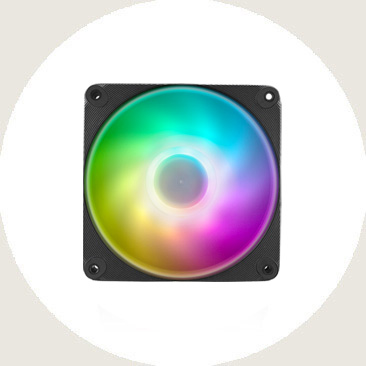

Mercury AM120S is on InWin Official eStore Now!
