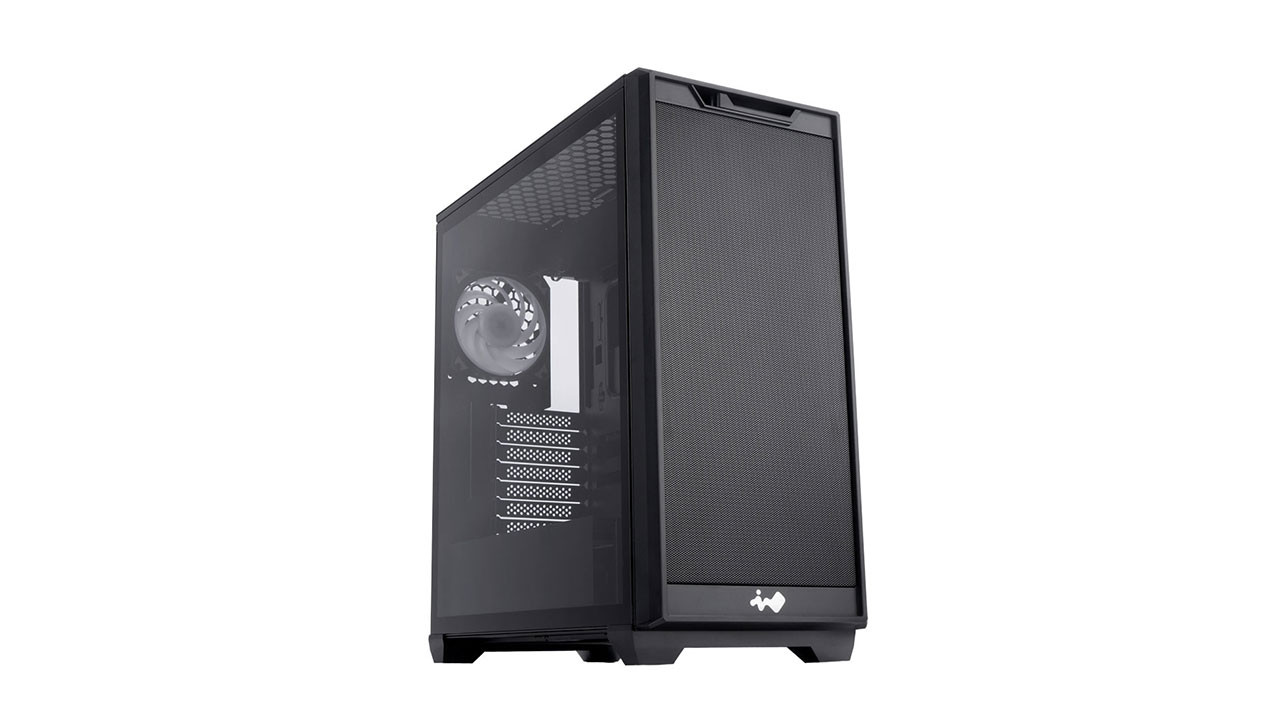

D5

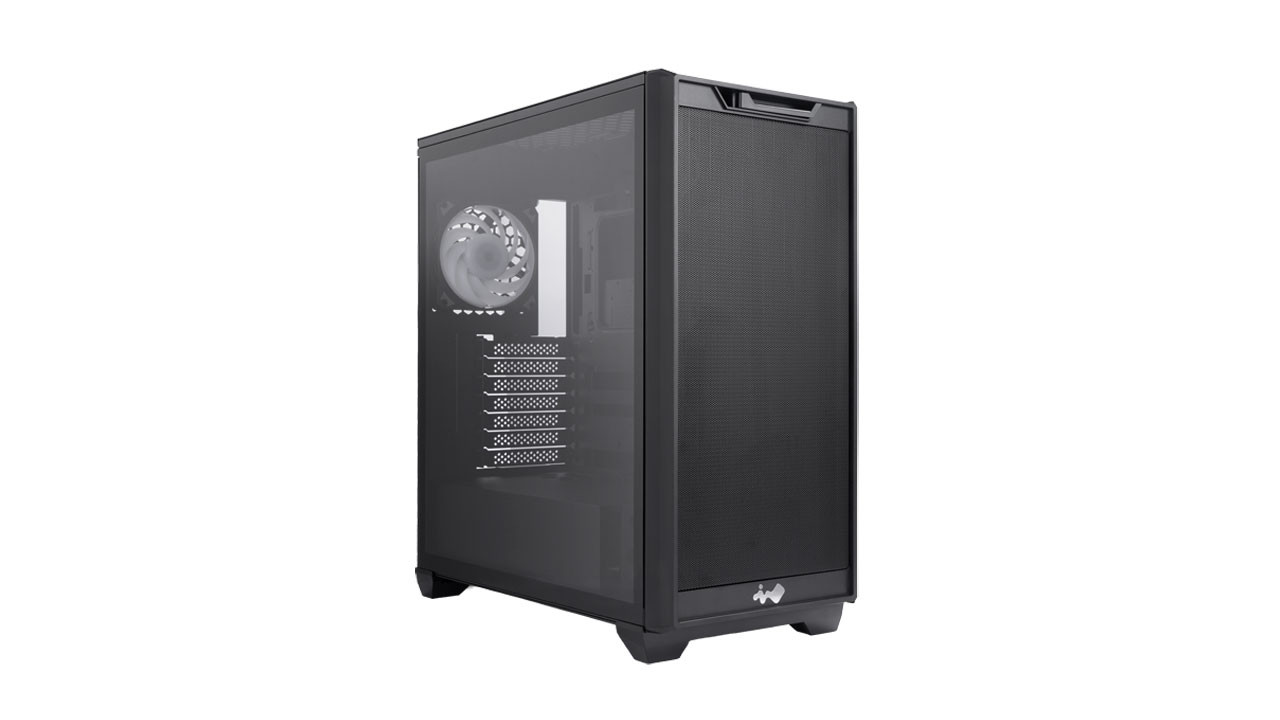

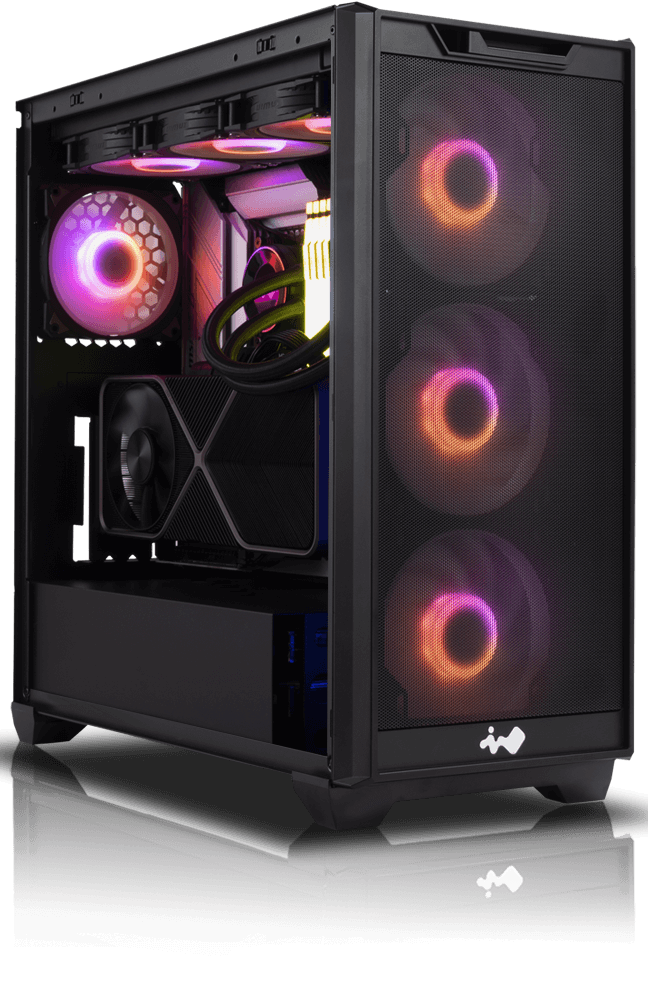

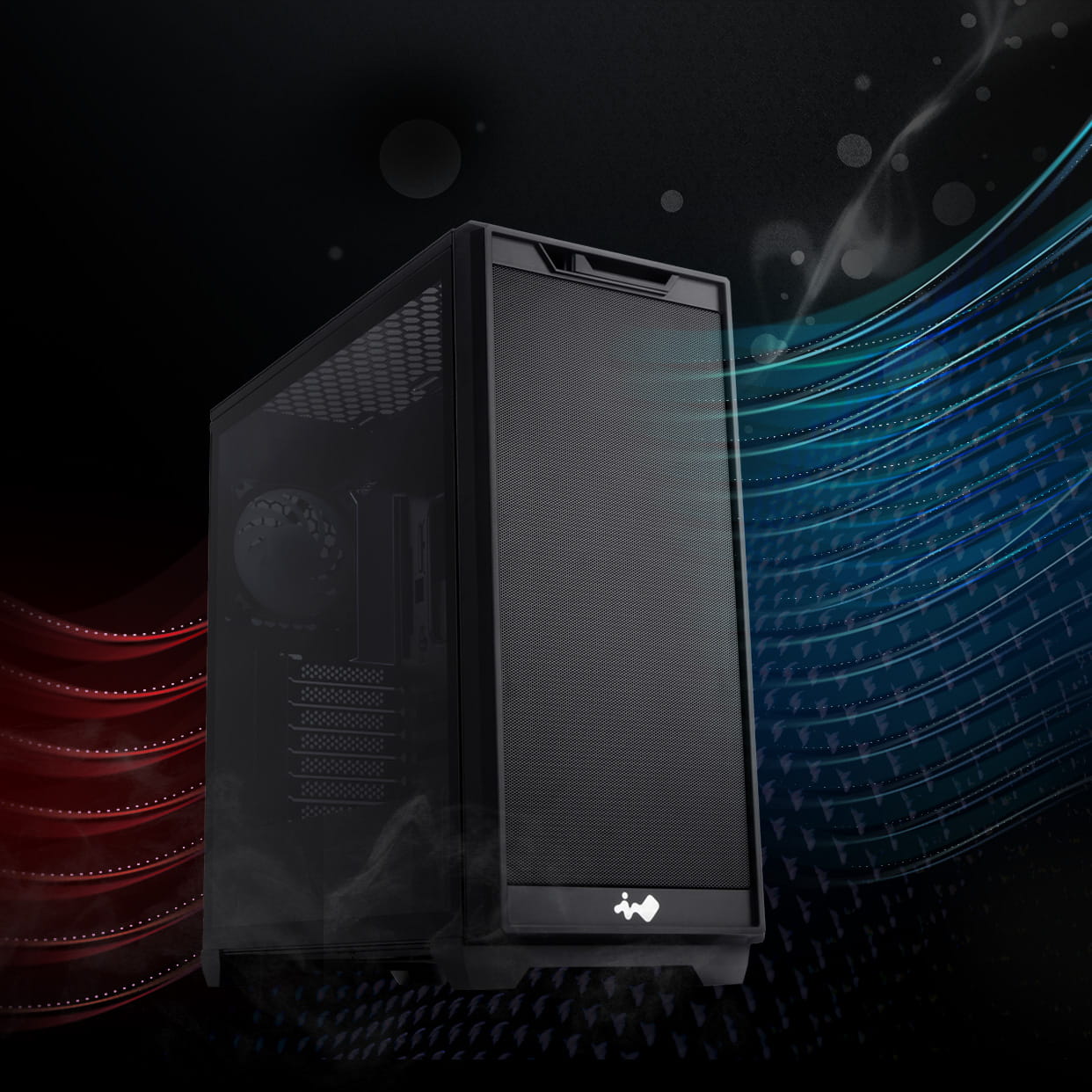

Let the Air Flow

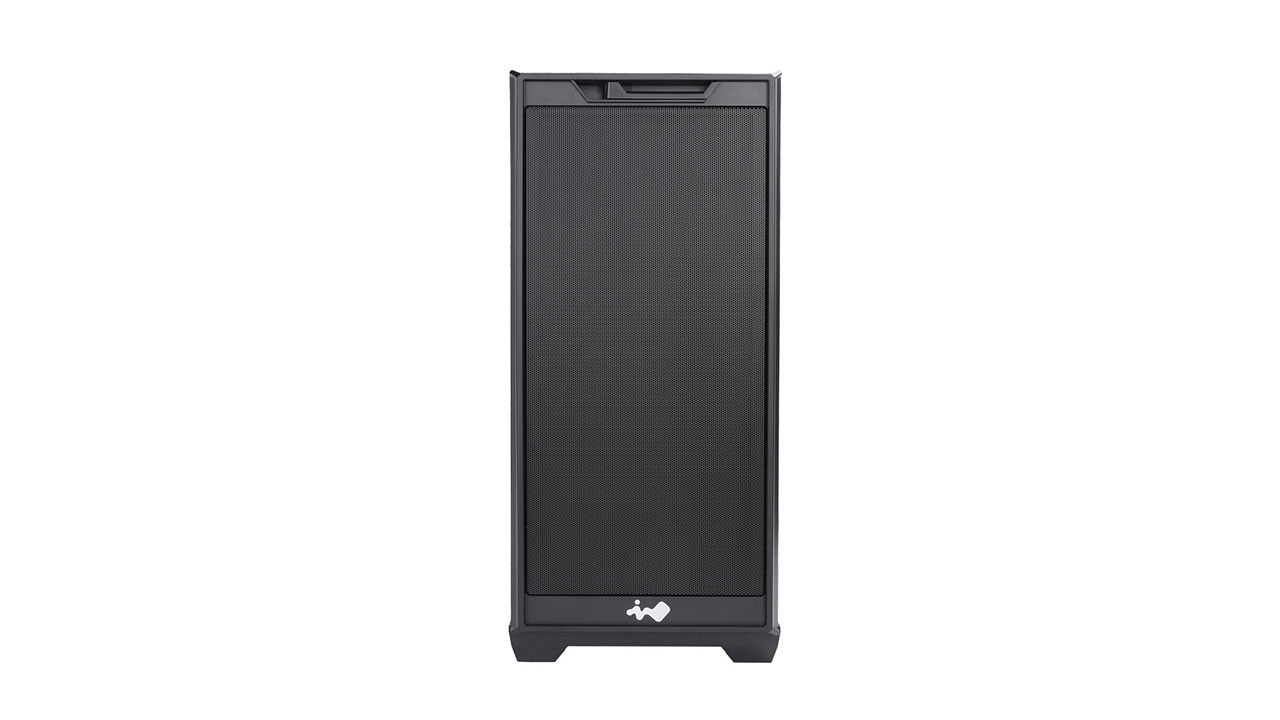

The D5 features a widely perforated front and top panel to enhance airflow and maximize ventilation.

* The PCI-E riser cable is not included.

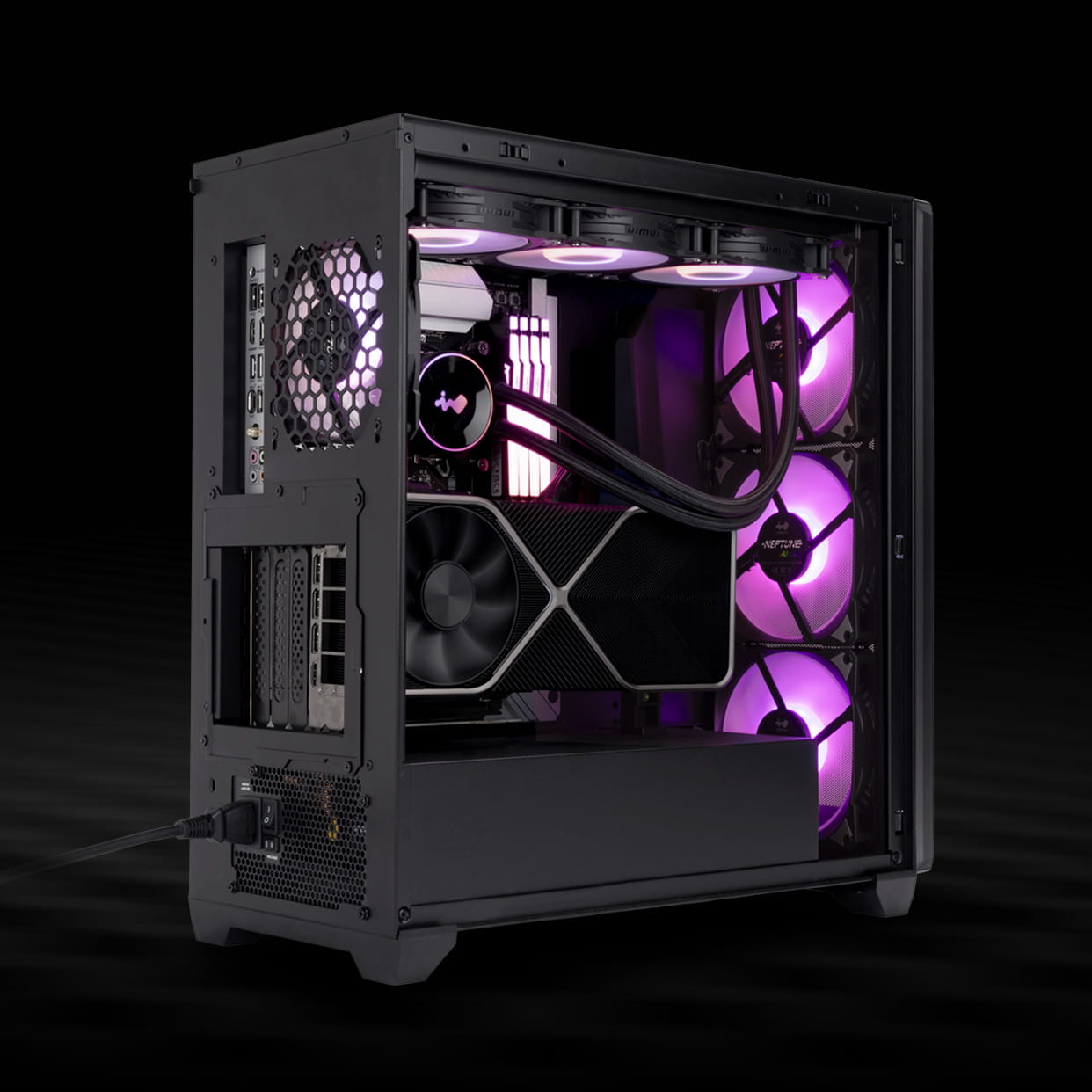

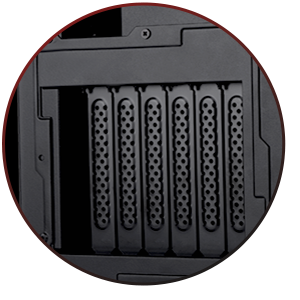

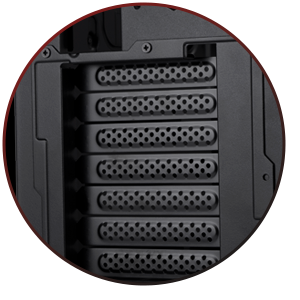

Dual GPU Orientation

No additional brackets required; the D5's modular, rotatable PCI-E slot bracket provides users with the option to display the GPU vertically or horizontally. The complementary magnetic GPU holder is to support heavier cards.

* The PCI-E riser cable is not included.

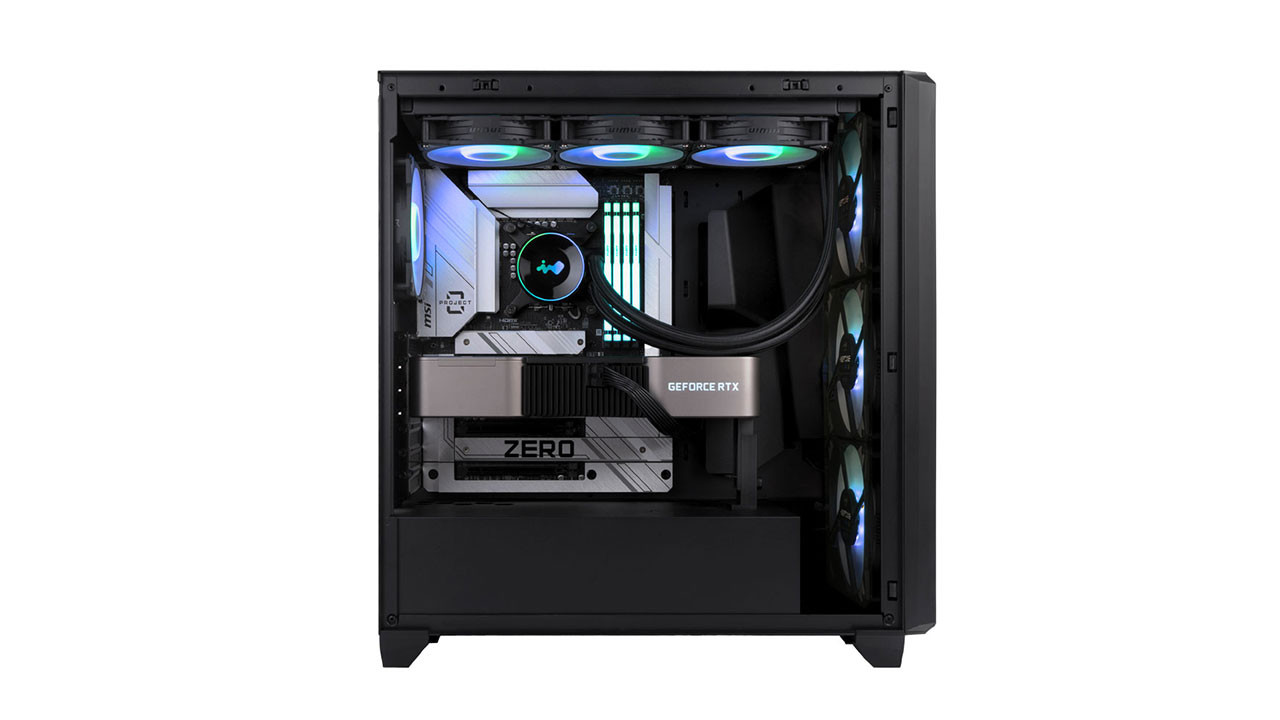

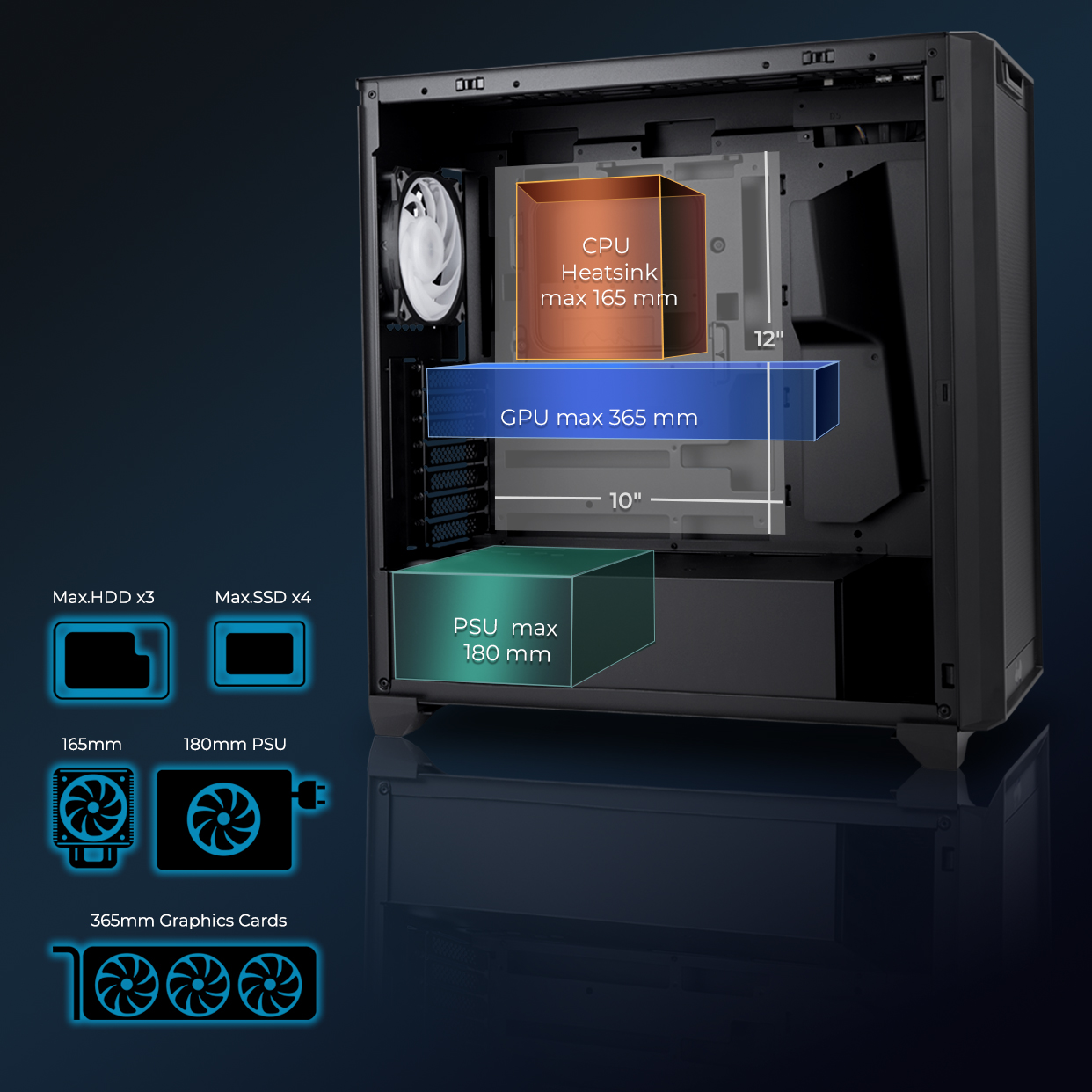

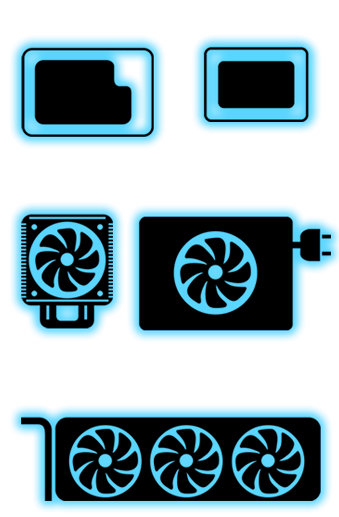

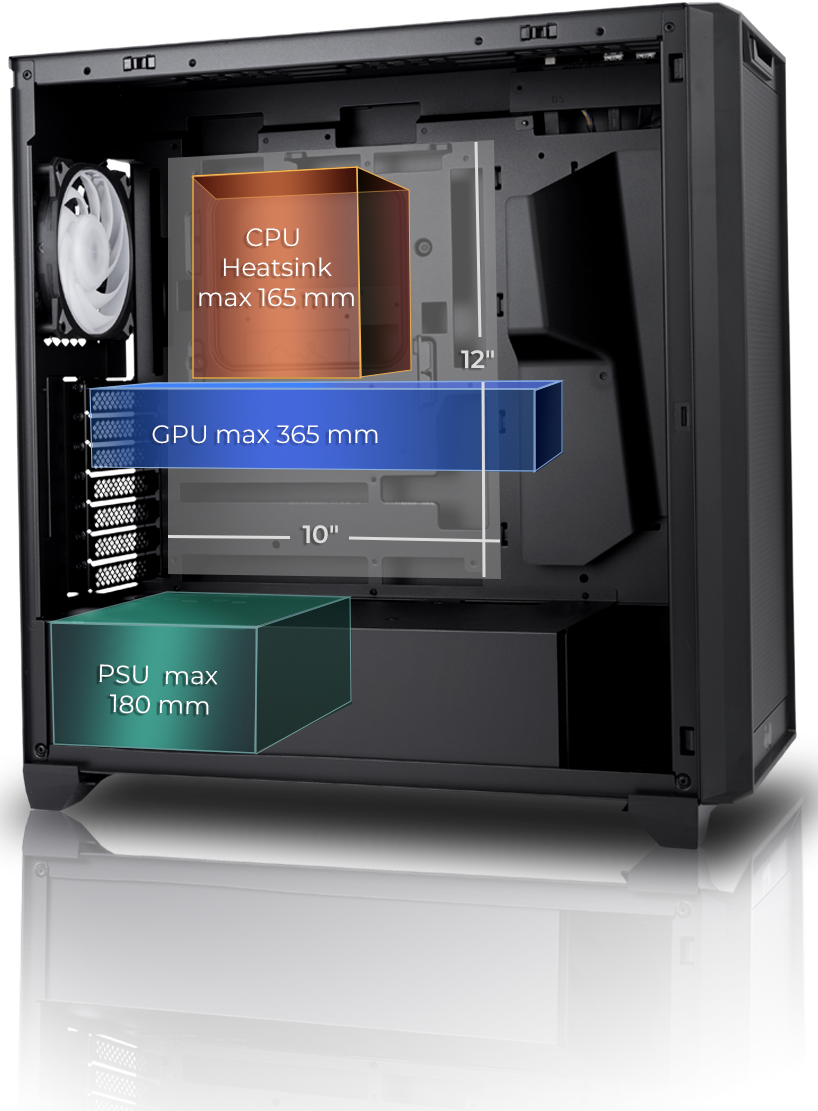

All About Capacity

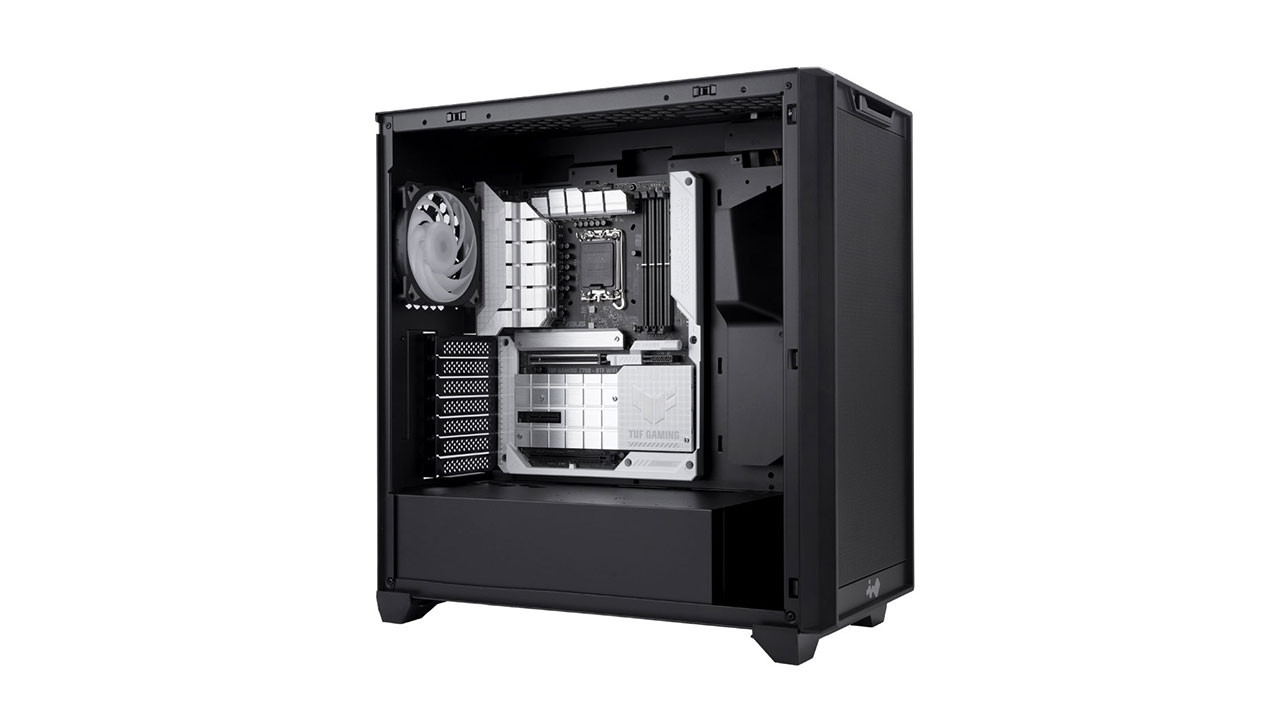

The D5 mid-tower case accommodates E-ATX motherboards up to 12" x 10", and the latest back-connector motherboards. It supports GPUs up to 365 mm in length.

* Supports ASUS BTF, MSI Project Zero Series and GIGABYTE Project STEALTH Back-Connector motherboards.

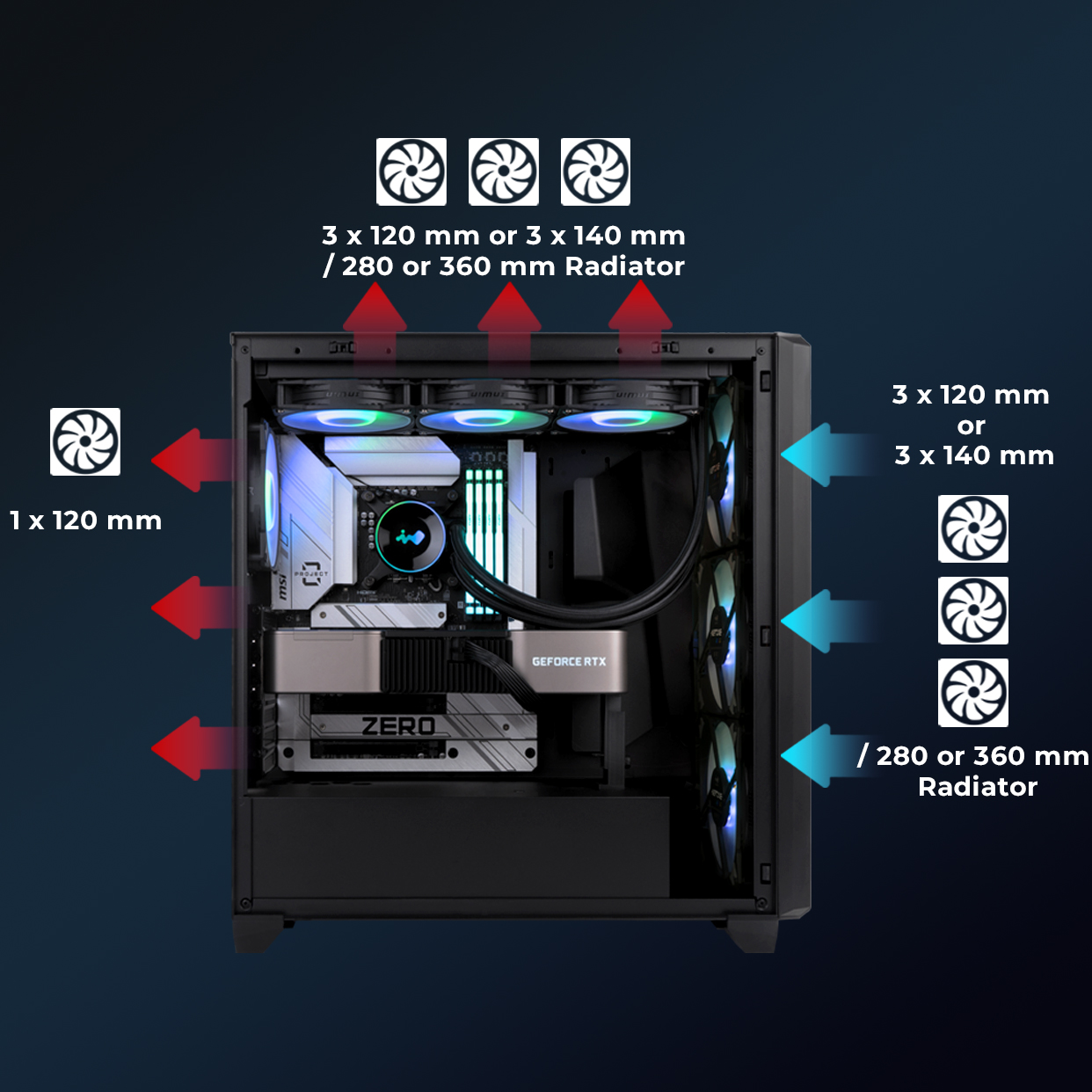

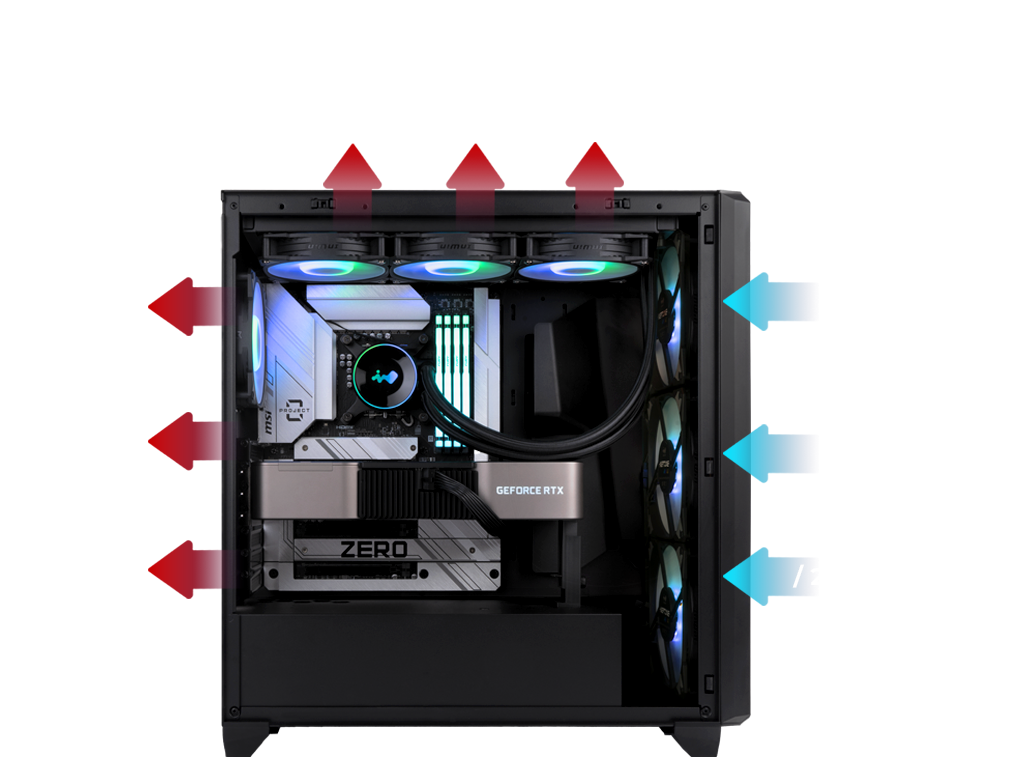

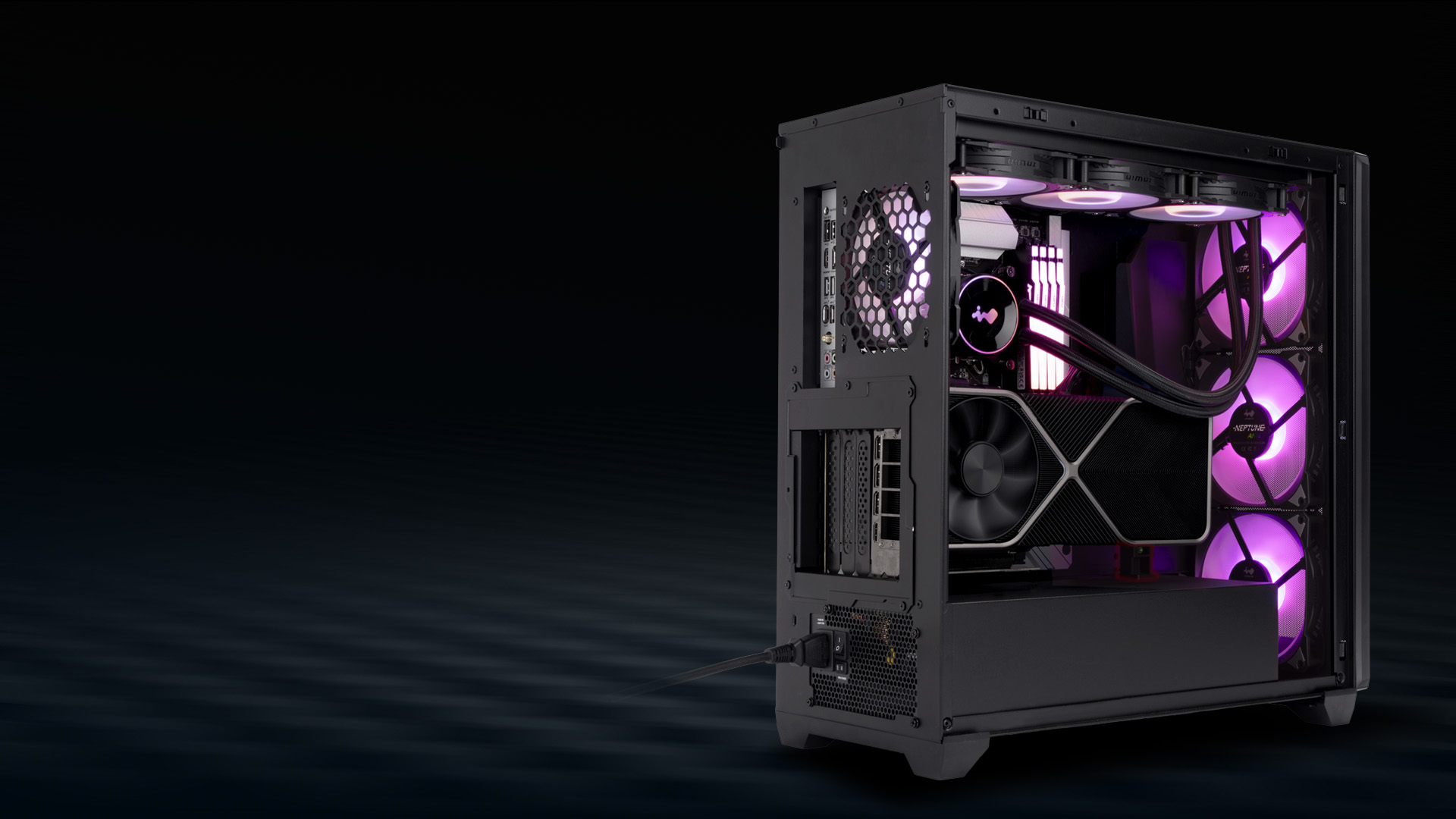

Cooling Capacity

The D5 offers versatile cooling options to appease your system configuration.

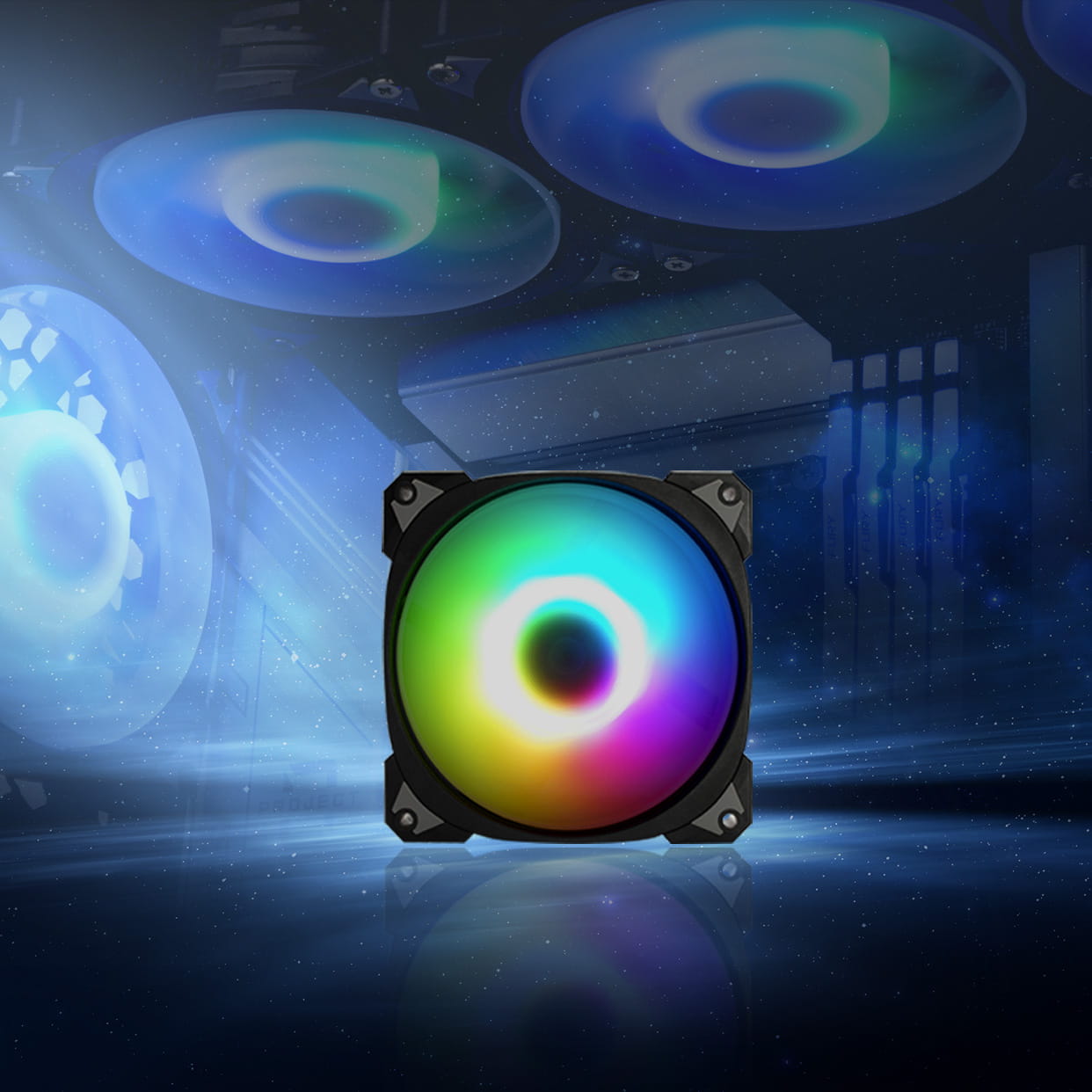

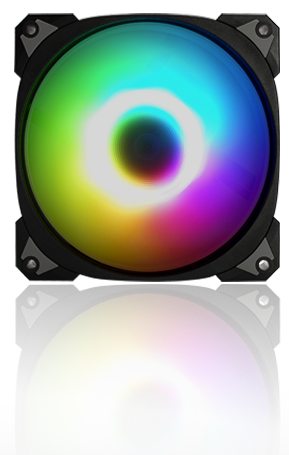

Neptune’s Galactic Glamour

The D5 comes pre-installed with one Neptune AN120 fan. These silent static pressure fans feature InWin's signature Turbine Blade design for concentrated airflow, and the ARGB lighting enriches the visual aesthetics.

Learn More

Details Matter

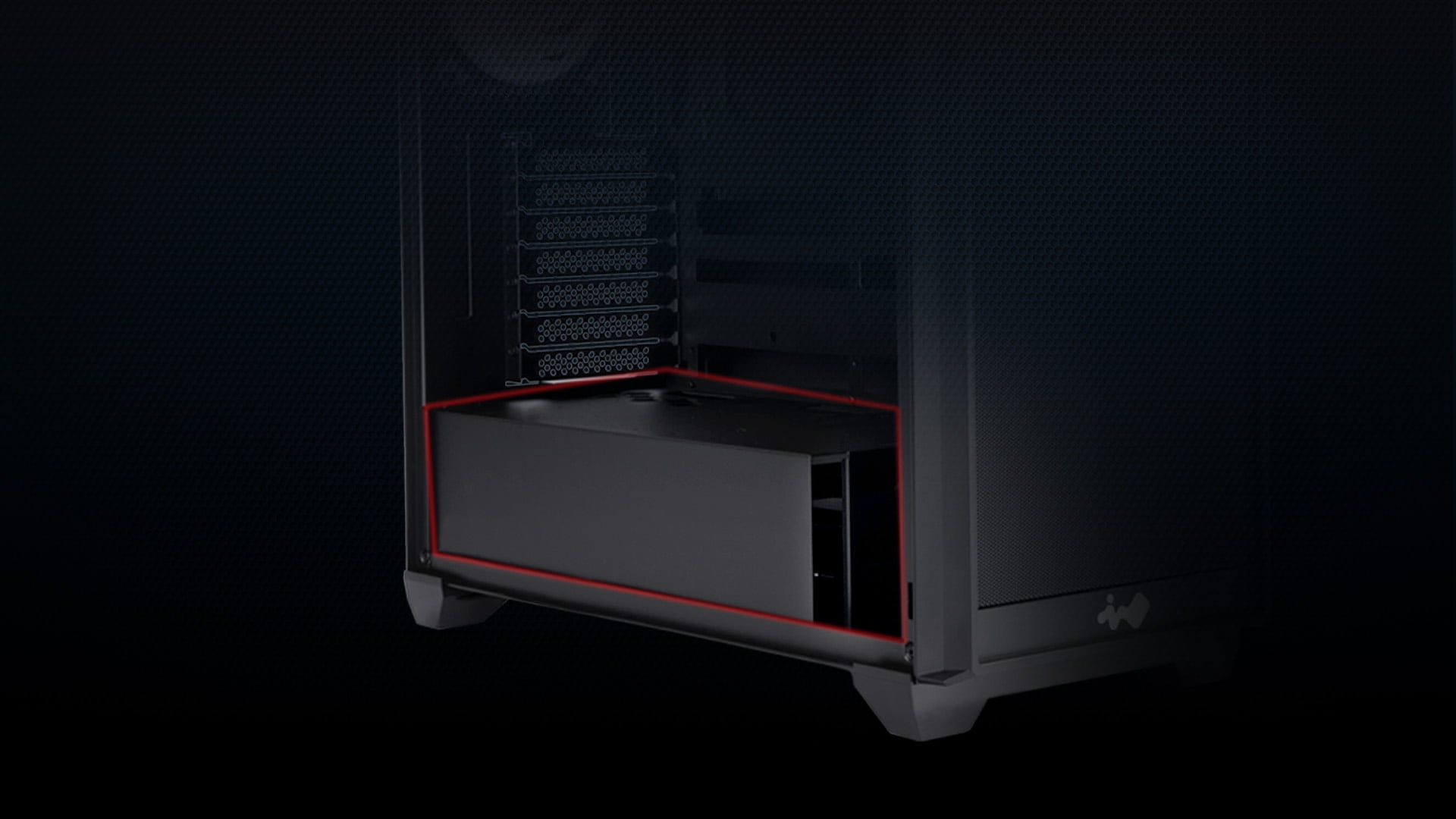

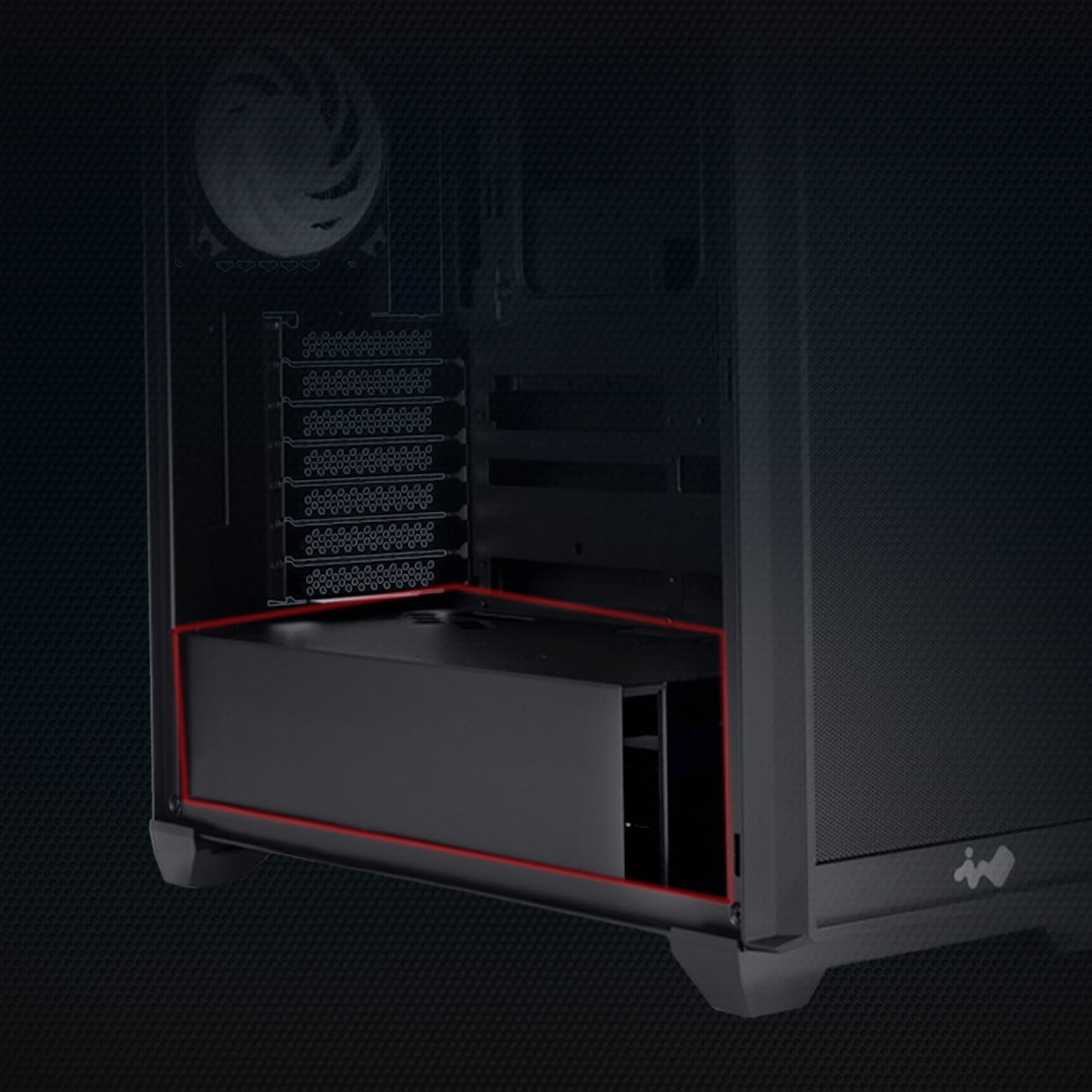

Individual PSU Chamber

The individual PSU chamber provides an ideal environment for separate thermal dissipation, significantly improving the overall climate of the case.

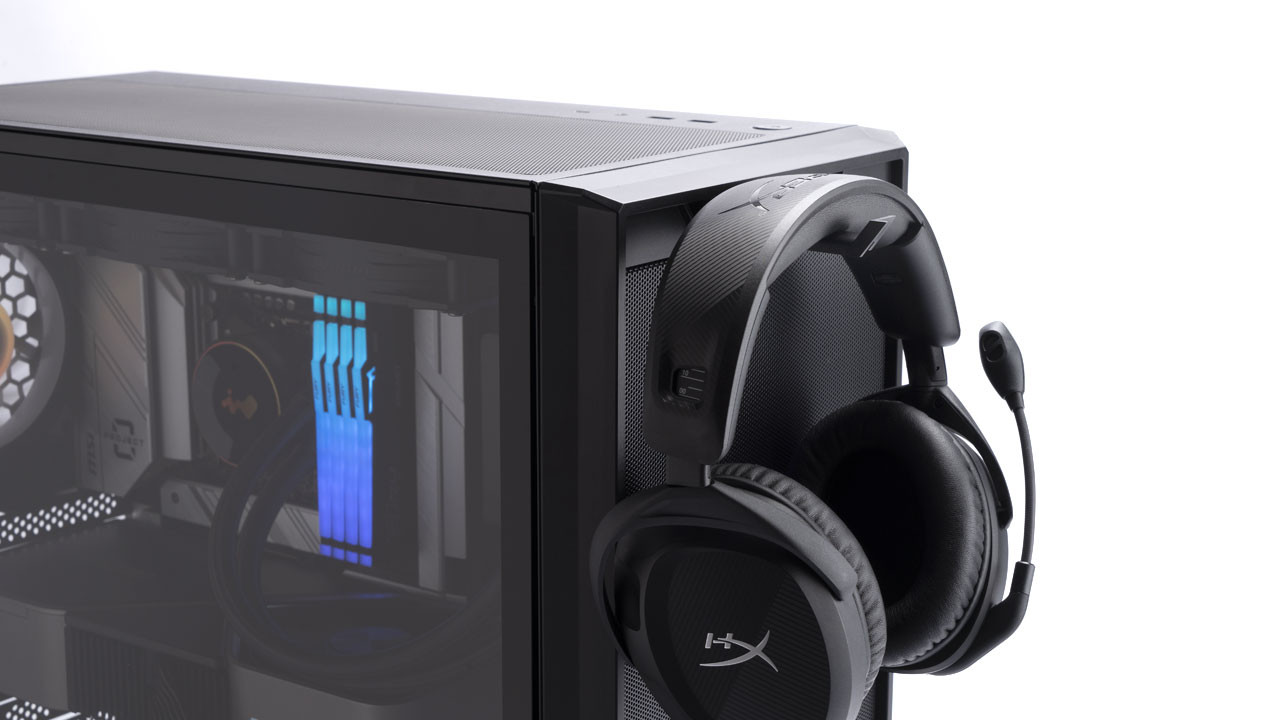

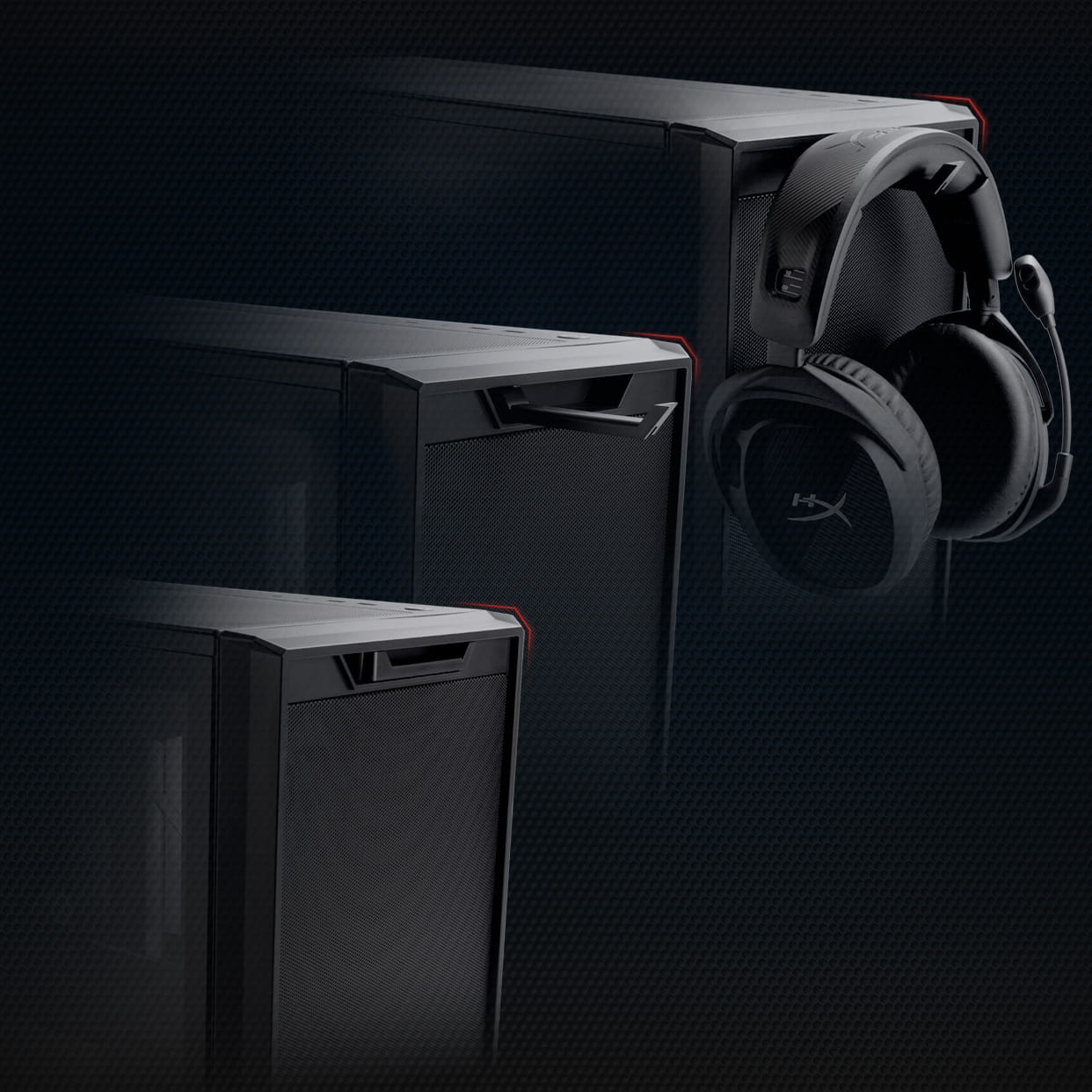

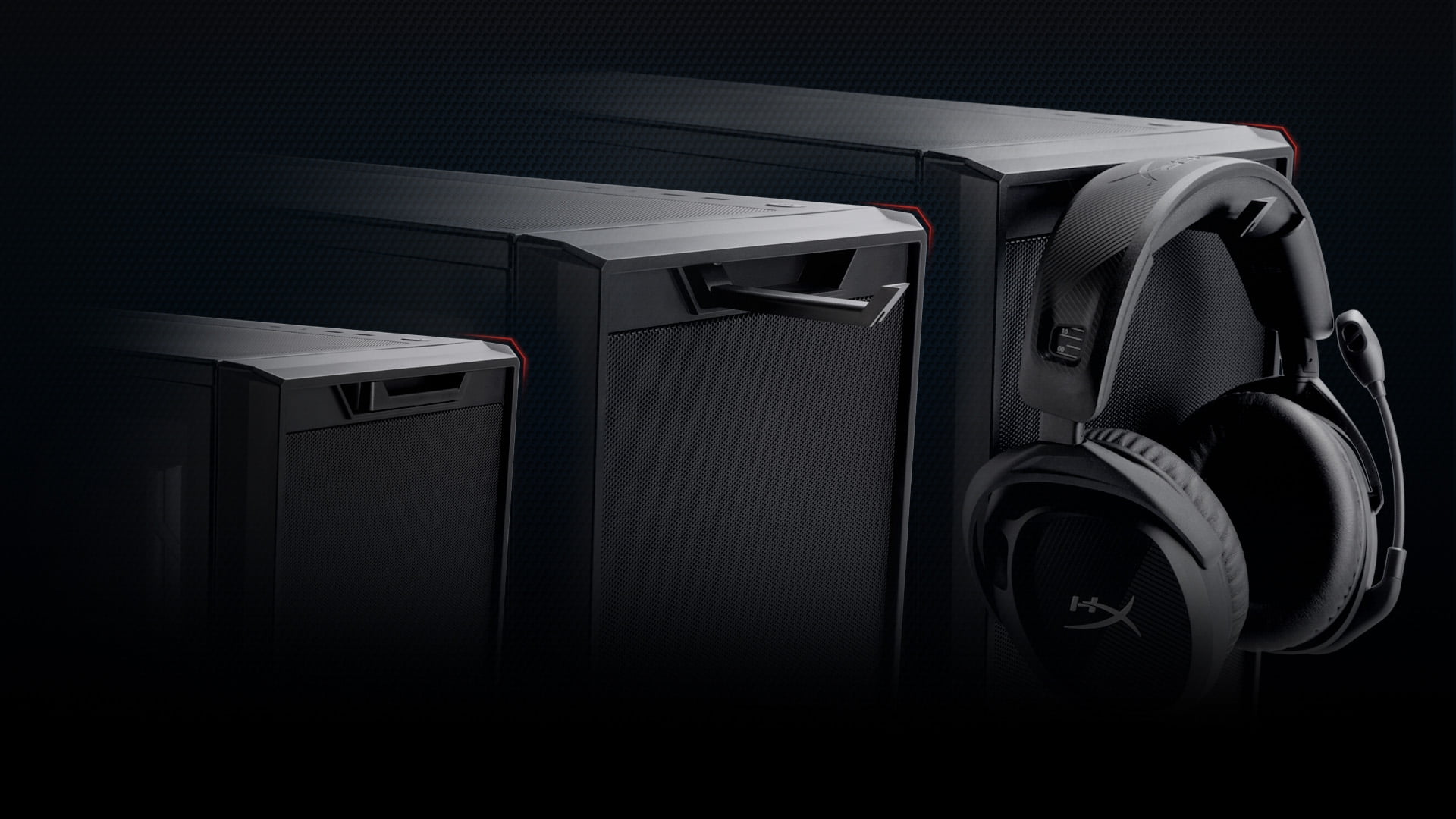

Headphone Hanger

The cleverly designed built-in headphone hanger makes desk organization condensed and tidy.

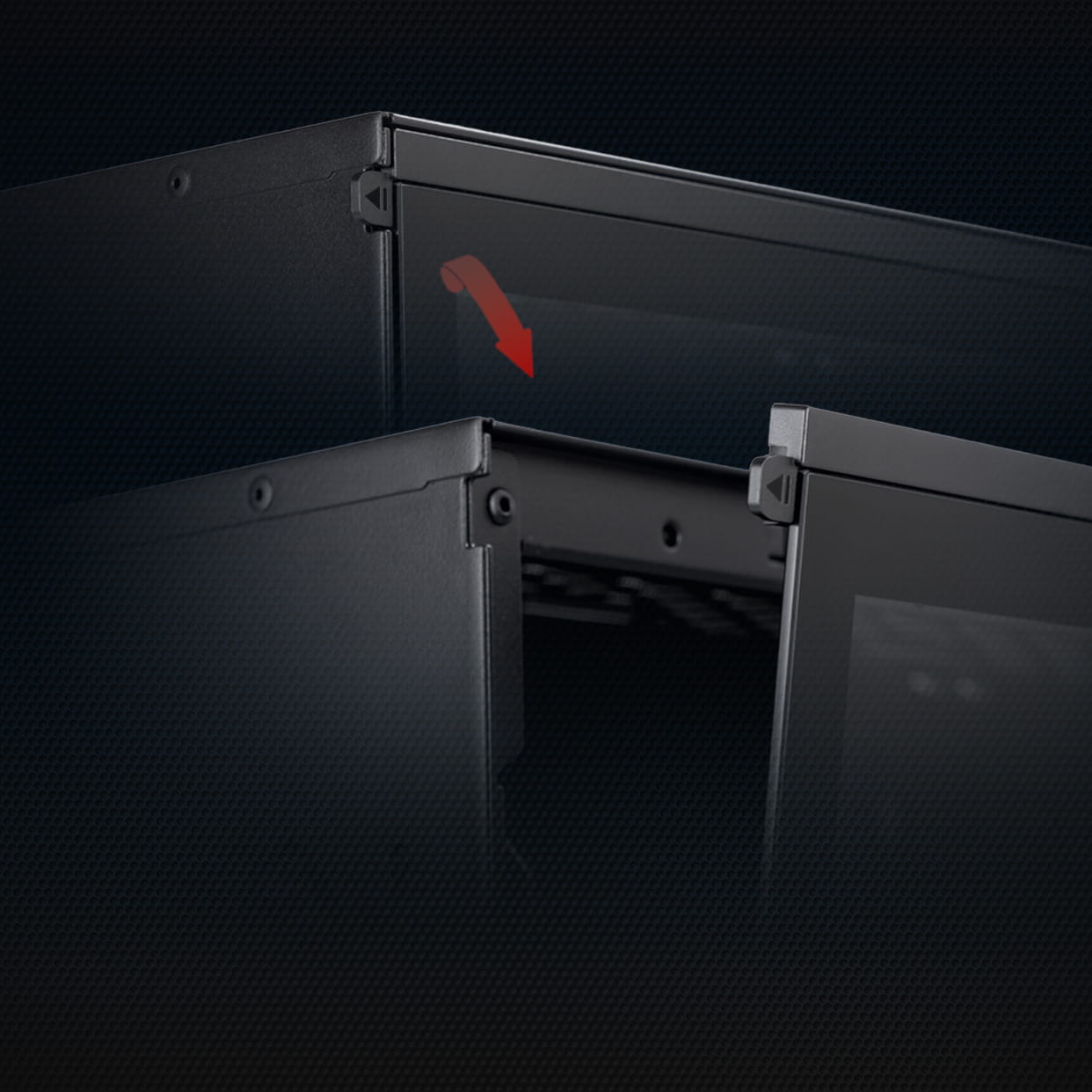

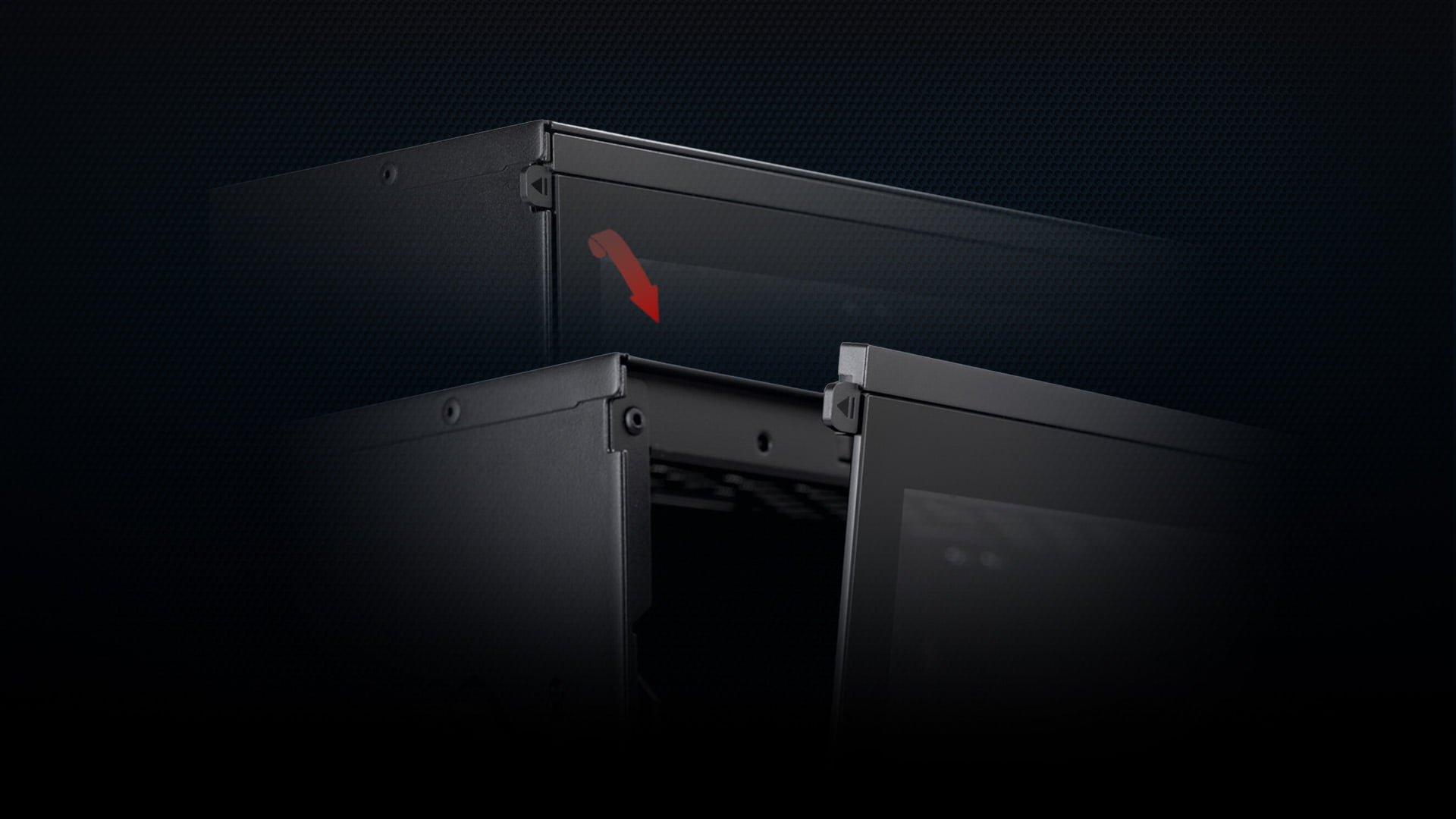

Quick Release Panel

Both side panels of D5 are equipped with tool-less quick-release panels to access internal components easily.

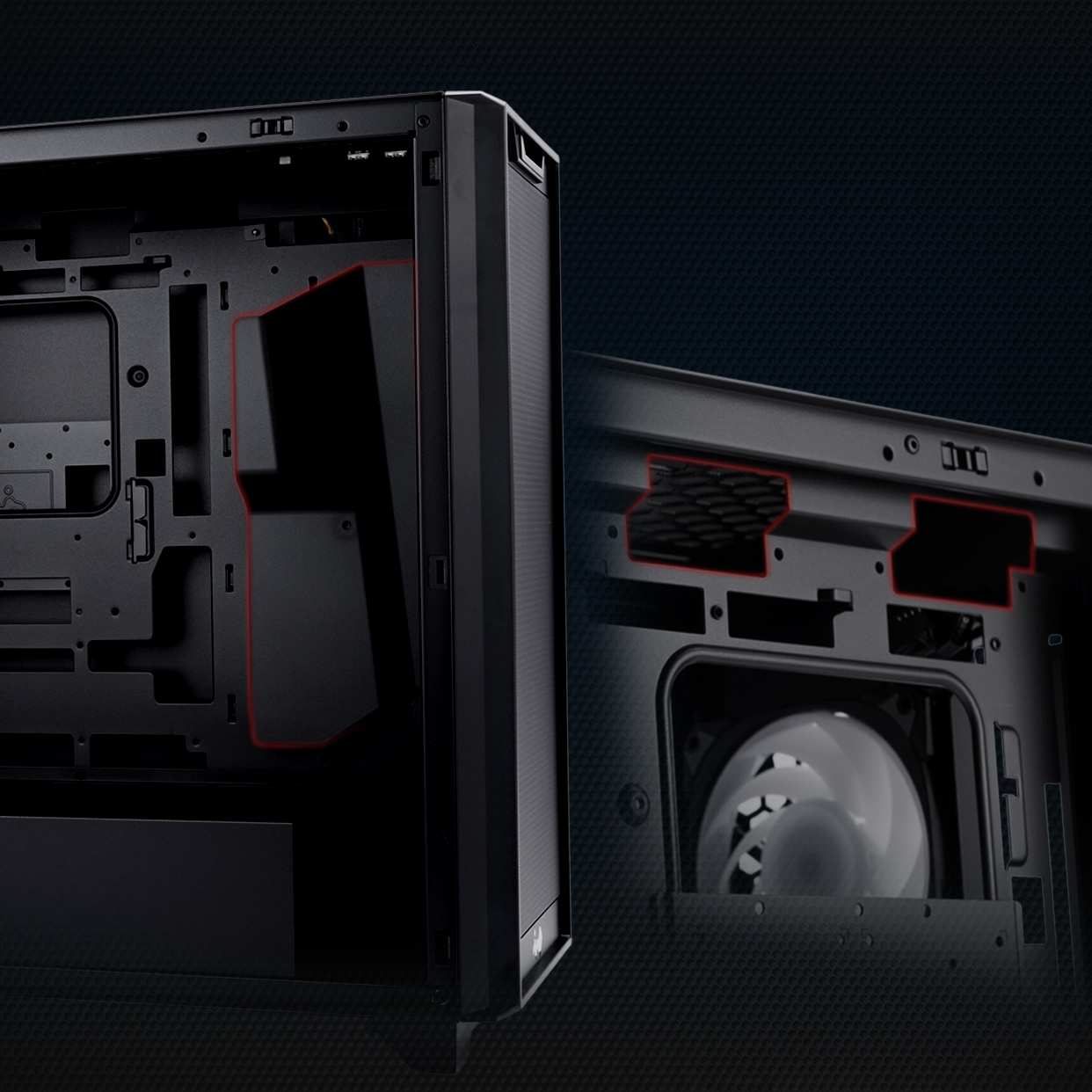

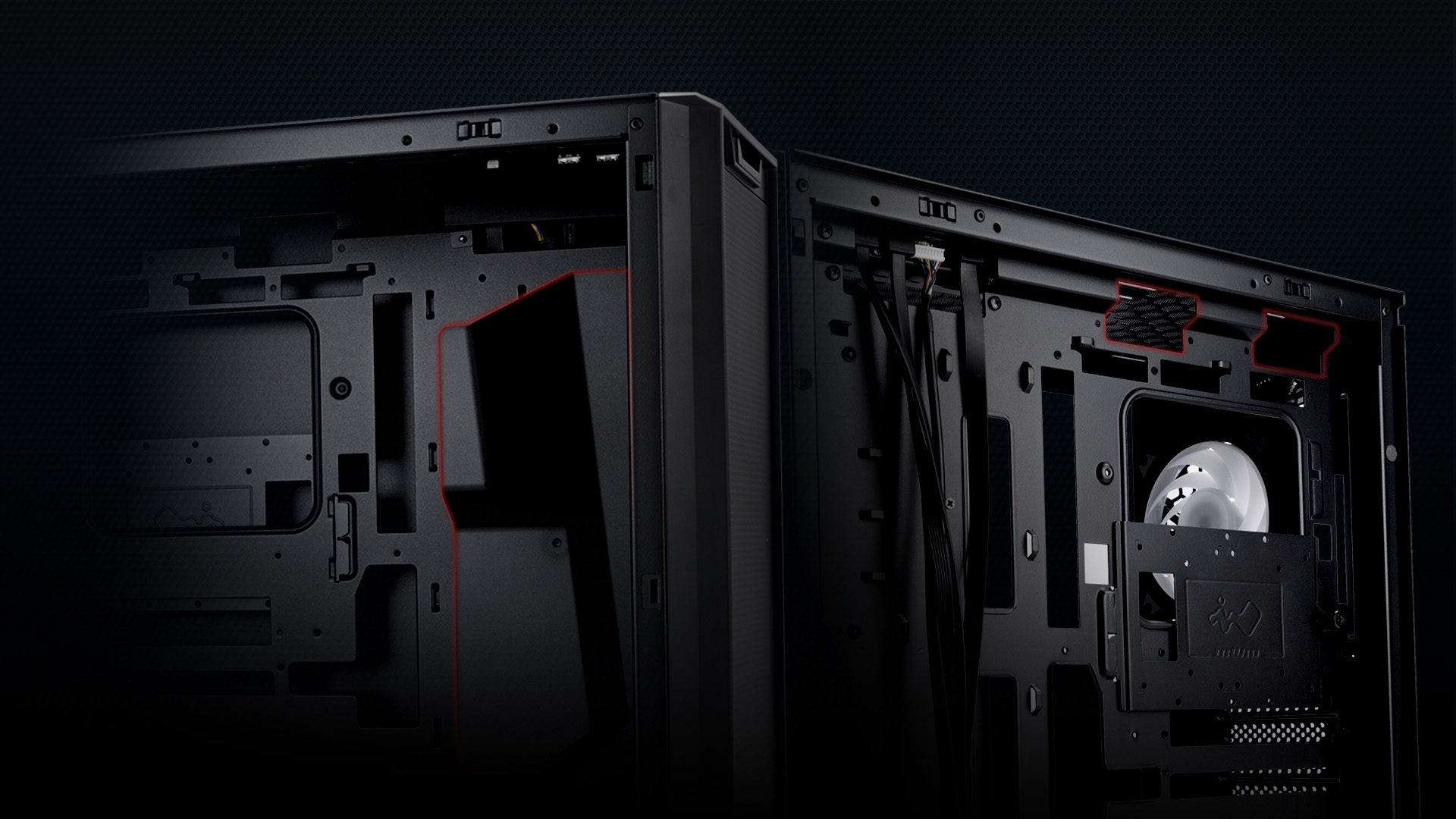

Cable Management Integration

The D5 features a removable Cable Shield Cover on the front to optimize airflow, along with cable holes, cable-tie rings, and Velcro strips for efficient cable management.

Specifications

Model D5
Model Number IW-CS-D5BLK-1AN120
Colors Black
Case Type Mid Tower
Materials SECC, Tempered Glass, ABS
M/B Compatibility 12" x 10" E-ATX, ATX, Micro-ATX, Mini-ITX
Expansion Slots 7 x PCI-E
6 x Vertical PCI-E
(Riser Card Optional, Not Included in Package)
Maximum Compatibility GPU Card Length: 365 mm
CPU Heatsink Height: 165 mm
I/O Ports 1 x USB 3.2 Gen 2x2 Type-C
2 x USB 3.2 Gen 1
HD Audio Combo (CTIA – SPK/Mic)
Internal Drive Bays 1 x 3.5" / 2 x 2.5"
2 x 3.5" / 2.5"
Thermal Solution Compatibility Air Cooling Fans:
Front: 3 x 120 mm / 140 mm
Top: 3 x 120 mm / 140 mm
Rear: 1 x 120 mm
(1 InWin Neptune AN120 Fan Included)
Water Cooling Radiator:
Front: 1 x 280 mm / 360 mm
Top: 1 x 280 mm / 360 mm
Power Supply Compatibility PSII: ATX12V
- Length up to 180 mm

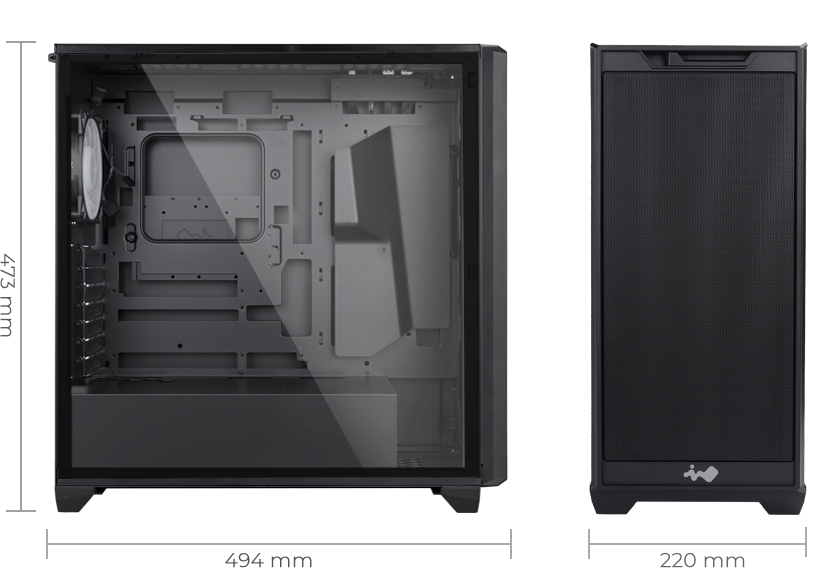

Product Dimensions
(L x W x H)
494 x 220 x 473 mm
19.4 x 8.7 x 18.6"
Package Dimensions
(L x W x H)
544 x 282 x 545 mm
21.4 x 11.1 x 21.5"
Net Weight 8.3 kg / 18.3 lb
Gross Weight 9.7 kg / 21.38 lb
* InWin's products comply with RoHS regulations.
* Specifications may vary based on different regions.

Download

Video

News / Reviews

eStore

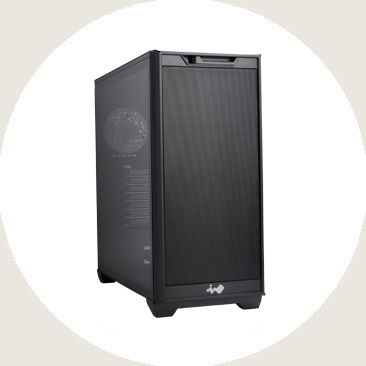

D5 is on InWin Official eStore Now!
