AIO Upgrade
With outstanding AIO performance, the BR Series is tailored for all PC users, especially for those that operate with higher loads, such as gamers and designers.
Cool Like Never Before

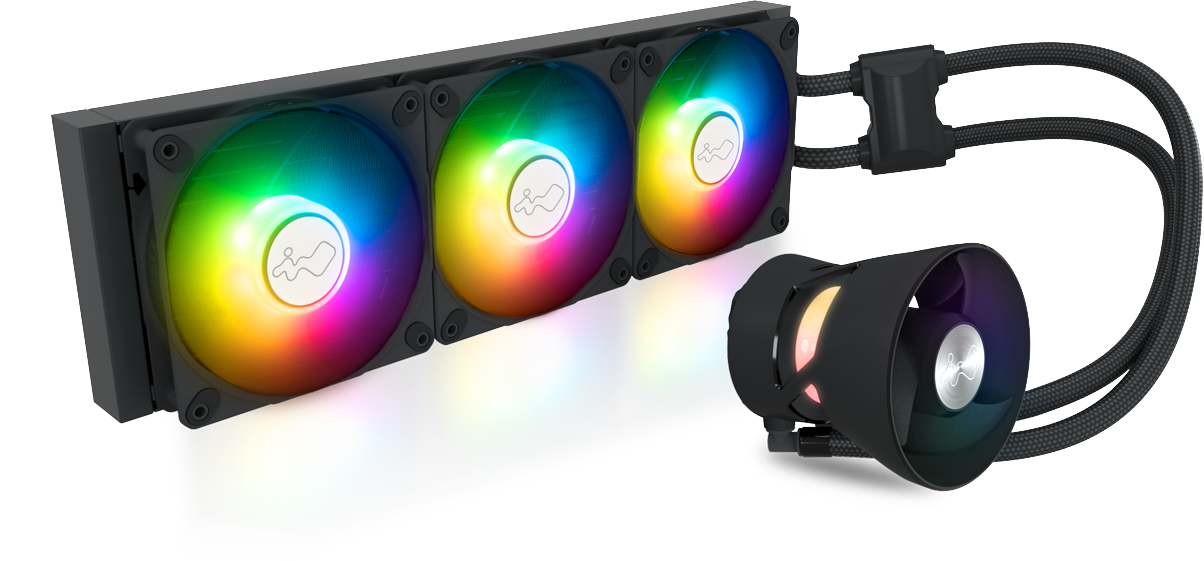

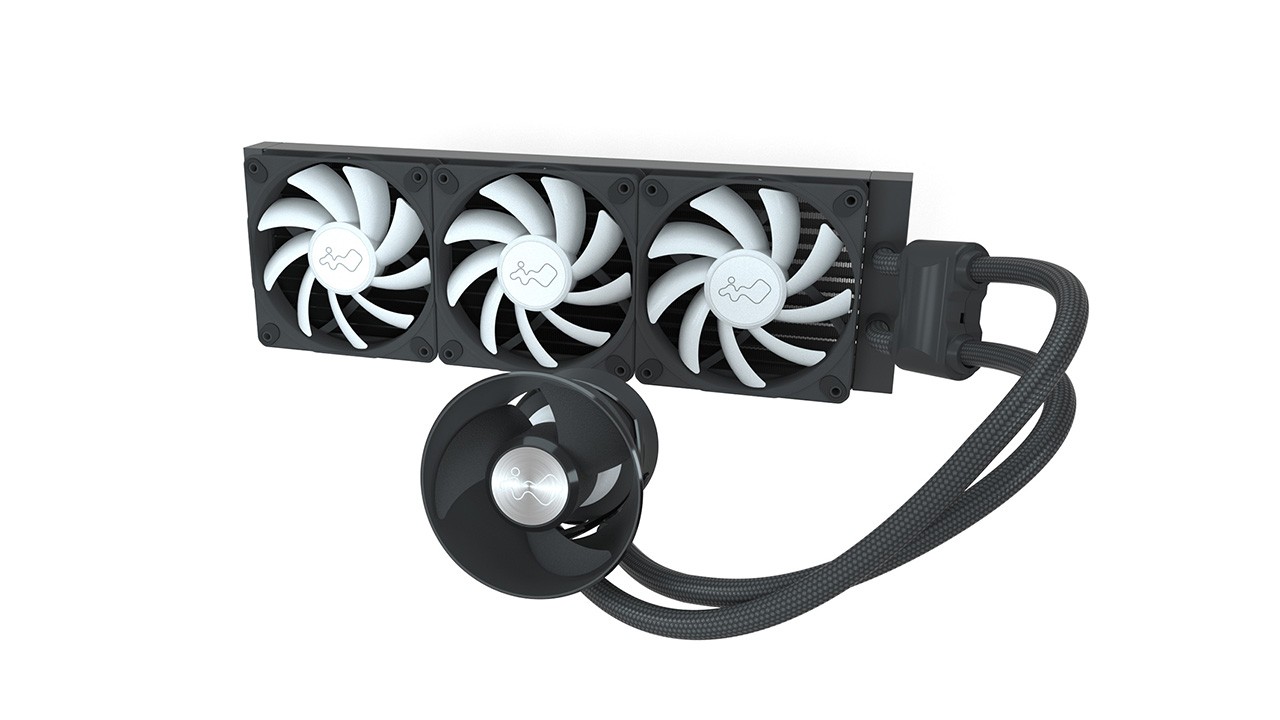

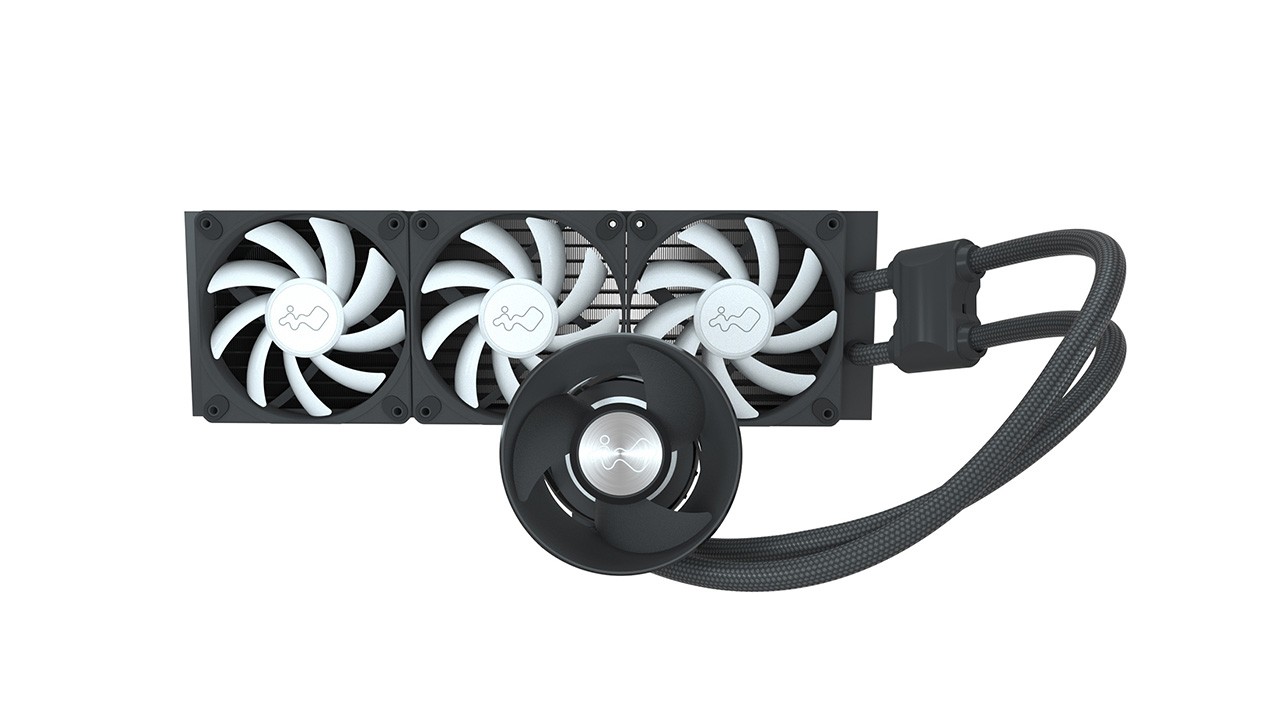

BR Series Liquid CPU & UMA Cooler

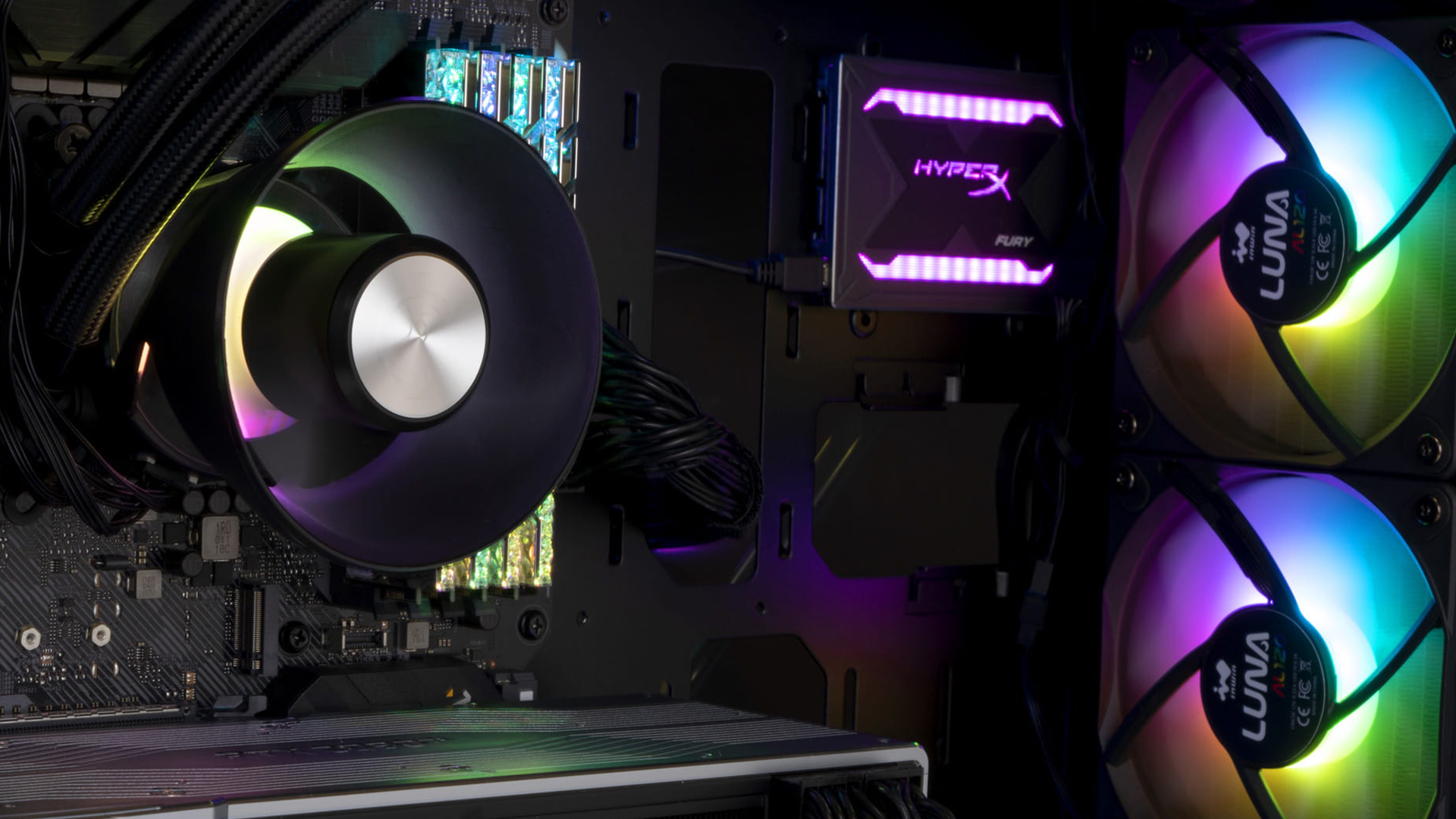

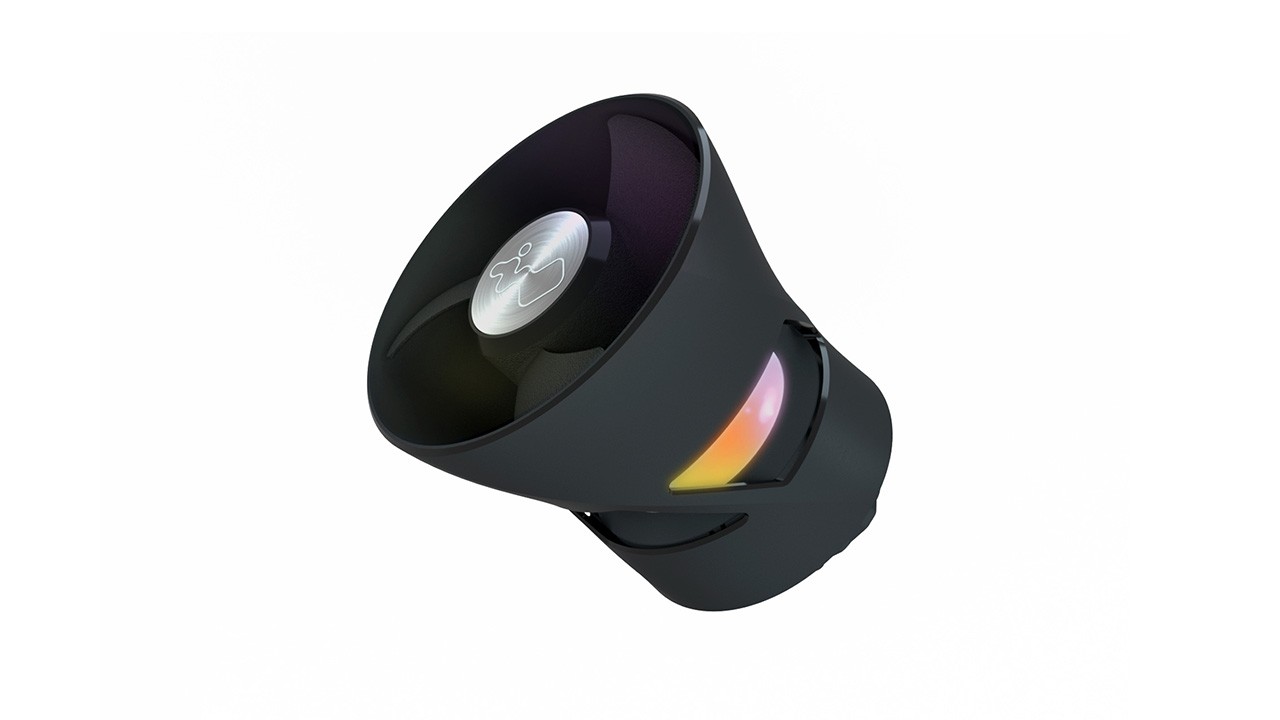

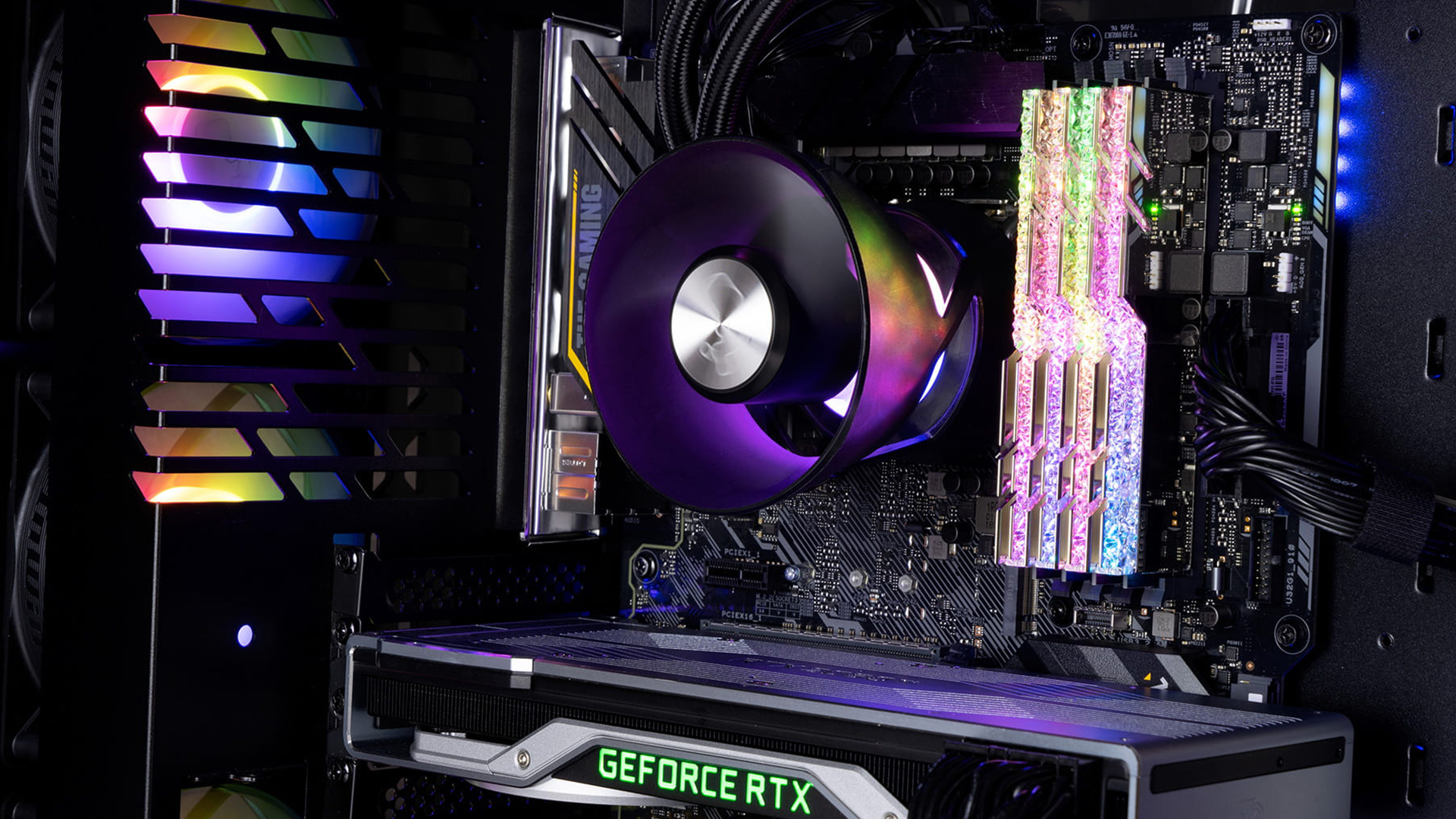

The fan on the water block is designed to efficiently pull in air to create a rapid airflow towards the UMA (Upper Motherboard Area), getting extra thermal performance for VRM, Memory, and M.2 SSDs.

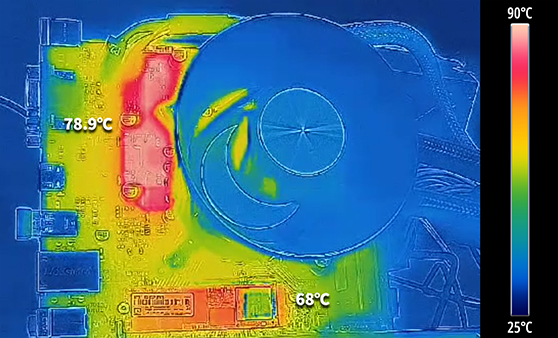

Water-Block-Fan-OFF

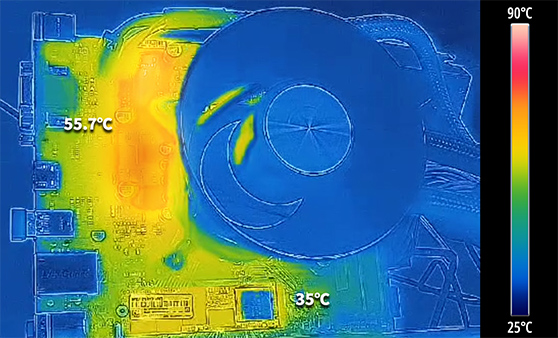

Water-Block-Fan-ON
Witness the BR Series tackle the heat around the CPU. It will cool down about 35% to prevent the CPU from operating at a low frequency, while improving performance and stability.
CPU Frequency
VRM Temperature
With Water Block Fan
Without Water Block Fan
High heat produced by VRM in high loading will have an effect on the performance output of the CPU. The BR’s fan blower can effectively cooldown the VRM, allowing the CPU to release its full potential and optimized overclocking.
Ram Temperature
With Water Block Fan
Without Water Block Fan
Thanks to the BR Series hardware cooling efficiency, this allows your memory to stay cool even under higher loads and extends the longevity of the modules.
Continuous high loads will cause M.2 SSDs to overheat and result in unstable performance and irreversible damage. Maintain high performance and lengthen the lifetime by extreme cooling from the BR Series.
Note: Tests are conducted at InWin's lab. Results may vary in different environments.
With outstanding AIO performance, the BR Series is tailored for all PC users, especially for those that operate with higher loads, such as gamers and designers.

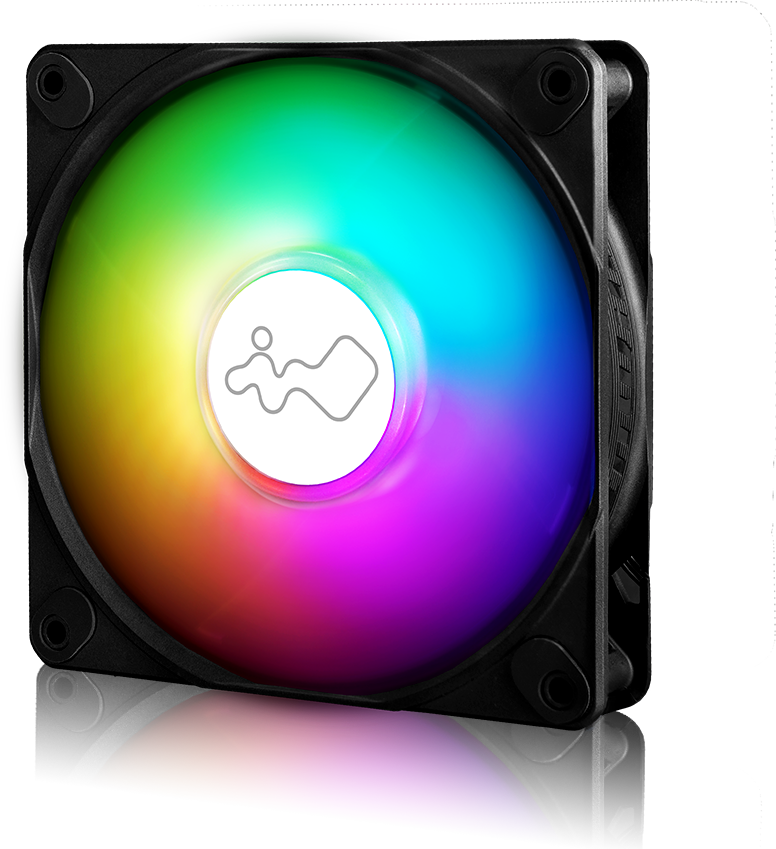

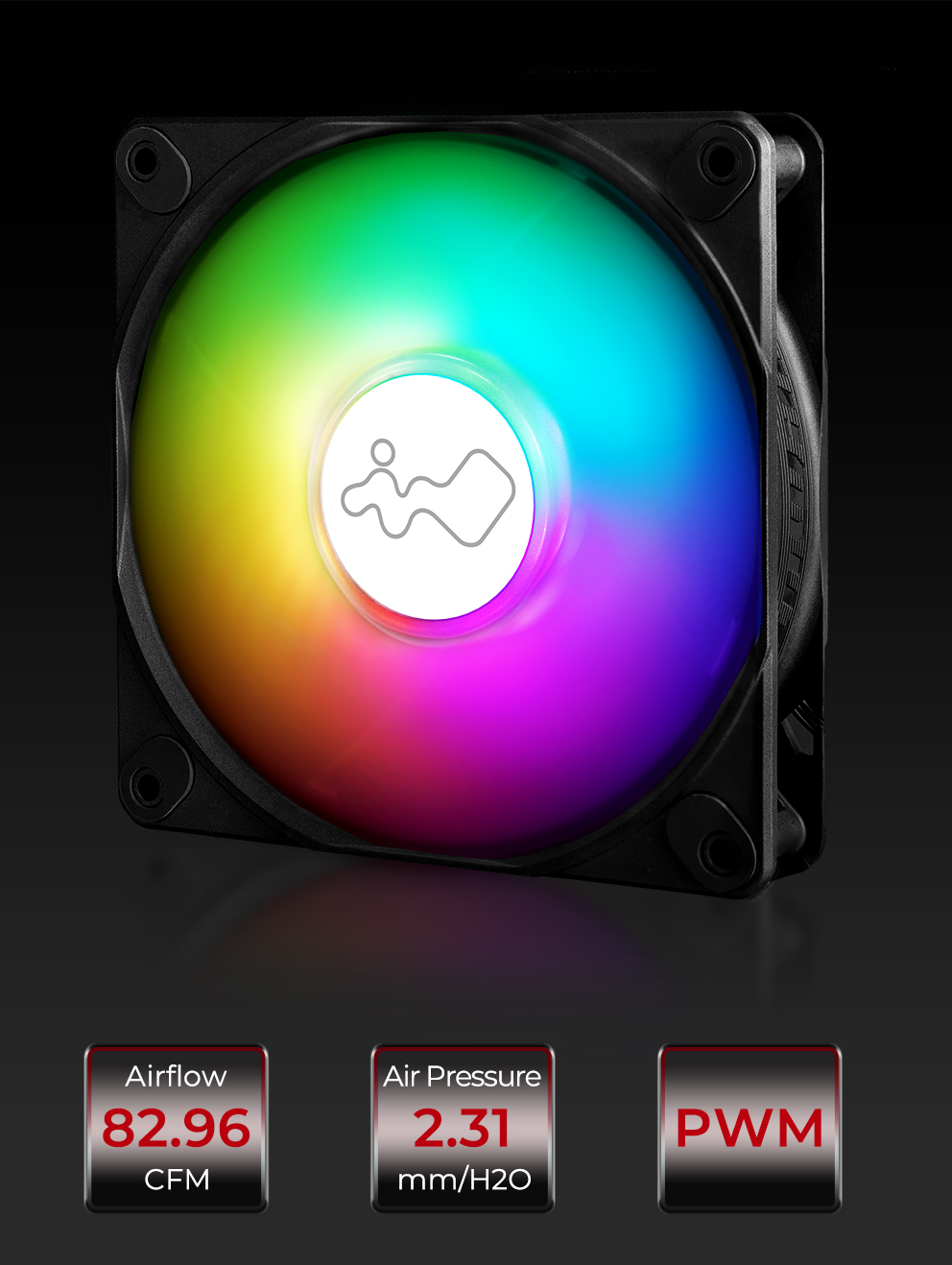

The Luna Series AL120 fans are specially designed for excellent cooling performance. The fans feature high airflow and high static pressure that cool down your system quicker.

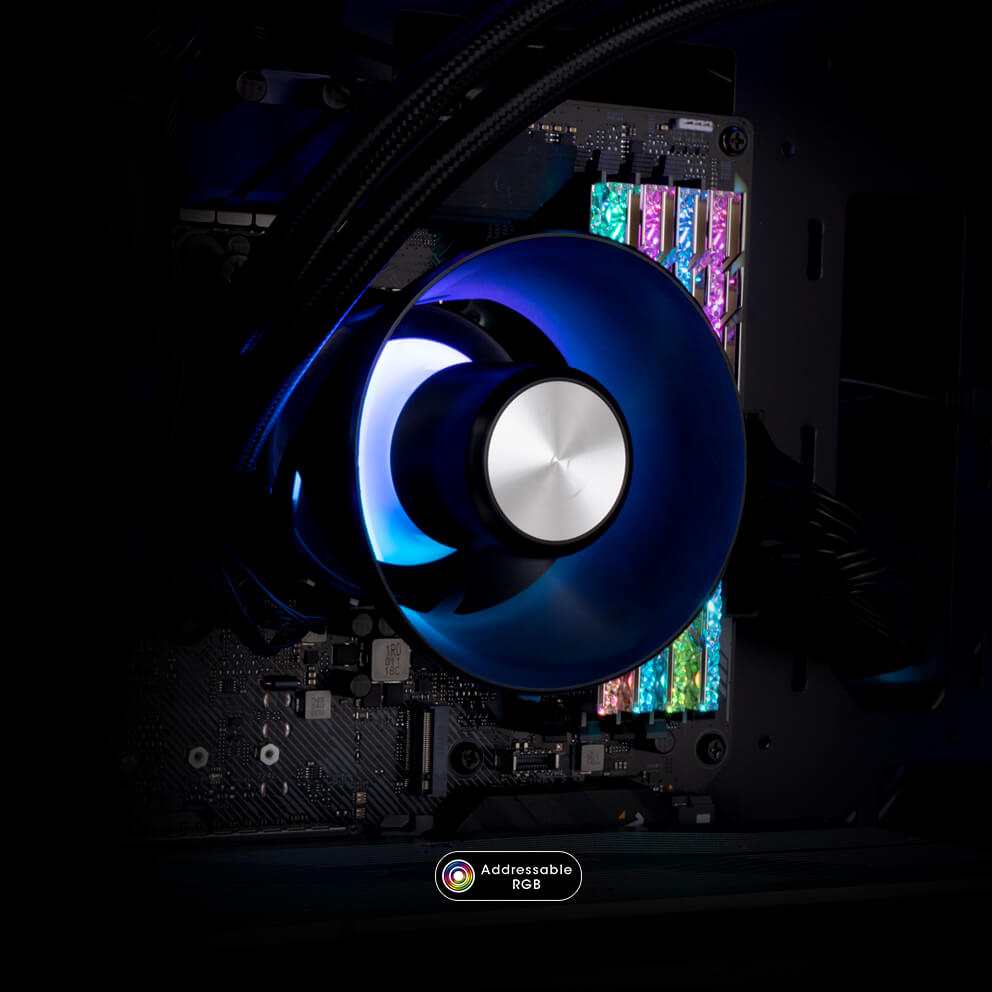

The BR Series AIO features ARGB lighting effects, and also comes with Luna AL120 ARGB fans. Control the lighting by using the provided One-Click controller or sync with an ARGB motherboard.
Note: The addressable cable can only be used with motherboards with a 3-pin, 5V addressable header.

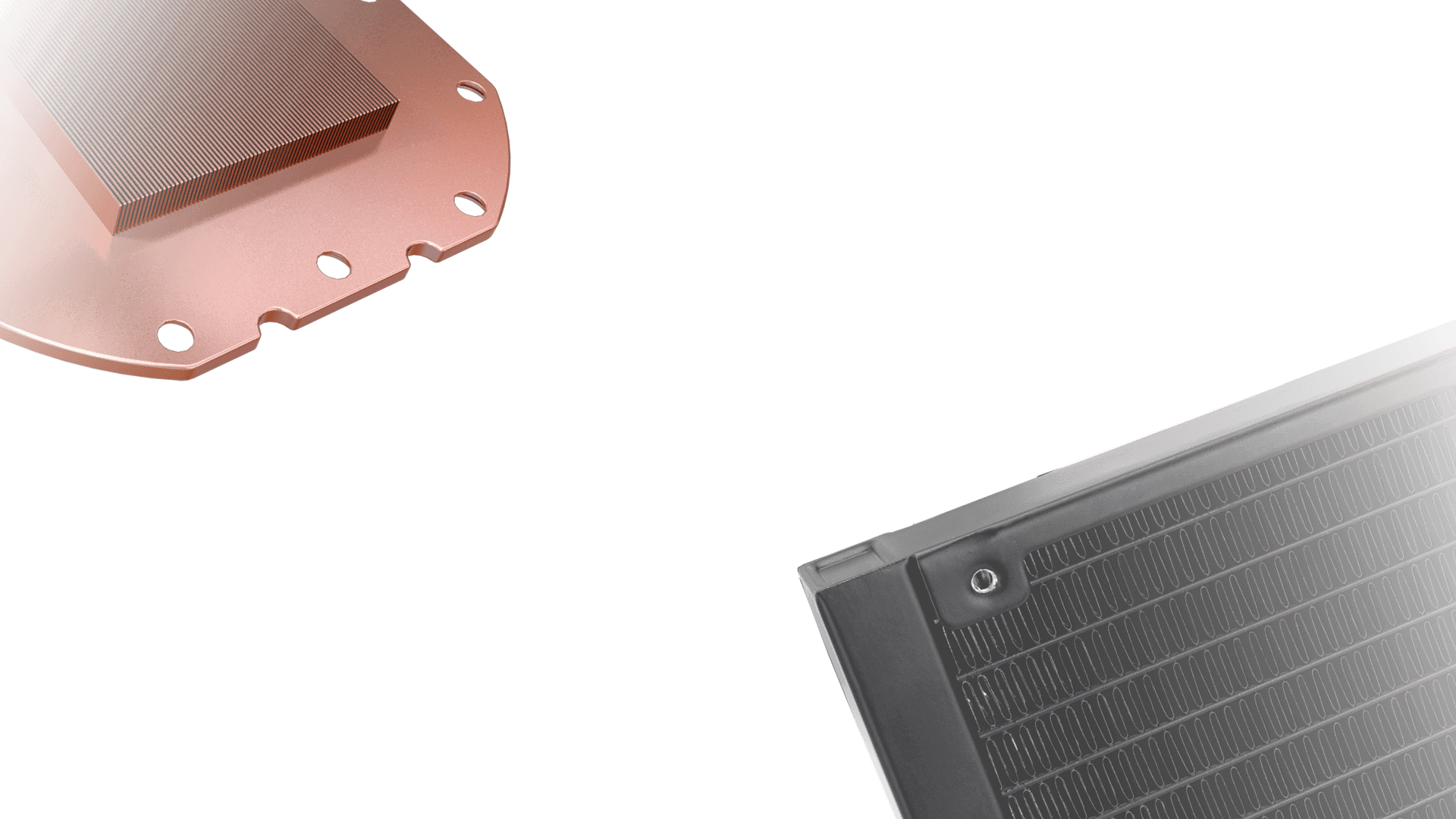

High-density microchannel fins and a large heat dispatching area on the radiator dissipate the heat faster and effectively.

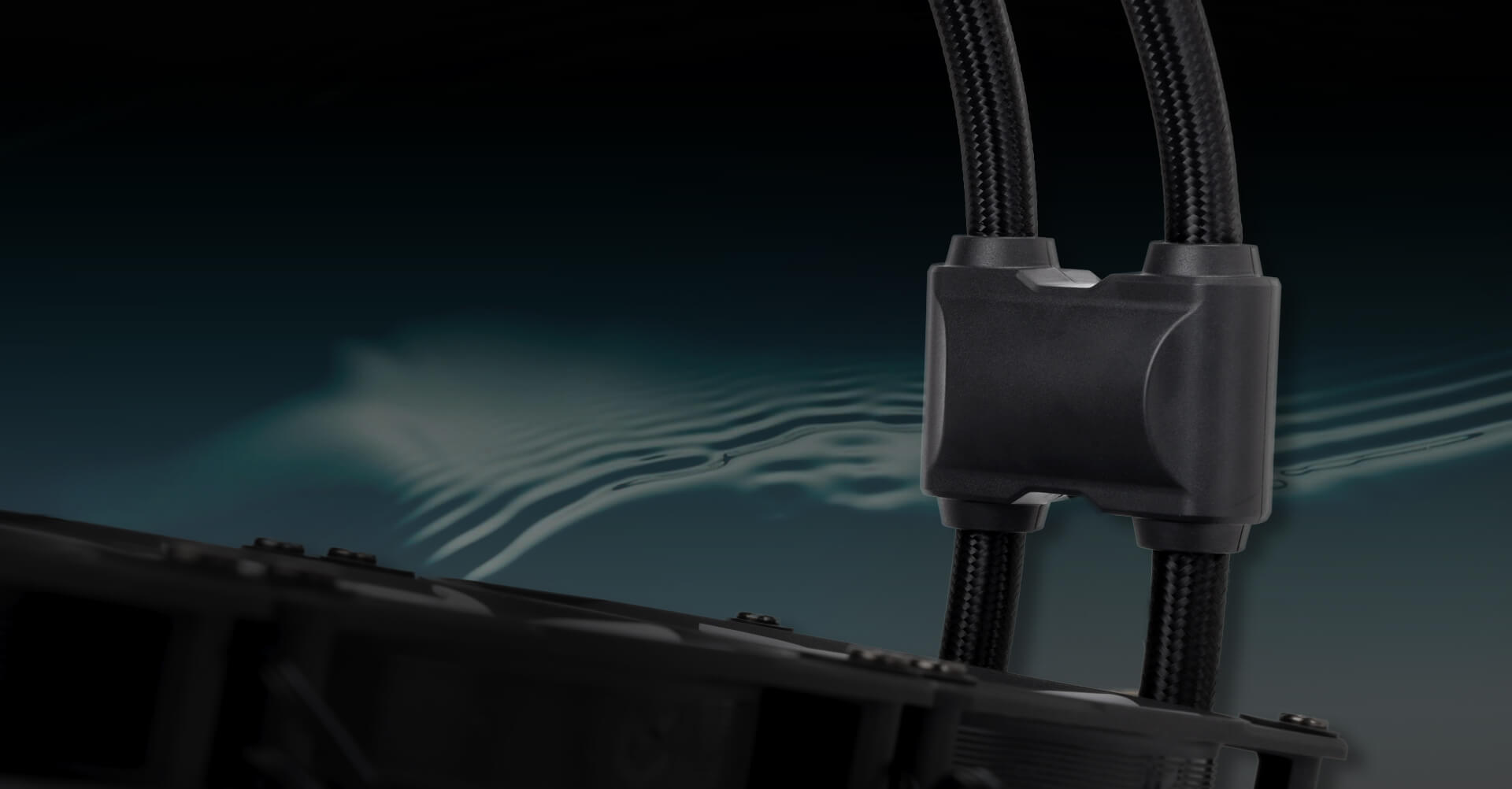

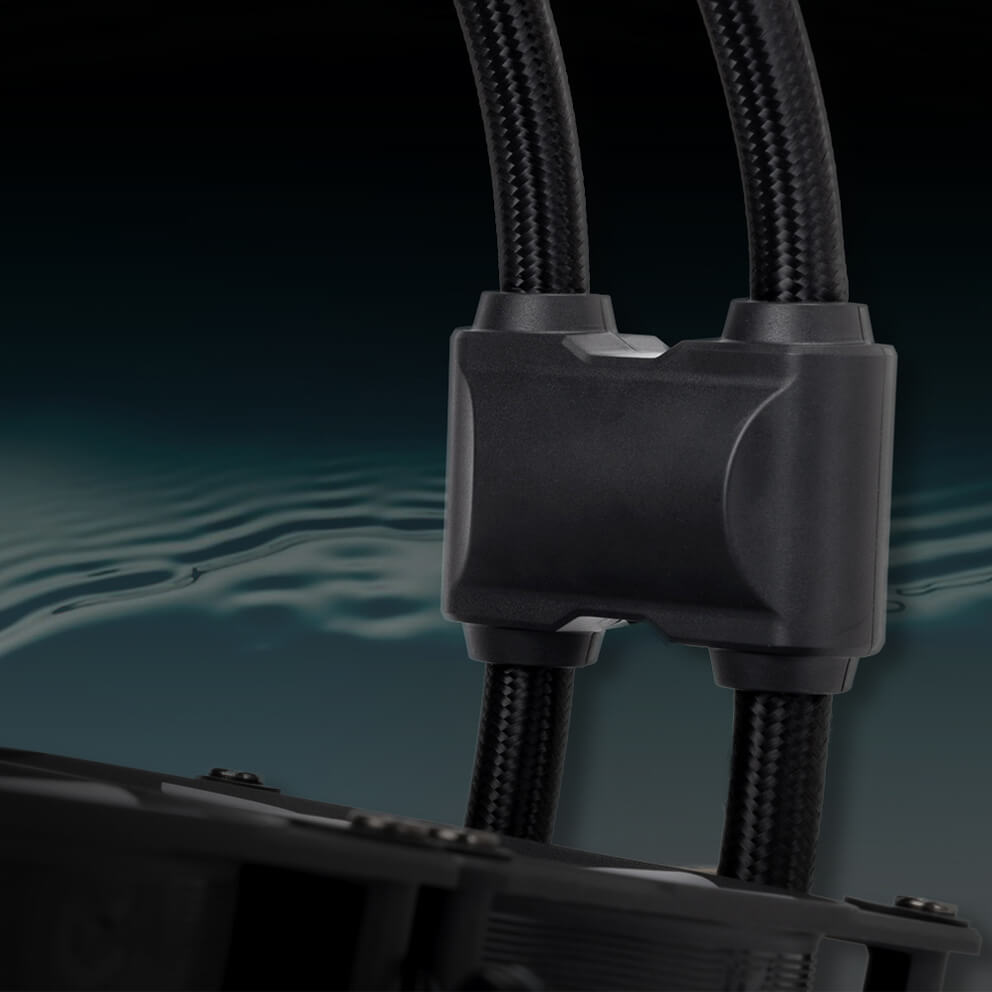

The BR Series Pump is specially designed to minimize vibrations and noise. Game in silence!

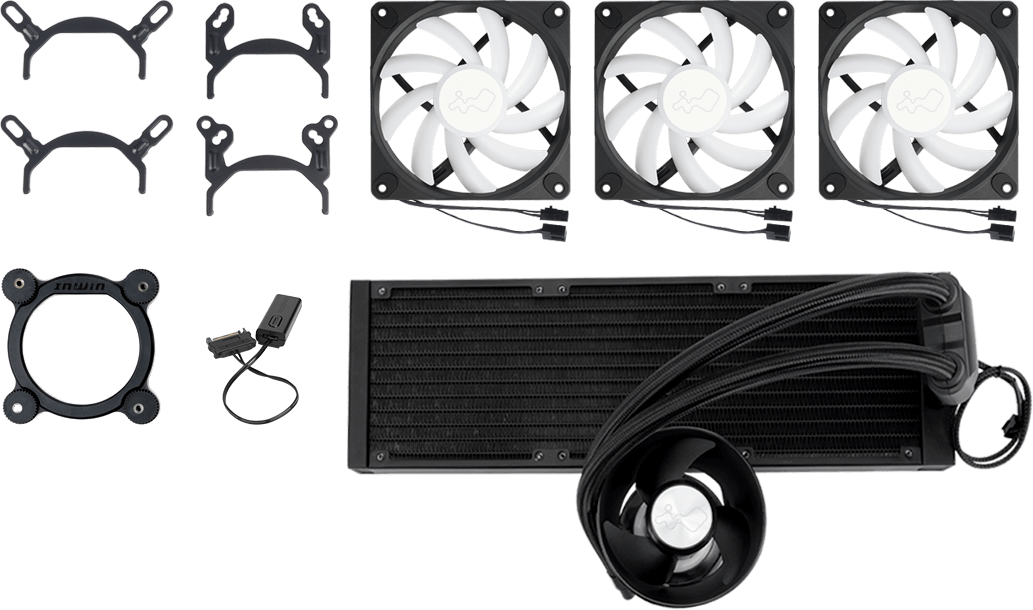

The BR Series comes with user-friendly tools. Spend less time on installation, more time on gaming!

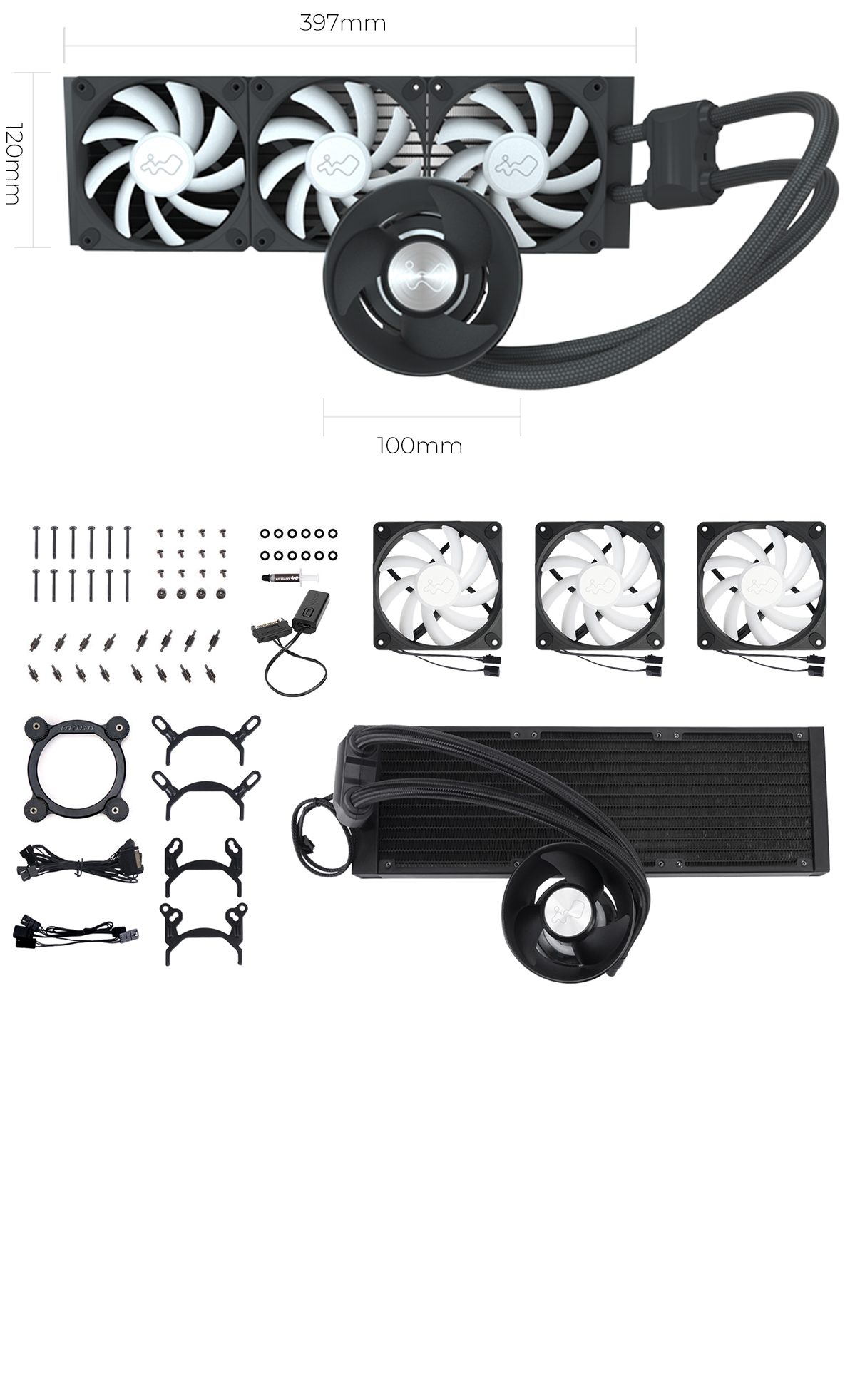

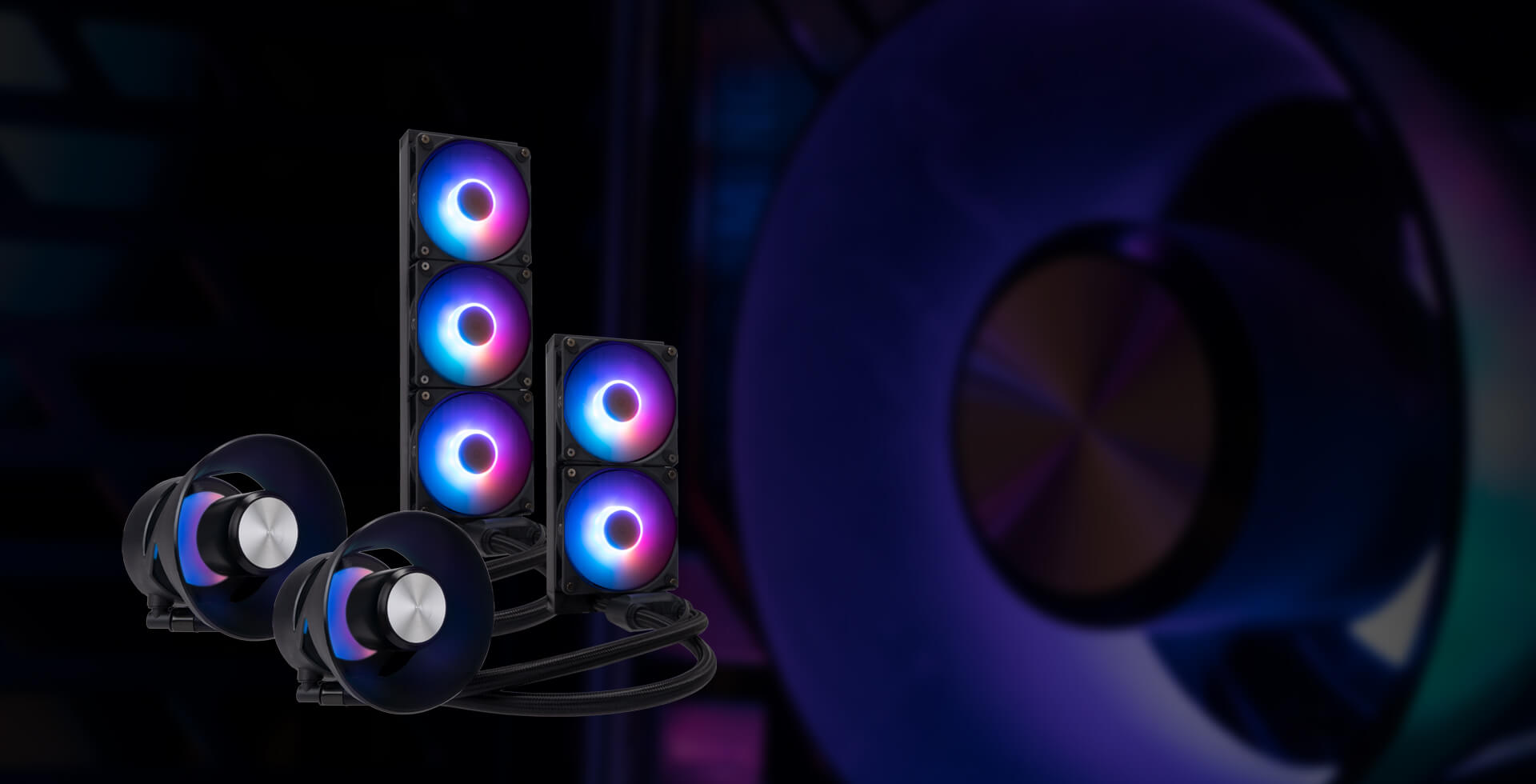

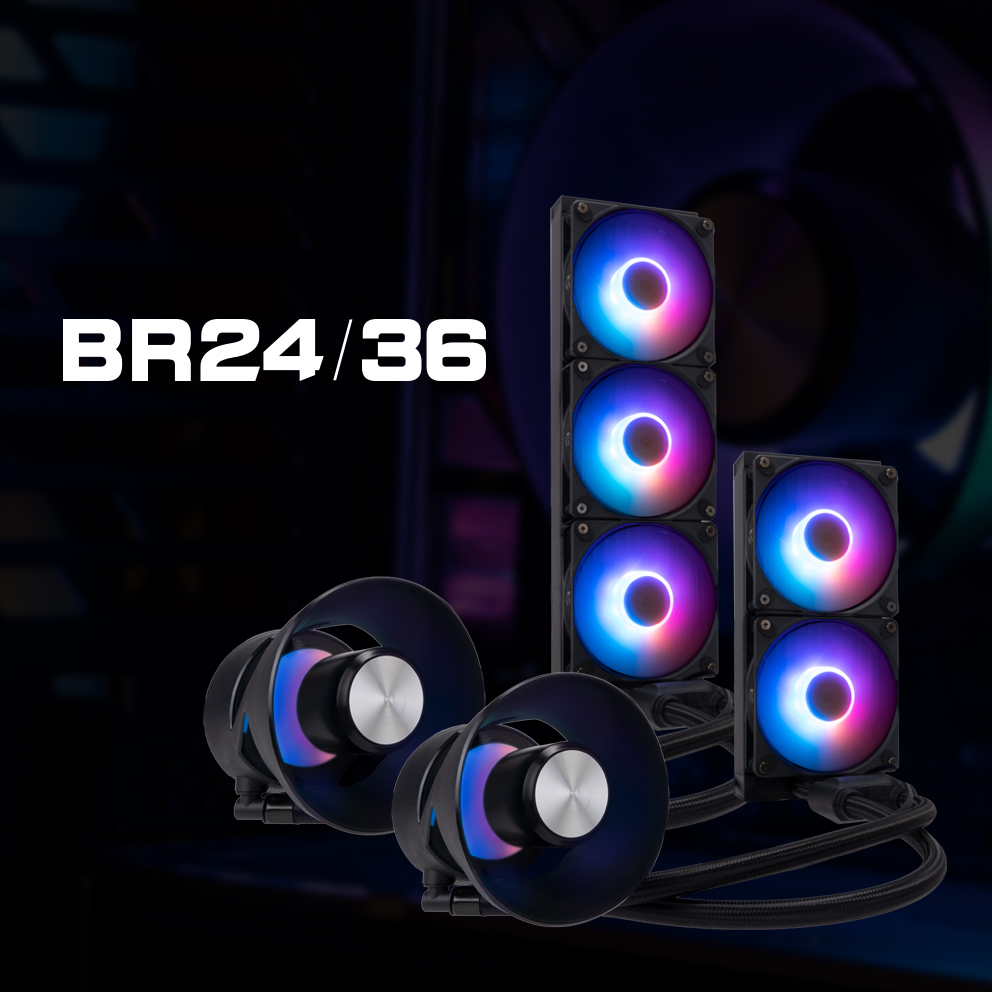

Available in Two Sizes
| Model | BR36 | |
|---|---|---|
| Model Number | IW-LC-BR36 | |
| CPU Socket Support | Intel® LGA 1851/ 1700/1200/ 2066/ 2011-V3/ 2011/ 1366/ 1156/ 1155/ 1151/ 1150 AMD® AM5/ AM4/ AM3+/ AM3/ AM2+/ AM2/ FM2+/ FM2/ FM1/ TR4 |
|
| Radiator | Dimensions (L x W x H) |
397 x 120 x 27 mm 15.6 x 4.7 x 1.1" |
| Material | Aluminium | |
| Tube Length | 450 mm | |
| Tube Material | Rubber with Nylon Braided Sleeve | |
| Water Block | Dimensions (L x W x H) |
100 x 75 x 100 mm 3.9 x 2.9 x 3.9" |
| Materials | Copper, Plastic | |
| Fan Speed Mode | PWM 400 - 2500 +/- 10% RPM | |
| Fan Airflow | 26.93 CFM (Max.) | |
| Fan Air Pressure | 2.28 mm/ H2O | |
| Fan Bearing Type | Long Lifespan Sleeve Bearing | |
| Pump | Dimensions (L x W x H) |
65 x 50 x 31 mm 2.6 x 2.0 x 1.2" |
| Materials | PPS, GF | |
| Pump Speed | 5200 RPM +/- 10% | |
| Fan | Model | Luna Series AL120 |
| Quantity Included | 3 PCS | |
| Dimensions (L x W x H) |
120 x 120 x 25 mm 4.7 x 4.7 x 1.0" |
|
| Speed Mode | PWM 600 - 1800 +/- 10% RPM | |
| Noise Level | 35.5 dBA (Max.) | |
| Airflow | 82.96 CFM (Max) | |
| Air Pressure | 2.31 mm / H2O | |
| Connectors | 4-Pin (12V, PWM), 3-Pin (5V, ARGB) | |
| Rated Voltage | DC 12V | |
| Bearing Type | Long Lifespan Sleeve Bearing | |

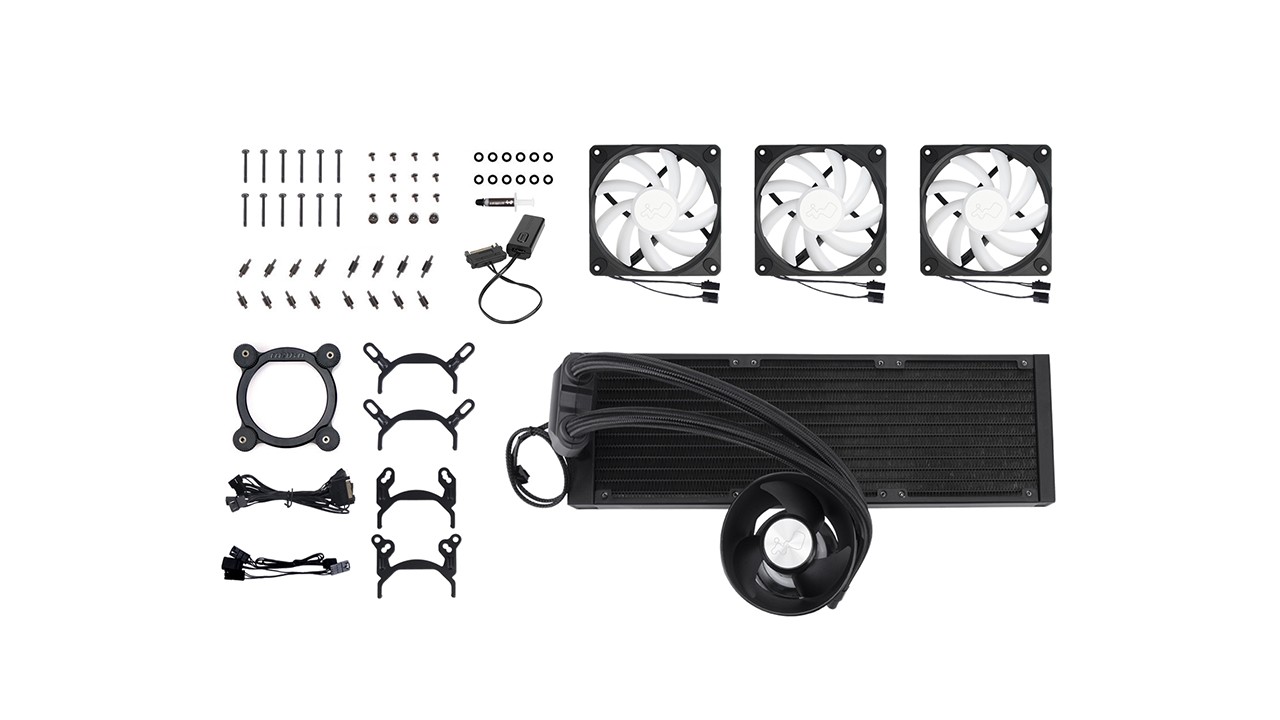

| Package Contents | InWin BR series 360mm CPU Liquid Cooler x 1 | |
| InWin AL120 Addressable Fan x 3 | ||
| ARGB One-Click Controller | ||
| Fan and Radiator Mounting Screws Pack | ||
| Mounting Kit for CPU Sockets | ||
| Cable Pack | ||
| Package Dimension (L x W x H) |
459 x 244 x 136 mm 18.1 x 9.6 x 5.3" |
|
| Net Weight | 1.1 kg / 2.2 lb | |
| Gross Weight | 2.5 kg / 5.5 lb | |
| Warranty | 3 Years | |
| * InWin's products comply with RoHS regulation. * Specifications may vary based on different regions. |
||
