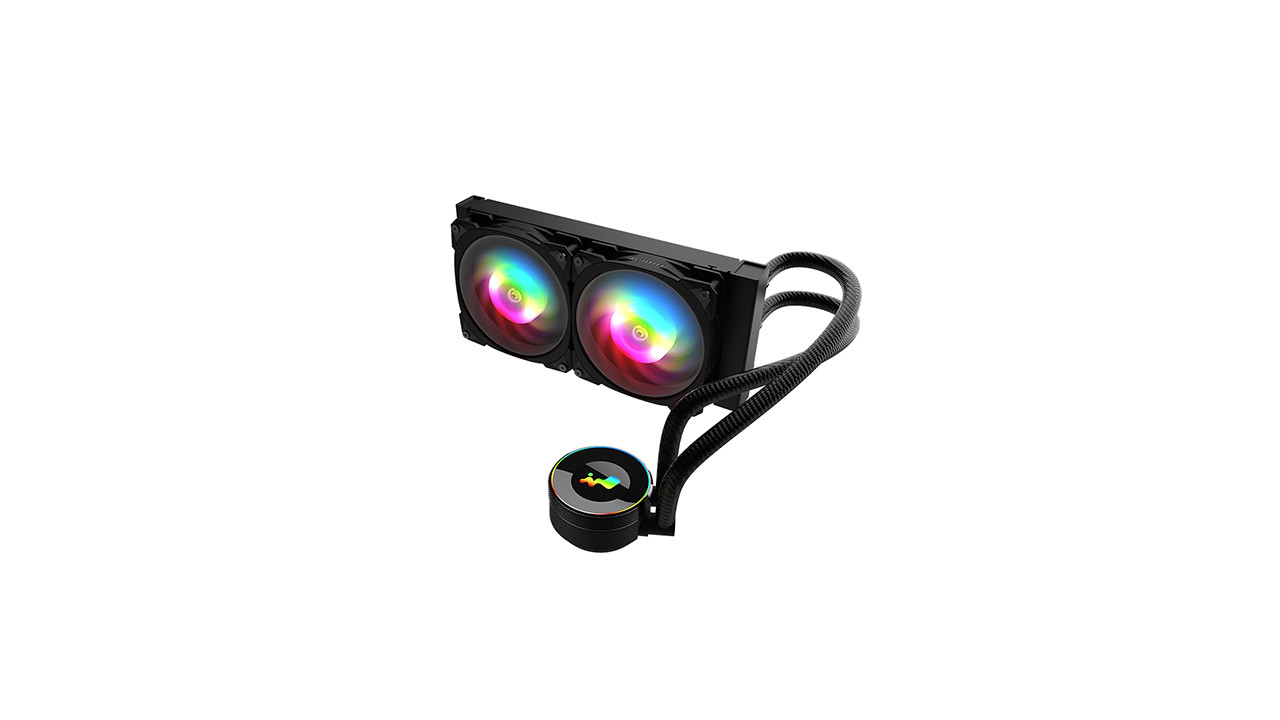

MR24

ALL-IN-ONE LIQUID CPU COOLER

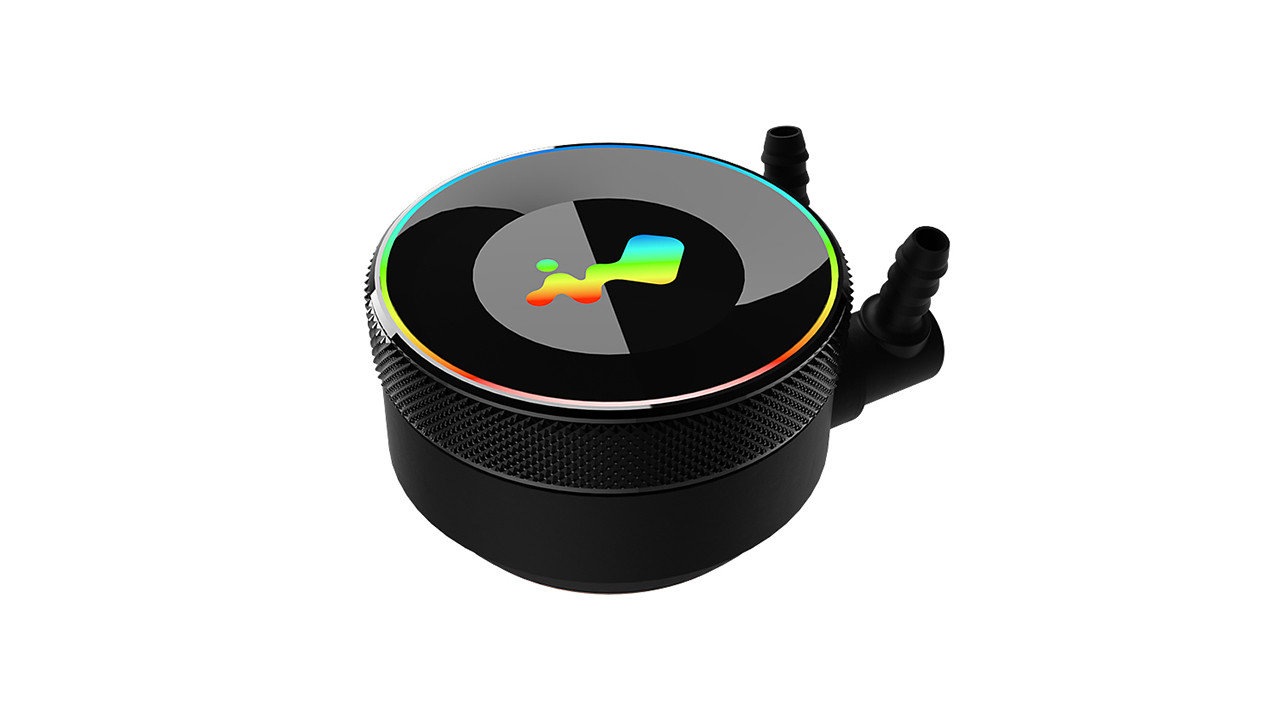

Rotatable CPU Blockhead

The MR Series features an aluminium rotatable CPU blockhead that’s accented with an alluring ARGB ring. The blockhead can rotate a full 360 degrees to match your build.

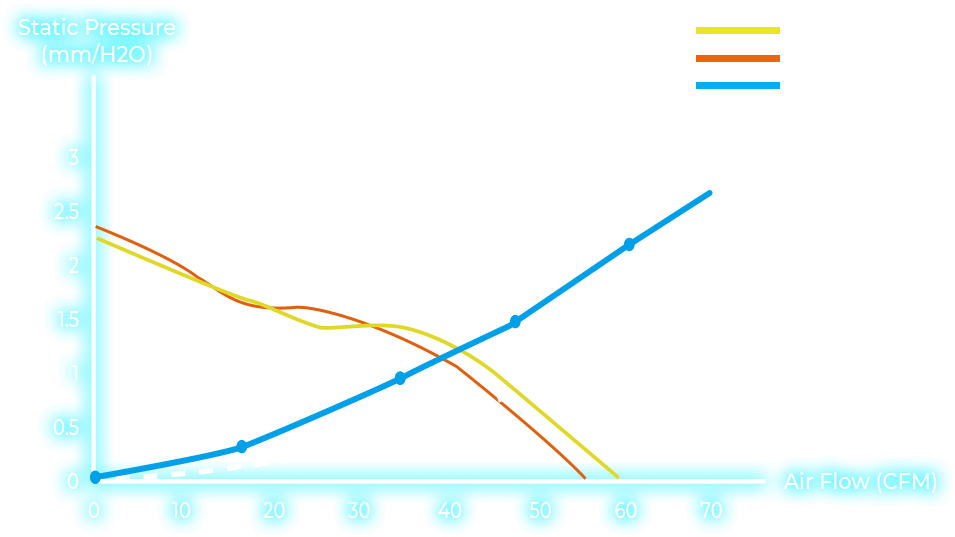

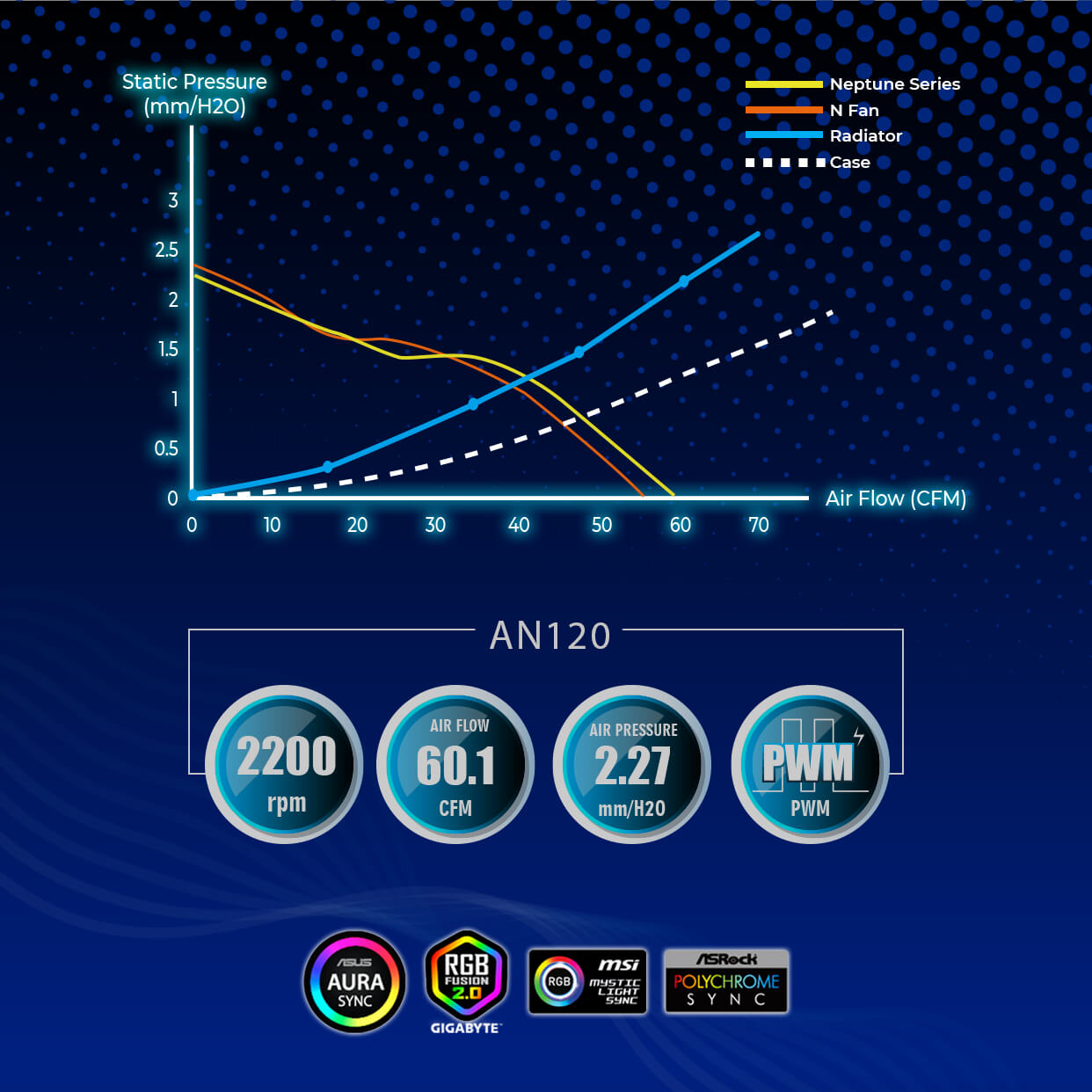

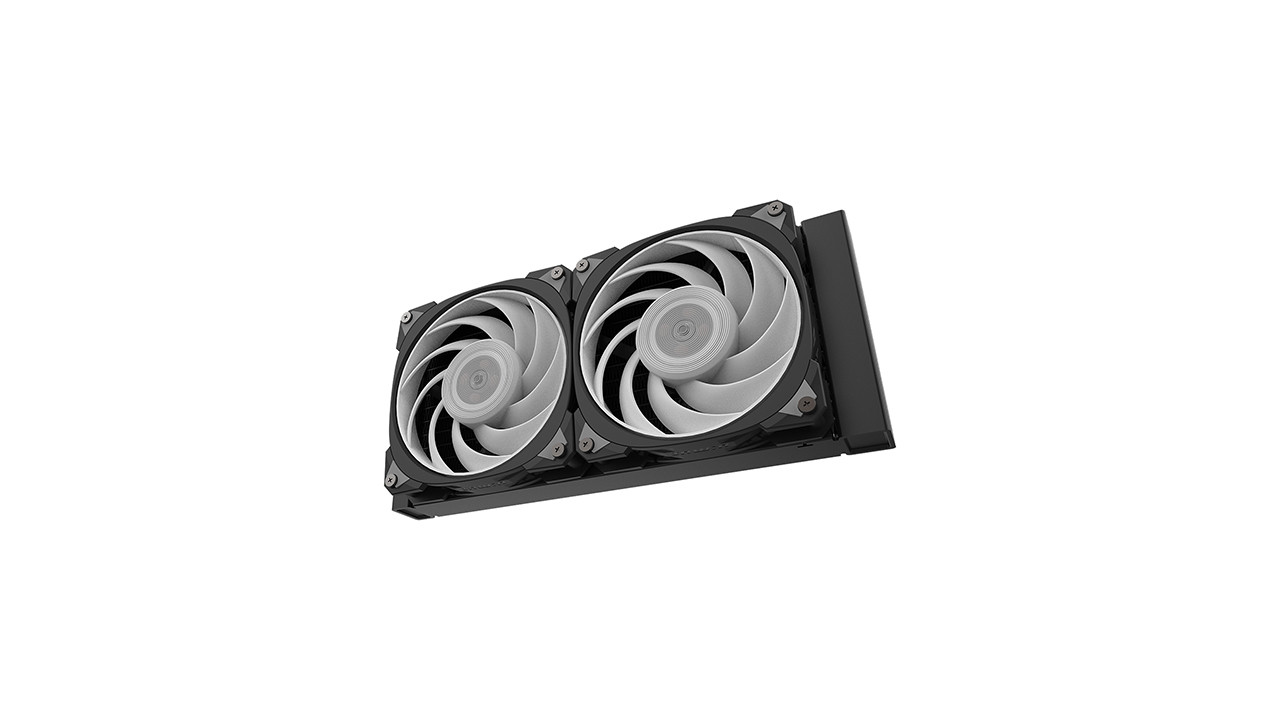

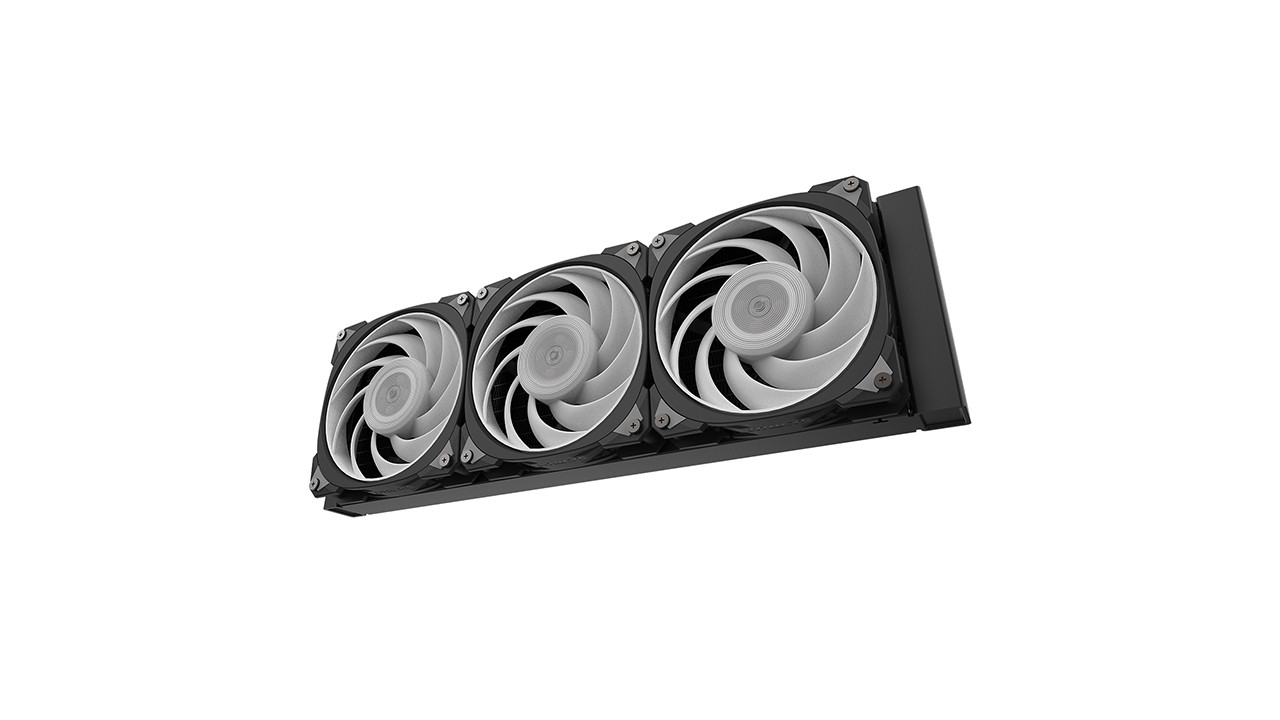

Silent Static Pressure Neptune AN120 Fans

The MR Series is armed with the Neptune AN120 fans. These fans offer excellent cooling performance without sacrificing your peaceful area.

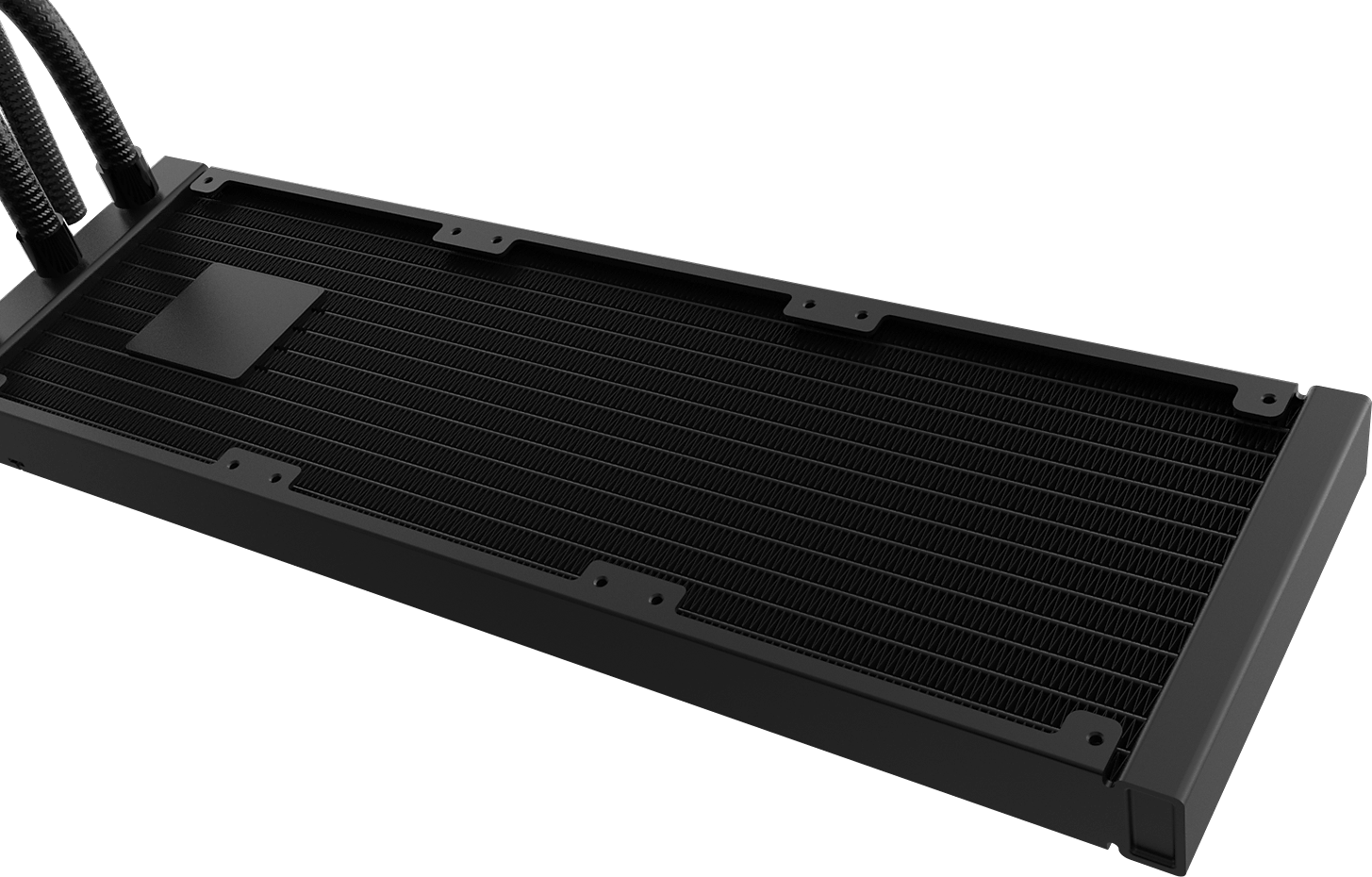

FIN-Tastic Heat Dissipation

The high-density microchannel fins and a large radiator heat dissipation area enhances heat conducting efficiency.

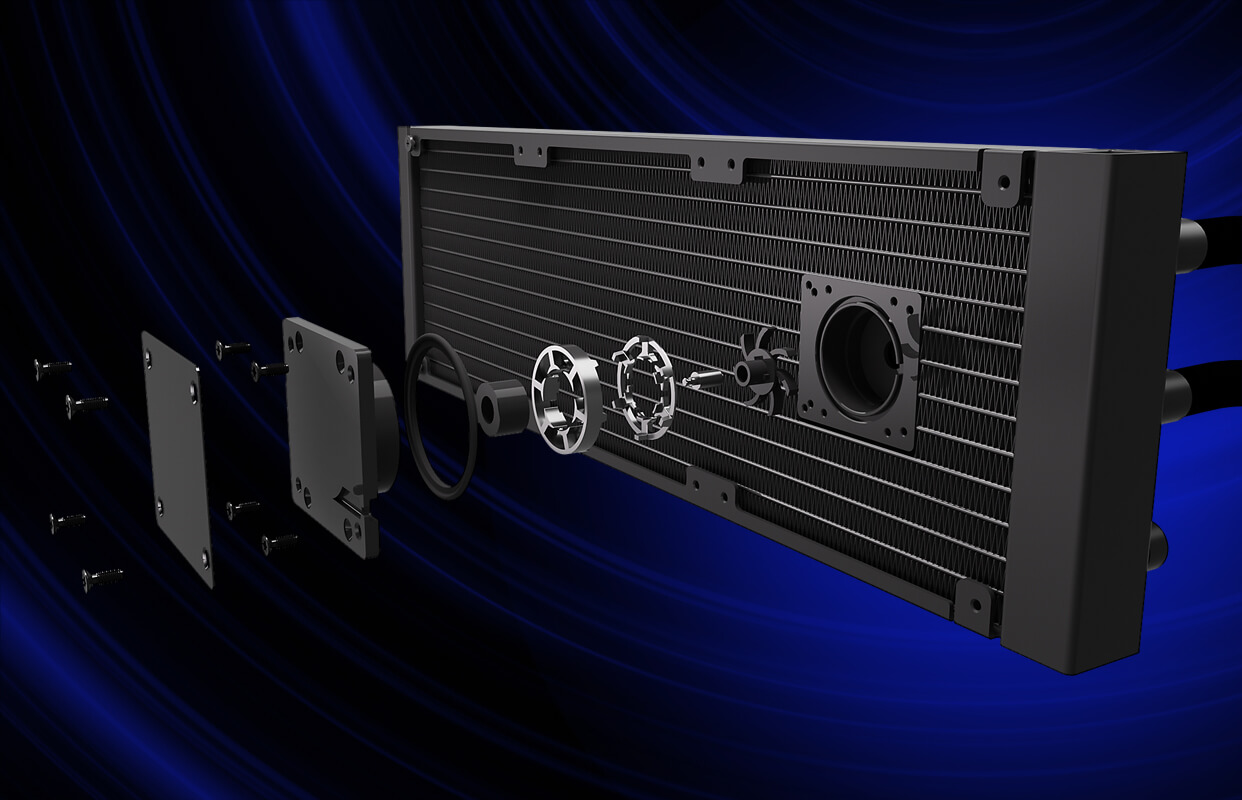

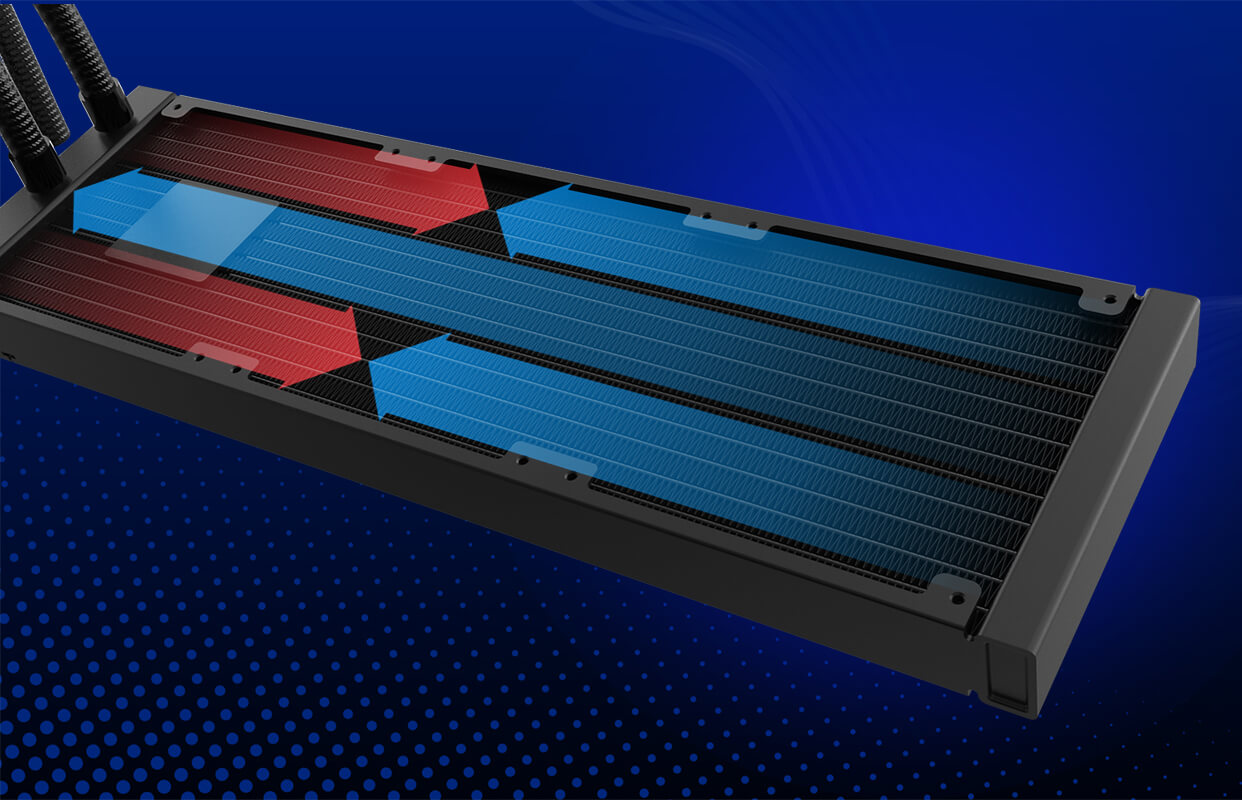

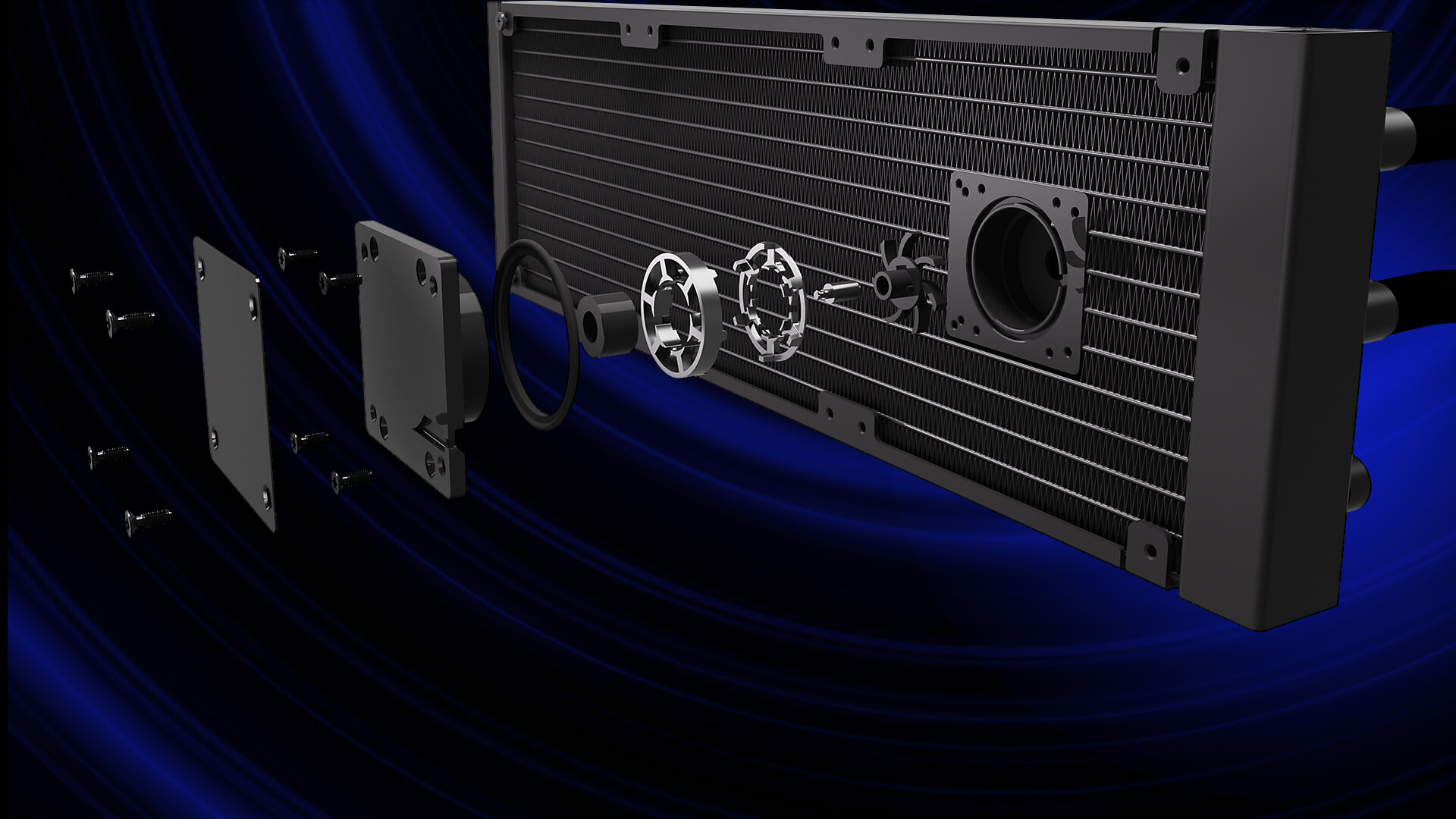

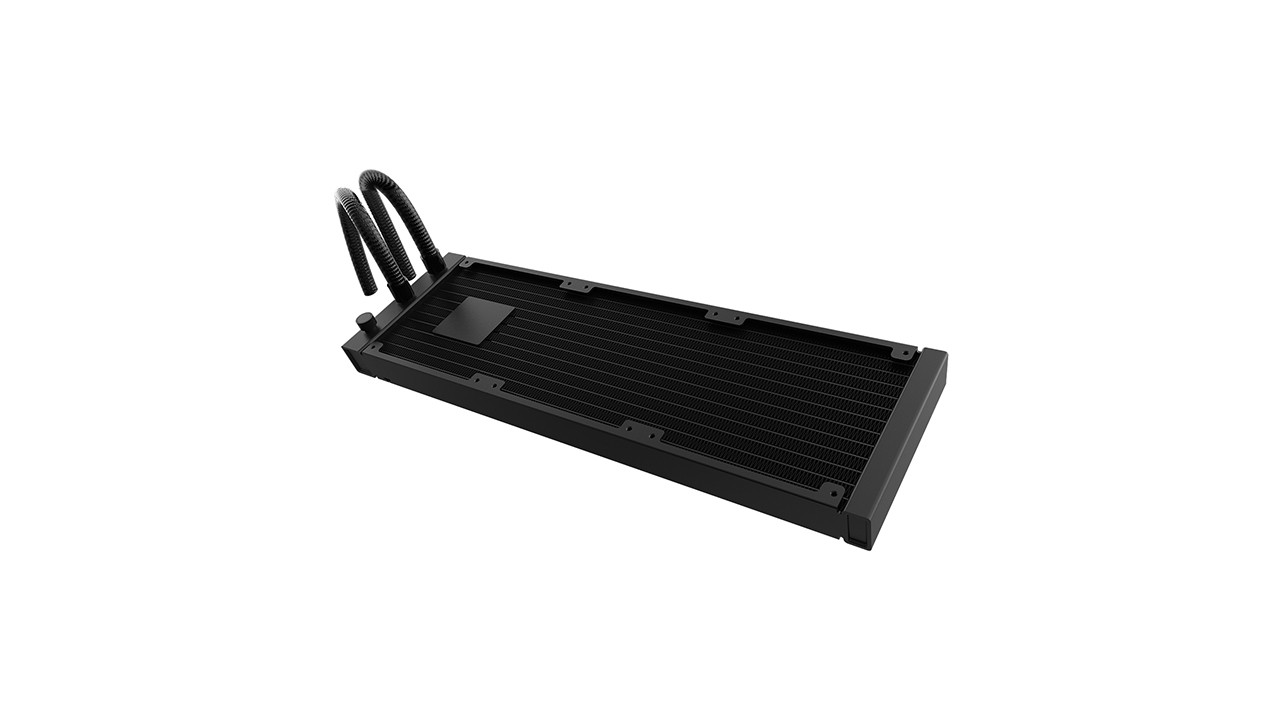

Radiator Mounted Pump Design

The pump is mounted into the radiator to suppress noise pollution and reduce vibrations. The high-speed pump quickly returns the liquid back into the cooling loop.

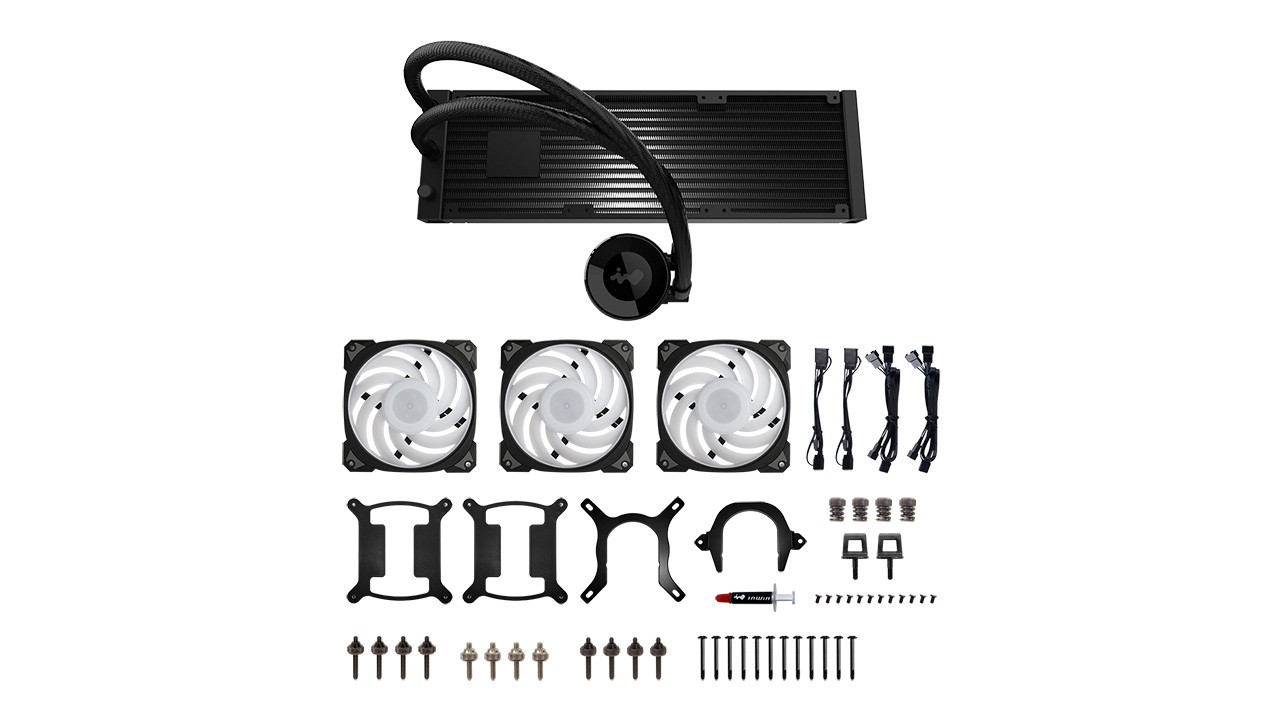

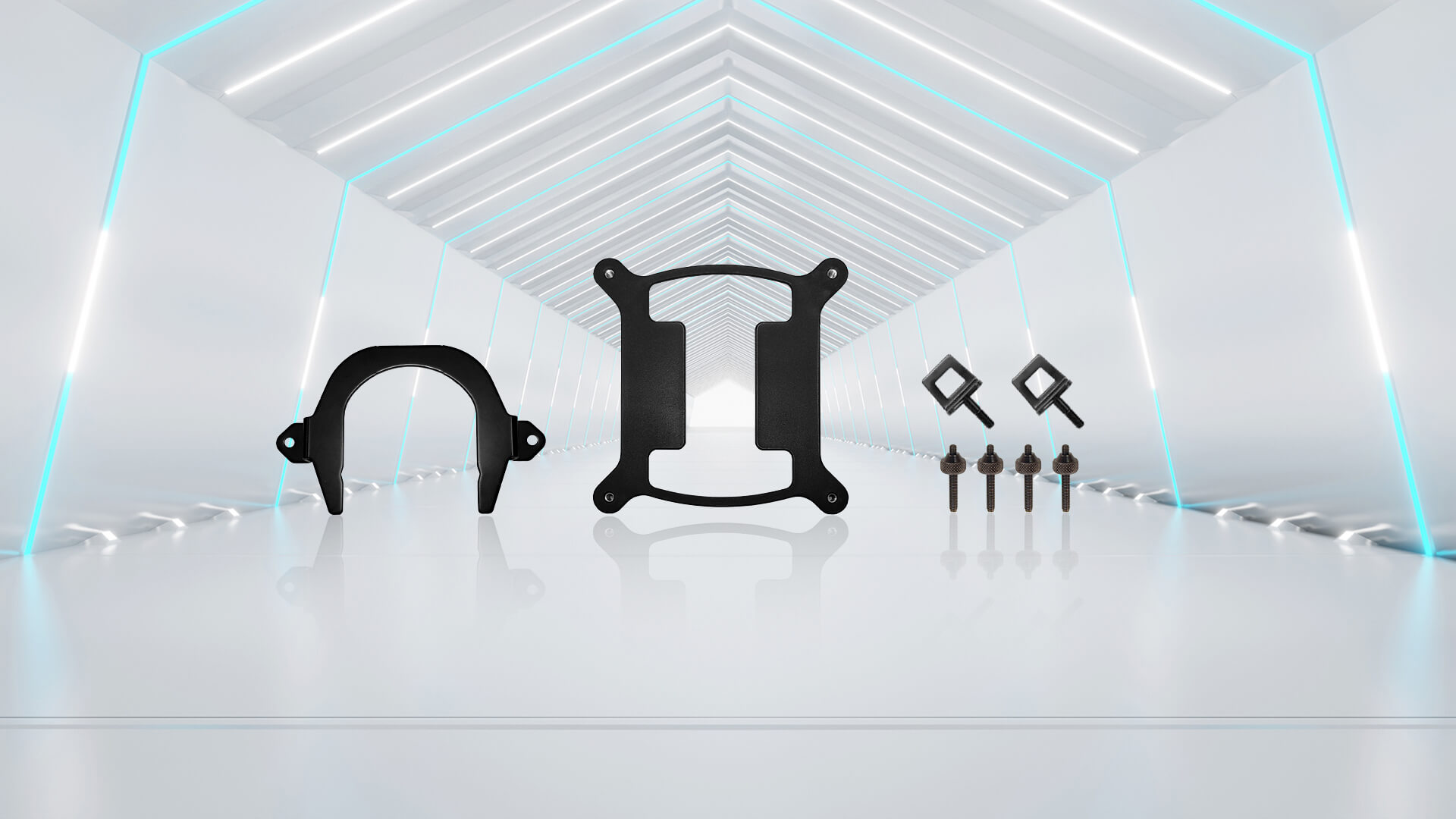

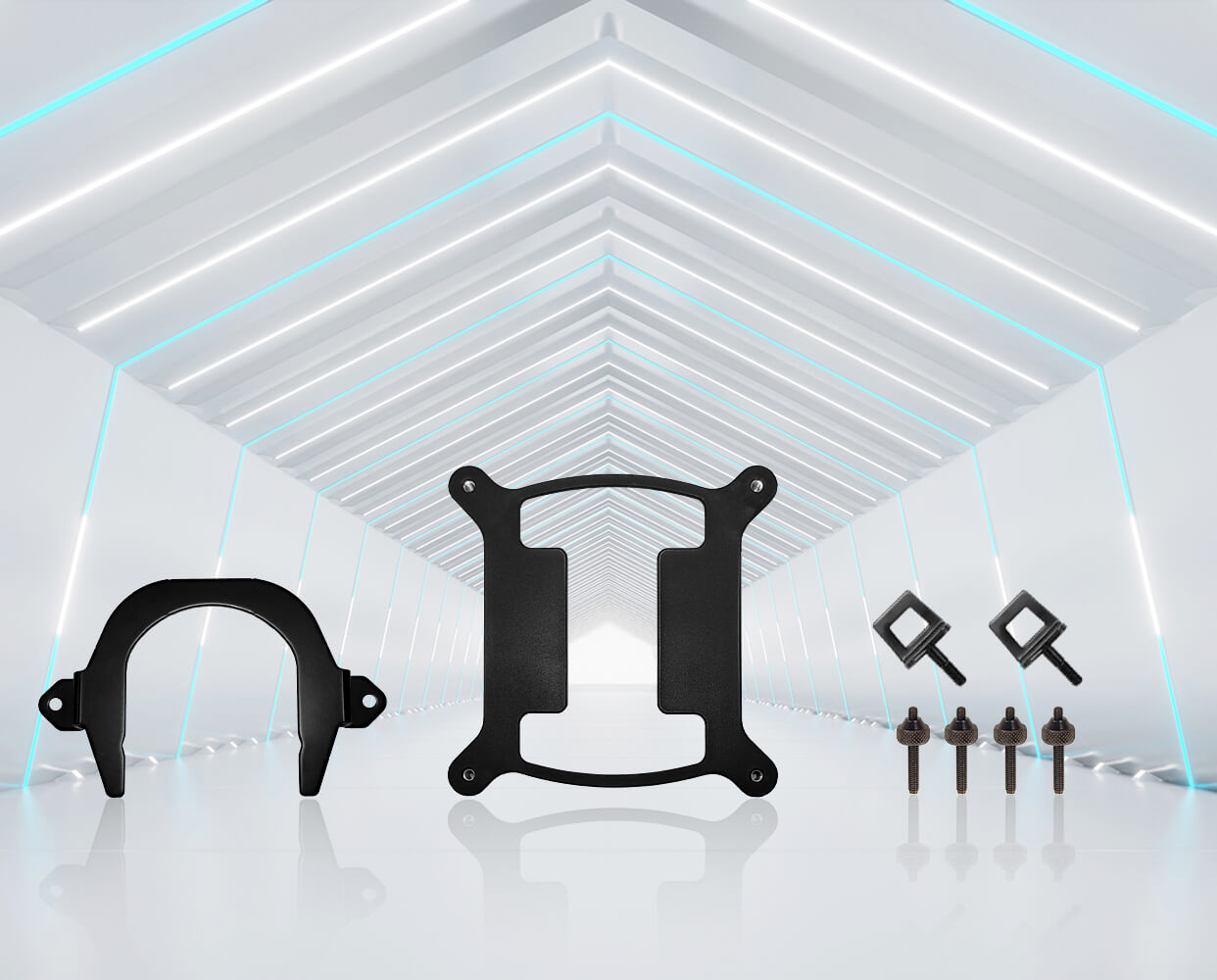

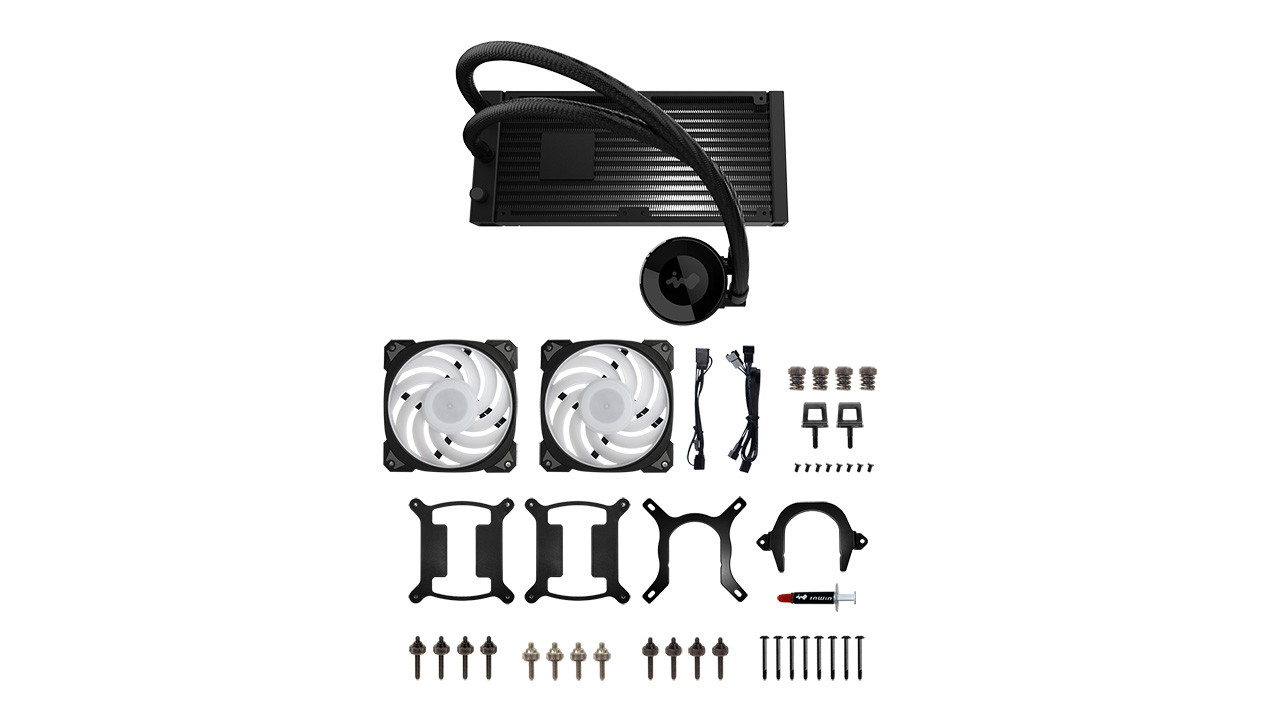

Premium Mounting Kit

The MR Series comes with premium steel Intel/AMD brackets, and are accompanied with a durable backplate.

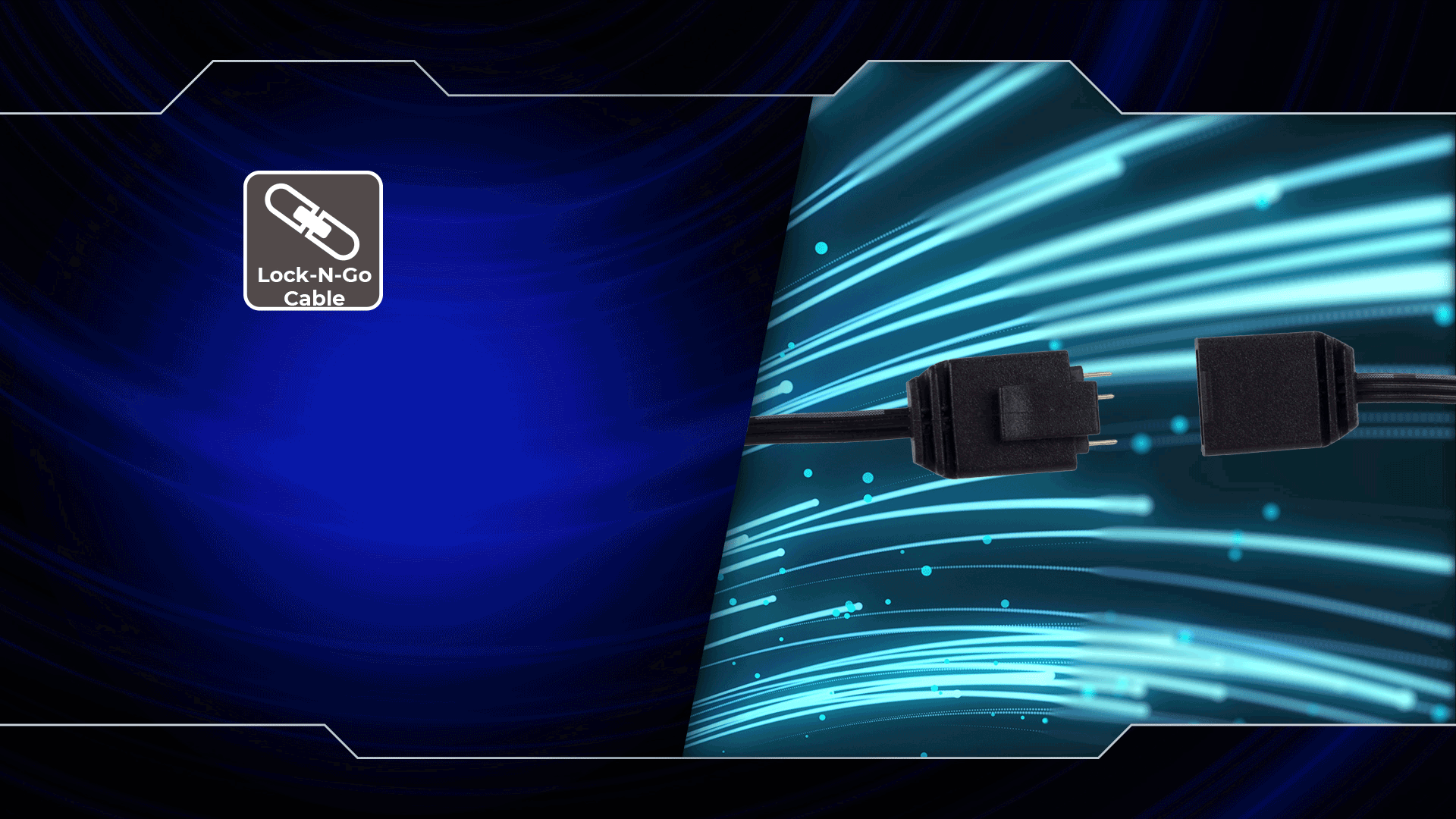

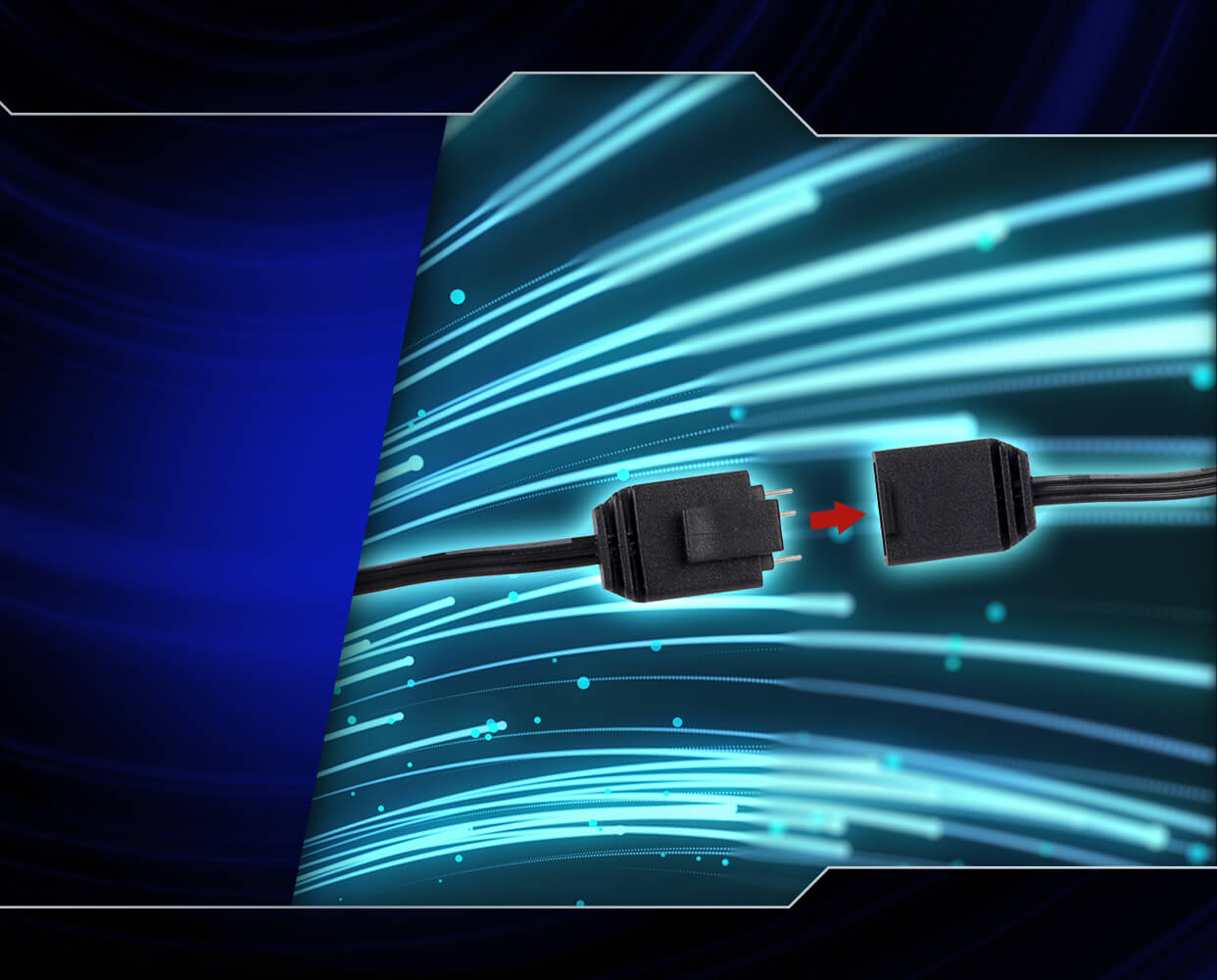

Lock-N-Go Cable

InWin’s new Lock-N-Go Cable with an anti-slide buckle design allows ARGB cable connectors to be secured like never before.

Supports Latest CPU Sockets

The modular, tool-free mounting brackets are designed for simple installation on all the latest CPU sockets, and includes LGA 1851 and AM5.

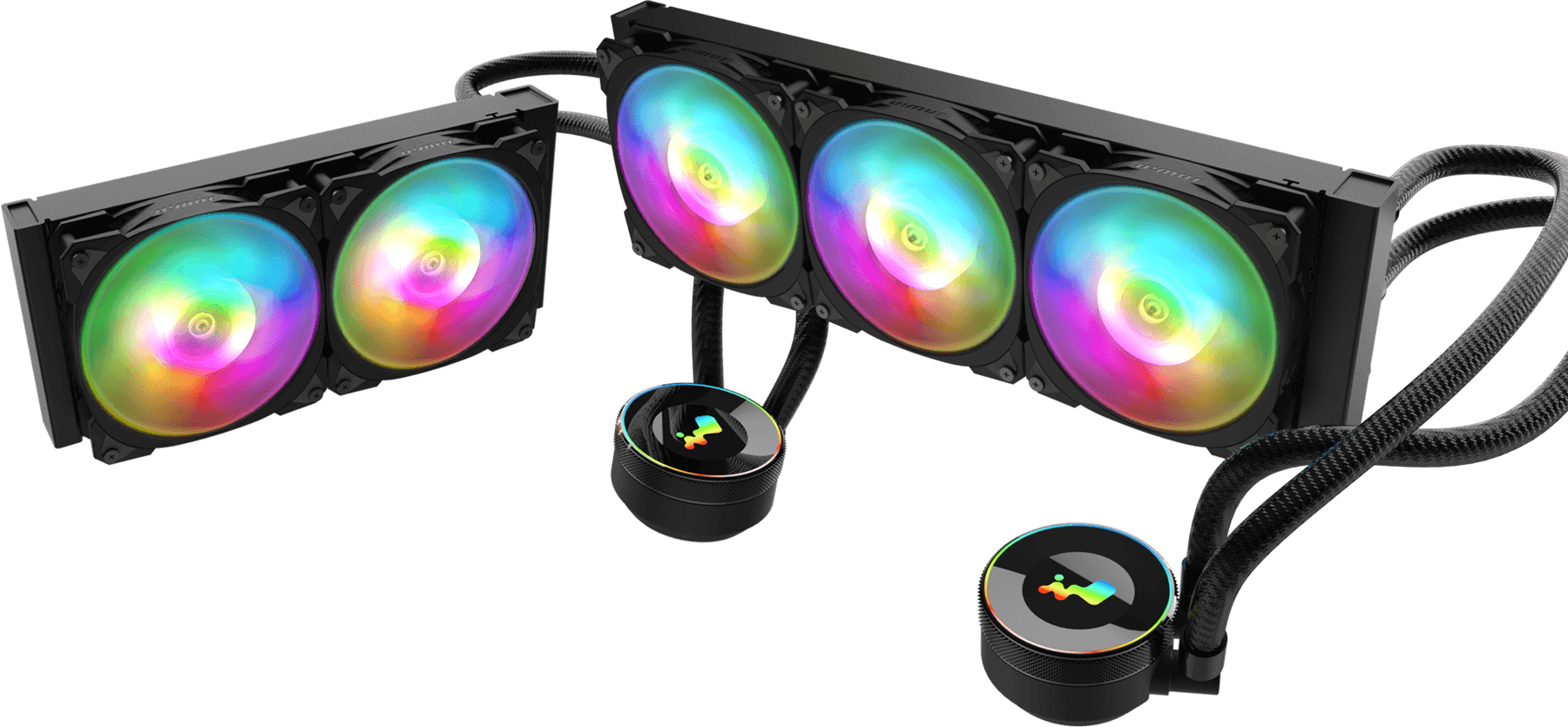

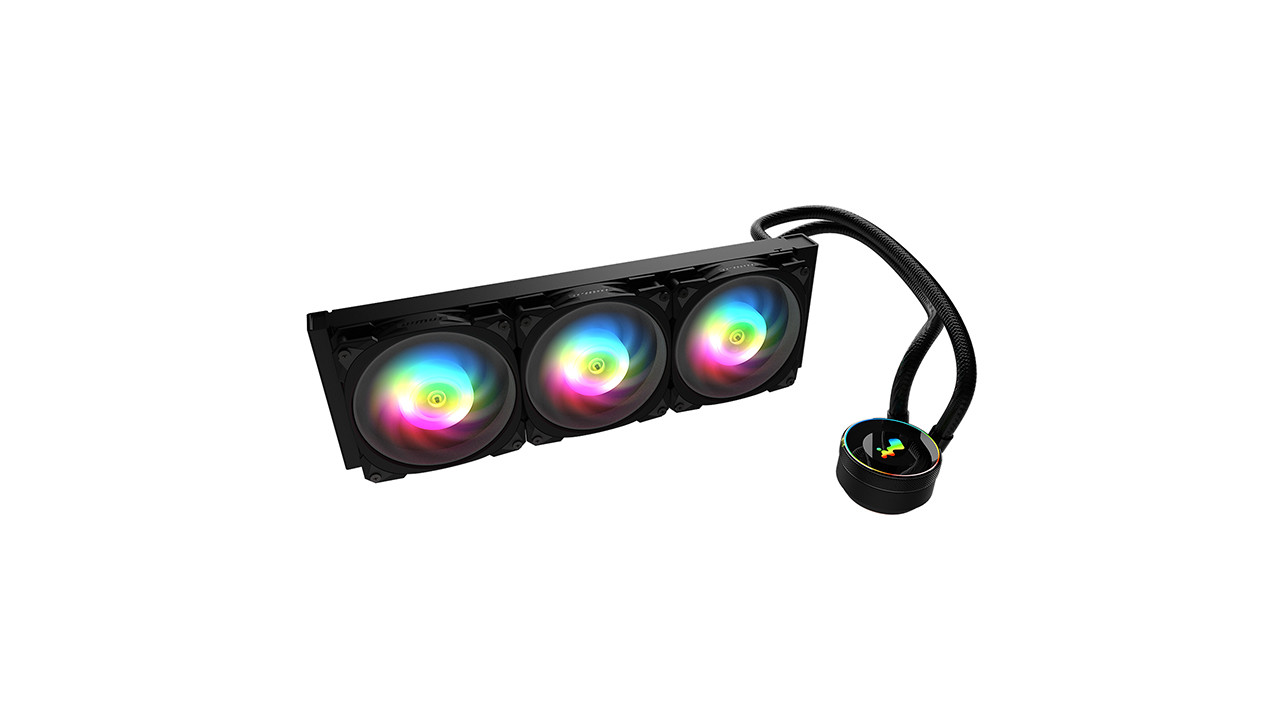

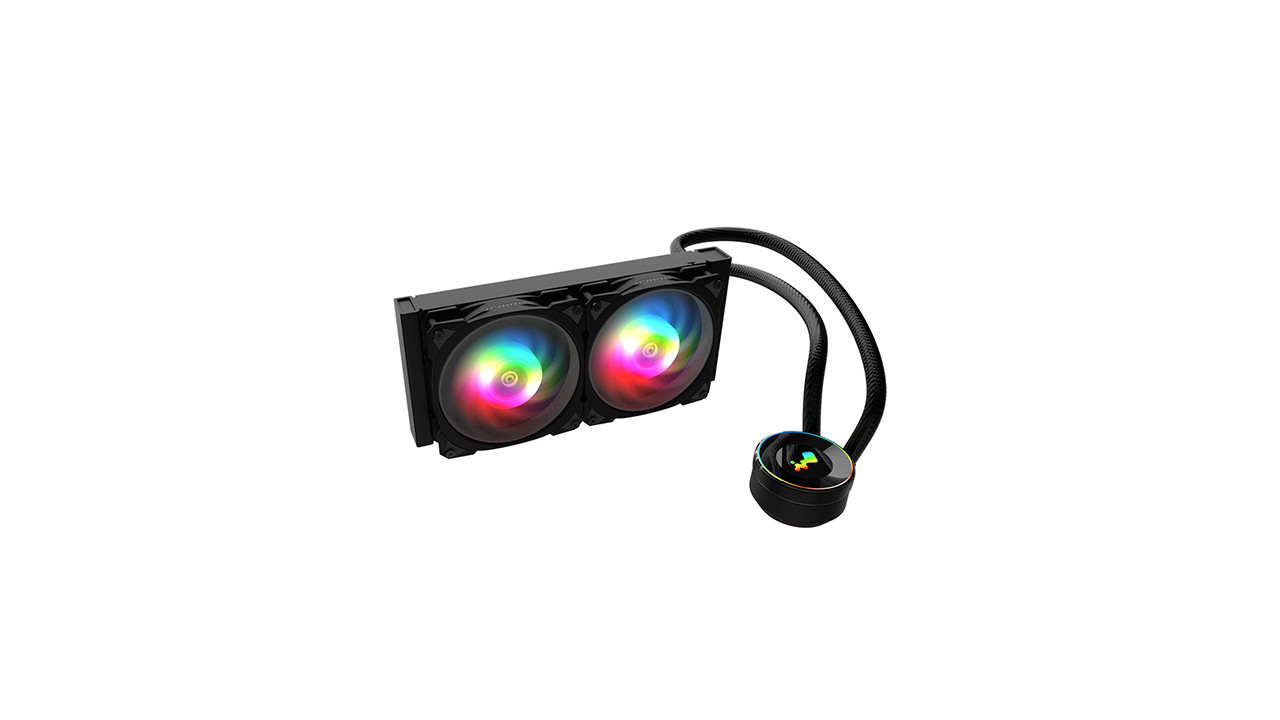

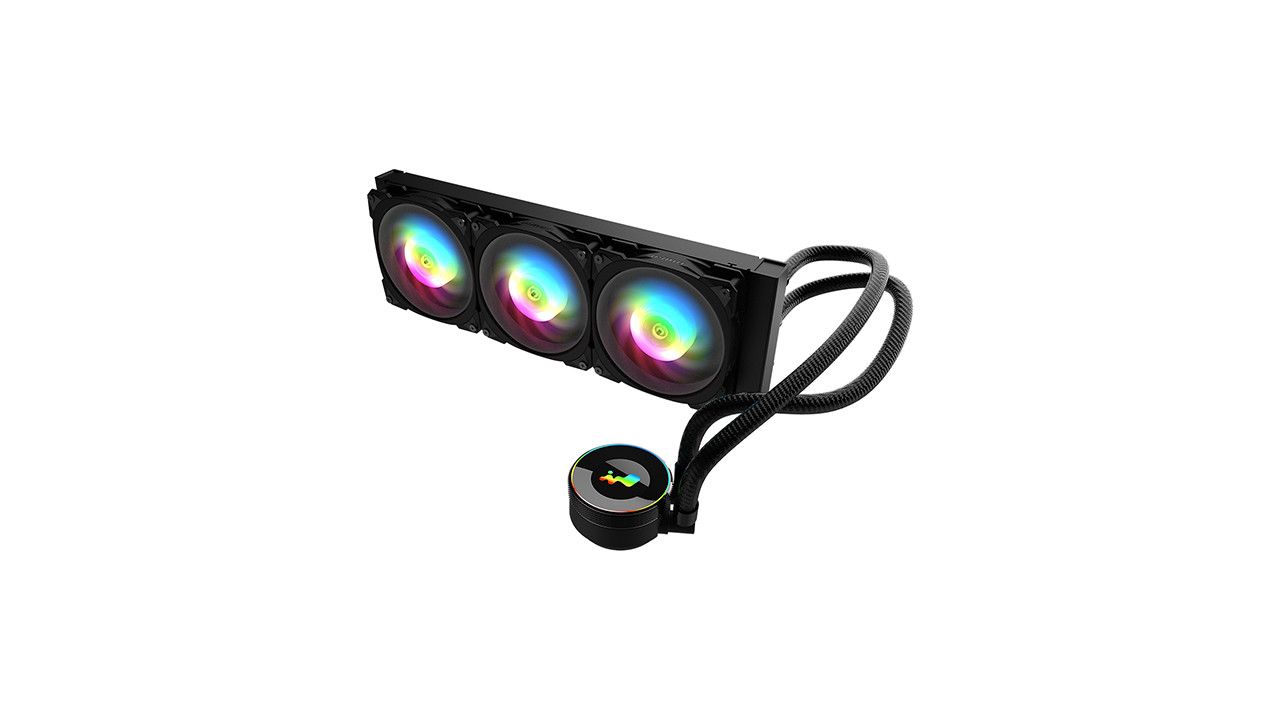

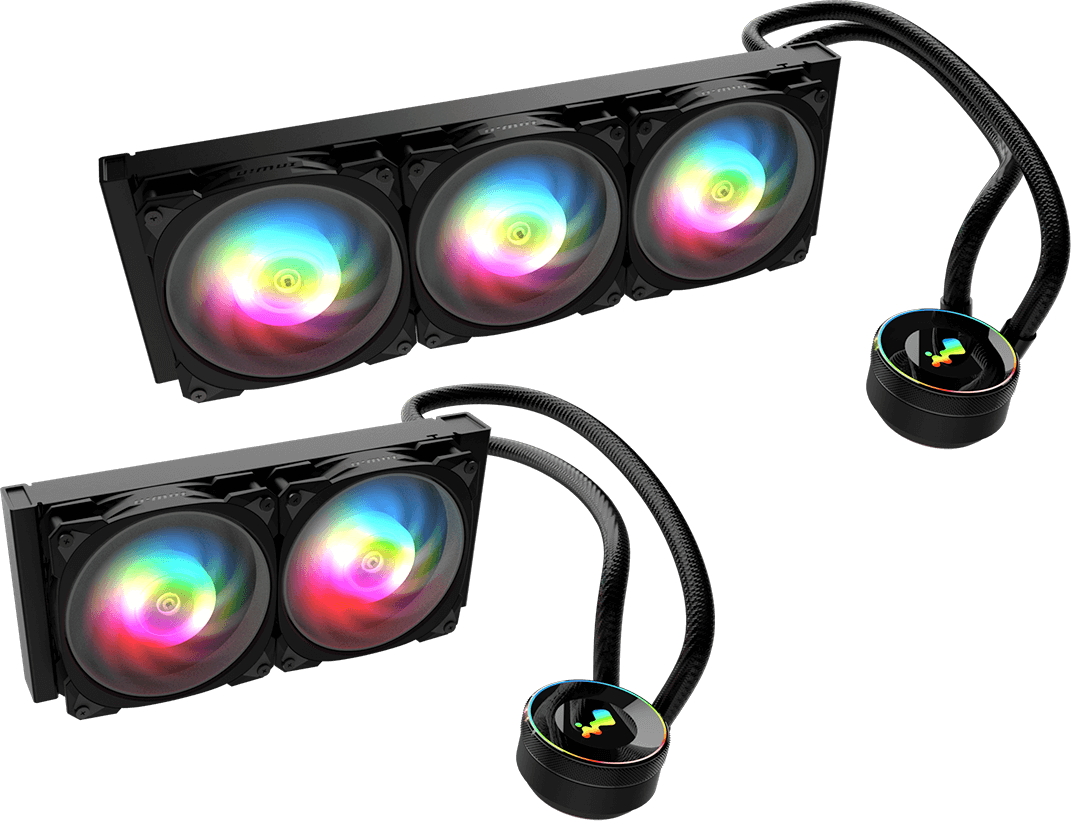

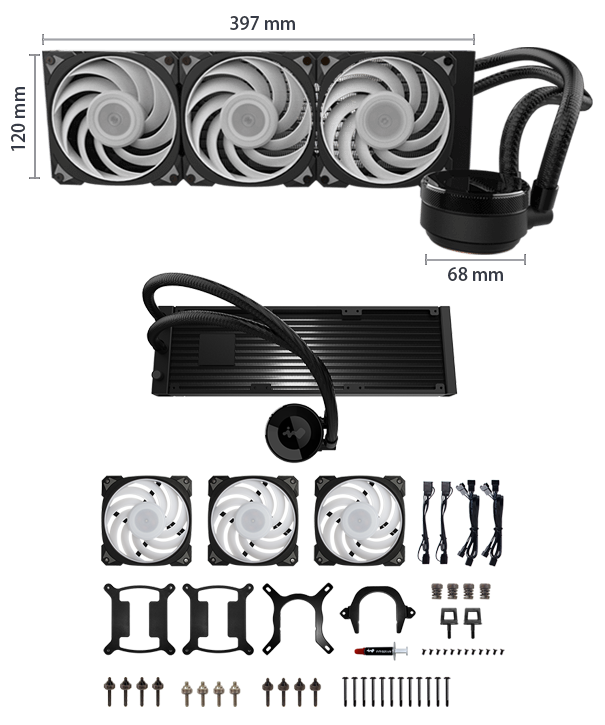

Available in Two Sizes

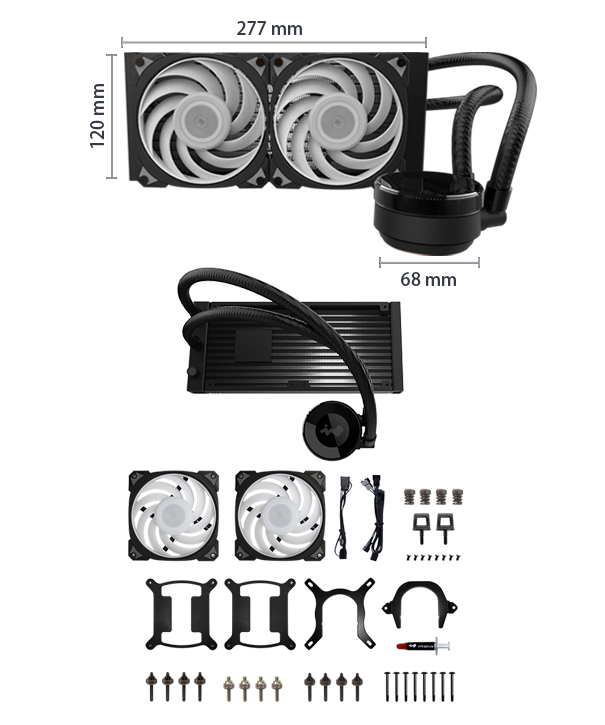

Specifications

Model MR24 MR36
Model Number IW-LC-MR24 IW-LC-MR36

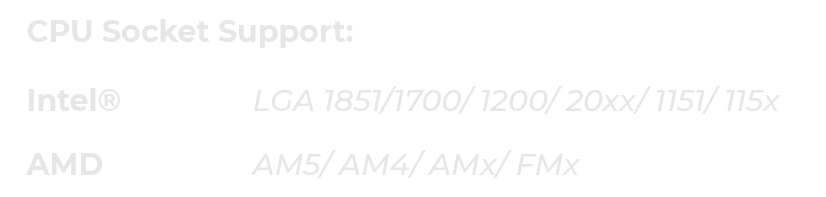

CPU Socket Support Intel® LGA 1851/ 1700/ 1200/ 20xx/ 1151/ 115x
AMD AM5/ AM4/ AMx/ FMx
Radiator Dimensions
(L x W x H)
277 x 120 x 27 mm
10.9 x 4.7 x 1.1"
397 x 120 x 27 mm
15.6 x 4.7 x 1.1"
Material Aluminium
Tube Length 400 mm 450 mm
Tube Material Rubber with Nylon Braided Sleeve
Water Block Dimensions
(L x W x H)
81 x 68 x 39 mm
4.7 x 4.7 x 1.0"
Materials Aluminium, Copper, Plastic
Pump Pump Speed 4200 RPM +/- 10%
Power DC 12V, 0.34A (0.45A MAX)
Fan Model Neptune AN120
Quantity Included 2 PCS 3 PCS
Dimensions
(L x W x H)
120 x 120 x 25 mm
4.7 x 4.7 x 1.0"
Speed Mode PWM 900 - 2200 +/- 10% RPM
Noise Level 20.5 dB(A) (Normal)
Airflow 23.87 - 60.1 CFM
Air Pressure 0.36 - 2.27 mm / H2O
Connectors 4-Pin (12V, PWM), 3-Pin (5V, ARGB)
Bearing Type Long Lifespan Sleeve Bearing
Package Dimension
(L x W x H)
322 x 137 x 205 mm
12.6 x 5.3 x 8"
448 x 137 x 205 mm
17.6 x 5.3 x 8"
Net Weight 1.4 Kg / 3.08 lbs 1.7 Kg / 3.7 lbs
Gross Weight 1.9 Kg / 4.1 lbs 2.4 Kg / 5.2 lbs
Warranty 3 Years
* InWin's products comply with RoHS regulation.
* Specifications may vary based on different regions.

Download

Video

News / Reviews

eStore

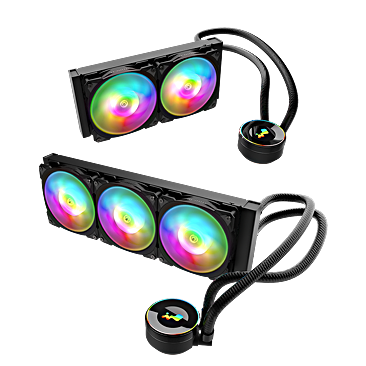

MR Series is on InWin Official eStore Now!
